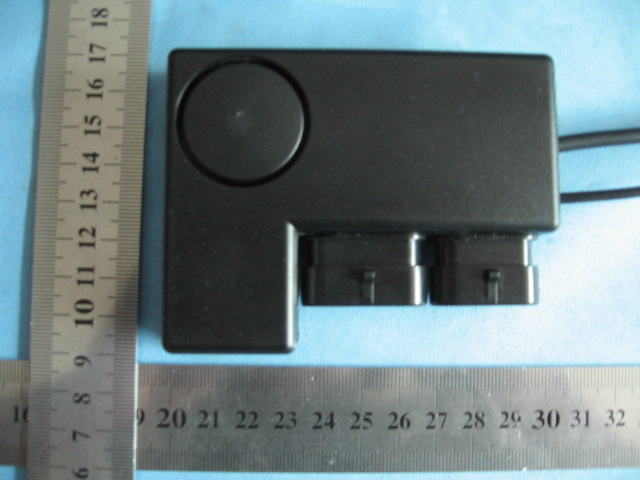

MKFARI53MAIN UNIT- REMOTE CONTROLLER

FCC Notice This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this device. Save this information for future use. Date of purchase _____/_____/_____ Place of purchase ______________________ ______________________ Invoice/Receipt # _________________ Model Number _________________ Production Code _________________ Notes: S PECIAL NOTE ON RANGE The average reception range is approximately ½ mile (800 meters). The actual reception range could be greater or less depending on th e location and/or the presence of obstacles between the vehicle and the receiver. The reception range can also be affected by the p resence of stron g electroma g netic interference from outside sources. a3 Im p ortant Information instalación Guía de Usuario Infromacion de mando A ccesorios opcionales A ppendix 1 Instalación Lista de Componentes 3 Plano de Instalación 3 Diagrama de Instalación 4 Avisos y notas de instalación 5 Montaje de Componentes 5 Montaje de Antena 5 Conexiones 5 Código de Colores 6 Uso de Connectors (T-Tap) 6 User’s Guide Mando: Pantalla de Icono y Mensajes 7 Mando: Instrucciones para Cargar 7 Mando: Status de Batería 7 Status de Batería de la Moto 7 Mando: Luz Trasera 7 Instrucciones de uso 8 Auto Activación 8 Activar Sensor Perimetral 8 Pánico / Parado de Provocación 8 Auto Desactivación 8 Desactivación Manual 8 Activación Manual 8 Instrucciones para Programar Y Personalizar 9 Entrar a Modo de Programación 9 Seleccionar opciones de Sensor Perimetral 9 Selección de tipo de alerta en el mando 10 Ajuste del Acelerómetro 10 Selección de opciones de Sirena 11 Ajuste del Reloj 11 Codificación del Mando 12 Información Adicional Indicación de Memoria de Sensores 13 Protección de Batería con “Modo Durmiente” 13 Tabla de Contenido a2 Limited Warranty Limited Warranty Products manufactured by Aritronix, Ltd are warranted by the company to the original consumer purchaser to be free from defects in workmanship and materials. Should a product be found defective Aritronix shall repair or replace the product or any part of the product which Aritronix agrees is defective without charge during the first 24 months from the date of original purchase provided that the product is returned to Aritronix freight prepaid and acco mpanied by a copy of the purchase receipt. This warranty does not apply to any product damaged by accident, physical or electrical misuse or abuse, improper installation, alteration, any use contrary to its intended function, fire, flood, unauthorized repair or any other acts of God. Aritronix shall not be responsible for removal and/or reinstallation charges or theft of the motorcycle or its contents or any incidental or consequential damages caused by any failure of the product to function properly. Under no circumstances should this warra nty or the product covered by warranty be construed as an insurance policy against loss or damage of any kind. Aritronix neither assumes nor authorizes any person or organization to make any warranties or assume any liability in connection with the sale, installation, or use of this product. This completes Aritronix warrant y and no other warranty exists. What should you do if you experience a problem with a Scorpio product? First contact Aritronix, Ltd [Proof of purchase, installer and moto rcycle information will be requested] . If after assistance from our trained staff it is determined that the Aritronix product may be faulty then you will be provided with detailed information on processing a warranty claim and instructions on how to send the product into our repair office. All warranty claims mu st contain a return material authorization (RMA). Aritronix will not accept any package that has not been approved for warranty repair/exchange and an issued RMA. Shi pp in g char g es ma y a pp l y . a1 Problem Possible Cause Solution No se activa Antena de RFID no esta conectada Verifique conexión entre MCM y Antena RFID Positivó o negativo no conectado Verifique conexión de positivo negativo Cable color naranja no conectado Verifique la conexión a un cable con 12v cuando la llave esta encendida. (luz trasera en la mayoría de motos) Luces direccionales no prenden Cable gris del GEN-1 no conectados o conec tados en cable equivocado Verifique conexiones o conecte en cable correcto Sensor perimetral no funciona Sensor no conectado Check connections Sistema programado para activarse con sensor apagado Entra a modo de programación y cambian opción Corte de encendido (RID-5) no funciona Cable color naranja de GEN-1 no esta conectado Verifique la conexión a un cable con 12v cuando la llave esta encendida. (luz trasera en la mayoría de motos) Corte de encendido instalado en cable incorrecto Verifique opciones de cables en pagina 22 y reconecte en otra opcion. Verifique conexión antes de continuar con instalación Troubleshooting guide 2 Proceso de Desactivasion Sin Mando Programación de código personal para deactivation 14 Entrar a Modo de Programación 14 Selección de numero de flashes 14 Como usar el código 14 Infroamcion de Mando Indicador de Alarmas 15 Confirmación de señal (CAS) 16 Indicación de Memoria de Alarma 16 Información de Batería del Mando 17 Etapas de la Batería 17 Optional Accessory Instructions Sensor Perimetral (SN-5) 19 Batería Auxiliar 20 Corta encendido/ anti-secuestro 21-22 Apéndice Solución de Problemas a1 Garantía Limitada a2 Información importante / Notas a3 Información de FCC a3 Notas Especiales a3 3 Componentes Component Check List TRS-9 MCM-9 antena de RFID Cargador GEN-1(bolsa) T-taps x4 ACC-1(bolsa) Velcro x2 Zip Ties x4 Capa x1 HAR-1 (bolsa) Plano de Instalacion Asegura que la batería en la moto esta totalmente cargada. Observe…

Text truncated - open the document above for the full version.

KENWO INDUSTRIES LIMITED MCM-9 BLOCK DIAGRAM （ MAIN UNIT ） RX-in TX-out LNA T/R Switch MCU 32.768KHz CRYSTAL Drive PA Shock Sensor L/R Lamp ACC Perimeter Sensor Perimeter Sensor Anti- Hi-jack Siren Backup Battery ANT RX Power Tx Power RF Module 13.2531MHz CRYSTAL RFID transmit electrocircuit RFID transmit antenna

FCC ID: MKFARI53 Authorization l,etter Mar 25, 2008. Federaf Conmunications Conmissi-on Authorization and Evaluation Division 7435 oakland Milfs Road colunbia, MD 21046 To Whon It May Concern: We, the undersj-gned, hereby authorize 9lorld Standardization Certification & Testing co., LTD. (cathy liu/Doris YilHenry Yang) on our behalf, to apply to the Federal Conununications Corunission on our equipment. Any and all acts carried out by world Standardization Certification & Testing CO.. LTD. (CaLhy ]iu,/Doris Yi/Henry Yang) on our behalf shalf have the same effect as acts of our own. This authorization expires on Mar 25' 2009. Thls is to advise that we are in full compliance with the Antj--Drug Abuse Act. we, Kenwo Industries Limited, are not subject to a denj-al of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the appfication is subject to a deniaf of federal benefits pursuant to Lhat section,

FCC ID Label Sample for FCC ID: MKFARI53_ FCC ID: MKFARI53 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Inside view of EUT PCB1 View 1 PCB1 View 2 PCB2 View 1 PCB2 View 2

Kenwo industries Limited Technical Description of Main unit (MCM-9) MCU section The unit contains a powerful MCU (micro-controller) U7, Which controls the whole unit, a UHF wireless data transceiver sends RF signals to and receives RF signals from remoter. A 32.768KHz crystal (X1, C46, C47 and U7) provides a time base signal for the MCU. MCU detects many trigger inputs to protect the car: car ignition key is turned on (Q20 and its related components), shock sensor (U2, Q5, U5 and its related components) detects shock or tilt, perimeter sensor (an optional microwave sensor) (Q16，D7，Q21 and its related components) detects anybody intrude nearby. On the other hand, MCU provides electronic locking mechanism to prevent the car from being stolen, and generates sound and vision output to alert the intruder: The unit provides a driving output (Q22 and its related components) for a anti hi-jack (an optional relay box) to cut the oil pump, unit provides a driving output (U8 and its related components) for L/R lamps, also the unit (Q17, T1, BZ1 and its related components) generates beeps and alert signal to alert the user/intruder. Besides a backup battery and charge unit (BAT1, D5, D4, Q6, Q7 and its related components) keeps energy to protect the unit is being power cut. The unit includes a 2-way remote VAK06 to control ON/OFF (ARM/DISARM) of the main unit; also the main unit echo back or send trigger signals to remote, thus the user knows what is happening. RF section U4 (ATA5428) is a UHF wireless data transmitters and receiver, MCU controlled it through port SCK,SDI_TMDI,SDO_TMDO and IRQ. Q1,Q2 and its related components compose RF power amplifier when transmitting. Q3,Q4 and its related components compose low noise amplifier when receiving. RFID section The 125KHz signal generated by 36th, 37th pin of U7, will be amplified by amplifier net (including Q8、 Q9、Q10、Q13、U9、U8 and etc.) and radiated by antenna net (including L6, C72).

Note: This report shall not be reproduced except in full, without the written approval of World standardization Certification &Testing CO.,LTD. This document may be altered or revised by World standardization Certification &Testing CO.,LTD. personnel only, and shall be noted in the revision section of the document. Applicant: Kenwo Industries Limited REPORT NUMBER: WSCT08030049E-RF FCC ID: MKFARI53 Page 1 of 23 FCC 47 CFR PART 15 SUBPART C TEST REPORT Report Number: WSCT08030049E-RF FCC ID: MKFARI53 For MAIN UNIT Model: MCM-9 Trade Name: N/A Prepared for Kenwo Industries Limited Unit 1-2, 7/F, Block A, Hi-Tech Ind Ctr 5 Pak Tin Par Street Tsuen Wan, Hong Kong Prepared by WORLD STANDARDIZATION CERTIFICATION & TESTING CO., LTD. 1-2/F, DACHONG KEJI BUILDING NO.25 OF TONGGU ROAD, NANSHAN DISTRICT, SHENZHEN. PRC TEL: 86-755-26996142 FAX: 86-755-26996253 Applicant: Kenwo Industries Limited REPORT NUMBER: WSCT08030049E-RF FCC ID: MKFARI53 Page 2 of 23 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION.............................................................................................................. 5 3.2 EUT EXERCISE......................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES.................................................................................................. 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .............................................. 6 3.5 DESCRIPTION OF TEST MODES................................................................................................. 6 4. INSTRUMENT CALIBRATION................................................................................................. 7 5. FACILITIES AND ACCREDITATIONS ................................................................................... 8 5.1 FACILITIES.............................................................................................................................. 8 5.2 EQUIPMENT............................................................................................................................. 8 5.3 LABORATORY ACCREDITATIONS AND LISTING....................................................................... 8 6. SETUP OF EQUIPMENT UNDER TEST .................................................................................. 9 6.1 SETUP CONFIGURATION OF EUT.............................................................................................. 9 6.2 SUPPORT EQUIPMENT.............................................................................................................. 9 7. FCC PART 15.231,15.209,15.205 REQUIREMENTS.............................................................. 10 7.1 20 DB BANDWIDTH .......................................................................................................... 10 7.2 LIMIT OF TRANSMISSION TIME.............................................................................................. 12 7.3 DUTY CYCLE ..................................................................................................................... 14 7.4 RADIATED EMISSIONS........................................................................................................... 16 7.5 POWERLINE CONDUCTED EMISSIONS.................................................................................... 22 Applicant: Kenwo Industries Limited REPORT NUMBER: WSCT08030049E-RF FCC ID: MKFARI53 Page 3 of 23 1. TEST RESULT CERTIFICATION Applicant: Kenwo Industries Limited Unit 1-2, 7/F, Block A, Hi-Tech Ind Ctr 5 Pak Tin Par Street Tsuen Wan, Hong Kong Equipment Under Test: MAIN UNIT Tr a d e N a m e : N/A Model: MCM-9 Date of Test: January07~25, 2008 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C Section 15.231 No non-compliance noted We hereby certify that: The above equipment was tested by World Standardization Certification & Testing Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4-2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.207, 15.209 and Part 15.231. The test results of this report relate only to the tested sample identified in this report. Approved by: Tested By: Kallen Wang/ General Manager Henry Yang / Testing Engineer Applicant: Kenwo Industries Limited REPORT NUMBER: WSCT08030049E-RF FCC ID: MKFARI53 Page 4 of 23 2. EUT DESCRIPTION Product MAIN UNIT Trade Name N/A Model Number MCM-9 Model Difference N/A Power Supply DC 12.6V powered by the battery Frequency Range 433.92 MHz Antenna Designation PCB Antenna Type of MAIN UNIT DSR Modulation FSK Remark: This submittal(s) (test report) is intended for FCC ID: MKFARI53 filing to comply with Section 15.207, 15.209 and 15.231 of the FCC Part 15, Subpart C Rules. Applicant: Kenwo Industries Limited REPORT NUMBER: WSCT08030049E-RF FCC ID: MKFARI53 Page 5 of 23 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 (2003) and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, 15.207, 15.209 and 15.231. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 3.2 EUT EXERCISE The EUT was operated in the engineering mode …
