MKFARI57TRAILER MONITORING SYSTEM

Use guidelines TRMS-400-11011 TRMS-400 is an additional product for the refrigeration truck, consists of the receiver/transmitter, the antenna and the protected shelf, and all production items are incorporated ,.it can connect to I-Box of the reefer by the RS232 interface, and also can control the reefer, process the GPS position information by the extend object, detect the door opened/closed state or the fuel signal. TRMS-400 process and send those data to the control panel or the PC software of the yard management system to show the corresponding information, so the controller can control the working status of the machine. TRMS-400 was processed by glue, the surface has a LED light and some plug, LED uses for indicating the working status, the black small plug uses for learning ID and update the software, the other plug is the interface of the signal’s out/in controlling. Firstly, find a suitable position at the top of refrigeration truck and fixe the antenna protective rubber by the standard configuration screw, then fixed the antenna wire. Ensure when the refrigeration truck is running, other objects can not touch the antenna shelf or the antenna wire. Install the TRMS-400 machine in the Reefer box. Install TRMS-400 by the standard configuration connected wire. Specifically please see the following figure: In order to Communication, please ensure it has been learned ID between the fuel-transmitter/door-status-detector and TRMS-400 when the installation was complete. Take the black plug out and then plug it in again after plug in the host of the receiver, then the host will flash(always) the green LED light and get into learn ID mode. The fuel transmitter and the door state detector will send a paired learning code to the TRMS-200 in one minute, the TRMS-200 will flash the red LED light then save the id of the door state detector and the door open order when it receive the door detector signal, the flash number of times varies with the door open order, flash the green/read LED light when it receive the fuel transmitter signal, also save the id of the fuel transmitter. Specifically see the manual of each machine. In the use of the process, if the LED flash a faint light or not flash when the TRMS-200 receive the status signal which the door opened status or fuel status be changed from the fuel transmitter or the door status detector, It means low batteries, please change other machine and get into learning mode anew TRMS-200 will consume a certain electric quantity when it is working, please power off if not used for a long period of time, lest the power run out and can not launch the Reefer engine. This device complies with Part of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference (2) this device must accept any interference received, including interference that may cause undesired operation Caution content: changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help

Kenwo Industries Limited Unit 1-2, 7/F, Block A, Hi-Tech Ind Ctr 5 Park Tin Par Street Tsuen Wan, Hong Kong Authority letter Date: 2010-04-20 FCC ID: MKFARI57 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: WORLD STANDARDIZATION CERTIFICATION & TESTING CO., LTD. Laboratory is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Yick Keung Lau Unit 1-2, 7/F, Block A, Hi-Tech Ind Ctr 5 Park Tin Par Street Tsuen Wan, Hong Kong Authority letter Tel: （852）2415 3286 Fax: （852）2415 3799

Kenwo Industries Limited Unit 1-2, 7/F, Block A, Hi-Tech Ind Ctr 5 Park Tin Par Street Tsuen Wan, Hong Kong Confidentiality Date: 2010-04-20 FCC ID: MKFARI57 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Thank you. Regards, Yick Keung Lau Unit 1-2, 7/F, Block A, Hi-Tech Ind Ctr 5 Park Tin Par Street Tsuen Wan, Hong Kong Authority letter Tel: （852）2415 3286 Fax: （852）2415 3799

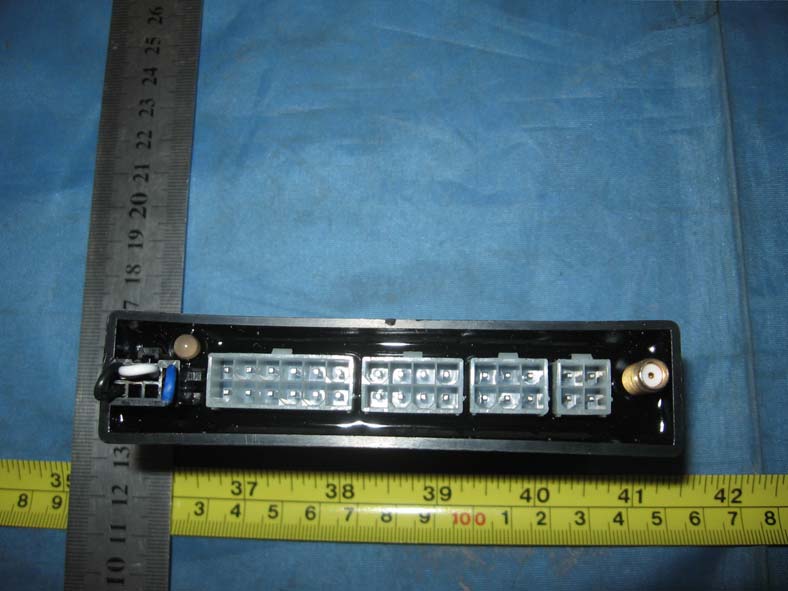

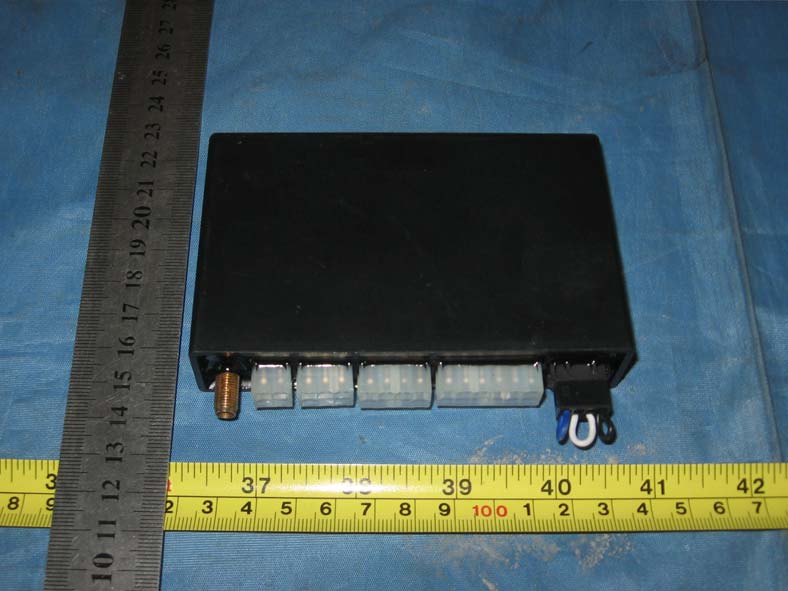

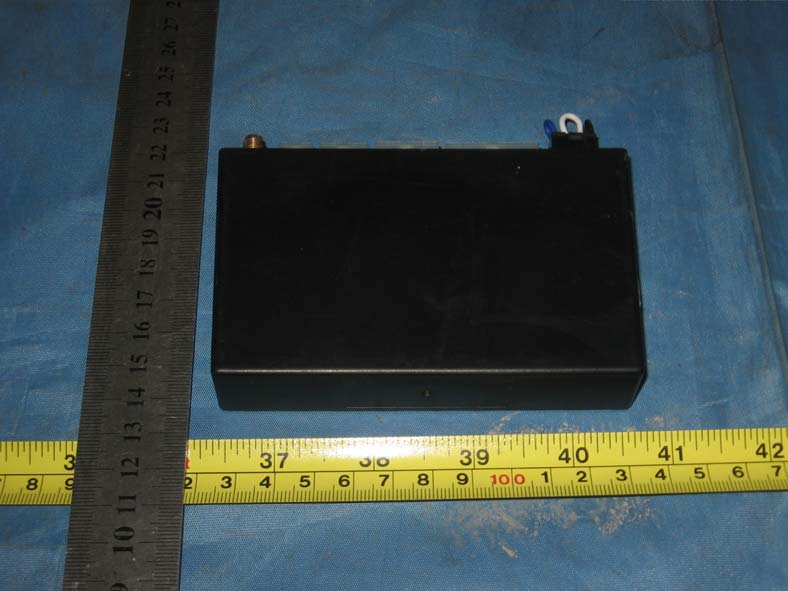

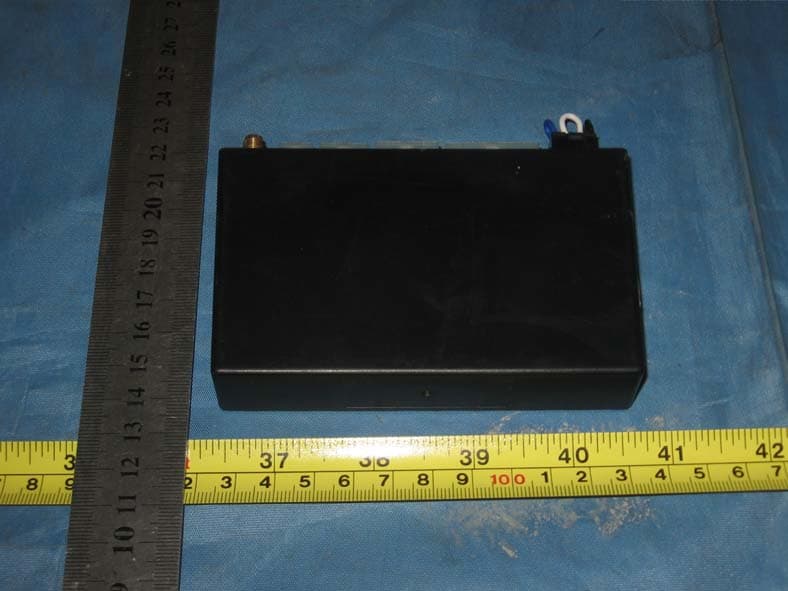

FCC ID: MKFARI57 EXTERIOR PHOTOGRAPHS

FCC ID: MKFARI57

FCC ID: MKFARI57 INTERIOR PHOTOGRAPHY

Technical Description: TRMS-400-11011 The main function of this device is receiving data and dispose it so that radio the data to TRMS-ANT(connect to PC), the receiving signals are: 1. Data from serial port of RS232. 2. Wireless signals from TRMS-RFS-FS06(315MHZ). 3. Wireless signals from three TRMS-RFS-DS002 (315MHZ). 4. Receiving the time flag and inquiry signals(433.92MHz) from TRMS-ANT(connect to PC). It would communicate with TRMS-ANT (433.92MHZ) immediately or delay a certain cycle after it’s receiving. RS232 SECTION: TTL level of RS232 connect to the 2th(RX) and 3th(TX) pin of U8(main MCU), Which read the data and dispose it. 315MHZ RX SECTION: Band-pass filter of CF1 filters the unnecessary signals from antenna, and the LNA which including Q7,R61,L10 , amplifies and sends the just signals to U11, in which contains oscillator, mixing and demodulation circuit, quartz X3 and the included oscillator circuit in U11 provide the 316.8MHz local frequency, demodulation is implemented in U11, finally, the baseband signal is transformed(3v to 5v) by Q4 and Q5 then sent to U9(MCU1) through 13th pin of U11. U9 decodes the baseband signals and send it to U8(MCU2). Voltage regulator of U2 provide power supply of 3v for UHF circuit. 433.92MHZ RX AND TX SECTION: LC filter of L18,C1 filters the unnecessary signals from antenna, and the LNA which including Q3,Q4,L3,C14,L4, amplifies and sends the just signals to U4, in which contains oscillator, mixing, demodulation and decoding circuit, quartz X1 and the included oscillator circuit in U4 provide the local frequency, the decoded data is sent to U8(main MCU) via SPI. Data that to be radio out is loaded to U4 via SPI port, and U4 change the data into RF signals and output it via 10th pin, the RF signals route a filter of CF3 then to PA, which including Q1,Q2, output of PA connect to the impedance matching network of antenna. Regulator of U1(7808) convert 12v power supply to 8v through a diode of D18 connect to E-polar of Q6, U8 controls PA’s power via it’s 9th pin and Q5,Q6. This system, TRMS-400-11011 Communication is modulated by FSK, in the information processing in two ways: 1: Automatic transmission: it will cease transmittion with 300ms after activation. A: TRMS-400-11011 test GPS latitude and longitude when the car into / out of car park gates ,and sent an information to TRMS-ANT host connecting to PC interface. B: TRMS-400-11011 detected the door on / off status and reefer fuel tank informaion,When door change status,fuel tank Variation is more than 5%, reefer operating mode changes and the temperature is higher than the previous temperature value collected + / -8 °F, RMS-400 -11011 will automatically transmit a current information. The transmission data in each time, contain all the information described above, only update the data on the latest changes, the data no change of information will remain the last transmission data. C: TRMS-400-11011 can receive TRMS-ANT instruction which contain read a variety of data(for example,door no/off status, fuel tank information, etc.), can also change the temperatur and operation mode of reefer. 2: periodic transmission:In the car park, TRMS-400-11011 will receive TRMS-ANT order which send the information (for example,the door on/off status ,fuel tank information and so on)every 6 minutes, TRMS-400-11011 answer the request after receiving the order(no contain GPS latitude and longitude data). The transmission time is 180ms.It will no transmit any information when not within the car park. TRISTATE I/O INPUT: Voltage compare circuit including U6(LM324),U7(LM324), output of LM324 connect to 35th ~ 42th pin of U8(main MCU) so that outer tristate level could be read. BIDIRECTION I/O: Pins of 44th ~ 46th of U8 are Bidirectional I/O, it can both used for input or output, and it used for reading temperature data and I/O level in this device. TRIGGER INPUT: The three of outer trigger line connect to U3(MC14069) via D13,D16,D17(IN4148) then send to MCU’s 49th ~ 51th pin , respectively. MCU CIRCUIT: The device including two of MCU, U8 as master and U9 slave, both of it are powered by U10(78L05). Main clock provided by X2. LED INDICATOR: LED1 color is alterable, it driven by 31th and 32th pin of U8(main MCU) to indicate current working status. DRIVE SECTION: MCU output high level or low level as soon as it’s receiving from SID55, to control peripherals correctly and reliably, drivers of Q9,Q10,Q11 are employed, and each of these drivers corresponding to a TRMS-RFS-DS002. Once fuel volume information sent by TRMS-RFS-FS006 is received, MCU would converted it to voltage and through LM2904 provide to peripherals. U8(main MCU) will output high level at 33th pin, while fuel volume slide to 1/4 of it’s maximum value, Q16 switch on to drive low fuel volume alarm device. The antenna installation description: To TRMS-400-11011, it is undetachable between antenna and connector.and we ensure that the antenna will be fixed by a screw the dimension is 1.3*2.5mm before entering into market ,the installation method is folllowing: Step 1: the connector will be drilled on a available position; Step 2: To fix the antenna by a nail the dimension is 1.3*2.5mm; Step 3: To rub out the screw thread on the top,let user not to modify or replace the antenna. Details please refer to following plots. After the screw grinding

FCC ID: MKFARI57 Page 1 FCC ID TEST REPORT for TRAILER MONITORING SYSTEM Trade Mark: N/A Model: TRMS-400-11011 Test Report Number: WSCT10040108E-R Issued Date:May 07, 2010 Issued for Kenwo Industries Limited Unit 1-2, 7/F, Block A, Hi-Tech Ind Ctr 5 Park Tin Par Street Tsuen Wan,Hong Kong Issued by: WORLD STANDARDIZATION CERTIFICATION & TESTING CO., LTD. 1-2/F, DACHONG SCIENCE & TECHNOLOGY BUILDING NO.28 OF TONGGU ROAD, NANSHAN DISTRICT, SHENZHEN. PRC TEL: +86-755-26996192 FAX: +86-755-26996253 Note: This report shall not be reproduced except in full, without the written approval of World Standardization Certification& Testing CO., LTD. This document may be altered or revised by World Standardization Certification& Testing CO., LTD. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report reference No.:WSCT10040108E-R Issued:May 07, 2010 Revised:None TRF No.:FCC PART 15B Page 2 of 15 FCC ID: MKFARI57 This report shall not be reproduced except in full, without the written approval of World Standardization Certification & Testing CO., LTD. Revision History of report Rev. Issue No. Revisions Effect Page Revised By 00 WSCT10040108E-R Initial Issue ALL Kallen Wang Report reference No.:WSCT10040108E-R Issued:May 07, 2010 Revised:None TRF No.:FCC PART 15B Page 3 of 15 FCC ID: MKFARI57 This report shall not be reproduced except in full, without the written approval of World Standardization Certification & Testing CO., LTD. TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION .............................................................................................. 4 2 TEST RESULT SUMMARY ....................................................................................................... 5 3 EUT DESCRIPTION................................................................................................................... 6 4 TEST METHODOLOGY.............................................................................................................7 4.1 DECISION OF FINAL TEST MODE......................................................................................................... 7 4.2 EUT SYSTEM OPERATION ................................................................................................................... 7 5 SETUP OF EQUIPMENT UNDER TEST................................................................................... 8 5.1 DESCRIPTION OF SUPPORT UNITS ...................................................................................................8 5.2 CONFIGURATION OF SYSTEM UNDER TEST .................................................................................... 8 6 FACILITIES AND ACCREDITATIONS ..................................................................................... 9 6.1 FACILITIES ............................................................................................................................................. 9 6.2 ACCREDITATIONS................................................................................................................................. 9 6.3 MEASUREMENT UNCERTAINTY.......................................................................................................... 9 7 CONDUCTED EMISSION MEASUREMENT........................................................................... 10 7.4 TEST SETUP ......................................................................................................................................... 11 7.5. TEST RESULTS.................................................................................................................................... 11 8 RADIATED EMISSION MEASUREMENT ............................................................................... 12 8.1. LIMITS OF RADIATED EMISSION MEASUREMENT.......................................................................... 12 8.2. TEST INSTRUMENTS .......................................................................................................................... 12 8.3.TEST PROCEDURES ............................................................................................................................ 13 8.4. TEST SETUP ........................................................................................................................................ 14 8.5.TEST RESULTS..................................................................................................................................... 15 Report reference No.:WSCT10040108E-R Issued:May 07, 2010 Revised:None TRF No.:FCC PART 15B Page 4 of 15 FCC ID: MKFARI57 This report shall not be reproduced except in full, without the written approval of World Standardization Certification & Testing CO., LTD. 1 TEST RESULT CERTIFICATION Product: TRAILER MONITORING SYSTEM Model: TRMS-400-11011 Trade Mark: N/A Applicant: Kenwo Industries Limited Unit 1-2, 7/F, Block A, Hi-Tech Ind Ctr 5 Park Tin Par Street Tsuen Wan, Hong Kong Factory Kenwo Manufacturing Factory Linwu Industrial Area, Junzibu, Guanlan, Baoan, Shenzhen, China Tested Date: April 18~ May 05,2010 Test Voltage: DC 12V APPLICABLE STANDARDS STANDARD TEST RESULT FCC PART 15B No non-compliance noted ANSI C63.4: 2003 No non-compliance noted Note: 1. The test result judgment is decided by the limit of measurement standard 2. The information of measurement uncertainty is available upon the customer’s request. Deviation from Applicable Standard None The above equipment has been tested by World Standardization Certification & Testing Co., Ltd and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By: Davis Zhou Date: 2010-05-07 (Davis Zhou) Check By: Date: 2010-…

Text truncated - open the document above for the full version.

FCC ID: MKFARI57 TEST SETUP PHOTOGRAPHY Radiation Emission:
