MKRS512INSTASCAN SCANNER, MODEL S512

Report No. 9177-08 (FCC ID: MKRS512) ATTESTATION STATEMENT SUMMARY: All tests according to United States Standard 47 CFR Part 15, Paragraph 15.247(a)(b)(c ) n- Performed o - Not Performed The Equipment Under Test n- Fulfills the general approval requirements cited above. o - Does not fulfill the general approval requirements cited above. - TÜV PRODUCT SERVICE, INC. - Responsible Engineer:Responsible Test Engineer: (EMC Engineer)Dave Marshall (EMC Test Engineer)

TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 619 546 3999 FAX 619 546 0364 05 May 1999 Chief, Equipment Authorization Branch Federal Communications Commission P. O. Box 358315 Pittsburgh, PA 15251-5315 RE:Application for SINGLE CHIP SYSTEMS FCC ID:MKRS512 Dear Sir/Madam: Transmitted herewith, on behalf of SINGLE CHIP SYSTEMS, is the application (FCC Form 731) for the Equipment Authorization by the Certification Procedure for the InstaScan Scanner, Model S512. Please note that TÜV Product Service is the authorized agent for SINGLE CHIP SYSTEMS. Direct all communications and send the grant to TÜV Product Service. If you have technical questions concerning this application, please contact me at 619 546 3999 ([email protected]). All other questions direct to Judy Evans 619 546 3999 ([email protected]). Sincerely, Mary Washington EMC Engineer

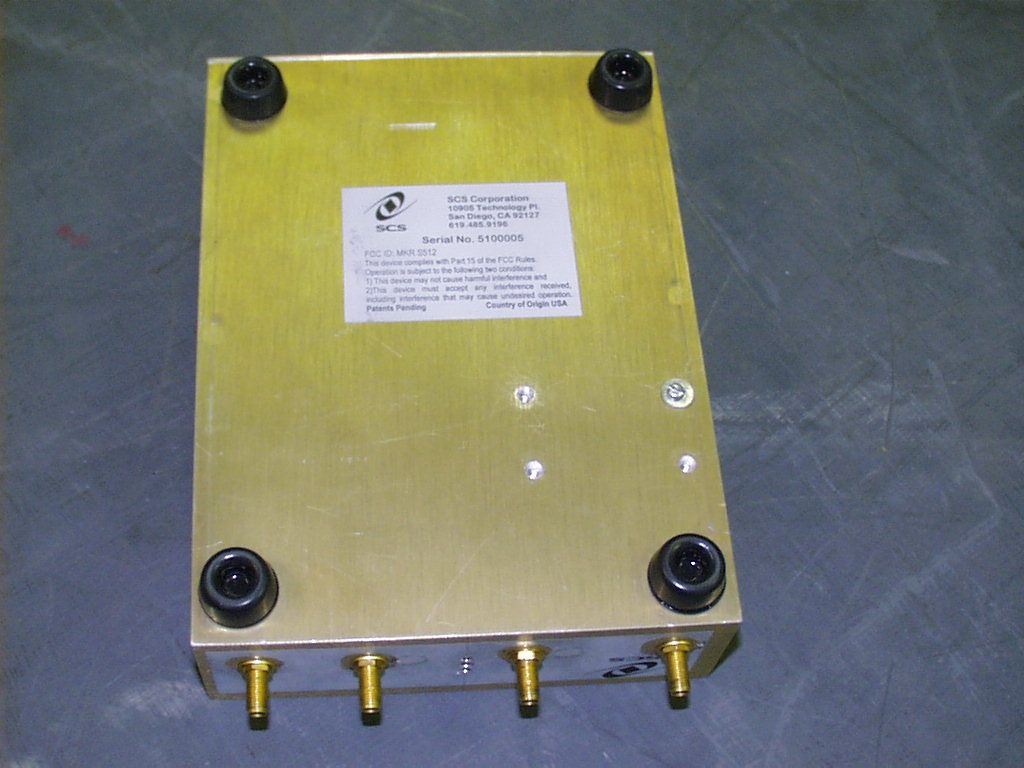

Label Location

Label Location

Report No. 9177-08 (FCC ID: MK4S512) Page 1 of 28 Rev.No 1.0 MEASUREMENT AND TECHNICAL REPORT SINGLE CHIP SYSTEMS DATE: 05 May 1999 This Report Concerns: Original Grant: XClass II Change: Equipment Type: InstaScan Scanner, Model S512, S/N 00002 Transition Rules Request per 15.37? Yes:*No: (*) FCC Part 15, Paragraph 15.247(a)(b)(c ) Report Prepared by: TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 619 546 3999 Fax: 619 546 0364 Report No. 9177-08 (FCC ID: MK4S512) Page 2 of 28 Rev.No 1.0 TABLE OF CONTENTS Pages 1 GENERAL INFORMATION 4 1.1Product Description4 1.2Test Methodology5 1.3Test Facility5 2 SYSTEM TEST CONFIGURATION 9 3.1Justification9 3.2EUT Exercise Software9 3.3Special Accessories9 3.4Equipment Modifications9 3.5Configuration of Tested System9 Figure 3.1Configuration of Tested System9 3 TEST REPORT 4CONDUCTED MEASUREMENT 11 CONDUCTED MEASUREMENT EQUIPMENT/TEST SETUP/DATA12 5 RADIATED MEASUREMENT ? RADIATED MEASUREMENT EQUIPMENT/TEST SETUP/DATA ? 6FIELD STRENGTH CALCULATION 7GENERAL SUMMARY Report No. 9177-08 (FCC ID: MK4S512) Page 3 of 28 Rev.No 1.0 1 GENERAL INFORMATION 1.1Product Description InstaScan Scanner, Model S512, S/N 00002 The EUT is a Transceiver for RFID purposes, designed to operate under FCC part 15.247 rules in the 2.4 to 2.483 GHz ISM band. Equipment Specifications: Frequency Range: 2401-2475 MHz; Rated RF Output Power: 0.70 Watts Frequency Tolerance: ±100 ppm Emissions Designator: 714KK1D Micro. Model No.: 80C52 1.1.1 Components of EUT (List each one separately. Add attachment if necessary. NOT TO INCLUDE PERIPHERALS.) DescriptionModel NumberSerial NumberFCC ID Number InstaScan ScannerS51200002 Power SupplyN2UFSW CSC15-1000 PS7520AWP5 4850 9632 Dual Antenna100157-1 100158-1 00001 1.2 Operating modes: (list and describe) The scanner operates in one of 2 modes. Transmit from one antenna, or alternate transmission from 2 antennas at a 50% duty cycle. Report No. 9177-08 (FCC ID: MK4S512) Page 4 of 28 Rev.No 1.0 1.3 EUT I/O Ports and Cables: 1.3.1 I/O Cables (Add attachment if necessary.) CONNECTION: DC Power SHIELD: none CONNECTORS: 2.1mm power connector TERMINATION TYPE: none LENGTH: 6 ft. REMOVABLE: yes CONNECTION: RS-232 SHIELD: none CONNECTORS: DB-9F TERMINATION TYPE: none LENGTH: 6 to 20 ft REMOVABLE: yes CONNECTION: RF Transmit Port 1 and Port 2 SHIELD: coax cable CONNECTORS: Currently SMA, Reverse polarity SMA in production TERMINATION TYPE: Coax shield to SMA connector LENGTH: 6 ft. REMOVABLE: yes CONNECTION: RF Receive Port 1 and Port 2 SHIELD: coax cable CONNECTORS: Currently SMA, Reverse polarity SMA in production TERMINATION TYPE: Coax shield to SMA connector LENGTH: 6 ft. REMOVABLE: yes Report No. 9177-08 (FCC ID: MK4S512) Page 5 of 28 Rev.No 1.0 1.3.2 Power Cords (Add attachment if necessary.) UNIT: N2UFSW MANUFACTURER: Egston SHIELDED: no LENGTH: 6 ft. UNIT: CSC15-1000 MANUFACTURER: Cortech SHIELDED: no LENGTH: 6 ft. UNIT: PS7520AWPS MANUFACTURER: Sceptre SHIELDED: no LENGTH: 6 ft. 1.3.3 Power requirements: *Note: European power is typically 230 VAC 50Hz or 400 VAC 50Hz, single and three phase, respectively. FCC requires testing to be performed at typical US power ratings at 60Hz. 230 VAC 50Hz -- single phase Amps 400 VAC 50Hz -- three phase Amps per phase X 120 VAC 60Hz -- single phase 0.5 Amps VDC Amps Battery: VDC Expected life: Hours Other: (describe) Report No. 9177-08 (FCC ID: MK4S512) Page 6 of 28 Rev.No 1.0 1.4 Oscillator Frequencies FrequencyEUT LocationDescription of use 20 MHzon PCBclock for microprocessor 1.5 Power Supply DescriptionManufacturerModel #Serial #Switching frequency or linear Wall mount 7.5 V, 2.0 AEgstonN2UFSW4850 Wall mount 7.5 V, 2.0 ACortechCSC15-1000100 KHz Wall mount 7.5 V, 2.0 ASceptrePS7520AWP59632 1.6 Power Line Filters ManufacturerModel #QtyLOCATION ON EUT Metuchen Capacitors56-504-014-GBL1Housing Metuchen Capacitors56-524-014-GBL1Housing K&LSL-27502Housing 1.7 Critical EMI Components (Capacitors, ferrites, etc.) DescriptionManufacturerPart # or valueQtyLOCATION ON EUT 1.8 Description of Enclosure: (including Gasketing, Coatings, Bonding, etc.) Aluminum housing comprised of a 5 sided box with a screw-on face plate. Report No. 9177-08 (FCC ID: MK4S512) Page 7 of 28 Rev.No 1.0 1.9 Interfacing and/or Simulators Peripheral Equipment (Please provide a complete description of all peripherals to be used during testing, please note that all I/O ports must be appropriately loaded) DESCRIPTION: Laptop Computer MANUFACTURER: Compaq MODEL NUMBER: 1210 Presario SERIAL NUMBER: FCC ID: 1.10 System Configuration Block Diagram RF COAX CABLE S512 (EUT) LAPTOP PC RS-232 TX ANTENNA POWER SUPPLY TX PORT 1 RF COAX CABLE RX ANTENNARX PORT 1 RF COAX CABLE TX ANTENNATX PORT 2 RF COAX CABLE RX ANTENNARX PORT 2 7.5 VDC Report No. 9177-08 (FCC ID: MK4S512) Page 8 of 28 Rev.No 1.0 1.11Test Methodology Purpose of Test:To demonstrate compliance with the ANSI C63.4 setup. Test Performed:X1. Conducted Emissions, FCC Part 15, Paragraph 15.247(a)(b)(c ) 2. Radiated Emissions EN55022: 1992 Class B limit, 30 - 1,000 MHz, 10 meters X3. Radiated Emission per FCC Part 15, Paragraph 15.247(c ) 4. Engineering evaluations Both Conducted and radiated testing were performed according to the procedures in FCC/ANSI C63.4 and CSA 108.8 - M1983. Radiated testing was performed at an antenna-to-EUT distance of 3 meters (1 - 10 GHz). 1.12Test Facility The open area test site and conducted measurement data were tested by: TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 619 546 3999 Fax: 619 546 0364 The Test Site Data and performance comply with ANSI 63.4 and are registered with the FCC, 7435 Oakland Mills Rd, Columbia Maryland 21046. All Measurement Data is acquired according to the content of FCC Measurement Procedure and ANSI C63.4, unless supplemented with additional requirements as noted in the test report. Report No. 9177-08 (FCC ID: MK4S512) Page 9 of 28 Rev.No 1.0 2.SYSTEM TEST CONFIGURATION 2.1Justification T…
