ML6-BH1G2B-hyve Bluetooth to Wi-Fi Bridge

Orbit Irrigation Product Inc.
B-hyve Bluetooth to Wi-Fi Bridge - FCC ID ML6-BH1G2 - Orbit Irrigation Product Inc.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Mar 02, 2020
Application Purpose
Original Equipment
Date of Application
Mar 02, 2020
Equipment Note
B-hyve Bluetooth to Wi-Fi Bridge
Frequency Range
2402.00000000 - 2480.00000000
Company
Orbit Irrigation Product Inc.
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗
↗
↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

WELCOME TO QUICK START GUIDE Box Contents Gen 2 Hub Quick Start Guide Avoid areas where the signal must travel through dirt or thick steel barriers. 1) Open the B-hyve App Log into your B-hyve account and go to devices under settings to add the Gen 2 Hub as a new device. The app will walk you through the rest of the process. For new users, search for “B-hyve” and download the free Android or iOS app. Create an account to begin timer setup. 3) Enter Pairing Mode Press the B-hyve button to enter into pairing mode. Your hub will flash a blue light every 5 seconds. 2) Power Your Gen 2 Hub Write down the MAC address: 12 digit alphanumeric code on the back of the hub. Hub MAC Address: Plug the Gen 2 Hub into an indoor outlet within range of your B-hyve device and Wi-Fi signal. —— : —— : —— : —— : —— : —— Hub Range: 300 ft (91 m) without interference Temperature Operating Range: 32°F-104°F (0-40°C) Storage Temperature: -4°F to 140°F (-20 °C to 60 °C) Humidity Operating Range: 0–90% Input: 100-240V ~ 50/60Hz 0.2A Output: 5V-1.0A For Indoor Use Only FRONTBACK 1 7 / 8 [ 47.62] 1 7 / 8 [ 47.62] 1 7 / 8 [ 47.62] 1 7 / 8 [ 47.62] 1 7 / 8 [ 47.62] 1 7 / 8 [ 47.62] 4 1 / 8 [ 104.78] 11 1 / 4 [ 285.75] PN 21008-50 rC Printers are responsible for meeting print production requirements. Any changes must be approved by Orbit ® . Printed piece must meet designated specifications on this form. © 2020 Orbit Inc. This work is the property of Orbit ® , and cannot be used, reproduced or distributed in any way without their express permission. Dieline PMS 7405 Fold PMS 0000 Product Coverage PMS 0000 Dims./ Callout PMS Cool Gray 10 ∙ ∙ ∙ ∙ Orbit ® 1.801.299.5555 orbitonline.com K Glue FoldedFlatAdditional Information PRINTERS ARE REQUIRED TO MATCH ALL SPECIFIED PMS COLORS. DATE:02/14/2020 DESIGNER: QWMARKETING: CD SOFTWARE: Adobe Indesign CC ARTWORK No: 21008-50 rC L: W: H: _._"W: H:4 .12 5" 1.875" 4 .12 5" 11. 2 5" Need Help? If you encounter a problem, please use the following resources before retuning your B-hyve to the store. Scan the QR Code for access to a full user manual, videos, and more. [email protected] email us call us 1-801-299-5555 text us 801-905-8260 FCC Statement: FCC ID: ML6-BH1G2 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. IC Statement: IC: 3330A-BH1G2 This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canadas license-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. This device meets the FCC and IC requirements for RF exposure in public or controlled environments. The end user is advised to maintain a distance 20 cm from the timer and any personnel to ensure compliance with RF exposure regulations. Déclaration de l’FCC: FCC ID: ML6-BH1G2 Cet appareil est conforme à la partie 15 des règles de la FCC. Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer d’interférences nuisibles, et (2) cet appareil doit tolérer toutes les interférences, dont les interférences pouvant causer un fonctionnementnon désiré Avertissement de la FCC: les changements ou modifications de cet appareil non expressément approuvés par la partie responsable de la conformité pourrait annuler le droit de l’utilisateur à utiliser cet équipement Remarque: cet appareil été testé et déclaré conforme aux limites d’exposition pour les appareils numériques de classe B, selon la section 15 de la Règlementation de la FCC. Ces limites sont conçus pour fournir une protection raisonnable contre les interférences nuisibles dans une installation résidentielle. Cet appareil produit, utilise et peut émettre de l’énergie radio fréquence et, si elle n’est pas installée et utilisée conformément aux instructions, peut causer des interférences nuisibles aux communications radio. Cependant, il n’est pas garantie que des interférences ne se produisent pas dans une installation particulière. Si cet appareil cause des interférences gênantes à la réception d’un signal radio ou de télévision, ce qui peut être déterminé en allumant et en éteignant l’appareil, l’utilisateur peut corriger les interférences en suivants une des mesures suivantes : • Réorientez ou repositionnez l’antenne de réception. • Augmentez la distance entre l’appareil et le récepteur. • Branchez l’appareil dans une prise sur un circuit …

Text truncated - open the document above for the full version.

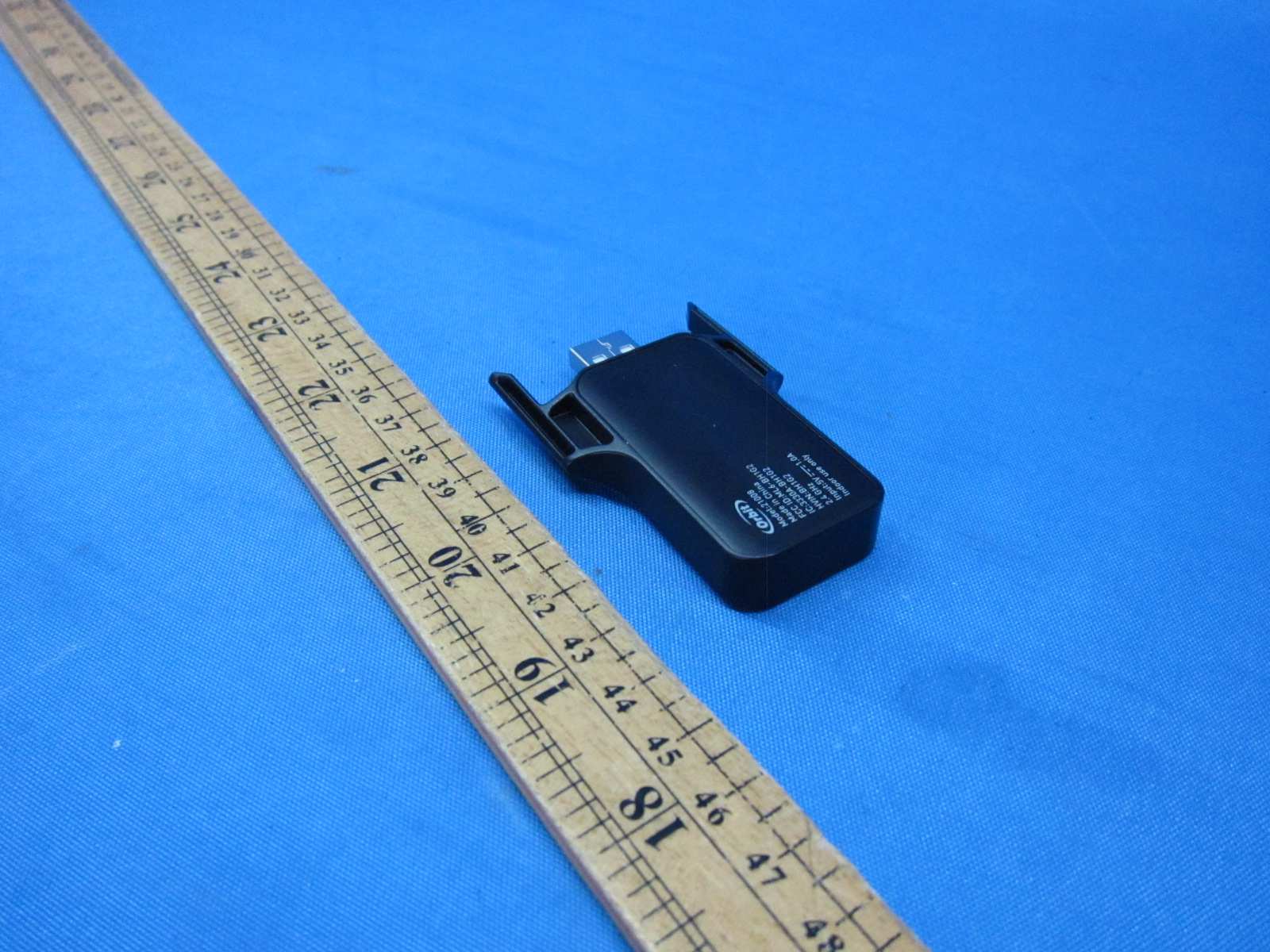

External Photos

INTERTEK TESTING SERVICE Report No.: HK19120526 Equipment Photographs (External) INTERTEK TESTING SERVICE Report No.: HK19120526 Equipment Photographs (External)

ID Label/Location Info

DATE : 01/15/2020 DESIGNER: QW MARKETING : CD ARTWORK No: 21008-26 rB SOFTWARE : Adobe Illustrator CC Printers are responsible for meeting print production requirements. Any changes must be approved by Orbit ® . Printed piece must meet designated specifications on this form. © 2020 Orbit Inc. This work is the property of Orbit ® , and cannot be used, reproduced or distributed in any way without their express permission. Dieline PMS Cool Gray 2 Sample Product Coverage Dims./ Callout ∙ ∙ ∙ ∙ L: W: H: _._" Orbit ® 1.801.299.2955 orbitonline.com K Glue Folded W: H: FlatAdditional Information PRINTERS ARE REQUIRED TO MATCH ALL SPECIFIED PMS COLORS. _._" _._" .5456" .6963" PMS 0000 PMS 0000 PMS 0000 Example of back 2.12 in W 1.178 in H PN#:21008 Made in China FCC ID:ML6-BH1G2 IC:3330A-BH1G2 HVIN:BH1G2 2.4 GHz Input:5V 1.0A Indoor use only PN#:21008 Made in China FCC ID:ML6-BH1G2 IC:3330A-BH1G2 HVIN:BH1G2 2.4 GHz Input:5V 1.0A Indoor use only

Internal Photos

INTERTEK TESTING SERVICE Report No.: HK19120526 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK19120526 Equipment Photographs (Internal)

RF Exposure Info

INTERTEK TESTING SERVICE FCC ID: ML6-BH1G2 MPE Analysis Report The Equipment Under Test (EUT) is a B-hyve Bluetooth to Wi-Fi Bridge that provides a means for Bluetooth BLE end devices to communicate to the b-hyve system 2.4GHz wifi servers. The Bluetooth BLE radio is for communication between end devices while the WIFI radio is for communication to access point. The Bluetooth BLE and WIFI radios will not be able to operate simultaneously as declared by the applicant. For Maximum Permissible Exposure (MPE) evaluation of the unit, the maximum power density at 20 cm from this transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65 and meet the requirement listed in KDB447498. For the WiFi portion of the unit, the measured powers among all the measured channels were within its production tolerance. The antenna gain is 0 dBi = 1 (num gain) and its maximum source-based time-averaging duty factor is 100%. From these data and its operating configuration, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The EIRP radiated power = conducted power (with maximum tolerance) + antenna gain = 26 dBm + 0 dBi = 26 dBm (398.11 mW) The radiated (EIRP) source-based time-averaging output power = (398.11 * 1) mW = 398.11 mW The power density at 20 cm from the antenna = EIRP / 4 πR^2 = 0.08 mW cm-2 INTERTEK TESTING SERVICE FCC ID: ML6-BH1G2 For the Bluetooth BLE portion of the unit, the measured powers among all the measured channels were within its production tolerance. The antenna gain is 0 dBi = 1 (num gain) and its maximum source-based time-averaging duty factor is 100%. From these data and its operating configuration, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The EIRP radiated power = conducted power (with maximum tolerance) + antenna gain = 10 dBm + 0 dBi = 10 dBm (10 mW) The radiated (EIRP) source-based time-averaging output power = (10 * 1) mW = 10 mW The power density at 20 cm from the antenna = EIRP / 4 πR^2 = 0.002 mW cm-2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm-2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the unit at least 20cm from nearby persons.”

Test Report

2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong SAR, China. Telephone: (852) 2173 8888 Facsimile: (852) 2785 5487 www.intertek.com Intertek’s standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. © 2017 Intertek Page 1 of 62 TEST REPORT Report Number: 19120526HKG-001 Application for Original Grant of 47 CFR Part 15 Certification Single New of RSS-247 Issue 2 Equipment FCC ID: ML6-BH1G2 IC: 3330A-BH1G2 Prepared and Checked by: Approved by: Signed On File Wong Cheuk Ho, Herbert Lead Engineer Wong Kwok Yeung, Kenneth Senior Lead Engineer Date: February 17, 2020 TEST REPORT Orbit Irrigation Product Inc. Intertek Report No: 19120526HKG-001 Page 2 of 62 GENERAL INFORMATION Applicant Name: Orbit Irrigation Product Inc. Applicant Address: 845 North, Overland Road, North Salt Lake, Utah 84054 United States FCC Specification Standard: FCC Part 15, October 1, 2018 Edition FCC ID: ML6-BH1G2 FCC Model(s): 21008, 94992, 96992 (Generation 2 Hub) IC Specification Standard: RSS-247 Issue 2, February 2017 RSS-Gen Issue 5 Amendment 1, March 2019 IC: 3330A-BH1G2 PMN: B-hyve WiFi Hub HVIN: BH1G2 Type of EUT: Spread Spectrum Transmitter Description of EUT: B-hyve Bluetooth to Wi-Fi Bridge Serial Number: N/A Sample Receipt Date: January 20, 2020 Date of Test: January 20, 2020 to February 04, 2020 Report Date: February 04, 2020 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Conclusion: Test was conducted by client submitted sample. The submitted sample as received complied with the 47 CFR Part 15 / RSS-247 Issue 2 Certification. TEST REPORT Orbit Irrigation Product Inc. Intertek Report No: 19120526HKG-001 Page 3 of 62 TABLE OF CONTENTS 1.0 TEST RESULTS SUMMARY & STATEMENT OF COMPLIANCE ............................................ 4 1.1 Summary of Test Results ................................................................................................. 4 1.2 Statement of Compliance ................................................................................................ 4 2.0 GENERAL DESCRIPTION ................................................................................................ 5 2.1 Product Description ....................................................................................................... 5 2.2 Test Methodology ........................................................................................................... 6 2.3 Test Facility ..................................................................................................................... 6 2.4 Related Submittal(s) Grants ............................................................................................ 6 3.0 SYSTEM TEST CONFIGURATION .................................................................................... 7 3.1 Justification ..................................................................................................................... 7 3.2 EUT Exercising Software .................................................................................................. 8 3.3 Details of EUT and Description of Accessories ................................................................. 9 3.4 Measurement Uncertainty .............................................................................................. 9 4.0 TEST RESULTS ............................................................................................................ 10 4.1 Maximum Conducted Output Power at Antenna Terminals ......................................... 10 4.2 Minimum 6dB RF Bandwidth......................................................................................... 12 4.3 Maximum Power Spectral Density ................................................................................ 19 4.4 Out of Band Conducted Emissions ................................................................................ 26 4.5 Field Strength Calculation.............................................................................................. 39 4.6 Transmitter Radiated Emissions in Restricted Bands and Spurious Emissions ............... 40 4.6.1 Radiated Emission Configuration Photograph ............................................................ 40 4.6.2 Radiated Emission Data .............................................................................................. 40 4.6.3 Radiated Emission Test Setup ..................................................................................... 51 4.6.4 Transmitter Duty Cycle Calculation ............................................................................ 52 4.7 AC Power Line Conducted Emission .............................................................................. 53 4.7.1 AC Power Line Conducted Emission Configuration Photograph ................................. 53 4.7.2 AC Power Line Conducted Emission Data ......................................................…

Text truncated - open the document above for the full version.

Test Report

2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong SAR, China. Telephone: (852) 2173 8888 Facsimile: (852) 2785 5487 www.intertek.com Intertek’s standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. © 2017 Intertek Page 1 of 36 TEST REPORT Report Number: 19120526HKG-002 Application for Original Grant of 47 CFR Part 15 Certification Single New Application of RSS-247 Issue 2 Equipment This report contains the data of Bluetooth 4.0 BLE portion only. FCC ID: ML6-BH1G2 IC: 3330A-BH1G2 Prepared and Checked by: Approved by: Signed On File Wong Cheuk Ho, Herbert Lead Engineer Wong Kwok Yeung, Kenneth Senior Lead Engineer Date: February 04, 2020 TEST REPORT Orbit Irrigation Product Inc. Intertek Report No: 19120526HKG-002.doc Page 2 of 36 GENERAL INFORMATION Applicant Name: Orbit Irrigation Product Inc. Applicant Address: 845 North, Overland Road, North Salt Lake, Utah 84054 United States FCC Specification Standard: FCC Part 15, October 1, 2018 Edition FCC ID: ML6-BH1G2 FCC Model(s): 21008, 94992, 96992 (Generation 2 Hub) IC Specification Standard: RSS-247 Issue 2, February 2018 RSS-Gen Issue 5 Amendment 1, March 2019 IC: 3330A-BH1G2 PMN: B-hyve WiFi hub HVIN: BH1G2 Type of EUT: Spread Spectrum Transmitter Description of EUT: B-hyve Bluetooth to Wi-Fi Bridge Serial Number: N/A Sample Receipt Date: January 20, 2020 Date of Test: January 20, 2020 to February 04, 2020 Report Date: February 04, 2020 Environmental Conditions: Conclusion: Temperature: +10 to 40°C Humidity: 10 to 90% Test was conducted by client submitted sample. The submitted sample as received complied with the 47 CFR Part 15 / RSS-247 Issue 2 Certification. TEST REPORT Orbit Irrigation Product Inc. Intertek Report No: 19120526HKG-002.doc Page 3 of 36 TABLE OF CONTENTS 1.0 TEST RESULTS SUMMARY & STATEMENT OF COMPLIANCE ............................................ 4 1.1 Summary of Test Results ................................................................................................. 4 1.2 Statement of Compliance ................................................................................................ 4 2.0 GENERAL DESCRIPTION ................................................................................................ 5 2.1 Product Description ....................................................................................................... 5 2.2 Test Methodology ........................................................................................................... 6 2.3 Test Facility ..................................................................................................................... 6 2.4 Related Submittal(s) Grants ............................................................................................ 6 3.0 SYSTEM TEST CONFIGURATION .................................................................................... 7 3.1 Justification ..................................................................................................................... 7 3.2 EUT Exercising Software .................................................................................................. 8 3.3 Details of EUT and Description of Accessories ................................................................. 9 3.4 Measurement Uncertainty .............................................................................................. 9 4.0 TEST RESULTS ............................................................................................................ 10 4.1 Maximum Conducted Output Power at Antenna Terminals ......................................... 10 4.2 Minimum 6dB RF Bandwidth......................................................................................... 11 4.3 Maximum Power Spectral Density ................................................................................ 14 4.4 Out of Band Conducted Emissions ................................................................................ 17 4.5 Field Strength Calculation.............................................................................................. 22 4.6 Transmitter Radiated Emissions in Restricted Bands and Spurious Emissions ............... 23 4.6.1 Radiated Emission Configuration Photograph ............................................................ 23 4.6.2 Radiated Emission Data .............................................................................................. 23 4.6.3 Radiated Emission Test Setup ..................................................................................... 28 4.6.4 Transmitter Duty Cycle Calculation ............................................................................ 29 4.7 AC Power Line Conducted Emission .............................................................................. 30 4.8 Occupied Bandwidth ...........................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

INTERTEK TESTING SERVICE Report No: HK19120526 Configuration Photographs Worst-Case Radiated Emissions (Front View) INTERTEK TESTING SERVICE Report No: HK19120526 Configuration Photographs Worst-Case Radiated Emissions (Rear View)

Test Setup Photos

INTERTEK TESTING SERVICE Report No: HK19120526 Configuration Photographs Worst-Case Radiated Emissions (Front View) INTERTEK TESTING SERVICE Report No: HK19120526 Configuration Photographs Worst-Case Radiated Emissions (Rear View)

Test Setup Photos

INTERTEK TESTING SERVICE Report No: HK19120526 i Configuration Photographs Worst-Case Line-Conducted Emissions (Front View) INTERTEK TESTING SERVICE Report No: HK19120526 ii Configuration Photographs Worst-Case Line-Conducted Emissions (Rear View) INTERTEK TESTING SERVICE Report No: HK19120526 iii Configuration Photographs Worst-Case Line-Conducted Emissions (Side View)

Contact Information

Applicant

Karl Connolly(EVP Product Development)
[email protected]801-299-5407Fax: 801-299-5549

Technical Contact

Intertek Testing Services Hong Kong Ltd.Terry Chan
[email protected](852) 2173 8888

2/F., Garment Centre, · Kowloon · Hong Kong

Non-Technical Contact

Intertek Testing Services Hong Kong Ltd.Terry Chan
[email protected](852) 2173 8888

Test Firm

Intertek Testing Services Hong Kong Ltd.Billy Chow
[email protected]85221738528Fax: 85227410521

Technical Specifications

#Rule PartsFrequency RangePower Output
215C2.40 GHz - 2.48 GHz7.10 mW
Confidentiality
Long Term
Grant Notes
Output power listed is conducted. This device must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
