ML6HT25G2Smart Hose Watering Timer

WELCOME TO QUICK START GUIDE Box Contents Hose Faucet Timer Quick Start Guide 1) Download the B-hyve App Search for “B-hyve” and download the free Android or iOS app. Create an account to begin timer setup. Already a B-hyve user? Log in to your existing B-hyve account. If at any time you need to re-pair, press the on/off button quickly 5 times. *Batteries are sold separately. Replace batteries when timer flashes a red light every 5 seconds, or when the app notifies you that batteries need replacing. 2) Insert Two AA Batteries* Your timer is now in pairing mode and will flash a blue light every 5 seconds. You will also hear two clicks about 6 seconds apart, this is normal and ensures the valve is closed before you turn on the water. 3) Install the Timer Your timer is now ready to be used with any product that can be attached to a standard hose faucet. 4) Turn on Your Water The water must remain on for the timer to work properly. Do not place the timer in an underground valve box. 5) Complete Timer Setup There is a wizard in the app to help guide you through initial setup. Scan for access to a full user manual, videos, and more. Or visit us at: bhyve.orbitonline.com on/off If you remove or change the batteries you will need to reconnect to bluetooth to set the correct time and date. HT25G2 If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device meets the FCC and IC requirements for RF exposure in public or controlled environments. The end user is advised to maintain a distance 20 cm from the timer and any personnel to ensure compliance with RF exposure regulations. IC Statement: This device complies with Industry Canada license exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003. Remarque: cet appareil été testé et déclaré conforme aux limites d’exposition pour les appareils numériques de classe B, selon la section 15 de la Règlementation de la FCC. Ces limites sont conçus pour fournir une protection raisonnable contre les interférences nuisibles dans une installation résidentielle. Cet appareil produit, utilise et peut émettre de l’énergie radio fréquence et, si elle n’est pas installée et utilisée conformément aux instructions, peut causer des interférences nuisibles aux communications radio. Cependant, il n’est pas garantie que des interférences ne se produisent pas dans une installation particulière. Si cet appareil cause des interférences gênantes à la réception d’un signal radio ou de télévision, ce qui peut être déterminé en allumant et en éteignant l’appareil, l’utilisateur peut corriger les interférences en suivants une des mesures suivantes : • Réorientez ou repositionnez l’antenne de réception. • Augmentez la distance entre l’appareil et le récepteur. • Branchez l’appareil dans une prise sur un circuit différent du circuit sur lequel le récepteur est branché. • Consulter le revendeur ou un technicien radio/TV expérimenté pour obtenirde l’aide. Cet appareil est conforme aux exigences de la FCC et de l’IC concernant l’exposition aux ondes dans un environnement public ou contrôlé. Il est conseillé à l’utilisateur final de maintenir une distance de 20 cm du contrôleur pour assurer la conformité aux réglementations d’exposition RF. Information de conformité pour le Canada Déclaration de l’IC: Cet appareil est conforme à la norme RSS d’IndustryCanada. Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer d’interférences nuisibles, et (2) cet appareil doit tolérer toutes les interférences, dont les interférences pouvant causer un fonctionnementnon désiré. Cet appareil numérique de classe B est conforme à la norme canadienneICES-003. Consulte el manualdelusuarioen línea para obtener instrucciones en español. Manual Watering Simply press and hold the on/off button for 5 seconds to activate manual watering. Need to stop watering, even during a programmed time? Press the on/off button once to stop watering. Timer Range: 300 ft without interference Pressure Operating Range: 10-100 PSI Temperature Operating Range: 32°F-158°F (0-70°C) For Outdoor Use With Cold Water Only Not For Use With Appliances Do Not Mix Alkaline, Standard (Carbon-Zinc), or Rechargeable (Nickel Cadmium) Batteries. Used up or dead batteries must be removed from the timer and disposed of properly. Do not dispose of batteries in fire. Batteries may explode or leak. FCC Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Warning: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communicatio…

Text truncated - open the document above for the full version.

Orbit Irrigation Products Inc Agent Authorization Company: Orbit Irrigation Products Inc Address: 845 Overland Road, North Salt Lake, Utah 84054 USA Product Name: Smart Hose Watering Timer Model Number(s): HT25G2 Product Description: Smart Hose Watering Timer with BLE FCC ID: ML6HT25G2 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022-06-25 Name: Jiankuai Li Title: PM Company: SHENZHEN STS TEST SERVICES CO.,LTD.

2022.06.25 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize SHENZHEN STS TEST SERVICES CO.,LTD./ A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District,Bao’an District, Shenzhen, Guang Dong, China/Jiankuai Li(Name of Agent company name and address, Name of Agent) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. This appointment is valid until further December 31, 2022. Name: Jiankuai Li Title: PM E-mail:[email protected] Sincerely, Name: Karl Connolly Title: EVP Prod. Dev. E-mail: [email protected] Company: Orbit Irrigation Products Inc Signature:

Orbit Irrigation Products Inc Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2022.06.25 Subject; Request for Confidentiality FCC ID: ML6HT25G2 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description Tune-up Procedure SOFTWARE SECURITY REQUIREMENTS FOR U-NII DEVICES Part List In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: SHENZHEN STS TEST SERVICES CO.,LTD. Title: PM

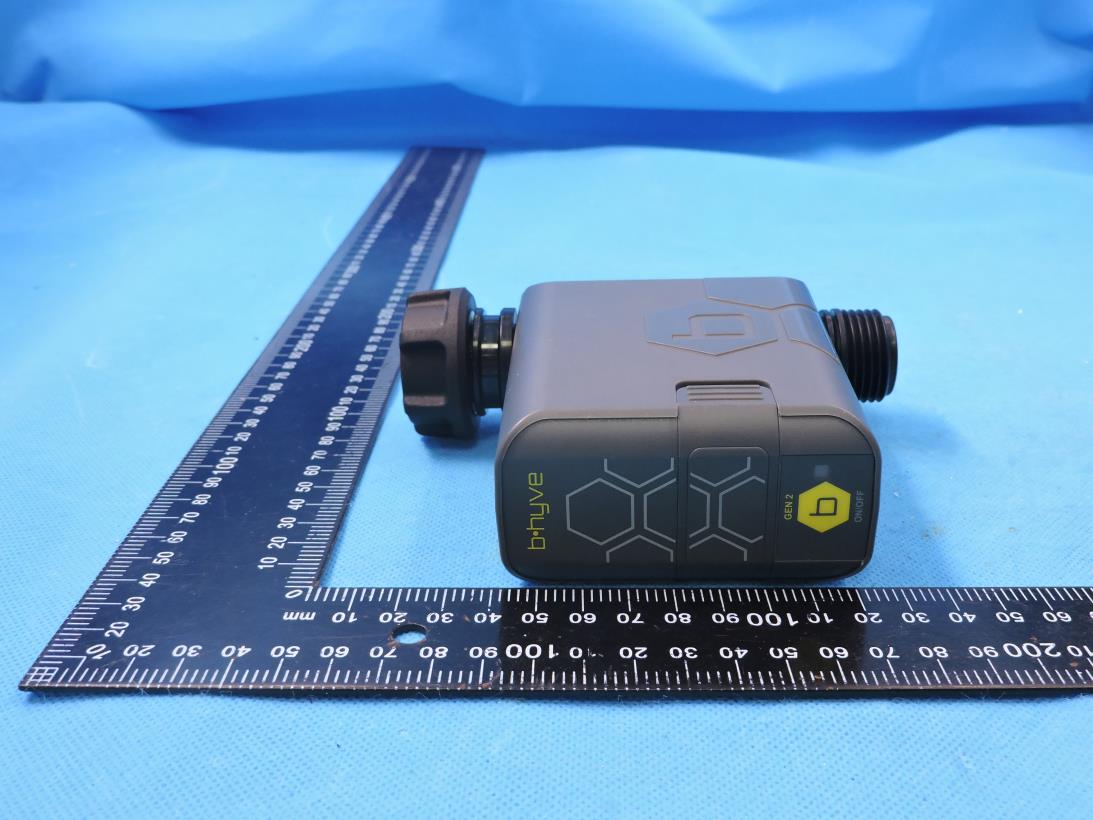

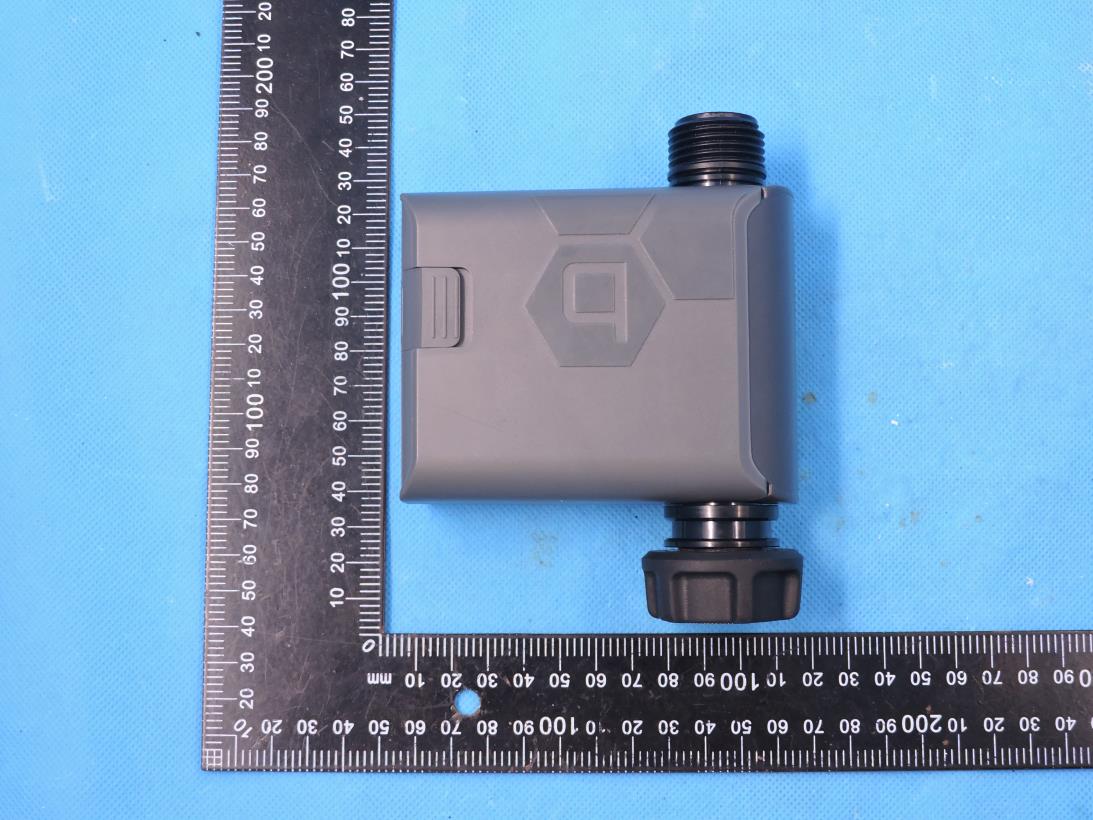

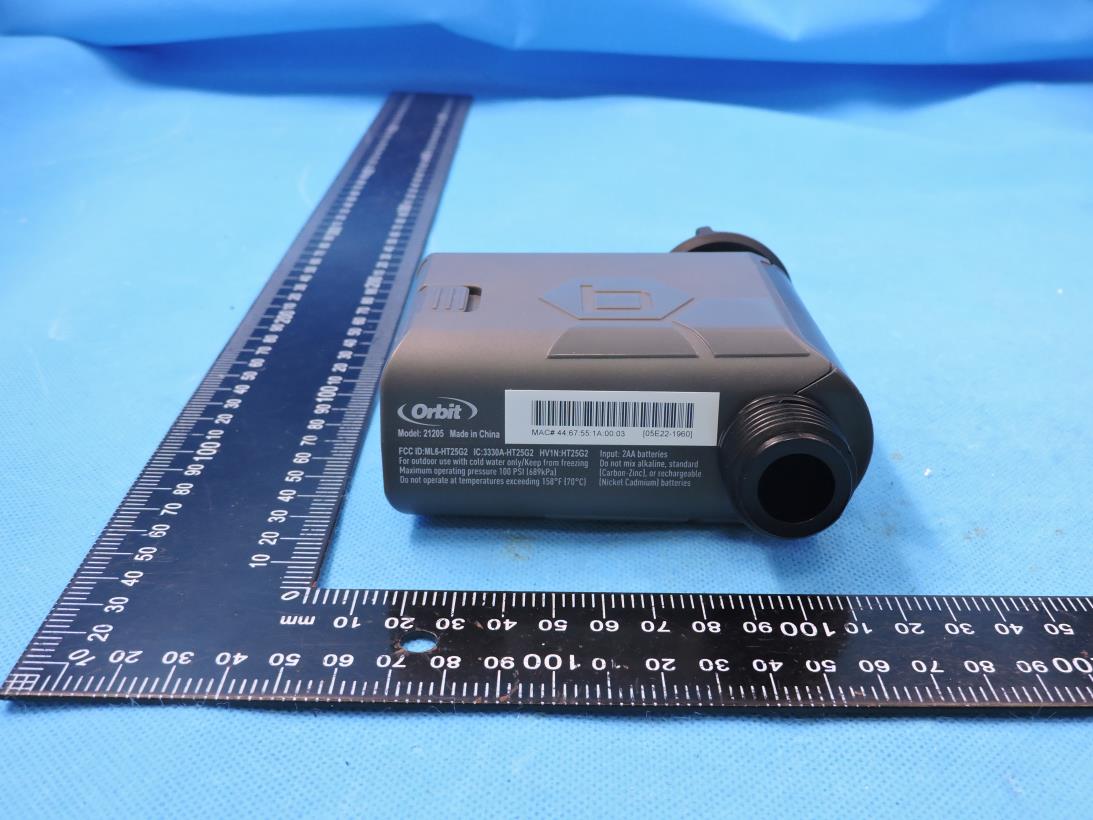

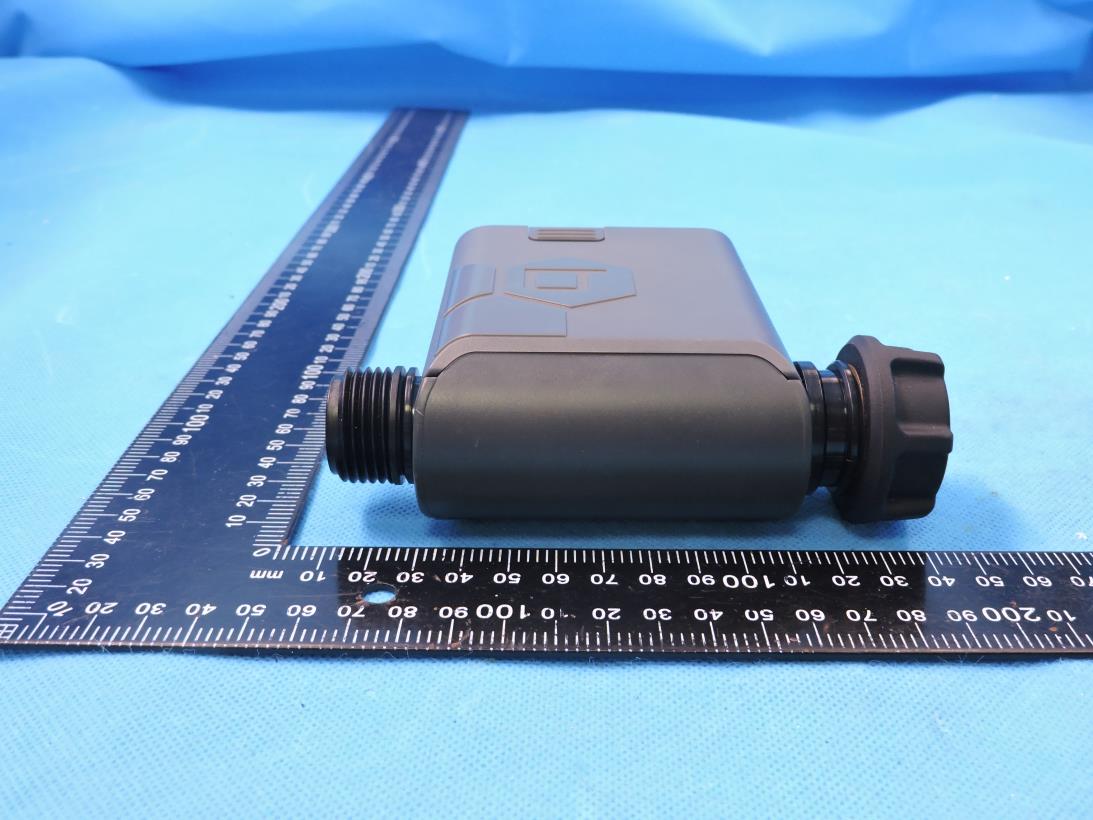

Page 1 of 3 Report No.: STS2206043 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: HT25G2 Photo 1 Photo 2 Page 2 of 3 Report No.: STS2206043 Photo 3 Photo 4 Page 3 of 3 Report No.: STS2206043 Photo 5 Photo 6

FCC and ISED Label 70mm 40mm

Page 1 of 2 Report No.: STS2206043 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: HT25G2 Photo 1 Photo 2 BT ANTENNA Page 2 of 2 Report No.: STS2206043 Photo 3

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, all test data presented in this report is only applicable to presented test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No: STS2206043H02 Issued for Orbit Irrigation Products Inc 845 Overland Road, North Salt Lake, Utah 84054 USA Product Name: Smart Hose Watering Timer Brand Name: B-hyve/Orbit Model Name: HT25G2 Series Model: N/A FCC ID: ML6HT25G2 Test Standard: FCC 47CFR §2.1091 S T L A B S Page 2 of 9 Report No.: STS2206043H02 Test Report Certification Applicant’s Name ................. : Orbit Irrigation Products Inc Address .................................. : 845 Overland Road, North Salt Lake, Utah 84054 USA Manufacturer's Name ........... : Pro-Mark, LLC Address .................................. : 845 Overland Road, North Salt Lake, Utah 84054 USA Product Description Product Name ........................ : Smart Hose Watering Timer Brand Name ......................... : B-hyve/Orbit Model Name ........................... :... : HT25G2 Series Model .......................... : N/A Standards ............................. : FCC 47CFR §2.1091 447498 D04 Interim General RF Exposure Guidance v01 This report shall not be reproduced except in full, without the written approval of STS, this document only be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date of receipt of test item ..................... : 08 June 2022 Date (s) of performance of tests............. : 08 June 2022 ~ 25 June 2022 Date of Issue ......................................... : 25 June 2022 Test Result ............................................. : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory : (Bovey Yang) Page 3 of 9 Report No.: STS2206043H02 TABLE OF CONTENTS 1. GENERAL INFORMATION 5 1.1 GENERAL DESCRIPTION OF THE EUT 5 1.2 TEST FACTORY 5 2. FCC 47CFR §2.1091 REQUIREMENT 6 2.1 TEST STANDARDS 6 2.2 LIMIT 6 2.3 TEST RESULT 9 Page 4 of 9 Report No.: STS2206043H02 Revision History Rev. Issue Date Report No. Effect Page Contents 00 25 June 2022 STS2206043H02 ALL Initial Issue Page 5 of 9 Report No.: STS2206043H02 1. GENERAL INFORMATION 1.1 GENERAL DESCRIPTION OF THE EUT Product Name Smart Hose Watering Timer Brand Name B-hyve/Orbit Model Name HT25G2 Series Model N/A Model Difference N/A Product Description The EUT is Smart Hose Watering Timer Operation Frequency: 2402~2480 MHz Modulation Type: GFSK Antenna gain: 0dBi Antenna Designation: PCB Antenna Rating Input: 3VDC Battery Rated Voltage: 2x AA, Not Included Hardware version number 001 Software version number 0039 1.2 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 Page 6 of 9 Report No.: STS2206043H02 2. FCC 47CFR §2.1091 REQUIREMENT 2.1 TEST STANDARDS Follow the maximum permissible exposure (MPE) limits specified in 447498 D04 Interim General Radio Frequency Exposure Guidelines v01. The gain of the antenna used in the product was extracted from the supplied antenna data sheet and the maximum total power input to the antenna was also measured. Calculate the distance from the product to the MPE limit by the formula. 2.2 LIMIT For single RF sources (i.e., any single fixed RF source, mobile device, or portable device, as defined in paragraph (b)(2) of this section): A single RF source is exempt if: (A) The available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption may not be used in conjunction with other exemption criteria other than those in paragraph (b)(3)(ii)(A) of Part 1.1307. Medical implant devices may only use this exemption and that in paragraph (b)(3)(ii)(A); (B) Or the available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold Pth (mW) described in the following formula. This method shall only be used at separation distances (cm) from 0.5 centimeters to 40 centimeters and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by: Page 7 of 9 Report No.: STS2206043H02 (C) Or using below table and the minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. For the exemption in Table 1 to apply, R must be at least λ/2π, where λ is the free-space operating wavelength in meters. If the ERP of a single RF source is not easily obtained, then the available maximum time-averaged power may be used in lieu of ERP if the physical dimensions of the radiating structure(s) do not exceed the electrical length of λ/4 or if the antenna gain is less than that of a half-wave dipole (1.64 linear value). RF Source frequency (MHz) Threshold ERP(watts) 0.3-1.34 1,920 R 2 . 1.34-30 3,450 R 2 /f 2 . 30-300 3.83 R 2 . 300-1,500 0.0128 R 2 f. 1,500-100,000 19.2R 2 . Page 8 of 9 Report No.: STS2206043H02 For multiple RF sources: Multiple RF sources are exempt if: (A) The available maximum time-averaged power of each source is no more than 1 mW and there is a separation distance of two centimeters between any portion of a radiating structure operating and the nearest portion of any other radiating structure in the same device, except if the sum of multiple sources is less than 1 mW during the time-averaging period, in which ca…

Text truncated - open the document above for the full version.

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, all test data presented in this report is only applicable to presented test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No.:STS2206043W02 Issued for Orbit Irrigation Products Inc 845 Overland Road, North Salt Lake, Utah 84054 USA Product Name: Smart Hose Watering Timer Brand Name: B-hyve/Orbit Model Name: HT25G2 Series Model: N/A FCC ID: ML6HT25G2 Test Standard: FCC Part 15.247 S T L A B S Page 2 of 57 Report No.: STS2206043W02 TEST RESULT CERTIFICATION Applicant’s Name ................. : Orbit Irrigation Products Inc Address ................................. : 845 Overland Road, North Salt Lake, Utah 84054 USA Manufacturer's Name .......... : Pro-Mark, LLC Address ................................. : 845 Overland Road, North Salt Lake, Utah 84054 USA Product Description Product Name ....................... : Smart Hose Watering Timer Brand Name ........................ : B-hyve/Orbit Model Name .......................... : HT25G2 Series Model ......................... : N/A Test Standards ..................... : FCC Part15.247 Test Procedure ...................... : ANSI C63.10-2013 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date of receipt of test item ..................... : 08 June 2022 Date (s) of performance of tests ............. : 08 June 2022 ~ 25 June 2022 Date of Issue .......................................... : 25 June 2022 Test Result.............................................. : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory : (Bovey Yang) Page 3 of 57 Report No.: STS2206043W02 Table of Contents 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 TEST SOFTWARE AND POWER LEVEL 10 2.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.5 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 11 2.6 EQUIPMENTS LIST 12 3. EMC EMISSION TEST 14 3.1 CONDUCTED EMISSION MEASUREMENT 14 3.2 TEST PROCEDURE 15 3.3 TEST SETUP 15 3.4 EUT OPERATING CONDITIONS 15 3.5 TEST RESULTS 16 4. RADIATED EMISSION MEASUREMENT 17 4.1 RADIATED EMISSION LIMITS 17 4.2 TEST PROCEDURE 19 4.3 TEST SETUP 20 4.4 EUT OPERATING CONDITIONS 20 4.5 FIELD STRENGTH CALCULATION 21 4.6 TEST RESULTS 22 5. CONDUCTED SPURIOUS & BAND EDGE EMISSION 29 5.1 LIMIT 29 5.2 TEST PROCEDURE 29 5.3 TEST SETUP 29 5.4 EUT OPERATION CONDITIONS 29 5.5 TEST RESULTS 29 6. POWER SPECTRAL DENSITY TEST 30 6.1 LIMIT 30 6.2 TEST PROCEDURE 30 6.3 TEST SETUP 30 Page 4 of 57 Report No.: STS2206043W02 Table of Contents 6.4 EUT OPERATION CONDITIONS 30 6.5 TEST RESULTS 30 7. BANDWIDTH TEST 31 7.1 LIMIT 31 7.2 TEST PROCEDURE 31 7.3 TEST SETUP 31 7.4 EUT OPERATION CONDITIONS 31 7.5 TEST RESULTS 31 8. PEAK OUTPUT POWER TEST 32 8.1 LIMIT 32 8.2 TEST PROCEDURE 32 8.3 TEST SETUP 33 8.4 EUT OPERATION CONDITIONS 33 8.5 TEST RESULTS 33 9. ANTENNA REQUIREMENT 34 9.1 STANDARD REQUIREMENT 34 9.2 EUT ANTENNA 34 APPENDIX 1-TEST DATA 35 1. DUTY CYCLE 35 2. MAXIMUM AVERAGE CONDUCTED OUTPUT POWER 38 3. MAXIMUM PEAK CONDUCTED OUTPUT POWER 41 4. -6DB BANDWIDTH 44 5. MAXIMUM POWER SPECTRAL DENSITY LEVEL 47 6. BAND EDGE 50 7. CONDUCTED RF SPURIOUS EMISSION 53 APPENDIX 2- EUT TEST PHOTO 57 Page 5 of 57 Report No.: STS2206043W02 Revision History Rev. Issue Date Report NO. Effect Page Contents 00 25 June 2022 STS2206043W02 ALL Initial Issue Page 6 of 57 Report No.: STS2206043W02 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247,Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A -- 15.247 (a)(2) 6dB Bandwidth PASS -- 15.247 (b)(3) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247 (d) Conducted Spurious & Band Edge Emission PASS -- 15.247 (e) Power Spectral Density PASS -- 15.205 Restricted bands of operation PASS -- Part 15.247(d)/ Part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2013. Page 7 of 57 Report No.: STS2206043W02 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.87dB 2 Unwanted Emissions, conducted ±2.895dB 3 All emissions, radiated 9K-30MHz ±3.80dB 4 All emissions, radiated 30M-1GHz ±4.09dB 5 All emissions, radiated 1G-6GHz ±4.92dB 6 All emissions, radiated>6G ±5.49dB 7 Conducted Emission (9KHz-30MHz) ±2.73dB Page 8 of 57 Report No.: STS2206043W02 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name Smart Hose Watering Timer Trade Name B-hyve/O…

Text truncated - open the document above for the full version.

Page 1 of 1 FCC ID: ML6HT25G2 DTS Setup photo Model name: HT25G2 DTS radiation L DTS radiation H
