High Station Count Controller A B-hyve® Pro Connected Device Beta unit Installation and Operation Guide MODEL: HSC-1600-M SYMBOL DEFINITION FCC AND IC STATEMENT This device complies with Part 15 of the FCC Rules and Industry Canada license exempt RSS standards. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Warning: Any changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate this equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, you are encouraged to try to correct the interference by one of the following measures:  Increase the separation between the equipment and the receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. This Class B digital apparatus complies with Canadian ICES-003 This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Note: 5150~5250MHz is Indoor use only. DÉCLARATION DE FCC ET L’IC Cet appareil est conforme à la section 15 de la Règlementation de la FCC et la norme RSS d’Industry Canada. Son fonctionnement est soumis aux deux conditions suivantes: (1) cet appareil ne doit pas causer d’interférences nuisibles, et (2) cet appareil doit tolérer toutes les interférences, dont les interférences pouvant causer un fonctionnement non désiré. Cet appareil numérique de classe B est conforme à la norme canadienne ICES-003. Remarque: cet appareil été testé et déclaré conforme aux limites d’exposition pour les appareils numériques de classe B, selon la section 15 de la Règlementation de la FCC. Ces limites sont conçus pour fournir une protection raisonnable contre les interferences nuisibles dans une installation résidentielle. Cet appareil produit, utilise et peut émettre de l’énergie radio fréquence et, si elle n’est pas installée et utilisée conformément aux instructions, peut causer des interferences nuisibles aux communications radio. Cependant, il n’est pas garantie que des interférences ne se produisent pas dans une installation particulière. Si cet appareil cause des interferences gênantes à la réception d’un signal radio ou de télévision, ce qui peut être déterminé en allumant et en éteignant l’appareil, l’utilisateur peut corriger les interférences en suivants une des mesures suivantes :  Augmentez la distance entre l’appareil et le récepteur.  Branchez l’appareil dans une prise sur un circuit différent du circuit sur lequel le récepteur est branché.  Consulter le revendeur ou un technicien radio/TV expérimenté pour obtenir de l’aide. Cet appareil numérique de classe B est conforme à la norme canadienne ICES-003. Ce matériel est complété par une exposition de rayonnements IC pour un environnement naturel. Ce matériel doit être installé et se faire avec une distance minimale de 20cm entre les radiateurs et les autresYour body shop. Safety Information Warning: A circuit breaker or cutoff switch shall be installed in the wiring to isolate the controller Warning: Date and time on the controller are maintained by a long-life lithium battery. This battery shall be disposed of in accordance with local regulations. Contents SYMBOL DEFINITION ....................................................................................................................... 2 FCC AND IC STATEMENT ................................................................................................................. 2 DÉCLARATION DE FCC ET L’IC ..................................................................................................... 2 Safety Information ...................................................................................................................... 3 Welcome to the Hydro-Rain Family ................................................................................................ 6 HSC Controller ................................................................................................................................. 6 Controller Features ..................................................................................................................... 6 B-hyve Pro ....................................................................................................................................... 6 Need Help? ...................................................................................................................................... 6 HSC Hardpoints ............................................................................................................................... 8 1. Ethernet Connection ............................................................................................................ 8 2. USB Power Port .................................................................................................................... 8 3. Display ...........................................................................................................................…

Text truncated - open the document above for the full version.

Orbit Irrigation Products Inc Agent Authorization Company: Orbit Irrigation Products Inc Address: 845 Overland Road, North Salt Lake, Utah 84054 USA Product Name: High Station Count Controller Model Number(s): HSC-1600-M, HSC-6300-D Product Description: High Station Count Controller with BLE, 2.4GWIFI, 5GWIFI and LPWAN FCC ID: ML6HSC We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022-06-25 Name: Jiankuai Li Title: PM Company: SHENZHEN STS TEST SERVICES CO.,LTD.

Differences Description We Orbit Irrigation Products Inc state: Product： High Station Count Controller Model Name： HSC-1600-M, HSC-6300-D Trade Name: b-hyve / HYDRO RAIN FCC ID: ML6HSC Model Names Series Model HSC-1600-M 04550 16-Station Modular Based Controller HSC-6300-D 04554 Two Wire Controller Both HSC-1600-M and HSC-6300-D are High Station Count Controllers that share the same main board hardware. Only the irrigation station system used is different. The HSC-1600-M “Multi Wire” systems utilize a dedicated wire to each valve and shared common return wires. By default there is 2 of the 8 station modules, with option to expand with a total of up to 6 of the 8 station modules attached that provides for control of 48 total zones. We allow up to 4 of these zones to be active at a time. The HSC-6300-D “Two Wire” systems utilize a digital addressing to separately control up to 63 unique decoders on a set of two wires. We allow up to 4 of these zones to be active at a time. Signatory Signature: Date: 2022-06-25 Name: Jiankuai Li Title: PM Company: SHENZHEN STS TEST SERVICES CO.,LTD.

2022.06.25 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize SHENZHEN STS TEST SERVICES CO.,LTD./ A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District,Bao’an District, Shenzhen, Guang Dong, China/Jiankuai Li(Name of Agent company name and address, Name of Agent) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. This appointment is valid until further December 31, 2022. Name: Jiankuai Li Title: PM E-mail:[email protected] Sincerely, Name: Karl Connolly Title: EVP Prod. Dev. E-mail: [email protected] Company: Orbit Irrigation Products Inc Signature:

Orbit Irrigation Products Inc Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2022.06.25 Subject; Request for Confidentiality FCC ID: ML6HSC To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description Tune-up Procedure SOFTWARE SECURITY REQUIREMENTS FOR U-NII DEVICES Part List In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: SHENZHEN STS TEST SERVICES CO.,LTD. Title: PM

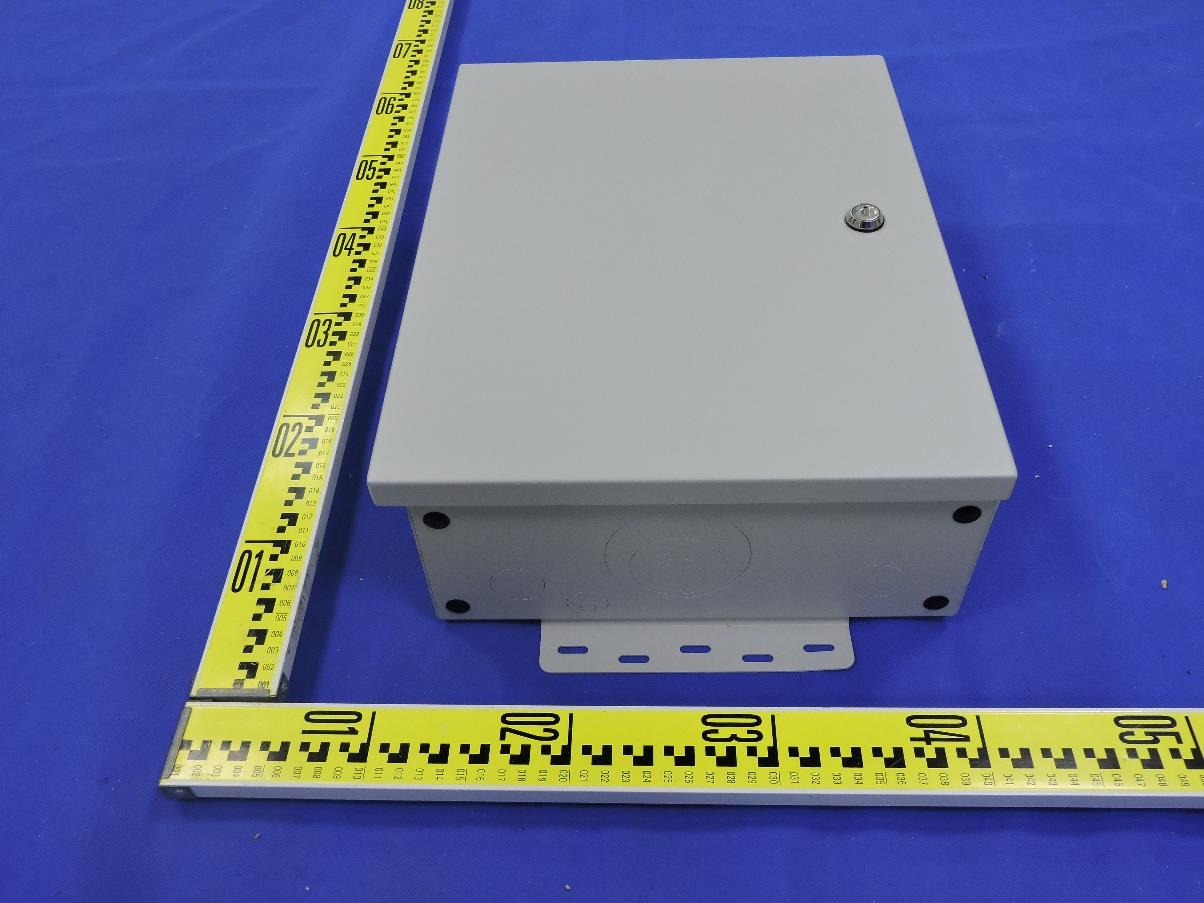

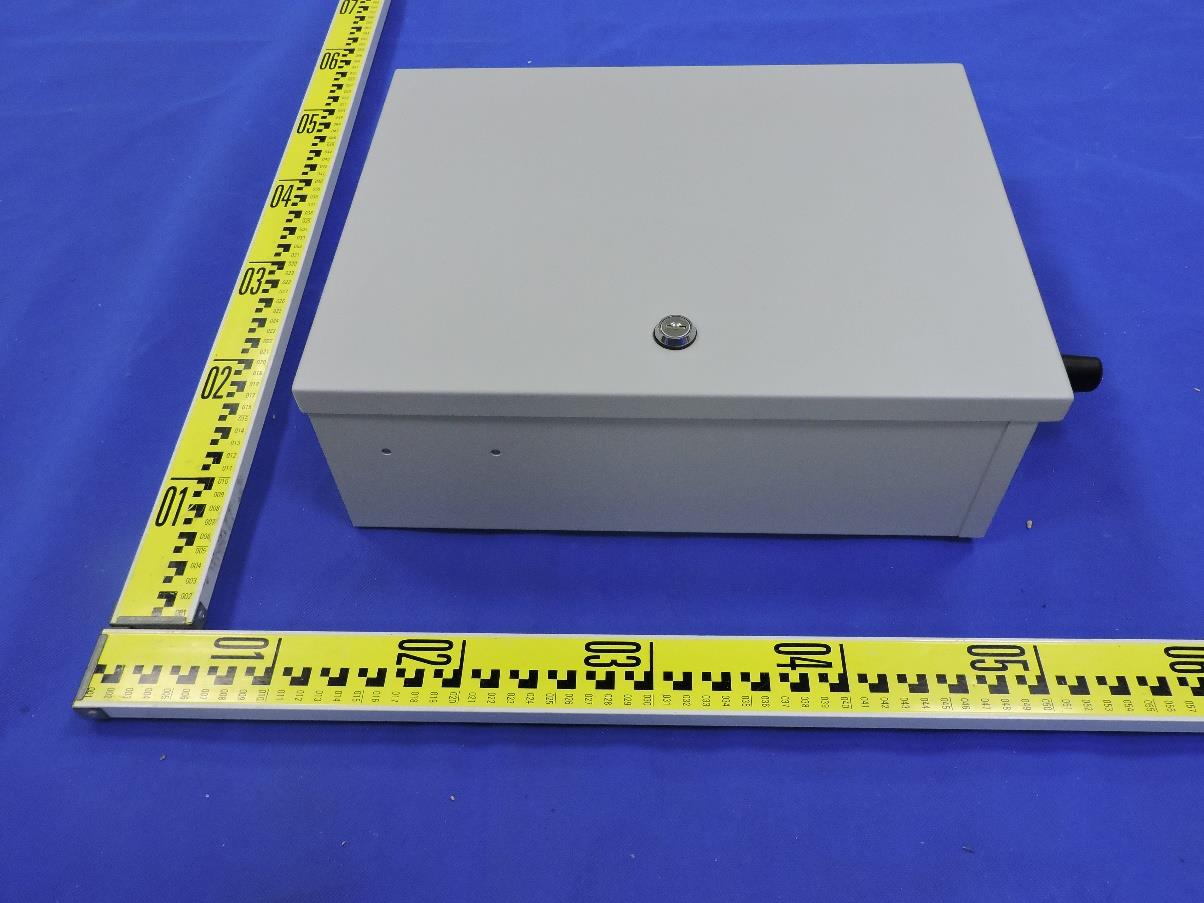

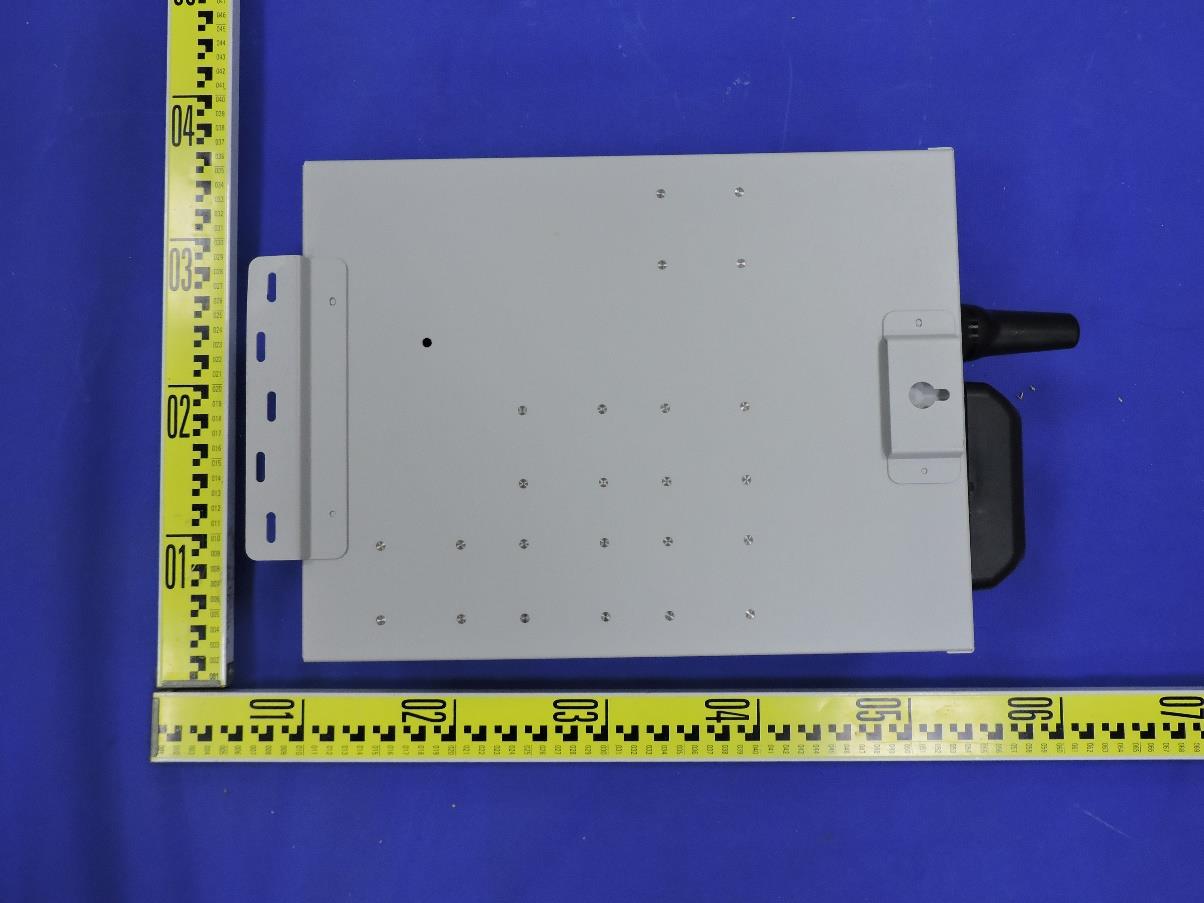

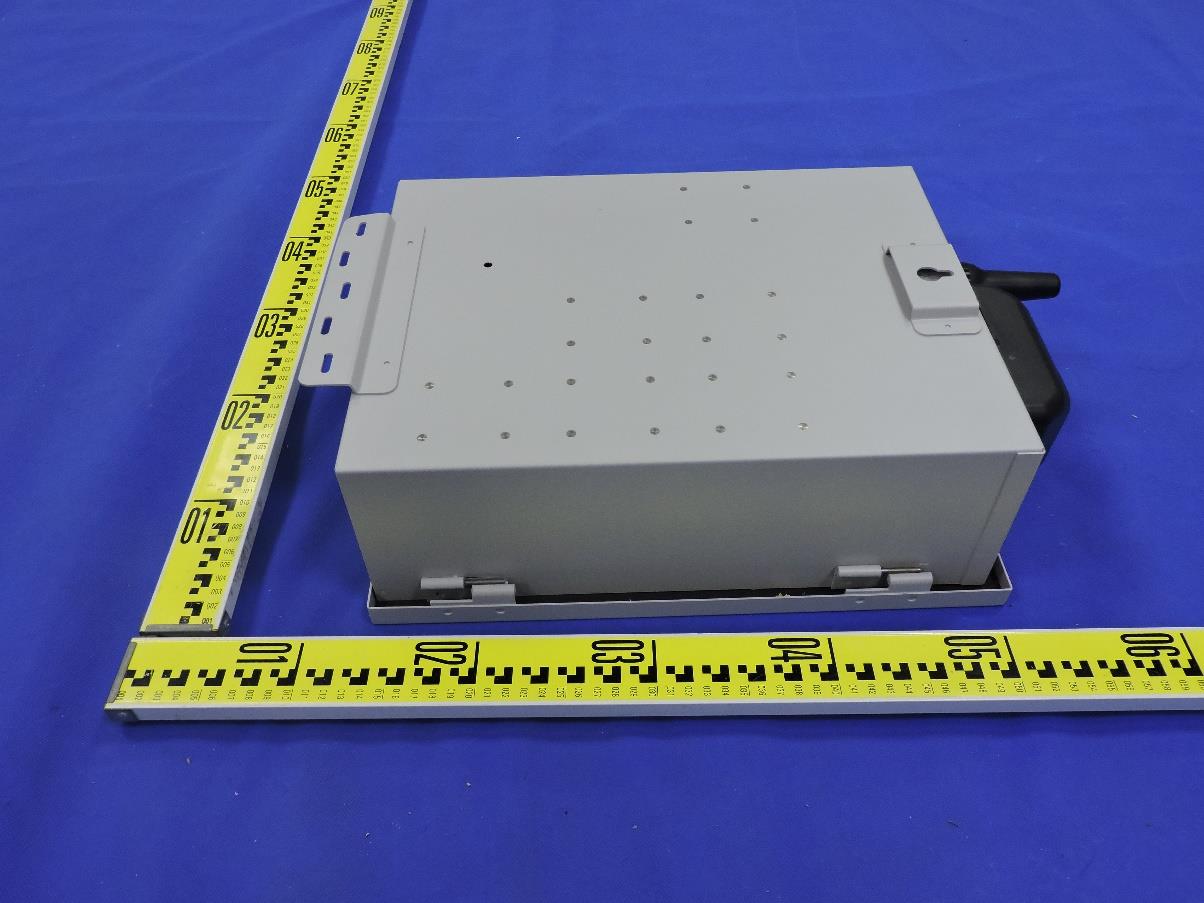

Page 1 of 3 Report No.: STS2112248 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: HSC-1600-MB Photo 1 Photo 2 Page 2 of 3 Report No.: STS2112248 Photo 3 Photo 4 Page 3 of 3 Report No.: STS2112248 Photo 5 Photo 6 BLE/WLAN/LPWAN ANTENNA LPWAN RX ANTENNA

FCC and ISED Label High Station Count Controller Model/HVIN: HSC-1600-M, HSC-1600-D FCC ID: ML6HSC IC: 3330A-HSC This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 50mm 40mm

Page 1 of 3 Report No.: STS2112248 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: HSC-1600-MB Photo 1 Photo 2 Page 2 of 3 Report No.: STS2112248 Photo 3 Photo 4 Page 3 of 3 Report No.: STS2112248 Photo 5 Photo 6

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, all test data presented in this report is only applicable to presented test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No: STS2112348H02 Issued for Orbit Irrigation Products Inc 845 Overland Road, North Salt Lake, Utah 84054 USA Product Name: High Station Count Controller Brand Name: b-hyve / HYDRO RAIN Model Name: HSC-1600-M Series Model: HSC-6300-D FCC ID: ML6HSC Test Standard: FCC 47CFR §2.1091 S T L A B S Page 2 of 9 Report No.: STS2112348H02 Test Report Certification Applicant’s Name ................. : Orbit Irrigation Products Inc Address ................................. : 845 Overland Road, North Salt Lake, Utah 84054 USA Manufacturer's Name .......... : Orbit Irrigation Products Inc Address ................................. : 845 Overland Road, North Salt Lake, Utah 84054 USA Product Description Product Name ........................ : High Station Count Controller Brand Name ......................... : b-hyve / HYDRO RAIN Model Name .......................... : ... : HSC-1600-M Series Model .......................... : HSC-6300-D Standards ............................. : FCC 47CFR §2.1091 This report shall not be reproduced except in full, without the written approval of STS, this document only be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date of receipt of test item ..................... : 14 Jan. 2022 Date (s) of performance of tests ............. : 14 Jan. 2022 ~ 24 Feb. 2022 Date of Issue .......................................... : 24 Feb. 2022 Test Result.............................................. : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory : (Vita Li) Page 3 of 9 Report No.: STS2112348H02 TABLE OF CONTENTS 1. GENERAL INFORMATION 5 1.1 GENERAL DESCRIPTION OF THE EUT 5 1.2 TEST FACTORY 7 2. FCC 47CFR §2.1091 REQUIREMENT 8 2.1 TEST STANDARDS 8 2.2 LIMIT 8 2.3 EUT OPERATION CONDITION 8 2.4 CLASSIFICATION 8 2.5 TEST RESULT 9 Page 4 of 9 Report No.: STS2112348H02 Revision History Rev. Issue Date Report No. Effect Page Contents 00 24 Feb. 2022 STS2112348H02 ALL Initial Issue Page 5 of 9 Report No.: STS2112348H02 1. GENERAL INFORMATION 1.1 GENERAL DESCRIPTION OF THE EUT Product Name High Station Count Controller Brand Name b-hyve / HYDRO RAIN Model Name HSC-1600-M Series Model HSC-6300-D Model Difference Model Names Series Model HSC-1600-M 04550 16-Station Modular Based Controller HSC-6300-D 04554 Two Wire Controller Both HSC-1600-M and HSC-6300-D are High Station Count Controllers that share the same main board hardware. Only the irrigation station system used is different. The HSC-1600-M “Multi Wire” systems utilize a dedicated wire to each valve and shared common return wires. By default there is 2 of the 8 station modules, with option to expand with a total of up to 6 of the 8 station modules attached that provides for control of 48 total zones. We allow up to 4 of these zones to be active at a time. The HSC-6300-D “Two Wire” systems utilize a digital addressing to separately control up to 63 unique decoders on a set of two wires. We allow up to 4 of these zones to be active at a time. Product Description The EUT is High Station Count Controller Operation Frequency: BLE: 2402~2480 MHz 2.4G WLAN: 802.11b/g/n 20: 2412~2462 MHz 5G WLAN: IEEE 802.11a/n(HT20)/ac(VHT20): 5.180GHz-5.240GHz IEEE 802.11n(HT40)/ac(VHT40): 5.190GHz-5.230GHz IEEE 802.11ac(VHT80): 5.210GHz LPWAN: Uplink: 902.3~914.9MHz Downlink: 923.3~926.9MHz Page 6 of 9 Report No.: STS2112348H02 Modulation Type: BLE: GFSK 2.4G WLAN: 802.11b(DSSS):CCK,DQPSK,DBPSK 802.11g(OFDM):BPSK,QPSK,16-QAM,64-QAM 802.11n(OFDM):BPSK,QPSK,16-QAM,64-QAM 5G WLAN: 802.11a(OFDM): BPSK,QPSK,16-QAM,64-QAM 802.11n(OFDM): BPSK,QPSK,16-QAM,64-QAM 802.11ac(OFDM): BPSK,QPSK,16-QAM,64-QAM,256-QAM LPWAN: GFSK Antenna gain: BLE: 2.2dBi 2.4G WLAN: 2.2dBi 5G WLAN: -0.15dBi LPWAN: 1.7dBi Antenna Designation: PCB Antenna Power Rating Input: 110/208V~ 50/60Hz 0.76A 90VA or 230/240V~ 50/60Hz 0.38A 92VA Output: 24VAC, 2.5Amps Hardware Version 003 Software Version V28 Page 7 of 9 Report No.: STS2112348H02 1.2 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 Page 8 of 9 Report No.: STS2112348H02 2. FCC 47CFR §2.1091 REQUIREMENT 2.1 TEST STANDARDS The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over-prediction for near field power density. It is taken as worst case to specify the safety range. 2.2 LIMIT According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of the human exposure to radio-frequency (RF) radiation as specified in 1.1307 (b) Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm²) Limits for Occupational / controlled Exposures 300 - 1500 -- -- F/300 15…
