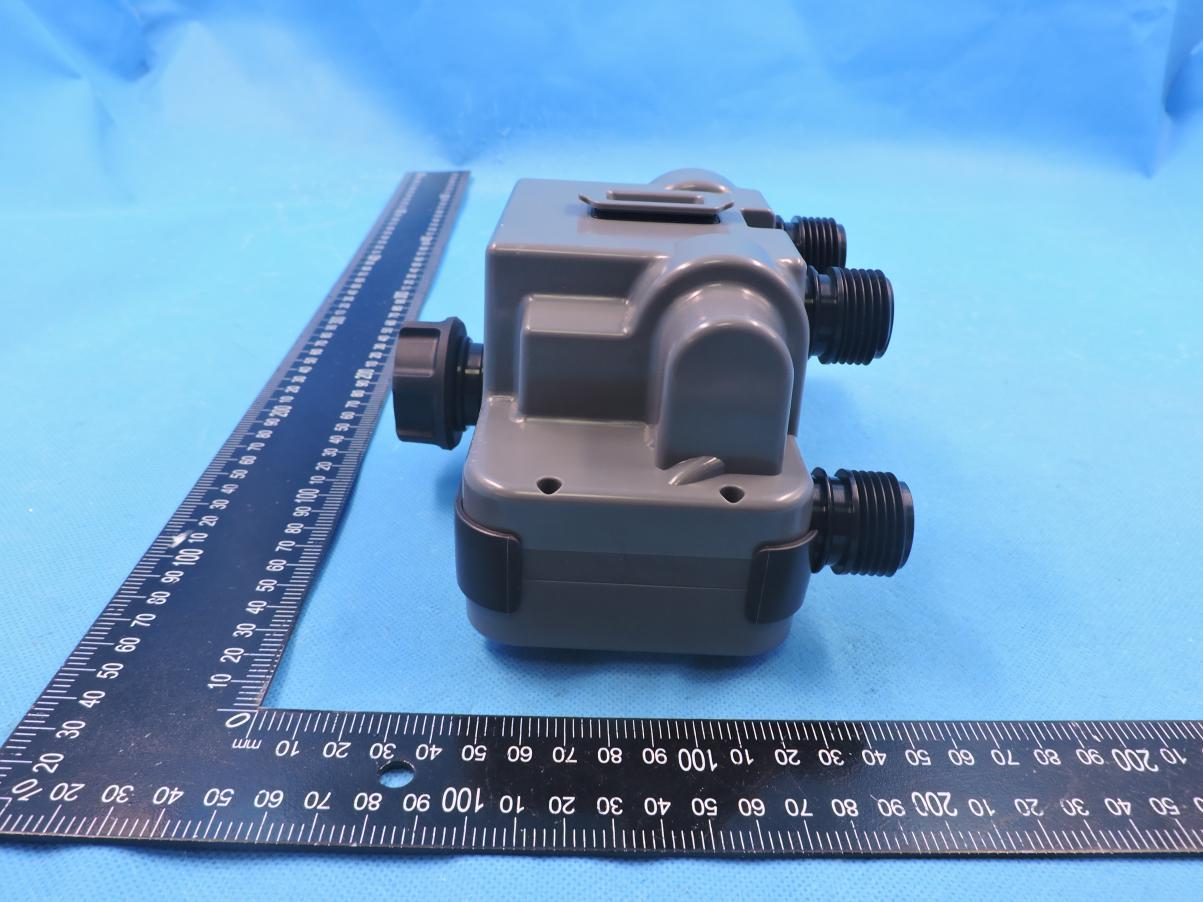

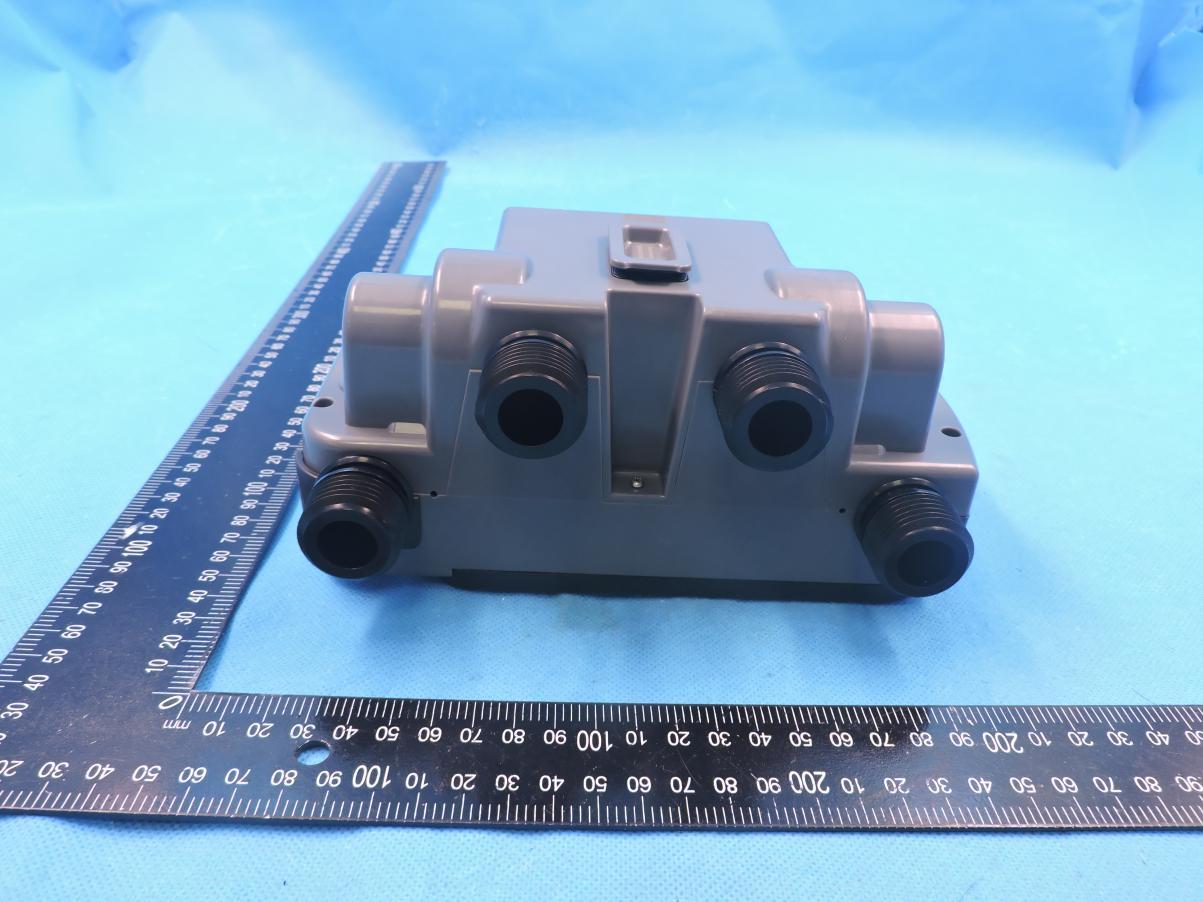

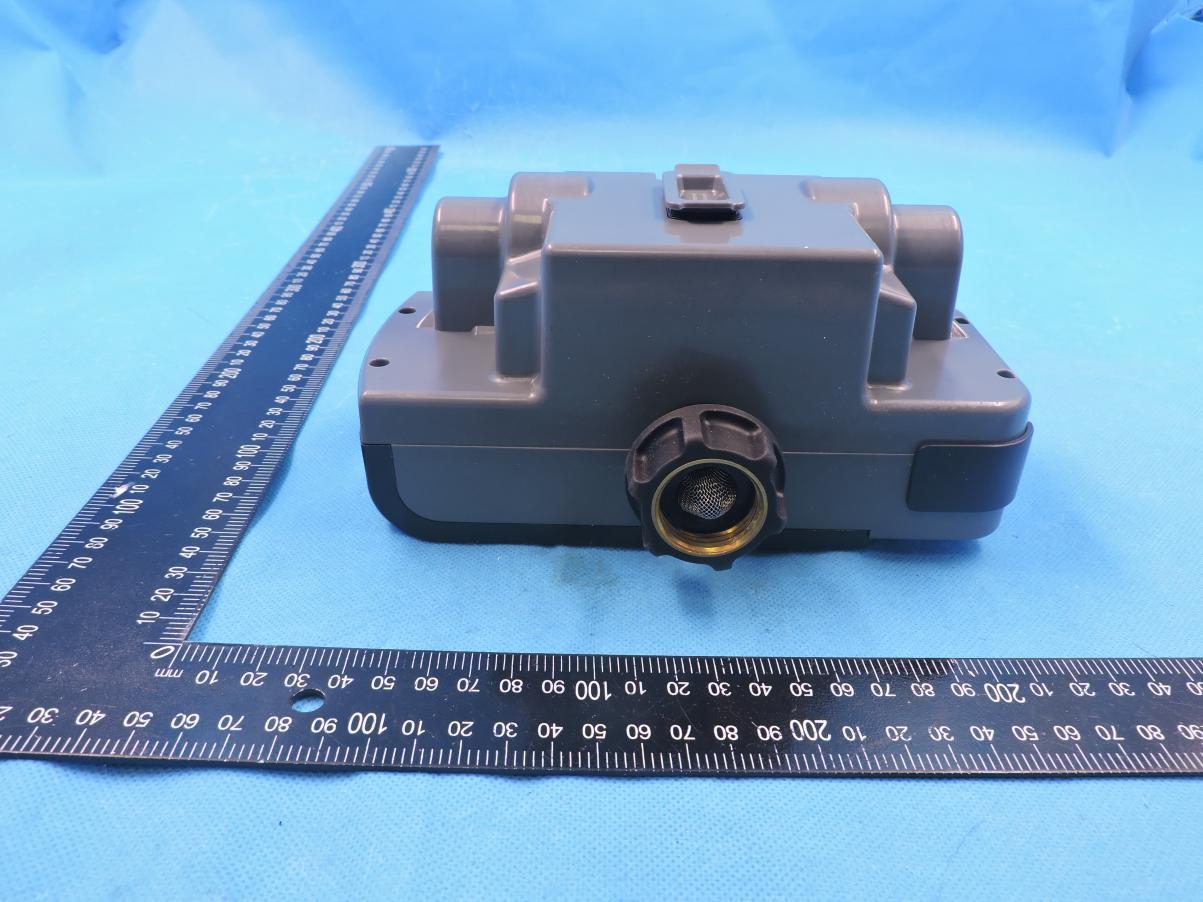

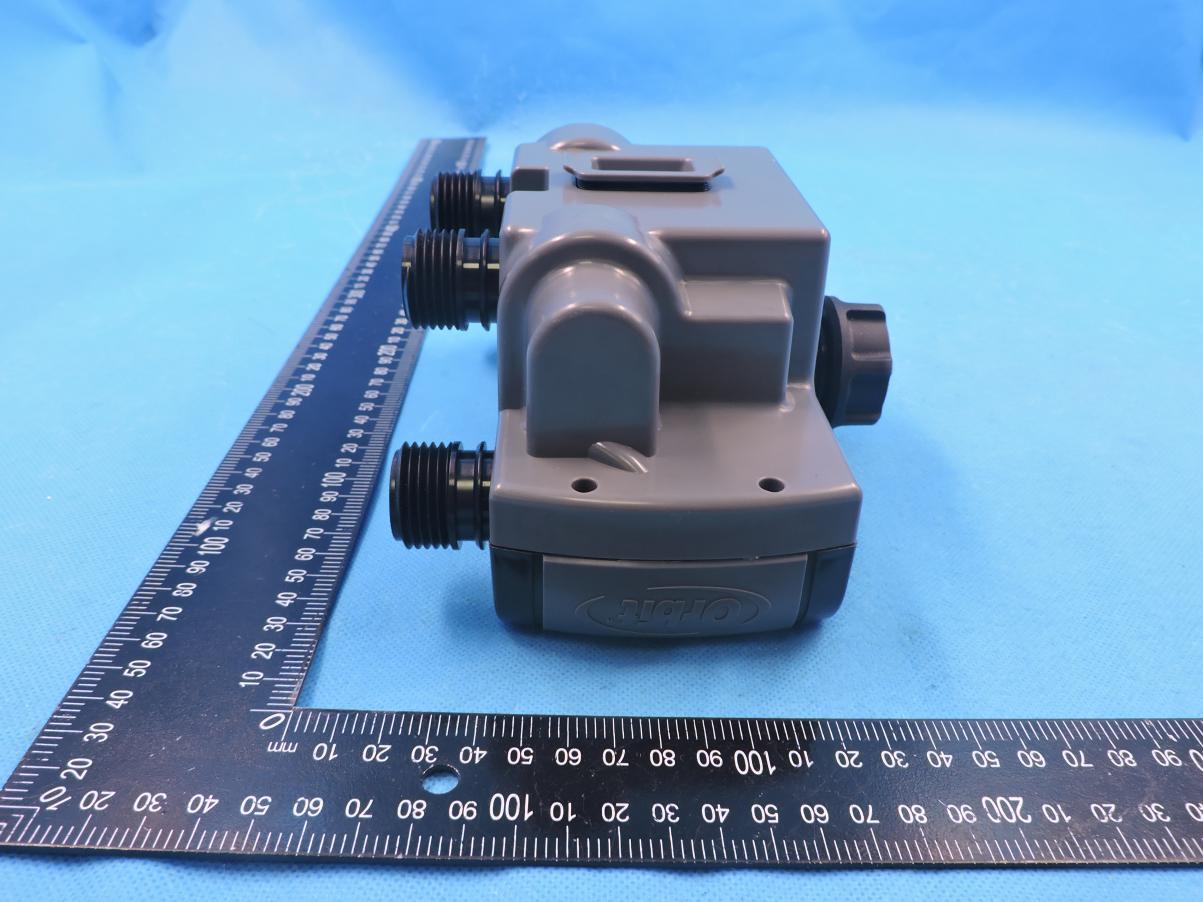

ML6-HT34BTB-HYVE XD BLUETOOTH HOSE FAUCET TIMER

QUICK START GUIDE B-HYVE XD BLUETOOTH® HOSE FAUCET TIMER FAUCET CONNECTION OUTLET RAIN DELAY ICON F I LT E R DIAL LOW BAT TE RY INDICATOR BLUETOOTH® ICON Write down the MAC address: 12 digit alphanumeric code located on the bottom of the timer. Timer MAC Address: __ __ :__ __ :__ __ :__ __ :__ __ :__ __ Installing the Batteries Insert two AA (1.5V) alkaline batteries (not included) and replace the tray. Replace batteries when low battery icon appears on display. Used up or dead batteries must be removed from the timer and disposed of properly. Do not dispose of batteries in fire. Batteries may explode or leak. Remove batteries when storing timer. Note: Firmly replace the battery tray to ensure water resistance and increase battery life. You will know the battery tray is fully inserted if it does not pull out easily. Open the B-hyve® App Log into your B-hyve account and tap “My B-hyve”. Go to “devices” then “add device”. Select the B-hyve XD timer with two outlets. The app will walk you through the rest of the process. For new users, search apps for “B-hyve” and download the free Android or iOS app. Create an account to begin setup. The Bluetooth® icon on the display should be flashing indicating the timer is in pairing mode. If at any time you need to re-pair or do a factory reset, turn the dial so the arrow is pointing to OFF, press and hold the dial for 5 seconds. Note: Your LCD will show Lock Icon to indicate that the timer is using the B-hyve app to program your timer. Note: When the display shows a full screen of symbols release the dial. The display will show 12:00pm in the AUTO/MANUAL mode verifying the reset has been completed. Resetting the timer will erase all programs and it will have to reprogrammed to your desired watering schedule. PROGRAMMING THE TIMER AT THE FAUCET PROGRAMMING THE TIMER WITH BLUETOOTH® Set Clock 1. Turn the dial so the arrow is pointing to SET CLOCK. 2. Press the dial to select, the hour will begin to flash. 3. Turn the dial until current hour is displayed including the correct AM or PM, then press dial to confirm. The minutes will begin to flash, indicating the next step. 4. Turn the dial until the current minutes are displayed, then press dial to confirm. Programming Zones 2-4 1. Turn the dial so the arrow is pointing to START TIME. 2. Press the ZONE button to select zone [2], [3], or [4], this will set that Zone as the default station. 3. With that zone now selected, repeat the steps for Start Time, How Long, and How Often. Repeat these steps to program all zones. Start Time 1. Turn the dial so the arrow is pointing to START TIME. 2. Zone [1] is automatically selected 9noted by the box around it.) 3. Press the dial to select, the hour will begin to flash. 4. Turn the dial until the desired start time hour is displayed including the correct AM or PM, then press dial to confirm. The minutes will begin to flash, indicating the next step. 5. Turn the dial until the desired minutes are displayed, then press dial to confirm. How Often 1. Turn the dial so the arrow is pointing to HOW OFTEN, zone [1] is automatically selected. 2. Press the dial to select, the number will begin to flash. 3. Turn the dial until the desired number of hours or days is displayed, then press to confirm. You may choose to water every 1 hour, 3 hours, 6 hours, 12 hours, or from 1 to 7 days. Note: 1 is every day, 2 is every other day, etc. How Long 1. Turn the dial so the arrow is pointing to HOW LONG, zone [1] is automatically selected. 2. Press the dial to select, the minutes will begin to flash. 3. Turn the dial until the desired number of minutes are displayed. Select between 1 to 360 minutes then press dial to confirm Congratulations! Zone 1 is now programmed. Turn your dial to AUTO to allow your timer to water according to programmed time and frequency, or complete the steps to program zone 2-4. more information on back Printers are responsible for meeting print production requirements. Any changes must be approved by Orbit ® . Printed piece must meet designated specifications on this form. © 2020 Orbit Inc. This work is the property of Orbit ® , and cannot be used, reproduced or distributed in any way without their express permission. Dieline PMS 0000 Fold PMS 0000 Product Coverage PMS 0000 Dims./ Callout PMS 0000 ∙ ∙ ∙ ∙ Orbit ® 1.801.299.5555 orbitonline.com K Glue FoldedFlatAdditional Information PRINTERS ARE REQUIRED TO MATCH ALL SPECIFIED PMS COLORS. DATE: 12/17/2020 DESIGNER: QWMARKETING: DC SOFTWARE: Adobe Indesign CC ARTWORK No: 24634-24 rA L: W: H: _._"W: H:_._" _._" 22.5" 5.5" HT34BT Rain Delay Rain delay allows you to postpone watering for a set period of time. To access the rain delay, follow the steps below. 1. With the timer in the AUTO/MANUAL mode, press and hold the dial for 3 seconds. 2. The rain delay symbol will appear and the number of days will begin to flash. 3. Turn the dial until the desired number of days is displayed, then press to confirm. You may select a delay of 12 hours, 24 hours, or from 2 to 7 days. 4. Screen will flash between clock and remaining time before programmed cycle resumes. Manual/Hand Watering This feature allows you to water without interrupting your set schedule. To access this feature, follow the steps below. 1. With the arrow pointing to AUTO/MANUAL, press the FCC Statement: FCC ID: ML6-HT34BT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Warning: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against h…
