ML6CMABZSub-G Module

Preliminary Specification Number : SP-ABZ-F 1 / 19 MP P/N: CMWX1ZZABZ Sample P/N: CMWX1ZZABZ-TEMP For LoRa TM USER MANUAL Preliminary Specification Number : SP-ABZ-F 2 / 19 Revision History Revision Code Date Description Comments A June 8, 2016 Initial Draft B July 1, 2016 Updated height and package info C July 30,2016 Revised some formats and ΔRF_OPH_V test condition from 2.4-3.7V to 2.2-3.6V. Updated some electronic Characteristics. Added the recommended land pattern. D Aug 29,2016 Updated the RF performance, Electrical Characteristics and power up sequence. E Oct 11, 2016 Added FCC and IC statements. F Aug 20, 2018 Added additional antenna info. Preliminary Specification Number : SP-ABZ-F 3 / 19 TABLE OF CONTENTS 1. Features ······················································································································· 4 2. Part Number ················································································································· 4 3. Block Diagram ··············································································································· 4 4. Dimensions, Marking and Terminal Configurations ···························································· 5 5. Label Information ·········································································································· 8 6. Absolute Maximum Ratings ····························································································· 8 7. Operating Condition ······································································································· 8 8. Electrical Characteristics ································································································ 9 9. Power Sequences ··········································································································· 10 10. Recommend Land Pattern ····························································································· 11 11. Reference circuit ·········································································································· 12 12. Tape and Reel packing ·································································································· 13 13. Notice ························································································································ 16 14. Regulatory Statements ································································································· 18 Preliminary Specification Number : SP-ABZ-F 4 / 19 1. Features Interfaces : I2C, UART, USB, SPI Main ICs : STM32L082, SX1276 Reference Clocks : Integrated 32MHz clock (TCXO with frequency error=±2 ppm) and 32.768KHz clock (frequency error=±20 ppm) Supported Frequencies : 868 MHz, 915 MHz Module Size : 12.5 mm x 11.6 mm x 1.76 mm (Max) Package : Metal Shield can RoHS : This module is compliant with the RoHS directive 2. Part Number Ordering Part Number Description CMWX1ZZABZ MP P/N CMWX1ZZABZ-TEMP Engineering sample 3. Block Diagram Preliminary Specification Number : SP-ABZ-F 5 / 19 4. Dimensions, Marking and Terminal Configurations Top View Bottom View Side View Table 1 Dimension (Unit: mm) Mark Dimension Mark Dimension Mark Dimension L 12.5±0.20 W 11.6±0.20 T 1.76 max a1 0.50±0.10 a2 0.50±0.10 a3 1.50±0.10 b1 0.20±0.15 b2 1.60±0.15 b3 3.00±0.15 b4 3.50±0.15 b5 0.20±0.15 b6 1.15±0.15 b7 2.55±0.15 c1 0.80±0.10 c2 0.80±0.10 c3 1.50±0.10 e1 0.30±0.10 e2 0.30±0.10 e3 1.00±0.10 e4 1.00±0.10 Preliminary Specification Number : SP-ABZ-F 6 / 19 Terminal Configurations < Top View > Table 2 Terminal Configurations Pin NO. Terminal Name Type Connection to IC terminal Description 1 PA12/USB_DP I/O STM32L082_PA12 GPIO Mode:PA12 USB_DP 2 PA11/USB_DM I/O STM32L082_PA11 GPIO Mode:PA11 USB_DM 3 GND Ground - Ground 4 VDD_USB Power - Power supply for USB 5 VDD_MCU Power - Power supply for MCU 6 VDD_RF Power - Power supply for RF IC 7 GND Ground - Ground 8 DBG_SX1276_DIO2 I/O SX1276_DIO2 Debug pin for SX1276 9 DBG_SX1276_DIO3 I/O SX1276_DIO3 Debug pin for SX1276 10 SX1276_DIO4 I/O SX1276_DIO4 SX1276 DIO4 11 DBG_SX1276_DIO5 I/O SX1276_DIO5 Debug pin for SX1276 12 DBG_SX1276_DIO1 I/O SX1276_DIO1 Debug pin for SX1276 13 DBG_SX1276_DIO0 I/O SX1276_DIO0 Debug pin for SX1276 14 PB15/SPI2_MOSI I/O STM32L082_PB15 GPIO Mode:PB15 SPI2_MOSI 15 PB14/SPI2_MISO I/O STM32L082_PB14 GPIO Mode:PB14 SPI2_ MISO 16 PB13/SPI2_SCK I/O STM32L082_PB13 GPIO Mode:PB13 SPI2_SCK 17 PB12/SPI2_NSS I/O STM32L082_PB12 GPIO Mode:PB12 SPI2_NSS 18 PA10/USART1_RX I/O STM32L082_PA10 GPIO Mode:PA10 USART1_RX Preliminary Specification Number : SP-ABZ-F 7 / 19 19 PA9/USART1_TX I/O STM32L082_PA9 GPIO Mode:PA9 USART1_TX 20 PA8/MCO I/O STM32L082_PA8 GPIO Mode:PA8 MCO 21 PA5/ADC5/DAC2 I/O STM32L082_PA5 GPIO Mode:PA5 COMP2_INM ADC_IN5 DAC_OUT2 22 PA4/ADC4/DAC1 I/O STM32L082_PA4 GPIO Mode:PA4 COMP2_INM ADC_IN4 DAC_OUT1 23 PA3/ADC3 I/O STM32L082_PA3 GPIO Mode:PA3 COMP2_ INP ADC_IN3 24 PA2/ADC2 I/O STM32L082_PA2 GPIO Mode:PA2 COMP2_OUT ADC_IN2 25 GND Ground - Ground 26 ANT A,I/O - Transmit / Receive Antenna 27 GND Ground - Ground 28 DBG_CRF1 I/O STM32L082_PA1 Debug pin 29 DBG_CRF3 I/O STM32L082_PC1 Debug pin 30 DBG_CRF2 I/O STM32L082_PC2 Debug pin 31 STSAFE_nRST I - Reset for Security IC 32 VREF+ Power - Reference Voltage For ADC and DAC 33 PA0/WKUP1 I/O STM32L082_PA0 GPIO Mode:PA0 COMP2_OUT ADC_IN2 34 MCU_nRST I STM32L082_PD5 NRST 35 PB8/I2C1_SCL I/O STM32L082_ PB8 GPIO Mode:PB8 I2C mode: SCL 36 PB9/I2C1_SDA I/O STM32L082_ PB9 GPIO Mode: PB9 I2C mode: SDA 37 PB2/LPTIM1_OUT I/O STM32L082_PB2 GPIO Mode:PB2 LPTIM1_OUT 38 PB7/LPTIM1_IN2 I/O STM32L082_PB7 GPIO Mode:PB7 LPTIM1_IN2 39 PB6/LPTIM1_ETR I/O STM32L082_ PB6 GPIO Mode:PB6 LPTIM1_ETR 40 PB5/LPTIM1_IN1 I/O STM32L082_ PB5 GPIO Mode:PB5 LPTIM1_IN1 41 PA13/SWDIO I/O STM32L082_PA13 GPIO Mode:PA13 SWDIO LPUART1_RX 42 PA14/SWCLK I/O STM32L082_PA14 GPIO Mode:PA14 SWCLK LPUART1_TX 43 BOOT0 I STM32L082_PA5 Boot Option Preliminary Specific…

Text truncated - open the document above for the full version.

Orbit Irrigation Products, LLC TCBJ FORM-4 Issued by: TCB Administrator Revision 6 12/06/10 2020.08.27 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, Orbit Irrigation Products, LLC hereby authorize (Shenzhen STS Test Services Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Name: Karl Connolly Signature:

Orbit Irrigation Products, LLC TCBJ FORM-4 Issued by: TCB Administrator Revision 6 12/06/10 2020.08.27 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Sub-G Module/CMWX1ZZABZ/FCC ID: ML6CMABZ) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. required to be submitted with this application be permanently withheld from public review. Please contact me if there is any information you may need. Sincerely, Name: Karl Connolly Signature:

Single Modular approval Declaration letter We, apply Single modular approval for Product Name: Orbit Irrigation Products, LLC Model: CMWX1ZZABZ FCC ID: ML6CMABZ According to 996369 D01 Module Equip Auth Guide v01r04 and 15.212 requirement: 1) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must beon the module assembly; Answer ：Yes，with shielded 2)The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal; Answer ：Yes ；All inputs to the modules are buffered through logic or microprocessor inputs. 3)The modular transmitter must have its own power supply regulation. Answer ：Yes ；A low drop out regulator is used for modular power supply regulation. 4)The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b); Answer ：Yes ；Device is equipped with Integral antenna. (5)The module must demonstrate compliance in a stand-alone configuration; Answer ：Yes，distance between modular and all AEs are longer than 20cm ，refer to setup photo. (6) The module must be labelled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labelling requirements); Answer ：Yes ；The modular has a permanent fixed label, and below statement was listed in the User Manual;The host device must be labeled to display the FCCID of the module Contains FCC ID: ML6CMABZ (7)The module must comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee; Answer :Yes,The module comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee, Refer to test report and user manual . (8)The module must comply with RF exposure requirements Answer ：Yes ；Transmitter meets MPE calculation of 47 CFR 1.1307 . Refer to MPEReports and Refer to modular installation manual Date 2020-08-27 Signature Name: Karl Connolly Title: EVP Prod. Dev. Company: Orbit Irrigation Products, LLC Address: 845 Overland Road, North Salt Lake, Utah 84058 USA

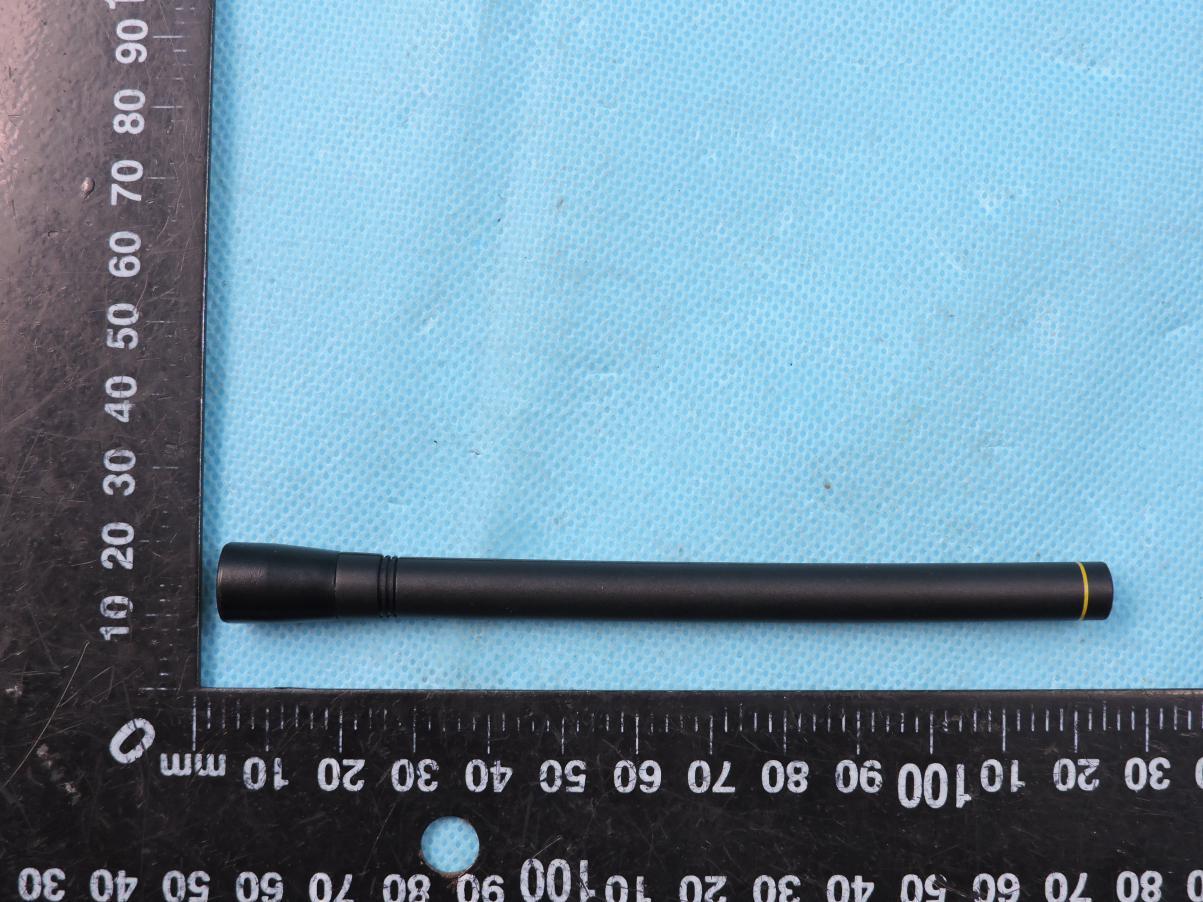

Page 1 of 3 Report No.: STS2007017 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: CMWX1ZZABZ Photo 1 Photo 2 Antenna Port Page 2 of 3 Report No.: STS2007017 Photo 3 Photo 4 Page 3 of 3 Report No.: STS2007017 Photo 5

FCC/IC Label 12mm*12mm Screen printing PMN: Sub-G Module HVIN: CMWX1ZZABZ FCC ID: ML6CMABZ IC: 3330A-CMABZ

Page 1 of 2 Report No.: STS2007017 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: CMWX1ZZABZ Photo 1 Photo 2 Page 2 of 2 Report No.: STS2007017 Photo 3

RF Exposure Report FCC ID: ML6CMABZ The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over-prediction for near field power density. It is taken as worst case to specify the safety range. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of the human exposure to radio-frequency (RF) radiation as specified in 1.1307 (b) Limits for Maximum Permissible Exposure (MPE) F= Frequency in MHz Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm²) Limits for Occupational / controlled Exposures 300 - 1500 -- -- F/300 1500 – 100000 -- -- 5.0 Limits for General population / Uncontrolled Exposure 300 - 1500 -- -- F/1500 1500 – 100000 -- -- 1.0 Friss Formula Friss Transmission Formula: Pd = (Pout * G) / (4*pi*r²) Where Pd = power density in mW/cm² Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = Distance between observation point and the center of radiator in cm If we know the maximum gain of the antenna and the total output power to the antenna, through calculation, we will know MPE value at distance 20cm. EUT Operation condition EUT was enabled to transmit and receive at lowest, middle and highest channels. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance from the antenna should be included in the User manual. So, this device is classified as Mobile device. LORA Mode Detector Conducted (Peak) 903.0-916.2MHz 28±1dBm 902.3-914.7MHz 24±1dBm ANT Gain (G) Antenna Gain: 1.2dBi (gain of antenna in linear scale=1.31 DTS 1.31 903.0-916.2MHz 29 794.3282 0.20712 1 FHSS 1.31 902.3-914.7MHz 25 316.2278 0.08246 1 Power Density (mW/cm²) Limit (mW/cm²) ANT Gain(gain of antenna in linear scale) Protocol Channel Frequency (MHz) Output Power to Antenna (dBm) Output Power to Antenna (mW) According to the maximum gain of the antenna and the total output power to the antenna, through calculation, we will know MPE value 0.207125 at distance 20cm. This is less than the limit 1, so the SAR test is not required.

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No: STS2007017W01 Issued for Orbit Irrigation Products, LLC 845 Overland Road, North Salt Lake, Utah 84058 USA Product Name: Sub-G Module Brand Name: Murata Model Name: CMWX1ZZABZ Series Model: N/A FCC ID: ML6CMABZ IC: 3330A-CMABZ Test Standard: FCC Part 15.247 RSS-247 Issue 2, February 2017 RSS-Gen Issue 5, March 2019 S T L A B S Page 2 of 53 Report No.: STS2007017W01 TEST RESULT CERTIFICATION Applicant’s Name ................... : Orbit Irrigation Products, LLC Address .................................. : 845 Overland Road, North Salt Lake, Utah 84058 USA Manufacturer's Name ............. : Murata Manufacturing Co., Ltd. Address .................................. : 10-1, Higashikotari 1-chome, Nagaokakyo-shi, Kyoto 617-8555 Japan Product Description Product Name ........................ : Sub-G Module Brand Name ......................... : Murata Model Name ........................... : CMWX1ZZABZ Series Model .......................... : N/A Test Standards ....................... : FCC Part15.247 RSS-247 Issue 2, February 2017 RSS-Gen Issue 5, March 2019 Test Procedure ....................... : ANSI C63.10-2013 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC/IC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ............................... : Date of receipt of test item ......... : 06 July 2020 Date (s) of performance of tests : 06 July 2020 ~ 26 Aug. 2020 Date of Issue ............................. : 26 Aug. 2020 Test Result ................................. : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory : (Vita Li) Page 3 of 53 Report No.: STS2007017W01 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 TEST SOFTWARE AND POWER LEVEL 10 2.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 2.5 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 12 2.6 EQUIPMENTS LIST 13 3. EMC EMISSION TEST 14 3.1 CONDUCTED EMISSION MEASUREMENT 14 3.2 RADIATED EMISSION MEASUREMENT 18 4. CONDUCTED SPURIOUS & BAND EDGE EMISSION 29 4.1 LIMIT 29 4.2 TEST PROCEDURE 29 4.3 TEST SETUP 29 4.4 EUT OPERATION CONDITIONS 29 4.5 TEST RESULTS 30 5. NUMBER OF HOPPING CHANNEL 36 5.1 LIMIT 36 5.2 TEST PROCEDURE 36 5.3 TEST SETUP 36 5.4 EUT OPERATION CONDITIONS 36 5.5 TEST RESULTS 37 6. AVERAGE TIME OF OCCUPANCY 38 6.1 LIMIT 38 6.2 TEST PROCEDURE 38 6.3 TEST SETUP 38 6.4 EUT OPERATION CONDITIONS 38 6.5 TEST RESULTS 39 7. HOPPING CHANNEL SEPARATION MEASUREMEN 43 7.1 LIMIT 43 Page 4 of 53 Report No.: STS2007017W01 Table of Contents Page 7.2 TEST PROCEDURE 43 7.3 TEST SETUP 43 7.4 EUT OPERATION CONDITIONS 43 7.5 TEST RESULTS 44 8. BANDWIDTH TEST 46 8.1 LIMIT 46 8.2 TEST PROCEDURE 46 8.3 TEST SETUP 46 8.4 EUT OPERATION CONDITIONS 46 8.5 TEST RESULTS 47 9. OUTPUT POWER TEST 49 9.1 LIMIT 49 9.2 TEST PROCEDURE 49 9.3 TEST SETUP 49 9.4 EUT OPERATION CONDITIONS 49 9.5 TEST RESULTS 50 10. ANTENNA REQUIREMENT 51 10.1 STANDARD REQUIREMENT 51 10.2 EUT ANTENNA 51 11. FREQUENCY STABILITY 52 11.1 LIMITS OF FREQUENCY STABILITY MEASUREMENT 52 11.2 TEST PROCEDURE 52 11.3 TEST RESULT 52 Page 5 of 53 Report No.: STS2007017W01 Revision History Rev. Issue Date Report NO. Effect Page Contents 00 26 Aug. 2020 STS2007017W01 ALL Initial Issue Page 6 of 53 Report No.: STS2007017W01 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247,Subpart C RSS-247 Issue 2 Standard Section Test Item Judgment Remark 15.207 RSS-Gen (8.8) Conducted Emission PASS -- 15.247(a)(1) RSS-247 (5.1) Hopping Channel Separation PASS -- 15.247(b)(2) RSS-247 (5.1) Output Power PASS -- 15.209 RSS-247 (5.5) Radiated Spurious Emission PASS -- 15.247(d) RSS-247 (5.5) Conducted Spurious & Band Edge Emission PASS -- 15.247(a)(1)(i) RSS-247 (5.1) Number of Hopping Frequency PASS -- 15.247(f) RSS-247 (5.1) Dwell Time PASS -- 15.247(a)(1) RSS-247 (5.1) RSS-Gen (6.7) 20dB Bandwidth 99% Bandwidth PASS -- 15.205 RSS-Gen (8.9&8.10) Restricted bands of operation PASS -- Part 15.247(d)/part 15.209(a) RSS-247 (5.5) Band Edge Emission PASS -- 15.203 RSS-Gen (6.8) Antenna Requirement PASS -- RSS-Gen (6.11&8.11) Frequency Stability PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2013. Page 7 of 53 Report No.: STS2007017W01 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.68dB 2 Unwanted Emissions, conducted ±2.988dB 3 All emissions, radiated 30-1GHz ±6.7dB 4 All emiss…

Text truncated - open the document above for the full version.

Page 1 of 2 FCC ID: ML6CMABZ IC: 3330A-CMABZ DSS&DTS Setup photo Model name: CMWX1ZZABZ DSS&DTS conduction DSS&DTS radiation L Page 2 of 2 FCC ID: ML6CMABZ IC: 3330A-CMABZ DSS&DTS radiation H
