ML6WT26B-HYVE XR

B-HYVE XR SMART INDOOR/OUTDOOR SPRINKLER TIMER Quick Start Guide TIMER INSTALLATION CONNECT VALVE WIRES CONNECTING TO WI-FIPROGRAMMING AND OPERATION FUNCTION FUNCTION Manual Watering - WATER ALL ZONES Manual Watering - WATER A ZONE Skip Zone Cancel All Watering Rain Delay Digital Lock-Out Lights Off Mode On/Off Hard Reset Hold until the display shows MANUAL and flashes WATER ALL ZONES. To WATER ALL ZONES for a default of 10 min. each*, wait without pressing a button until WATER ALL ZONES stops flashing and watering will begin. Hold until the display shows MANUAL and flashes WATER ALL ZONES. Quickly press two more times and WATER A ZONE appears. Wait until WATER A ZONE stops flashing and quickly press to select the desired zone to run. When the zone stops flashing the run time will begin to flash. Quickly press to set the desired run time. Once RUN TIME stops flashing, watering will begin. Quickly press to skip currently running zone. Hold between 2-5 sec. Set in app; blinks yellow and display shows DELAY. Enable/disable in app. Enable/disable in app. Hold for 10 seconds. Quickly press 5 times. *Default watering time for “WATER ALL ZONES” can be customized in the B-hyve App settings. Hold until the display shows MANUAL and flashes WATER ALL ZONES. Quickly press again and WATER A PROGRAM apears. Wait until WATER A PROGRAM stops flashing and press to select the desired program to run. Once the program letter stops flashing, watering will begin. Manual Watering - WATER A PROGRAM BUTTON PRESS BUTTON PRESS instructions continued on back Select a location Choose a location near power and away from direct sunlight, if possible. This location should also have a good Wi-Fi signal. You can check this using a smart phone. (Find a location that has a minimum of two bars) Prepare wire Strip 1/2” (13 mm) of insulation from each wire. Plug in your Orbit® B-hyve® timer Once your B-hyve timer is plugged into the power source, it will automatically look to pair with your smart device. The will begin to blink blue. This indicates that your timer is ready to pair with your smart device. Ensure that your smart device has Bluetooth® turned on. Connect to your Orbit® B-hyve® timer Open your B-hyve app, create an account or login, and follow the step-by-step process to add and set up your device. The B-hyve app will connect to your device and you will, then, be guided to connect to your home Wi-Fi network. Programming the timer The app has help screens and video to assist you with Wi-Fi connections, programming, smart watering and other general questions you may have. Manual operation All programming and full functionality of the timer are avail- able in the B-hyve app. If you have the need, there are some basic operations you can perform directly at your timer. Connect to your Wi-Fi network Select your network from the list and enter the password for the network to connect your timer to your Wi-Fi signal. When connected, the will illuminate solid white indicating a successful pairing. Connect wires Push in one wire from each valve to a “Common” (COM) wire and the other wires to a numbered terminal (only one wire per terminal). Mount the timer Install a screw (included) into the wall. Use the expanding anchors (included) for plaster, masonry or drywall installations. Hang the timer on the installed screw using the keyhole slot. Level the timer and use the second screw in one of the preformed mounting holes to secure the timer. Note: If you do not see your network name in the list, tap the refresh button in the app. If your network name still does not appear, tap “Advanced” in the app and enter your network name and password. The B-hyve App and the display windows on the timer will assist you through the timer pairing and set- up process. Note: Your programmed schedules are stored both in the app and on the timer. Watering will continue, if Wi-Fi connection is lost. Note: For optimum timer performance, connect the Wi-Fi to recieve the lastest timer updates. Note: We recommend you consult an electrician for hardwired installations. Note: If replacing a timer, it is helpful to take a photo of the wires before you remove them from the old timer. CONTENTS IN THE BOX B-hyve XR Smart Sprinkler Timer Mounting Screws and Anchors Quick Start Guide 1. Strip Wire 2. Push In Keyhole Pre-formed Mounting Holes minimum signalindoor or outdoor Printers are responsible for meeting print production requirements. Any changes must be approved by Orbit ® . Printed piece must meet designated specifications on this form. © 2016 Orbit Inc. This work is the property of Orbit ® , and cannot be used, reproduced or distributed in any way without their express permission. Dieline PMS 0000 Fold PMS 0000 Product Coverage PMS 0000 Dims./ Callout PMS 0000 ∙ ∙ ∙ ∙ Orbit ® 1.801.299.5555 orbitonline.com M Y K Glue FoldedFlatAdditional Information PRINTERS ARE REQUIRED TO MATCH ALL SPECIFIED PMS COLORS. C DATE: 00/00/0000 DESIGNER: XXMARKETING: XX SOFTWARE: Adobe Indesign CC ARTWORK No: 00000-00 rX L: W: H: _._"W: H:_._" _._" _._" _._" Printers are responsible for meeting print production requirements. Any changes must be approved by Orbit ® . Printed piece must meet designated specifications on this form. © 2020 Orbit Inc. This work is the property of Orbit ® , and cannot be used, reproduced or distributed in any way without their express permission. Dieline PMS CG10 Fold PMS 0000 Product Coverage PMS 0000 Dims./ Callout PMS 7405 ∙ ∙ ∙ ∙ Orbit ® 1.801.299.5555 orbitonline.com M Y K Glue FoldedFlatAdditional Information PRINTERS ARE REQUIRED TO MATCH ALL SPECIFIED PMS COLORS. C DATE: 01/14/2020 DESIGNER: QWMARKETING: MS SOFTWARE: Adobe Indesign CC ARTWORK No: 57985-50 rA L: W: H: _._"W: H:_._" _._" _._" _._" Rated input: Australia—240V AC 50/60Hz 0.15A Europe—230VAC 50/60Hz 0.15A USA—120V AC 60Hz 0.2A Max load: AUS & EU—24V AC 1 Amp 50/60 Cycle USA—24VAC 1 Amp 60Hz Temperature Operating Range: Operating: 32–158° F (0–70° C) Storage & transport: -4–…

Text truncated - open the document above for the full version.

Differences Description We Orbit Irrigation Products, LLC state: Product： B-HYVE XR Model Name： WT26 Brand Name： Orbit/b-hyve FCC ID: ML6WT26 57995 and 57994 are sprinkler irrigation controllers that control up to 16 sprinkler irrigation stations. 57985 and 57984 are sprinkler irrigation controllers that use the same identical hardware, except that for the components for control of 8 stations have been removed, allowing 57985 and 57984 to only control up to 8 stations. Model # Part # STATION Region Certificates WT26 57984 8 STATION US/CA FCC 57994 16 STATION US/CA FCC 57985 8 STATION US/CA FCC 57995 16 STATION US/CA FCC Signatory Date:2020.07.10 Signature Name: Karl Connolly Title: EVP Prod. Dev. Company: Orbit Irrigation Products, LLC Address: 845 Overland Road, North Salt Lake, Utah 84058 USA

Orbit Irrigation Products, LLC TCBJ FORM-4 Issued by: TCB Administrator Revision 6 12/06/10 2020.07.10 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, Orbit Irrigation Products, LLC hereby authorize (Shenzhen STS Test Services Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Name: Karl Connolly Signature:

Orbit Irrigation Products, LLC TCBJ FORM-4 Issued by: TCB Administrator Revision 6 12/06/10 2020.07.10 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (B-HYVE XR / WT26/FCC ID: ML6WT26) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. required to be submitted with this application be permanently withheld from public review. Please contact me if there is any information you may need. Sincerely, Name: Karl Connolly Signature:

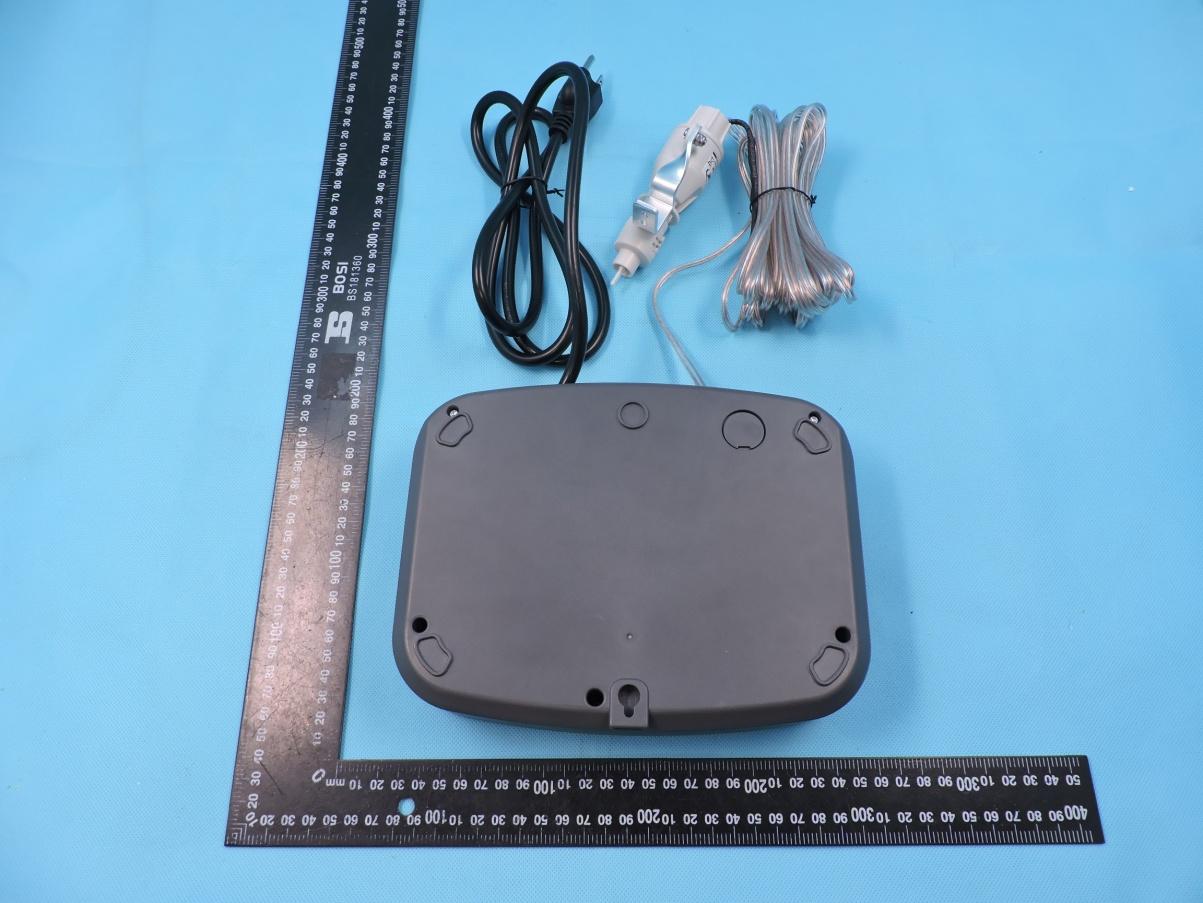

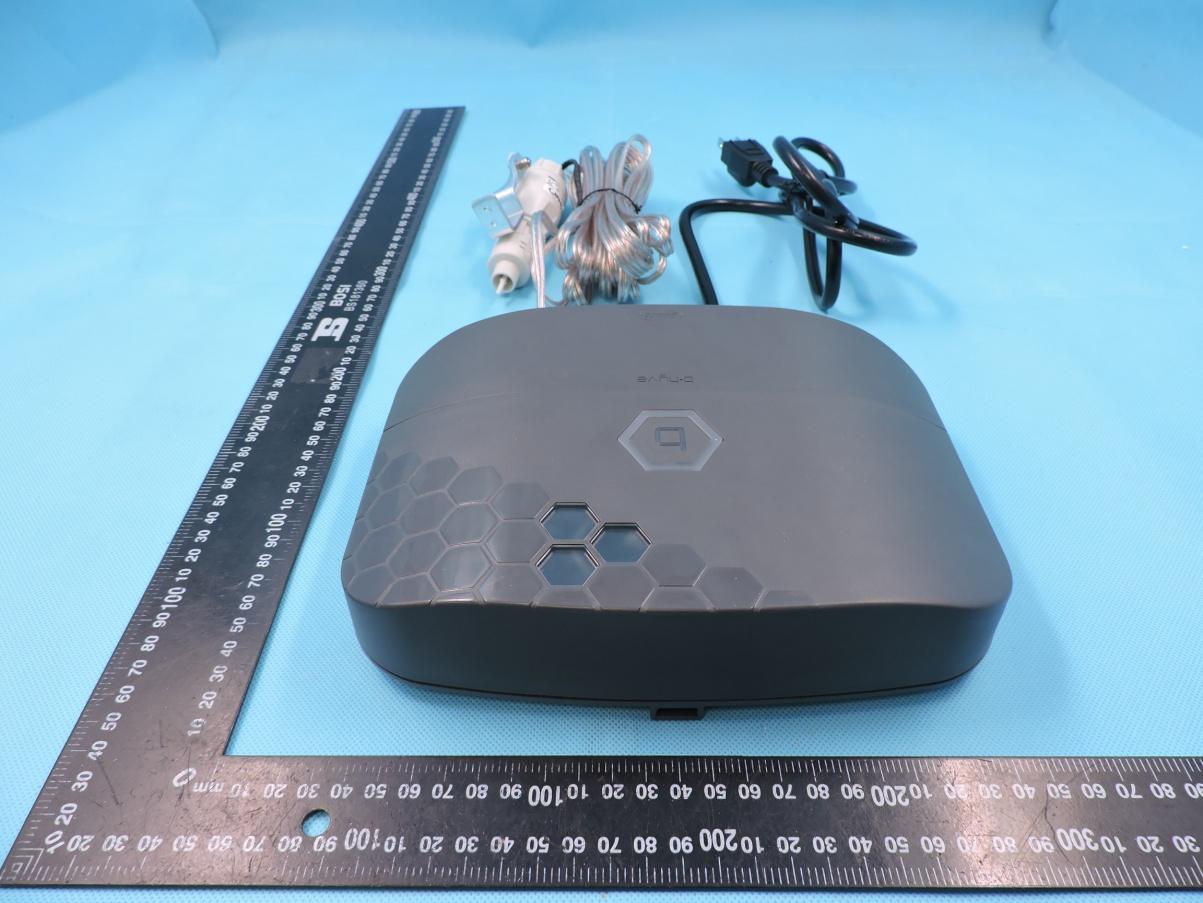

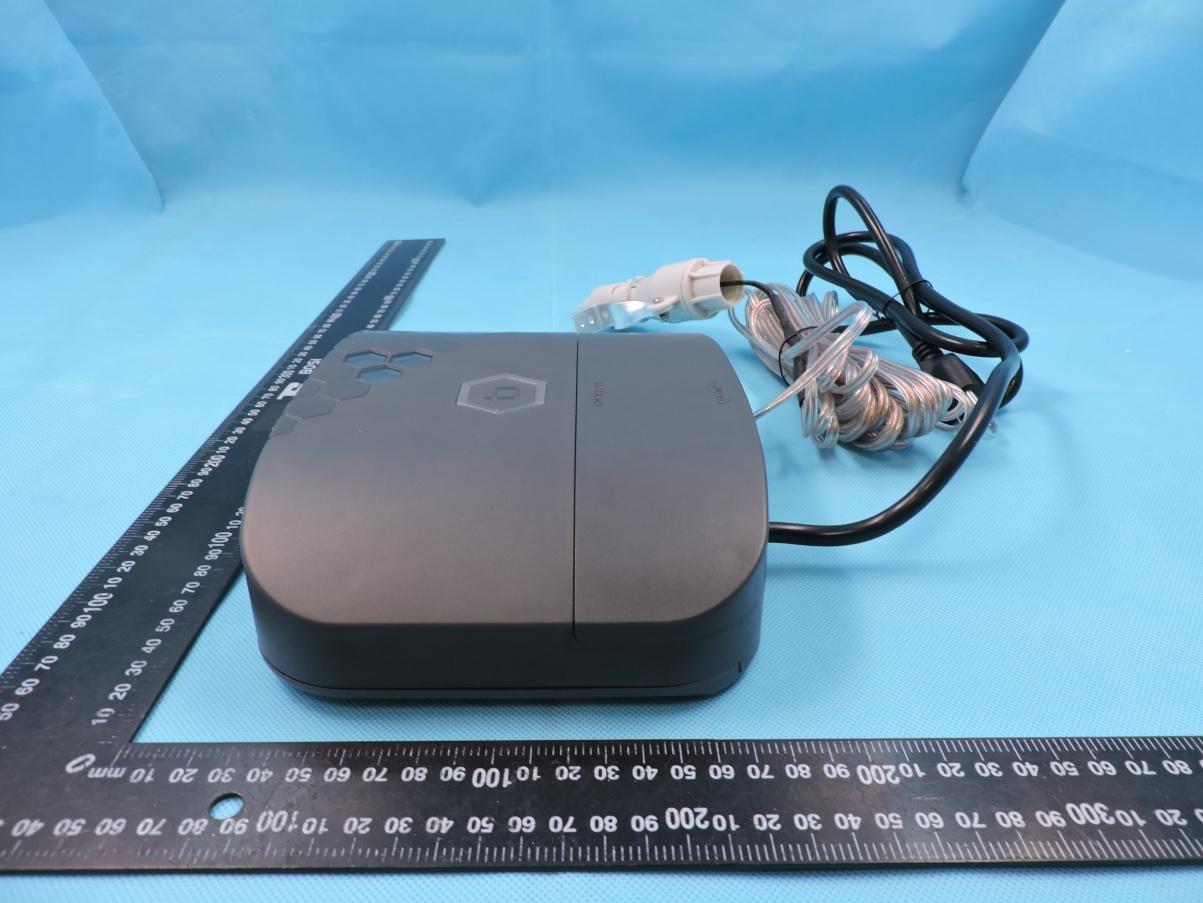

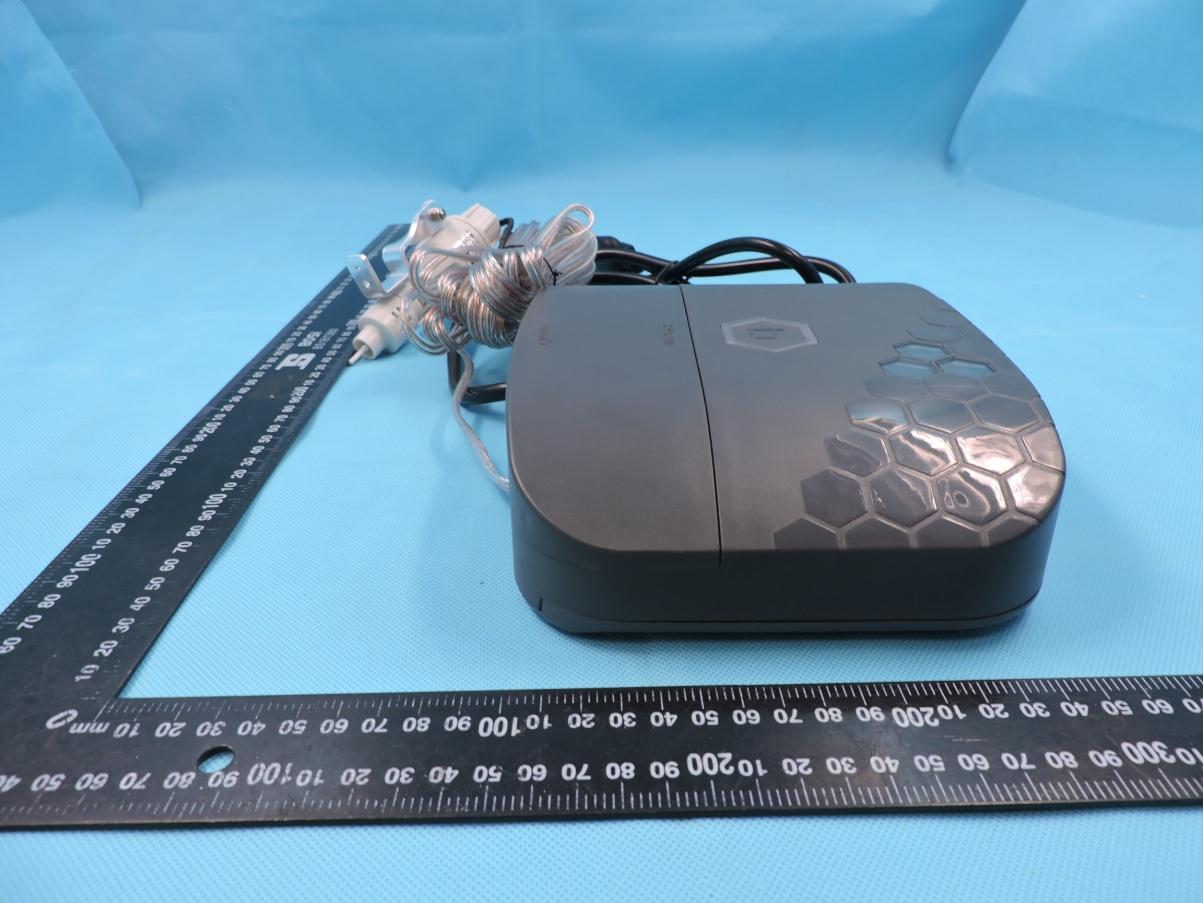

Page 1 of 4 Report No.: STS2004273 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model:WT26 Photo 1 Photo 2 Page 2 of 4 Report No.: STS2004273 Photo 3 Photo 4 Page 3 of 4 Report No.: STS2004273 Photo 5 Photo 6 Page 4 of 4 Report No.: STS2004273 Photo 7

FCC/ICLabel

Page 1 of 4 Report No.: STS2004273 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model:WT26 Photo 1 Photo 2 Page 2 of 4 Report No.: STS2004273 Photo 3 Photo 4 Page 3 of 4 Report No.: STS2004273 Photo 5 Photo 6 Lora Antenna WIFI Antenna BT Antenna Page 4 of 4 Report No.: STS2004273 Photo 7 Photo 8

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No.:STS2004273W01 Issued for Orbit Irrigation Products, LLC 845 Overland Road, North Salt Lake, Utah 84058 Product Name: B-HYVE XR Brand Name: Orbit/b-hyve Model Name: WT26 Series Model: N/A FCC ID: ML6WT26 IC 3330A-WT26 Test Standard: FCC Part 15.247 RSS-247 Issue 2, February 2017 S T L A B S Page 2 of 68 Report No.: STS2004273W01 TEST RESULT CERTIFICATION Applicant’s Name ................. : Orbit Irrigation Products, LLC Address ................................. : 845 Overland Road, North Salt Lake, Utah 84058 Manufacture's Name ............ : Wise Ally Holdings Address ................................. : Units 3203-3207, Tower 1, Enterprise Square Five, 38 Wang Chiu Road Kowloon Bay Product Description Product Name ....................... : B-HYVE XR Brand Name ........................ : Orbit/b-hyve Model Name .......................... : WT26 Series Model ......................... : N/A Test Standards ..................... : FCC Part15.247 RSS-247 Issue 2, February 2017 RSS-Gen Issue 5 ,March 2019 Test Procedure ...................... : ANSI C63.10-2013 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC/IC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date of receipt of test item ..................... : 28 Apr. 2020 Date (s) of performance of tests ............. : 28 Apr. 2020 ~ 13 May 2020 Date of Issue .......................................... : 13 May 2020 Test Result.............................................. : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory : (Vita Li) Page 3 of 68 Report No.: STS2004273W01 Table of Contents 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 TEST SOFTWARE AND POWER LEVEL 10 2.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 2.5 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 12 2.6 EQUIPMENTS LIST 13 3. EMC EMISSION TEST 14 3.1 CONDUCTED EMISSION MEASUREMENT 14 3.2 TEST PROCEDURE 15 3.3 TEST SETUP 15 3.4 EUT OPERATING CONDITIONS 15 3.5 TEST RESULTS 16 4. RADIATED EMISSION MEASUREMENT 18 4.1 RADIATED EMISSION LIMITS 18 4.2 TEST PROCEDURE 21 4.3 TEST SETUP 22 4.4 EUT OPERATING CONDITIONS 22 4.5 FIELD STRENGTH CALCULATION 23 4.6 TEST RESULTS 24 5. CONDUCTED SPURIOUS & BAND EDGE EMISSION 37 5.1 LIMIT 37 5.2 TEST PROCEDURE 37 5.3 TEST SETUP 37 5.4 EUT OPERATION CONDITIONS 37 5.5 TEST RESULTS 38 6. POWER SPECTRAL DENSITY TEST 46 6.1 LIMIT 46 6.2 TEST PROCEDURE 46 Page 4 of 68 Report No.: STS2004273W01 Table of Contents 6.3 TEST SETUP 46 6.4 EUT OPERATION CONDITIONS 46 6.5 TEST RESULTS 47 7. BANDWIDTH TEST 51 7.1 LIMIT 51 7.2 TEST PROCEDURE 51 7.3 TEST SETUP 51 7.4 EUT OPERATION CONDITIONS 51 7.5 TEST RESULTS 52 8. PEAK OUTPUT POWER TEST 60 8.1 LIMIT 60 8.2 TEST PROCEDURE 60 8.3 TEST SETUP 60 8.4 EUT OPERATION CONDITIONS 60 8.5 TEST RESULTS 61 9. ANTENNA REQUIREMENT 65 9.1 STANDARD REQUIREMENT 65 9.2 EUT ANTENNA 65 10. FREQUENCY STABILITY 66 10.1 LIMITS OF FREQUENCY STABILITY MEASUREMENT 66 10.2 TEST PROCEDURE 66 10.3 TEST RESULT 66 1M PHY 66 2M PHY 67 11. EUT TEST PHOTO 68 Page 5 of 68 Report No.: STS2004273W01 Revision History Rev. Issue Date Report NO. Effect Page Contents 00 13 May 2020 STS2004273W01 ALL Initial Issue Page 6 of 68 Report No.: STS2004273W01 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247,Subpart C RSS-247 Issue 2 Standard Section Test Item Judgment Remark 15.207 RSS-Gen 8.8 Conducted Emission PASS -- 15.247 (a)(2) RSS-Gen 6.7 RSS-247 5.2 a) 6dB Bandwidth PASS -- 15.247 (b)(3) RSS-247 5.4 d) Output Power PASS -- 15.247 (c) RSS-Gen 8.9 8.10 Radiated Spurious Emission PASS -- 15.247 (d) RSS-247 5.5 RSS-Gen 8.9 8.10 Conducted Spurious & Band Edge Emission PASS -- 15.247 (e) RSS-247 5.2 b) Power Spectral Density PASS -- 15.205 RSS-Gen 8.9 8.10 Restricted bands of operation PASS -- Part 15.247(d)/part 15.209(a) RSS-247 5.5 RSS-Gen 8.9 8.10 Band Edge Emission PASS -- 15.203 RSS-Gen 6.8 Antenna Requirement PASS -- RSS-Gen 6.11 8.11 Frequency Stability PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2013. Page 7 of 68 Report No.: STS2004273W01 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.68dB 2 Unwanted Emissions, conducted ±2.988dB 3 All emissions, radiated 30-1GHz ±6.7dB 4 All emissions, radiated 1G-6GHz ±5.5dB 5 All emissions, radiated>6G ±5.8dB 6 Conducted Emission (9KHz-…

Text truncated - open the document above for the full version.

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No.:STS2004273W12 Issued for Orbit Irrigation Products, LLC 845 Overland Road, North Salt Lake, Utah 84058 Product Name: B-HYVE XR Brand Name: Orbit/b-hyve Model Name: WT26 Series Model: N/A FCC ID: ML6WT26 IC 3330A-WT26 Test Standard: FCC Part 15.247 RSS-247 Issue 2, February 2017 S T L A B S Page 2 of 70 Report No.: STS2004273W12 TEST RESULT CERTIFICATION Applicant’s Name ................. : Orbit Irrigation Products, LLC Address ................................. : 845 Overland Road, North Salt Lake, Utah 84058 Manufacture's Name ............ : Wise Ally Holdings Address ................................. : Units 3203-3207, Tower 1, Enterprise Square Five, 38 Wang Chiu Road Kowloon Bay Product Description Product Name ....................... : B-HYVE XR Brand Name ........................ : Orbit/b-hyve Model Name .......................... : WT26 Series Model ......................... : N/A Test Standards ..................... : FCC Part15.247 RSS-247 Issue 2, February 2017 RSS-Gen Issue 5 ,March 2019 Test Procedure ...................... : ANSI C63.10-2013 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC/IC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date of receipt of test item ..................... : 28 Apr. 2020 Date (s) of performance of tests ............. : 28 Apr. 2020 ~ 10 July 2020 Date of Issue .......................................... : 10 July 2020 Test Result.............................................. : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory : (Vita Li) Page 3 of 70 Report No.: STS2004273W12 Table of Contents 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 TEST SOFTWARE AND POWER LEVEL 10 2.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 2.5 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 12 2.6 EQUIPMENTS LIST 13 3. EMC EMISSION TEST 14 3.1 CONDUCTED EMISSION MEASUREMENT 14 3.2 TEST PROCEDURE 15 3.3 TEST SETUP 15 3.4 EUT OPERATING CONDITIONS 15 3.5 TEST RESULTS 16 4. RADIATED EMISSION MEASUREMENT 18 4.1 RADIATED EMISSION LIMITS 18 4.2 TEST PROCEDURE 21 4.3 TEST SETUP 22 4.4 EUT OPERATING CONDITIONS 22 4.5 FIELD STRENGTH CALCULATION 23 4.6 TEST RESULTS 24 5. CONDUCTED SPURIOUS & BAND EDGE EMISSION 37 5.1 LIMIT 37 5.2 TEST PROCEDURE 37 5.3 TEST SETUP 37 5.4 EUT OPERATION CONDITIONS 37 5.5 TEST RESULTS 38 6. POWER SPECTRAL DENSITY TEST 48 6.1 LIMIT 48 6.2 TEST PROCEDURE 48 6.3 TEST SETUP 48 Page 4 of 70 Report No.: STS2004273W12 Table of Contents 6.4 EUT OPERATION CONDITIONS 48 6.5 TEST RESULTS 49 7. BANDWIDTH TEST 53 7.1 LIMIT 53 7.2 TEST PROCEDURE 53 7.3 TEST SETUP 53 7.4 EUT OPERATION CONDITIONS 53 7.5 TEST RESULTS 54 8. PEAK OUTPUT POWER TEST 62 8.1 LIMIT 62 8.2 TEST PROCEDURE 62 8.3 TEST SETUP 62 8.4 EUT OPERATION CONDITIONS 62 8.5 TEST RESULTS 63 9. ANTENNA REQUIREMENT 67 9.1 STANDARD REQUIREMENT 67 9.2 EUT ANTENNA 67 10. FREQUENCY STABILITY 68 10.1 LIMITS OF FREQUENCY STABILITY MEASUREMENT 68 10.2 TEST PROCEDURE 68 10.3 TEST RESULT 68 11. EUT TEST PHOTO 70 Page 5 of 70 Report No.: STS2004273W12 Revision History Rev. Issue Date Report NO. Effect Page Contents 00 10 July 2020 STS2004273W12 ALL Initial Issue Page 6 of 70 Report No.: STS2004273W12 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247,Subpart C RSS-247 Issue 2 Standard Section Test Item Judgment Remark 15.207 RSS-Gen 8.8 Conducted Emission PASS -- 15.247 (a)(2) RSS-Gen 6.7 RSS-247 5.2 a) 6dB Bandwidth PASS -- 15.247 (b)(3) RSS-247 5.4 d) Output Power PASS -- 15.247 (c) RSS-Gen 8.9 8.10 Radiated Spurious Emission PASS -- 15.247 (d) RSS-247 5.5 RSS-Gen 8.9 8.10 Conducted Spurious & Band Edge Emission PASS -- 15.247 (e) RSS-247 5.2 b) Power Spectral Density PASS -- 15.205 RSS-Gen 8.9 8.10 Restricted bands of operation PASS -- Part 15.247(d)/part 15.209(a) RSS-247 5.5 RSS-Gen 8.9 8.10 Band Edge Emission PASS -- 15.203 RSS-Gen 6.8 Antenna Requirement PASS -- RSS-Gen 6.11 8.11 Frequency Stability PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2013. Page 7 of 70 Report No.: STS2004273W12 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.68dB 2 Unwanted Emissions, conducted ±2.988dB 3 All emissions, radiated 30-1GHz ±5.6dB 4 All emissions, radiated 1G-6GHz ±5.5dB 5 All emissions, radiated>6G ±5.8dB 6 Conducted Emission (9KHz-150KHz) ±3.37dB 7…

Text truncated - open the document above for the full version.

Page 1 of 2 Report No.: STS2004273 DSS&DTS&U-NII Setup photo Model name: WT26 DSS&DTS&U-NII conduction DSS&DTS&U-NII radiation L Page 2 of 2 Report No.: STS2004273 DSS&DTS&U-NII radiation H
