MLLGL2RPT150Repeater

Miltel Wireless Data Link for Data Transfer Receiver/Repeater 2A FCC ID:MLLGL2RPT150 U U s s e e r r M M a a n n u u a a l l Miltel Communications Ltd. December 2005 2 Table of Contents Chapter 1 Introduction................................................................................................. 3 1.1 Purpose and Use............................................................................................ 3 1.2 System General Description ........................................................................... 3 1.3 Theory of Operation ....................................................................................... 4 Chapter 2 Technical Characteristics ............................................................................... 5 2.1 Technical Specification................................................................................... 5 2.1.1 Electrical..................................................................................................... 5 2.1.2 Physical ...................................................................................................... 6 2.2 Label Contents ............................................................................................... 6 Chapter 3 Installation Instructions................................................................................... 7 3.1 General........................................................................................................... 7 3.2 Installation ...................................................................................................... 7 Deceleration of Conformity ............................................................................................. 8 3 Chapter 1 Introduction 1.1 Purpose and Use The Receiver/Repeater 2A (FCC ID:MLLGL2RPT150) is a data link transceiver that is used for data transfer in Miltel’s radio system. The system is used for utility consumption readings collection system as well as for other applications such as in agricultural systems. This device is installed on-site by a professional field technician, thus it includes technical terms. The equipment is not to be installed by a non- professional individual that has not been trained and authorized. 1.2 System General Description The Receiver/Repeater 2A system is a computerized fully automatic radio device. It requires no human intervention after initial installation. The device acts as a store- and-forward radio relay. The Receiver/Repeater 2A operates as a receiver connected to a bases station or as a repeater that captures transmissions from a Miltel transmitter and, after validating the message, transmits the message again. When operating as a Repeater the device relays information from transmitters to a receiver that is connected to the base station which is typically implemented as a regional concentrator or as a standard PC. The concentrator/PC transfers the data to the central computer for data collection and for further analysis and reporting. When operating as a receiver, the device receives messages transmitted by Miltel transmitters or messages relayed by a repeater. The receiver can also send commands to any of the repeaters. 4 The Transceiver device is marketed as two models (as a receiver or as a repeater) and under three different commercial trade names (Speed Repeater 2A / Receiver 2A, Galaxy Repeater 2A / Receiver 2A and IrriWise Repeater 2A / Receiver 2A). The Transceiver device (both receiver and repeater) can be hooked up to a PC or to a laptop computer for programming purposes during system setup. 1.3 Theory of Operation The Receiver/Repeater 2A is the intermediate link in the wireless data collection system. It is an independent unit that operates as a repeater (radio relay) or as a collection device (receiver) linked to the base station. Figure 1-1 (see below) shows a typical installation of a Receiver/Repeater 2A unit. The device is powered by a 12 volt power supply or by a solar powered battery. The Receiver/Repeater 2A operates its radio receiver on a continuous basis until it receives a message from a nearby transmitter. After capturing the transmitted data message, it sends out an identical message which is forwarded to the Collector. Figure 1-1: Typical Installation (shown here with optional solar panel) 5 Chapter 2 Technical Characteristics 2.1 Technical Specification 2.1.1 Electrical Max. output power 18 dBm Output frequency 150-170 MHz Carrier wave modulation 2 Level FSK Power supply 7 ÷ 15 VDC Receiver Sensitivity -117 dBm 2.1.2 Physical Operating temperature -30°C ÷+60°C Water Resistance Splash resistance (IP-64) Length 16.5 cm. Width 12 cm. Depth 7 cm. Weight (excl. mounting plate) 910 gr. Weight (incl. mounting plate) 1,160 gr. Mounting plate material Aluminum 6 2.2 FCC Label (see file: Sample Label) FCC ID: MLLGL2RPT150 Model: Receiver 2A S/N: YY-nnnnnn Miltel Communications Ltd. Made in Israel This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Figure 2-1: Receiver label design FCC ID: MLLGL2RPT150 Model: Repeater 2A S/N: YY-nnnnnn Miltel Communications Ltd. Made in Israel This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Figure 2-2: Repeater label design 7 Chapter 3 Installation Instructions 3.1 General The Receiver/Repeater 2A should be installed by a professional technician. 3.2 Installation For on-site installation of the Receiver/Repeater 2A device, proceed as follows: 1) Loosen the four screws fastening the unit's panel and open the box end cover. 2) Connect the 12 volt DC power supply (use …

Text truncated - open the document above for the full version.

Miltel Wireless Data Link for Data Transfer Receiver/Repeater 2A FCC ID: MLLGL2RPT150 U U s s e e r r M M a a n n u u a a l l Miltel Communications Ltd. December 2004 2 Table of Contents Chapter 1 Introduction................................................................................................. 3 1.1 Purpose and Use............................................................................................ 3 1.2 System General Description ........................................................................... 3 1.3 Theory of Operation ....................................................................................... 4 Chapter 2 Technical Characteristics ............................................................................... 5 2.1 Technical Specification................................................................................... 5 2.1.1 Electrical..................................................................................................... 5 2.1.2 Physical ...................................................................................................... 6 2.2 Label Contents ............................................................................................... 6 Chapter 3 Installation Instructions................................................................................... 7 3.1 General........................................................................................................... 7 3.2 Installation ...................................................................................................... 7 Deceleration of Conformity ............................................................................................. 8 3 Chapter 1 Introduction 1.1 Purpose and Use The Receiver/Repeater 2A (FCC ID: MLLGL2RPT150) is a data link transceiver that is used for data transfer in Miltel’s radio system. The system is used for utility consumption readings collection system as well as for other applications such as in agricultural systems. This device is installed on-site by a professional field technician, thus it includes technical terms. The equipment is not to be installed by a non- professional individual that has not been trained and authorized. 1.2 System General Description The Receiver/Repeater 2A system is a computerized fully automatic radio device. It requires no human intervention after initial installation. The device acts as a store- and-forward radio relay. The Receiver/Repeater 2A operates as a receiver connected to a bases station or as a repeater that captures transmissions from a Miltel transmitter and, after validating the message, transmits the message again. When operating as a Repeater the device relays information from transmitters to a receiver that is connected to the base station which is typically implemented as a regional concentrator or as a standard PC. The concentrator/PC transfers the data to the central computer for data collection and for further analysis and reporting. When operating as a receiver, the device receives messages transmitted by Miltel transmitters or messages relayed by a repeater. The receiver can also send commands to any of the repeaters. 4 The Transceiver device is marketed as two models (as a receiver or as a repeater) and under three different commercial trade names (Speed Repeater 2A / Receiver 2A, Galaxy Repeater 2A / Receiver 2A and IrriWise Repeater 2A / Receiver 2A). The Transceiver device (both receiver and repeater) can be hooked up to a PC or to a laptop computer for programming purposes during system setup. 1.3 Theory of Operation The Receiver/Repeater 2A is the intermediate link in the wireless data collection system. It is an independent unit that operates as a repeater (radio relay) or as a collection device (receiver) linked to the base station. Figure 1-1 (see below) shows a typical installation of a Receiver/Repeater 2A unit. The device is powered by a 12 volt power supply or by a solar powered battery. The Receiver/Repeater 2A operates its radio receiver on a continuous basis until it receives a message from a nearby transmitter. After capturing the transmitted data message, it sends out an identical message which is forwarded to the Collector. Figure 1-1: Typical Installation (shown here with optional solar panel) 5 Chapter 2 Technical Characteristics 2.1 Technical Specification 2.1.1 Electrical Max. output power 18 dBm Output frequency 150-170 MHz Carrier wave modulation 2 Level FSK Power supply 7 ÷ 15 VDC Receiver Sensitivity -117 dBm 2.1.2 Physical Operating temperature -30°C ÷+60°C Water Resistance Splash resistance (IP-64) Length 16.5 cm. Width 12 cm. Depth 7 cm. Weight (excl. mounting plate) 910 gr. Weight (incl. mounting plate) 1,160 gr. Mounting plate material Aluminum 6 2.2 FCC Label (see file: Sample Label) FCC ID: MLLGL2RPT150 Model: Receiver 2A S/N: YY-nnnnnn Miltel Communications Ltd. Made in Israel This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Figure 2-1: Receiver label design FCC ID: MLLGL2RPT150 Model: Repeater 2A S/N: YY-nnnnnn Miltel Communications Ltd. Made in Israel This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Figure 2-2: Repeater label design 7 Chapter 3 Installation Instructions 3.1 General The Receiver/Repeater 2A should be installed by a professional technician. 3.2 Installation For on-site installation of the Receiver/Repeater 2A device, proceed as follows: 1) Loosen the four screws fastening the unit's panel and open the box end cover. 2) Connect the 12 volt DC power supply (us…

Text truncated - open the document above for the full version.

Miltel Communications Ltd. 7 Gush Etzion, 4 th Floor Givat-Shmuel, Israel 54030 Tel: +972-3-737-1333 Fax:+972-3-737-1331 13 December 2005 Subject: Request for Confidentiality FCC ID: MLLGL2RPT150 Dear Gentlemen, Pursuant to sections 0.457 and 0.459 of the Commission’s rules we herby apply to you with request to withhold the following confidential information in the Application for Certification for FCC ID:MLLGL2RPT150. The confidential information accompanying this Application is outlined below: • Schematics (electronic diagrams) • Block Diagram(s) • Operational Technical Description (incl. tune-up information etc.) • Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of the Application and all accompanying documentation will not be made confidential before the date of the Grant for this Application. Sincerely, Yarum Locker – Co-C.E.O.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 January 6, 2006 RE: Miltel Communications Ltd. FCC ID: MLLGL2RPT150 After a review of the submitted information, I have a few comments on the above referenced Application. 1) Please provide photographs underneath the subshield located on the back side of the board. 2) It does not appear that the following information was provided: a description of all circuitry and devices provided for determining and stabilizing frequency, for suppression of spurious radiation, for limiting modulation, and for limiting power been provided (2.1033(c)(10)). 3) What is the FCC ID of the field station(s) used with this device? The FCC requests this to be placed in the grant notes for repeaters and boosters. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 January 6, 2006 RE: Miltel Communications Ltd. FCC ID: MLLGL2RPT150 After a review of the submitted information, I have a few comments on the above referenced Application. 1) Your response references an FCC ID: MLLIWCCTX15-17. This does not appear to be a valid FCC ID. However a similar ID MLLIWCTX15-17 was found. Please review/explain as necessary. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

HERM O N LA BO RA TO RIES January 12, 2006 American TCB 6731 Whittier Ave Suite C110 McLean, VA 22101 Attn: Mr. T. Johnson, Examining Engineer RE: your e-mail dated January 6, 2006; Miltel Communications Ltd. FCC ID:MLLGL2RPT150, ATCB003053 Dear Mr. Johnson, Please find below the answers to your questions. 1) The file “Internal_photos_16691_rev1” with additional photograph No.11 was uploaded on January 6, 2006. 2) Circuitry_description_16691 was uploaded on January 6, 2006 via Operational Description folder. 3) The FCC ID of the field units that work with this device are: FCC ID:MLLIWCCTX15-17 and FCC ID:MLLSPEEDHPTX15-17. Thank you. Sincerely, Marina Cherniavsky, certification engineer Hermon Laboratories

HERM O N LA BO RA TO RIES January 15, 2006 American TCB 6731 Whittier Ave Suite C110 McLean, VA 22101 Attn: Mr. T. Johnson, Examining Engineer RE: your e-mail dated January 13, 2006; Miltel Communications Ltd. FCC ID:MLLGL2RPT150, ATCB003053 Dear Mr. Johnson, Please find below the answers to your questions. 1) The applicant, Miltel Communications Ltd., confirms that the correct FCC ID of the field units that work with this device are: FCC ID:MLLIWCTX15-17 and FCC ID:MLLSPEEDHPTX15-17. It was a typing mistake in Miltel’s document. Thank you. Sincerely, Marina Cherniavsky, certification engineer Hermon Laboratories

HERM O N LA BO RA TO RIES February 13, 2006 American TCB 6731 Whittier Ave Suite C110 McLean, VA 22101 Attn: Mr. T. Johnson, Examining Engineer RE: your e-mail dated February 4, 2006; Miltel Communications Ltd. FCC ID:MLLGL2RPT150, ATCB003053 Dear Mr. Johnson, Please find below the answers to FCC questions. 1) The device was tested as a stand-alone device. The FCC ID's of the transmitters that are part of the same system, were provided only in order to comply with the FCC requirement to publish this information. 2) The applicant, Miltel Communications Ltd., confirms that the repeater device demodulates the received signal and creates a new message that is then transmitted again as an FSK signal. The repeater includes two independent blocks: (i) a receiver module; and, (ii) a transmitter module. The receiver module "waits" for messages transmitted by end units, demodulates these incoming messages and then transfers the message(data) to the processor for analysis. The recognized messages are then retransmitted by the transmitter module. The link between the reception module and the transmission module is not an automatic hardware link, and every message is demodulated and then after processing transmitted again. This is done by the repeater’s internal processor that analyzes each valid message received by the receiver module and after adding information to the message, the repeater's processor sends a command to the transmitter module to transmit a new message (within a certain pre-defined delay). 3) The files “RF_Env_evaluation_16691” and “User_Manual_16691_rev1” (corrected page 7) were uploaded on February 13, 2006. Thank you. Sincerely, Marina Cherniavsky, certification engineer Hermon Laboratories

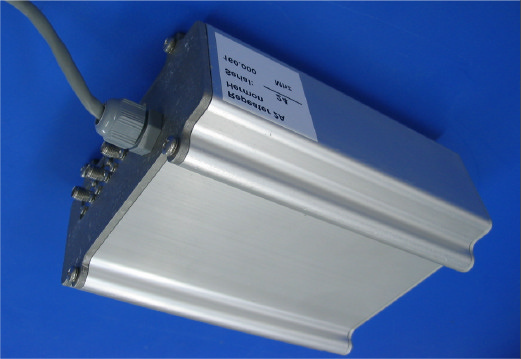

Miltel Communications Ltd. FCC ID:MLLGL2RPT150 Date: December 2005 Page 1 of 4 EXTERNAL PHOTOGRAPHS This document contains 3 photographs Miltel Communications Ltd. FCC ID:MLLGL2RPT150 Date: December 2005 Page 2 of 4 Photograph No.1 Repeater 2A transceiver General view Miltel Communications Ltd. FCC ID:MLLGL2RPT150 Date: December 2005 Page 3 of 4 Photograph No.2 Repeater 2A transceiver Front view Miltel Communications Ltd. FCC ID:MLLGL2RPT150 Date: December 2005 Page 4 of 4 Photograph No.3 Repeater 2A transceiver Side view

Miltel Communications Ltd. FCC ID:MLLGL2RPT150 FCC ID Label 1. The following document provides the information regarding the FCC ID label . 2. The equipment label shown below is affixed to the IrriWise/Speed/ Galaxy Transceiver on the side panel. Label Dimensions: 58 mm. x 24 mm. FCC ID: MLLGL2RPT150 Model: Repeater 2A S/N: ___________ Miltel Communicatins Made in Israel This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: MLLGL2RPT150 Model: Receiver 2A S/N: ___________ Miltel Communicatins Made in Israel This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Miltel Communications Ltd. FCC ID:MLLGL2RPT150 Label Location: Transceiver side panel FCC ID:MLLGL2RPT150

Miltel Communications Ltd. FCC ID:MLLGL2RPT150 Date: December 2005 Page 1 of 12 INTERNAL PHOTOGRAPHS This document contains 10 photographs Miltel Communications Ltd. FCC ID:MLLGL2RPT150 Date: December 2005 Page 2 of 12 Photograph No.1 Repeater 2A transceiver Internal view with rear side panel removed Miltel Communications Ltd. FCC ID:MLLGL2RPT150 Date: December 2005 Page 3 of 12 Photograph No.2 Repeater 2A transceiver PCB top view Miltel Communications Ltd. FCC ID:MLLGL2RPT150 Date: December 2005 Page 4 of 12 Photograph No.3 Repeater 2A transceiver PCB top view without main shield Miltel Communications Ltd. FCC ID:MLLGL2RPT150 Date: December 2005 Page 5 of 12 Photograph No.4 Repeater 2A transceiver PCB top view without secondary shields Miltel Communications Ltd. FCC ID:MLLGL2RPT150 Date: December 2005 Page 6 of 12 Photograph No.5 Repeater 2A transceiver PCB top view without secondary shields Miltel Communications Ltd. FCC ID:MLLGL2RPT150 Date: December 2005 Page 7 of 12 Photograph No.6 Repeater 2A transceiver PCB second side view Miltel Communications Ltd. FCC ID:MLLGL2RPT150 Date: December 2005 Page 8 of 12 Photograph No.7 Repeater 2A transceiver PCB second side view without shield Miltel Communications Ltd. FCC ID:MLLGL2RPT150 Date: December 2005 Page 9 of 12 Photograph No.8 Repeater 2A transceiver PCB second side view under shield Miltel Communications Ltd. FCC ID:MLLGL2RPT150 Date: December 2005 Page 10 of 12 Photograph No.9 Repeater 2A transceiver PCB second side view under shield (zoomed) Miltel Communications Ltd. FCC ID:MLLGL2RPT150 Date: December 2005 Page 11 of 12 Photograph No.10 Repeater 2A transceiver PCB second side view under shield (zoomed) Miltel Communications Ltd. FCC ID:MLLGL2RPT150 Date: December 2005 Page 12 of 12 Photograph No.11 Repeater 2A transceiver PCB second side view underneath subshield

Miltel Communications Ltd. FCC ID:MLLGL2RPT150 RF_Env_evaluation_16691_rev1.doc Page 1 of 1 Environmental evaluation and exposure limit according to FCC CFR 47part 1, §1.1307, §1.1310 The transceiver is classified as mobile, the calculation was done for power density at 20 cm distance. Power density limit for general population/uncontrolled exposure in 30 – 300 MHz frequency range is 0.2 mW/cm 2 . The power density P (mW/cm 2 ) = P T / 4π r 2 , where P T is the maximum equivalent isotropically radiated power (EIRP), which is equal to: transmitter maximum output power 18 dBm plus maximum antenna gain 2 dBi and the maximum equivalent isotropically radiated power is 20 dBm = 100 mW. The power density P at 20 cm (minimum safe distance, required for mobile devices), calculated as follows: P = 100 mW / 4π (20 cm) 2 = 0.02 mW/cm 2 < 0.2 mW/cm 2 General public cannot be exposed to dangerous RF level.

Hermon Laboratories Ltd. P.O.Box 23, Binyamina 30500, Israel Tel. +972 4628 8001 Fax. +972 4628 8277 E-mail: [email protected] Page 1 of 105 Report ID: MILRAD_FCC.16691.doc Date of Issue: 11/10/2005 Electrical TEST REPORT ACCORDING TO: FCC CFR 47 PART 90 §90.217(b) AND PART 15 SUBPART B FOR: Miltel Communications Ltd. Remote Data Collector 150 - 170 MHz Model: Repeater 2A FCC ID:MLLGL2RPT150 This report is in conformity with ISO/ IEC 17025. The A2LA logo endorsement applies only to the test methods and the standards that are listed in the scope of Hermon Laboratories accreditation. The test results relate only to the items tested. This test report shall not be reproduced in any form except in full with the written approval of Hermon Laboratories Ltd. Report ID: MILRAD_FCC.16691.doc Date of Issue: 11/10/2005 Page 2 of 105 Table of contents 1 Applicant information..................................................................................................................................................... 3 2 Equipment under test attributes .................................................................................................................................... 3 3 Manufacturer information .............................................................................................................................................. 3 4 Test details.................................................................................................................................................................... 3 5 Tests summary.............................................................................................................................................................. 4 6 EUT description............................................................................................................................................................. 5 6.1 General information....................................................................................................................................................... 5 6.2 Ports and lines .............................................................................................................................................................. 5 6.3 Support and test equipment .......................................................................................................................................... 5 6.4 Operating frequencies ................................................................................................................................................... 5 6.5 Changes made in the EUT ............................................................................................................................................ 5 6.6 Test configuration.......................................................................................................................................................... 6 6.7 Transmitter characteristics ............................................................................................................................................ 7 7 Transmitter tests according to 47CFR part 90 requirements......................................................................................... 8 7.1 Peak output power test.................................................................................................................................................. 8 7.2 Occupied bandwidth test ............................................................................................................................................. 11 7.3 Frequency stability test................................................................................................................................................ 19 7.4 Transient frequency behaviour test ............................................................................................................................. 21 7.5 Band edge emission.................................................................................................................................................... 26 7.6 Spurious emissions at RF antenna connector test ...................................................................................................... 34 7.7 Radiated spurious emission measurements................................................................................................................ 53 8 Emissions tests according to 47CFR part 15 subpart B requirements ........................................................................ 79 8.1 Conducted emissions .................................................................................................................................................. 79 8.2 Radiated emission measurements .............................................................................................................................. 85 8.3 Spurious emissions at RF antenna connector ............................................................................................................. 88 9 APPENDIX A Test equipment and ancillaries used for tests....................................................................................... 91 10 APPENDIX B Measurement uncertainties................................................................................................................... 93 11 APPENDIX C Test facility description ......................................................................................................................... 94 12 APPENDIX D Specification references ....................................................................................................................... 94 13 APPENDIX E Abbreviations and acronyms................................................................................................................. 95 14 APPENDIX F Test equipment correction factors ..................................................…

Text truncated - open the document above for the full version.

Miltel Communications Ltd. FCC ID:MLLGL2RPT150 Date: December 2005 Page 1 of 9 SETUP PHOTOGRAPHS This document contains 8 photographs Miltel Communications Ltd. FCC ID:MLLGL2RPT150 Date: December 2005 Page 2 of 9 Photograph No.1 Peak output power, occupied bandwidth measurement setup Miltel Communications Ltd. FCC ID:MLLGL2RPT150 Date: December 2005 Page 3 of 9 Photograph No.2 Band edge and spurious conducted emissions measurement setup Miltel Communications Ltd. FCC ID:MLLGL2RPT150 Date: December 2005 Page 4 of 9 Photograph No.3 Frequency stability measurement setup Miltel C…
