MLLIWCTX15-17Field Station

IrriWise ™ Wireless Crop Monitoring System IrriWise Transmitter IrriWise Transceiver (Receiver/Repeater) User Manual Miltel Communications Ltd. September 2004 1-2 CHAPTER 1 INTRODUCTION 1.1 GENERAL This chapter provides a functional description of the IrriWise TM – Wireless Crop Monitoring System. This system has been designed to provide the grower with real-time data collected from the field, thereby providing better control over irrigation scheduling and farm resources. 1.1.1 What Is The System Intended For? The IrriWise TM system is a management tool intended to provide the grower with better control over crop irrigation and farm resources by means of data collection and its interpretation. Data is collected from the field using state of the art radio technology and transferred to your PC, where it is presented in user-friendly software, enabling easy data interpretation, improving real-time decisions and analysis of history. Data is sampled from the sensors and transmitted to base station as follows: • Soil moisture sensors are measured every 15 minutes and transmitted every 30 minutes. • Weather station sensors are measured every 5 minutes and an average reading is transmitted every 15 minutes. • Water meter readings are sent at the beginning and end of irrigations and every 10 minutes during irrigation. 1-3 1.1.2 Wireless Crop Monitoring System Diagram A basic diagram of the Wireless Crop Monitoring System is displayed in Figure 1-1. Since the system is modular, different configurations and components are possible. Ra n g e : Up to 4 km (2.5 miles) Ra n g e : Up to 10 km (7 miles) Ba se St a t i o n Fi e l d St a t i o n Re m o t e Ac c e ss (Modem) Re m o t e Access (LAN) Re p e a t e r Receiver Figure 1-1. Wireless Crop Monitoring System Diagram 1-4 1.1.3 System Components The Wireless Crop Monitoring System is comprised of the following components: a. Wireless system: • Base station – PC, IrriWise Receiver (transceiver) and antenna • IrriWise Transmitters • IrriWise Repeater (transceiver) b. Radio Manager TM application – radio and network management software. c. IrriWise TM application – user-friendly graphing and data analysis software. d. IrriDial TM application – remote access dialer enabling data download from various IrriWise TM users. e. Sensors: • Gro-Point TM – a volumetric soil moisture sensor based on TDT technology with fast and accurate response to changes in soil moisture. • Tensiometer transducer – a special transducer that enables accurate and reliable measurement of most traditional tensiometers. • Weather station (up to 8 different sensors) – a fully modular weather station for measuring the local microclimate. Supports the following sensors: air temperature, relative humidity, solar radiation, wind speed, wind direction, rain gauge, leaf wetness and soil temperature. Transmits calculated data such as ET, dew point and gust. The rain gauge can be installed as a standalone unit independent of the weather station. • Water meter – various types of water meters: • Lateral or mainline flow meter – standard pulse-type flow meters. • 1/2” drip-line flow meter to record single drip-line irrigation volume and runtime. • Fertilizer flow meter can be connected to the system to record when and how much fertilizer has been applied. 1-5 • Tipping bucket flow sensor to record irrigation volume and runtime based on individual dripper. 1.1.3.1 Wireless System The wireless system provides the remote access interface. The transmission range of the wireless system is up to 4 km (2.5 miles), depending on the following factors: a. Interference (noise) on the selected frequency. The “cleaner” the frequency, the longer the range. b. Crop clearance – radio waves do not penetrate foliage very well, especially when wet from rain or dew. c. Topographical conditions – the extent of line of sight (LOS) pureness and positioning height affect the transmission range accordingly. Base Station Receiver and Antenna The base station includes the antenna and receiver as a joint unit and is responsible for the reception of data sent by the transmitters and for its transfer to the PC via RS232 (see Figure 1-2). 1-6 Antenna Re c e i v e r RS2 3 2 a n d Po w e r Su p p l y Output to PC Input From Ante nna Rear Connection to Pole Figure 1-2. Antenna and Receiver 1-7 PC A PC computer is required for the collection of the received data. This PC contains the Radio Manager TM and IrriWise TM software. Remote users can access the data stored on this PC by means of modem and/or LAN and IrriDial TM application. The technical specification of PC requirements is as follows: a. PC operating system – Windows 2000 or Windows XP. b. CPU – minimum Pentium III 900 MHz. c. RAM – minimum 128 MB. d. Available disk space – minimum 5 GB. e. Unused serial port (cannot be shared with Palm Pilot or other applications). f. Ability to remain switched ON 100% of the time. g. Quality surge suppressor power strip. h. Quality UPS plugged to surge suppressor. Transmitter The transmitter (Figure 1-3) enables to send data by means of RF transmission. This device is equipped with a battery designed to provide an operation term of at least 6 years (except for weather station transmitter battery, which lasts for 3 years) and is highly reliable. The transmitter enables the transmission to a range of up to 4 km (2.5 miles). There are four types of transmitters, as displayed in Figure 1-3. 1-8 Weather Station Transm itter Gro Point Tra nsm itte r TM Water Meter Transm itter Tensiometer Tra nsm itter Figure 1-3. Transmitter Types 1-9 Repeater The repeater is externally similar to the receiver previously described in this section (except for the cable for connection to the PC). This device enables to extend transmission range by to 10 km (6.2 miles) depending on topographical conditions. The repeater should be located at a strategic point between the transmitters and base station. It picks up the transmitted signal and repeats it. This unit r…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 November 25, 2004 RE: Miltel Communications Ltd. FCC ID: MLLIWCTX15-17 After a review of the submitted information, I have a few comments on the above referenced Application. 1) The internal photographs may not normally be held confidential strictly on the basis of trade secrets. Please remove this justification from the letter of confidentiality or provide a better justification. As an alternative, you may use a black marker to "black out" the top of any readable components and provide new internal photographs. Please let us know how you wish to proceed with this issue. 2) Please explain the additional daughter board in some of the models. Is this part of the TX circuitry or digital device circuitry. If this is part of the TX circuitry, these may need to be certified under different FCC ID’s. Please provide a detailed explanation. 3) Please provide information and photographs if possible regarding the antennas used with the system. The test report references a -1 dBi monopole. 4) Please provide RF exposure information for this device. 5) Please consider adding information to the users manual regarding licensing requirements. Examples of this are: The equipment user is required by the radio service rules to obtain a license before operating the equipment. Licensing of this equipment is the user’s responsibility, and licensability depends on the user’s classification and application, and on the selected frequency. The user is strongly urged to contact the appropriate telecommunications authority concerning proper licensing, and before choosing and ordering frequencies. 6) Please provide calculations to support emissions designator. 7) Please explain the reference level settings for plots , 7.2.1 – 7.2.3, 7.3.1 – 7.3.3, and 7.5.1 – 7.5.6. Is this the unmodulated output power. Normally a second unmodulated plot is also shown on the same plot to show the to equal the reference line level. If so, please explain why the reference levels between the 2 sets of plots do not match. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. z Page 2 December 1, 2004 Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Hello Tim, Please find below our replies to your comments. Sorry about the delay. 1) Please find attached the new set of internal photographs. 2) Please refer to the attached document. 3) Please refer to the attached document. 4) RF exposure was not evaluated as the RF output power does not exceed 1.5W as provided in section 2.1091(c) of the FCC rules. 5) Please refer to the last page of the attached user manual. 6) The device use FSK modulation with the maximum frequency deviation +/- 3 kHz and the highest modulating frequency +/- 2.4 kHz. Upon this the necessary emission bandwidth is 2*(3.0+2.4)=10.8 kHz and the correct emission designator is 10K8F1D. 7) The reference level shown in plots 7.2.1-7.2.3 and 7.3.1-7.3.3 was adjusted to the total power of the transmitter in both cases. The difference in the reference level settings was caused by slightly different set ups (external attenuator, RF cable, spectrum analyzer) and as both of the measurements are relative no corrections were applied. The reference level shown in plots 7.5.1-7.5.6 was adjusted to encompass the calculated equivalent field strength limit. Tim, Page 1 of 1In 12/19/2004Printed for "Timothy R. Johnson" <[email protected]>

Miltel Communications Ltd. 7 Leshem Street, 4 th Floor P.O. Box 7374 Petach Tikva, Israel 49170 Tel: 972-3-926-9550 Fax: 972-3-924-6550 21 December 2004 Subject: Request for Confidentiality FCC ID: MLLIWCTX15-17 Dear Gentlemen, Pursuant to sections 0.457 and 0.459 of the Commission’s rules we herby apply to you with request to withhold the following confidential information in the Application for Certification for FCC ID: MLLIWCTX15-17. The confidential information accompanying this Application is outlined below: • Schematics (electronic diagrams) • Block Diagram • Operational Technical Description • Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. Since the equipment is potted and the internal parts are not identifiable, we request that also the Internal Photos (taken before potting) will be accepted as confidential materials. The Applicant understands that pursuant to Rule 0.457, disclosure of the Application and all accompanying documentation will not be made confidential before the date of the Grant for this Application. Sincerely, Yarum Locker – Co-C.E.O.

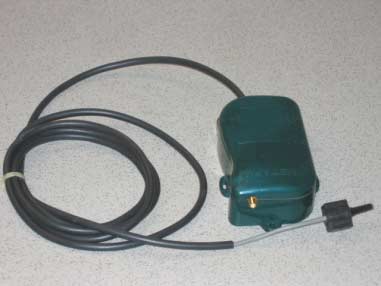

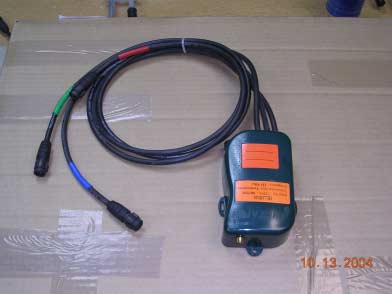

FCC ID:MLLIWCTX15-17 Date: October 2004 Page 1 of 7 EXTERNAL PHOTOGRAPHS This document contains 6 photographs FCC ID:MLLIWCTX15-17 Date: October 2004 Page 2 of 7 Photograph No.1 IRRIWISE-TRANS. & ANT ONE WTR METER 151 Front view FCC ID:MLLIWCTX15-17 Date: October 2004 Page 3 of 7 Photograph No.2 IRRIWISE-TRANS. & ANT WEATHER STATION 151 Front view FCC ID:MLLIWCTX15-17 Date: October 2004 Page 4 of 7 Photograph No.3 IRRIWISE-TRANS. & ANT FOR TENSIO 151 Front view FCC ID:MLLIWCTX15-17 Date: October 2004 Page 5 of 7 Photograph No.4 IRRIWISE-TRANS. & ANT FOR GROPOINT 151 Front view FCC ID:MLLIWCTX15-17 Date: October 2004 Page 6 of 7 Photograph No.5 Irriwise transmitter Rear side view FCC ID:MLLIWCTX15-17 Date: October 2004 Page 7 of 7 Photograph No.5 Irriwise transmitter antenna connector

FCC ID Label 1. The following document provides the information regarding the FCC ID label . 2. The equipment label shown below is affixed to the Irriwise Transmitter on the back panel. Label Dimensions: 58 mm. x 24 mm. Label Location: Transmitter back panel FCC ID: MLLIWCTX15-17 Model: Irriwise Transmitter S/N: ___________ Miltel Communicatins Made in Israel Label location, FCC ID:MLLIWCTX15-17 On Irriwise Transmitter rear panel Label FCC ID:MLLIWCTX15-17

FCC ID:MLLIWCTX15-17 Date: October 2004 Page 1 of 20 INTERNAL PHOTOGRAPHS This document contains 19 photographs. The same main PCB shown in Photograph No.3 is used in four EUT models: IRRIWISE-TRANS. & ANT ONE WTR METER 151 IRRIWISE-TRANS. & ANT WEATHER STATION 151 IRRIWISE-TRANS. & ANT FOR GROPOINT 151 IRRIWISE-TRANS. & ANT FOR TENSIO 151 FCC ID:MLLIWCTX15-17 Date: October 2004 Page 2 of 20 Photograph No.1 IRRIWISE-TRANS. & ANT ONE WTR METER 151 Internal view FCC ID:MLLIWCTX15-17 Date: October 2004 Page 3 of 20 Photograph No.2 IRRIWISE-TRANS. & ANT ONE WTR METER 151 Internal view FCC ID:MLLIWCTX15-17 Date: October 2004 Page 4 of 20 Photograph No.3 IRRIWISE-TRANS. & ANT ONE WTR METER 151 Main PCB first side view FCC ID:MLLIWCTX15-17 Date: October 2004 Page 5 of 20 Photograph No.4 IRRIWISE-TRANS. & ANT ONE WTR METER 151 Main PCB second side view FCC ID:MLLIWCTX15-17 Date: October 2004 Page 6 of 20 Photograph No.5 IRRIWISE-TRANS. & ANT WEATHER STATION 151 Internal view FCC ID:MLLIWCTX15-17 Date: October 2004 Page 7 of 20 Photograph No.6 IRRIWISE-TRANS. & ANT WEATHER STATION 151 Main PCB with the daughter board first side view FCC ID:MLLIWCTX15-17 Date: October 2004 Page 8 of 20 Photograph No.7 IRRIWISE-TRANS. & ANT WEATHER STATION 151 Main PCB second side view FCC ID:MLLIWCTX15-17 Date: October 2004 Page 9 of 20 Photograph No.8 IRRIWISE-TRANS. & ANT WEATHER STATION 151 Daughter board top view FCC ID:MLLIWCTX15-17 Date: October 2004 Page 10 of 20 Photograph No.9 IRRIWISE-TRANS. & ANT WEATHER STATION 151 Daughter board bottom view FCC ID:MLLIWCTX15-17 Date: October 2004 Page 11 of 20 Photograph No.10 IRRIWISE-TRANS. & ANT FOR GROPOINT 151 Internal view FCC ID:MLLIWCTX15-17 Date: October 2004 Page 12 of 20 Photograph No.11 IRRIWISE-TRANS. & ANT FOR GROPOINT 151 Main PCB with the daughter board first side view FCC ID:MLLIWCTX15-17 Date: October 2004 Page 13 of 20 Photograph No.12 IRRIWISE-TRANS. & ANT FOR GROPOINT 151 Main PCB second side view FCC ID:MLLIWCTX15-17 Date: October 2004 Page 14 of 20 Photograph No.13 IRRIWISE-TRANS. & ANT FOR GROPOINT 151 Daughter board top view FCC ID:MLLIWCTX15-17 Date: October 2004 Page 15 of 20 Photograph No.14 IRRIWISE-TRANS. & ANT FOR GROPOINT 151 Daughter board bottom view FCC ID:MLLIWCTX15-17 Date: October 2004 Page 16 of 20 Photograph No.15 IRRIWISE-TRANS. & ANT FOR TENSIO 151 Internal view FCC ID:MLLIWCTX15-17 Date: October 2004 Page 17 of 20 Photograph No.16 IRRIWISE-TRANS. & ANT FOR TENSIO 151 Main PCB with the daughter board first side view FCC ID:MLLIWCTX15-17 Date: October 2004 Page 18 of 20 Photograph No.17 IRRIWISE-TRANS. & ANT FOR TENSIO 151 Main PCB second side view FCC ID:MLLIWCTX15-17 Date: October 2004 Page 19 of 20 Photograph No.18 IRRIWISE-TRANS. & ANT FOR TENSIO 151 Daughter board top view FCC ID:MLLIWCTX15-17 Date: October 2004 Page 20 of 20 Photograph No.19 IRRIWISE-TRANS. & ANT FOR TENSIO 151 Daughter board bottom view

FCC ID:MLLIWCTX15-17 Tune-Up Information The transmitter device is tuned by a computerized suetup. In order to start the setup procedure, the device is connected to a PC through the internal inerface port. After the programming software is loaded the following process takes place: (a) Load requested frequency into the device EEPROM memory (limited by the software to the defined frequcny range of 150-170 MHz.). (b) The program activates the transmitter (trigger). (c) The output frequency is meassured using a spectrum analyzer. (d) The frequency offset is calculated. (e) The revised frequency value is re-loaded into the the device's memory. (f) Repeat steps (b) to (e) until the requested frequncy is measured on the spectrum anallyzer. Note: The power level is set by the hardware design and can not be tuned .

Hermon Laboratories Ltd. P.O.Box 23, Binyamina 30500, Israel Tel. +972 4628 8001 Fax. +972 4628 8277 E-mail: [email protected] Page 1 of 109 Report ID: MILRAD_FCC.15978.doc Date of Issue: 9/15/2004 Electrical TEST REPORT ACCORDING TO: FCC CFR 47 PART 90 §90.217 and PART 15 SUBPART B FOR: Miltel Communications Ltd Irriwise Transmitter This report is in conformity with ISO/ IEC 17025. The A2LA logo endorsement applies only to the test methods and the standards that are listed in the scope of Hermon Laboratories accreditation. The test results relate only to the items tested. This test report shall not be reproduced in any form except in full with the written approval of Hermon Laboratories Ltd. Report ID: MILRAD_FCC.15978.doc Date of Issue: 9/15/2004 Project: 15978, Miltel Communications Ltd, Transmitter Page 2 of 109 Table of contents 1 Applicant information..................................................................................................................................................... 3 2 Equipment under test attributes .................................................................................................................................... 3 3 Manufacturer information .............................................................................................................................................. 3 4 Test details.................................................................................................................................................................... 3 5 Tests summary.............................................................................................................................................................. 4 6 EUT description............................................................................................................................................................. 5 6.1 General information....................................................................................................................................................... 5 6.2 General information....................................................................................................................................................... 5 6.3 Transmitter characteristics ............................................................................................................................................ 5 7 Transmitter tests according to 47CFR part 90 requirements......................................................................................... 6 7.1 Peak output power test.................................................................................................................................................. 6 7.2 Occupied bandwidth test ............................................................................................................................................. 14 7.3 Emission mask test ..................................................................................................................................................... 17 7.4 Band edge emission.................................................................................................................................................... 21 7.5 Radiated spurious emission measurements................................................................................................................ 29 7.6 Spurious emissions at RF antenna connector test ...................................................................................................... 69 7.7 Frequency stability test................................................................................................................................................ 80 7.8 Transient frequency behaviour test ............................................................................................................................. 82 7.9 Radiated emission measurements .............................................................................................................................. 87 8 APPENDIX A Test equipment and ancillaries used for tests....................................................................................... 94 9 APPENDIX B Measurement uncertainties................................................................................................................... 96 10 APPENDIX C Test facility description ......................................................................................................................... 97 11 APPENDIX D Specification references ....................................................................................................................... 97 12 APPENDIX E Abbreviations and acronyms................................................................................................................. 98 13 APPENDIX F Test equipment correction factors ......................................................................................................... 99 Report ID: MILRAD_FCC.15978.doc Date of Issue: 9/15/2004 Project: 15978, Miltel Communications Ltd, Transmitter Page 3 of 109 1 Applicant information Client name: Miltel Communications Ltd. Address: 7 Leshem street, P.O.Box 7374, Petach Tikva, 49170, Israel Telephone: +972 3926 9550 Fax: +972 3924 6550 E-mail: [email protected] Contact name: Mr. Erez Sharabi 2 Equipment under test attributes Product name: Transmitter Brand name: Irriwise Model(s): 1) IRRIWISE-TRANS. & ANT WEATHER STATION 151, S/N 10681, P/N 74300-002110 2) IRRIWISE-TRANS. & ANT FOR GROPOINT 151, S/N 10698, P/N 74300-001425 3) IRRIWISE-TRANS. & ANT FOR TENSIO 151, S/N 10688, P/N 74300-001525 4) IRRIWISE-TRANS. & ANT ONE WTR METER 151, S/N 10692, P/N 74300-001625 Receipt date 7/11/2004 3 Manufacturer information Manufacturer name: Miltel Communications Ltd. Address: 7 Leshem street, P.O.Box 7374, Petach Tikva, 49170, Israel Telephone: +972 3926 9550 Fax: +972 3924 6550 E…
