MLLGL3RPT450TRANSCEIVER 3A

Miltel Wireless Data Link for RF Telemetry Systems Transceiver 3A (Receiver/Repeater) FCC ID: MLLGL3RPT450 U U s s e e r r M M a a n n u u a a l l Miltel Communications Ltd. October 2010 2 Table of Contents Chapter 1 Introduction .............................................................................................................3 1.1 Purpose and Use...........................................................................................................3 1.2 System General Description .........................................................................................3 1.3 Theory of Operation.....................................................................................................4 Chapter 2 Technical Characteristics..............................................................................................5 2.1 Technical Specification .................................................................................................5 2.1.1 Electrical...................................................................................................................5 2.1.2 Physical.....................................................................................................................6 2.2 Label Contents ..............................................................................................................6 Chapter 3 Installation Instructions................................................................................................7 3.1 General .........................................................................................................................7 3.2 Installation ....................................................................................................................7 Deceleration of Conformity ............................................................................................................8 3 Chapter 1 Introduction 1.1 Purpose and Use The Transceiver 3A (FCC ID: MLLGL3RPT450) is a receiver/repeater that is used for data transfer in Miltel’s radio telemetry system. The system is used for utility consumption readings collection system as well as for other applications such as in agricultural systems or general purpose sensor telemetry system. This device is installed on-site by a professional field technician, thus this manual includes technical terms. The equipment should not be installed by a non-professional individual that has not been trained and authorized. 1.2 System General Description The Transceiver 3A system is a computerized fully automatic radio device. It requires no human intervention after initial installation. The device acts as a store- and-forward radio relay. The Transceiver 3A operates as a Gateway (backhaul receiver) or as a repeater that captures transmissions from a Miltel transmitter and, after validating the message, transmits the message again. When operating as a Repeater the device relays information from transmitters to a receiver that acts as a Gateway (base station) which is typically deployed with a RS232 connection to a PC or with a LAN connection (TCP/IP) that allows backhauling data to the backoffice management system. The Gateway (Receiver) transfers the data to the central computer for data collection and for further analysis and reporting. 4 When operating as a Gateway Receiver, the device receives messages transmitted by Miltel transmitters or messages relayed by a repeater. The receiver can also send commands to any of the repeaters. The Transceiver device is marketed as two models (as a Receiver or as a Repeater) and under three different commercial trade names (Datasense Repeater 3A / Receiver 2A, Galaxy Repeater 3A / Receiver 3A and IrriWise Repeater 3A / Receiver 2A). The Transceiver device (both receiver and repeater) can be hooked up to a PC or to a laptop computer for programming purposes during system setup. 1.3 Theory of Operation The Transceiver 3A is the intermediate link in the wireless telemetry data collection system. It is an independent unit that operates as a repeater (radio relay) or as a gateway backhaul device (receiver). Figure 2-1 (see below) depicts a typical installation of a Transceiver 3A unit. The device is powered by a 12 volt power supply or by a solar powered battery. The Transceiver 3A operates its radio receiver on a continuous basis until it receives a message from a nearby transmitter. After capturing the transmitted data message, it sends out an identical message which is forwarded to the Collector. Figure 1-1: Typical Installation (shown with optional solar panel) 5 Chapter 2 Technical Characteristics 2.1 Technical Specification 2.1.1 Electrical Max. output power 18.8 dBm Output frequency 450-470 MHz Carrier wave modulation FSK Power supply 12VDC from external AC2DC adapter Receiver Sensitivity (typical) -118 dBm 2.1.2 Physical Operating temperature -30°C ÷+60°C Water Resistance IP-68 Length 17.7 cm. Width 8.1 cm. Depth 5.6 cm. Weight (excl. mounting plate) 580 gr. 6 2.2 FCC Label FCC ID: MLLGL3RPT450 IC: 6753A-GL3RPT450 Model: Transceiver 3A S/N: ___________ Miltel Communications Ltd. Made in Israel This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Figure 2-1: Label Design 7 Chapter 3 Installation Instructions 3.1 General The Transceiver 3A should only be installed by a professional technician. 3.2 Installation For on-site installation of the Transceiver 3A device, proceed as follows: 1) Loosen the four screws fastening the unit's panel and open the box end cover. 2) Connect the 12 volt DC power supply (use only U/L approved power supply) to the 5-pin connector 3) Close case 4) Install screws and mount to wall or to mast 5) Connect the Coax cables at both ends – to the repeater/receiver and to the anten…

Text truncated - open the document above for the full version.

Miltel Communications Ltd. 7 Gush-Etzion St., 4 th Floor Giva't-Shmuel, Israel 54030 Tel: 972-3-7371334 Fax: 972-3-7371331 October 11 th , 2010 Subject: Request for Confidentiality FCC ID: MLLGL3RPT450 Federal Communications Commission Authorization and Evaluation Division Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: •CONF APPENDIX Transceiver 3A Schem.pdf •CONF APPENDIX Transceiver 3A BlkDia.pdf •CONF APPENDIX Transceiver 3A OpDes.pdf •CONF APPENDIX Transceiver 3A TunPro.pdf •CONF APPENDIX Transceiver 3A PartsLst.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of the Application and all accompanying documentation will not be made confidential before the date of the Grant for this Application. Sincerely, Yarum Locker, co-C.E.O.

Miltel Communications Ltd. 7 Gush Etzion, 4 th Floor Givat-Shmuel, Israel 54030 Tel: +972-3-737-1333 Fax:+972-3-737-1331 October 11 th , 2010 Timco Engineering Inc 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA Subject: Miltel Communications – Form 731 Signature Authorization Letter FCC ID: MLLGL3RPT450 To Whom It May Concern, We hereby authorize Mr. Shaike Raz of I.T.L. (Product Testing) Ltd (ITL) to sign FORM 731 on our behalf for the following application: Miltel Transceiver, Model Transceiver 3A, FCC ID: MLLGL3RPT450 . Sincerely yours Yarum Locker, Co-C.E.O.

Miltel Communications Ltd. 7 Gush Etzion, 4 th Floor Givat-Shmuel, Israel 54030 Tel: +972-3-737-1333 Fax:+972-3-737-1331 October 11 th , 2010 Timco Engineering Inc 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA Subject: Miltel Communications - Authorization Letter FCC ID: MLLGL3RPT450 To Whom It May Concern, We the undersigned, hereby authorize Mr. Shaike Raz of ITL Ltd. to act on our behalf in all manners relating to application for equipment authorization of application for certification of Miltel Transceiver Model Transceiver 3A, FCC ID: MLLGL3RPT450. Sincerely yours Yarum Locker, Co-C.E.O.

Label Location IC: 6753A-GL3RPT450 FCC ID: MLLGL3RPT450 IC: 6753A-GL3RPT450 Model: Transceiver 3A S/N: ___________ Miltel Communications Ltd. Made in Israel This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not c ause harmful interference, and (2) this device must accept any interference re ceived, including interference that may cause undesired operation.

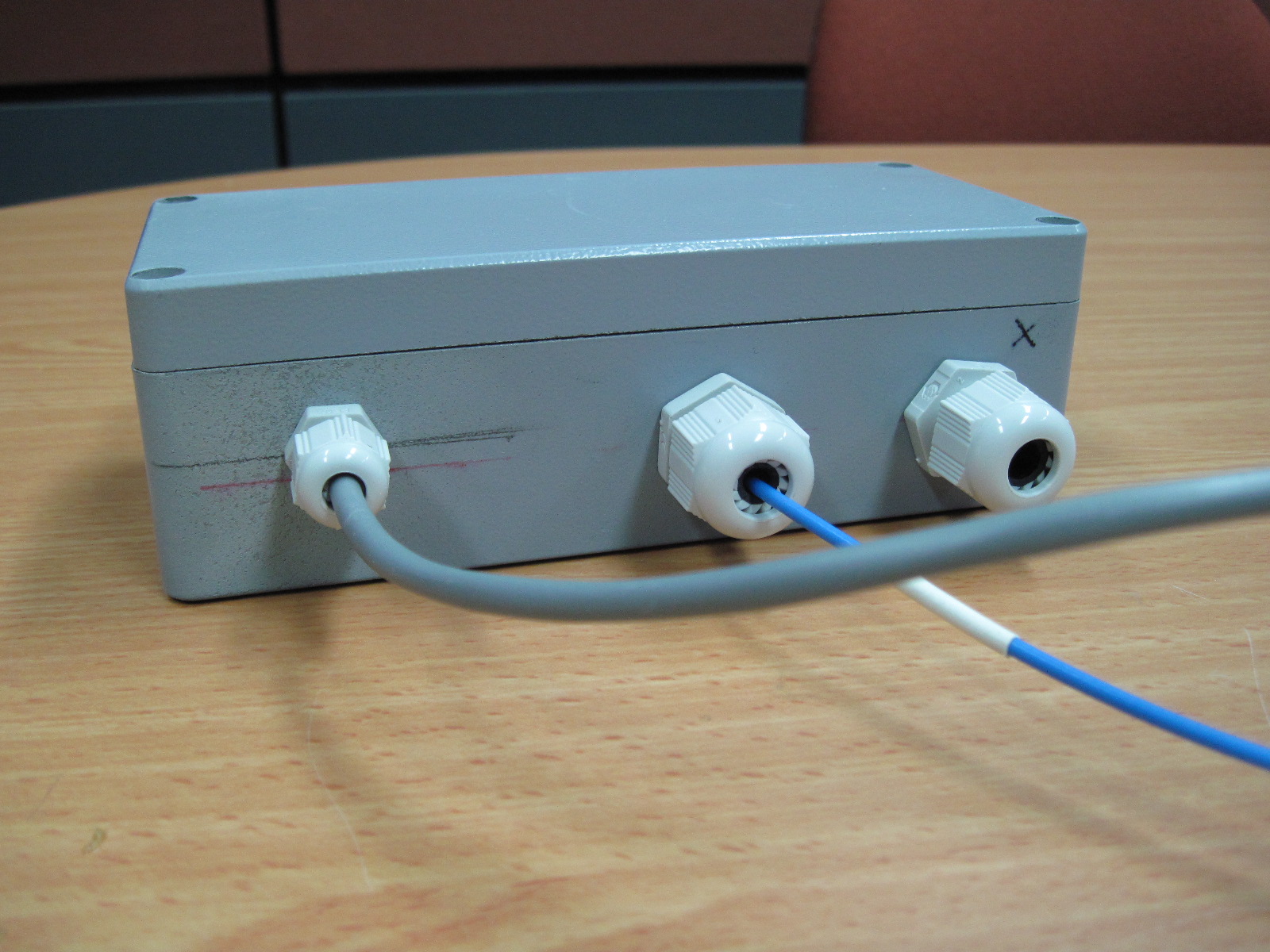

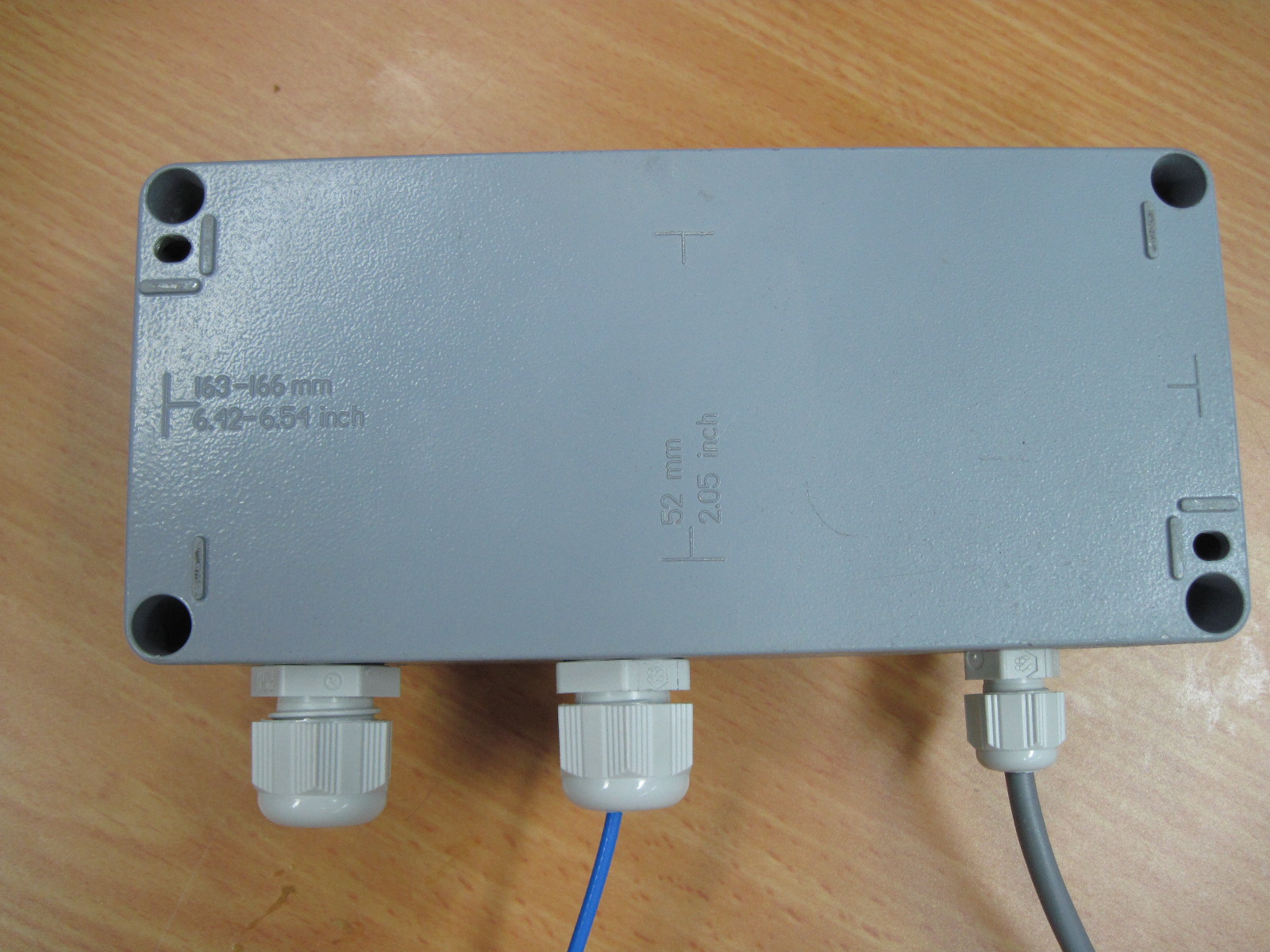

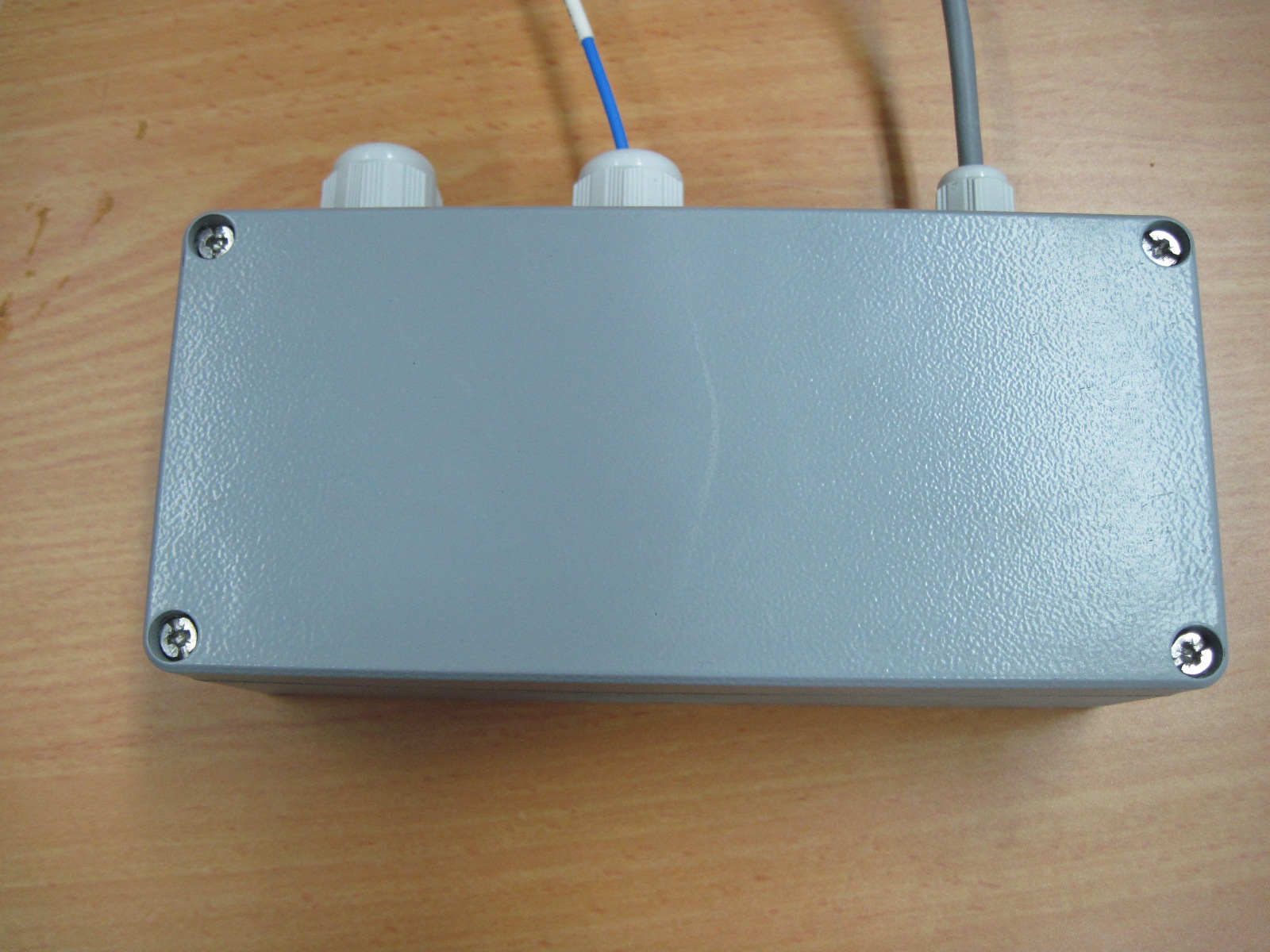

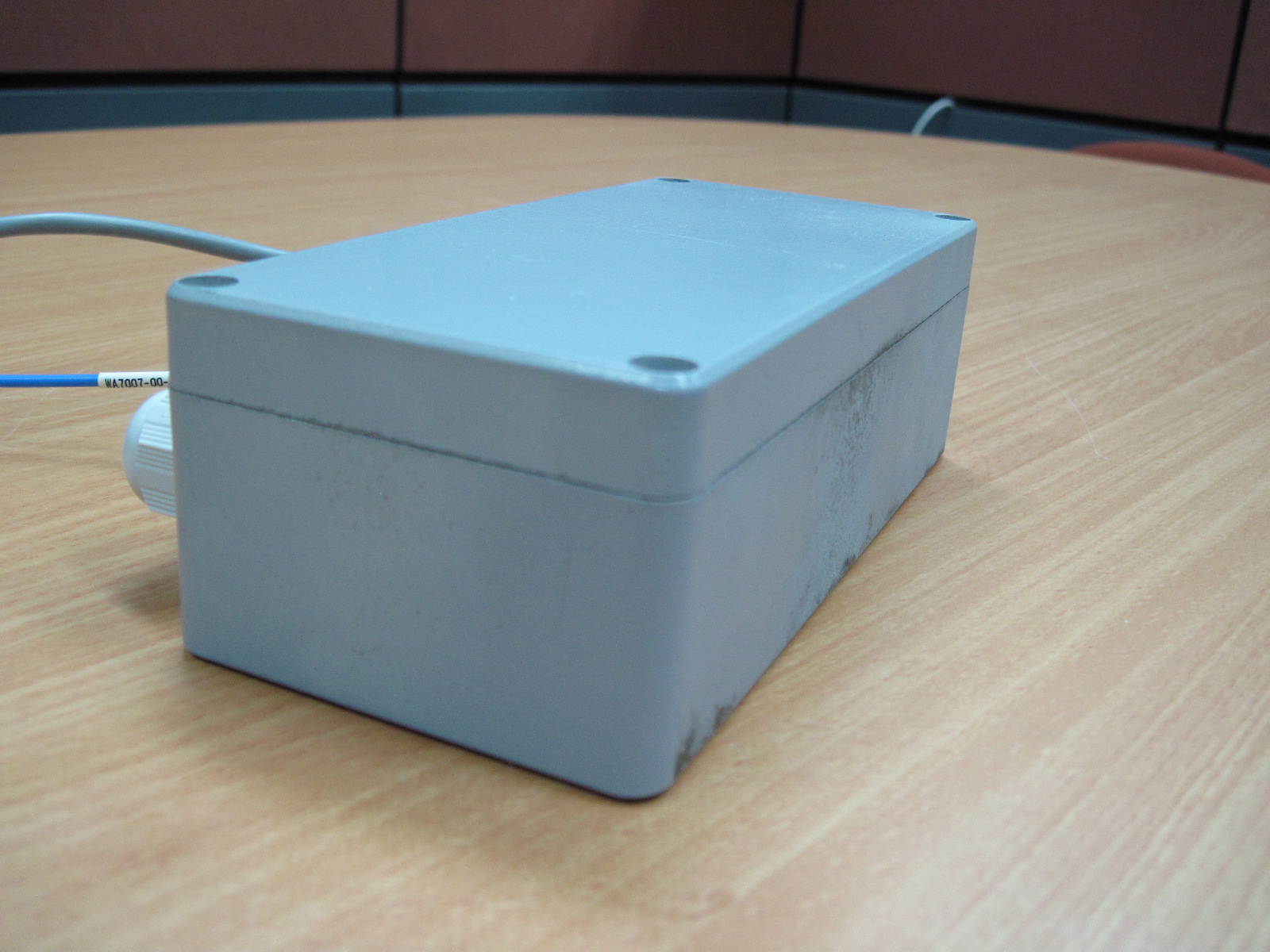

Transceiver 3A – IC and FCC ID Label 1. The following document provides the information regarding the IC and FCC ID label . 2. The equipment label shown below is affixed to the Transceiver 3A on the side panel as depicted in the photos. 3. Label descrition: 4. Label Dimensions: 57 mm. x 24 mm. FCC ID: MLLGL3RPT450 IC: 6753A-GL3RPT450 Model: Transceiver 3A S/N: ___________ Miltel Communications Ltd. Made in Israel This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

R.F Exposure/Safety Calculation for Miltel Communications Transceiver 3A The E.U.T. is wall or mast mounted. The typical distance between the E.U.T. and the general population is >20 cm. Calculation of Maximum Permissible Exposure (MPE) Based on Section 1.1307(b)(1) Requirements 2 3.01500/ cm mW f= (a) FCC limit at 450 MHz is: Using table 1 of Section 1.1310 limit for general population/uncontrolled exposures, the above level is an average over 30 minutes. (b) The power density produced by the E.U.T. is 22 025.0 )20(4 66.103.76 cm mw = × π P t - Transmitted Peak Power (worst case) 18.81 dBm, 76.03 mW G T - Antenna Gain , 2.2dBi; 1.66, numeric R- Distance from Transmitter = 20 cm (c) Peak power density at worst case continuous transmission: d) T(his is below the FCC limit. 2 4R GP tt π S=
