MZV2-5211A1.9GHz Cordless Phone

Model TC25111 DECT 6.0 Cordless Handset Telephone With DECT 6.0 Cordless Headset User’s Guide 23 Equipment Approval Information Your telephone equipment is approved for connection to the Public Switched Telephone Network and is in compliance with parts 15 and 68, FCC Rules and Regulations and the Technical Requirements for Telephone Terminal Equipment published by ACTA. Notification to the Local Telephone Company On the bottom of this equipment is a label indicating, among other information, the US number and Ringer Equivalence Number (REN) for the equipment. You must, upon request, provide this information to your telephone company. The REN is useful in determining the number of devices you may connect to your tele- phone line and still have all of these devices ring when your telephone number is called. In most (but not all) areas, the sum of the RENs of all devices connected to one line should not exceed 5. To be certain of the number of devices you may connect to your line as determined by the REN, you should contact your local telephone company. A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this prod- uct. It is designed to be connected to a compatible modular jack that is also compliant. See installation instructions for details. Notes • This equipment may not be used on coin service provided by the telephone company. • Party lines are subject to state tariffs, and therefore, you may not be able to use your own telephone equipment if you are on a party line. Check with your local telephone company. • Notice must be given to the telephone company upon permanent disconnection of your telephone from your line. • If your home has specially wired alarm equipment connected to the telephone line, en- sure the installation of this product does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer. US Number is located on the cabinet bottom REN number is located on the cabinet bottom Rights of the Telephone Company Should your equipment cause trouble on your line which may harm the telephone network, the telephone company shall, where practicable, notify you that temporary discontinuance of service may be required. Where prior notice is not practicable and the circumstances warrant such action, the telephone company may temporarily discon- tinue service immediately. In case of such temporary discontinuance, the telephone company must: (1) promptly notify you of such temporary discontinuance; (2) afford you the opportunity to correct the situation; and (3) inform you of your right to bring a 233 complaint to the Commission pursuant to procedures set forth in Subpart E of Part 68, FCC Rules and Regulations. The telephone company may make changes in its communications facilities, equipment, operations or procedures where such action is required in the operation of its business and not inconsistent with FCC Rules and Regulations. If these changes are expected to affect the use or performance of your telephone equipment, the telephone company must give you adequate notice, in writing, to allow you to maintain uninterrupted service. Interference Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; and (2) This device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reason- able protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna (that is, the antenna for radio or television that is “receiving” the interference). • Reorient or relocate and increase the separation between the telecommunications equipment and Receiver. • Connect the telecommunications equipment into an outlet on a circuit different from that to which the receiving antenna is connected. If these measures do not eliminate the interference, please consult your dealer or an experi- enced radio/television technician for additional suggestions. Also, the Federal Communica- tions Commission has prepared a helpful booklet, “How To Identify and Resolve Radio/TV Interference Problems.” This booklet is available from the U.S. Government Printing Office, Washington, D.C. 20402. Please specify stock number 004-000-00345-4 when ordering copies. Warning: The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 45 FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.” For body worn operation, this handset has been tested and meets the FCC RF exposure guidelines. Use of ac…

Text truncated - open the document above for the full version.

Model TC25211 2-Line DECT 6.0 Cordless Handset Telephone With DECT 6.0 Cordless Headset User’s Guide 2 Equipment Approval Information Your telephone equipment is approved for connection to the Public Switched Telephone Network and is in compliance with parts 15 and 68, FCC Rules and Regulations and the Technical Requirements for Telephone Terminal Equipment published by ACTA. Notification to the Local Telephone Company On the bottom of this equipment is a label indicating, among other information, the US number and Ringer Equivalence Number (REN) for the equipment. You must, upon request, provide this information to your telephone company. The REN is useful in determining the number of devices you may connect to your tele- phone line and still have all of these devices ring when your telephone number is called. In most (but not all) areas, the sum of the RENs of all devices connected to one line should not exceed 5. To be certain of the number of devices you may connect to your line as determined by the REN, you should contact your local telephone company. A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this prod- uct. It is designed to be connected to a compatible modular jack that is also compliant. See installation instructions for details. Notes • This equipment may not be used on coin service provided by the telephone company. • Party lines are subject to state tariffs, and therefore, you may not be able to use your own telephone equipment if you are on a party line. Check with your local telephone company. • Notice must be given to the telephone company upon permanent disconnection of your telephone from your line. • If your home has specially wired alarm equipment connected to the telephone line, en- sure the installation of this product does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer. US Number is located on the cabinet bottom REN number is located on the cabinet bottom • RJ14C for line 1 and RJ11C for line 2 List all applicable certification jack Universal Service Order Codes (“USOC”) for the equipment. For some types of analog and digital systems, list associated Facility Interface Codes (“FIC”) and Service Order Codes (“SOC”). These are required when the customer orders service from the local telephone company. Refer to Alliance for Tele- communications Industry Solutions (“ATIS”) Technical Report No. 5 for a more extensive listing of jack configurations and their designations (e.g., RJ11C), or refer to the Telcor- dia NC/NCITM Decoder for a full listing. 3 Rights of the Telephone Company Should your equipment cause trouble on your line which may harm the telephone network, the telephone company shall, where practicable, notify you that temporary discontinuance of service may be required. Where prior notice is not practicable and the circumstances warrant such action, the telephone company may temporarily discon- tinue service immediately. In case of such temporary discontinuance, the telephone company must: (1) promptly notify you of such temporary discontinuance; (2) afford you the opportunity to correct the situation; and (3) inform you of your right to bring a complaint to the Commission pursuant to procedures set forth in Subpart E of Part 68, FCC Rules and Regulations. The telephone company may make changes in its communications facilities, equipment, operations or procedures where such action is required in the operation of its business and not inconsistent with FCC Rules and Regulations. If these changes are expected to affect the use or performance of your telephone equipment, the telephone company must give you adequate notice, in writing, to allow you to maintain uninterrupted service. Interference Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; and (2) This device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reason- able protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna (that is, the antenna for radio or television that is “receiving” the interference). • Reorient or relocate and increase the separation between the telecommunications equipment and Receiver. • Connect the telecommunications equipment into an outlet on a circuit different from that to which the receiving antenna is connected. If these measures do not eliminate the interference, please consult your dealer or an experi- enced radio/television technician for additional suggestions. Also, the Federal Communica- tions Commission has prepared a helpful booklet, “How To Identify and Resolve Radio/TV Interference Problems.” This booklet is available from the U.S. Government Printing Office, 4 Washington, D.C. 20402. Please specify stock number 004-000-00345-4 when ordering cop- ies. Warning: The changes or modificat…

Text truncated - open the document above for the full version.

Melvin Nip) to act

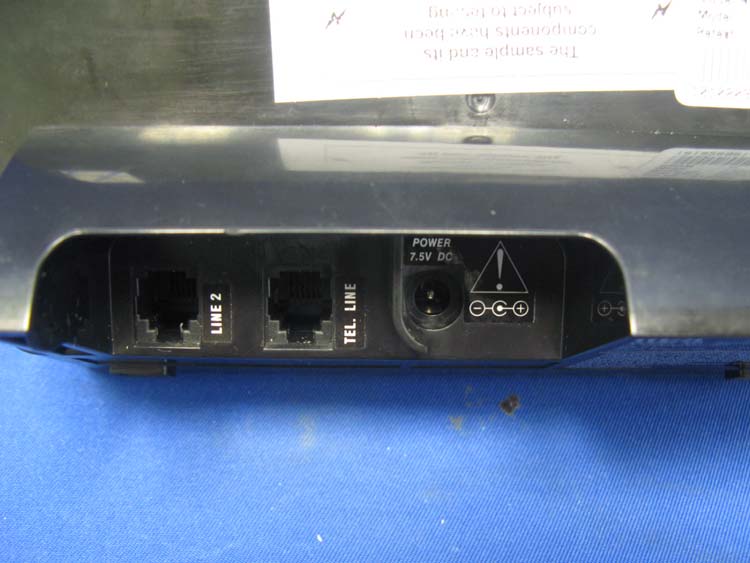

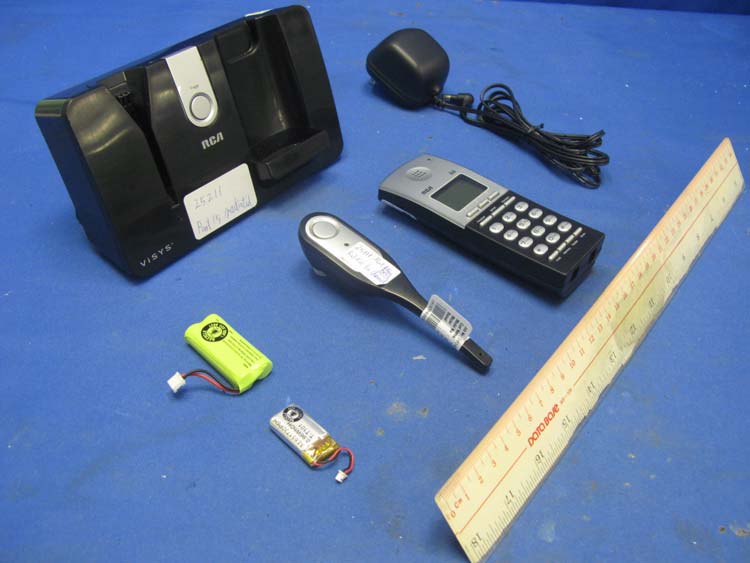

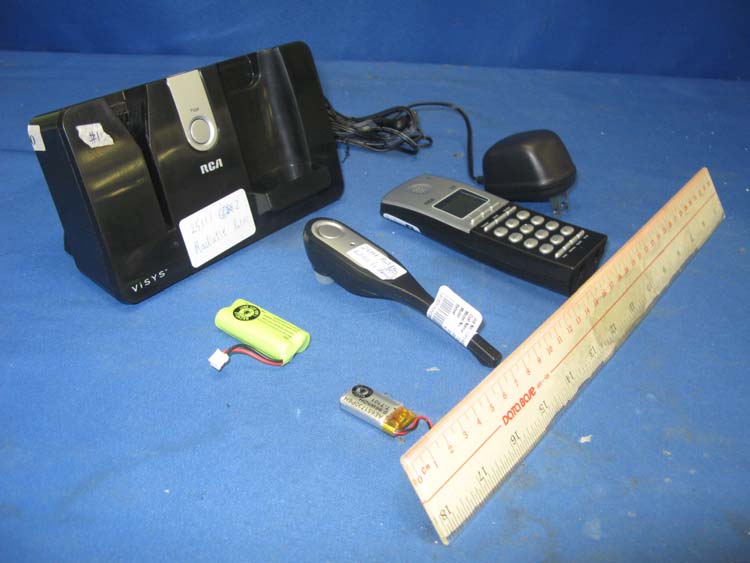

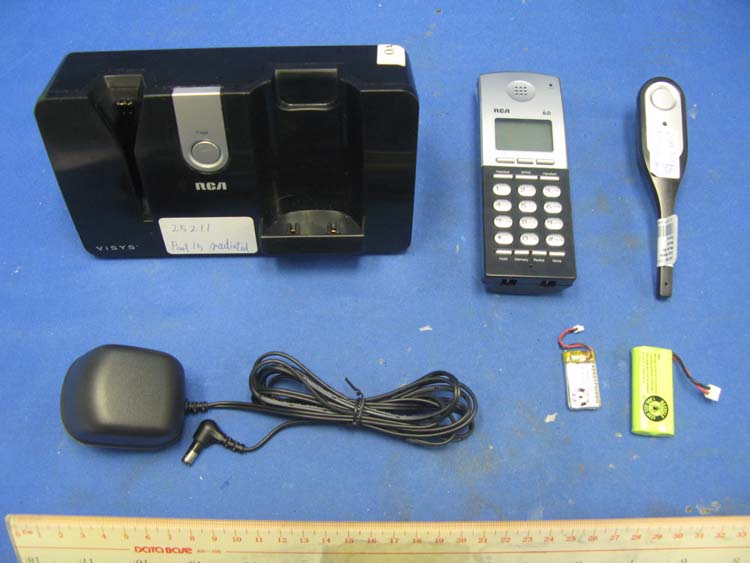

INTERTEK TESTING SERVICES External Photos – Model: TC25211 FCC ID: MZV2-5211A IC: 3921A-25211Aexternal photos - 1 of 3 INTERTEK TESTING SERVICES External Photos – Model: TC25211 FCC ID: MZV2-5211A IC: 3921A-25211Aexternal photos - 2 of 3 INTERTEK TESTING SERVICES External Photos – Model: TC25211 FCC ID: MZV2-5211A IC: 3921A-25211Aexternal photos - 3 of 3 INTERTEK TESTING SERVICES External Photos – Model: TC25111 FCC ID: MZV2-5211A IC: 3921A-25111Aexternal photos - 1 of 3 INTERTEK TESTING SERVICES External Photos – Model: TC25111 FCC ID: MZV2-5211A IC: 3921A-25111Aexternal photos - 2 of 3 INTERTEK TESTING SERVICES External Photos – Model: TC25111 FCC ID: MZV2-5211A IC: 3921A-25111Aexternal photos - 3 of 3

MODEL: TC25211 FILE NAME: TC25211 packing REV: 04 APPROVED BY:MADE BY: Yanjuan.liu 1/5/11 Power label, Size: 22*15mm Line 1+2 label, Size: 12*5mm Line 2 label, Size: 10*5mm Model NO. label, Size: 41.5*18.5mm 交货广州：4001331 交货惠州：4001332 PART 15 LABEL label, Size: *.5mm52.531 IC label, Size: 22*8mm CLASS B LABEL, SIZE: 25*15mm MODEL : TC25211 US: 3F8W400B25211A REN: 0.0 FCC ID: MZV2-5211A USOC Jack: RJ14C and RJ11C TC25211 3045TH S/NO.: 00000001 SERIAL NO. SIZE: * mm TF表示广州生产, TH表示惠州生产 LABEL, GZ PRINT, 6014 IC: 3921A-25211A T0000102 MODEL: TC25211FILE NAME: TC25211 packing REV: 00 APPROVED BY:MADE BY: Yanjuan.liu 1/25/11 LABEL, LCD POP, SIZE: 51*63 mm MODEL: TC25211FILE NAME: TC25211 packing REV: 02 APPROVED BY:MADE BY: Yanjuan.liu 1/5/11 MODEL: TC25211 FCC ID: MZV2-5211A IC: 3921A-25211A MADE IN CHINA S / N O . : 0 0 0 0 0 0 0 1 3 0 4 5 T H S/NO. & DATE CODE LABEL SIZE: 14.5 * 5.5 mm S/NO. must be the same as base, date code must be the same as base 有下划线表示符合ROHS标准 TF表示广州生产, TH表示惠州生产 FCC ID LABEL SIZE: 21*7.8mm CAUTION LABEL SIZE: 19*38mm IMPORTANT SHEET SIZE: 44*100mm IMPORTANT! 英文面向外 MODEL: TC25211 FILE NAME: TC25211 packing REV: 02 APPROVED BY:MADE BY: Yanjuan.liu 11/30/10 MODEL: TC25211 FCC ID: MZV2-5211A IC: 3921A-25211A MADE IN CHINA S/NO.: 00000001 3045TH Headset battery label Size:15.5*9.5mm S/NO. & DATE CODE LABEL SIZE: 14.5 * 5.5 mm S/NO. must be the same as base, date code must be the same as base 有下划线表示符合ROHS标准 TF表示广州生产, TH表示惠州生产 Headset caution label Size:15.5*9.5mm MODEL: TC25111 FILE NAME: TC25111 packing REV: 06 APPROVED BY:MADE BY: Yanjuan.liu 1/28/11 Power label, Size: 22*15mm TEL. LINE Size: 12*5mm Model NO. label, Size: 41.5*18.5mm 交货广州：4001331 交货惠州：4001332 PART 15 LABEL label, Size: *.5mm52.531 IC label, Size: 22*8mm CLASS B label, Size: 25*15mm MODEL : TC25111 US: 3F8W400B25111A REN: 0.0 FCC ID: MZV2-5211A USOC Jack: RJ11C TC25111 3045TH S/NO.: 00000001 SERIAL NO. SIZE: * mm TF表示广州生产, TH表示惠州生产 LABEL, GZ PRINT, 6014 T0000102 IC: 3921A-25111A MODEL: TC25111FILE NAME: TC25111 packing REV: 00 APPROVED BY:MADE BY: Yanjuan.liu 1/25/11 LABEL, LCD POP, SIZE: 51*63 mm MODEL: TC25111 FCC ID: MZV2-5211A IC: 3921A-25111A MADE IN CHINA MODEL: TC25111FILE NAME: TC25111 packing REV: 03 APPROVED BY:MADE BY: Yanjuan.liu 1/11/11 S / N O . : 0 0 0 0 0 0 0 1 3 0 4 5 T H S/NO. & DATE CODE LABEL SIZE: 14.5 * 5.5 mm S/NO. must be the same as base, date code must be the same as base 有下划线表示符合ROHS标准 TF表示广州生产, TH表示惠州生产 FCC ID LABEL SIZE: 21*7.8mm CAUTION LABEL SIZE: 19*38mm IMPORTANT! IMPORTANT SHEET SIZE: 44*100mm 英文面向外 MODEL: TC25111 FILE NAME: TC25111 packing REV: 03 APPROVED BY:MADE BY: Yanjuan.liu 1/11/11 MODEL: TC25111 FCC ID: MZV2-5211A IC: 3921A-25111A MADE IN CHINA S/NO.: 00000001 3045TH Headset battery label Size:15.5*9.5mm S/NO. & DATE CODE LABEL SIZE: 14.5 * 5.5 mm S/NO. must be the same as base, date code must be the same as base 有下划线表示符合ROHS标准 TF表示广州生产, TH表示惠州生产 Headset caution label Size:15.5*9.5mm

INTERTEK TESTING SERVICES Internal photos – Model: TC25111 FCC ID: MZV2-5211A IC: 3921A-25111A internal photos - 1 of 18 Base Unit assembly Base Unit Main PCB comp side INTERTEK TESTING SERVICES Internal photos – Model: TC25111 FCC ID: MZV2-5211A IC: 3921A-25111A internal photos - 2 of 18 Base Unit Main PCB solder side (View 1) Base Unit Main PCB solder side (View 2) INTERTEK TESTING SERVICES Internal photos – Model: TC25111 FCC ID: MZV2-5211A IC: 3921A-25111A internal photos - 3 of 18 Base Unit Charge Board front side Base Unit Charge Board rear side (View 1) INTERTEK TESTING SERVICES Internal photos – Model: TC25111 FCC ID: MZV2-5211A IC: 3921A-25111A internal photos - 4 of 18 Base Unit Charge Board rear side (View 2) Base Unit another Charge Board front side INTERTEK TESTING SERVICES Internal photos – Model: TC25111 FCC ID: MZV2-5211A IC: 3921A-25111A internal photos - 5 of 18 Base Unit another Charge Board rear side Base Unit Oscillator PCB comp side (View 1) INTERTEK TESTING SERVICES Internal photos – Model: TC25111 FCC ID: MZV2-5211A IC: 3921A-25111A internal photos - 6 of 18 Base Unit Oscillator PCB comp side (View 2) INTERTEK TESTING SERVICES Internal photos – Model: TC25211 FCC ID: MZV2-5211A IC: 3921A-25211A internal photos - 7 of 18 Base Unit assembly Base Unit Main PCB comp side INTERTEK TESTING SERVICES Internal photos – Model: TC25211 FCC ID: MZV2-5211A IC: 3921A-25211A internal photos - 8 of 18 Base Unit Main PCB solder side (View 1) Base Unit Main PCB solder side (View 2) INTERTEK TESTING SERVICES Internal photos – Model: TC25211 FCC ID: MZV2-5211A IC: 3921A-25211A internal photos - 9 of 18 Base Unit Charge Board front side Base Unit Charge Board rear side (View 1) INTERTEK TESTING SERVICES Internal photos – Model: TC25211 FCC ID: MZV2-5211A IC: 3921A-25211A internal photos - 10 of 18 Base Unit Charge Board rear side (View 2) Base Unit another Charge Board front side INTERTEK TESTING SERVICES Internal photos – Model: TC25211 FCC ID: MZV2-5211A IC: 3921A-25211A internal photos - 11 of 18 Base Unit another Charge Board rear side Base Unit Oscillator PCB comp side (View 1) INTERTEK TESTING SERVICES Internal photos – Model: TC25211 FCC ID: MZV2-5211A IC: 3921A-25211A internal photos - 12 of 18 Base Unit Oscillator PCB comp side (View 2) INTERTEK TESTING SERVICES Internal photos – Model: TC25111 FCC ID: MZV2-5211A IC: 3921A-25111A IC: 3921A-25211A internal photos - 13 of 18 Handset assembly Handset Main PCB comp side INTERTEK TESTING SERVICES Internal photos – Model: TC25111 FCC ID: MZV2-5211A IC: 3921A-25111A IC: 3921A-25211A internal photos - 14 of 18 Handset Main PCB comp side (View 2) Handset Main PCB display side (View 1) INTERTEK TESTING SERVICES Internal photos – Model: TC25111 FCC ID: MZV2-5211A IC: 3921A-25111A IC: 3921A-25211A internal photos - 15 of 18 Handset Main PCB display side (View 2) Handset Oscillator PCB comp side (View 1) INTERTEK TESTING SERVICES Internal photos – Model: TC25111 FCC ID: MZV2-5211A IC: 3921A-25111A IC: 3921A-25211A internal photos - 16 of 18 Handset Oscillator PCB comp side (View 2) INTERTEK TESTING SERVICES Internal photos – Model: TC25111 FCC ID: MZV2-5211A IC: 3921A-25111A IC: 3921A-25211A internal photos - 17 of 18 Headset assembly Headset Main PCB comp side INTERTEK TESTING SERVICES Internal photos – Model: TC25111 FCC ID: MZV2-5211A IC: 3921A-25111A IC: 3921A-25211A internal photos - 18 of 18 Headset Main PCB solder side Headset RF Module

INTERTEK TESTING SERVICES FCC ID: MZV2-5211A RF exposure info - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the base unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. For the base unit of tested models of TC25211 and TC25111, the maximum field strength measured (FS) was 111.6 dBμV/m (worst-case). The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. And the maximum source-based time-averaging duty factor in two-PPs operation is 12.5%. From these data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The radiated power (EIRP) = (FS*D) 2 / 30 = 43.36 mW The radiated (EIRP) source-based time-averaging output power = (43.36 * 0.125) mW = 5.42 mW The power density at 20 cm from the antenna = EIRP / 4πR 2 = 0.0011 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the base unit at least 20cm from nearby persons.”

INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: MZV2-5211A 26bw - 1 of 5 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: MZV2-5211A 26bw - 2 of 5 A0 Base unit, Lowest channel, Dummy carrier, RBW = 10 kHz Base unit, Lowest channel, Dummy carrier, RBW = 30 kHz INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: MZV2-5211A 26bw - 3 of 5 A0 Base unit, Highest channel, Dummy carrier Handset unit, Lowest channel, Traffic carrier INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: MZV2-5211A 26bw - 4 of 5 A0 Handset unit, Highest channel, Traffic carrier Headset unit, Lowest channel, Traffic carrier INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: MZV2-5211A 26bw - 5 of 5 A0 Headset unit, Highest channel, Traffic carrier

Model no.: TC25211 Report no.: HK11010204-1 Ringing and Charging Mode AC Mains Ctrl No.: N/A 6DB AC 150 kHz30 MHz dBμV dBμV 1 PK CLRWR 2 AV CLRWR SGL TDS RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 19.JAN.2011 19:28:02 Model no.: TC25211 Report no.: HK11010204-1 Ringing and Charging Mode AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 2 CISPR Average27.195 MHz 35.26 N -14.73 Date: 19.JAN.2011 19:27:54 Model no.: TC25211 Report no.: HK11010204-1 Standby Mode AC Mains Ctrl No.: N/A 6DB AC 150 kHz30 MHz dBμV dBμV 1 PK CLRWR 2 AV CLRWR SGL TDS RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 19.JAN.2011 19:25:06 Model no.: TC25211 Report no.: HK11010204-1 Standby Mode AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 2 CISPR Average27.195 MHz 34.90 N -15.09 Date: 19.JAN.2011 19:24:58 Model no.: TC25211 Report no.: HK11010204-1 Headset Online Mode AC Mains Ctrl No.: N/A 6DB AC 150 kHz30 MHz dBμV dBμV 1 PK CLRWR 2 AV CLRWR SGL TDS RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 19.JAN.2011 19:34:06 Model no.: TC25211 Report no.: HK11010204-1 Headset Online Mode AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 2 CISPR Average27.195 MHz 34.80 N -15.19 Date: 19.JAN.2011 19:33:58 Model no.: TC25211 Report no.: HK11010204-1 Handset Online Mode AC Mains Ctrl No.: N/A 6DB AC 150 kHz30 MHz dBμV dBμV 1 PK CLRWR 2 AV CLRWR SGL TDS RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 19.JAN.2011 19:31:05 Model no.: TC25211 Report no.: HK11010204-1 Handset Online Mode AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 2 CISPR Average27.195 MHz 34.56 N -15.43 Date: 19.JAN.2011 19:30:57 Model no.: TC25111 Report no.: HK11010204-1 Ringing and Charging Mode AC Mains Ctrl No.: N/A 6 D B 1 5 0 k H z 3 0 M H z d B μ V d B μ V 1 P K C L R W R 2 A V C L R W R S G L T D S RBW 9 kHz MT 1s PREAMP OFFA t t 1 0 d B AUTO A C 1 M H z 10 MHz 0 1 0 2 0 3 0 4 0 5 0 6 0 7 0 8 0 9 0 1 0 0 C F 1 5 M A V C F 1 5 M Q P

INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: MZV2-5211A inband - 1 of 4 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: MZV2-5211A inband - 2 of 4 A0 Base unit, Lowest channel, Dummy carrier Base unit, Highest channel, Dummy carrier INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: MZV2-5211A inband - 3 of 4 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: MZV2-5211A inband - 4 of 4 A0 Headset unit, Lowest channel, Traffic carrier Headset unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: MZV2-5211A IC: 3921A-25211A (Model: TC25211) IC: 3921A-25111A (Model: TC25111) peaktp - 1 of 6 A0 Base unit, Lowest channel, Traffic carrier Base unit, Middle channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: MZV2-5211A IC: 3921A-25211A (Model: TC25211) IC: 3921A-25111A (Model: TC25111) peaktp - 2 of 6 A0 Base unit, Highest channel, Traffic carrier Base unit, Lowest channel, Dummy carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: MZV2-5211A IC: 3921A-25211A (Model: TC25211) IC: 3921A-25111A (Model: TC25111) peaktp - 3 of 6 A0 Base unit, Middle channel, Dummy carrier Base unit, Highest channel, Dummy carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: MZV2-5211A IC: 3921A-25211A (Model: TC25211) IC: 3921A-25111A (Model: TC25111) peaktp - 4 of 6 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Middle channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: MZV2-5211A IC: 3921A-25211A (Model: TC25211) IC: 3921A-25111A (Model: TC25111) peaktp - 5 of 6 A0 Handset unit, Highest channel, Traffic carrier Headset unit, Lowest channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: MZV2-5211A IC: 3921A-25211A (Model: TC25211) IC: 3921A-25111A (Model: TC25111) peaktp - 6 of 6 A0 Headset unit, Middle channel, Traffic carrier Headset unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: MZV2-5211A psd - 1 of 4 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: MZV2-5211A psd - 2 of 4 A0 Base unit, Lowest channel, Dummy carrier Base unit, Highest channel, Dummy carrier INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: MZV2-5211A psd - 3 of 4 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: MZV2-5211A psd - 4 of 4 A0 Headset unit, Lowest channel, Traffic carrier Headset unit, Highest channel, Traffic carrier

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Telefield Ltd. Application For 47 CFR Part 15 Certification RSS-213 Issue 2 Equipment Certification Unlicensed Personal Communication Service Devices/ 2 GHz License-exempt Personal Communications Service Devices FCC ID: MZV2-5211A Model: 25211XXX-X, 25111XXX-X, TC25211XXX-X, TC25111XXX-X IC: 3921A-25211A Model: TC25211 IC: 3921A-25111A Model: TC25111 Test Report Number: HK11010204-1 Issue Date: April 29, 2011 MN/ss INTERTEK TESTING SERVICES Test Report Number: HK11010204-1 Page 1 of 80 FCC ID: MZV2-5211A IC: 3921A-25211A IC: 3921A-25111A Table of Contents 1.0 Summary of Test Results........................................................................................ 4 2.0 General Description..............................................................................................................7 2.1 Product Description ................................................................................................. 7 2.2 Technical Description .............................................................................................. 7 2.3 Test Methodology.................................................................................................... 8 2.4 Test Facility............................................................................................................. 8 3.0 System Test Configuration.................................................................................... 10 3.1 Justification ........................................................................................................... 10 3.2 Conducted Emission …
