MZV2-5250C1.9GHz Digital Modulation Cordless Phone

2 Equipment Approval Information Your telephone equipment is approved for connection to the Public Switched Telephone Network and is in compliance with parts 15 and 68, FCC Rules and Regulations and the Technical Requirements for Telephone Terminal Equipment published by ACTA. 1 Notification to the Local Telephone Company On the bottom of this equipment is a label indicating, among other information, the US number and Ringer Equivalence Number (REN) for the equipment. You must, upon request, provide this information to your telephone company. The REN is useful in determining the number of devices you may connect to your telephone line and still have all of these devices ring when your telephone number is called. In most (but not all) areas, the sum of the RENs of all devices connected to one line should not exceed 5. To be certain of the number of devices you may connect to your line as determined by the REN, you should contact your local telephone company. A plug and jack used to connect this equipment to the pr emises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. See installation instructions for details. Notes • This equipment may not be used on coin service provided by the telephone company. • Party lines are subject to state tariffs, and therefore, you may not be able to use your own telephone equipment if you are on a party line. Check with your local telephone company. • Notice must be given to the telephone company upon permanent disconnection of your telephone from your line. • If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this product does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer. US Number is located on the cabinet bottom REN number is located on the cabinet bottom Important Information 3 Important Information 2 Rights of the Telephone Company Should your equipment cause trouble on your line which may harm the telephone network, the telephone company shall, where practicable, notify you that temporary discontinuance of service may be required. Where prior notice is not practicable and the circumstances warrant such action, the telephone company may temporarily discontinue service immediately. In case of such temporary discontinuance, the telephone company must: (1) promptly notify you of such temporary discontinuance; (2) afford you the opportunity to correct the situation; and (3) inform you of your right to bring a complaint to the Commission pursuant to procedures set forth in Subpart E of Part 68, FCC Rules and Regulations. The telephone company may make changes in its communications facilities, equipment, operations or procedures where such action is required in the operation of its business and not inconsistent with FCC Rules and Regulations. If these changes are expected to affect the use or performance of your telephone equipment, the telephone company must give you adequate notice, in writing, to allow you to maintain uninterrupted service. Interference Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna (that is, the antenna for radio or television that is “receiving” the interference). • Reorient or relocate and increase the separation between the telecommunications equipment and receiving antenna. • Connect the telecommunications equipment into an outlet on a circuit different from that to which the receiving antenna is connected. If these measures do not eliminate the interference, please consult your dealer or an experienced radio/television technician for additional suggestions. Also, the Federal Communications Commission has prepared a helpful booklet, “How To Identify and Resolve Radio/TV Interference Problems.” This booklet is available from the U.S. Government Printing Office, Washington, D.C. 20402. Please specify stock number 004-000-00345-4 when ordering copies. 4 Warning: The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Licensing Licensed under US Patent 6,427,009. Hearing Aid Compatibility This telephone system meets FCC standards for Hearing Aid Compatibility. FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the base unit and your body. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.” For body worn operation, this phone has been tested and meets the FCC RF exposure…

Text truncated - open the document above for the full version.

2 Equipment Approval Information Your telephone equipment is approved for connection to the Public Switched Telephone Network and is in compliance with parts 15 and 68, FCC Rules and Regulations and the Technical Requirements for Telephone Terminal Equipment published by ACTA. 1 Notification to the Local Telephone Company On the bottom of this equipment is a label indicating, among other information, the US number and Ringer Equivalence Number (REN) for the equipment. You must, upon request, provide this information to your telephone company. The REN is useful in determining the number of devices you may connect to your telephone line and still have all of these devices ring when your telephone number is called. In most (but not all) areas, the sum of the RENs of all devices connected to one line should not exceed 5. To be certain of the number of devices you may connect to your line as determined by the REN, you should contact your local telephone company. A plug and jack used to connect this equipment to the pr emises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. See installation instructions for details. Notes • This equipment may not be used on coin service provided by the telephone company. • Party lines are subject to state tariffs, and therefore, you may not be able to use your own telephone equipment if you are on a party line. Check with your local telephone company. • Notice must be given to the telephone company upon permanent disconnection of your telephone from your line. • If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this product does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer. US Number is located on the cabinet bottom REN number is located on the cabinet bottom Important Information 3 Important Information 2 Rights of the Telephone Company Should your equipment cause trouble on your line which may harm the telephone network, the telephone company shall, where practicable, notify you that temporary discontinuance of service may be required. Where prior notice is not practicable and the circumstances warrant such action, the telephone company may temporarily discontinue service immediately. In case of such temporary discontinuance, the telephone company must: (1) promptly notify you of such temporary discontinuance; (2) afford you the opportunity to correct the situation; and (3) inform you of your right to bring a complaint to the Commission pursuant to procedures set forth in Subpart E of Part 68, FCC Rules and Regulations. The telephone company may make changes in its communications facilities, equipment, operations or procedures where such action is required in the operation of its business and not inconsistent with FCC Rules and Regulations. If these changes are expected to affect the use or performance of your telephone equipment, the telephone company must give you adequate notice, in writing, to allow you to maintain uninterrupted service. Interference Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna (that is, the antenna for radio or television that is “receiving” the interference). • Reorient or relocate and increase the separation between the telecommunications equipment and receiving antenna. • Connect the telecommunications equipment into an outlet on a circuit different from that to which the receiving antenna is connected. If these measures do not eliminate the interference, please consult your dealer or an experienced radio/television technician for additional suggestions. Also, the Federal Communications Commission has prepared a helpful booklet, “How To Identify and Resolve Radio/TV Interference Problems.” This booklet is available from the U.S. Government Printing Office, Washington, D.C. 20402. Please specify stock number 004-000-00345-4 when ordering copies. 4 Warning: The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Licensing Licensed under US Patent 6,427,009. Hearing Aid Compatibility This telephone system meets FCC standards for Hearing Aid Compatibility. FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the base unit and your body. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.” For body worn operation, this phone has been tested and meets the FCC RF exposure…

Text truncated - open the document above for the full version.

天祥公證行有限公司 Intertek Testing Services Hong Kong Ltd. 香港九龍青山道五七六號製衣中心二字樓 2/F., Garment Centre, 576 Castle Peak Road Kowloon, Hong Kong. Telephone (852) 2173 8888 Facsimile (852) 2786 1903 www.intertek.com To : Federal Communication Commission (FCC&TCB) Attn. : Reviewing Engineer Date : December 29, 2010 ____________________________________________________________________ RE. : Report Revision Notification Intertek Testing Services FCC Report No. HK10080316-1 dated October 25, 2010. Please be informed that all the content recorded in the above captioned report will be voided. These captioned report are now superseded by revised Intertek Testing Services report number HK10080316-1(R1) dated December 29, 2010. In Report No. HK10080316-1(R1), the following has been changed: Pages Description 8 & 13 Revise handset battery from “700mAh” to “550mAh”.Superseded report only revises the wrong rating to the correct rating ( tested rating).The test result and others unchanged. Thank you for your attention. ________________________ Nip Ming Fung, Melvin Supervisor

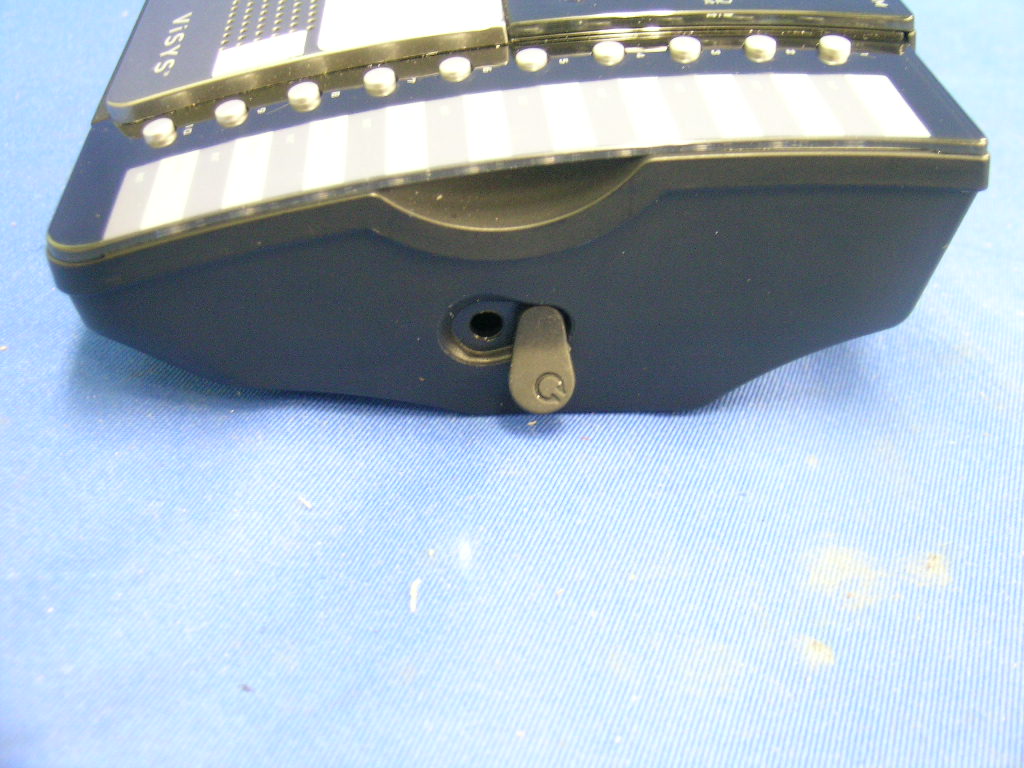

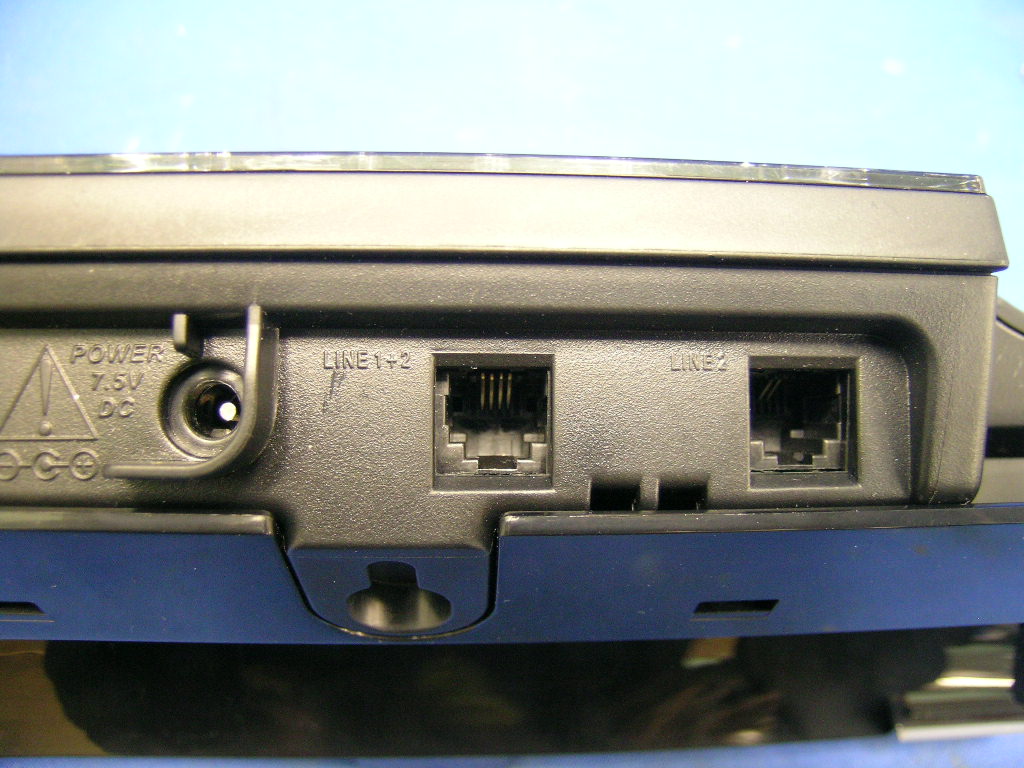

INTERTEK TESTING SERVICES External Photos – Model: 25250RE1-C FCC ID: MZV2-5250C IC: 3921A-25250Cexternal photos - 1 of 6 INTERTEK TESTING SERVICES External Photos – Model: 25250RE1-C FCC ID: MZV2-5250C IC: 3921A-25250Cexternal photos - 2 of 6 INTERTEK TESTING SERVICES External Photos – Model: 25250RE1-C FCC ID: MZV2-5250C IC: 3921A-25250Cexternal photos - 3 of 6 INTERTEK TESTING SERVICES External Photos – Model: 25210RE1-C FCC ID: MZV2-5250C IC: 3921A-25250Cexternal photos - 4 of 6 INTERTEK TESTING SERVICES External Photos – Model: 25210RE1-C FCC ID: MZV2-5250C IC: 3921A-25250Cexternal photos - 5 of 6 INTERTEK TESTING SERVICES External Photos – Model: 25210RE1-C FCC ID: MZV2-5250C IC: 3921A-25250Cexternal photos - 6 of 6

FCC label FCC label MODEL: 25210 CI FILE NAME: 25210 CI packing REV: 04 APPROVED BY: MADE BY: Yanjuan.liu 10/20/10 2 mm 2 mm 10 mm LINE 1+2 LINE 2 POWER 7.5V DC 25210RE1- C 4 012TF S/NO.: 00000001 BASE S/NO. LABELSIZE: 60 * 14 mmS/NO. & Date code must same as H/S 有下划线表示符合 ROHS 标准 TF 表示广州生产， TH 表示惠州生产 BASE MODEL NO. LABEL SIZE: 56*25mm MODEL NO.: 25210RE1 HAC US: 3F8W401B25250CIC REN: 0.1FCC ID: MZV2-5250CUSOC Jack: RJ14C and RJ11CRCA is a trademark of RCA Trademark Management S.A., used under license. 4001332 交货惠州： 4001332 交货广州： 4001331 52 . 3mm FCC label

INTERTEK TESTING SERVICES Internal photos – Model: 25250RE1-C FCC ID: MZV2-5250C IC: 3921A-25250C internal photos - 1 of 15 Base Unit assembly Base Unit Main PCB comp side INTERTEK TESTING SERVICES Internal photos – Model: 25250RE1-C FCC ID: MZV2-5250C IC: 3921A-25250C internal photos - 2 of 15 Base Unit Main PCB solder side Base Unit Keypad front side INTERTEK TESTING SERVICES Internal photos – Model: 25250RE1-C FCC ID: MZV2-5250C IC: 3921A-25250C internal photos - 3 of 15 Base Unit Keypad rear side (View 1) Base Unit Keypad rear side (View 2) INTERTEK TESTING SERVICES Internal photos – Model: 25250RE1-C FCC ID: MZV2-5250C IC: 3921A-25250C internal photos - 4 of 15 Base Unit Charging Pad front side Base Unit Charging Pad rear side INTERTEK TESTING SERVICES Internal photos – Model: 25250RE1-C FCC ID: MZV2-5250C IC: 3921A-25250C internal photos - 5 of 15 Base Unit Charging In-Use LED front side Base Unit Charging In-Use LED rear side INTERTEK TESTING SERVICES Internal photos – Model: 25250RE1-C FCC ID: MZV2-5250C IC: 3921A-25250C internal photos - 6 of 15 Base Unit Oscillator PCB comp side INTERTEK TESTING SERVICES Internal photos – Model: 25210RE1-C FCC ID: MZV2-5250C IC: 3921A-25250C internal photos - 7 of 15 Base Unit assembly Base Unit Main PCB comp side INTERTEK TESTING SERVICES Internal photos – Model: 25210RE1-C FCC ID: MZV2-5250C IC: 3921A-25250C internal photos - 8 of 15 Base Unit Main PCB solder side Base Unit Keypad front side INTERTEK TESTING SERVICES Internal photos – Model: 25210RE1-C FCC ID: MZV2-5250C IC: 3921A-25250C internal photos - 9 of 15 Base Unit Keypad rear side (View 1) Base Unit Keypad rear side (View 2) INTERTEK TESTING SERVICES Internal photos – Model: 25210RE1-C FCC ID: MZV2-5250C IC: 3921A-25250C internal photos - 10 of 15 Base Unit Charging Pad front side Base Unit Charging Pad rear side INTERTEK TESTING SERVICES Internal photos – Model: 25210RE1-C FCC ID: MZV2-5250C IC: 3921A-25250C internal photos - 11 of 15 Base Unit Charging In-Use LED front side Base Unit Charging In-Use LED rear side INTERTEK TESTING SERVICES Internal photos – Model: 25210RE1-C FCC ID: MZV2-5250C IC: 3921A-25250C internal photos - 12 of 15 Base Unit Oscillator PCB comp side INTERTEK TESTING SERVICES Internal photos – Model: 25250RE1-C FCC ID: MZV2-5250C IC: 3921A-25250C internal photos - 13 of 15 Handset assembly Handset Main PCB comp side INTERTEK TESTING SERVICES Internal photos – Model: 25250RE1-C FCC ID: MZV2-5250C IC: 3921A-25250C internal photos - 14 of 15 Handset Main PCB display side (View 1) Handset Main PCB display side (View 2) INTERTEK TESTING SERVICES Internal photos – Model: 25250RE1-C FCC ID: MZV2-5250C IC: 3921A-25250C internal photos - 15 of 15 Handset Oscillator PCB comp side

Report No.: TS10100056-EME Page 1 of 73 Specific Absorption Rate (SAR) Test Report for Telefield Ltd. on the DECT 6.0 Cordless Handset Model Number: 25250RE1-C Test Report: TS10100056-EME Date of Report: Oct. 18, 2010 Date of test: Oct. 15, 2010 Review Date: Oct. 18, 2010 Total No of Pages Contained in this Report: 73 The test report was prepared by: Sign on File Julie Wang / Assistant These measurements were taken by: Sign on File Fred Yu/ Engineer The test report was reviewed by: Name Rex Liao Title Engineer All services undertaken are subject to the following general policy: Reports are submitted for exclusive use of the client to whom they are addressed. Their significance is subject to the adequacy and representative character of the samples and to the comprehensiveness of the tests, examinations or surveys made. This report shall not be reproduced except in full, without written consent of Intertek Testing Services, Taiwan Ltd. 0597 Report No.: TS10100056-EME Page 2 of 73 Table of Contents 1.0 General information...................................................................................... 3 2.0 SAR Evaluation ............................................................................................ 7 3.0 Test Instruments and Tissue Liquids .......................................................... 19 4.0 Measurement Uncertainty .......................................................................... 24 5.0 Test Results................................................................................................ 26 6.0 E-Field Probe and 1900 Dipole Antenna Calibration .................................. 27 7.0 WARNING LABEL INFORMATION - USA.................................................. 27 8.0 REFERENCES........................................................................................... 27 9.0 DOCUMENT HISTORY .............................................................................. 28 APPENDIX A - SAR Evaluation Data............................................................... 29 APPENDIX B - Photographs ............................................................................ 40 APPENDIX C - E-Field Probe and 1900MHz Dipole Antenna Calibration Data 44 Report No.: TS10100056-EME Page 3 of 73 1.0 General information The 25250RE1-C handset supplied for Specific Absorption Rate (SAR) testing is a DECT 6.0 Cordless Handset device. The device was tested at the facility of Intertek Testing Services in Hsinchu, Taiwan. The maximum output power declared by Telefield Ltd. EUT model #25250RE1-C was evaluated in accordance with the requirements for compliance testing defined in FCC OET Bulletin 65 Supplement C (Edition 01-01), RSS-102 and meet the SAR requirement. For the evaluation, the dosimetric assessment system INDEXSAR SARA2 was used. The phantom employed was the head Specific Anthropomorphic Mannequin (SAM) phantom and the box phantom of 2mm thick in one wall. The total uncertainty for the evaluation of the spatial peak SAR values averaged over a cube of 1g tissue mass had been assessed for this system to be ±20.6%. SAR testing was performed at both the left and right ear of the phantom at the two-handset positions stated in the specification. 2mm thick box phantom for body configuration was also evaluated. Testing was performed at the middle frequency of 1900 band with a rechargeable battery and in Normal mode of operation. Any accessories supplied with 25250RE1-C have also been tested. In summary, the maximum spatial peak SAR value for the sample device averaged over 1g was found to be: Phantom Worst Case Position SAR 1g , W/kg Head Specific Anthropomorphic Mannequin (SAM) phantom EUT Left Tilt to the phantom 0.004 W/kg 2mm thick box phantom wall Separating the Box Phantom belt-clip in rear position from EUT 0.006 W/kg In conclusion, the tested Sample device was found to be in compliance with the requirements defined in OET Bulletin 65 Supplement C (Edition 01-01) and RSS-102 for head and body configurations. Report No.: TS10100056-EME Page 4 of 73 1.1 Client Information The DECT 6.0 Cordless Handset has been tested at the request of: Applicant: Telefield Ltd. Flat D, 2/F., Valiant Industrial Centre, 2-12 Au Pui Wan Street, Fo Tan, N.T., Hong Kong. 1.2 Equipment under test (EUT) Product Descriptions: Equipment DECT 6.0 Cordless Handset Trade Name RCA Model No. 25250RE1-C FCC ID MZV2-5250C S/N No. Not Labeled Category Portable RF Exposure Uncontrolled Environment Frequency Band 1921.536 -1928.448 MHz System / Power Level DECT EUT Antenna Description Type Integral ConfigurationFixed Dimensions 38 mm length Gain 0 dBi Location Embedded Use of product: DECT 6.0 Cordless Handset Manufacturer: 1. Guangzhou Telefield Limited 2. Huizhou Telefield Limited Production is planned: [X] Yes, [ ] No EUT receive date: Oct. 12, 2010 EUT received condition: Good operating condition prototype EUT status: Normal mode Test start date: Oct. 15, 2010 Test end date: Oct. 15, 2010 Report No.: TS10100056-EME Page 5 of 73 1.3 Modifications required for compliance The EUT has no modifications during test. 1.4 System test configuration 1.4.1 System block diagram & Support equipment Support Equipment Item # Equipment Model No. S/N 1 Base unit 25250RE1-C N/A 2 Earphone N/A N/A 3 Belt-Clip N/A N/A Report No.: TS10100056-EME Page 6 of 73 1.4.2 Test Position See the photographs as section 2.2 1.4.3 Test Condition During tests the worst-case data (max RF coupling) was determined with following conditions: Usage Operated in normal mode with Base unit which provided by client Distance between antenna axis at the joint and the liquid surface: EUT is touching and tilting the Head Phantom in right and left position, separating the Body Phantom belt-clip in rear from EUT Simulating human Head / Body Head and Body EUT Battery Fully-charged with 1 battery Channel Frequency MHz Before SAR Test (dBm) After SAR Test (dBm) Conducted output power Mid Channel 1924.992 17.98 17.97 The spatial peak …

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: MZV2-5250C 26bw - 1 of 3 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: MZV2-5250C 26bw - 2 of 3 A0 Base unit, Lowest channel, Dummy carrier Base unit, Highest channel, Dummy carrier INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: MZV2-5250C 26bw - 3 of 3 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

Report no.: HK10080316-1 Model no: 25250RE1-C Speakerphone On Line Mode (Line 1+Line 2) AC Mains Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 8.OCT.2010 01:01:28 Report no.: HK10080316-1 Model no: 25250RE1-C Speakerphone On Line Mode (Line 1+Line 2) AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 2 CISPR Average13.8255 MHz 32.10 L1 gnd -17.89 Date: 8.OCT.2010 01:01:04 Report no.: HK10080316-1 Model no: 25250RE1-C Cordless Handset On Line Mode (Line 1+Line 2) AC Mains Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 8.OCT.2010 01:04:53 Report no.: HK10080316-1 Model no: 25250RE1-C Cordless Handset On Line Mode (Line 1+Line 2) AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 2 CISPR Average13.8255 MHz 31.72 L1 gnd -18.27 Date: 8.OCT.2010 01:04:36 Report no.: HK10080316-1 Model no: 25250RE1-C Headset On Line Mode (Line 1+Line 2) AC Mains Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 8.OCT.2010 01:08:46 Report no.: HK10080316-1 Model no: 25250RE1-C Headset On Line Mode (Line 1+Line 2) AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 2 CISPR Average13.8255 MHz 31.53 L1 gnd -18.46 Date: 8.OCT.2010 01:08:28 Report no.: HK10080316-1 Model no: 25210RE1-C Ringing & Charging Mode in Base AC Mains Ctrl No.: N/A 150 kHz30 MHz 6DB AC dBμV dBμV 1 PK CLRWR 2 AV CLRWR SGL TDS RBW 9 kHz MT 10 ms PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 8.OCT.2010 01:19:24

Both base and handset will act as the initiating devices, which will initiate the establishment of the duplex connection. /IC:3921A-25250C

INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: MZV2-5250C inband - 1 of 3 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: MZV2-5250C inband - 2 of 3 A0 Base unit, Lowest channel, Dummy carrier Base unit, Highest channel, Dummy carrier INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: MZV2-5250C inband - 3 of 3 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: MZV2-5250C IC: 3921A-25250C peaktp - 1 of 5 A0 Base unit, Lowest channel, Traffic carrier Base unit, Middle channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: MZV2-5250C IC: 3921A-25250C peaktp - 2 of 5 A0 Base unit, Highest channel, Traffic carrier Base unit, Lowest channel, Dummy carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: MZV2-5250C IC: 3921A-25250C peaktp - 3 of 5 A0 Base unit, Middle channel, Dummy carrier Base unit, Highest channel, Dummy carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: MZV2-5250C IC: 3921A-25250C peaktp - 4 of 5 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Middle channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: MZV2-5250C IC: 3921A-25250C peaktp - 5 of 5 A0 Handset unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: MZV2-5250C psd - 1 of 3 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: MZV2-5250C psd - 2 of 3 A0 Base unit, Lowest channel, Dummy carrier Base unit, Highest channel, Dummy carrier INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: MZV2-5250C psd - 3 of 3 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Telefield Ltd. Application For 47 CFR Part 15 Certification RSS-213 Issue 2 Equipment Certification Unlicensed Personal Communication Service Devices/ 2 GHz License-exempt Personal Communications Service Devices FCC ID: MZV2-5250C Model: 25250XXX-X, TC25250XXX-X, 25055XXX-X, TC25055XXX-X, 25210XXX-X IC: 3921A-25250C Model: TC25250RE1, TC25055RE1 Test Report Number: HK10080316-1(R1) Supersedes report number HK10080316-1 dated October 25, 2010 Issue Date: December 29, 2010 MN/ cl INTERTEK TESTING SERVICES Test Report Number: HK10080316-1(R1) Page 1 of 71 FCC ID: MZV2-5250C IC: 3921A-25250C MEASUREMENT/TECHNICAL REPORT Telefield Ltd. - Model: 25250XXX-X, TC25250XXX-X, 25055XXX-X, TC25055XXX-X, 25210XXX-X FCC ID: MZV2-5250C This report concerns (check one:) Original Grant X Class II Change Equipment Type : PUB - Par…
