MZV2-5252A1.9GHz Cordless Phone

2 Equipment Approval Information Your telephone equipment is approved for connection to the Public Switched Telephone Network and is in compliance with parts 15 and 68, FCC Rules and Regulations and the Technical Requirements for Telephone Terminal Equipment published by ACTA. 1 Notification to the Local Telephone Company On the bottom of this equipment is a label indicating, among other information, the US number and Ringer Equivalence Number (REN) for the equipment. You must, upon request, provide this information to your telephone company. The REN is useful in determining the number of devices you may connect to your telephone line and still have all of these devices ring when your telephone number is called. In most (but not all) areas, the sum of the RENs of all devices connected to one line should not exceed 5. To be certain of the number of devices you may connect to your line as determined by the REN, you should contact your local telephone company. A plug and jack used to connect this equipment to the pr emises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. See installation instructions for details. Notes • This equipment may not be used on coin service provided by the telephone company. • Party lines are subject to state tariffs, and therefore, you may not be able to use your own telephone equipment if you are on a party line. Check with your local telephone company. • Notice must be given to the telephone company upon permanent disconnection of your telephone from your line. • If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this product does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer. US Number is located on the cabinet bottom REN number is located on the cabinet bottom Important Information 3 Important Information 2 Rights of the Telephone Company Should your equipment cause trouble on your line which may harm the telephone network, the telephone company shall, where practicable, notify you that temporary discontinuance of service may be required. Where prior notice is not practicable and the circumstances warrant such action, the telephone company may temporarily discontinue service immediately. In case of such temporary discontinuance, the telephone company must: (1) promptly notify you of such temporary discontinuance; (2) afford you the opportunity to correct the situation; and (3) inform you of your right to bring a complaint to the Commission pursuant to procedures set forth in Subpart E of Part 68, FCC Rules and Regulations. The telephone company may make changes in its communications facilities, equipment, operations or procedures where such action is required in the operation of its business and not inconsistent with FCC Rules and Regulations. If these changes are expected to affect the use or performance of your telephone equipment, the telephone company must give you adequate notice, in writing, to allow you to maintain uninterrupted service. Interference Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; and (2) This device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: s Reorient or relocate the receiving antenna (that is, the antenna for radio or television that is “receiving” the interference). s Reorient or relocate and increase the separation between the telecommunications equipment and receiving antenna. s Connect the telecommunications equipment into an outlet on a circuit different from that to which the receiving antenna is connected. If these measures do not eliminate the interference, please consult your dealer or an experienced radio/television technician for additional suggestions. Also, the Federal Communications Commission has prepared a helpful booklet, “How To Identify and Resolve Radio/TV Interference Problems.” This booklet is available from the U.S. Government Printing Office, Washington, D.C. 20402. Please specify stock number 004-000-00345-4 when ordering copies. 4 Warning: The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Licensing Licensed under US Patent 6,427,009. Hearing Aid Compatibility This telephone system meets FCC standards for Hearing Aid Compatibility. FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the base unit and your body. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.” For body worn…

Text truncated - open the document above for the full version.

2 Equipment Approval Information Your telephone equipment is approved for connection to the Public Switched Telephone Network and is in compliance with parts 15 and 68, FCC Rules and Regulations and the Technical Requirements for Telephone Terminal Equipment published by ACTA. 1 Notification to the Local Telephone Company On the bottom of this equipment is a label indicating, among other information, the US number and Ringer Equivalence Number (REN) for the equipment. You must, upon request, provide this information to your telephone company. The REN is useful in determining the number of devices you may connect to your telephone line and still have all of these devices ring when your telephone number is called. In most (but not all) areas, the sum of the RENs of all devices connected to one line should not exceed 5. To be certain of the number of devices you may connect to your line as determined by the REN, you should contact your local telephone company. A plug and jack used to connect this equipment to the pr emises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. See installation instructions for details. Notes • This equipment may not be used on coin service provided by the telephone company. • Party lines are subject to state tariffs, and therefore, you may not be able to use your own telephone equipment if you are on a party line. Check with your local telephone company. • Notice must be given to the telephone company upon permanent disconnection of your telephone from your line. • If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this product does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer. US Number is located on the cabinet bottom REN number is located on the cabinet bottom Important Information 3 Important Information 2 Rights of the Telephone Company Should your equipment cause trouble on your line which may harm the telephone network, the telephone company shall, where practicable, notify you that temporary discontinuance of service may be required. Where prior notice is not practicable and the circumstances warrant such action, the telephone company may temporarily discontinue service immediately. In case of such temporary discontinuance, the telephone company must: (1) promptly notify you of such temporary discontinuance; (2) afford you the opportunity to correct the situation; and (3) inform you of your right to bring a complaint to the Commission pursuant to procedures set forth in Subpart E of Part 68, FCC Rules and Regulations. The telephone company may make changes in its communications facilities, equipment, operations or procedures where such action is required in the operation of its business and not inconsistent with FCC Rules and Regulations. If these changes are expected to affect the use or performance of your telephone equipment, the telephone company must give you adequate notice, in writing, to allow you to maintain uninterrupted service. Interference Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; and (2) This device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: s Reorient or relocate the receiving antenna (that is, the antenna for radio or television that is “receiving” the interference). s Reorient or relocate and increase the separation between the telecommunications equipment and receiving antenna. s Connect the telecommunications equipment into an outlet on a circuit different from that to which the receiving antenna is connected. If these measures do not eliminate the interference, please consult your dealer or an experienced radio/television technician for additional suggestions. Also, the Federal Communications Commission has prepared a helpful booklet, “How To Identify and Resolve Radio/TV Interference Problems.” This booklet is available from the U.S. Government Printing Office, Washington, D.C. 20402. Please specify stock number 004-000-00345-4 when ordering copies. 4 Warning: The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Licensing Licensed under US Patent 6,427,009. Hearing Aid Compatibility This telephone system meets FCC standards for Hearing Aid Compatibility. FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the base unit and your body. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.” For body worn…

Text truncated - open the document above for the full version.

Both base and handset will act as the initiating device,which will initiate the establishment of the duplex connection. / IC:3921A-25252A

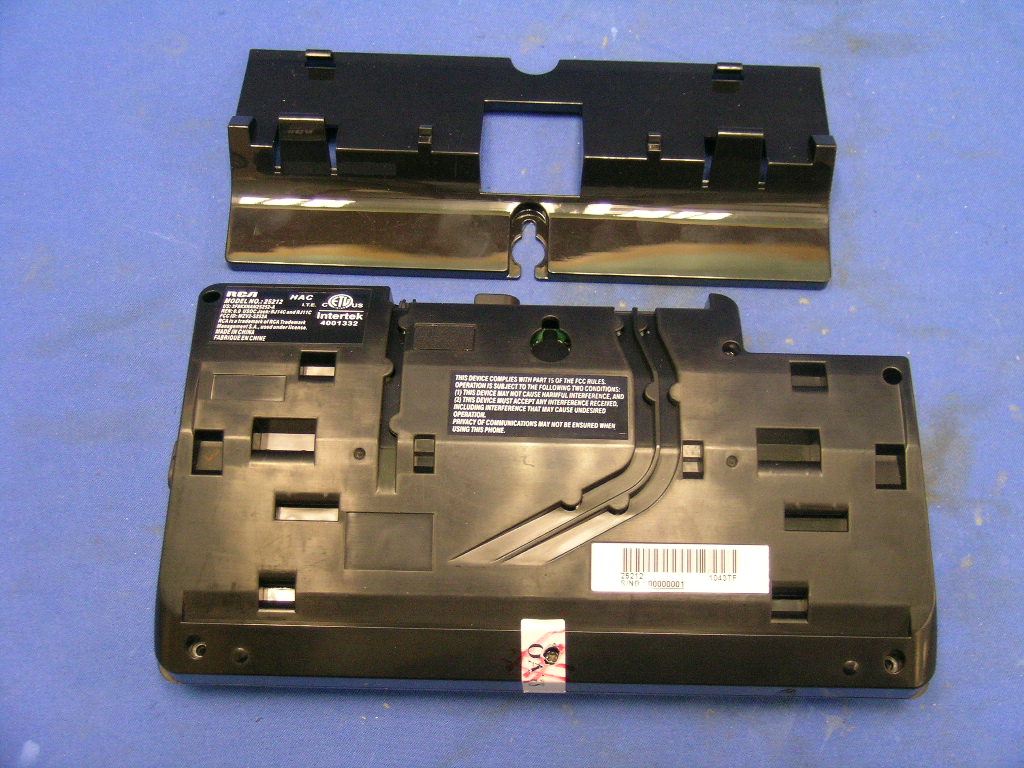

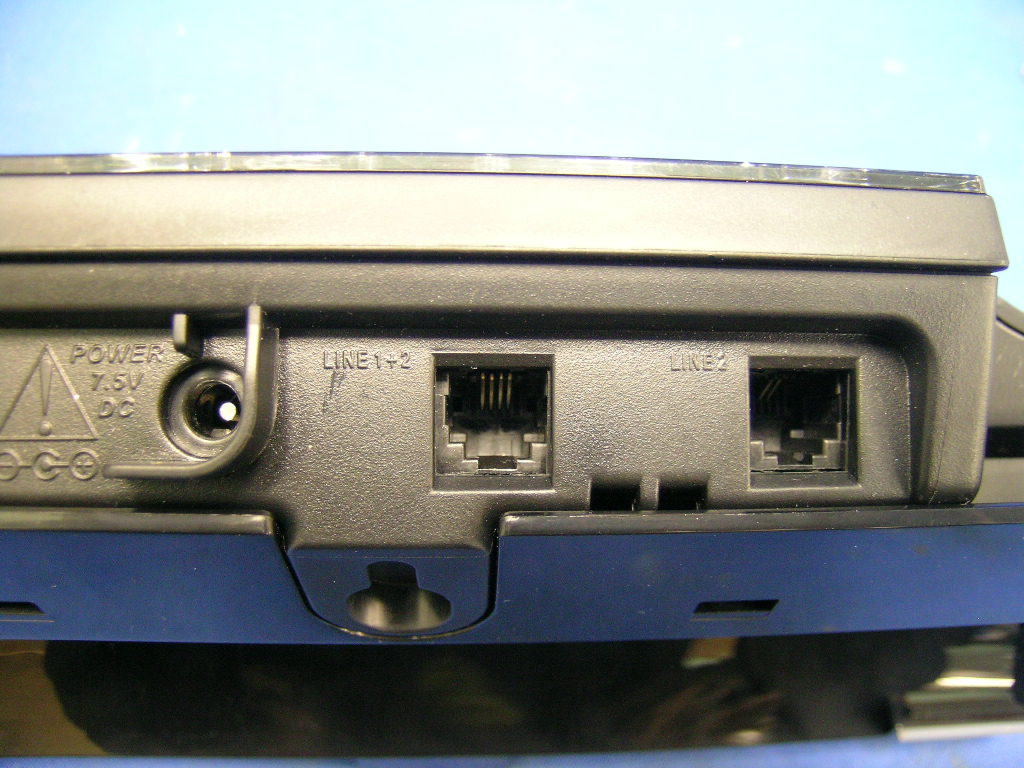

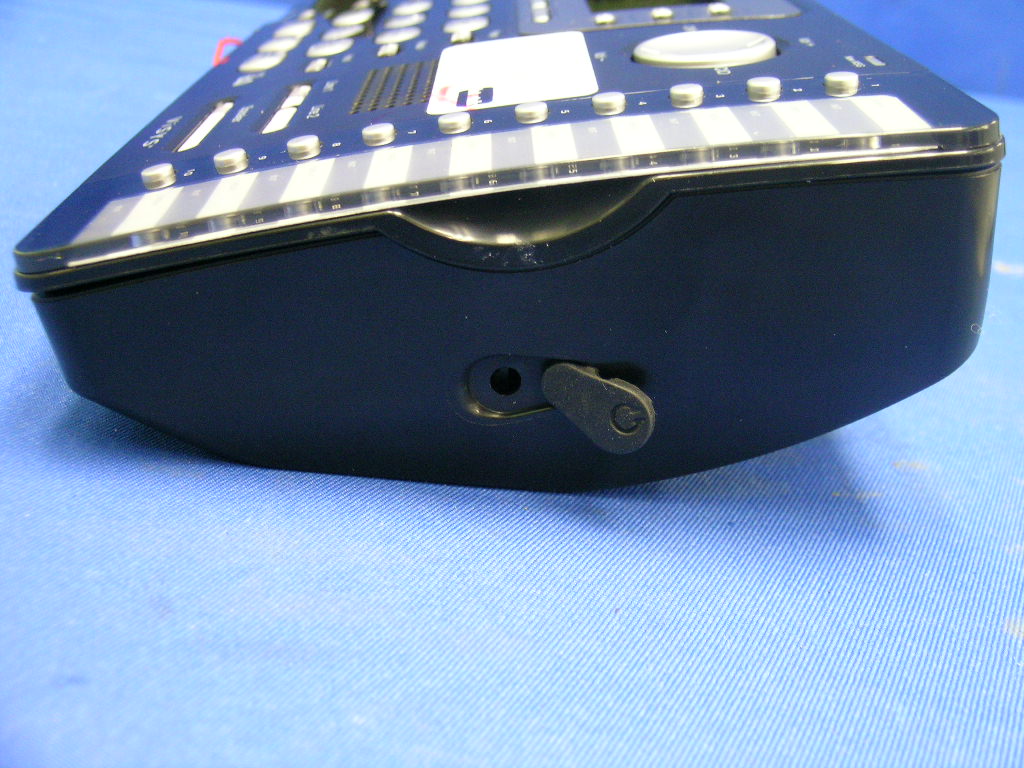

INTERTEK TESTING SERVICES External Photos – Model: TC25252 FCC ID: MZV2-5252A external photos - 1 of 6 INTERTEK TESTING SERVICES External Photos – Model: TC25252 FCC ID: MZV2-5252A external photos - 2 of 6 INTERTEK TESTING SERVICES External Photos – Model: TC25252 FCC ID: MZV2-5252A external photos - 3 of 6 INTERTEK TESTING SERVICES External Photos – Model: TC25212 FCC ID: MZV2-5252A external photos - 4 of 6 INTERTEK TESTING SERVICES External Photos – Model: TC25212 FCC ID: MZV2-5252A external photos - 5 of 6 INTERTEK TESTING SERVICES External Photos – Model: TC25212 FCC ID: MZV2-5252A external photos - 6 of 6

FCC label FCC label

INTERTEK TESTING SERVICES Internal photos – Model: TC25252 FCC ID: MZV2-5252A IC: 3921A-25252A internal photos - 1 of 12 Base Unit assembly Base Unit Main PCB comp side INTERTEK TESTING SERVICES Internal photos – Model: TC25252 FCC ID: MZV2-5252A IC: 3921A-25252A internal photos - 2 of 12 Base Unit Main PCB solder side Base Unit Display and Keypad front side (View 1) INTERTEK TESTING SERVICES Internal photos – Model: TC25252 FCC ID: MZV2-5252A IC: 3921A-25252A internal photos - 3 of 12 Base Unit Display and Keypad front side (View 2) Base Unit Display and Keypad rear side INTERTEK TESTING SERVICES Internal photos – Model: TC25252 FCC ID: MZV2-5252A IC: 3921A-25252A internal photos - 4 of 12 Base Unit Charging Pad front side Base Unit Charging Pad rear side INTERTEK TESTING SERVICES Internal photos – Model: TC25252 FCC ID: MZV2-5252A IC: 3921A-25252A internal photos - 5 of 12 Base Unit Charge in use LED front side Base Unit Charge in use LED rear side INTERTEK TESTING SERVICES Internal photos – Model: TC25252 FCC ID: MZV2-5252A IC: 3921A-25252A internal photos - 6 of 12 Base Unit Oscillator PCB comp side INTERTEK TESTING SERVICES Internal photos – Model: TC25212 FCC ID: MZV2-5252A IC: 3921A-25252A internal photos - 7 of 12 Base Unit assembly Base Unit Main PCB comp side INTERTEK TESTING SERVICES Internal photos – Model: TC25212 FCC ID: MZV2-5252A IC: 3921A-25252A internal photos - 8 of 12 Base Unit Main PCB solder side Base Unit Display and Keypad front side (View 1) INTERTEK TESTING SERVICES Internal photos – Model: TC25212 FCC ID: MZV2-5252A IC: 3921A-25252A internal photos - 9 of 12 Base Unit Display and Keypad front side (View 2) Base Unit Display and Keypad rear side INTERTEK TESTING SERVICES Internal photos – Model: TC25212 FCC ID: MZV2-5252A IC: 3921A-25252A internal photos - 10 of 12 Base Unit Charging Pad front side Base Unit Charging Pad rear side INTERTEK TESTING SERVICES Internal photos – Model: TC25212 FCC ID: MZV2-5252A IC: 3921A-25252A internal photos - 11 of 12 Base Unit Charge in use LED front side Base Unit Charge in use LED rear side INTERTEK TESTING SERVICES Internal photos – Model: TC25212 FCC ID: MZV2-5252A IC: 3921A-25252A internal photos - 12 of 12 Base Unit Oscillator PCB comp side

INTERTEK TESTING SERVICES FCC ID:MZV2-5252A RF exposure - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the base unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. For the base unit of tested model of TC25252, the maximum field strength measured (FS) was 110.6 dBμV/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. And the maximum source-based time-averaging duty factor in four-handset operation is 20.83%. From these data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The radiated power = (FS*D) 2 / 30 = 34.44 mW The radiated (EIRP) source-based time-averaging output power = (34.44 * 0.208) mW = 7.17 mW The power density at 20 cm from the antenna = EIRP / 4πR 2 = 0.0014 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the base unit at least 20cm from nearby persons.”

INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: MZV2-5252A 26bw - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: MZV2-5252A 26bw - 2 of 2 A0 Base unit, Lowest channel, Dummy carrier Base unit, Highest channel, Dummy carrier

Report no.: HK10100396-1 Model:TC25252 Ringing Mode AC Mains Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV RBW 9 kHz MT 20 ms PREAMP OFFAtt 10 dB AUTO AC 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 22.NOV.2010 19:30:17 Report no.: HK10100396-1 Model:TC25212 Ringing Mode AC Mains Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV MT 20 ms RBW 9 kHz PREAMP OFFAtt 10 dB AUTO AC 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 22.NOV.2010 22:58:52

INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: MZV2-5252A inband - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: MZV2-5252A inband - 2 of 2 A0 Base unit, Lowest channel, Dummy carrier Base unit, Highest channel, Dummy carrier

INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: MZV2-5252A IC: 3921A-25252A peaktp - 1 of 3 A0 Base unit, Lowest channel, Traffic carrier Base unit, Middle channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: MZV2-5252A IC: 3921A-25252A peaktp - 2 of 3 A0 Base unit, Highest channel, Traffic carrier Base unit, Lowest channel, Dummy carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: MZV2-5252A IC: 3921A-25252A peaktp - 3 of 3 A0 Base unit, Middle channel, Dummy carrier Base unit, Highest channel, Dummy carrier

INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: MZV2-5252A psd - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: MZV2-5252A psd - 2 of 2 A0 Base unit, Lowest channel, Dummy carrier Base unit, Highest channel, Dummy carrier

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Telefield Ltd. Application For 47 CFR Part 15 Certification RSS-213 Issue 2 Equipment Certification Unlicensed Personal Communication Service Devices/ 2 GHz License-exempt Personal Communications Service Devices (Base Unit) FCC ID: MZV2-5252A Model: 25212XXX-X, TC25212XXX-X, 25252XXX-X, TC25252XXX-X IC: 3921A-25252A Model: TC25212, TC25252 Test Report Number: HK10100396-1 Issue Date: December 31, 2010 MN/ sl INTERTEK TESTING SERVICES Test Report Number: HK10100396-1 Page 1 of 60 FCC ID: MZV2-5252A IC: 3921A-25252A MEASUREMENT/TECHNICAL REPORT Telefield Ltd. Model: 25212XXX-X, TC25212XXX-X, 25252XXX-X, TC25252XXX-X FCC ID: MZV2-5252A This report concerns (check one:) Original Grant X Class II Change Equipment Type : PUB - Part 15 Unlicensed PCS Base Station Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : __________________ Date Company Name agrees to notify the Commission by: Date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart D for Unlicensed Personal Communication Service Device - the new 47 CFR [10-01-09 Edition] Provision. Report reviewed by: Nip Ming Fung, Melvin Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone : 852-2173-8535 Fax: 852-2741-1693 INTERTEK TESTING SERVICES Test Report Number: HK10100396-1 Page 2 of 60 FCC ID: MZV2-5252A IC: 3921A-25252A Table of Contents 1.0 Summary of Test Results.....................................................................................5 2.0 General Description..............................................................................................8 2.1 Product Description ..............................................................................................8 2.2 Technical Description ...........................................................................................8 2.3 Test Methodology.................................................................................................9 2.4 Test Facility..........................................................................................................9 3.0 System Test Configuration.................................................................................11 3.1 Justification ........................................................................................................11 3.2 Conducted Emission Test Configuration .............................................................12 3.3 Conducted Monitoring and Operational Test Configuration.................................12 3.4 EUT Exercising Software....................................................................................12 3.5 Details of EUT and Description of Accessories...................................................13 3.6 Measurement Uncertainty ..................................................................................14 4.0 Measurement Results.........................................................................................16 4.1 Antenna Requirement........................................................................................16 4.2 Digital Modulation Techniques............................................................................16 4.3 Emission Bandwidth...........................................................................................17 4.4 Directional Gain of the Antenna ..........................................................................18 4.5 Peak Transmit Power .........................................................................................19 4.6 Power Spectral Density ......................................................................................20 4.7 Automatic Discontinuation of Transmission.........................................................21 4.8 Unwanted Emission Inside the Sub-Band ...........................................................22 4.9 Emissions Outside the Sub-Band .......................................................................23 4.9.1 Radiated Emissions Configuration Photographs ..............................................24 4.9.2 Radiated Emissions Data ................................................................................24 4.9.3 Field Strength Calculation................................................................................31 4.9.4 Average Factor Calculation and Transmitter ON Time Measurements .............32 4.10 Radiated Emissions from Receiver ...................................................................33 4.10.1 Radiated Emission Configuration Photographs ..............................................34 4.10.2 Radiated Emissions Dat…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Transmission FCC ID: MZV2-5252A IC: 3921A-25252A config photos (radiated emission – base unit) - 1 of 1 Radiated Emission – Base Unit Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Ringing FCC ID: MZV2-5252A IC: 3921A-25252A config photos (conducted emission) - 1 of 4 Conducted Emission – Model: TC25252 Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Ringing FCC ID: MZV2-5252A IC: 3921A-25252A config photos (conducted emission) - 2 of 4 Conducted Emission – Model: TC25252 Left Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Ringing FCC ID: MZV2-5252A IC: 3921A-25252A config photos (conducted emission) - 3 of 4 Conducted Emission – Model: TC25212 Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Ringing FCC ID: MZV2-5252A IC: 3921A-25252A config photos (conducted emission) - 4 of 4 Conducted Emission – Model: TC25212 Left Side View
