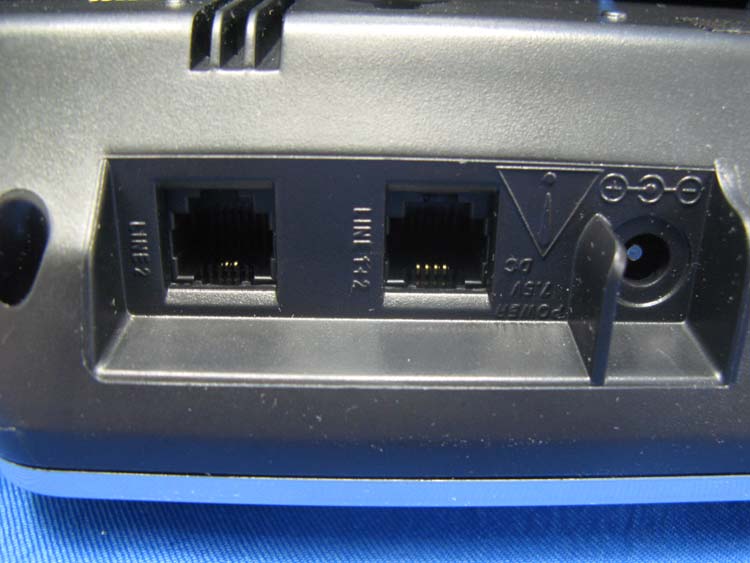

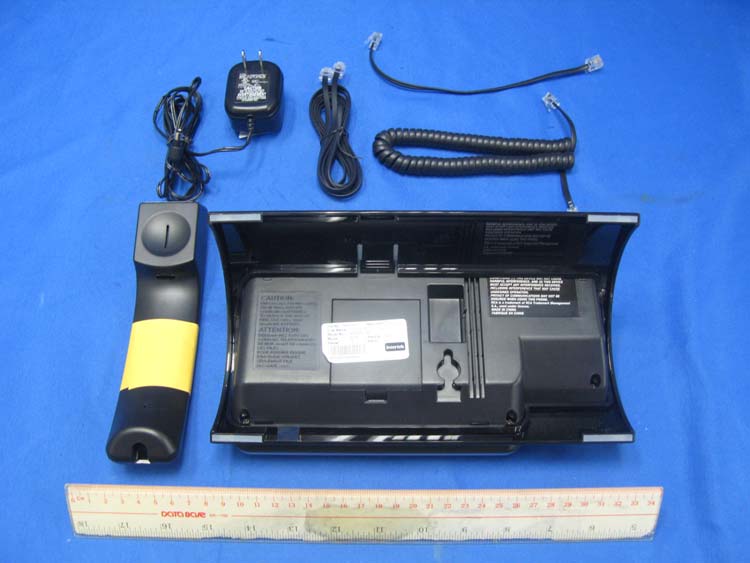

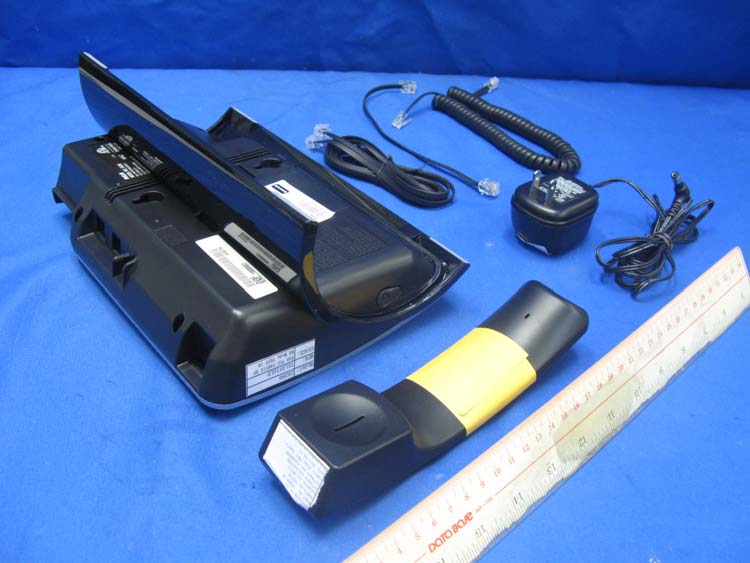

INTERTEK TESTING SERVICES External Photos FCC ID: MZV2-5260A IC: 3921A-25260Aexternal photos - 1 of 3 HK11091057 Job Number HK11091057 Job Number INTERTEK TESTING SERVICES External Photos FCC ID: MZV2-5260A IC: 3921A-25260Aexternal photos - 2 of 3 HK11091057 Job Number HK11091057 Job Number INTERTEK TESTING SERVICES External Photos FCC ID: MZV2-5260A IC: 3921A-25260Aexternal photos - 3 of 3

MEMOLOG sheet(1 pcs) MODEL: 25260 FILE NAME: Packing-15.CDR REV: 01 APPROVED BY: MADE BY: Zhu, aihua 10/26/11 Directory Caller ID Privacy Intercom Page Main Delete APPROVED BY: MADE BY: Base model NO. label 2526 0 2 135TF S/NO.: 10000001 Label, Serial NO., GZ PRINT Size: 60*14mm S / NO 必须有下划线 TF 表示广州生产 TH 表示惠州生产 交货惠州：交货广州： 40013324001331 MODEL: 25260 FILE NAME: Packing-15.CDR REV: 02 Zhu, aihua 12/07/11 US: 3F8W401B25260A FCC REN: 01B FCC ID: MZV2-5260A USOC Jack: RJ14C and RJ11C Model : 25260 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. RCA is a trademark of RCA Trademark Management S.A., used under license. MADE IN CHINA FABRIQUE EN CHINE 19 mm 56 mm

INTERTEK TESTING SERVICES Internal photos FCC ID: MZV2-5260A IC: 3921A-25260A internal photos - 1 of 8 Base Unit assembly Base Unit Main PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: MZV2-5260A IC: 3921A-25260A internal photos - 2 of 8 Base Unit Main PCB solder side (View 1) Base Unit Main PCB solder side (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: MZV2-5260A IC: 3921A-25260A internal photos - 3 of 8 Base Unit Keypad and Display front side (View 1) Base Unit Keypad and Display front side (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: MZV2-5260A IC: 3921A-25260A internal photos - 4 of 8 Base Unit Keypad and Display rear side Base Unit Page Key front side INTERTEK TESTING SERVICES Internal photos FCC ID: MZV2-5260A IC: 3921A-25260A internal photos - 5 of 8 Base Unit Page Key rear side Base Unit Mic Board front side INTERTEK TESTING SERVICES Internal photos FCC ID: MZV2-5260A IC: 3921A-25260A internal photos - 6 of 8 Base Unit Mic Board rear side Base Unit On/Off Hook Board INTERTEK TESTING SERVICES Internal photos FCC ID: MZV2-5260A IC: 3921A-25260A internal photos - 7 of 8 Base Unit Oscillator PCB comp side Base Unit RF Module comp side INTERTEK TESTING SERVICES Internal photos FCC ID: MZV2-5260A IC: 3921A-25260A internal photos - 8 of 8 Base Unit RF Module solder side

INTERTEK TESTING SERVICES FCC ID:MZV2-5260A RF exposure info - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the base unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. For the Base unit of tested model of 25260, the maximum field strength measured (FS) was 110.6 dBμV/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. And the maximum source-based time-averaging duty factor in five handsets operation is 25.0%. From these data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The radiated power (EIRP) = (FS*D) 2 / 30 = 34.44 mW The radiated (EIRP) source-based time-averaging output power = (34.44 * 0.250) mW = 8.61 mW The power density at 20 cm from the antenna = EIRP / 4πR 2 = 0.0017 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the base unit at least 20cm from nearby persons.”

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Telefield Ltd. Application For 47 CFR Part 15: 2010 Certification RSS-213 Issue 2, December 2005 Equipment Certification Unlicensed Personal Communication Service Devices/ 2 GHz License-exempt Personal Communications Service Devices (Base Unit) FCC ID: MZV2-5260A Model: 25260XXX-X, TC25260XXX-X IC: 3921A-25260A Model: TC25260 Test Report Number: HK11091057-1 Issue Date: December 15, 2011 MN/KY INTERTEK TESTING SERVICES Test Report Number: HK11091057-1 Page 1 of 49 FCC ID: MZV2-5260A IC: 3912A-25260A Table of Contents 1.0 Summary of Test Results........................................................................................ 4 2.0 General Description................................................................................................. 7 2.1 Product Description ................................................................................................. 7 2.2 Technical Description .............................................................................................. 7 2.3 Test Methodology.................................................................................................... 8 2.4 Test Facility............................................................................................................. 8 3.0 System Test Configuration.................................................................................... 10 3.1 Justification ........................................................................................................... 10 3.2 Conducted Emission Test Configuration ................................................................ 11 3.3 Conducted Monitoring and Operational Test Configuration.................................... 11 3.4 EUT Exercising Software....................................................................................... 11 3.5 Details of EUT and Description of Peripherals....................................................... 12 3.6 Measurement Uncertainty ..................................................................................... 12 4.0 Measurement Results............................................................................................ 14 4.1 Antenna Requirement........................................................................................... 14 4.2 Digital Modulation Techniques............................................................................... 14 4.3 Emission Bandwidth.............................................................................................. 15 4.4 Directional Gain of the Antenna ............................................................................. 15 4.5 Peak Transmit Power ............................................................................................ 16 4.6 Power Spectral Density ......................................................................................... 17 4.7 Automatic Discontinuation of Transmission............................................................ 17 4.8 Unwanted Emission Inside the Sub-Band .............................................................. 18 4.9 Emissions Outside the Sub-Band .......................................................................... 19 4.9.1 Radiated Emissions Configuration Photographs ................................................. 20 4.9.2 Radiated Emissions Data ................................................................................... 20 4.9.3 Field Strength Calculation................................................................................... 24 4.9.4 Average Factor Calculation and Transmitter ON Time Measurements ................ 25 4.10 Radiated Emissions from Receiver ...................................................................... 25 4.10.1 Radiated Emission Configuration Photographs ................................................. 26 4.10.2 Radiated Emissions Data ................................................................................. 26 4.11 AC Power Line Conducted Emissions ................................................................. 28 4.11.1 AC Power Line Conducted Emissions Configuration Photographs .................... 29 4.11.2 AC Power Line Conducted Emissions Data ...................................................... 29 4.12 Radio Frequency Radiation Exposure.................................................................. 30 4.13 Radio Frequency Exposure Compliance.............................................................. 30 4.14 Frame Repetition Stability .................................................................................. 31 4.15 Frame Period and Jitter ...................................................................................... 32 INTERTEK TESTING SERVICES Test Report …

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: MZV2-5260A 26bw - 1 of 1 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier

Report no.: HK11091057-1 Mode: Talk (DECT) – conference Line 1 + Line 2 AC Mains Ctrl No.: 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 24.OCT.2011 12:10:14 Report no.: HK11091057-1 Mode: Talk (DECT) – conference Line 1 + Line 2 AC Mains Ctrl No.: EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 30 MHz 39.99 L1 gnd -20.00 2 CISPR Average30 MHz 40.14 L1 gnd -9.85 Date: 24.OCT.2011 12:09:46 Report no.: HK11091057-1 Mode: Ringing AC Mains Ctrl No.: 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 24.OCT.2011 11:54:52 Report no.: HK11091057-1 Mode: Ringing AC Mains Ctrl No.: EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 3.885 MHz 11.19 L1 gnd -44.80 1 Quasi Peak 9.0915 MHz 18.33 L1 gnd -41.66 1 Quasi Peak 30 MHz 39.10 L1 gnd -20.89 2 CISPR Average30 MHz 39.23 L1 gnd -10.76 Date: 24.OCT.2011 11:54:25 Report no.: HK11091057-1 Mode: Standby AC Mains Ctrl No.: 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 24.OCT.2011 11:11:06 Report no.: HK11091057-1 Mode: Standby AC Mains Ctrl No.: EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 30 MHz 39.06 L1 gnd -20.93 2 CISPR Average30 MHz 39.25 L1 gnd -10.74 Date: 24.OCT.2011 11:10:39 Report no.: HK11091057-1 Mode: Talk (Corded) – conference Line 1 + Line 2 AC Mains Ctrl No.: 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 24.OCT.2011 12:03:37 Report no.: HK11091057-1 Mode: Talk (Corded) – conference Line 1 + Line 2 AC Mains Ctrl No.: EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 2 CISPR Average30 MHz 34.43 L1 gnd -15.56 Date: 24.OCT.2011 12:03:05 Report no.: HK11091057-1 Mode: Speakerphone AC Mains Ctrl No.: 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 24.OCT.2011 11:59:03 Report no.: HK11091057-1 Mode: Speakerphone AC Mains Ctrl No.: EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 30 MHz 39.50 L1 gnd -20.49 2 CISPR Average30 MHz 39.66 L1 gnd -10.33 Date: 24.OCT.2011 11:58:34 Report no.: HK11091057-1 Mode: Headset Talk AC Mains Ctrl No.: 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 24.OCT.2011 12:13:53 Report no.: HK11091057-1 Mode: Headset Talk AC Mains Ctrl No.: EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 2 CISPR Average30 MHz 38.37 L1 gnd -11.62 Date: 24.OCT.2011 12:13:31

INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: MZV2-5260 inband - 1 of 1 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID:MZV2-5260A IC: 3921A-25260A peaktp - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Middle channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID:MZV2-5260A IC: 3921A-25260A peaktp - 2 of 2 A0 Base unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: MZV2-5260A psd - 1 of 1 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Transmission FCC ID: MZV2-5260A IC: 3921A-25260A config photos (radiated emission - base unit) - 1 of 1 Radiated Emission - Base Unit Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Talk (DECT) – conference line 1+2 FCC ID: MZV2-5260A IC: 3921A-25260A config photos (conducted emission) - 1 of 2 Conducted Emission Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Talk (DECT) – conference line 1+2 FCC ID: MZV2-5260A IC: 3921A-25260A config photos (conducted emission) - 2 of 2 Conducted Emission Left Side View
