MZV2-5420AH1.9GHz DECT Cordless Phone

4-Line DECT 6.0 Cordless Office Phone User’s Guide Please read this manual before operating this product Model 25420 2 Equipment Approval Information Your telephone equipment is approved for connection to the Public Switched Telephone Network and is in compliance with parts 15 and 68, FCC Rules and Regulations and the Technical Requirements for Telephone Terminal Equipment published by ACTA. 1 Notification to the Local Telephone Company On the bottom of this equipment is a label indicating, among other information, the US number and Ringer Equivalence Number (REN) for the equipment. You must, upon request, provide this information to your telephone company. The REN is useful in determining the number of devices you may connect to your telephone line and still have all of these devices ring when your telephone number is called. In most (but not all) areas, the sum of the RENs of all devices connected to one line should not exceed 5. To be certain of the number of devices you may connect to your line as determined by the REN, you should contact your local telephone company. A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. See installation instructions for details. Notes • This equipment may not be used on coin service provided by the telephone company. • Party lines are subject to state tariffs, and therefore, you may not be able to use your own telephone equipment if you are on a party line. Check with your local telephone company. • Notice must be given to the telephone company upon permanent disconnection of your telephone from your line. • If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this product does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer. US Number is located on the cabinet bottom REN number is located on the cabinet bottom 2 Rights of the Telephone Company Should your equipment cause trouble on your line which may harm the telephone network, the telephone company shall, where practicable, notify you that temporary discontinuance of service may be required. Where prior notice is not practicable and the circumstances warrant such action, the telephone company may temporarily discontinue service immediately. In case of such temporary discontinuance, the telephone company must: (1) promptly notify you of such temporary discontinuance; (2) afford you the opportunity to correct the situation; and (3) inform you of your right to bring a complaint to the Commission pursuant to procedures set Important Information 3 forth in Subpart E of Part 68, FCC Rules and Regulations. The telephone company may make changes in its communications facilities, equipment, operations or procedures where such action is required in the operation of its business and not or performance of your telephone equipment, the telephone company must give you adequate notice, in writing, to allow you to maintain uninterrupted service. Interference Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. Privacy of Communications may not be ensured when using this product. If this equipment does cause harmful interference to radio or television reception, which can be interference by one or more of the following measures: à Reorient or relocate the receiving antenna (that is, the antenna for radio or television that is “receiving” the interference). à Reorient or relocate and increase the separation between the telecommunications equipment and receiving antenna. à which the receiving antenna is connected. If these measures do not eliminate the interference, please consult your dealer or an experienced radio/television technician for additional suggestions. Also, the Federal Communications Commission has prepared a helpful booklet, “How To Identify and Resolve Radio/TV Interference 20402. Please specify stock number 004-000-00345-4 when ordering copies. Warning: The changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Hearing Aid Compatibility (HAC) This telephone system meets FCC standards for Hearing Aid Compatibility. Important Information 4 Licensing Licensed under US Patent 6,427,009. FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This base unit should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. For body worn operation, this handset unit has been tested and meets the FCC RF exposure guidelines when used with the belt clip supplied with this product. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. This teleph…

Text truncated - open the document above for the full version.

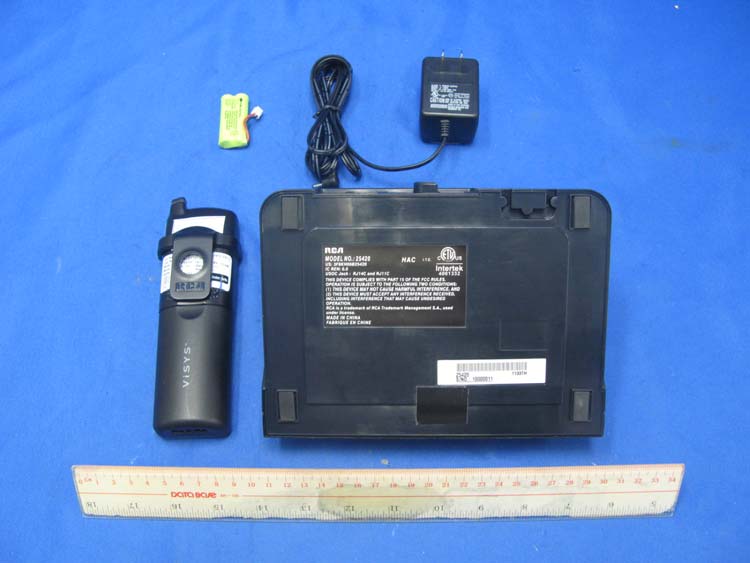

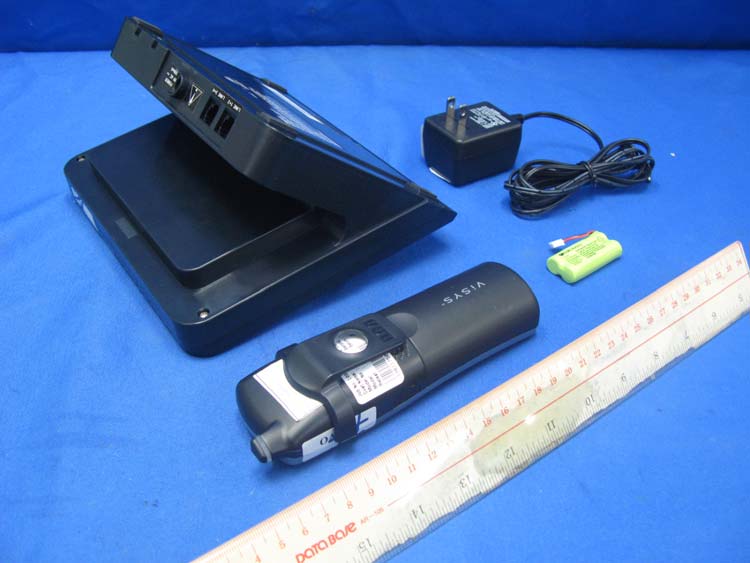

INTERTEK TESTING SERVICES External Photos FCC ID: MZV2-5420AH IC: 3921A-25420 external photos - 1 of 2 HK11081175 Job Number HK11081175 Job Number INTERTEK TESTING SERVICES External Photos FCC ID: MZV2-5420AH IC: 3921A-25420 external photos - 2 of 2 HK11081175 Job Number

25420 HANDSET& TC25420 PMS 432C PMS 354C PMS 185C 22.6 mm 22 mm SILK: PMS 430C Spray color: Battery Door Metallic Black M0701 Finishing YS1282A REV.1 11-15-11 PMS 428C PMS 428C PMS Process Black Chrome Front Top Cabinet Metallic Black M0701 with matt finishing 25420 HANDSET TO REDUCE RISK OF FIRE OR PERSONAL INJURY, USE ONLY BATTERY LISTED IN USER BOOK. AFIN DE REDUIRE LES RISQUES D'INCENDIE ET DE BLESSURE, UTILISER SEULEMENT LA PILE INDIQUEE DANS LE GUIDE DE L'UTILISATEUR. S/NO.: 10000001 1129TF FCC ID LABEL SIZE: 21 x 7.8 mm S/NO. & DATE CODE LABEL SIZE: 14.5 x 5.5 mm S/NO.有下划线表示符合RoHS TF 表示广州生产 (4001331) TH 表示惠州生产 (4001332) Model: 25420 FCC ID: MZV2-5420AH MADE IN CHINA REV.1 11-15-11 TC25420 HANDSET TO REDUCE RISK OF FIRE OR PERSONAL INJURY, USE ONLY BATTERY LISTED IN USER BOOK. AFIN DE REDUIRE LES RISQUES D'INCENDIE ET DE BLESSURE, UTILISER SEULEMENT LA PILE INDIQUEE DANS LE GUIDE DE L'UTILISATEUR. S/NO.: 10000001 1129TF FCC ID LABEL SIZE: 21 x 7.8 mm S/NO. & DATE CODE LABEL SIZE: 14.5 x 5.5 mm S/NO.有下划线表示符合RoHS TF 表示广州生产 (4001331) TH 表示惠州生产 (4001332) M: 25420 FCC ID: MZV2-5420AH IC: 3921A-25420 MADE IN CHINA odel TC REV.1 11-15-11 Page / Volume Charge REV.3 11-15-11 25420 HANDSET& TC25420 HAC US: 3F8W400B25420 FCC REN: 00B FCC ID: MZV2-5420AH USOC Jack : RJ14C and RJ11C 4001331 25420 5123TF S/NO.: 10000001 REV.4 11-15-11 45 mm 16 mm 15 mm 61 mm Base Model NO. LABEL Size: 77x46 mm 交货广州工厂：4001331 交货惠州工厂：4001332 S/NO. LABEL Size: 60x14 mm COMPLIES WITH 47 CFR PART 68 REQUIREMENTS. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. RCA is a trademark of RCA Trademark Management S.A., used under license. MADE IN CHINA FABRIQUE EN CHINE POWER 500mA 9V AC Model: 25420 TC25420 HAC 4001331 TC25420 5123TF S/NO.: 10000001 REV.5 11-17-11 45 mm 16 mm 15 mm 61 mm IC: 3921A-25420 T0000102 Class B LABEL Size: 25x15 mm Base Model NO. LABEL Size: 77x16.5 mm 交货广州工厂：4001331 交货惠州工厂：4001332 IC LABEL Size: 22x8 mm S/NO. LABEL Size: 60x14 mm M: TC25420odel US: 3F8W400B25420 IC REN: FCC ID: MZV2-5420AH USOC Jack : RJ14C and RJ11C 0.0 COMPLIES WITH 47 CFR PART 68 REQUIREMENTS. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. RCA is a trademark of RCA Trademark Management S.A., used under license. MADE IN CHINA FABRIQUE EN CHINE 9V AC POWER 500mA

INTERTEK TESTING SERVICES Internal photos FCC ID: MZV2-5420AH IC: 3921A-25420 internal photos - 1 of 10 Base Unit assembly (View 1) Base Unit assembly (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: MZV2-5420AH IC: 3921A-25420 internal photos - 2 of 10 Base Unit Main PCB comp side Base Unit Main PCB solder side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: MZV2-5420AH IC: 3921A-25420 internal photos - 3 of 10 Base Unit Main PCB solder side (View 2) Base Unit another Main PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: MZV2-5420AH IC: 3921A-25420 internal photos - 4 of 10 Base Unit another Main PCB solder side Base Unit Power Board front side INTERTEK TESTING SERVICES Internal photos FCC ID: MZV2-5420AH IC: 3921A-25420 internal photos - 5 of 10 Base Unit Power Board rear side Base Unit DECT RF PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: MZV2-5420AH IC: 3921A-25420 internal photos - 6 of 10 Base Unit DECT RF PCB solder side Base Unit (GPCEO48/63) PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: MZV2-5420AH IC: 3921A-25420 internal photos - 7 of 10 Base Unit (GPCEO48/63) PCB solder side Base Unit Oscillator PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: MZV2-5420AH IC: 3921A-25420 internal photos - 8 of 10 Handset assembly Handset Main PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: MZV2-5420AH IC: 3921A-25420 internal photos - 9 of 10 Handset Main PCB display side (View 1) Handset Main PCB display side (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: MZV2-5420AH IC: 3921A-25420 internal photos - 10 of 10 Handset Oscillator PCB comp side

INTERTEK TESTING SERVICES FCC ID:MZV2-5420AH RF exposure info - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the base unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. For the Base unit of tested model of 25420, the maximum field strength measured (FS) was 107.6 dBμV/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. And the maximum source-based time-averaging duty factor in one handset operation is 8.3%. From these data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The radiated power (EIRP) = (FS*D) 2 / 30 = 17.26 mW The radiated (EIRP) source-based time-averaging output power = (17.26 * 0.083) mW = 1.43 mW The power density at 20 cm from the antenna = EIRP / 4πR 2 = 0.0003 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the base unit at least 20cm from nearby persons.”

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Telefield Ltd. Application For 47 CFR Part 15: 2009 Certification RSS-213 Issue 2, December 2005 Equipment Certification Unlicensed Personal Communication Service Devices/ 2 GHz License-exempt Personal Communications Service Devices FCC ID: MZV2-5420AH Model: 25420, 25420XXX-X IC: 3921A-25420 Model: TC25420 Test Report Number: HK11081175-1 Issue Date: November 24, 2011 MN/KY INTERTEK TESTING SERVICES Test Report Number:HK11081175-1 Page 1 of 68 FCC ID: MZV2-5420AH IC: 3921A-25420 Table of Contents 1.0 Summary of Test Results.....................................................................................4 2.0 General Description..............................................................................................7 2.1 Product Description ..............................................................................................7 2.2 Technical Description ...........................................................................................7 2.3 Test Methodology.................................................................................................8 2.4 Test Facility..........................................................................................................8 3.0 System Test Configuration.................................................................................10 3.1 Justification ........................................................................................................10 3.2 Conducted Emission Test Configuration .............................................................11 3.3 Conducted Monitoring and Operational Test Configuration.................................11 3.4 EUT Exercising Software....................................................................................11 3.5 Details of EUT and Description of Accessories...................................................12 3.6 Measurement Uncertainty ..................................................................................12 4.0 Measurement Results.........................................................................................14 4.1 Antenna Requirement........................................................................................14 4.2 Digital Modulation Techniques............................................................................14 4.3 Emission Bandwidth...........................................................................................15 4.4 Directional Gain of the Antenna ..........................................................................16 4.5 Peak Transmit Power .........................................................................................17 4.6 Power Spectral Density ......................................................................................18 4.7 Automatic Discontinuation of Transmission.........................................................19 4.8 Unwanted Emission Inside the Sub-Band ...........................................................20 4.9 Emissions Outside the Sub-Band .......................................................................22 4.9.1 Radiated Emissions Configuration Photographs ..............................................23 4.9.2 Radiated Emissions Data ................................................................................23 4.9.3 Field Strength Calculation................................................................................34 4.9.4 Average Factor Calculation and Transmitter ON Time Measurements .............35 4.10 Radiated Emissions from Receiver ...................................................................36 4.10.1 Radiated Emission Configuration Photographs ..............................................37 4.10.2 Radiated Emissions Data ..............................................................................37 4.11 AC Power Line Conducted Emissions ..............................................................40 4.11.1 AC Power Line Conducted Emissions Configuration Photographs .................41 4.11.2 AC Power Line Conducted Emissions Data ...................................................41 4.12 Radio Frequency Radiation Exposure...............................................................42 4.13 Radio Frequency Exposure Compliance...........................................................42 4.14 Frame Repetition Stability ...............................................................................43 4.15 Frame Period and Jitter ...................................................................................44 4.16 Carrier Frequency Stability ...............................................................................45 4.17 Monitoring Threshold...................................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: MZV2-5420AH 26bw - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: MZV2-5420AH 26bw - 2 of 2 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

Report no.: HK11081175-1 Ringing Mode AC Mains Ctrl No.: N/A 6 D B 1 5 0 k H z 3 0 M H z d B μ V d B μ V 1 P K C L R W R 2 A V C L R W R S G L T D S MT 1 s RBW 9 kHz PREAMPOFFA t t 1 0 d B AUTO A C 1 M H z 10 MHz 0 1 0 2 0 3 0 4 0 5 0 6 0 7 0 8 0 9 0 1 0 0 C F 1 5 M A V C F 1 5 M Q P

INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: MZV2-5420AH inband - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: MZV2-5420AH inband - 2 of 2 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: MZV2-5420AH IC: 3921A-25420 peaktp - 1 of 3 A0 Base unit, Lowest channel, Traffic carrier Base unit, Middle channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: MZV2-5420AH IC: 3921A-25420 peaktp - 2 of 3 A0 Base unit, Highest channel, Traffic carrier Handset unit, Lowest channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: MZV2-5420AH IC: 3921A-25420 peaktp - 3 of 3 A0 Handset unit, Middle channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: MZV2-5420AH psd - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: MZV2-5420AH psd - 2 of 2 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Transmission FCC ID: MZV2-5420AH IC: 3921A-25420 config photos (radiated emission - base unit) - 1 of 2 Radiated Emission - Base Unit Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Transmission FCC ID: MZV2-5420AH IC: 3921A-25420 config photos (radiated emission - handset) - 1 of 2 Radiated Emission - Handset Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Ringing FCC ID: MZV2-5420AH IC: 3921A-25420 config photos (conducted emission) - 1 of 2 Conducted Emission Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Ringing FCC ID: MZV2-5420AH IC: 3921A-25420 config photos (conducted emission) - 2 of 2 Conducted Emission Left Side View
