MZVIP-1203 Lines Desk Phone with HD Voice

1 2 Equipment Approval Information Your telephone equipment is approved for connection to the Network and is in compliance with parts 15 FCC Rule. Notes *This equipment may not be used on coin service provided by the telephone company. *Party lines are subject to state tariffs, and therefor, you may not be able to use your own telephone equipment if you are on a party line. Check with your local telephone company. *Notice must be given to the telephone company upon permanent disconnection of your telephone from your line. *If your home has specially wired alarm equipment connected to the telephone line, en sure the installation of this product does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer. US Number is located on the cabinet bottom Rights of the Telephone Company Should your equipment cause trouble on your line which may harm the telephone network, the telephone company shall, where practicable, notify you that temporary discontinuance of service may be required. Where prior notice is not practicable and the circumstances warrant such action, the telephone company may temporarily discon- tinue service immediately. In case of such temporary discontinuance, the telephone company must:(1)promptly notify you of such temporary discontinuance;(2)afford you the opportunity to correct the situation; and (3) inform you of your right to bring a complaint to the Commission pursuant to procedures set forth in Subpart E of Part 68, FCC Rules and Regulations. The telephone company may make changes in its communications facilities, equipment, operations or procedures where such action is required in the operation of its business and not inconsistent with FCC Rules and Regulations. If these changes are expected to affect the use or performance of your telephone equipment, the telephone company must give you adequate notice, in writing, to allow you to maintain uninterrupted service. 3 Interference Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; and (2) This device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reason able protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to ery to correct the interference by one or more of the following measures: *Reorient or relocate the receiving antenna (that is, the antenna for radio or television that is “receiving” the interference). *Reorient or relocate and increase the separation between the telecommunications equipment and Receiver. *Connect the telecommunications equipment into an outlet on a circuit different from that to which the receiving antenna is connected. If these measures do not eliminate the interference, please consult your dealer or an experienced radio/television technician for additional suggestions. Also, the Federal Communications Commission has prepared a helpful booklet, “How To Identify and Resolve Radio/TV Interference Problems.'This booklet is available from the U.S.Government Printing Office, Washington, D.C. 20402. Please specify stock number 004-000-00345-4 when ordering copies. Warning: The changes or modifications not expressly approved by the party responsible for compliance could void the user ’s authority to operate the equipment. The RCA IP120 phone is dedicated to business environment use. It is a full-featured and a flexible SIP solution. It is compatible with most IP PBX and VoIP providers. Please read through the administrator’s guide before installing your phone. 4 This is a class B device, in a domestic environment; this product may cause radio interference, in which case the user may be required to take adequate measures. To avoid the potential effects on the environment and human health as a result of the presence of hazardous substances in electrical and electronic equipment, end users of electrical and electronic equipment should understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately. Licensing Licensed under US Patent 6,427,009. Hearing Aid Compatibility This telephone system meets FCC standards for Hearing Aid Compatibility. Table of Contents Getting Started ..................................................... 7 Packing List ............................................................................................. 8 5 Assembling IP120 ..................................................................................... 8 Configuration and Registration.................................................................... 9 Basic Configuration via Web Page .........................................................10 Basic Configuration using phone keypad ................................................13 Overview ........................................................- 15 - Keypad ............................................................................................. - 15 - LEDs................................................................................................. - 16 - Icons ............................................…

Text truncated - open the document above for the full version.

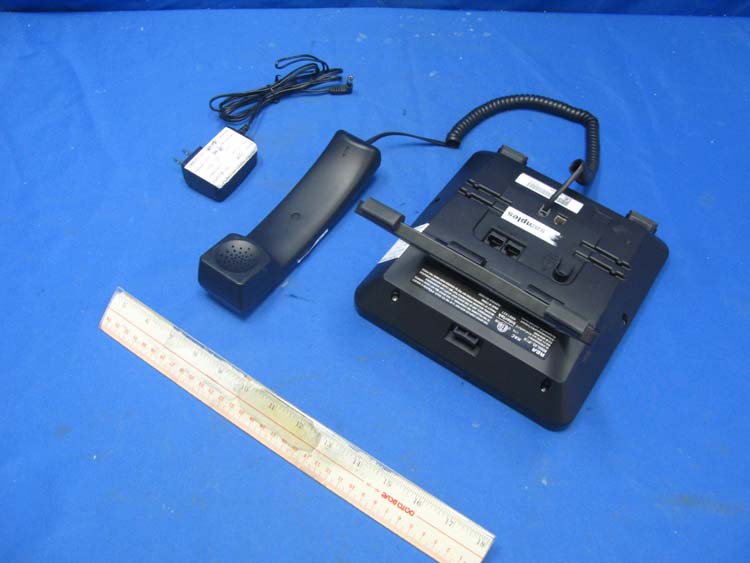

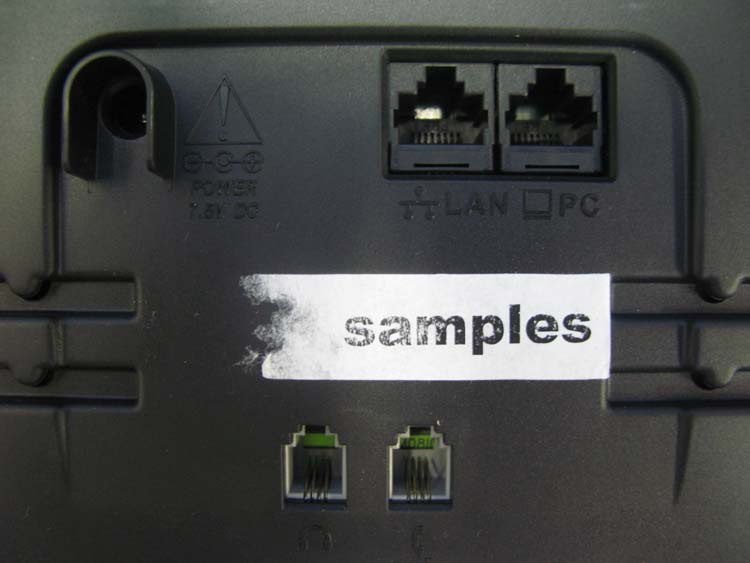

INTERTEK TESTING SERVICES External Photos FCC ID: MZVIP-120 external photos - 1 of 2 HK12030610 Job Number HK12030610 Job Number INTERTEK TESTING SERVICES External Photos FCC ID: MZVIP-120 external photos - 2 of 2

REV.3 4-13-12 IP110 IP110 1124TF S/NO.: 10000001 MODEL: IP110 FCC ID: MZVIP-120 RCA is a trademark of RCA Trademark Management S.A., used under license. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. S/NO. LABEL, SIZE: 60x14 mm MAC XX:XX:XX:xx:xx:xx BASE MODEL NO. LABEL SIZE: 118*23 mm LANPC POWER 7.5V DC MADE IN CHINA FABRIQUE EN CHINE MAC LABEL SIZE: 60*14 mm REV.1 4-17-12 TCIP110 IP110-TC 1124TF S/NO.: 10000001 MODEL: FCC ID: MZVIP-120 RCA is a trademark of RCA Trademark Management S.A., used under license. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. IP110-TC S/NO. LABEL, SIZE: 60x14 mm MAC XX:XX:XX:xx:xx:xx BASE MODEL NO. LABEL SIZE: 118*23 mm LANPC POWER 7.5V DC MADE IN CHINA FABRIQUE EN CHINE MAC LABEL SIZE: 60*14 mm IC: 3921A-IP120A IP120 IP120 1124TF S/NO.: 10000001 BASE MODEL NO. LABEL SIZE: 118*23 mm S/NO. LABEL, SIZE: 60x14 mm REV.3 4-13-12 LANPC POWER 7.5V DC MODEL: IP120 FCC ID: MZVIP-120 RCA is a trademark of RCA Trademark Management S.A., used under license. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. MAC XX:XX:XX:xx:xx:xx MADE IN CHINA FABRIQUE EN CHINE MAC LABEL SIZE: 60*14 mm TCIP120 IP120-TC 1124TF S/NO.: 10000001 BASE MODEL NO. LABEL SIZE: 118*23 mm S/NO. LABEL, SIZE: 60x14 mm REV.1 4-17-12 LANPC POWER 7.5V DC MODEL: FCC ID: MZVIP-120 RCA is a trademark of RCA Trademark Management S.A., used under license. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. IP120-TC MAC XX:XX:XX:xx:xx:xx MADE IN CHINA FABRIQUE EN CHINE MAC LABEL SIZE: 60*14 mm IC: 3921A-IP120A

INTERTEK TESTING SERVICES Internal photos FCC ID:MZVIP-120 internal photos - 1 of 9 Desk Phone assembly (View 1) Desk Phone assembly (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID:MZVIP-120 internal photos - 2 of 9 Desk Phone Main PCB comp side (View 1) Desk Phone Main PCB comp side (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID:MZVIP-120 internal photos - 3 of 9 Desk Phone Main PCB solder side Desk Phone Keypad rear side (View 1) 11) INTERTEK TESTING SERVICES Internal photos FCC ID:MZVIP-120 internal photos - 4 of 9 Desk Phone Keypad rear side (View 2) Desk Phone Keypad rear side (View 3) INTERTEK TESTING SERVICES Internal photos FCC ID:MZVIP-120 internal photos - 5 of 9 Desk Phone Keypad front side INTERTEK TESTING SERVICES Internal photos FCC ID:MZVIP-120 internal photos - 6 of 9 Desk Phone Page Key front side Desk Phone Page Key rear side INTERTEK TESTING SERVICES Internal photos FCC ID:MZVIP-120 internal photos - 7 of 9 Desk Phone LCD Display front side Desk Phone LCD Display rear side INTERTEK TESTING SERVICES Internal photos FCC ID:MZVIP-120 internal photos - 8 of 9 Desk Phone On/Off Hook front side Desk Phone On/Off Hook rear side INTERTEK TESTING SERVICES Internal photos FCC ID:MZVIP-120 internal photos - 9 of 9 Desk Phone Oscillator PCB comp side

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report Number: HK12030610-1 Application for Original Grant of 47 CFR Part 15 Certification 3 Lines Desk Phone with HD Voice FCC ID: MZVIP-120 Prepared and Checked by: Approved by: Signed on File Koo Wai Ip Nip Ming Fung, Melvin Senior Lead Engineer Senior Supervisor April 05, 2012 INTERTEK TESTING SERVICES Test Report Number: HK12030610-1 Page 1 of 23 FCC ID: MZVIP-120 GENERAL INFORMATION Applicant Name: Telefield Ltd. Applicant Address: Flat D, 2/F., Valiant Industrial Centre, 2-12 Au Pui Wan Street, Fo Tan, N.T., Hong Kong. FCC Specification Standard: FCC Part 15, October 1, 2010 Edition FCC ID: MZVIP-120 FCC Model(s): IP110, IP110XXX-X, IP110-TC, IP110- TCXXX-X, IP120, IP120XXX-X, IP120- TC, IP120-TCXXX-X Type of EUT: Class B Personal Computers and Peripherals Description of EUT: 3 Lines Desk Phone with HD Voice Serial Number: N/A Sample Receipt Date: January 18, 2012 Date of Test: January 31 - February 03, 2012 Report Date: April 05, 2012 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Test Report Number: HK12030610-1 Page 2 of 23 FCC ID: MZVIP-120 Table of Contents 1.0 Test Results Summary & Statement of Compliance.............................................. 4 1.1 Summary of Test Results ........................................................................................ 4 1.2 Statement of Compliance ........................................................................................ 4 2.0 General Description................................................................................................. 6 2.1 Product Description ................................................................................................. 6 2.2 Test Methodology.................................................................................................... 6 2.3 Test Facility............................................................................................................. 6 3.0 System Test Configuration...................................................................................... 8 3.1 Justification ............................................................................................................. 8 3.2 EUT Exercising Software......................................................................................... 9 3.3 Details of EUT and Description of Accessories...................................................... 10 3.4 Measurement Uncertainty ..................................................................................... 10 4.0 Test Results............................................................................................................ 12 4.1 Field Strength Calculation...................................................................................... 12 4.2 Radiated Emissions............................................................................................... 13 4.2.1 Radiated Emission Configuration Photograph ..................................................... 13 4.2.2 Radiated Emission Data ..................................................................................... 13 4.3 AC Power Line Conducted Emission ..................................................................... 15 4.3.1 AC Power Line Conducted Emission Configuration Photograph.......................... 15 4.3.2 AC Power Line Conducted Emission Data .......................................................... 15 5.0 Equipment List...................................................................................................... 23 INTERTEK TESTING SERVICES Test Report Number: HK12030610-1 Page 3 of 23 FCC ID: MZVIP-120 EXHIBIT 1 TEST RESULTS SUMMARY & STATEMENT OF COMPLIANCE INTERTEK TESTING SERVICES Test Report Number: HK12030610-1 Page 4 of 23 FCC ID: MZVIP-120 1.0 Test Results Summary & Statement of Compliance 1.1 Summary of Test Results Test Items FCC Part 15 Section Results Details see section Radiated Emission 15.109 Pass 4.2 Radiated Emission from Class B Personal Computers and Peripherals AC Power Line Conducted Emission 15.109 15.107 Pass Pass 4.2 4.3 This device complies with FCC Part 15 Verification 1.2 Statement of Compliance The equipment under test is found to be complying with the following standard: FCC Part 15, October 1, 2010 Edition INTERTEK TESTING SERVICES Test Report Number: HK12030610-1 Page 5 of 23 FCC ID: MZVIP-120 EXHIBIT 2 GENERAL DESCRIPTION INTERTEK TESTING SERVICES Test Report Number: HK12030610-1 Page 6 of 23 FCC ID: MZVIP-120 2.0 General Description 2.1 Product Description The IP120 is a 3 Lines Desk Phone with HD Voice. The Base Unit is powered by an adaptor 100-240VAC to 7.5VDC 800mA. For FCC, The Model(s): IP110, IP110XXX-X, IP110-TC, IP110-TCXXX-X,…

Text truncated - open the document above for the full version.

Report No.: HK12030610-1 Model: IP120 Mode: Standby AC Mains Ctrl No.: 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 3.FEB.2012 18:21:48 Report No.: HK12030610-1 Model: IP120 Mode: Standby AC Mains Ctrl No.: EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 199.5 kHz 45.00 L1 gnd -18.62 1 Quasi Peak 276 kHz 46.91 L1 gnd -14.02 2 CISPR Average276 kHz 32.39 L1 gnd -18.54 1 Quasi Peak 357 kHz 48.58 N gnd -10.21 2 CISPR Average357 kHz 37.72 L1 gnd -11.07 1 Quasi Peak 474 kHz 52.92 L1 gnd -3.52 2 CISPR Average474 kHz 35.82 L1 gnd -10.62 1 Quasi Peak 712.5 kHz 48.44 L1 gnd -7.55 2 CISPR Average753 kHz 32.08 L1 gnd -13.91 2 CISPR Average829.5 kHz 35.35 L1 gnd -10.64 1 Quasi Peak 870 kHz 50.79 N gnd -5.20 1 Quasi Peak 1.2255 MHz 46.15 N gnd -9.84 2 CISPR Average1.2255 MHz 31.24 L1 gnd -14.75 1 Quasi Peak 1.6575 MHz 44.19 N gnd -11.80 2 CISPR Average1.7025 MHz 28.92 L1 gnd -17.07 2 CISPR Average2.5305 MHz 27.13 L1 gnd -18.86 1 Quasi Peak 2.7645 MHz 36.78 N gnd -19.21 2 CISPR Average2.967 MHz 25.12 L1 gnd -20.87 1 Quasi Peak 3.2775 MHz 33.58 N gnd -22.42 1 Quasi Peak 4.731 MHz 29.81 N gnd -26.18 Date: 3.FEB.2012 18:21:27 Report No.: HK12030610-1 Model: IP120 Mode: Ringing + PC Data Transfer AC Mains Ctrl No.: 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 3.FEB.2012 18:15:50 Report No.: HK12030610-1 Model: IP120 Mode: Ringing + PC Data Transfer AC Mains Ctrl No.: EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 199.5 kHz 44.20 L1 gnd -19.42 1 Quasi Peak 276 kHz 46.20 L1 gnd -14.73 2 CISPR Average276 kHz 30.91 L1 gnd -20.01 1 Quasi Peak 352.5 kHz 49.21 N gnd -9.68 2 CISPR Average352.5 kHz 38.31 L1 gnd -10.58 1 Quasi Peak 478.5 kHz 50.97 L1 gnd -5.39 2 CISPR Average478.5 kHz 33.59 L1 gnd -12.77 2 CISPR Average708 kHz 31.75 L1 gnd -14.24 1 Quasi Peak 748.5 kHz 49.14 L1 gnd -6.85 1 Quasi Peak 834 kHz 49.26 N gnd -6.73 2 CISPR Average834 kHz 32.62 L1 gnd -13.37 1 Quasi Peak 1.149 MHz 43.67 L1 gnd -12.32 2 CISPR Average1.266 MHz 30.82 L1 gnd -15.17 1 Quasi Peak 1.6575 MHz 43.72 N gnd -12.27 2 CISPR Average1.6575 MHz 27.78 L1 gnd -18.22 1 Quasi Peak 2.535 MHz 37.62 N gnd -18.37 2 CISPR Average2.886 MHz 25.90 L1 gnd -20.09 1 Quasi Peak 3.138 MHz 29.26 N gnd -26.73 1 Quasi Peak 4.695 MHz 30.51 L1 gnd -25.48 2 CISPR Average5.1855 MHz 19.57 L1 gnd -30.42 Date: 3.FEB.2012 18:15:31 Report No.: HK12030610-1 Model: IP120 Mode: Speaker Talk (3 way conference) + PC Data Transfer AC Mains Ctrl No.: 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 3.FEB.2012 18:03:44 Report No.: HK12030610-1 Model: IP120 Mode: Speaker Talk (3 way conference) + PC Data Transfer AC Mains Ctrl No.: EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 199.5 kHz 42.48 L1 gnd -21.14 1 Quasi Peak 262.5 kHz 43.69 L1 gnd -17.65 1 Quasi Peak 352.5 kHz 48.53 N gnd -10.37 2 CISPR Average393 kHz 36.98 L1 gnd -11.01 1 Quasi Peak 474 kHz 50.27 L1 gnd -6.16 2 CISPR Average474 kHz 33.00 L1 gnd -13.44 1 Quasi Peak 748.5 kHz 48.77 L1 gnd -7.22 2 CISPR Average748.5 kHz 33.24 L1 gnd -12.75 1 Quasi Peak 897 kHz 48.51 N gnd -7.48 2 CISPR Average897 kHz 29.53 L1 gnd -16.47 1 Quasi Peak 1.185 MHz 44.90 N gnd -11.09 2 CISPR Average1.293 MHz 25.29 L1 gnd -20.70 1 Quasi Peak 1.644 MHz 42.41 N gnd -13.58 2 CISPR Average1.7205 MHz 26.18 L1 gnd -19.81 1 Quasi Peak 2.9355 MHz 33.12 N gnd -22.87 1 Quasi Peak 4.0155 MHz 29.08 N gnd -26.91 1 Quasi Peak 4.5105 MHz 32.22 L1 gnd -23.77 Date: 3.FEB.2012 18:03:27

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Transmission FCC ID: MZVIP-120 config photos (radiated emission – desk phone) - 1 of 1 Radiated Emission - Desk Phone Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Standby FCC ID: MZVIP-120 config photos (conducted emission) - 1 of 2 Conducted Emission Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Standby FCC ID: MZVIP-120 config photos (conducted emission) - 2 of 2 Conducted Emission Left Side View
