MZVIP-1507" Touch Screen IP Phone

IP150 IP Phone 23 Equipment Approval Information Your telephone equipment is approved for connection to the Public Switched Telephone Network and is in compliance with parts 15, FCC Rules and Regulations and the Technical Requirements for Telephone Terminal Equipment published by ACTA. Notification to the Local Telephone Company On the bottom of this equipment is a label indicating, among other information, the US number and Ringer Equivalence Number (REN) for the equipment. You must, upon request, provide this information to your telephone company. The REN is useful in determining the number of devices you may connect to your tele- phone line and still have all of these devices ring when your telephone number is called. In most (but not all) areas, the sum of the RENs of all devices connected to one line should not exceed 5. To be certain of the number of devices you may connect to your line as determined by the REN, you should contact your local telephone company. A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this prod- uct. It is designed to be connected to a compatible modular jack that is also compliant. See installation instructions for details. Notes • This equipment may not be used on coin service provided by the telephone company. • Party lines are subject to state tariffs, and therefore, you may not be able to use your own telephone equipment if you are on a party line. Check with your local telephone company. • Notice must be given to the telephone company upon permanent disconnection of your telephone from your line. • If your home has specially wired alarm equipment connected to the telephone line, en- sure the installation of this product does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer. US Number is located on the cabinet bottom REN number is located on the cabinet bottom Rights of the Telephone Company Should your equipment cause trouble on your line which may harm the telephone network, the telephone company shall, where practicable, notify you that temporary discontinuance of service may be required. Where prior notice is not practicable and the circumstances warrant such action, the telephone company may temporarily discon- tinue service immediately. In case of such temporary discontinuance, the telephone company must: (1) promptly notify you of such temporary discontinuance; (2) afford you the opportunity to correct the situation; and (3) inform you of your right to bring a 3 complaint to the Commission pursuant to procedures set for th in Subpar t E of Par t 68, FCC Rules and Regulations. The telephone company may make changes in its communications facilities, equipment, operations or procedures where such action is required in the operation of its business and not inconsistent with FCC Rules and Regulations. If these changes are expected to affect the use or per formance of your telephone equipment, the telephone company must give you adequate notice, in writing, to allow you to maintain uninterrupted Ser vice. Inter ference Information This device complies with Par t 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful inter ference; and (2) This device must accept any inter ference received, including inter ference that may cause undesired operation. If these measures do not eliminate the inter ference, please consult your dealer or an experi- enced radio/television technician for additional suggestions. Also, the Federal Communica- tions Commission has prepared a helpful booklet, “How To Identify and Resolve Radio/T V Inter ference Problems.” This booklet is available from the U.S. Government Printing Office, Washington, D.C. 20402. Please specify stock number 004-000-00345-4 when ordering Copies. 4 FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set for th for an Uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.” This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. This product meets the applicable Industr y Canada technical specifications. / Le présent matériel est conforme aux specifications techniques applicables d’Industrie Canada. Licensing Licensed under US Patent 6,427,009. Hearing Aid Compatibility This telephone system meets FCC standards for Hearing Aid Compatibility. 455 Table of Contents Table of Contents 2 Welcome to the Phone of the Future! 6 Copyright Statement 7 About This Manual 8 Conventions 8 Unpacking your Phone 9 Understanding your Phone 10 Front 10 Back 11 Side 12 LCD Screen 12 The Glass Interface 13 Left-hand navigation bar 13 Top Information bar 14 Right-hand navigation bar 15 Main area 16 Bottom information bar 17 On-Screen Keyboard 18 Applications 18 Getting Started 19 Step 1: Unpack it 19 Step 2: Power it Up 19 Step 3: Connect it to your Network 19 Step 4: Configuring it for Phone Calls 19 Step 5: Make a call! 19 Glass and your Phone System 20 Connecting to a SIP Provider on your Phone 20 Connecting to a SIP Provider on your Computer 20 Setup Your Device 22 Basic Phone Features 23 Initiating a call 23 Using the Contacts 23 Using the on-screen keypad 23 Ending a call 23 Adjusting call volume 24 Muting a call volume 24 Conference call 25 Transferring a call 25 Redialing 25 Putting a call on hold 25 Speakerphone 25 Headset 26 Accessing voicemail 26 Using Glass 27 Phone Status 27 Managing notifications 29 Notifications Window 29 Icon-Statu…

Text truncated - open the document above for the full version.

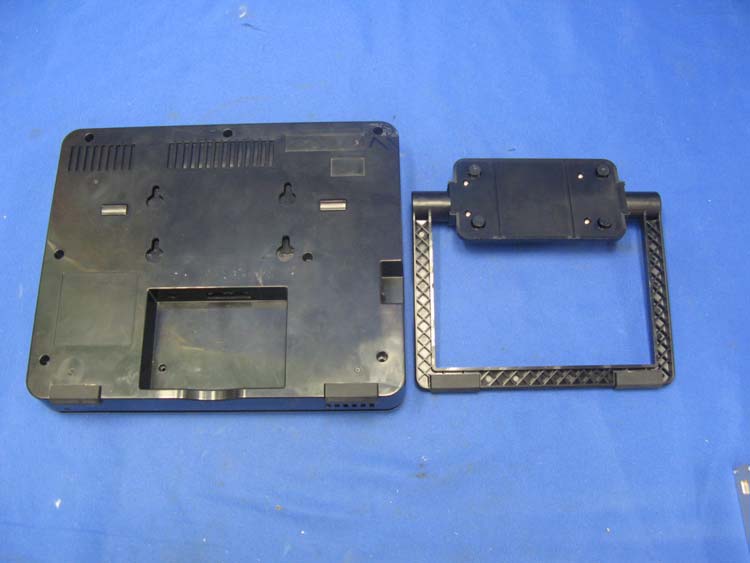

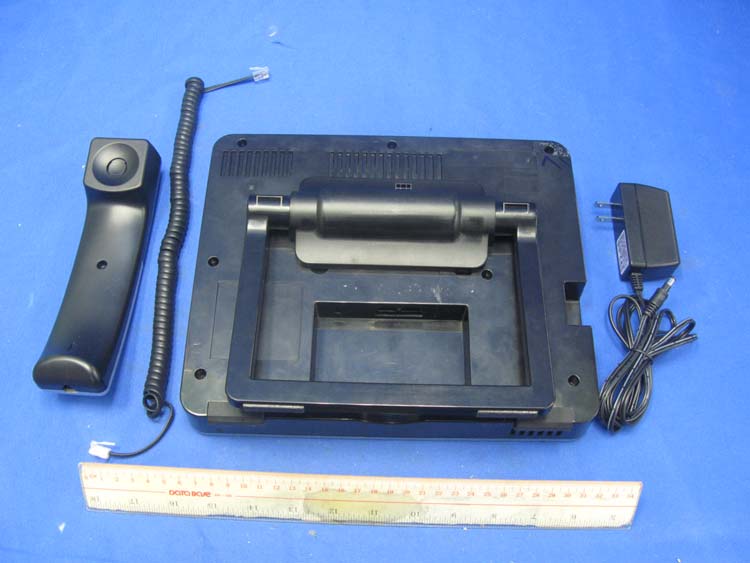

INTERTEK TESTING SERVICES External Photos FCC ID: MZVIP-150 external photos - 1 of 3 HK11090443 Job Number HK11090443 Job Number INTERTEK TESTING SERVICES External Photos FCC ID: MZVIP-150 external photos - 2 of 3 HK11090443 Job Number INTERTEK TESTING SERVICES External Photos FCC ID: MZVIP-150 external photos - 3 of 3

IP150 1226TF S/NO.: 10000001 Headset Handset POWER 9V DC RESETLAN PC ZK90725ZA01-R (POWER) ZK90725ZA02-R (Headset) ZK90725ZA03-R (Handset) ZK90725ZA00-R (ETL) FCC ID: MZVIP-150 DC 9V 1500mA MODEL : IP150 REV.3 10-12-11 IP150 REQUIRES USE OF SUPPLIED 9V DC POWER ADAPTOR FOR NORMAL OPERATION. PARA UN FUNCIONAMIENTO NORMAL, USE EL ADAPTADOR DE POTENCIA DE CC DE 9V. T0001171 (REV.00 E/S) ZK90717RA01-R011-- THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. RCA is a trademark of RCA Trademark Management S.A., used under license.

INTERTEK TESTING SERVICES Internal photos FCC ID: MZVIP-150 internal photos - 1 of 4 IP Phone assembly IP Phone Main PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: MZVIP-150 internal photos - 2 of 4 IP Phone Main PCB solder side IP Phone Hook Switch front side INTERTEK TESTING SERVICES Internal photos FCC ID: MZVIP-150 internal photos - 3 of 4 IP Phone Hook Switch rear side IP Phone Keypad front side INTERTEK TESTING SERVICES Internal photos FCC ID: MZVIP-150 internal photos - 4 of 4 IP Phone Keypad rear side

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report Number: HK11090443-1 Application for Original Grant of 47 CFR Part 15 Certification 7" Touch Screen IP Phone FCC ID: MZVIP-150 Prepared and Checked by: Approved by: Signed on File Koo Wai Ip Nip Ming Fung, Melvin Senior Lead Engineer Senior Supervisor March 29, 2012 INTERTEK TESTING SERVICES Test Report Number: HK11090443-1 Page 1 of 29 FCC ID: MZVIP-150 GENERAL INFORMATION Applicant Name: Telefield Ltd. Applicant Address: Flat D, 2/F., Valiant Industrial Centre, 2-12 Au Pui Wan Street, Fo Tan, N.T., Hong Kong. FCC Specification Standard: FCC Part 15, October 1, 2010 Edition FCC ID: MZVIP-150 FCC Model(s): IP150XXX-X Type of EUT: Class B Personal Computers and Peripherals Description of EUT: 7" Touch Screen IP Phone Serial Number: N/A Sample Receipt Date: September 14, 2011 Date of Test: January 09 - February 14, 2012 Report Date: March 29, 2012 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Test Report Number: HK11090443-1 Page 2 of 29 FCC ID: MZVIP-150 Table of Contents 1.0 Test Results Summary & Statement of Compliance.............................................. 4 1.1 Summary of Test Results ........................................................................................ 4 1.2 Statement of Compliance ........................................................................................ 4 2.0 General Description................................................................................................. 6 2.1 Product Description ................................................................................................. 6 2.2 Test Methodology.................................................................................................... 6 2.3 Test Facility............................................................................................................. 6 3.0 System Test Configuration...................................................................................... 8 3.1 Justification ............................................................................................................. 8 3.2 EUT Exercising Software......................................................................................... 9 3.3 Details of EUT and Description of Accessories...................................................... 10 3.4 Measurement Uncertainty ..................................................................................... 10 4.0 Test Results............................................................................................................ 12 4.1 Field Strength Calculation...................................................................................... 12 4.2 Radiated Emissions............................................................................................... 13 4.2.1 Radiated Emission Configuration Photograph ..................................................... 13 4.2.2 Radiated Emission Data ..................................................................................... 13 4.3 AC Power Line Conducted Emission ..................................................................... 15 4.3.1 AC Power Line Conducted Emission Configuration Photograph.......................... 15 4.3.2 AC Power Line Conducted Emission Data .......................................................... 15 5.0 Equipment List...................................................................................................... 29 INTERTEK TESTING SERVICES Test Report Number: HK11090443-1 Page 3 of 29 FCC ID: MZVIP-150 EXHIBIT 1 TEST RESULTS SUMMARY & STATEMENT OF COMPLIANCE INTERTEK TESTING SERVICES Test Report Number: HK11090443-1 Page 4 of 29 FCC ID: MZVIP-150 1.0 Test Results Summary & Statement of Compliance 1.1 Summary of Test Results Test Items FCC Part 15 Section Results Details see section Radiated Emission from Class B Personal Computers and Peripherals 15.109 Pass 4.2 AC Power Line Conducted Emission 15.107 Pass 4.3 1.2 Statement of Compliance The equipment under test is found to be complying with the following standard: FCC Part 15, October 1, 2010 Edition INTERTEK TESTING SERVICES Test Report Number: HK11090443-1 Page 5 of 29 FCC ID: MZVIP-150 EXHIBIT 2 GENERAL DESCRIPTION INTERTEK TESTING SERVICES Test Report Number: HK11090443-1 Page 6 of 29 FCC ID: MZVIP-150 2.0 General Description 2.1 Product Description The TCIP150 is a 7" Touch Screen IP Phone. The EUT is powered by an adaptor 100- 240VAC to 9VDC 1500mA. The test sample is a prototype. The Model(s): IP150XXX-X are the same as the Model: TCIP150 in electronics/electrical designs including software & firmware, PCB layout and construction design/physical design/enclosure. The only differences between these m…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Speakerphone Online with Data Transfer (Conference) FCC ID: MZVIP-150 config photos (radiated emission – IP phone) - 1 of 1 Radiated Emission – IP Phone Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Headset Online with Data Transfer (Conference) FCC ID: MZVIP-150 config photos (conducted emission) - 1 of 2 Conducted Emission Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Headset Online with Data Transfer (Conference) FCC ID: MZVIP-150 config photos (conducted emission) - 2 of 2 Conducted Emission Left Side View
