IP162 IP-D E C T Phone Interference I n f o r m a t i o n This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; and (2) This device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna (that is, the antenna for radio or television that is “receiving” the interference). • Reorient or relocate and increase the separation between the telecommunications equipment and Receiver. • Connect the telecommunications equipment into an outlet on a circuit different from that to which the receiving antenna is connected. If these measures do not eliminate the interference, please consult your dealer or an experienced radio/television technician for additional suggestions. Also, the Federal Communications Commission has prepared a helpful booklet, “How To Identify and Resolve Radio/TV Interference Problems. This booklet is available from the U.S. Government Printing Office, Washington, D.C. 20402. Please specify stock number 004-000-00345-4 when ordering copies. Warning: The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. The RCA IP162 phone is designed for business environment use. It is a full-featured SIP solution, interoperable with most IP PBX and VoIP providers. Please read through the instruction booklet before you get started to better understand the features of the IP162. FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This base should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.” This is a class B device, in a domestic environment; this product may cause radio interference, in which case the user may be required to take adequate measures. To avoid the potential effects on the environment and human health as a result of the presence of hazardous substances in electrical and electronic equipment, end users of electrical and electronic equipment should understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately. FCC Part 68 and ACTA Customer Information 1. This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the bottom of this equipment is a label that contains, among other information, a product identifier in the format US:3F8IPNANIP162. If requested, this number must be provided to the telephone company. 2. A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. See installation instructions for details. 3. If this equipment [US: 3F8IPNANIP162] causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn't practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary. 4. The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the operation of the equipment. If this happens the telephone company will provide advance notice in order for you to make necessary modifications to maintain uninterrupted service. 5. If trouble is experienced with this equipment [US: 3F8IPNANIP162], for repair or warranty information, Service can be facilitated through our office at: U.S. Agent Company name: Telefield NA Inc Address: 4 9 1 5 S W G r i f f i t h D r . # 3 0 2 B e a v e r t o n , O r 9 7 0 0 5, U S A Tel: 1‐800‐511‐3180 Fax: +503‐626‐6349 If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved. 6. Please follow instructions for repairing if any (e.g. battery replacement section); otherwise do not alternate or repair any parts of device except specified. 7. Connection to party line service is subject to state tariffs. Contact the state public utility commission, public service commission or corporation commission for information. 8. If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this [3F8IPNANIP162] does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer. a) If the telephone company requests information on what equipment is connected to their lines, inform them of: b) The …

Text truncated - open the document above for the full version.

IPDT-01xxxx IPDT-0100,IPDT-01xx, IPDT-01xxx, IPDT-0xxxxx, IPDT-0150,IPDT-0xxx, IPDT-0xxxx, IP1xxx,IP1xxxx, IPxxxxx,IP100,IP100S,IP1xx, IP162,IP162S,IPxxx,IPxxxx, Note: “x” shall consist of a series IPDT-xxxx, IPDT-50,IPDT-xx,IPDT-xxx, IPDT-0xxxx, IPDT-0xxxxx, IPDT-0150,IPDT-0xxx, IPxxxxx,IP062,IP062S, FCC Part 15D – APPLICATION FORM & SELF-DECLARATION Applicant Name Telefield Ltd. Address Flat D,2/F.,Valiant Industrial Centre, 2-12 Au Pui Wan Street,Fo Tan,N.T.,Hong Kong. Contact person Ho Wing Cheong Telephone No. 852 26052811 FaX No. 852 30078968 Manufacturer Name Skymotion Technology (Hong Kong) Limited Address Flat 10, 17/F, Fo Tan Industrial Centre,26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong PP FP FCC ID MZVIP-162 MZVIP-162 Model Number(s) of Arabic numerals, capital letters or a combination thereof. Arabic numerals, capital letters or a combination thereof. HW version SW version Antenna Type Monopole Antenna Monopole Antenna MaX, Antenna Gain(dBi) 0dBi 0dBi Mains Power Voltage Adapter Input AC 100-240V Adapter Input AC 100-240V Adapter OutputDC6V Adapter Output DC5V PP Inport DC6V FP Inport DC5V Battery Voltage DC 2.4V Number of channels 5 Carrier frequency(MHz) 1921.536 1923.2641924.9921926.720 1928.448 Nominal Receive Bandwidth +/-500kHz Frame period(ms) 24time slots within 10 seconds .First 12 slots for PP transmit and neXt 12 slots for FP transmit Timeslot Plan 24 timeslots per frame. First 12 timeslots used for PP transmissions and other 12 timeslots used for FP transmissions. Operating Temperature Range( 。 C) Min -10°C Max 40°C Does a system built with the EUT that implement the provisions of 47CFR 15.323(c) (5) enabling the use of the upper threshold for deferral? Ye s No IP162,IP162S,IPxxx,IPxxxx, Note: “x” shall consist of a series According to 47CFR 15.323(c) (5).4, does your model not use bandwidth in further cooperation with other devices at any range? Yes No Does a system built using the EUT that operate under the provisions of 47CFR 25.323(c) (6) incorporating provisions for waiting for a channel to clear? Yes No According to 47CFR 15.323(c) (8), does EUT use the same antennas for transmission and reception as for monitoring? Yes No Does a system built with the EUT that operate under the provisions of 47CFR 15.323(c) (10) to test for deferral only in conjunction with a companion device? Yes No Does a system built using the EUT that operate under the provisions of 47CFR 15.323(c) (11) enabling the access criteria check on the receive channel while in the presence of collocated interferers? Yes No According to 47CFR 15.323(c) (12), does EUT not work in a mode with denies fair access to spectrum for other devices. Yes No Does you model have the monitoring made through the radio receiver used for communication? Yes No Does your model transmit control and signaling channels? Yes No According to 47CFR 15.307(b), does the applicant have the affidavit from UTAM Inc.? Yes No According to 47CFR 15.319(b), do all transmissions use only digital modulation techniques? Yes No According to FCC Part 15.319(f) Automatic Discontinuation of Transmissions The device shall automatically discontinue transmission in case of either absence of information to transmit of operational failure , he provisions in this section are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals . Ye s No The provisions within the EUT for self-check, by which compliance with 47CFR 15.319(f) is obtained. A – Connection break down, cease of transmit B – Connection break down, EUT transmits its signaling information C – Connection break down, compare device transmits signaling information N – Not possible Situation Reaction of EUT FP PP Switch-off compare device B A Hook-on by compare device B N Switch-off by EUT A A Hook-on at EUT side N A Remove Power from EUT A A Remove Power from compare device B A Date: 2014-1-3 Title: Senior Engineering Manager Signature:

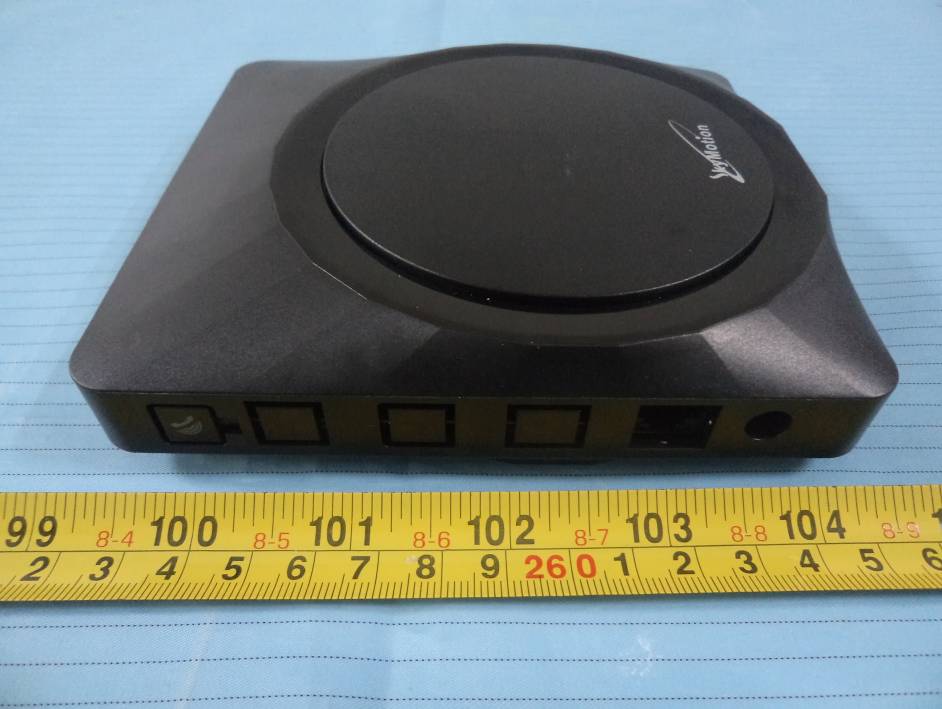

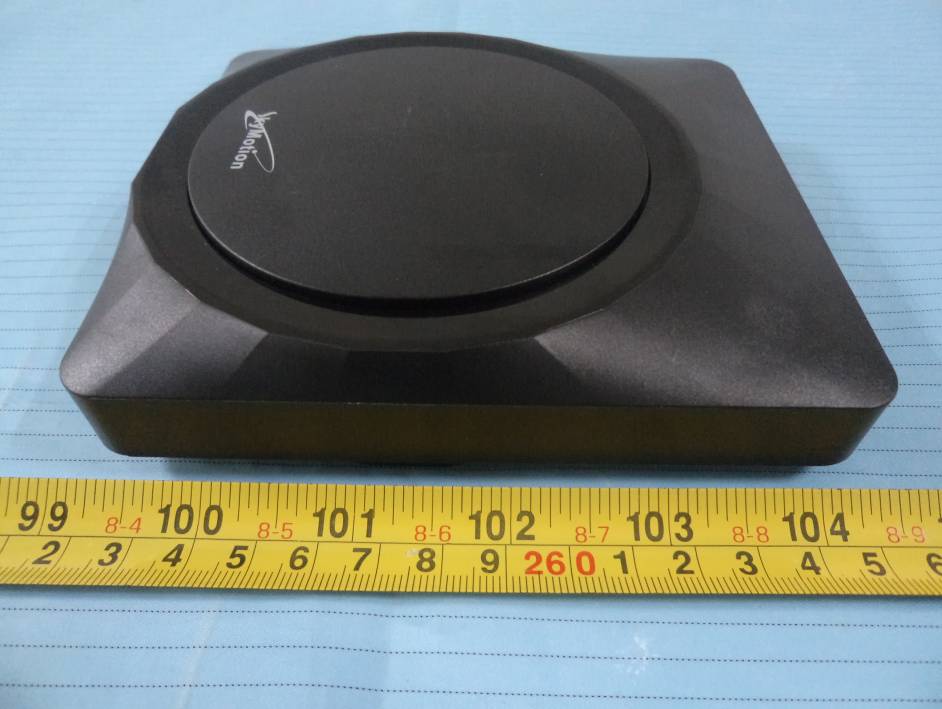

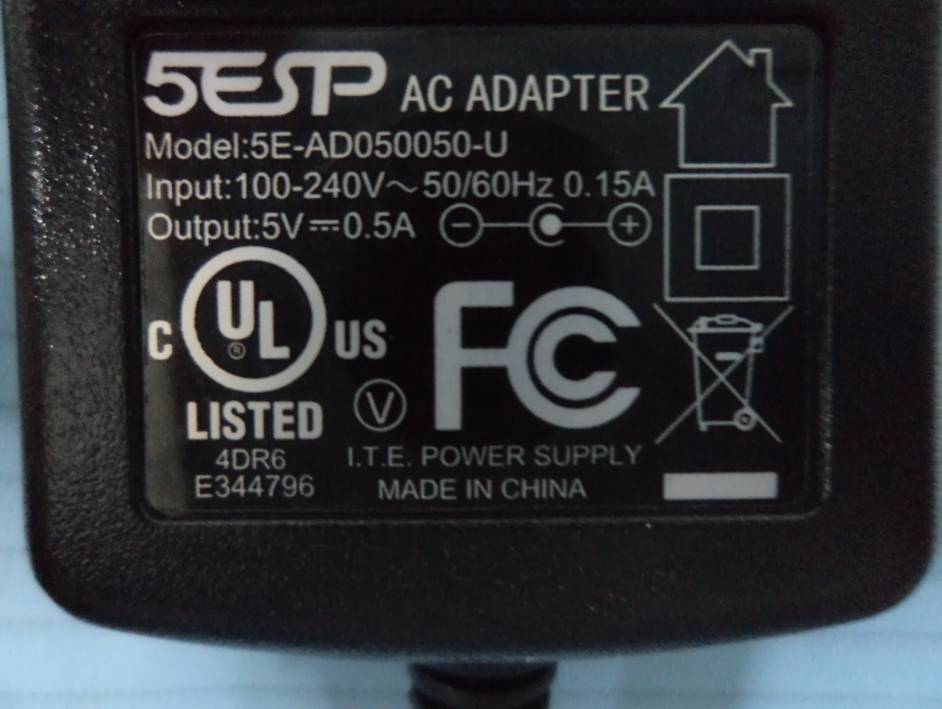

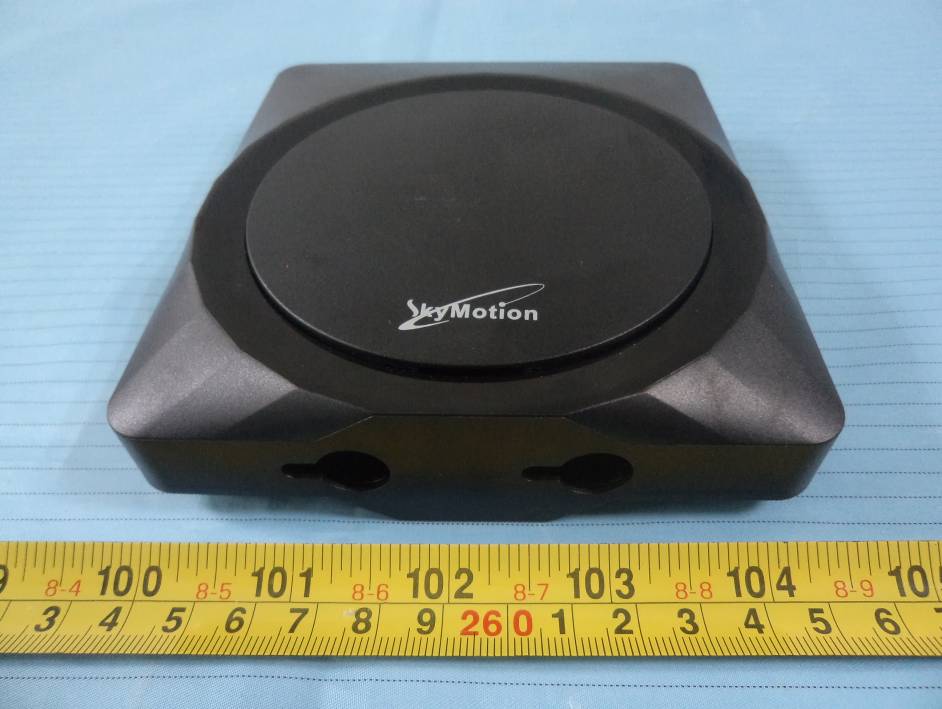

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Front View EUT – Rear View EUT – Top View EUT – Bottom View EUT – Left View EUT – Right View EUT – Adapter View EUT – Adapter Label View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View EUT – Main Board Top View EUT – Main Board Top Shielding off View EUT – Main Board Bottom View Antenna EUT – Switch Board Top View EUT – Switch Board Bottom View

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: R1DG131016001-00FP FCC Part 15D Page 8 of 49 §1.1307 (b) (1) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to FCC §15.319(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 842/f 2.19/f *(180/f\2\) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density MPE Calculation Predication of MPE limit at a given distance S = 2 4R PG  Where: S = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Channel Frequency (MHz) Antenna Gain Conducted Power Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric)(dBm)(mW) Middle 1924.992 0 1 20.08 101.8620 0.02027 1.0 Result: The device meets MPE limit at 20 cm distance.

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. FCC PART 15D MEASUREMENT AND TEST REPORT For Telefield Ltd. Flat D, 2/F., Valiant Industrial Centre, 2-12 Au Pui Wan Street, Fo Tan, N.T., Hong Kong FCC ID: MZVIP-162 Report Type: Original Report Product Type: IP DECT Phone (Gateway Unit) Test Engineer: Gardon Zhang Report Number: R1DG131016001 -00FP Report Date: 2014- 04-04 Reviewed By: Jimmy Xiao RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: R1DG131016001-00FP FCC Part 15D Page 2 of 49 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 EXTERNAL I/O CABLE .................................................................................................................................................. 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 7 §1.1307 (B) (1) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ............................................................ 8 APPLICABLE STANDARD .............................................................................................................................................. 8 MPE CALCULATION..................................................................................................................................................... 8 FCC§15.317 & §15.203 - ANTENNA REQUIREMENT ........................................................................................... 9 APPLICABLE STANDARD .............................................................................................................................................. 9 ANTENNA CONNECTOR CONSTRUCTION ...................................................................................................................... 9 FCC§15.315 & §15.207 - CONDUCTED EMISSIONS ............................................................................................ 10 APPLICABLE STANDARD ............................................................................................................................................ 10 MEASUREMENT UNCERTAINTY .................................................................................................................................. 10 EUT SETUP ................................................................................................................................................................ 10 EMI TEST RECEIVER SETUP ....................................................................................................................................... 11 TEST PROCEDURE ...................................................................................................................................................... 11 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 11 TEST RESULTS SUMMARY .......................................................................................................................................... 11 TEST DATA ................................................................................................................................................................ 12 FCC§15.323 (A) - EMISSION BANDWIDTH .......................................................................................................... 14 APPLICABLE STANDARD ............................................................................................................................................ 14 TEST PROCEDURE ...................................................................................................................................................... 14 TEST EQUIPMENT LIST AND DETAILS ..................................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Radiated Emissions View (Below 1 GHz) Radiated Emissions View (Above 1 GHz) Frequency Stability
