  True Choice ™ Digital Monitor (A100 and A200) Questions? Comments? Contact Consumer Care www.learningcurve.com 800-704-8697 ! Note: A100 comes with one Child Unit, one Parent Unit and two AC adaptors. A200 comes with one Child Unit, two Parent Units and three AC adaptors. Except for setting up (and using) the second Parent Unit, instructions for both models are the same. QUICK START INSTRUCTIONS You’ll find detailed instructions inside. Please read the safety instructions on page 2. Set up the Parent Unit(s) 6
For portable use: Install the 3 AAA batteries (not included). Battery compartment is located on the back of the unit. Loosen screw to release it, and lift cover off (for easier access, press on top of belt clip to hold it out of the way). Insert 3 AAA batteries aligning + and – symbols to match markings in battery box. Tip: Use Alkaline batteries for longer use. 6
For plug-in use: Connect one of the AC adapters provided Set up the Child’s Unit 6
Place the Child Unit near your child (within 6 feet, but well beyond child’s reach). 6
Connect the remaining AC adaptor to the unit and plug into wall outlet To Use: 1 Press and release power button to turn the Child Unit on and wait for connection indicator to blink. 2 Press and release the power button on the side of the Parent Unit to turn it on. 3 Connection indicators on all units should glow blue indicating connection. 4 Press [+] or [-] to adjust volume of Parent Unit(s). 5 Keep the Parent Unit within hearing distance. Before returning this product to the store for any reason, please contact our Parent Service Center at 1-800-704-8697 or www.learningcurve.com Often, we can provide helpful tips and instructions to resolve your problem quickly over the phone or by e-mail. A100 Parent Unit A100_A200 Child Unit A200 Parent Units AC jack adaptor D C 6V WARNING: Model:Y7443C,Y7444C Model:Y7443P, Y7444P 2 This symbol is intended to warn the user of potential safety hazards. This symbol is intended to alert the user to a potential risk of electric shock and other electrical safety issues. WARNING: To reduce the risk of fire or electrical shock, do not open this product or expose this product to: Water And Moisture: This product should not be used near water, for example, near a bathtub or sink, in a wet basement or near a swimming pool. Heat: This product should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances that produce heat. IMPORTANT: :
The user should not attempt to service this product. Read all safety and operating instructions before operating this product. :
Retain these instructions for future reference. :
Observe all warnings. :
Follow all operating instructions. :
Do not tamper with the plug under any circumstances. :
Power Source - This product should be connected only to the power supply provided. :
Cleaning - Before cleaning, be sure to unplug. Clean only as recommended in these instructions. :
Object And Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through the openings. :
Damage Requiring Service - This product should be serviced by qualified service personnel when: a. The power supply cord or plug has been damaged b. Objects have fallen or liquid has been spilled into it c. The product has been exposed to rain d. The product does not appear to operate normally or exhibits a marked change in its performance e. The product has been dropped or the enclosure damaged. Refer All Servicing To A Qualified First Years ® Technician (Call 1-800-704-8697 if you believe your unit needs service). Wall Mounting - The Child Unit should be mounted to a wall only as recommended in these instructions. WARNING: Do not mount the Child Unit in a location where the unit and the adaptor cord is within the child’s reach. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate equipment. Safety Instructions NOTE:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. These devices comply with FCC and Industry Canada RF radiation exposure limits set forth for general population. They must not be operated when co-located with any other a…

Text truncated - open the document above for the full version.

Wing Cheong Ho Enigneering Manager

Wing Cheong Ho Enigneering Manager

Wing Cheong Ho Enigneering Manager

Wing Cheong Ho Enigneering Manager

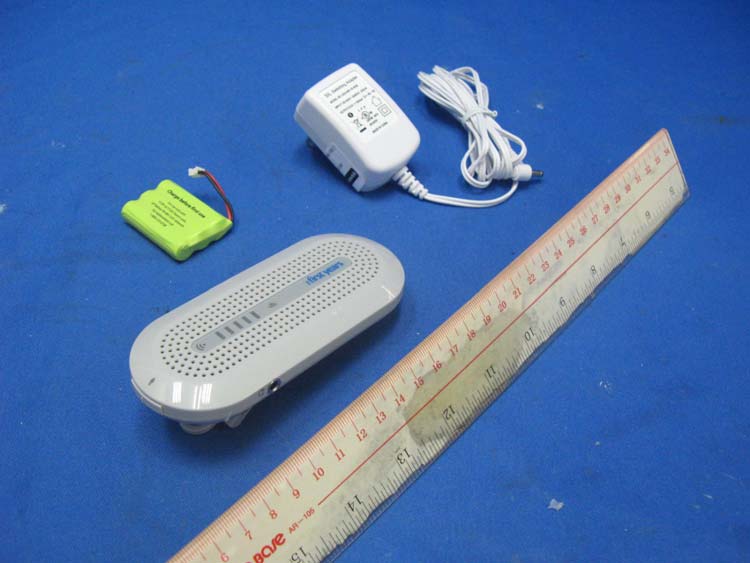

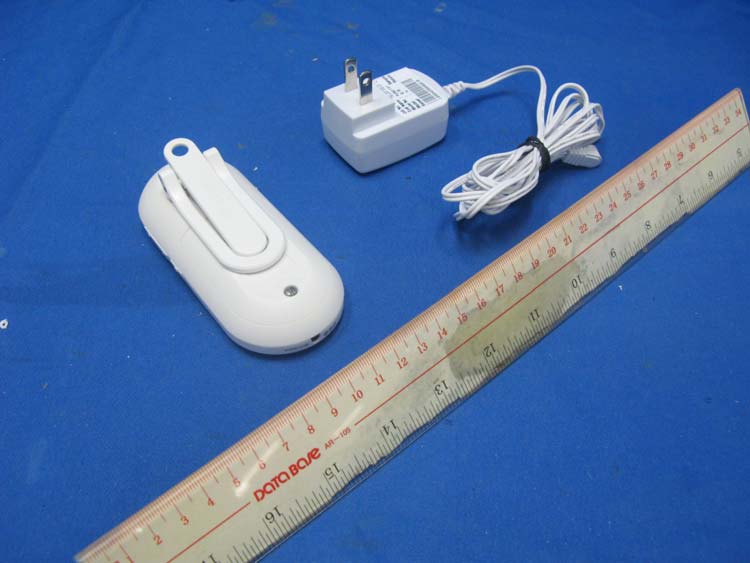

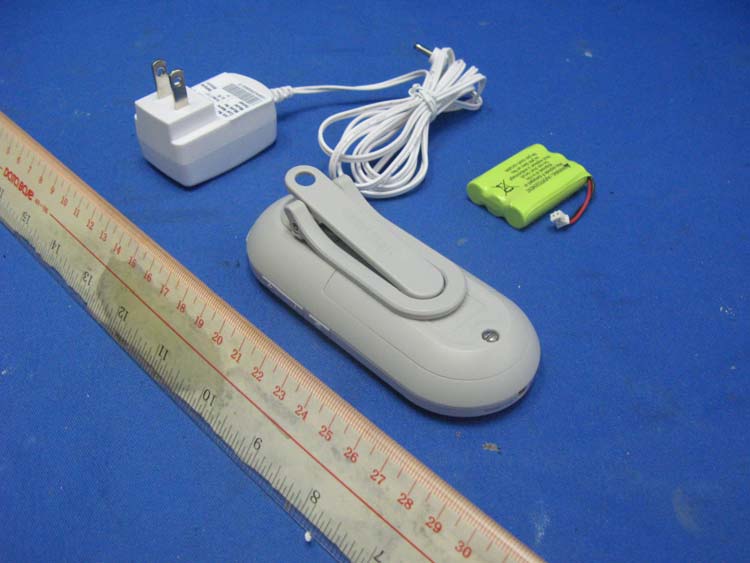

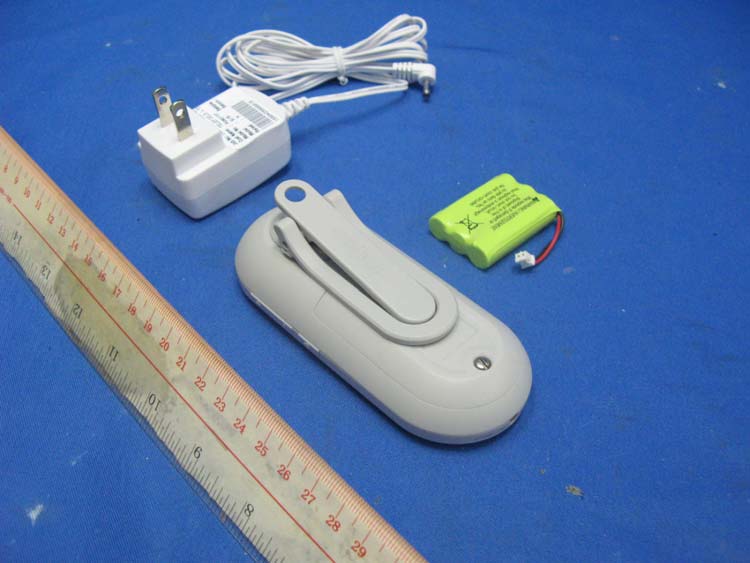

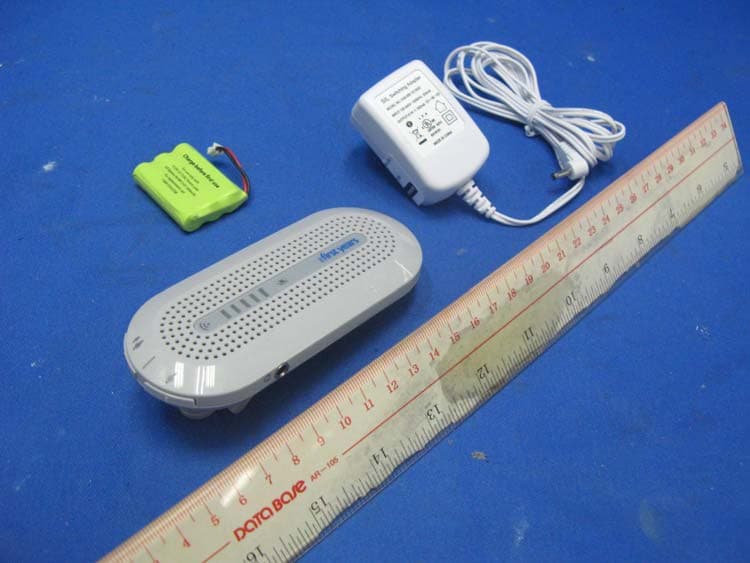

INTERTEK TESTING SERVICES External Photos – Model: Y7443P and Y7444P FCC ID: MZVTFY7446P IC: 6195A-TFY7446P external photos - 1 of 6 HK11090429 Job Number HK11090429 Job Number INTERTEK TESTING SERVICES External Photos – Model: Y7443P and Y7444P FCC ID: MZVTFY7446P IC: 6195A-TFY7446P external photos - 2 of 6 INTERTEK TESTING SERVICES External Photos – Model: Y7445P FCC ID: MZVTFY7446P IC: 6195A-TFY7446P external photos - 3 of 6 HK11090429 Job Number HK11090429 Job Number INTERTEK TESTING SERVICES External Photos – Model: Y7445P FCC ID: MZVTFY7446P IC: 6195A-TFY7446P external photos - 4 of 6 INTERTEK TESTING SERVICES External Photos – Model: Y7446P FCC ID: MZVTFY7446P IC: 6195A-TFY7446P external photos - 5 of 6 HK11090429 Job Number HK11090429 Job Number INTERTEK TESTING SERVICES External Photos – Model: Y7446P FCC ID: MZVTFY7446P IC: 6195A-TFY7446P external photos - 6 of 6
