N6MFR-1005 Band Communications Receiver

Maycom Co Ltd

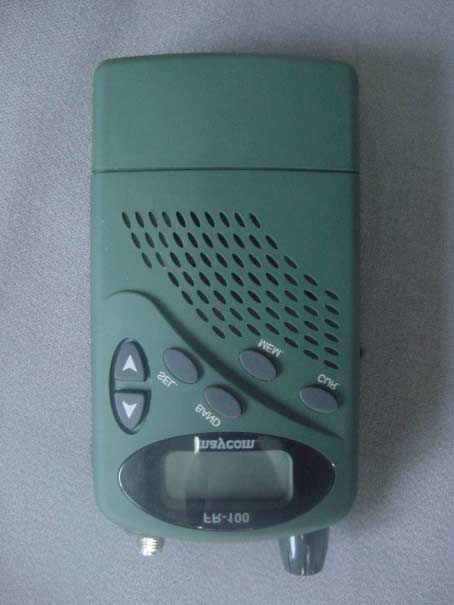

Click to zoom

Application Details

Equipment Class: CSR - Scanning Receiver
Date of Grant: May 10, 2001
Application Purpose: Original Equipment
Date of Application: May 10, 2001
Equipment Note: 5 Band Communications Receiver
Frequency Range: 420.00000000 - 470.00000000
Company: Maycom Co Ltd
Country: South Korea

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

FR-100 MINI HAND HELD TYPE 5 BANDS COMMUNICATIONS RECEIVER USER'S OPERATION MANUAL 3 CONTENTS PAGE ■ DESCRIPTION OF FEATURES ........................................................... 4 -DISPLAY PANEL FEATURES ............................................................. 4 -TOP PANEL FEATURES .................................................................... 5 -SIDE AND BACK PANEL FEATURES .................................................6 -FRONT PANEL FEATURES .............................................................. 7 ■ BATTERY PACK INSTRUCTION ....................................................... 13 ■ SPECIFICATION ................................................................................ 14 Caution : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 4 ● Display Panel Features 1. " " Indicates the narrow "FM" mode has been selected. 2. " " Indicates the “AM” mode has been selected. 3. " " Indicates the wide “FM” mode for broadcasting radio has been selected. 4. " " (Battery indicator) Indicates batteries are getting low. If the battery level is lower than the standard point, Battery Level Indicator will twinkle. 5. " " Indicates that memory mode has been activated 6. " " (A.b.c.d.E) Indicates the operating band 7. " " Memory channel indicator Displays the memory channel number (30 memories available per memory bank). 8. Channel (Frequency) indicator Displays Frequency Number. 9 " " S-RF (Signal strength indicator) The radio incorporates a ten segment incoming signal on the LCD. On receiving a signal, the meter will indicate how strong the signal is. A weak signal will be indicated by one or two segments, while a very strong signal will have 8 to 10 segments. ■ DESCRIPTION OF FEATURES 5 ● Top Panel Features 1. Power On/Off, Volume Turn the Volume switch clockwise to the turn power on and set desired volume. Turn the Volume button anti-clockwise to turn the power off. When the power is on, the lastly used frequency per mode and band is displayed on the LCD. 2. Antenna This antenna provides good receiver performance given its overall size. 3. Phone Jack Let the user listen to the conversation in privacy. Dust Cover : When Earphone is not being used, this prevents dirt and moisture from getting inside the radio. 6 ● Side and Back Panel Features 1. MO/SET (Monitor) 1) MO(Monitor) Press the "MO(Monitor)" button shortly in the receiving mode to open the squelch control. This is useful when a weak signal is to be monitored. Re-Activate : Press the MO button one more time. 2) SET To fix each selection. Press this button. 2. (Lamp) Press the " " button, the lamp will stay on for four seconds, after that It will turn off automatically. If you press another button on the front cabinet when the lamp is on, the lamp will stay on for four seconds from that time. If you press the " " button for more than one second, the beep will be Come and the lamp will stay on until you press the " " button once again. 3. Belt Clip Allows for ease of carrying while attached to user’s belt. 4. DC Jack Allows for using external DC Power supply. 7 ● Front Panel Features 1. ▲(Channel up) button Press the "▲" button to move to a higher frequency than is currently shown on the LCD. To access Up scanning process, press the "▲” button over two seconds. In the event that during the scanning processing, the radio stop for 3 seconds at a receiving frequency and re-starting the scanning processing unless you press any buttons. - If you want to stop scanning process, simply press any button - The scanning processing is available per band. 2. ▼(Channel Down) button Press the "▼" button to move to a lower frequency than is currently shown on the LCD. To access Down scanning process, press the " ▼” button over two seconds. In the event that during the scanning processing, the radio stop for 3 seconds at a receiving frequency and re-starting the scanning processing unless you press any buttons. - If you want to stop scanning process, simply press any button - The scanning processing is available per band. 3. SEL button 1) Select the mode To select the wanted mode, pressing “SEL” button. Each mode will be accessed with following turn. 8 2) Change of Frequency step FR-100 has 5KHz,8.33KHz(Air), 10KHz,12.5KHz, 20KHz, 25KHz, 50KHz,100KHz, 200KHz and 1MHz frequency step. To change the frequency step, press the “SEL” button longer than 2 seconds. With Up/Down button, you can select the frequency step which you want. To fix the frequency step, press the “MO/SET” button. If the “MO/SET” key will not be pressed over 4 seconds, current frequency step will be fixed automatically. Note : The changed frequency step is only available per related band 9 4. Band Button 10 FR-100 has five bands. A Band : 66 - 88 NFM(Narrow FM) 25KHz Step b Band : 88 - 108 WFM (Wide FM Broadcasting) 100KHz Step C Band : 108 - 136 AM 10KHz Step d Band : 136 - 174 NFM 20KHz Step E Band : 420 - 470 NFM 12.5KHz Step To select the wanted band, pressing “BAND” button. Each band will be accessed with following turn. When you press the “BAND” button, the last used frequency per band will be displayed on the LCD. 5. MEM button This FR-100 receiver contains a 30 memory locations for each band where desired frequencies can be programmed by the user. 1) Frequency Memory Programming of the desired frequencies memory can be carried out in the following ways. - Select the frequency which you want by using “SEL,BAND and 11 Frequency Up/Down” button” - Press “MEM” button longer than 2 seconds - The LCD will show the empty memory channel location - Select the memory location where you wish to store the selected frequency by pressing "▲ or ▼" buttons till the Memory Channel Indicator shows that location. - Press the “SET” button. Note : 1. If the “MO/SET” key will not be pressed over 4 seconds, current frequency will be stored au…

Text truncated - open the document above for the full version.

Attestation Statements

Page 8 of 16 FCC ID : N6MFR-100 File No. : E014R-044 This report shall not be reproduced except in full without our written approval. EMC-004 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-121, Korea (TEL: 82-31-746-8500 FAX: 82-31-746-8700 ) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Myun, Kwangju-Kun, Kyunggi-Do 464-860 Korea. (TEL: 82-31-765-8289 FAX: 82- 31-766-2904) ONETECH Testing & Evaluation Lab. 4. 4. REFERENCED RULES SECTIONS AND TEST PROCEDURE 4.1 Section 15.121(a): Receivers can not altered or tunning by the user for the ability to receive transmissions in the cellular telephone bands (824~849 MHz and 869~894 MHz), because the specification of the EUT CAN NOT SUPPORT tunning for above frequency band. According to the specification of the EUT, the EUT can not access and analyze the cellular telephone band and cannot be re-enabled by any user-accessible procedure, including diode, resistor or jumper changes, nor by connection of any external device such as a personal computer, nor by installation of any special enabling semiconductor device. Also, the receiver cannot capable of converting digital cellular transmissions to analog voice audio. 4.2 Section 15.121(b): Cellular Image and Spurious Rejection in Scanning Receiver The 12 dB SINAD measurement method in the cellular telephone band used for frequencies that the receiver tunes and the signal rejection ratio gained by the measurement. 4.3 Line Conducted Test: EUT was connected to LISN, all supporting equipment were connected to another LISN. Preliminary Power line Conducted Emission test was performed by using the procedure in ANSI C63.4/1992 7.2.3 to determine the worse operating conditions. 4.4 Radiated Emission Test: Preliminary radiated emission test were conducted using the procedure in ANSI C63.4/1992 8.3.1.1 to determine the worse operating conditions. Final radiated emission test were conducted at 3meter open area test site.
