N7P-HRS02Dual Mode Chest Strap BLE+5kHz Standard Soft Case

Salutron Inc.

Click to zoom

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: Aug 29, 2012
Application Purpose: Original Equipment
Date of Application: Aug 29, 2012
Equipment Note: Dual Mode Chest Strap BLE+5kHz Standard Soft Case
Frequency Range: 2402.00000000 - 2480.00000000
Company: Salutron Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

USER MANUAL Combo Heart Rate Strap Bluetooth® Smart & 5 kHz Transmission Your Combo Heart Rate Strap offers a comfortable fit and wireless connectivity to receiving devices like cardio equipment and smartphones. The Bluetooth® Smart transmission technology connects with smartphones and other Bluetooth Smart Ready (Bluetooth 4.0) devices. Your heart rate will be transmitted directly from the strap to the phone when the Combo HR Strap is worn. The Combo HR Strap also transmits heart rate data using the standard 5 kHz signal that is compatible with most cardio equipment. The 5 kHz heart rate signal is also transmitted when the strap is worn. 1 Combo Heart Rate Strap Strap Adjustment ElectrodeElectrode FRONT BACK Transmitter Combo HR Strap Components 1. The electrode sensors read your heart rate signal. 2. The heart rate transmitter sends your heart rate signal to the receiving device. 2 ElectrodeElectrode BACK FRONT Wearing Your Combo HR Strap 1. Connect the transmitter to the strap. 2. Moisten the electrode sensors with water. 3 Wearing Your Heart Rate Strap 3. Unhook and secure the strap around your chest just below your chest muscles. 4. Adjust the strap for a snug yet comfortable fit. 5. Make sure the electrode sensors are firmly against your skin and the logo on the transmitter is facing out and upright. FRONT logo facing out and upright 4 Pairing Your Combo HR Strap Your Combo HR Strap will work with compatible watches and cardio equipment using 5 kHz transmission. No pairing is required for 5 kHz transmissions. Your Combo HR Strap is also compatible with Bluetooth Smart Ready (Bluetooth 4.0) receiving devices such as a smartphone with a Bluetooth Smart compatible app installed. If using a receiving device such as a smartphone, you will need to pair it with your Combo HR Strap upon first use. Please refer to your app or phone manual for instructions on how to operate its Bluetooth capabilities. 5 Care & Maintenance Transmitter: After each use, remove the transmitter from the strap and towel dry. Clean with mild soap and water whenever needed. Do not use alcohol or abrasive material to clean. Strap: After each use, rinse with water and hang dry. Clean with mild soap and water whenever needed. Do not iron or dry clean the strap. Do not bend the electrode sensors sharply. Do not use a washing machine or dryer to clean your transmitter or strap. Do not store when the electrode sensors are wet. If wet, the Combo HR Strap can be activated and lead to shorter battery life. ! ! ! 6 Replacing the Battery 1. On the back side of the transmitter, insert a coin into the slot of the battery cover and turn counterclockwise to open. 2. Insert a new battery with the positive (+) side facing up against the battery cover. Make sure the rubber seal ring is in place to ensure water resistance. 3. Relace the battery cover and use the coin to turn it clockwise to close. Your Combo HR Strap uses one (1) standard lithium battery: CR2032 7 Water Resistant Your Combo HR Strap is water resistant. However, heart rate readings will not be read if submerged in water (e.g., swimming). Specifications Water resistance: 1 ATM Operating temperature: 23°F - 122°F (-5°C - 50°C) Radio frequency: 2.4 GHz BLE/Bluetooth smart protocol Wireless compatibility: 5 kHz transmission; Bluetooth Smart Ready (Bluetooth 4.0) smartphones 8 Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment IC: This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe Best conforme à la norme NMB-003 du Canada. 9 This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. DECLARATION DE CONFORMITE D’INDUSTRIE CANADA Ce périphérique a été testé et reconnu conforme auxlimites spécifiées dans RSS-210. Son utilisation est soumise aux deux conditions suivantes: (1) il ne doit pas provoquer d’interférences gênantes et (2) il doit tolérer les interférences re.ues, notamment cellessusceptibles d’en perturber le fonctionnement. 10

Cover Letter(s)

Model Difference Dual Mode Chest Strap BLE+5kHz Standard Soft Case Model OEM Brand SALCS041 Salutron LFFCS037 LifeFitness MMFCS042 MapMyFitness SALCS026 Salutron Note:All model is same just OEM different,identical HW/SW . City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Shenzhen 2012/8/13 TC YEN VP Engineering

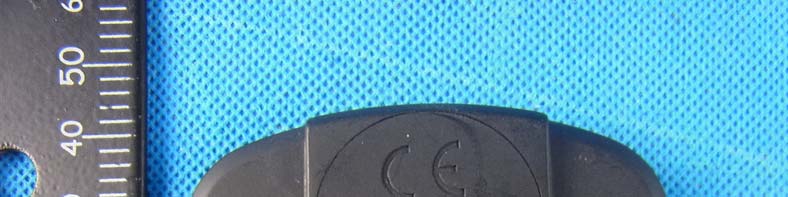

External Photos

APPENDIX-Photographs of EUT Constructional Details

ID Label/Location Info

PROJECT NAME : MT867M14 DATE : Aug.13.2012 Rev.1 DESIGNER: 3ATM Battery CR2032 ËÚË≥≥ ÔÔÚÏ≥≥ MODULE/MOVE: FL802B+ FL795BA SOFT CHEST STRAP BLE+5kHz Uncoded Fabric Chest Strap FL795BA: BLE Module Removal Closure Finish: Polish Upper Case Finish: Matte Lower Case Finish: Matte Adjustment Closure Finish: Polish Snap Button Finish: Sandblast Elastic Band Material: Woven Fiber Adjustment Closure M aterial: Stainless Steel Color: IP Black Removal Closure Material: Stainless Steel Color: IP Black Soft Strap: HRMSS01 CP # 199022 Upper Case Material: ABS Color:Black Printing Logo in white color. “B” and “Smart” in PMS Blue 286C Lower Case Material: ABS Color:Black Battery Hatch WE EE LOGO (Laser) FCC ID: N7P-HRS02 (Laser) IC : 10274A-HRS02 (Laser) ID : 7CFE:28:XXXXXX(Laser) SALCS041(Laser) 0700(Laser) Salutron Õfl‘›ÕÏÔ ◊‹Ê È›⁄¤ÊÓËÊ»»»»»» È M/N: M/N: FCC ID: N7P-HRS02 IC: 10274A-HRS02 PROJECT NAME : MT867M14 DATE : Aug.13.2012 Rev.1 DESIGNER: 3ATM Battery CR2032 ËÚË≥≥ ÔÔÚÏ≥≥ MODULE/MOVE: FL802B+ FL795BA SOFT CHEST STRAP BLE+5kHz Uncoded Fabric Chest Strap FL795BA: BLE Module Removal Closure Finish: Polish Upper Case Finish: Matte Lower Case Finish: Matte Adjustment Closure Finish: Polish Snap Button Finish: Sandblast Elastic Band Material: Woven Fiber Adjustment Closure Mat erial: Stainless Steel Color: IP Black Removal Closure Material: Stainless Steel Color: IP Black Soft Strap: HRMSS01 CP # 199022 Upper Case Material: ABS Color:Black Printing Logo in white color. “B” a nd “Smart” in PMS Blue 286C Lower Case Material: ABS Color:Black Battery Hatch WEEE LOGO (Laser) FCC ID: N7P-HRS02 (Laser) IC: 10274A-HRS02 (Laser) ID: 7CFE:28:XXXXXX(Laser) 0700(Laser) Salutron È M/N: LFFCS037(Laser) M/N:LFFCS037 ID: 7CFE:28:XXXXXX FCC ID: N7P-HRS02 IC: 10274A-HRS02 PROJECT NAME : MT867M14 DATE : Aug.13.2012 Rev.1 DESIGNER: 3ATM Battery CR2032 ËÚË≥≥ ÔÔÚÏ≥≥ MODULE/MOVE: FL802B+ FL795BA SOFT CHEST STRAP BLE+5kHz Uncoded Fabric Chest Strap FL795BA: BLE Module Removal Closure Finish: Polish Upper Case Finish: Matte Lower Case Finish: Matte Adjustment Closure Finish: Polish Snap Button Finish: Sandblast Elastic Band Material: Woven Fiber Adjustment Closure Mate rial: Stainless Steel Color: IP Black Removal Closure Material: Stainless Steel Color: IP Black Soft Strap: HRMSS01 CP # 199022 Upper Case Material: ABS Color:Black Printing Logo in white color. “B” and “S mart” in PMS Blue 286C Lower Case Material: ABS Color:Black Battery Hatch WEEE LOGO (Laser) FCC ID: N 7P-HRS02 (Laser) IC: 10274A-HRS02 (Laser) ID: 7CFE:28:XXXXXX(Laser) 0700(Laser) Salutron È M/N: MMFCS042(Laser) M/N:MMFCS042 ID: 7CFE:28:XXXXXX FCC ID: N7P-HRS02 IC: 10274A-HRS02 PROJECT NAME : MT867M14 DATE : Aug.13.2012 Rev.1 DESIGNER: 3ATM Battery CR2032 ËÚË≥≥ ÔÔÚÏ≥≥ MODULE/MOVE: FL802B+ FL795BA SOFT CHEST STRAP BLE+5kHz Uncoded Fabric Chest Strap FL795BA: BLE Module Removal Closure Finish: Polish Upper Case Finish: Matte Lower Case Finish: Matte Adjustment Closure Finish: Polish Snap Button Finish: Sandblast Elastic Band Material: Woven Fiber Adjustment Closure Ma terial: Stainless Steel Color: IP Black Removal Closure Material: Stainless Steel Color: IP Black Soft Strap: HRMSS01 CP # 199022 Upper Case Material: ABS Color:Black Printing Logo in white color. “B” and “Smart” in PMS Blue 286C Lower Case Material: ABS Color:Black Battery Hatch WEEE LOGO (Laser) FCC ID: N7P-HRS02 (Laser) IC: 10274A-HRS02 (Laser) ID: 7CFE:28:XXXXXX(Laser) 0700(Laser) Salutron È M/N: SALCS026(Laser) M/N:SALCS026 ID: 7CFE:28:XXXXXX FCC ID: N7P-HRS02 IC: 10274A-HRS02

ID Label/Location Info

Test Report

FCC&IC RADIO TEST REPORT FCC ID: N7P-HRS02 IC ID: 10274A-HRS02 Product： Dual Mode Chest Strap BLE+5kHz Standard Soft Case Trade Name： Salutron, LifeFitness, MapMyFitness Model Name： SALCS041 Serial Model： LFFCS037 , MMFCS042 , SALCS026 ReportNo.： NTEK- 2012DG00823080F Prepared for Salutron,Inc. 40979 Encyclopedia Circle, Fremont, California,United States Prepared by NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 50 Report No.: NTEK- 2012DG00823080F TEST RESULT CERTIFICATION Applicant’s name ................. : Salutron,Inc. Address ................................. : 40979 Encyclopedia Circle, Fremont, California,United States Manufacture's Name ............ : Fairlegend Electronics, Ltd. Address ................................. : Shang Cun, Yuan Shan Industrial Zone B, Gongming, Guangming New District, Shenzhen Product description Product name ........................... : Dual Mode Chest Strap BLE+5kHz Standard Soft Case Model and/or type reference : SALCS041 Serial Model： LFFCS037 , MMFCS042 , SALCS026 Standards ............................. : FCC Part15.247, RSS-210 Issue 8 Test procedure ............................... : ANSI C63.4-2003, RSS-Gen Issue 3 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test ............................................ : Date (s) of performance of tests ............. : 15 Aug. 2012 ~21 Aug. 2012 Date of Issue ........................................... : 22 Aug. 2012 Test Result ............................................... : Pass Testing Engineer : (Apple Huang) Technical Manager : (Tom Zhang) Authorized Signatory : (Bovey Yang) Page 3 of 50 Report No.: NTEK- 2012DG00823080F Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 8 2.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 8 2.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 9 2.5 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 10 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 11 3 . EMC EMISSION TEST 12 3.1 CONDUCTED EMISSION MEASUREMENT 12 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 12 3.1.2 TEST PROCEDURE 13 3.1.3 DEVIATION FROM TEST STANDARD 13 3.1.4 TEST SETUP 13 3.1.5 EUT OPERATING CONDITIONS 13 3.1.6 TEST RESULTS 14 3.2 RADIATED EMISSION MEASUREMENT 15 3.2.1 RADIATED EMISSION LIMITS 15 3.2.2 TEST PROCEDURE 16 3.2.3 DEVIATION FROM TEST STANDARD 16 3.2.4 TEST SETUP 17 3.2.5 EUT OPERATING CONDITIONS 18 3.2.6 TEST RESULTS (BELOW 30 MHZ) 19 3.2.7 TEST RESULTS (BETWEEN 30M – 1000 MHZ) 20 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 24 3.2.9 TEST RESULTS (RESTRICTED BANDS REQUIREMENTS) 32 4 . NUMBER OF HOPPING CHANNEL 36 4.1 APPLIED PROCEDURES / LIMIT 36 4.1.1 TEST PROCEDURE 36 4.1.2 DEVIATION FROM STANDARD 36 4.1.3 TEST SETUP 36 4.1.4 EUT OPERATION CONDITIONS 36 4.1.5 TEST RESULTS 37 5 . AVERAGE TIME OF OCCUPANCY 38 Page 4 of 50 Report No.: NTEK- 2012DG00823080F Table of Contents Page 5.1 APPLIED PROCEDURES / LIMIT 38 5.1.1 TEST PROCEDURE 38 5.1.2 DEVIATION FROM STANDARD 38 5.1.3 TEST SETUP 38 5.1.4 EUT OPERATION CONDITIONS 38 5.1.5 TEST RESULTS 39 6 . HOPPING CHANNEL SEPARATION MEASUREMENT 40 6.1 APPLIED PROCEDURES / LIMIT 40 6.1.1 TEST PROCEDURE 40 6.1.2 DEVIATION FROM STANDARD 40 6.1.3 TEST SETUP 40 6.1.4 EUT OPERATION CONDITIONS 40 6.1.5 TEST RESULTS 41 7 . BANDWIDTH TEST 43 7.1 APPLIED PROCEDURES / LIMIT 43 7.1.1 TEST PROCEDURE 43 7.1.2 DEVIATION FROM STANDARD 43 7.1.3 TEST SETUP 43 7.1.4 EUT OPERATION CONDITIONS 43 7.1.5 TEST RESULTS 44 8 . PEAK OUTPUT POWER TEST 46 8.1 APPLIED PROCEDURES / LIMIT 46 8.1.1 TEST PROCEDURE 46 8.1.2 DEVIATION FROM STANDARD 46 8.1.3 TEST SETUP 46 8.1.4 EUT OPERATION CONDITIONS 46 8.1.5 TEST RESULTS 47 9 . ANTENNA REQUIREMENT 49 9.1 STANDARD REQUIREMENT 49 9.2 EUT ANTENNA 49 10 . EUT TEST PHOTO 50 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 50 Report No.: NTEK- 2012DG00823080F 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C & RSS-210 Issue 8 Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(a)(1) Hopping Channel Separation PASS 15.247(b)(1) Peak Output Power PASS 15.247(c) Radiated Spurious Emission PASS 15.247(a)(iii) Number of Hopping Frequency PASS 15.247(a)(iii) Dwell Time PASS 15.247(a)(1) Bandwidth PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 50 Report No.: NTEK- 2012DG00823080F 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registered No.: 238937 IC Registered No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 50 Report No.: NTEK- 2012DG00823080F 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Dual Mode Chest Strap BLE+5kHz Standard Soft Case Trade Name Salutron, LifeFitnes…

Text truncated - open the document above for the full version.

Test Setup Photos

Page 50 of 50 Report No.: NTEK- 2012DG00823080F 10. EUT TEST PHOTO Radiated Measurement Photos
