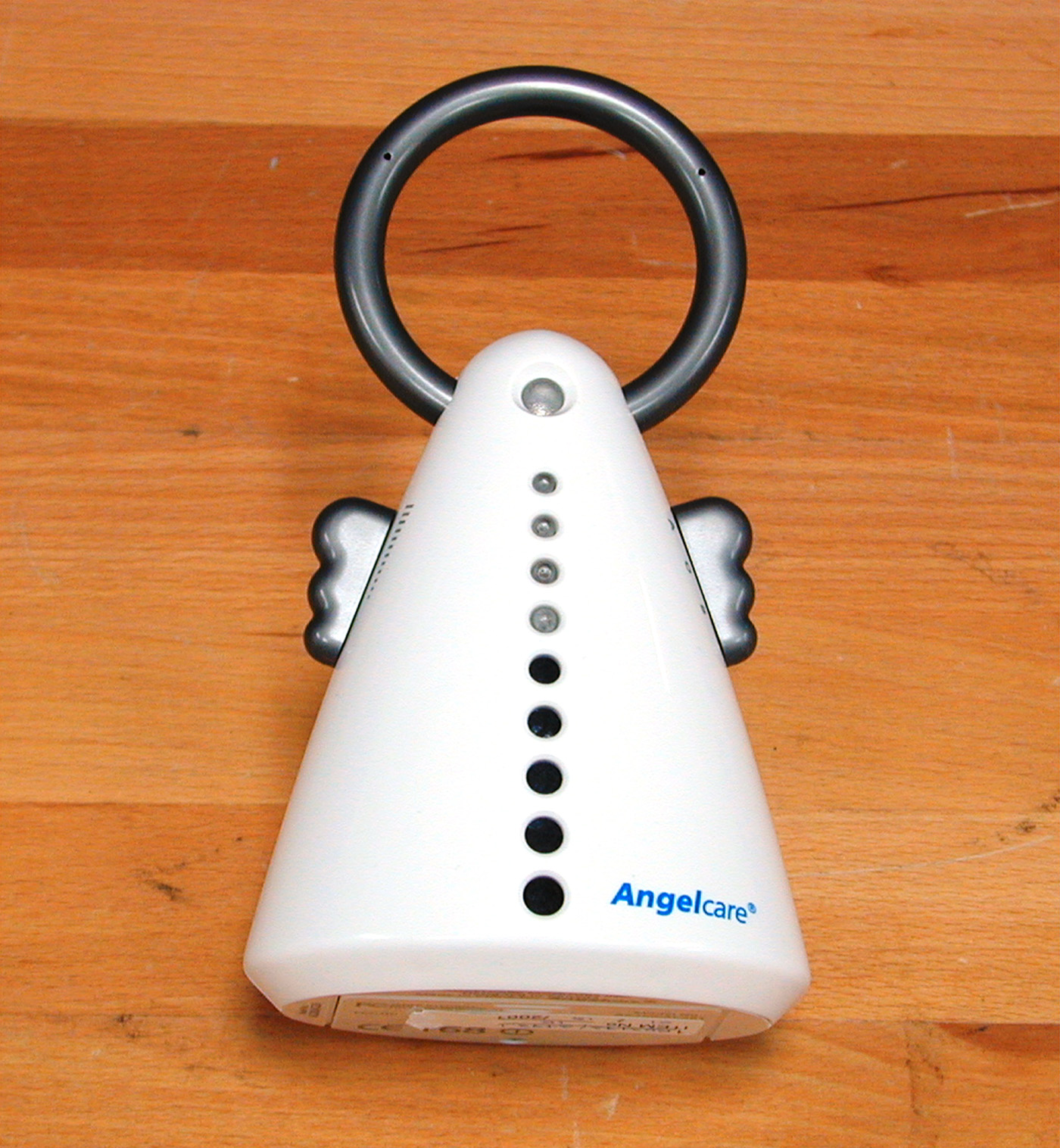

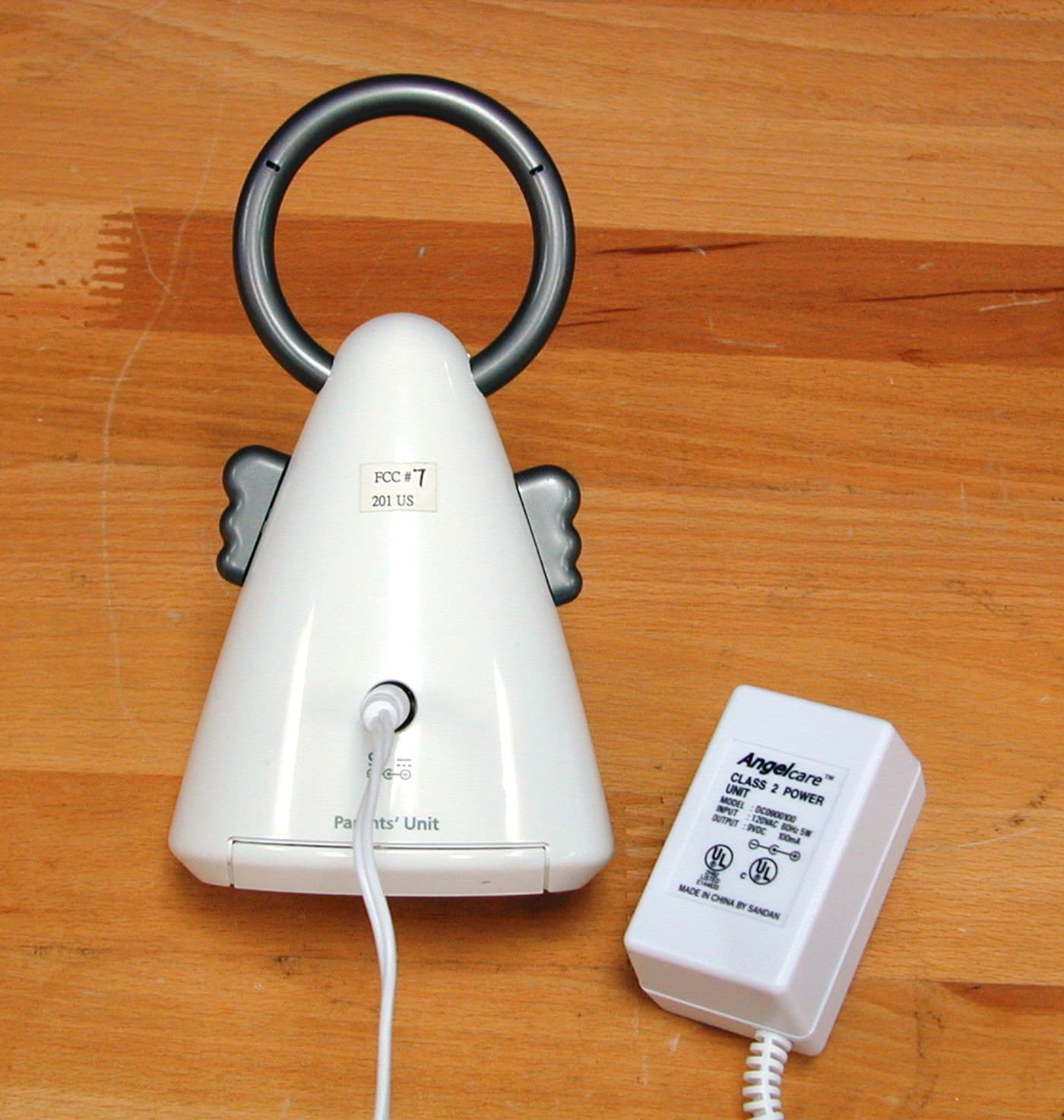

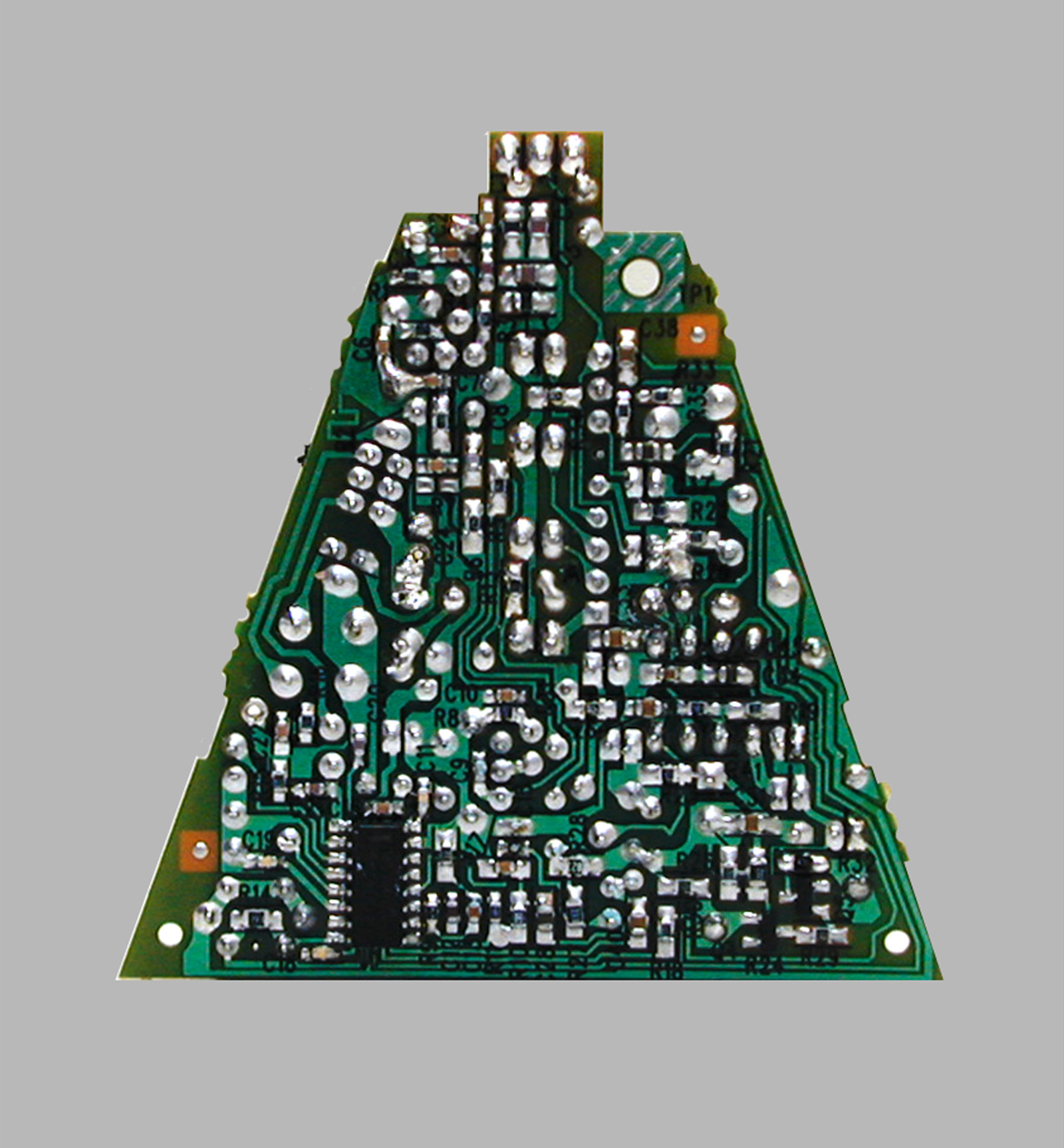

N7TAC201RXAC200, AC200R, AC201 & AC201R PARENT UNITS

® Movement & Sound Monitor Movement & Sound Monitor (Rechargeable) Moniteur de mouvements et sons Moniteur de mouvements et sons (Rechargeable) Intercomunicador de sonidos y movimientos Intercomunicador de sonidos y movimientos (Recargable) Geräusch– und Bewegungsmelder Geräusch– und Bewegungsmelder (Wiederaufladbarer) Vigilante de Movimento e Som Vigilante de Movimento e Som (Recarregável) Babyfoon & Bewegingsmonitor Babyfoon & Bewegingsmonitor (Oplaadbare) Bevegelses- og lydvarsler for barneværelset Bevegelses- og lydvarsler for barneværelset (Oppladbar) Rörelse- och ljudmonitor för barnkammaren Rörelse- och ljudmonitor för barnkammaren (Laddningsbar) Lyd- og bevægelsesmonitor Lyd- og bevægelsesmonitor (Opladelig ) Vauvan itkuhälytin ja liikemonitori Vauvan itkuhälytin ja liikemonitori (Ladattava) AC201 AC201-R 2 TABLE OF CONTENTS Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 5 Easy Steps to Operate Your Angelcare ® Monitor . . . . . . . . . . .4 Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Testing Your Angelcare ® Monitor . . . . . . . . . . . . . . . . . . . . . . . .5 Operating tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Distributors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43 TABLE DES MATIÈRES Garantie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 5 étapes faciles à suivre pour utiliser votre moniteur Angelcare ® .8 Mises en garde . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 Vérification de votre moniteur Angelcare ® . . . . . . . . . . . . . . . . .9 Conseils pratiques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 Diagnostic des pannes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Distributeurs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43 ÍNDICE Garantía . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 5 pasos sencillos para usar el Intercomunicador Angelcare ® . .12 Advertencias . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Instrucciones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Prueba de funcionamiento del Intercomunicador Angelcare ® . .13 Recomendaciones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Solución de problemas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Distribuidores . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43 INHALT Garantie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 5 einfache Schritte zur Benutzung Ihres Angelcare ® Geräusch- und Bewegungsmelders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Sicherheitshinweise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Gebrauchsanweisung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Testen des Angelcare ® -Geräusch- und Bewegungsmelders . . .17 Tipps zum Betreib des Angelcare ® -Geräusch- und Bewegungsmelders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Problemlösungen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 Vertreiber . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43 ÍNDICE Garantia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 5 Passos fáceis para utilizar o seu Vigilante Angelcare ® . . . . . .20 Conselhos de segurança . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 Instruções . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 Teste ao seu Vigilante Angelcare ® . . . . . . . . . . . . . . . . . . . . . . .21 Conselhos de utilização . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 Detecção e reparação de problemas . . . . . . . . . . . . . . . . . . . . .22 Informações sobre o vendedor . . . . . . . . . . . . . . . . . . . . . . . .43 INHOUDSOPGAVE Garantie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 Leer uw Angelcare ® monitor gebruiken in 5 eenvoudige stappen .24 Veiligheidswaarschuwingen . . . . . . . . . . . . . . . . . . . . . . . . . . .25 Instructies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 Testen van de Angelcare ® Babyfoon en Bewegingsmonitor . . . .25 Tips voor het gebruik . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 Problemen & oplossingen . . . . . . . . . . . . . . . . . . . . . . . . . . . .26 Importeurs/distributeurs . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43 INNHOLDSFORTEGNELSE Garanti . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 5 enkle trinn for bruk av ditt Angelcare ® varselapparat . . . . . . . . . . .28 Sikkerhetsadvarsler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29 Instruksjoner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29 Testing av ditt Angelcare ® varselapparat . . . . . . . . . . . . . . . . . .29 Brukstips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29 Problemløsning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 Forhandlere . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43 INNEHÅLLSFÖRTECKNING Garanti . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31 5 enkla steg till användning av din Angelcare ® monito…

Text truncated - open the document above for the full version.

January 22, 2001 Mr. Russel Grant KTL OTTAWA INC. 3325 River Road Ottawa, Ontario K1V 1H2 Dear Sir: RE:Description of Technical Differences between Variants of AC200 series monitors. Further to our telephone conversation of last week, please find below differences between the AC200 monitors. Rechargeable models (model numbers ending 'R' AC200R & AC201R). The 'R' versions have rechargeable batteries fitted in the parent unit and the parents unit will recharge these batteries when powered from the AC adaptor. The only difference between these models and the non 'R' version is the addition of the battery charging resistor in the Parent unit (receiver) Differences between Sound Only (AC200) and Sound & Movement (AC201) The AC200 is a basic nursery sound monitor (one way intercom). The AC201 has the addition of a movement monitor which has a socket for a sensor pad which detects motion from the infant being monitored. The monitor will alarm if there has been no motion from the sensor pad for 20 seconds. .../2 Mr. Russel Grant January 22, 2001 Page 2 The parent units (receivers) are identical. The nursery units use identical PCB's and have an identical transmitter circuit. The sound only version has the movement sensor circuit omitted, this part of the circuit is highlighted with a dark border on the circuit diagram and labelled Sensor sub assembly. All the components omitted have part references prefixed 'S'. An additional circuit is included in the AC200 version to control the voice activation of the transmitter (Highlighted in a box and labelled AC200 on the circuit diagram). This voice activation circuit performs the switching function which is normally controlled by SU2 microcontroller which has been omitted in this version. All the components in this voice control circuit are prefixed 'M'. Further minor changes are the replacement of the tri-colour LED (SLED1) which indicates movement and alarm on the AC201 with a single green power on LED for the AC200 version. With reference to the circuit diagram all components prefixed 'B' are common to AC200 and 201. Components with references prefixed 'M' are for the AC200 only. Components with references prefixed 'S' are for AC200 only. We trust the present will be found satisfactory and remain, Yours truly Sylvie Charette Manager Administration and Finances /sc

550, chemin du Golf, Suite 202, Nuns Island (Québec) Canada H3E 1A8 Tel. (514) 761-0511 – Fax (514) 761- 4618 E-mail : [email protected] January 19, 2001 FCC Re : change of address TO WHOM IT MAY CONCERN: Dear Madam/Sir: Please be informed that our company name and address have changed as follows: OLD NAME AND ADDRES: Ange l & Company C.P. 879 Knowlton, Quebec J0E 1V0 NEW NAME AND ADDRESS Angelcare Monitors Inc. 550, chemin du Golf, suite 202 Nuns Island, Québec, Canda, H3E 1A8 Contact : Sylvie Charette, Manager, Administration & Finance Tel. : (514) 761-0511Fax (514) 761-4618 E-mail : [email protected] Please do not hesitate to contact us should you require further information. Regards, Sylvie Charette Manager Administration & Finance

Master: ktlPT15BR Date: April 6, 2000 KTL Test Report:1R03473 Applicant:Angelcare Monitors Inc. 550 Chemin Du Golf Suite 200 Nuns Island, Quebec H3E 1A8 Equipment Under Test:AC200, AC200R, AC201 & AC201R (E.U.T.) FCC ID:N7TAC201RX In Accordance With:FCC Part 15, Subpart B Radio Receivers Tested By:KTL Ottawa Inc. 3325 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: G. Westwell, Technologist Date: Total Number of Pages:15 KTL Ottawa FCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 1R03473 EQUIPMENT: AC200, AC200R, AC201 & AC201R FCC ID: N7TAC201RX Page 2 of 15 Table Of Contents Section 1. Summary of Test Results.......................................................................................... 3 Section 2. General Equipment Specification ........................................................................... 5 Section 3. Radiated Emissions...................................................................................................6 Section 4. Powerline Conducted Emissions............................................................................. 9 Section 5. Block Diagrams.......................................................................................................13 Section 6. Test Equipment List ............................................................................................... 15 KTL Ottawa FCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 1R03473 EQUIPMENT: AC200, AC200R, AC201 & AC201R FCC ID: N7TAC201RX Page 3 of 15 Section 1.Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 15, Subpart B. Measurement procedure ANSI C63.4-1992 was used for all tests. Radiated Emissions were measured on an open area test site. New SubmissionProduction Unit Class II Permissive ChangePre-Production Unit CYY Equipment Code THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP LAB CODE: 100351-0 TESTED BY: _____________________________________ DATE: ___________________ Russell Grant, Wireless Group Manager KTL Ottawa Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. KTL Ottawa Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. KTL Ottawa FCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 1R03473 EQUIPMENT: AC200, AC200R, AC201 & AC201R FCC ID: N7TAC201RX Page 4 of 15 Summary Of Test Data Name Of TestPara. No.Results Antenna Conducted Emissions15.111Not Applicable Radiated Emissions15.109Complies Powerline Conducted Emissions15.107Complies KTL Ottawa FCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 1R03473 EQUIPMENT: AC200, AC200R, AC201 & AC201R FCC ID: N7TAC201RX Page 5 of 15 Section 2.General Equipment Specification Manufacturer: Angelcare Monitors Inc. Date Received In Laboratory: January 16, 2001 KTL Identification No.: Items # 7, 7 & 10 Frequency Range: 49.83 – 49.89MHz Operating Frequency(ies) of Sample: 49.83, 49.89MHz Primary Power: 120 VAC/Batteries Model No.: AC200 – Sound Only AC200R – Sound Only And Rechargeable Batteries AC201 – Sound And Motion AC201R – Sound And Motion And Rechargeable Batteries All models used identical receiver circuits. Tests were conducted on Model AC201. KTL Ottawa FCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 1R03473 EQUIPMENT: AC200, AC200R, AC201 & AC201R FCC ID: N7TAC201RX Page 6 of 15 Section 3.Radiated Emissions Para. No.: 15.109(a) Test Performed By: Russell Grant Date of Test: January 17, 2001 Minimum Standard: Frequency(MHz)Field Strength (dB μ μμ μ V/m @ 3m) 30 - 8840.0 88 - 21643.5 216 - 96046.0 Above 96054.0 Test Results: Complies. The worst-case emission level is 23.7 dBμV/m @ 3m at 49.375 MHz. This is 16.3 dB below the specification limit. Measurement Data: See attached table. For super-regenerative receivers the receiver is cohered using a signal generator and dipole antenna. Handheld equipment and equipment not designed to be mounted in any fixed orientation, the E.U.T. is tested in three orthogonal axis to obtain worst case results. KTL Ottawa FCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 1R03473 EQUIPMENT: AC200, AC200R, AC201 & AC201R FCC ID: N7TAC201RX Page 7 of 15 Test Data - Radiated Emissions Test Distance (meters) : 3 Range : A Towe r Re ce ive r: ESVP RBW(kHz ): 120 Detector: Peak Fre q. (M Hz) Ant. * Pol. (V/H) RCVD Signal (dB μ μμ μ V/m) Ant. Factor (dB)** Amp. Gain (dB)*** Dist. Corr. (dB) Fie ld Strength (dB μ μμ μ V/m) Limit (dB μ μμ μ V/m) Margin (dB) 49.375B/C1V12.511.223.740.016.3 49.375B/C1H-6.211.25.040.035.0 98.75B/C1V-4.19.65.543.538.0 98.75B/C1H-15.09.6-5.443.548.9 Note s: B/C =Biconical, B/L = Biconilog, L/P = Log-Periodic, H = Horn, D/P = Dipole *Re-Measured Using Dipole Antenna. ( ) Denotes Failing Emission Level. (1) 120 kHz, Q-Peak, (2) 10 kHz, Peak, (3) 100 kHz RGW, 300 kHz VBW, Peak, (4) 300 kHz RBW, 1 MHz VBW, Peak, (5) 1 MHz RBW, 3 MHz VBW, Peak, (6) 1 MHz RBW, 10 Hz VBW, Peak N.D. = Not Detected KTL Ottawa FCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 1R03473 EQUIPMENT: AC200, AC200R, AC201 & AC201R FCC ID: N7TAC201RX Page 8 of 15 Radiated Photographs Front View Model AC201 KTL Ottawa FCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 1R03473 EQUIPMENT: AC200, AC200R, AC201 & AC201R FCC ID: N7TAC201RX Page 9 of 15 Section 4.Powerline Conducted Emissions Para. No.: 15.107 Test Performed By: Russell Grant Date of Test: January 17, 2001 Minimum Standard: The RF energy feed back in…

Text truncated - open the document above for the full version.
