N7TAC701T1.9GHz DECT Baby Monitor - Baby Unit

OWNER’S MANUAL TOUCHSCREEN MOVEMENT & SOUND MONITOR Model AC701 FOR YOUR PEACE OF MIND ES 55 FR 27 EN 2 TOUCHSHSCREEENNMOOVEVMEMENNT & SOUND MONITOR Model AC701 Pre-programmed to monitor sound and movement. Sensor Pad will alarm if no movement is detected. 01mf5_manuel_NA_AC701_12002.indd 12013-12-19 1:35 PM TABLE OF CONTENT OWNER’S MANUAL KEEP YOUR OWNER’S MANUAL FOR FUTURE REFERENCE. PLEASE READ THE WARNINGS AND INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING & USING THE PRODUCT. FAILURE TO FOLLOW THE WARNINGS AND THE INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH OR DAMAGES TO THE PRODUCT. THE SENSOR PAD FEATURE IS NOT FOR USE WITH ADULTS, CHILDREN OR INFANTS OLDER THAN 24 MONTHS. THE SENSOR PAD IS NOT INTENDED TO BE USED TO DETERMINE IF A CHILD IS OUT OF THE CRIB. WARNING Adult assembly required. Keep small parts away from children when assembling. We, at Angelcare ® , stand behind all of our products. If you are not completely satisfied or have any questions, United States and Canada: please contact us at: [email protected] Other countries: please contact your local Distributor. WARNINGS .................................................................................. 3 AC701 SETUP REQUIREMENTS .................................................... 7 STEP 1 - Charging the parent unit (15 hours) ........................... 8 STEP 2 - Installing the sensor pad .............................................. 9 STEP 3 - Setting up the nursery unit ......................................... 12 STEP 4 - Turning on your monitor ..............................................13 STEP 5 - Testing and getting to know your monitor ............14 STEP 6 - To activate and deactivate additional functions ........................................................................18 Troubleshooting ............................................................................... 23 Limited warranty .............................................................................. 25 Technical specifications .................................................................26 FRANÇAIS .......................................................................................... 27 ESPAÑOL ............................................................................................55 2 01mf5_manuel_NA_AC701_12002.indd 22013-12-19 1:35 PM WARNINGS 1. THIS PRODUCT CANNOT REPLACE RESPONSIBLE ADULT SUPERVISION. This p ro d u c t i s d e s i g n e d to a i d i n t h e m o n i to r i n g of your child . When using the monitor, you must still provide the supervision necessary for the continued safety of your child. Monitoring of premature babies, or those considered to be at risk, should always be carried out under the supervision of a health professional. This monitor is not intended to be used as a medical monitor. 2. Strangulation Hazard—Children have STRANGLED in cords. Keep adapter cords out of the reach of children (more than 3 feet (1m) away) NEVER attempt to use Sensor Pad without the protective cord covering. Check protective cord covering before each use to ensure it is securely placed under the leg of the crib. Discontinue use of Sensor Pad if protective covering is damaged or broken. 3. Never use extension cords with AC adapters. ONLY use the AC adapters provided. 4. When an AC Adapter is plugged into an electrical outlet, DO NOT touch the exposed end. 5. ALWAYS be sure that both the transmitter and receiver are working properly and are within range of each other. Test monitor before first use, periodically and when changing location of the Nursery Unit. 6. ALWAYS be sure to immediately check on baby whenever an alarm sounds. 7. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN DO NOT EXPOSE TO RAIN OR MOISTURE DO NOT use monitor near water (such as bath tub, sink, etc.). 8. Keep monitor AWAY from heat sources (such as stoves, radiators, etc.). 9. ALWAYS place both the Nursery Unit and Parent Unit on a flat surface in an upright position and allow for proper ventilation. DO NOT place on sofas, cushions, beds, etc. which may block ventilation. 10. This monitor uses public airwaves to transmit signals. The Parent Unit may pick up signals or interference from other nursery monitors in your area. Your monitor may even be picked up by other households. To protect your privacy, make sure both units are turned OFF when not in use. If you experience interference, change the channel on both units. 11. This product is NOT a toy. DO NOT allow children to play with it. 12. This product contains small parts. Adult assembly required. Exercise care when unpacking and assembling the product and keep small parts away from children. 13. When using the monitor, the room temperature should be between 50°F (10°C) and 104°F (40°C). BATTERY WARNING 14. Use ONLY AAA RECHARGEABLE batteries for the Parent Unit. DO NOT mix old and new batteries. DO NOT mix alkaline, standard or rechargeable batteries. Insert batteries with correct polarity. DO NOT short-circuit supply terminals. ONLY use the recommended batteries or equivalent (volts and size) and the correct adapter. Remove batteries when product is stored for long periods of time or when batteries are exhausted. Dispose exhausted batteries properly. DO NOT recharge non-rechargeable batteries. Rechargeable batteries are ONLY to be charged under adult supervision. Keep all batteries away from children. 3 E N 01mf5_manuel_NA_AC701_12002.indd 32013-12-19 1:35 PM 15. IMPORTANT SAFETY INSTRUCTIONS 15.1 Read these instructions - All the safety instructions should be read before the product is operated. 15.2 Keep these instructions. The safety and operating instructions should be retained for future reference. 15.3 Heed all warnings – All warnings on the product and in the operating instructions should be adhered to. 15.4 Follow all instructions – All operating and use instructions should be followed. 15.5 Water and moisture - DO NOT use this apparatus near water. For example, near a bath tub, wash bow…

Text truncated - open the document above for the full version.

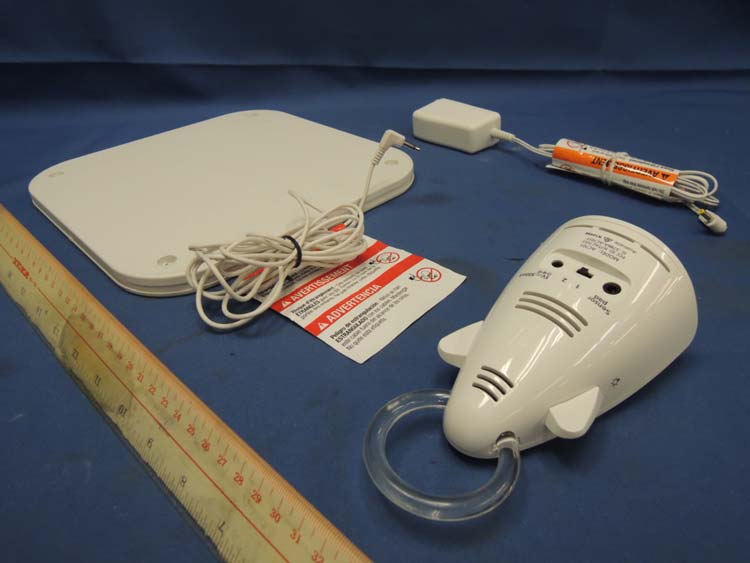

INTERTEK TESTING SERVICES External Photos FCC ID: N7TAC701T IC: 5786A-AC701Texternal photos - 1 of 1 HK13080975 Job Number HK13080975 Job Number

AC701 Rev. 2 11/16/2013 Engrave 00mA AC701MODEL: 12 AA AA 5mm7mm 30mm Use only power supplies and batteries listed on the user instructions 18.5mm x 1.5mm 17.0mm x 1.5mm 22.0mm x 1.5mm AC720 Rev. 1 11/16/2013 Engrave AA AA 5mm7mm 30mm Use only power supplies and batteries listed on the user instructions 00mA AC720MODEL: 18.5mm x 1.5mm 17.0mm x 1.5mm 22.0mm x 1.5mm

INTERTEK TESTING SERVICES Internal photos FCC ID: N7TAC701T IC: 5786A-AC701T internal photos - 1 of 5 Baby Unit assem bly Baby Unit Main PCB comp side (1) INTERTEK TESTING SERVICES Internal photos FCC ID: N7TAC701T IC: 5786A-AC701T internal photos - 2 of 5 Baby Unit Ma in PCB comp side (2) Baby Unit Main PCB solder side INTERTEK TESTING SERVICES Internal photos FCC ID: N7TAC701T IC: 5786A-AC701T internal photos - 3 of 5 Baby Unit LED front side Baby Unit LED rear side INTERTEK TESTING SERVICES Internal photos FCC ID: N7TAC701T IC: 5786A-AC701T internal photos - 4 of 5 Baby Unit Jack Board front side Baby Unit Jack Board rear side INTERTEK TESTING SERVICES Internal photos FCC ID: N7TAC701T IC: 5786A-AC701T internal photos - 5 of 5 Baby Unit Oscillator PCB comp side

INTERTEK TESTING SERVICES FCC ID: N7TAC701T RF exposure - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the base unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65 and meet the requirement listed in KDB447498. The setup and equipment setting were made in accordance with ANSI C63.17. The antenna of EUT transmitter was replaced by a coaxial cable. The impendence matching of connection, cable loss and external RF attenuator are taken into account. The EUT was arranged to communicate via a fixed carrier frequency between its transmitter and a companion device. The transmission was configured in burst mode with pseudo-random data as typical as normal operation. EUT Companion Device Spectrum Analyze r Directional Coupler For the 1.9GHz Baby Unitof tested model: AC701T, the measured powers among all the measured channels were within its production tolerance: +16 dBm (Minimum) and +20.5 dBm (Maximum).The antenna gain of AC701T is 0 dBi = 1.00 (num gain) and its maximum source-base d time-averaging duty factor is 12.5% (3/24 x100%). From these data and its operating configuration – Mobile device, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The Conducted Power = 20.5 dBm = 112.2 mW The Conducted Power source-based time-averaging output power = (112.2 * 0.125) mW = 14.03 mW The power density at 20cm = 14.03 *1.00/ 4R 2 = 0.0028 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or near by persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the baby unit at least 20cm from nearby persons.”

Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Test Report Number: 13080975HKG-001 Page 1 of 63 FCC ID: N7TAC701T IC: 5786A-AC701T Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Angelcare Monitors Inc.: Angelcare Monitors Inc. Applicant Address: 9975, Av. De Catania Local B, Brossard, Quebec, J4Z 3V6 Canada FCC Specification Standard: FCC Part 15, October 1, 2012 FCC ID: N7TAC701T FCC Model(s): AC701, AC720 IC Specification Standard: RSS-213 Issue 2, December 2005 RSS-Gen Issue 3, December 2010 IC: 5786A-AC701T IC Model(s): AC701, AC720 Type of EUT: Unlicensed Personal Communications Service Devices Description of EUT: 1.9GHz Digital Modulation Baby Monitor - Baby Unit Serial Number: N/A Sample Receipt Date: August 22, 2013 Date of Test: September 11, 2013 to September 27, 2013 Report Date: November 15, 2013 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Test Report Number: 13080975HKG-001 Page 2 of 63 FCC ID: N7TAC701T IC: 5786A-AC701T Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 Test Results Summary & Statement of Compliance.............................................. 5 1.1 Summary of Test Results ....................................................................................... 5 1.2 Statement of Compliance ....................................................................................... 6 2.0 General Description................................................................................................. 8 2.1 Product Description ................................................................................................. 8 2.2 Technical Description .............................................................................................. 8 2.3 Test Methodology.................................................................................................... 9 2.4 Test Facility............................................................................................................. 9 3.0 System Test Configuration.................................................................................... 11 3.1 Justification ........................................................................................................... 11 3.2 Conducted Emission Test Configuration ................................................................ 12 3.3 Conducted Monitoring and Operational Test Configuration .................................... 12 3.4 EUT Exercising Software....................................................................................... 12 3.5 Details of EUT and Description of Accessories...................................................... 13 3.6 Measurement Uncertainty ..................................................................................... 13 4.0 Measurement Results............................................................................................ 15 4.1 Antenna Requirement........................................................................................... 15 4.2 Digital Modulation Techniques............................................................................... 15 4.3 Emission Bandwidth.............................................................................................. 16 4.4 Directional Gain of the Antenna ............................................................................. 19 4.5 Peak Transmit Power ............................................................................................ 20 4.6 Power Spectral Density ......................................................................................... 23 4.7 Automatic Discontinuation of Transmission............................................................ 26 4.8 Unwanted Emission Inside the Sub-Band .............................................................. 27 4.9 Emissions Outside the Sub-Band .......................................................................... 31 4.9.1 Radiated Emissions Configuration Photographs ................................................. 32 4.9.2 Radiated Emissions Data ................................................................................... 32 4.9.3 Field Strength Calculation................................................................................... 36 4.9.4 Average Factor Calculation and Transmitter ON Time Measurements ................ 37 4.10 AC Power Line Conducted Emissions ................................................................. 38 4.10.1 AC Power Line Conducted Emissions Configuration Photographs .................... 39 4.10.2 AC Power Line Conducted Emissions Data ...................................................... 39 4.11 Frame Repetition Stability .................................................................................. 43 4.12 Frame Period and Jitter ...................................................................................... 44 4.13 Carrier…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Transmission FCC ID: N7TAC701T IC: 5786A-AC701T config photos (radiated emission) - 1 of 1 Radiated Emission Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: ON FCC ID: N7TAC701T IC: 5786A-AC701T config photos (conducted emission) - 1 of 2 Conducted Emission Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: ON FCC ID: N7TAC701T IC: 5786A-AC701T config photos (conducted emission) - 2 of 2 Conducted Emission Left Side View
