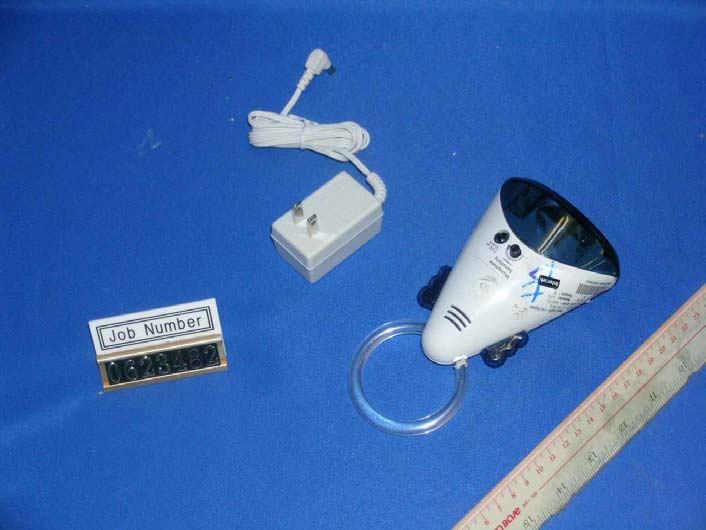

INTERTEK TESTING SERVICES External Photos FCC ID: N7TAC420-T external photos - 1 of 1 External Photo - Front External Photo - Rear

AC420NurseryRev.802/01/2007 Microphone Sensitivity 7.5V Model # AC420

INTERTEK TESTING SERVICES Internal photos FCC ID: N7TAC420-T internal photos - 1 of 6 Internal Photo - 1 Internal Photo - 2 INTERTEK TESTING SERVICES Internal photos FCC ID: N7TAC420-T internal photos - 2 of 6 Internal Photo - 3 Internal Photo - 4 INTERTEK TESTING SERVICES Internal photos FCC ID: N7TAC420-T internal photos - 3 of 6 Internal Photo - 5 Internal Photo - 6 INTERTEK TESTING SERVICES Internal photos FCC ID: N7TAC420-T internal photos - 4 of 6 Internal Photo - 7 Internal Photo - 8 INTERTEK TESTING SERVICES Internal photos FCC ID: N7TAC420-T internal photos - 5 of 6 Internal Photo - 9 Internal Photo - 10 INTERTEK TESTING SERVICES Internal photos FCC ID: N7TAC420-T internal photos - 6 of 6 Internal Photo - 11

CIRCUIT DESCRIPTION OF AC420 A. NURSERY UNIT 1. POWER SUPPLY DC 7.5V from AC adapter or 6V battery is input and they are input to BU1 regulator to provide main DC supply to the rest of circuit. (4 pieces of AAA size alkaline batteries can be used to power up the unit instead of using AC adapter.) 2. POWER AND OUT OF RANGE FUNCTION SWITCHES BSW1 is built to control power on/off of the unit. BSW2 is built to turn on and off the function of out of range. 3. MICROPHONE SENSITIVITY ADJUST SVR1 is used for adjusting the threshold level of microphone input in order to initiate the transmission of audio to the parent side. SVR1 set a DC level for CPU detect (pin26) and this level is compared with that of pin 25 (A/D detect pin) which knows the level from microphone. 4. NIGHT LIGHT CONTROL Night light BLED1 is turned on by pressing once switch BSW3 and pressing the switch again will turn off the light 5. SOUND DETECT AND TRANSMISSION Microphone BMIC1 collects surrounding sound and the signal is enlarged by BU2-A and BU2-B. BU2-B output is also used for detecting level of input sound if it is large enough to turn on transmission to parent unit. BU4 CPU turns on audio MUTE switching transistor BQ3 for audio passing into RF module. RF TX power is turned ON by switching transistors, BQ5 for TXVCC and BQ10 for VPA (power amplifier DC) from BU4 control. 6. PILOT TONE SHAPER Pilot tone shaper is formed by BR71,19,24,27 and BC37,39,40,41 which filter the signal from CPU and forms the pilot tone into RF module. 7. BATTERY DETECT AND LOW ALERT While using alkaline battery, battery level is detected by voltage level detected at junction of BR43 and BR55. If battery is detected low, BLED2 will flash to alert user. 8. TX RF MODULE OPERATION Audio signal is input into the RF module and modulates the RF signal through DVD1. DU2 PLL is controlled by CPU BU4 and drives the TXVCO DQ1 in which transmission frequency is adjusted by tuning DVC1. Transmission frequency (926-927.6MHz) is amplified at amplifies DQ2 and DQ3 and then filtered by DC26, DC27 and DDF2, dielectric filter (927MHz). RF signal (926-927.6MHz) is radiated out at antenna DANT2 which is matched with DL3 and DC28. DANT2 is a rod antenna which is fixed on PCB and without gain. AC420 FREQUENCY TABLE PARENT LCD DISPLAYCHANNELFREQUENCY TEST MODENORMALNUMBER(MHz) 00N.A.1926.0 01C12926.2 02C23926.4 03C34926.6 04C45926.8 05C56927.0 06C67927.2 07C78927.4 08C89927.6 REMARK: CHANNEL ONE ONLY DISPLAYED IN TEST MODE

VT531cn.2/tdi.2!.!Npo!Nbs!16!24;6:;41!3118





• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Angelcare Monitors Inc. Application For Certification 900MHz Transmitter (FCC ID: N7TAC420-T) 06234821 KL/ Ann Choy November 29, 2006 INTERTEK TESTING SERVICES FCC ID: N7TAC420-T i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual INTERTEK TESTING SERVICES FCC ID: N7TAC420-T ii MEASUREMENT/TECHNICAL REPORT Angelcare Monitors Inc. - Model: AC420 FCC ID: N7TAC420-T This report concerns (check one:) Original Grant X Class II Change Equipment Type : DXX - Pt 15 Low Pwr Com. Device Tx Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37 ? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [04-05-05 Edition] Provision. Report prepared by: Lam Chun Cheong, Kenneth Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone : 852-2173-8474 Fax: 852-2741-1693 INTERTEK TESTING SERVICES FCC ID: N7TAC420-T iii Table of Contents 1.0 General Description................................................................................................. 2 1.1 Product Description ................................................................................................. 2 1.2 Related Submittal(s) Grants .................................................................................... 3 1.3 Test Methodology.................................................................................................... 3 1.4 Test Facility............................................................................................................. 3 2.0 System Test Configuration ...................................................................................... 5 2.1 Justification ............................................................................................................. 5 2.2 EUT Exercising Software......................................................................................... 5 2.3 Support Equipment List and Description .................................................................. 6 2.4 Measurement Uncertainty ....................................................................................... 7 2.5 Equipment Modification ........................................................................................... 7 3.0 Emission Results ..................................................................................................... 9 3.1 Field Strength Calculation...................................................................................... 10 3.2 Radiated Emission Configuration Photograph........................................................ 11 3.3 Radiated Emission Data ........................................................................................ 12 3.4 Radiated Emission on the Bandedge..................................................................... 15 3.5 Line Conducted Configuration Photograph - Base Unit .......................................... 16 3.6 Line Conducted Emission Data.............................................................................. 17 4.0 Equipment Photographs ........................................................................................ 20 5.0 Product Labelling................................................................................................... 22 6.0 Technical Specifications ........................................................................................ 24 7.0 Instruction Manual ................................................................................................. 26 INTERTEK TESTING SERVICES FCC ID: N7TAC420-T iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated & Conducted Emission config photos.doc Test Report Emission Plot emission.pdf Test Report Conducted Emission Test Result conduct.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf INTERTEK TESTING SERVICES FCC ID: N7TAC420-T 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: N7TAC420-T 2 1.0 General Description 1.1 Product Description The Equipment Under Test (EUT) is a transmitter (Baby Unit of Sound Baby Monitor) operating at 926.000MHz-927.600MHz with 9 Channels. The first channel is used for telling a parent unit which channel is selected among other 8 channels. The EUT is powered by 4 x “AAA” size 1.5Vdc alkaline battery, 4 x Ni-MH “AAA” type 1.2Vdc rechargeable battery, or a 120VAC to 7.5Vdc 150mA AC adaptor. It has a channel button for selecting a channel, and this button is also for turning night light ON/OFF. Moreover, it has a out of range switch to turn ON or OFF the out…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Radiated Emission on the Bandedge Plots FCC ID: N7TAC420-T emission - 1 of 1 Plot B1A Plot B1B

Report No.: 06234821 TX Mode (Baby Unit) Ctrl No.: N/A PAGE 1 Tested By:Hong, Report No.:06234821 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 2 1 9k 30M EW0700 12 9k 30M EW1449 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30 110 F15Q F15A Report No.: 06234821 TX Mode (Baby Unit) Ctrl No.: N/A Tested By:Hong, Report No.:06234821 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: no Results

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: N7TAC420-T config photos (radiated emission) - 1 of 1 Radiated Emission Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: N7TAC420-T config photos (conducted emission) - 1 of 2 Conducted Emission Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: N7TAC420-T config photos (conducted emission) - 2 of 2 Conducted Emission Left Side View
