AC601 Movement Sensor with Sound Monitor ..............................2 Détecteur de mouvements avec moniteur de sons..........13 Sensor de movimientos con monitor de sonidos .............25 OWNER’S MANUAL Keep for future reference MANUAL DEL PROPIETARIO Guarde para uso futuro MANUEL DE L’UTILISATEUR À garder pour référence ultérieure 2 This product is designed to aid in the monitoring of your child. When using the monitor, you must still pro- vide the supervision necessary for the continued safe- ty of your child. Always be sure that both the transmit- ter and receiver are working properly and are within range of each other. • STRANGULATION HAZARD.Keep the adapter cords out of the reach of children. Do not use with extension cords. • DO NOTplace the Nursery Unit or its cord within your child’s reach. Do not put the Nursery Unit inside a crib or playard. • Use ONLY with 110-120 volt AC electrical outlets. • Protect the AC adapter cords. Place them so they are not walked on or pinched by furniture or other items. • Allow for proper ventilation when units are in use. Do not cover the Nursery Unit or Parent Unit with any object such as a blanket. Do not place it in a drawer or in any location which would muffle the sound or inter- fere with the normal flow of air. The sensor pad is made of plastic and does not permit the air to circulate. Therefore, mildew build up could develop underneath the mattress in the sensor pad area. We suggest rotating the mattress regularly to prevent any mildew. • DO NOT immerse any part of the Nursery Unit or Parent Unit in water. Clean only with a dry cloth. • DO NOT place unit near water and moisture. Do not use the Nursery Unit outdoors. Do not use the Nursery Unit near possible wet areas, such as a bathtub, show- er, wash basin, sink, laundry tub, swimming pool, wet basement, etc. • Keep Nursery Unit away from heat sources, such as fireplaces, radiators, stoves, and TVs or other appli- ances. Heat can damage the case or electrical parts. WARNING: This product is not a toy. • Do not use the Nursery Unit if: • The adapter cords or plugs have been damaged. • The unit has been exposed to liquids. • Unit has been dropped or is damaged. • DO NOT OPEN THE NURSERY UNIT, PARENT UNIT OR ADAPTERS. No user-serviceable parts inside. Risk of electrical shock, fire or death. • The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm (7.9”) from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. DO NOTuse these adapters with any other equipment. Use only with the provided adapters. • When unplugging the AC adapter from the nursery unit, be sure it is switched to the off position. If it isn’t, the unit will revert to battery mode if batteries are installed. • Always place both the Nursery Unit and Parents’ Unit on a flat surface in an upright position and allow for proper ventilation. • Avoid damage to the Sensor Pad cord and to the adapter cords. Route cords so that they are not likely to be walked on or pinched by items placed on or against them. • Route sensor pad cord only below crib mattress and out of reach of children. • Use ONLY AAA (LR03) batteries (included) and/or the AC adapters provided for the Parents’ Units. • During long periods of non-use remove all batteries from their compartments and unplug the AC adapters. • This monitor uses public airwaves to transmit sig- nals. The Parents’ Unit may pick up signals or interfer- ence from other nursery monitors in your area. Your monitor may even be picked up by other households. To protect your privacy, make sure both units are turned off when not in use. If you experience interference, change the channel on both units. Failure to follow these warnings and the assembly instructions could result in serious injury or death. 3 • This monitor is perfectly safe. The Sensor Pad and its cord are entirely passive. They carry no electrical current and do not radiate any form of energy. The Nursery Unit emits only very low power radio signals through its antenna. These signals do not present a safety hazard. • When the monitor is in use, do not use a crib mobile or other crib accessories that may produce vibra- tions. Other sources of vibrations may include fans, washing machines, loud music, etc. These sources of vibration may interfere with the performance of your Angelcare® monitor and the alarm will not sound if it continues to detect any movement other than your baby’s. Be sure all vibration sources are eliminated before using the monitor. • You may experience false alarms for several rea- sons. The most common reason is the Nursery Unit has not been turned off after you have removed your baby from the crib. Another reason is the Sensor Pad has not been placed under the mattress properly. Be sure the Sensor Pad is on a flat, firm surface with the turquoise side facing up. The sensitivity level may also need to be adjusted. Refer to the Movement Sensitivity Adjustment section on Page 7. • Always be sure to immediately check on baby whenever an alarm sounds. • Your monitor can be used in any crib that is sta- tionary and designed to safely hold a baby. If your crib has a spring or slat base you will need to place a piece of Masonite board under the Sensor Pad. This support must be at least 13 inches long on all four sides and 1/4 inch thick. Only use your Angelcare® monitor in a stationary sleeping environment such as a crib where the Sensor Pad can rest on a complete- ly flat, firm surface. • CLEANING. Disconnect all units before cleaning. DO NOT immerse in water. Use a dry cloth to keep mon- itor free from dust. DO NOT spray with cleaning prod- ucts or solvents. Wipe sensor pad with a cloth mois- tened very slightly with an antiseptic or mild deter- gent. Modifications not authorized by the manufacturer may void users authority to operate this device. NOTE: This equipment has been tested and found to comply with the l…

Text truncated - open the document above for the full version.

601PURF_BLK1221.sch-1 - Tue Dec 21 10:58:28 2010

INTERTEK TESTING SERVICES External Photos FCC ID: N7TAC601R IC: 5786A-AC601Rexternal photos - 1 of 1 External Photo - Front External Photo - Rear

AC601 FCC Rev.2 12/14/2010 Engrave Pad Printing For Canada (Different Model Number) 18.8mm x 1.5mm 17.1mm x 1.5mm For USA 51.8mm 14.6mm AC601Model: 7.5V 150mA AC601-PModel: 7.5V 150mA

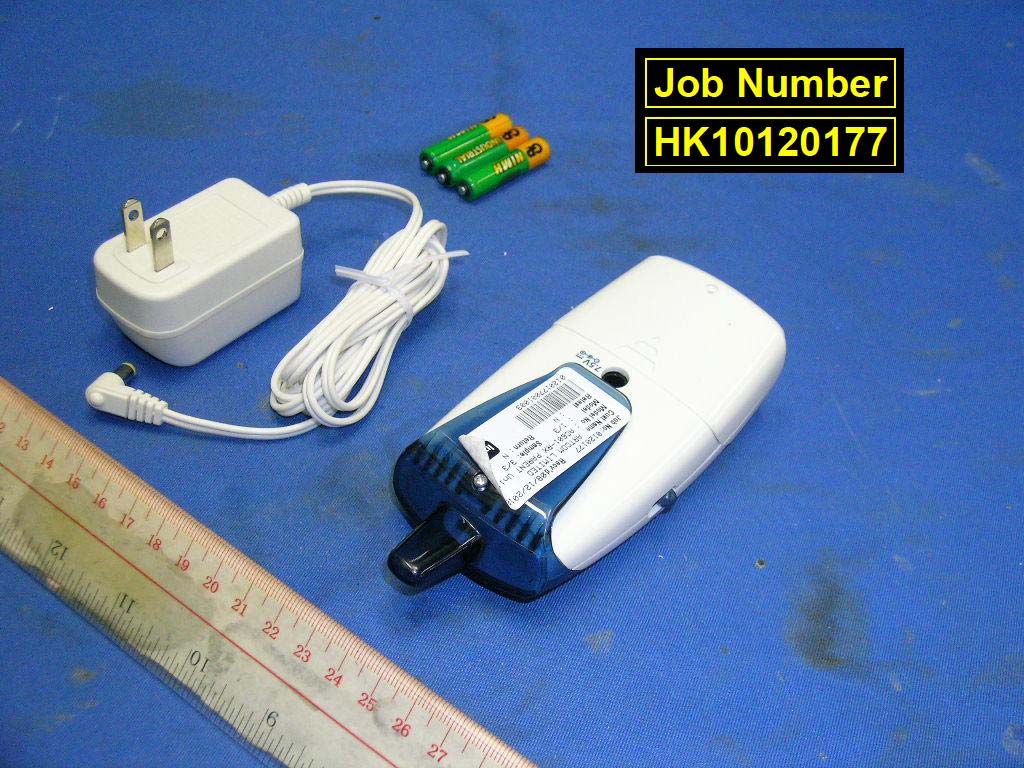

INTERTEK TESTING SERVICES Internal photos FCC ID: N7TAC601R IC: 5786A-AC601R internal photos - 1 of 3 Internal Photo - 1 Internal Photo - 2 INTERTEK TESTING SERVICES Internal photos FCC ID: N7TAC601R IC: 5786A-AC601R internal photos - 2 of 3 Internal Photo - 3 Internal Photo - 4 INTERTEK TESTING SERVICES Internal photos FCC ID: N7TAC601R IC: 5786A-AC601R internal photos - 3 of 3 Internal Photo - 5 Internal Photo – 6

AC601 CIRCUIT DESCRIPTION I. AC601 Parent Unit Circuit Description CategoryNumberNameLocationDescription ICTMP86FM29UG MAIN PROCESSOR UNIT CHIP1Handle all LEDs lighting, RX data, audio and control of RF module. SLIDE SWITCH SKA-24D08-G4- NA-PA DUAL 2P4T SWITCH SW1SW1-A for power ON /OFF. SW1-B for speaker volume level select as MPU controlling on R3,2 SLIDE SWITCH SKA13D07GA- PA46 1P3T SWITCHSW2Channel select switch ICUTC34119DAUDIO POWER AMP U2Amplification of audio signal to speaker SPK1. LEDKPT1608SYCKRANGE LEDLED1Indication of out of range function and also visual alert. LEDKPT1608SGCPOWER/ LOW BATTERY LED LED2Steady ON for power ON and blinking for battery capacity running out LEDKPT1608SGCSOUND LEVEL/ CHARGE LED LED3 LED4 LED5 Indication of sound level and also charging of batteries. ICAIC1734-30PUREGULATOR 3V OUTPUT U3Supply stable DC 3V to MCU and other parts of the unit. TRAN- SISTORS 2N3904AF PRE- AMPLIFIER Q3,Q15Amplification of received AF signal and sent to audio amplifier IC. TRAN- SISTORS 2N3904DATA SHAPERQ7,Q8Handle TX data from nursery unit and shaping to RX data into MPU. TRAN- SISTORS 2N3904PILOT TONE DETECT Q10, Q17,16 Detect pilot tone transmitted from nursery unit. TRAN- SISTOR 8550CAF MUTE SWITCH Q5On mute the AF signal into audio amplifier IC. DIODESLL4148LEVEL DETECTOR D1,D5Detection of sound level transmitted from nursery unit. BATTER- IES GN60AAAHCAAA NiMH BATTERIES BAT+DC power source 3.6Vof the Parent unit TRAN- SISTORS 2N3906, 2N3904 CHARGING CONTROL Q4,Q18Controlled by processor CHIP1 to enable charging of batteries DIODELL4148PROTECTION DIODE FOR U3 D3As power source is 7.5V DC from adapter, this provides suitable Voltage input to regulators U3 RESONAT -OR 8MHzOSCILLATORX1Provides a stable clock oscillation for MPU CHIP1 TRAN- SISTOR 8550CSWITCH FOR RX_VCC ON Q9On and Off switch for RX_VCC which is controlled by MPU CHIP1. TRAN- SISTORS 2N3904RESET SWITCH FOR MPU CHIP1 Q6,Q11Form reset circuit to processor CHIP1. DC JACKDC111S07007.5V I/P JACKJACK1Connection with 7.5DC adapter as an alternative power source input into circuit other than batteries. TRANSIS- TOR 8550CSWITCH FOR BATTERIES I/P Q2As power source from DC jack is detected, switched open for stopping batteries power input into circuit. RESIST- ORS 150KADAPTER DETECT R67,68Provide DC voltage to processor for detecting adapter DC 7.5V RESIST- ORS 100K, 150K,100K BATTERY DETECT R28 R35,118 Provide DC voltage to processor for detecting batteries capacity status. TRANSIS- TOR 8050CGROUND SWITCH Q1To connect power source and circuit ground for charge indication when power key selected OFF. MODULECN1RF MODULECN1Receives RF signals from Nursery unit (Baby side) and recovers audio and data signals to main PU circuit. II. AC601 Nursery Unit (Baby side) Circuit Description CategoryNumberNameLocationDescription ICTMP86FM29UG MAIN PROCESSOR UNIT BCHIP1Handle all LEDs lighting, RX data, audio and control of RF module. TACT SWITCH KPT1105POWER KEYBMK1Button key for ON/ OFF power TACT SWITCH TS1157ASNP2ANGEL EYE BUTTON SW. BK1Press key for night light switch. Press and hold to ON out of range. SLIDE SWITCH SKA13D07G4NA- PA46 MODE SELECT BSW1Slide switch for operation mode select. SLIDE SWITCH SKA13D07G4NA- PA46 CHANNEL SELECT BSW2Channel A, B, C selection LEDHX52E4NNWCN- 7A NIGHT LIGHT LED BLED1On for soothing night light illuminated at halo of nursery unit. TRAN- SISTOR 8050CSWITCH FOR NIGHT LIGHT BQ7On for turning ON night light LED BLED1. LED4LYG1DPOWER/BAT. LOW BLED2Steady ON as indication for Power ON. Blink for low batteries detect. LED4LYG1DMOVEMENTBLED3Slowly blink for movement detect. LEDL934YDOUT OF RAGNE BLED4ON for out of range function is being used. TRAN- SISTOR 2N3904MIC. PRE- AMPLIFIER BQ1Pre-amplification of audio signal input by microphone BMIC1 ICLM324DOP-AMPBU2-BAmplification of audio signal for processor BCHIP1 detect and also to RF module for transmission TRAN- SISTOR 8550CAUDIO MUTE SW. BQ3Processor BCHIP1 turns mute ON as TX data or pilot tone being transmitted. ICXC6204B382MRREGULATOR 3.8V OUTPUT BU3Supply steady 3.8V to processor BCHIP1, main circuit and provides power supply to RF module MODULEBRF1RF MODULEBRF1Main RF operation for sending audio signal from microphone with also data signal of alarm and movement. BATTER- IES GN24AAAA ALKALINE BATTERIES BATT1Backup power source 6Vof the Nursery unit DIODELL4148PROTECTION DIODE BD2Provide protection to regulator in case wrong polarity adapter used. JACKDCC050S0300DC POWER JACK SJ2DC 7.5V power connection JACKEY502SENSOR PAD JACK SJ1Movement signal input from sensor pad VR100KBFOR EXTERNAL ADJUST OF SENSITIVITY SVR1Through external knob to adjust the VR value as movement sensitivity adjustment. OP-AMPLM324DLF SIGNAL AMPLIFIER BU2-C, BU2-D Amplification of low frequency signal detected from sensor pad to processor BCHIP1. OP-AMPLM324DRESET BCHIP1 BU2-AReset circuit for processor BCHIP1. DIODE1SS344PROTECTION DIODE BD6Protect alkaline batteries from being charged. RESIST- ORS 240K, 330KDC IN DETECT BR55,43Detection DC IN of adapter or batteries. RESONA- TOR 8MHzOSCILLATORBX1Provides a stable clock oscillation for processor BCHIP1 TRAN- SISTORS 2N3906 2N3904 DC VAMP SUPPLY BQ4 BQ2 Provide regulated voltage VAMP to OP-AMP BU2 from power V+. TRAN- SISTORS 2N3904BUZZER DRIVER BQ6Buzzer tone sent from processor BCHIP1 uses BQ6 to drive output to buzzer BUZZERTHC12-2PALARM OUTPUT SBUZ1Device to emit off alarm sound signal sent out from processor BCHIP1. TRANSIS- TOR 2N3906TRANSMISS- ION POWER SWITCH BQ5Switch controlled by processor BCHIP1 to enable TXVCC ON for RF transmission. III. AC601 Parent Unit RF module Circuit Description CategoryNumberNameLocationDescription ICGP214DPLL ICHU1Frequency synthesizer programmed by processor CHIP1 to generate oscillation frequency for local oscillator. ICMC3361BPNARROW BAND FM IF HU2FM demodulation device to recover received signals (audio, pilot tone and data) .and send to main circuit. TRAN- SISTOR MT3S37TRX…

Text truncated - open the document above for the full version.

601RFH_FCC1207.sch-1 - Tue Dec 07 17:27:40 2010

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report Number: HK10120177-1 Application for Original Grant of 47 CFR Part 15 Certification Single New of RSS-210 Issue 8 Equipment Certification 900MHz Superheterodyne Receiver (Parent Unit of Baby Monitor) FCC ID: N7TAC601R IC: 5786A-AC601R Prepared and Checked by: Approved by: Koo Wai Ip Nip Ming Fung, Melvin Lead Engineer Supervisor December 20, 2010 December 20, 2010 INTERTEK TESTING SERVICES Test Report Number: HK10120177-1 Page 1 of 20 FCC ID: N7TAC601R IC: 5786A-AC601R GENERAL INFORMATION Applicant Name: Angelcare Monitors Inc. Applicant Address: 3980, Rue St-Ambroise, Montreal, Quebec, H4C 2C7, Canada. FCC Specification Standard: FCC Part 15, October 1, 2009 Edition FCC ID: N7TAC601R FCC Model(s): AC601 IC Specification Standard: RSS-210 Issue 8, December 2010 RSS-Gen Issue 3, December 2010 IC: 5786A-AC601R IC Model(s): AC601-P Type of EUT: Superheterodyne Receiver Description of EUT: 900MHz Superheterodyne Receiver (Parent Unit of Baby Monitor) Serial Number: N/A Sample Receipt Date: December 03, 2010 Date of Test: November 30-December 03, 2010 Report Date: December 20, 2010 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Test Report Number: HK10120177-1 Page 2 of 20 FCC ID: N7TAC601R IC: 5786A-AC601R Table of Contents 1.0 Test Results Summary & Statement of Compliance.............................................. 4 1.1 Summary of Test Results ........................................................................................ 4 1.2 Statement of Compliance ........................................................................................ 4 2.0 General Description................................................................................................. 6 2.1 Product Description ................................................................................................. 6 2.2 Test Methodology.................................................................................................... 6 2.3 Test Facility............................................................................................................. 6 3.0 System Test Configuration...................................................................................... 8 3.1 Justification ............................................................................................................. 8 3.2 EUT Exercising Software......................................................................................... 9 3.3 Details of EUT and Description of Accessories...................................................... 10 3.4 Measurement Uncertainty ..................................................................................... 10 3.5 Equipment Modification ......................................................................................... 10 4.0 Test Results............................................................................................................ 12 4.1 Field Strength Calculation...................................................................................... 12 4.2 Radiated Emissions from Receiver ........................................................................ 13 4.2.1 Radiated Emission Configuration Photograph ..................................................... 13 4.2.2 Radiated Emission Data ..................................................................................... 13 4.3 AC Power Line Conducted Emission ..................................................................... 17 4.3.1 AC Power Line Conducted Emission Configuration Photograph.......................... 17 4.3.2 AC Power Line Conducted Emission Data .......................................................... 17 5.0 Equipment List...................................................................................................... 20 Appendix – Exhibits for Application of Certification INTERTEK TESTING SERVICES Test Report Number: HK10120177-1 Page 3 of 20 FCC ID: N7TAC601R IC: 5786A-AC601R EXHIBIT 1 TEST RESULTS SUMMARY & STATEMENT OF COMPLIANCE INTERTEK TESTING SERVICES Test Report Number: HK10120177-1 Page 4 of 20 FCC ID: N7TAC601R IC: 5786A-AC601R 1.0 Test Results Summary & Statement of Compliance 1.1 Summary of Test Results Test Items FCC Part 15 Section RSS-210/ RSS-Gen # / RSS-310^ Section Results Details see section Radiated Emission from Receiver AC Power Line Conducted Emission 15.109 15.107 2.3 7.2.4 # Pass Pass 4.2 4.3 1.2 Statement of Compliance The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2009 Edition RSS-210 Issue 8, December 2010 RSS-Gen Issue 3, December 2010 INTERTEK TESTING SERVICES Test Report Number: HK10120177-1 Page 5 of 20 FCC ID: N7TAC6…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Receiving FCC ID: N7TAC601R IC: 5786A-AC601R config photos (radiated emission – parent unit) - 1 of 1 Radiated Emission – Parent Unit Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: RX & Charging FCC ID: N7TAC601R IC: 5786A-AC601R config photos (conducted emission) - 1 of 2 Conducted Emission Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: RX & Charging FCC ID: N7TAC601R IC: 5786A-AC601R config photos (conducted emission) - 2 of 2 Conducted Emission Left Side View
