NAHAS2501REMOTE CONTROL TRANSMITTER

DOC:.1.00 – July 31, 2006 DL Lp Manufactured in Canada by Autostart AUTOMATIC TRANSMISSION REMOTE STARTER AS-1735SH User Guide WARNING It is the responsibility of the vehicle operator to ensure their vehicle is parked in a safe and responsible manner. 1. When leaving the vehicle, it is the user’s responsibility to ensure that the gearshift lever is in “Park” in order to avoid accidents upon remote starting. 2. It is the user's responsibility to ensure that the remote starter is disabled or put into valet mode before servicing. FCC USER NOTICE (U.S.A.): This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment. AS-6104 SH/SR User Guide P. 2 Table of Contents Transmitter Part Number and Serial Number of the Remote Car Starter Module ................................................... 2 Introduction........................................... 2 Using the Remote Control ................... 3 Vehicle Presets ..................................... 3 Heater & Heated Seat......................... 3 Windshield Wipers & Radio & Headlights........................................... 3 Arming the Starter Kill.......................... 3 Remote-Starting Your Vehicle ............. 4 Remote-starting .................................. 4 Driving Off........................................... 4 Remote Starter Features ...................... 4 Idle Mode ............................................ 4 Valet Mode.......................................... 4 Valet Mode Using the Valet Switch .................................................... 4 Ignition Valet ............................... 5 Remote Valet Mode .................... 5 Panic Mode......................................... 5 Quick Lockout TM .................................. 6 Cold Weather Mode............................ 6 Extended Run Time ............................ 6 Advanced Features: Installation- programmable Options ........................ 6 Active or Passive Arming ................ 6 Remote Door Locks ........................ 7 Priority Door Access ....................... 7 Ignition-controlled Door Locks ........ 7 Ignition Re-lock ............................... 7 Secure Lock .................................... 7 Remote Trunk Release ................... 7 The Starter Kill and the Anti-grind Feature ........................................... 7 Safe Start ........................................ 7 “Home Valet TM ” Mode ..................... 7 Turbo Mode .................................... 8 Engine Run Time ............................ 8 Flashing LED .................................. 8 Horn Chirp Timing............................... 8 Multi-car Operation ............................. 8 Troubleshooting Poor Transmitting Range..................................................... 9 LIMITED LIFETIME WARRANTY ........ 10 Transmitter Part Number and Serial Number of the Remote Car Starter Module The boxes below contain information concerning your transmitter and Remote Car Starter. We entered the part number of your transmitter for you. Should you need to order a new transmitter, you will need to provide the transmitter part number which is printed below. The second box contains the serial number of the Remote Car Starter. Please make sure that the installer has entered the serial number in that box. Transmitter Part Number: ASRA-2501G-100 The installer must use the space below to write the serial number of the Remote Car Starter and the location of the valet switch (if installed): Serial Number of the Remote Car Starter: Location of the Valet Switch (if installed): Introduction This is a state-of-the-art remote car starter system. The system is packed with advanced features such as priority access to the driver’s door (commodity features) and the Safe Start children safety feature. With many an advanced function, this product will satisfy any one your expectations from high-end commodity and security systems, without neglecting any standard feature commonly offered by entry-level starters. AS-1725 SH Guide d’installation P. 3 Using the Remote Control Your Remote Car Starter is equipped with a 5-button multi-channel remote control. It can operate two independent vehicles equipped with a Remote Car Starter (see Multi-Car Operation section, later in this Guide, for second-car transmitter functions). The functions of the transmitter are as follows: Pressing the LOCK and UNLOCK buttons simultaneously will activate the AUX 2 output. Vehicle Presets Heater & Heated Seat When leaving the vehicle it is recommended to preset the accessory controls in preparation for the next remote start. Settings for the blower motor (fan), front and rear, as well as heated seats (if equipped) should not be left on HIGH. It is recommended to leave the settings on LOW or MEDIUM instead. Windshield Wipers & Radio & Headlights Certain vehicles require the radio and / or windshield wiper and / or headlight circuits to become energized while running under remote start. When leaving the vehicle you must ensure that the windshield wiper and headlight switches are OFF. Leaving the headlight switch ON on certain types of vehicles could cause them to remain ON even after remote starter shut down, resulting in a dead battery. Arming the Starter Kill The Starter Kill (if installed) can be configured by the installer so as to arm automatically (Passive Mode) or not to arm automatically (Active Mode). See section Passive or active arming, later in this guide, for more details on Passive Mode and Active Mode. • To disarm the Starter Kill, press the UNLOCK button on …

Text truncated - open the document above for the full version.

FCC ID:NAHAS2501 Remote Switch Button Logic control IC SAW Oscillator Power Amplifier Antenna

Autostart 5764 Pare Montreal, Quebec H4P 2M2 Tel: (514)738-9750 Fax: (514)738-4365 July 24, 2006 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID:NAHAS2501 Pursuant to sections 0.457 and 0.459 of the Commission's Rules, we herby request confidential treatment accompanying this application as outlined below: - ASRA2501_Schematic.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to section 0.457 of the rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, RJP

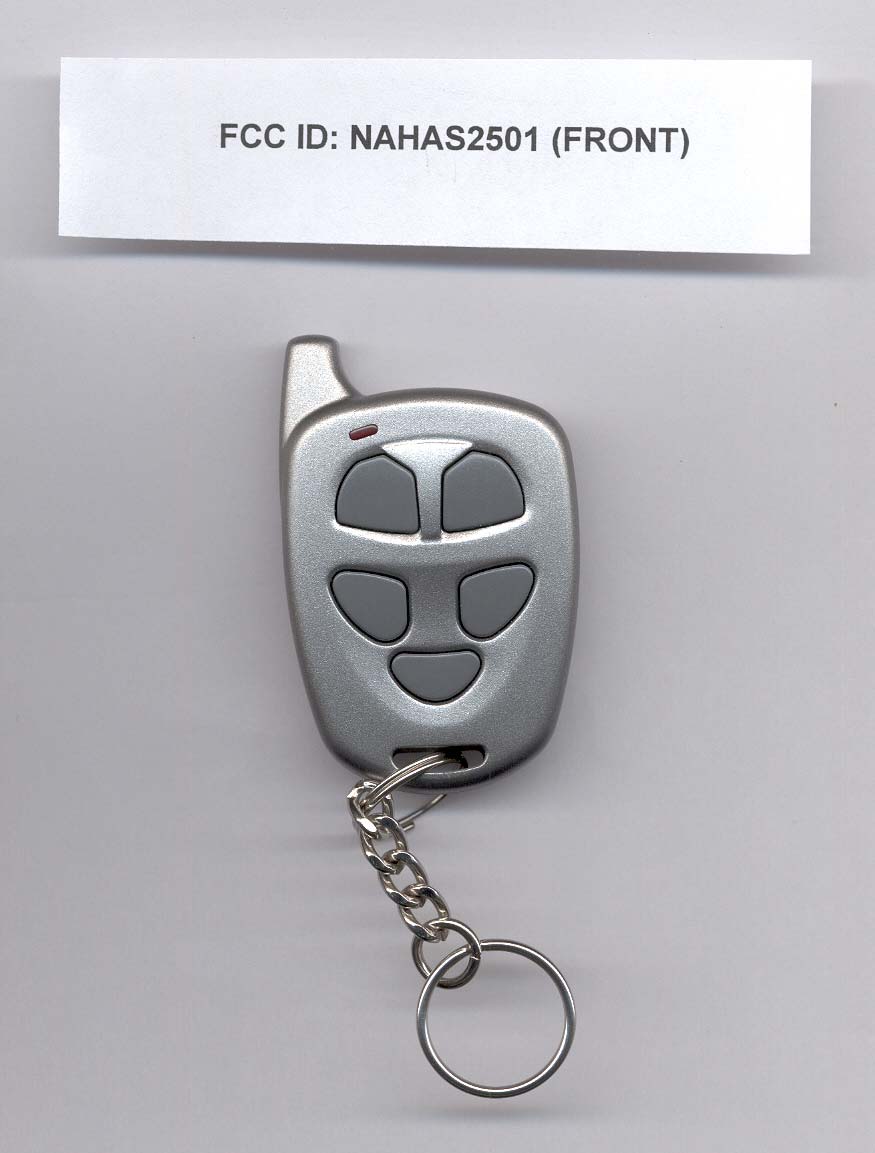

AUTOSTART FCC ID: NAHAS2501 EXTERNAL PHOTOS

BODY MATERIAL : ABS MT-11010 0.2 RUB.PAD P/N:NKSF78A0 MA17F000 TX P/N:IASF7G01 FCC ID:NAHAS2501 TX COLOR:PANTON 8401C PRINT COLOR:WHITE RUBBER COLOR:COOL GRAY 9C MTF02008 PRINT COLOR:WHITE WWW.AUTOSTART.CA

AUTOSTART FCC ID: NAHAS2501 INTERNAL PHOTOS

ASRA2501 07/24/2006 ISSUE 1.00 SPECIFICATION TECHNICAL DESCRIPTION, ASRA2501-HHU (FCC ID:NAHAS2501) SYSTEM DESCRIPTION The ASRA2501 board is used in the Remote end of a car starter system and operates at 433.920MHz. (OOK) 2- 2025, 3V battery powers the board. CIRCUIT DESCRIPTION The Q4 and SAW Resonator work as an oscillator, which is OOK modulated. The output of Q5 (isolation buffer) is matched to 50 ohms by C7, L1, C8, C10, R8, and feeds the helical antenna. TX Data is forwarded from U1 Micro PIN 5 to the oscillator. DC Power Control Any switch activation will turn on Q1, a PNP transistor switch. This in turn will activate the Micro (U1) and oscillator. Voltage clamp circuit (Q3, D1) drops the battery voltage so that the voltage supplied to the micro section will not be higher than 4.0V. LED LED represent the following: TX transmission, Blue LED LED is ON when the micro logic output is HIGH. ASRA2501 07/24/2006 ISSUE 1.00 AM104-HHU SPECIFICATION TRANSMIT Transmitter Nominal Frequency 433.920 MHz √ Fre Tol. @ 25°C +/- 75KHz √ Radiated Output @ 5.5V 11,000uV/M @ 3 M max. √ Transmitter Har. Spurious Output 1,100uV/M @ 3M max. √ Data Rate Transmit Preamble Data start bit DATA short bit DATA long bit 500usX6 1000us 500us 1000us Tx Modulator Input 0 to +3.7 volts Square Wave √ Input voltage +6.4V max, 4.0V min. Current Consumption (during TX) 3.0mA avg. max @ 5.5V Frequency tolerance ±100KHz Max Over Temp. Temperature range -10°C to +60°C -25°C to +60°C Humidity 100% condensing. @ 0°C

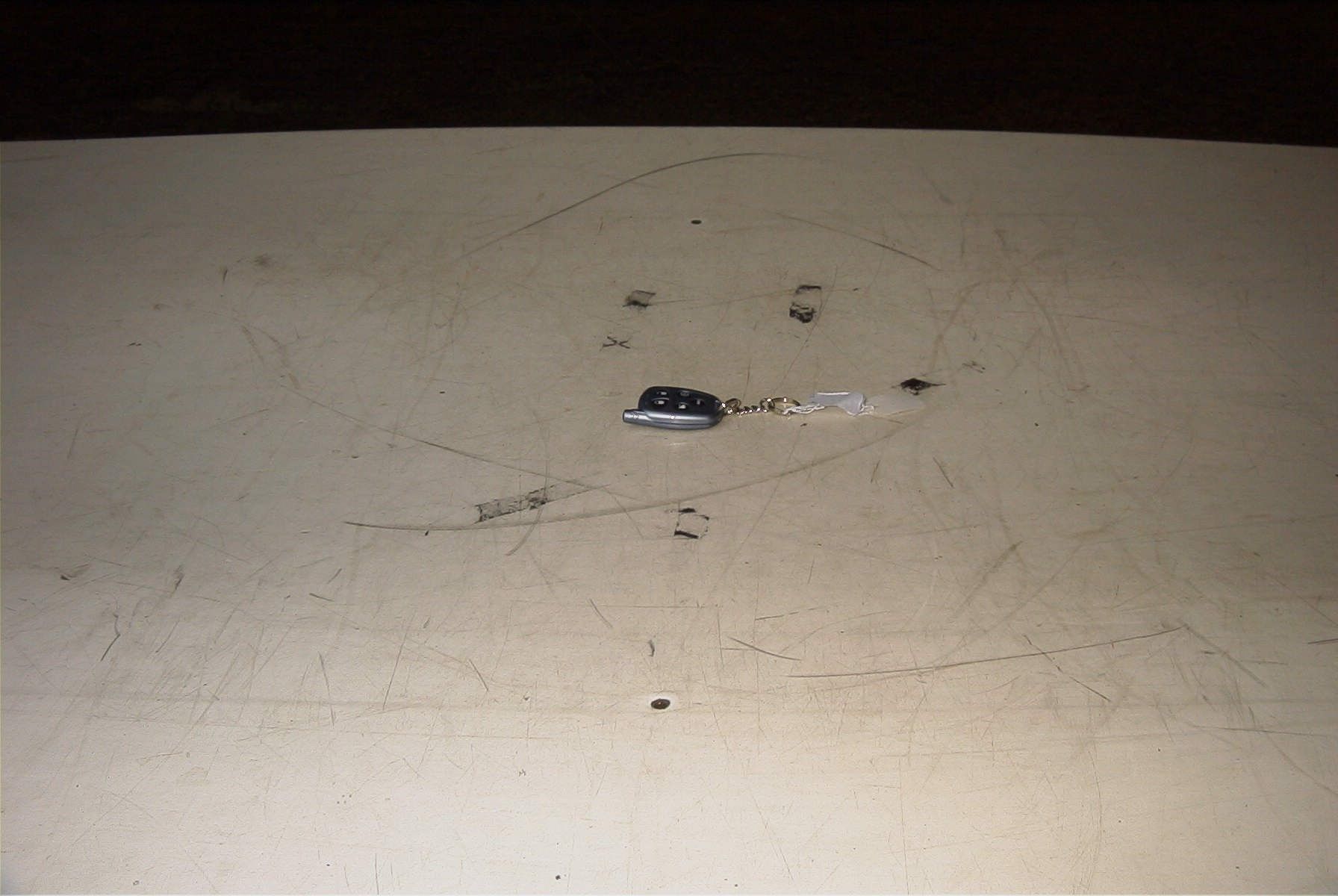

FCC TEST REPORT PART 15.231 APPLICANT AUTOSTART ADDRESS 5764 PARE MONTREAL, QUEBEC H4P 2M2 CANADA FCC ID NAHAS2501 MODEL NUMBER AS2501 PRODUCT DESCRIPTION REMOTE CONTROL TRANSMITTER DATE SAMPLE RECEIVED AUGUST 2, 2006 DATE TESTED AUGUST 16, 2006 TESTED BY JOSEPH SCOGLIO APPROVED BY MARIO DE ARANZETA TIMCO REPORT NO. 2284UT6TestReport.doc TEST RESULTS PASS FAIL TOTAL PAGES 14 THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP://WWW.TIMCOENGR.COM APPLICANT: AUTOSTART FCC ID: NAHAS2501 REPORT: V:\A\AUTOSTART_NAH\2284UT6\2284UT6TestReport.doc Page 2 of 14 TABLE OF CONTENTS GENERAL INFORMATION......................................................... 3 COMPLIANCE WITH PART 15.231(a)........................................... 4 EMC EQUIPMENT LIST.......................................................... 5 TEST PROCEDURE............................................................ 6 RADIATION INTERFERENCE................................................... 7 CALCULATION OF DUTY CYCLE................................................ 9 OCCUPIED BANDWIDTH....................................................... 13 APPLICANT: AUTOSTART FCC ID: NAHAS2501 REPORT: V:\A\AUTOSTART_NAH\2284UT6\2284UT6TestReport.doc Page 3 of 14 GENERAL INFORMATION EUT Specification The test results relate only to the items tested. FCC ID NAHAS2501 Product Description REMOTE CONTROL TRANSMITTER Operating Frequency 433.92 MHz EUT Power Battery Powered Only Prototype Pre-Production Test Item Production Fixed Mobile Type of Equipment Portable Test standards FCC Part 15, Subpart C, IC RSS-210, ANSI C63.4 – 2003 Test Facility All tests are carried out at Timco Engineering Inc. at 849 NW State Road 45 Newberry, FL 32669. APPLICANT: AUTOSTART FCC ID: NAHAS2501 REPORT: V:\A\AUTOSTART_NAH\2284UT6\2284UT6TestReport.doc Page 4 of 14 COMPLIANCE WITH PART 15.231(a) Part 15.231(a): • Continuous operation: Yes___ No_X__ • Control signal only: Yes_X__ No___ • Data transmission with a control signal Yes___ No_X__N/A___ Description of control signal: CAR ALARM(notes: indicate whether such info is included in supporting exhibit such as operation description page xx) Part 15.231(a)(1): • Manually operated device: Yes_X__ No___ • Does it meet the 5s deactivation requirement after the switch is being released: Yes___ No___ Description: _______________(notes: a plot showing the pulse train does not necessarily constitute an objective evidence of compliance with the deactivation requirement. A plot should be accompanied by an explanation and/or statement of compliance, if not otherwise clearly stated in supporting documentation e.g. operation description page xx) Part 15.231(a)(2): • Automatically operated device: Yes___ No_X__ • Does it meet the 5s deactivation requirement after being activated: Yes___ No___ Description: _______________(notes: a plot showing the pulse train does not necessarily constitute an objective evidence of compliance with the deactivation requirement. A plot should be accompanied by an explanation and/or statement of compliance, if not otherwise clearly stated in supporting documentation e.g. operation description page xx) Part 15.231(a)(3): • Periodic transmission at regular predetermined intervals: Yes___ No_X__ N/A___ Description: MANUAL OPERATION • Polling or supervision transmissions, including data, to check system integrity check requires a total transmission time not exceeding 2s per hour: Yes___ No_X__ N/A___ Part 15.231(a)(4): Operation involving fire, security, or safety of life, when activated to signal an alarm, may operate during the pendency of the alarm condition. Does the transmitter meet the above condition? Yes_X__ No___N/A___ APPLICANT: AUTOSTART FCC ID: NAHAS2501 REPORT: V:\A\AUTOSTART_NAH\2284UT6\2284UT6TestReport.doc Page 5 of 14 EMC EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3-Meter OATS TEI N/A N/A Listed 1/11/06 1/10/09 3/10-Meter OATS TEI N/A N/A Listed 3/27/04 3/26/07 Analyzer Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 12/7/05 12/7/07 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 CAL 12/7/05 12/7/07 Analyzer Tan Tower Quasi- Peak Adapter HP 85650A 3303A01690 CAL 12/8/05 12/8/07 Analyzer Tan Tower Preamplifier HP 8449B-H02 3008A00372 CAL 12/8/05 12/8/07 Analyzer Blue Tower Spectrum Analyzer HP 8568B 2928A04729 2848A18049 CAL 4/13/05 4/13/07 Analyzer Blue Tower RF Preselector HP 85685A 2926A00983 CAL 9/5/05 9/5/07 Analyzer Blue Tower Quasi- Peak Adapter HP 85650A 2811A01279 CAL 4/13/05 4/13/07 Analyzer Silver Tower Spectrum Analyzer HP 8566B Opt 462 3552A22064 3638A08608 CAL 12/8/04 12/8/06 Analyzer Silver Tower RF Preselector HP 85685A 2620A00294 CAL 4/27/04 12/8/06 Analyzer Silver Tower Quasi- Peak Adapter HP 85650A 3303A01844 CAL 12/8/04 12/8/06 Analyzer Open- Frame Tower Preamplifier HP 8449B 3008A01075 CAL 8/8/05 8/8/07 Antenna: Biconnical Electro-Metrics BIA-25 1171 CAL 4/29/05 4/29/07 Antenna: Biconnical Eaton 94455-1 1096 CAL 8/17/04 8/17/06 Antenna: Biconnical Eaton 94455-1 1057 CAL 12/12/05 12/12/07 APPLICANT: AUTOSTART FCC ID: NAHAS2501 REPORT: V:\A\AUTOSTART_NAH\2284UT6\2284UT6TestReport.doc Page 6 of 14 TEST PROCEDURE RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-2003 using a HEWLETT PACKARD spectrum analyzer with a preselector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was 300 kHz. The ambient temperature of the UUT was 98.3ºF with a humidity of 40%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the ante…

Text truncated - open the document above for the full version.
