NC3MTD2000Criminal Offenders GPS Tracker

Figure 1 – High level SMART Active Tracking device block diagram GPS RS-232 Port Modem RS-232 Port Bracelet Rx RS-232 Port Microchip PIC16F877 2 Kamikaze Regulator Comm Port 2 Comm Port 1 I/R Port TXD RXD LCD 11 Backlight RAM 20 Control 3 Philips 80C51 XA Tamper In Charger Power FETs 4 Vibrator 4 A/D Motion Switches 4 LEDs Real Time Clock 2 4 TXD RXD DUART I 2 C 2 TXD RXD 2 TXD RXD Transducer I 2 C 2 Address / Data RTS Figure 2 –SMART Active Tracking device block diagram

Date Feb 27, 2007 Telecommunication Certification Body RFI Global Services Ltd. Pavilion A Ashwood Park Basingstoke Hampshire RG23 8BG United Kingdom Customer Pro Tech Monitoring 2549 Success Drive Odessa, FL 33556 Subject: Certification Application Request #: 6277 FCC ID: NC3MTD2000 It is requested that the following information is to be held confidential on behalf of Applicant. • Request #: 6277 • Submitter: David Segal • Manufacturer: Pro Tech Monitoring • Model#: SMART Exhibit: Device Schematic, Operating Manual, Internal Photographs, and Operational Description document. Pro Tech Monitoring develops equipment for GPS tracking of criminal Offenders. Offenders (and the general public) should not have access to the device’s schematic, assembly photographs, block diagrams, and if possible the user’s manual for this equipment. Offenders are given operating instructions from their Probation and Parole Officers who are trained by Pro Tech personnel. In addition, this manual contains trade secrets that are meant to be kept secret from our competitors. Yours sincerely, David Segal Vice President

Enfora, Inc. 661 E. 18 th Street Plano, TX 75074-5601 (972) 633-4400 Fax (972) 633-4444 26 th February 2007 REQUEST FOR CONFIDENTIALITY Telecommunication Certification Body RFI Global Services Ltd. Pavilion A Ashwood Park Basingstoke Hampshire RG23 8BG United Kingdom Subject: Certification Application FCC ID: NC3MTD2000 Containing module GSM0108 FCC ID : MIVGSM0108 Enfora, Inc., requests confidentiality with regard to the following documents in the filing for equipment approval identified by FCC ID NC3MTD2000, SMART Active Tracker (1) Schematic diagram for GSM0108 module integrated inside the SMART Active Tracker located in electronic file – GSM0108MG800_RevB.PDF (2) Block Diagram for GSM0108 module integrated inside the SMART Active Tracker located in electronic file – Enfora.GSM0108.BlockDiagram.01-29-07.pdf (3) Bill Of Materials (BOM) for GSM0108 module integrated inside the SMART Active Tracker located in electronic file - GSM0108MG700BOM.PDF It is the opinion of Enfora, Inc., that disclosure of this information would result in significant loss of revenue. These documents are also covered under multiple non-disclosure agreements with other companies. This information should be kept confidential for 5 years. Sincerely Rob Holden Manager, Compliance Engineering Enfora, Inc. 661 E. 18 th Street Plano, TX 75074 972-633-4400

Enfora Inc. 661 E. 18 th Street Plano, TX 75074-5601 (972) 633-4400 Fax (972) 633-4444 GSM0108 Modulation (North American GSM Bands) Modulation The GSM0108 is a quad-band GSM/GPRS OEM module. In North America it will be running in the GSM (850 MHz) band and the PCS (1900 MHz) band. The module is/will be certified by PTCRB and uses GMSK modulation via a Digital Signal Processor. Transmit Frequencies Used in North America: GSM Band: 824 MHz to 849 MHz PCS Band: 1850 MHz to 1910 MHz

Pro Tech Monitoring, Inc ▪ 2549 Success Drive ▪ Odessa, FL 33556-3401 Phone 727.484.3100 ▪ 888.67.SMART ▪ Fax 727.484.3111 www.ptm.com February 27, 2007 To whom it may concern This is to certify that the Pro Tech Monitoring SMART Active Tracking device does not have the ability to adjust the power ranges nor does the SMART system have the ability to change the tuning of the embedded Enfora Modem. The only interface from the SMART main processor board to the Enfora Modem is through the RS-232 data port. Yours sincerely, David Segal Vice President

Tuneup Procedure -Each modem is tested during routine factory testing; -The modems are tested to GSM standards using an Agilent 8960 GSM test set. -Multiple channels and power levels are tested and if correction is necessary. -If correction is necessary, the "Automatic Power Control" software tables are adjusted in the modem's Flash memory. -After passing all tests, the modem is labeled and assigned an IME

Pro Tech Monitoring, Inc.Revision:C (ECO 556) Active ARM based MTD 2000 PN:MTD 2010 Release Date: 09/12/06 Item Qt y P/N SrcCtl Title Detail Reference ( m ) Mfr Mfr P/N 1 1 11300-0008 Flex circuit M-Flex 2 1 17300-0017 Vib Motor 1.3V w/o bracket w/JST Connector Jin Long Machinery USA OTL-6SL 1.3v W/O Bracket 3 1 17300-0030 MTD 29dB GPS Antenna Wise Wave AGA-G503-N 4 1 18300-0029 MTD FCC Label Hallmark Name Plate 5 1 18300-0024 Blank MTD ID Label Hallmark Name Plate 6 2 6300-0022 Screw, #4-40 x ..187" PFH MSSS Tropic Fasteners 04C018PEMSSS 7 1 6300-0210 MTD Case Back Custom Plastic Dev. 8 1 6300-0211 Card Cage Extrusion Technical Specialties 9 1 6300-0212 Chassis Custom Plastic Dev. 10 1 6300-0213 Belt Clip JRM Products Inc. Modified 2220 11 2 6300-0224 Rubber Keypad Girrard Rubber 12 1 6300-0233 MTD Charger Contact Tape RS Hughes 13 1 6300-0239 MTD Front Housing Assembly Custom Plastic Dev. 14 1 6300-0243 GPS Antenna Shield Par Marketing 15 2 6300-0251 VHB Tape Shield to Extrusion RS Hughes 16 1 6300-0252 VHB Tape Antenna to Shield RS Hughes 17 1 6300-0258 MTD Retainer Bar Middlefield Plastics 18 2 6300-0259 Nylon Spacer .625 x .187 Tropic Fasteners 13SP017 19 2 6300-0263 Screw #2-56 x .75 PPH MSSS Tropic Fasteners 02C075PPMSSS 20 2 6300-0264 Screw #2-56 x .875 PPH MSSS Tropic Fasteners 02C087PPMSSS 21 1 MTD 3030 Processor Board Final Assembly PTM 22 1 MTD 4100 Active Back Plane with GPS Assembly PTM 23 1 MTD 5100 Battery Pack 3.6v 4.2 aH EAC 24 1 MTD 6000 Bracelet Antenna Mack Tech 25 1 MTD 8000 Enfora Modem Board PTM 26 AR Gray RTV Dow Corning #832 Gray 27 AR Thread Locker #262 Loctite Loctite 262 28 AR UV Cure Polyurethane Loctite Loctite 3106 29 AR Cyanoacrylate Adhesive Loctite Loctite 401 1 of 1

Pro Tech Monitoring, Inc.Revision:C (ECO 521) Active Processor Assy PN:MTD 3030 Release Date:09/15/06 Item Qt y P/N SrcCtl Title Detail Reference ( m ) Mfr Mfr P/N 1 1 18300-0022 Serial Number Label RS Hughes 2 4 6300-0222 HDW #0 Flat Washer Tropic Fasteners MS15795-801 3 4 6300-0223 HDW #0 x .187" PPH Screw SS Tropic Fasteners 00F018PPMSSS 4 1 6300-0355 Shield Cover 2.326 x 3.138 x 0.190 Leader Tech 5 1 6300-0356 Shield Frame 2.286 x 3.098 x 0.192 Leader Tech 6 1 6300-0359 Shield Cover 1.142 x 1.142 x 0.145 Leader Tech 7 1 6300-0360 Shield Frame 1.115 x 1.115 x 0.160 Leader Tech 8 1 9300-0002 S PS 100X64 PIXEL MINI-GRAPHIC W/BACKLIGHT Tianma TM10064ABCWUT 9 1 MTD 3032 Processor PCB Assembly PTM 1 of 1

Pro Tech Monitoring, Inc.Revision: G (ECO 569) Processor Board PN:MTD 3032 Release Date: 11/14/06 Item Qt y P/N SrcCtl Title Detail Reference ( m ) Mfr Mfr P/N Sub 1 1 13300-0002 IC TRANSDUCER, 1.5V, 2KHZ, PTH SP1 Star PMX-04B n 2 1 15300-0043 Res 10.0K ohm, 1%, 0402 R50 any y 3 9 15300-0081 Res 100.0K ohm, 1%, 0402 R1,6,7,12,23,27,35,38,58(8,24,25) any y 4 3 15300-0084 Res 100.0, 1/16w, 1%, 0402 R33,43,57 any y 5 1 15300-0092 Res 33.2k ohm, 1/16w, 1%, 0402 R52 any y 6 1 15300-0122 Res 2.74K ohm , 1%, 0402 R49 any y 7 10 15300-0123 Res 47.5K ohm, 1%, 0402 R3-5,13,15,18,45,46,51,55(17,34) any y 8 2 15300-0136 Res 1.0k ohm, 1/16w, 1%, 0402 R47,(R29) any y 9 1 15300-0144 Res 47.5 ohm, 1%, 0402 R16 any y 10 3 15300-0204 Res 475 ohm, 1%, 0402 R2,14,19 any y 11 2 15300-0248 Res 100K ohm, 0.1%, 0603 R32,36 Venkel TFCR0603-16W-1003BT n 12 2 15300-0250 Res 6.8 ohm, 5%, 0603 R10,11 any y 13 1 15300-0251 Res 39.2K, 0.1%, 1/16w, 0603 R22 Venkel TFCR0603-16W-3922BT n 14 1 15300-0255 Res 121K, 0.1%, 1/16w,0603 R26 Venkel TFCR0603-16W-1213BT n 15 3 15300-0265 Res 0 Ohm, 5%, 0402 R9,20,21,(59) any y 16 1 15300-0275 Res 5.6k ohm, 5%, 0402 R30 any y 17 2 15300-0279 Res 10 ohm, 5%, 0402 R37,54 any y 18 1 15300-0282 Res 62K ohm, 5%, 0402 R56 any y 19 1 15300-0283 Res 68.1K ohm, 0.1%, 0603 R28 Venkel TFCR0603-16W-6812BT n 20 1 15300-0284 Res 75K ohm, 1%, 0402 R41 any y 21 1 15300-0285 Res 182K ohm, 1%, 0402 R39 any y 22 6 15300-0286 Res 270 ohm, 5%, 0402 R31,40,42,44,48,53 any y 23 1 16300-0009 Tran NPN, SOT 23 Q1 Fairchild MMBT4401 y 24 1 16300-0091 IC MOTION SENSOR, PTH S1 Signal Systems Int. 2008-4 n 25 1 16300-0136 IC MICROPWR LDO REG SOT-23-5, LP2981AIM5- 3.3 U7 National LP2981AIM5-3.3 n 26 1 16300-0142 IC INV, SINGLE, 7SZ04, SOT23-5 U4 Fairchild NC7SZ04M5 y 27 1 16300-0143 IC REG CHARGE PUMP, MAX1759EUB, UMAX10 U17 Maxim MAX1759EUB+ n 28 1 16300-0152 IC FET DUAL COMP., SOIC 8, IRF7307 U16 IOR IRF7307 n 29 1 16300-0160 IC V1B-MTR, DRVR, SOT23-5 U5 Maxim MAX1749EUK-T n 30 1 16300-0161 IC COMP, LMV931, SC70-5 U14 National LMV931MG n 31 1 16300-0162 Sen TEMP SENSOR, SC70, LM20 U9 National LM20BIM7 n 32 1 16300-0176 IC Diode, Dual ESD Protect ESDA6V1L, SOT23 D1 ST Microelectronics ESDA6V1L n 33 1 16300-0180 IC SRAM, 512KX16, TSSOP48, 3V, 55 or 70 NS U6 Samsung K6X8016T3B-TF55000 n 34 1 16300-0191 IC IRDA, TFDU4100-TT3, TOP VIEW, SMT U3 Vishay TFDU4100-TT3 n 35 1 16300-0204 IC RTC, DS1337C,SOIC 16 .300 wide U2 Dallas DS1337C n 36 1 16300-0205 IC LM4040AIM3-3.0, Precision Volt Ref. SOT-23 U11 National LM4040AIM3-3.0 n 37 1 16300-0207 IC PHILIPS, LPC2214FBD144 (LQFP144 Package) U10 Philips LPC2214FBD144 n 1 of 3 Pro Tech Monitoring, Inc.Revision: G (ECO 569) Processor Board PN:MTD 3032 Release Date: 11/14/06 Item Qt y P/N SrcCtl Title Detail Reference ( m ) Mfr Mfr P/N Sub 38 1 16300-0208 IC Reg, 1.8v LDO, SOT23-5 U13 TI TPS72118DBVT n 39 1 16300-0209 IC CPLD, XC2C384-10FT256I,\ BGA U12 Xilinx XC2C384-10FT256I n 40 1 16300-0210 IC IC, RF FSK Transceiver, LQFP 32 U19 Melexis TH7122 n 41 1 16300-0211 IC IC, 100ma LDO Regulator, 3.3v SOT23-5 U15 Burr Brown REG101NA-3.3/250 n 42 0 16300-0215 IC Serial FLASH, AT45DB041B-SI, SOIC 8 (U1) Atmel AT45DB041B-SI y 43 1 16300-0217 IC Multi Volt Super,, MAX6353RVUK-T, SOT23-5 U8 Maxim MAX6353RVUK-T n 44 3 3300-0005 Cap 1uF, 16v, 20%, A-Case Tant C71,112,124 Venkel TA016TCM105MAR y 45 14 3300-0027 Cap .01uF, 10% X7R, 25v, 0402 C20,38,40-42,87,93,101,104,106,114,117,122,126 Venkel C0402X7R250-103KNE y 46 7 3300-0058 Cap 100 pF, COG, + 5%, 50V, 0402 C116,123,127,134,137,143,147 Venkel C0402COG500-101JNE y 47 1 3300-0069 Cap 2.2uF, 10v, 20%, A-Case Tant C72 Venkel TA010TCM225MAR y 48 6 3300-0094 Cap 1000pF, 10% X7R, 25v, 0402 C130,135,138,139,140,142 (110,131) Venkel C0402X7R250-102KNE y 49 3 3300-0095 Cap 10uF, 6.3v, 10%, A-Case Tant C111,113,128 Venkel TA006TCM106KAR y 50 2 3300-0097 Cap 33pF, 5% NPO, 50v, 0402 C78,79 Venkel C0402COG500-330JNE y 51 12 3300-0098 Cap 0.1uF, 10% X7R, 16v, 0402 C73,75,91,95,97,103,105,107,108,115,120,146(44) Venkel C0402X7R160-104KNE y 52 1 3300-0099 Cap 2 pF, COG,+ 0.25 pF, 50V, 0402 C136 Venkel C0402COG500-2R0CNE y 53 2 3300-0106 Cap 15uF, 6.3v, 10%, B-Case Tant C68,84 Venkel TA006TCM156KBR y 54 1 3300-0118 Cap 1 pF, COG, + 0.25 pF, 50V, 0402 C133 Venkel C0402COG500-1R0CNE y 55 33 3300-0119 Cap 470pF, 10% X7R, 50v, 0402 C7,9-19,21,23-25,27-37,39,74,76,80,118,119, (1-6,8,22,26,43) Venkel C0402X7R500-471KNE y 56 1 3300-0120 Cap 6.8uF, 6.3v, 10%, A-Case Tant C96 Venkel TA006TCM685KAR y 57 1 3300-0134 Cap 10pf, COG, + 5%, 50v, 0402 C109 Venkel C0402NPO500-100JNE y 58 1 3300-0150 Cap 0.33uF, 10% X7R, 10v, 0603 C121 Venkel C0603X7TR100-334KNE y 59 8 3300-0151 Cap 0.47uF, 10% X7R, 10v, 0603 C45,49,56,70,82,85,92,98 Venkel C0603X7TR100-474KNE y 60 17 3300-0152 Cap 0.0047uF, 10% X7R, 25v, 0402 C46,48,51-55,60,63-66,69,77,86,100,102 Venkel C0402X7R250-472KNE y 61 9 3300-0153 Cap 0.047uF, 10% X7R,16v, 0402 C47,50,57,58,59,61,83,89,99 Venkel C0402X7R160-473KNE y 62 4 3300-0154 Cap 4.7uF, 20% Y5V, 10v, 0805 C62,81,88,94 Venkel C0805Y5V100-475MNE y 63 2 3300-0155 Cap 470uF, 6.3v, 20%, D-Case Tant C67,90 AVX TPSD477M006R0200 y 64 1 3300-0156 Cap 2.7 pF, COG,+ 0.25 pF, 50V, 0402 C141 Venkel C0402COG500-2R7JNE y 65 1 3300-0157 Cap 5.6 pF, COG,+ 0.25 pF, 50V, 0402 C132 Venkel C0402COG500-5R6JNE y 66 1 3300-0158 Cap 150 pF, COG, + 5%, 50V, 0402 C145 Venkel C0402COG500-151JNE y 67 2 3300-0159 Cap 330 pF, COG, + 5%, 50V, 0402 C125,144 Venkel C0402COG500-331JNE y 68 1 3300-0168 Cap 470pF, 5% COG, 50v, 0402 C129 Venkel C0402COG500-471JNE 69 1 4300-0018 Xtal 14.7456MHZ, 18PF, HC49-SMT Y1 Citizen HCM49-14.7456MABJTR n 70 1 4300-0021 Crystal, CDF107F-AO-013 Y2 Toko Certronics CDF107F-A0-013 JT10.7MCI-A n 71 1 4300-0022 IC, TCXO, 16Mhz, 3.2x5mm SMT U18 World Technologies Transko WTL8352M-16 TX - T30-25LP16.000MHZ n 72 4 6300-0221 HDW 1/8" Round Swage Standoff .187" RAF 3001-B-080-B n 2 of 3 Pro Tech Monitoring, Inc.Revision: G (ECO 569) Processor Board PN:MTD 3032 Releas…

Text truncated - open the document above for the full version.

Pro Tech Monitoring, Inc.Revision: C Enfora Modem Bd PN:MTD 8000 Release Date: 02/17/06 Item Qt y P/N SrcCtl Title Detail Reference ( m ) Mfr Mfr P/N Sub 1 2 15300-0003 Res 100K ohm, 1%, 0603 R1,2,(13,14) any yes 2 2 15300-0149 Res 0 ohm, 0603 R15,16 any yes 3 1 15300-0245 Res 4.7K ohm, 5%, 0603 R11 any yes 4 0 16300-0136 IC MICROPWR LDO REG SOT-23-5, LP2981AIM5-3.3 (U2) National LP2981AIM5-3.3 no 5 1 16300-0212 Tran 2N7002-7 N-Channel Mosfet, SOT23 Q2 Diodes Inc. 2N7002-7 yes 6 1 16300-0213 Tran IRF7416, P-Channel Hexfet, SOIC8 Q4 International Rect IRF7416 yes 7 1 17300-0022 Enfora Modem Enfora GSM0108-00 no 8 1 18300-0022 Serial Number Label RS Hughes 9 0 3300-0044 Cap 470pF, 50v, 10%, 0603 (C16) Venkel C06032X7R500-471KNE 10 0 3300-0106 Cap 15uF,6.3v, 10%, B size, Tant (C17) Venkel TA006TCM153KBR 11 2 3300-0107 Cap 0.1uF, 10% X7R, 16v, 0603 C2,3 Venkel C0603X7TR160-104KNE yes 12 2 3300-0155 Cap 470uF, 6.3v, 20%, Low ESR, D-Case Tant C1,4 AVX TPSD477M006R0200 yes 13 1 6300-0323 PCB Axon 14 A/R 6300-0329 Kapton Tape 15 1 8300-0052 Con 2 x 10 Rt Ang PTH Connector J1 Samtec MMS-110-01-L-DH no 16 1 8300-0084 Con 0.5mm, 60 pos. dual row, SMT J2 Molex 52974-0604 no 17 1 8300-0085 Con SIM card socket J3 Hirose ID1A-6S-2.54SF no 18192021222324252627282930313233343536 1 of 1

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: Pro Tech Monitoring Inc. Smart Active Tracker To: OET Bulletin 65 Supplement C: (2001-01) Test Report Serial No: RFI/SARE3/RP72155JD04A Supersedes Test Report Serial No: RFI/SARE2/RP72155JD04A This Test Report Is Issued Under The Authority Of Andrew Brown, Operations Manager: pp. Tested By: Richelieu Quoi Checked By: Joe Lomako pp. Report Copy No: PDF01 Issue Date: 15 March 2007 Test Dates: 31 August 2006 It should be noted that the standard, OET Bulletin 65 Supplement C: (2001-01) is not listed on RFI’s current UKAS schedule and is therefore “not UKAS accredited”. This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may be copied in full. The results in this report apply only to the sample(s) tested. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE3/RP72155JD04A Page: 2 of 46 Issue Date: 15 March 2007 Test Of: Pro Tech Monitoring Inc. Smart Active Tracker To: OET Bulletin 65 Supplement C: (2001-01) This page has been left intentionally blank. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE3/RP72155JD04A Page: 3 of 46 Issue Date: 15 March 2007 Test Of: Pro Tech Monitoring Inc. Smart Active Tracker To: OET Bulletin 65 Supplement C: (2001-01) Table of Contents 1. Client Information ............................................................................................................. 4 2. Equipment Under Test (EUT) ........................................................................................... 5 3. Test Specification, Methods and Procedures ................................................................ 8 4. Deviations from the Test Specification .......................................................................... 9 5. Operation of the EUT During Testing ........................................................................... 10 6. Summary of Test Results............................................................................................... 11 7. Measurements, Examinations and Derived Results.................................................... 12 8. SAR Measurement System ............................................................................................ 16 9. SAR Safety Limits...........................................................................................................17 10. Details of SAR Evaluation............................................................................................ 18 11. Evaluation Procedures................................................................................................. 19 12. System Validation......................................................................................................... 20 13. Simulated Tissues ........................................................................................................ 21 14. Tissue Parameters........................................................................................................ 22 15. DASY4 Systems Specifications................................................................................... 23 16. Validation Results – 900 MHz Band (Body) ................................................................ 24 17. Validation Results – 1900 MHz Band (Body) .............................................................. 25 18. Measurement Uncertainty............................................................................................ 26 Appendix 1. Test Equipment Used.................................................................................... 29 Appendix 2. SAR Distribution Scans ................................................................................ 31 Appendix 3. Test Configuration Photograph ................................................................... 32 Appendix 4. Calibration Data ............................................................................................. 34 Appendix 5. Photographs of EUT...................................................................................... 36 RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE3/RP72155JD04A Page: 4 of 46 Issue Date: 15 March 2007 Test Of: Pro Tech Monitoring Inc. Smart Active Tracker To: OET Bulletin 65 Supplement C: (2001-01) 1. Client Information Company Name: Pro Tech Monitoring Inc. Address: 2549 Success Drive Odessa FL 33556 Contact Name: Mr D Segal Test Laboratory Company Name: RFI Global Services Ltd Address: Ewhurst Park Ramsdell Basingstoke Hampshire RG26 5RQ. Contact Name: Mr A Brown RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE3/RP72155JD04A Page: 5 of 46 Issue Date: 15 March 2007 Test Of: Pro Tech Monitoring Inc. Smart Active Tracker To: OET Bulletin 65 Supplement C: (2001-01) 2. Equipment Under Test (EUT) The following information (with the exception of the date of receipt) has been supplied by the client: 2.1. Identification of Equipment Under Test (EUT) Description: Smart Active Tracker Brand Name: Pro Tech Model Name or Number: None Stated By Client Unique Type Identification: MTD2000 Serial Number: 33582027 IMEI Number: 357647000459700 Hardware Revision Number: 1C (Stated by the client) Software Revision Number: 3.1.34.0 (Stated by the client) FCC Identification: NC3MTD2000 Country of Manufacture: USA Date of Receipt: 31 August 2006 2.2. Description of EUT The equipment under test is a GPS Active Tracker with GPRS class 10 capabilities. The EUT operates at GSM850, PCS1900, GPRS850 and GPRS1900 bands. 2.3. Modifications Incorporated in the EUT During the course of testing the EUT was not modified. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE3/RP72155JD04A Page: 6 of 46 Issue Date: 15 March 2007 Test Of: Pro Tech Monitoring Inc. Smart Active Tracker To: OET Bulletin 65 Supplement C: (2001-01) 2.…

Text truncated - open the document above for the full version.

RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE3/RP72155JD04A Page: 31 of 46 Issue Date: 15 March 2007 Test Of: Pro Tech Monitoring Inc. Smart Active Tracker To: OET Bulletin 65 Supplement C: (2001-01) Appendix 2. SAR Distribution Scans This appendix contains SAR distribution scans. Scan Reference Number Title SCN/72155/001 72155 JD04 001 Display Of EUT Facing Phantom At 0mm GPRS CH189 SCN/72155/002 72155 JD04 002 Rear Of EUT Facing Phantom At 0mm GPRS CH189 SCN/72155/003 72155 JD04 003 Display Of EUT Facing Phantom At 0mm GSM CH189 SCN/72155/004 72155 JD04 004 Rear Of EUT Facing Phantom At 0mm GSM CH189 SCN/72155/005 72155 JD04 005 Display Of EUT Facing Phantom At 0mm GPRS CH660 SCN/72155/006 72155 JD04 006 Rear Of EUT Facing Phantom At 0mm GPRS CH660 SCN/72155/007 72155 JD04 007 Display Of EUT Facing Phantom At 15mm GSM CH660 SCN/72155/008 72155 JD04 008 Rear Of EUT Facing Phantom At 15mm GSM CH660 SCN/72155/Validation 001 System Performance Check 31 08 06 SCN/72155/Validation 002 System Performance Check-D1900 31 08 06 Page 1 of 2 Date: 31/08/2006 72155_JD04_001 Test Laboratory: RFI GLOBAL SERVICES LTD. 72155_JD04_001_Display_Of_EUT_Facing_Phantom_At_0mm_GPRS_CH189 DUT: Pro Tech Monitoring Inc; Type: Smart Active Tracker; IMEI: 357647000459700 Communication System: GPRS 850 MHz; Frequency: 836.4 MHz;Duty Cycle: 1:4 Medium: 900 MHz MSL Medium parameters used (interpolated): f = 836.4 MHz; σ = 0.943 mho/m; ε r = 54; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1528; ConvF(6.29, 6.29, 6.29); Calibrated: 12/07/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn394; Calibrated: 19/05/2006 0 dB = 0.028mW/g Page 2 of 2 - Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1207 - Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Display Of EUT Facing Phantom At 0 mm - Middle/Area Scan (101x131x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.030 mW/g Display Of EUT Facing Phantom At 0 mm - Middle/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.41 V/m; Power Drift = -0.325 dB Peak SAR (extrapolated) = 0.037 W/kg SAR(1 g) = 0.026 mW/g; SAR(10 g) = 0.019 mW/g Maximum value of SAR (measured) = 0.028 mW/g Page 1 of 2 Date: 31/08/2006 72155_JD04_002 Test Laboratory: RFI GLOBAL SERVICES LTD. 72155_JD04_002_Rear_Of_EUT_Facing_Phantom_At_0mm_GPRS_CH189 DUT: Pro Tech Monitoring Inc; Type: Smart Active Tracker; IMEI: 357647000459700 Communication System: GPRS 850 MHz; Frequency: 836.4 MHz;Duty Cycle: 1:4 Medium: 900 MHz MSL Medium parameters used (interpolated): f = 836.4 MHz; σ = 0.943 mho/m; ε r = 54; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1528; ConvF(6.29, 6.29, 6.29); Calibrated: 12/07/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn394; Calibrated: 19/05/2006 0 dB = 0.007mW/g Page 2 of 2 - Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1207 - Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Display Of EUT Facing Phantom At 0 mm - Middle/Area Scan (101x131x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.007 mW/g Display Of EUT Facing Phantom At 0 mm - Middle/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 1.94 V/m; Power Drift = -0.029 dB Peak SAR (extrapolated) = 0.009 W/kg SAR(1 g) = 0.00657 mW/g; SAR(10 g) = 0.00448 mW/g Maximum value of SAR (measured) = 0.007 mW/g Page 1 of 2 Date: 31/08/2006 72155_JD04_003 Test Laboratory: RFI GLOBAL SERVICES LTD. 72155_JD04_003_Display_Of_EUT_Facing_Phantom_At_0mm_GSM_CH189 DUT: Pro Tech Monitoring Inc; Type: Smart Active Tracker; IMEI: 357647000459700 Communication System: 850 MHz; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: 900 MHz MSL Medium parameters used (interpolated): f = 836.4 MHz; σ = 0.943 mho/m; ε r = 54; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1528; ConvF(6.29, 6.29, 6.29); Calibrated: 12/07/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn394; Calibrated: 19/05/2006 0 dB = 0.058mW/g Page 2 of 2 - Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1207 - Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Display Of EUT Facing Phantom At 0 mm - Middle/Area Scan (101x131x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.058 mW/g Display Of EUT Facing Phantom At 0 mm - Middle/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.53 V/m; Power Drift = -0.033 dB Peak SAR (extrapolated) = 0.072 W/kg SAR(1 g) = 0.055 mW/g; SAR(10 g) = 0.039 mW/g Maximum value of SAR (measured) = 0.058 mW/g Page 1 of 2 Date: 31/08/2006 72155_JD04_004 Test Laboratory: RFI GLOBAL SERVICES LTD. 72155_JD04_004_Rear_Of_EUT_Facing_Phantom_At_0mm_GSM_CH189 DUT: Pro Tech Monitoring Inc; Type: Smart Active Tracker; IMEI: 357647000459700 Communication System: 850 MHz; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: 900 MHz MSL Medium parameters used (interpolated): f = 836.4 MHz; σ = 0.943 mho/m; ε r = 54; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1528; ConvF(6.29, 6.29, 6.29); Calibrated: 12/07/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn394; Calibrated: 19/05/2006 0 dB = 0.016mW/g Page 2 of 2 - Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1207 - Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Rear Of EUT Facing Phantom At 0 mm - Middle/Area Scan (101x131x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.016 mW/g Rear Of EUT Facing Phantom At 0 mm - Middle/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.88 V/m; Power Drift = -0.113 dB Peak SAR (extrapolated) = 0.021 W/kg SAR(1 …

Text truncated - open the document above for the full version.

RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE3/RP72155JD04A Page: 34 of 46 Issue Date: 15 March 2007 Test Of: Pro Tech Monitoring Inc. Smart Active Tracker To: OET Bulletin 65 Supplement C: (2001-01) Appendix 4. Calibration Data This appendix contains the calibration data and certificates. Asset Number Date Title A1185 12 July 2006 QA CAL-01.v5 and QA CAL-12.v4, Calibration procedure for domestic E-filed probes. A1235 31 August 2005 QA CAL-05.v6, Calibration procedure for dipole validation kits. A1237 14 June 2005 QA CAL-05.v6, Calibration procedure for dipole validation kits.

RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE3/RP72155JD04A Page: 34 of 46 Issue Date: 15 March 2007 Test Of: Pro Tech Monitoring Inc. Smart Active Tracker To: OET Bulletin 65 Supplement C: (2001-01) Appendix 4. Calibration Data This appendix contains the calibration data and certificates. Asset Number Date Title A1185 12 July 2006 QA CAL-01.v5 and QA CAL-12.v4, Calibration procedure for domestic E-filed probes. A1235 31 August 2005 QA CAL-05.v6, Calibration procedure for dipole validation kits. A1237 14 June 2005 QA CAL-05.v6, Calibration procedure for dipole validation kits. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE3/RP72155JD04A Page: 35 of 46 Issue Date: 15 March 2007 Test Of: Pro Tech Monitoring Inc. Smart Active Tracker To: OET Bulletin 65 Supplement C: (2001-01) This page has been left intentionally blank.

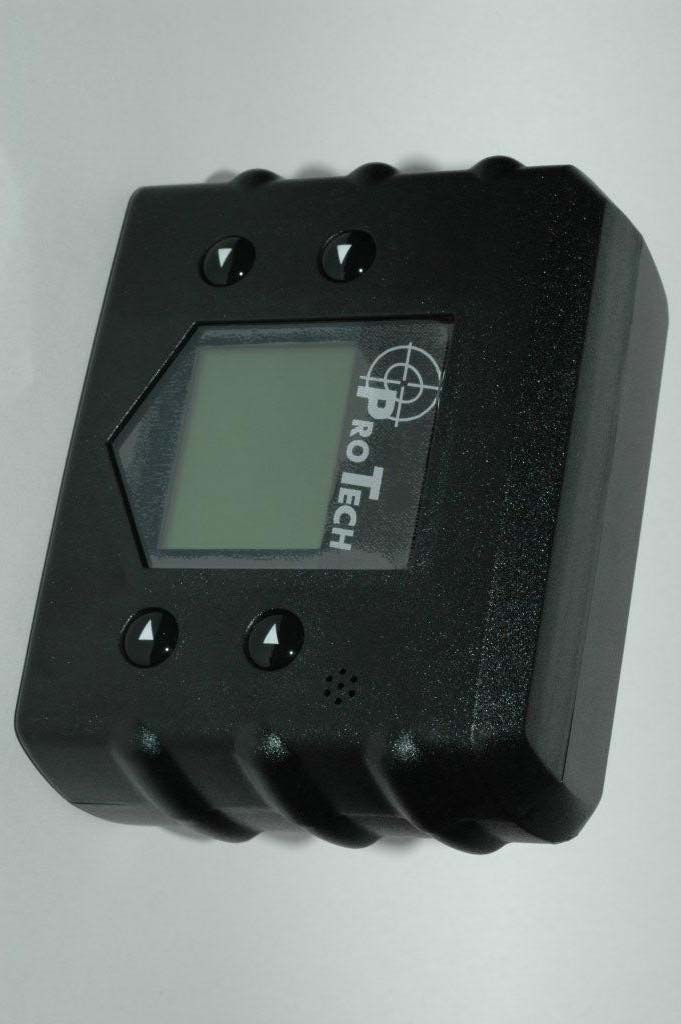

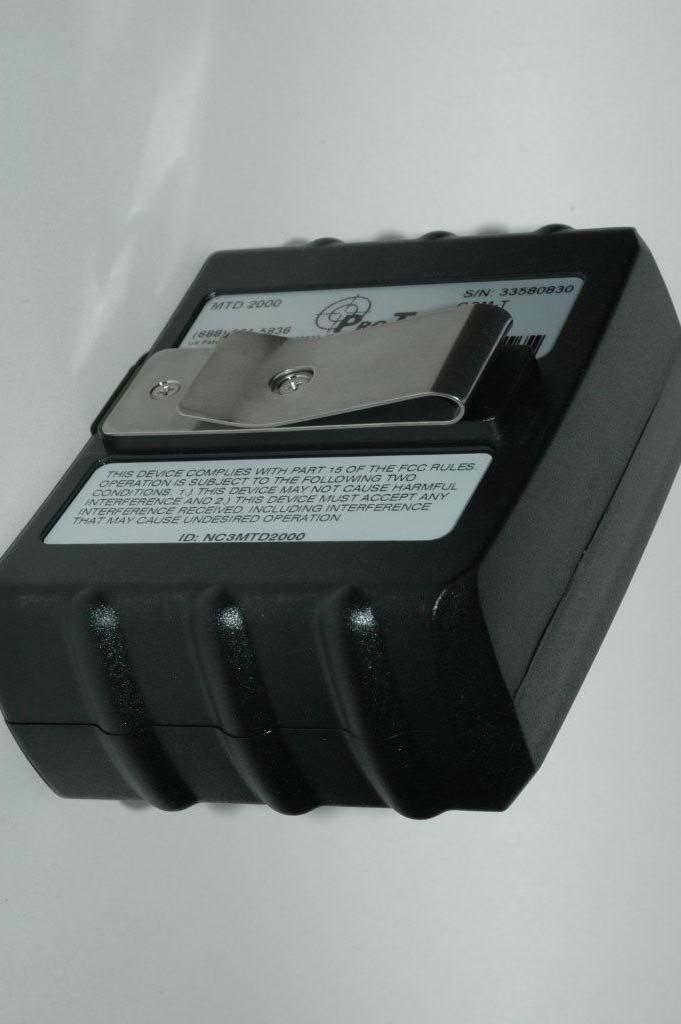

RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE3/RP72155JD04A Page: 36 of 46 Issue Date: 15 March 2007 Test Of: Pro Tech Monitoring Inc. Smart Active Tracker To: OET Bulletin 65 Supplement C: (2001-01) Appendix 5. Photographs of EUT This appendix contains the following photographs: Photo Reference Number Title PHT/72155/001 Display Of EUT Facing Phantom At 0mm PHT/72155/002 Rear Of EUT Facing Phantom At 0mm PHT/72155/003 Display Of EUT Facing Phantom At 15mm PHT/72155/004 Rear Of EUT Facing Phantom At 15mm PHT/72155/005 Display View Of EUT PHT/72155/006 Rear View Of EUT PHT/72155/007 Internal View Of EUT PHT/72155/008 Fluid Level Body 900 MHz PHT/72155/009 Fluid Level 1900 MHz RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE3/RP72155JD04A Page: 37 of 46 Issue Date: 15 March 2007 Test Of: Pro Tech Monitoring Inc. Smart Active Tracker To: OET Bulletin 65 Supplement C: (2001-01) PHT/72155/001: Display Of EUT Facing Phantom At 0mm RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE3/RP72155JD04A Page: 38 of 46 Issue Date: 15 March 2007 Test Of: Pro Tech Monitoring Inc. Smart Active Tracker To: OET Bulletin 65 Supplement C: (2001-01) PHT/72155/002: Rear Of EUT Facing Phantom At 0mm RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE3/RP72155JD04A Page: 39 of 46 Issue Date: 15 March 2007 Test Of: Pro Tech Monitoring Inc. Smart Active Tracker To: OET Bulletin 65 Supplement C: (2001-01) PHT/72155/003: Display Of EUT Facing Phantom At 15mm RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE3/RP72155JD04A Page: 40 of 46 Issue Date: 15 March 2007 Test Of: Pro Tech Monitoring Inc. Smart Active Tracker To: OET Bulletin 65 Supplement C: (2001-01) PHT/72155/004: Rear Of EUT Facing Phantom At 15mm RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE3/RP72155JD04A Page: 41 of 46 Issue Date: 15 March 2007 Test Of: Pro Tech Monitoring Inc. Smart Active Tracker To: OET Bulletin 65 Supplement C: (2001-01) PHT/72155/005: Display View Of EUT RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE3/RP72155JD04A Page: 42 of 46 Issue Date: 15 March 2007 Test Of: Pro Tech Monitoring Inc. Smart Active Tracker To: OET Bulletin 65 Supplement C: (2001-01) PHT/72155/006: Rear View Of EUT RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE3/RP72155JD04A Page: 43 of 46 Issue Date: 15 March 2007 Test Of: Pro Tech Monitoring Inc. Smart Active Tracker To: OET Bulletin 65 Supplement C: (2001-01) PHT/72155/007: Internal View Of EUT RFI GLOBAL SERVICES LTD TEST REPORT S.No.…

Text truncated - open the document above for the full version.
