A S P E E D C O M W I R E L E S S C O R P O R A T I O N S P E E D L A N 9 0 0 0 SPEEDLAN 9000 Series Installation and Operation User Guide Version 3.03 Last Revised: July 3, 2003 -1 Copyright/Liability Copyright ©2002, 2003. Wave Wireless Networking. All rights reserved. SPEEDCOM, SPEEDSignal and SPEEDView are registered trademarks of Wave Wireless Networking. SPEEDLAN, Wave Wireless Networking and the Wave Wireless Networking logo are trademarks of Wave Wireless Networking. All other trademarks mentioned in this document are the property of their respective owners. Contents of this publication may be preliminary and/or may be changed at any time without notice and shall not be regarded as a warranty. For more information, contact Wave Wireless Networking at: Wave Wireless Networking 7020 Professional Parkway East Sarasota, FL 34240 www.wavewireless.com Technical Support 941-907-2300 (phone) 941-355-0219 (fax) SPEEDLAN 9000 Series Installation and Operation User Guide Version 3.03 Contents-1 Chapter 1 - Introduction................................................................................... 1-1 Features and Benefits ................................................................................................................. 1-2 SPEEDLAN 9000 Series Features ......................................................................................... 1-2 ISP Functionality ................................................................................................................. 1-3 IP Router Functionality ........................................................................................................1-3 Network Management ........................................................................................................ 1-3 Features (and Benefits)........................................................................................................1-4 Equipment Features ................................................................................................................... 1-5 SPEEDLAN Polling Protocol -- How it Works ................................................................................ 1- 6 Point-to-Point Functionality.................................................................................................. 1-6 Point-to-Multipoint Functionality .......................................................................................... 1-6 SPEEDLAN 9000 Mesh Protocol -- How It Works in Mesh Clouds .................................................. 1-8 SPEEDLAN’s Mesh Cloud Architecture................................................................................ 1-10 SPEEDLAN 9000 Mesh Core Components ......................................................................... 1-10 Network Expansion: Connecting Buildings in a SPEEDLAN 9000 Network............................. 1-12 What’s New for Version 3.03....................................................................................................1-14 What’s New for Version 3.0......................................................................................................1-15 Contacting Technical Support ...................................................................................................1-18 Chapter 2 SPEEDLAN 9101, 9102, 9103 & 9104 Hardware ........................... 2-1 Rooftop and Tower Installations Warning ..................................................................................... 2-2 General Safety Requirements for Installation of SPEEDLAN 9000 Models........................................ 2-2 Hardware Overview ................................................................................................................... 2-3 Drawings of Outdoor, Remote-Mounted Components .................................................................. 2-4 Indoor Junction Box............................................................................................................2-4 The SPEEDLAN 9101(with an Integrated 8 dBi Omni)............................................................ 2-5 SPEEDLAN 9104 (with 5 dBi Omni) ..................................................................................... 2-6 Bottom View of SPEEDLAN 9101/9104................................................................................ 2-7 System Description .............................................................................................................2-7 Package Contents ............................................................................................................. 2-7 Installation Steps for the SPEEDLAN 9101/9104 ................................................................... 2-8 Installation Diagram of the SPEEDLAN 9101/9104............................................................. 2-10 The SPEEDLAN 9102 and 9103 (CPE and Base Station Use)....................................................... 2-12 As a 9102 CPE/Point-to-Point with Grid or Directional Antenna ........................................... 2-12 As a Base Station with Sectoral Antenna ............................................................................. 2-13 As a Base Station with High-Gain Omni Antenna................................................................ 2-14 Bottom View of SPEEDLAN 9102 and 9103 ....................................................................... 2-15 System Description ........................................................................................................... 2-15 Package Contents ............................................................................................................ 2-15 Installation Steps for the SPEEDLAN 9102 and 9103........................................................... 2-16 9102/9103 Installation Diagram....................................................................................... 2-22 Chapter 3 - General Functions of the Configurator ...........................…

Text truncated - open the document above for the full version.

SPEEDLAN 9000 Series Installation and Operation User Guide Version 3.03 Using the Configurator to Set Up Special Parameters for CPE Routers5-3 •Interface Type: Select the CPE from the Interface Type drop-down list. When finished, click Apply. This will tell the configurator that you are in CPE mode. •Network Name: The type of network for the wireless or fixed router. •Enable Forwarding: Select the Enable Forwarding option to enable the forwarding of IP packets from the wired interface to the wireless interface and vice-versa. •Disable Forwarding: Select the Disable Forwarding option to disable the forwarding of IP packets from the wired interface to the wireless interface and vice-versa. •Apply: Click after making changes. Base Station Information To see if a CPE is connected to the base station, choose Base Station Info from the Network menu. The following page will appear. Note: If there is no connection to the base station, a message will appear confirming that the CPE is not connected to the base station. Figure 5-2: Base Station Information (for CPE mode) Version 3.03 SPEEDLAN 9000 Series Installation and Operation User Guide 5-4Using the Configurator to Set Up Special Parameters for CPE Routers Authentication Normally, the CPE routers must prove their authenticity with a base station before participating in the star network. One way to do this is to set a common pass on both the CPE router and on the base station. Use this page (Authentication Settings) to set a pass phrase for a CPE router. You are only required to do this once, unless the pass phrase on the base station changes. Just make sure that the password is kept in a safe place so it is not lost or stolen. All interfaces connected to the 9000 router are restricted to systems based on the authentic pass phrase (or password). Any interface that does not have the correct pass phrase will not be able to establish a data connection. To authenticate a CPE, choose Authentication from the Network menu. The following page will appear. Figure 5-3: Authentication Settings for CPE page •Pass Phrase: Enter a pass phrase and confirm it like setting up a regular password. As shipped there would be a blank pass phrase and a base station authenticates CPE routers using the MAC address. If you want to use the Pass Phrase authentication, then you have to set matching pass phrases on a base SPEEDLAN 9000 Series Installation and Operation User Guide Version 3.03 Using the Configurator to Set Up Special Parameters for CPE Routers5-5 station and on a CPE. (Pass Phrases have a minimum of 8 characters and a maximum of 32 characters.) •Confirm: Enter the pass phrase again to ensure it is correct. Make sure you keep the pass phrase in a safe place. Wireless menu Choose Configuration from the Wireless menu and you will be able to choose one of the following: •If you click the Channel and Rates button, you will be able to select the channel and signaling rate of the interface. For more information, see Channel and Rates, page 5-6. •If you click the Tx Retries button, you will be able to set the Transmit Retry Limit and Signaling Rate Fallback. For more information, see Max Tx Retries and Signaling Rate Fallback, page 5-8. •If you click the Max Throughput button, you will be able to set the Max Transmit Data Rate in Kb/s. For more information, see Max Throughput (Regulating Bandwidth), page 5-10. Version 3.03 SPEEDLAN 9000 Series Installation and Operation User Guide 5-6Using the Configurator to Set Up Special Parameters for CPE Routers Channel and Rates Figure 5-4: Channel and Rates page •Primary Firmware: This is the current primary firmware version in use by the wireless card. •Station Firmware: This is the current station firmware version in use by the wireless card. •Channel: This is the specific band of frequencies (from 1 to 11) to determine the data path between routers. All SPEEDLAN 9000 routers expected to communicate in a network must have the same channel (frequency). Select one of the following channels (all are represented in GHz) from the Channel drop-down list: 12.412 22.417 32.422 42.427 52.432 62.437 72.442 version: v SPEEDLAN 9000 Series Installation and Operation User Guide Version 3.03 Using the Configurator to Set Up Special Parameters for CPE Routers5-7 82.447 92.452 102.457 112.462 •Signaling Rate: This setting refers to the wireless signaling rate. The SPEEDLAN 9000 routers have four signaling rates that can be used. Select one of the following check boxes: •1 Mb/s: This setting limits the card by providing 1 Mb/s of bandwidth. The minimum receiver sensitivity of the radio with this setting is -92 dBm. •2 Mb/s: This setting limits the card by providing 2 Mb/s of bandwidth. The minimum receiver sensitivity of the radio with this setting is -89 dBm. •5.5 Mb/s: This setting limits the card to providing 5.5 Mb/s of bandwidth. The minimum receiver sensitivity of the radio with this setting is -88 dBm. •11 Mb/s: This is the full 11 Mb/s signaling rate. This value is recommended for most installations. The minimum receiver sensitivity of the radio with this setting is -85 dBm. Note: The network can automatically downgrade the bandwidth if needed (that is, if lower Mb/s settings are selected). Click Apply when finished. Version 3.03 SPEEDLAN 9000 Series Installation and Operation User Guide 5-8Using the Configurator to Set Up Special Parameters for CPE Routers Max Tx Retries and Signaling Rate Fallback This page includes two features: Max Tx Retries and Signaling Rate Fallback. On the figure below, Max Tx Retries is circled in red and Signaling Rate Fallback is circled in blue. The following page appears when the Tx Retries button is clicked: Figure 5-5: Tx Retries and Signaling Rate Fallback page Note: Click Apply to activate settings. Max Tx Retries Wave Wireless recommends that you use this parameter to increase the throughput of your wireless network. This parameter tells a network node the maximum number of times a unicast frame c…

Text truncated - open the document above for the full version.

SPEEDLAN 9000 Series Installation and Operation User Guide Version Regulations (Appendix D)- 3 Manufacturer Information Manufacturer/Importer Name: Wave Wireless Networking A Division of SPEEDCOM Wireless Corporation 7020 Professional Parkway East Sarasota, FL 34240 Phone: 941-907-2300 Fax: 941-355-0219 Regulatory Information Install this device in accordance with the instructions provided in this User Guide. To determine the type of device you should use in your country, see the Radio Approval Table on page 6 of this section. Manufacturers Federal Communication Commission Declaration of Conformity Statement This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment. This equipment generates, uses, and radiates radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference. However, there is no guarantee that interference will not occur. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to correct the interference by one of the following measures: •Reorient or relocate the receiving antenna. •Increase separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from which the receiver is connected. •Consult the professional installer or an experienced radio/TV technician. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.

8 dBi antenna

U11 Ethernet MAC/PHY National Semiconductor DP83815 U10 Buffer, hex 74LVC125 U14 Serial EEPROM 93C46 U2 SDRAM 16M x 16 U3 SDRAM 16M x 16 U17 RS-232 Transceiver MAX3243 (not used) X1 Crystal 32 MHz X2 Crystal 32.768 kHz U4 Flash Memory 128k x 8 SST 39VF010 U6 DC/DC Converter MAX1714 P1 Connector 9-pin D-sub X3 Crystal Oscillator 25 MHz U13 Ethernet MAC/PHY National Semiconductor DP83815 U15 Ethernet MAC/PHY National Semiconductor DP83815 U16 Serial EEPROM 93C46 U12 Serial EEPROM 93C46 T1 Ethernet Transformer & Filter T2 Ethernet Transformer & Filter T3 Ethernet Transformer & Filter U5 RS-232 Transceiver MAX3243 J1 Connector DC Power Input JP7 Modular Jack 8-position JP8 Modular Jack 8-position JP6 Modular Jack 8-position Q3 Dual FET IR147 BT1 Battery J2 Connector PCI Bus J3 Connector mini PCI JP2 Connector Compact Flash JP3 Connector Alt. Power U8 Voltage Regulator D3,6,10 LEDs JP1 Connector JTAG Debugger JP11 Connector 10-pin header (not used) JP3 Connector Parallel I/O PCI Bus Local Bus Controller SDRAM Bus Controller U1 MicroProcessor AMD Elan SC520 PCI Bus Controller UART1 UART2 JTAG Port MAC/PHY GPIO Real Time Clock Clock Gen Block Diagram: Soekris net4501 Single Board Computer

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: Confidentiality Request regarding application for certification of WAVE WIRELESS NETWORKING, FCC Certification of FCC ID: NCBSL9101A To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Janusz Dyndul Product Certification Manager WAVE WIRELESS NETWORKING 941-358-9283 ext. 407 [email protected]

Page 10 Page 11

Operational Description of Wireless Outdoor Mount Ethernet Bridge SPEEDLAN 9000 Series The outdoor wireless Ethernet bridge, FCC ID: NCBSL9101A and NSBSL9102A is a high performance bridge / router that create interconnectivity between buildings and providing links for LAN-to-LAN applications. This system can be used in star or mesh configutation. The functional block diagram of the bridge is presented on Figure 1. The outdoor wireless Ethernet bridges are installed on the pole or tower. The bridge containing 11 Mb/s MiniPCI Adapter, Embedded Processor and Voltage Regulator is enclosed in metal enclosure connected to the ground. The Ethernet data and DC supply voltage (18 to 36 Vdc) are injected through junction box and to up to 300 feet long Cat 5 Ethernet cable ( 2 pairs are used for DC voltage and other 2 for Ethernet data ) and connected to the bridge. Than DC voltage is separated and connected to Voltage Regulator and Ethernet data are processed and transferred to WaveLan transmitter which is connected to 8 dBi omni or 24 dBi grid antenna . If system is not transmitting it is in receiving mode. The received signal from antenna is amplified, processed, demodulated and through Cat 5 Ethernet cable connected to LAN system. Technical Specification of SPEEDLAN 9000 Series Bridge Radio Type: Direct Sequence Spread Spectrum (DSSS) Frequency: 2400 – 2483.5 MHz (ISM Band) Channels: 11 Processing Gain: 11 dB (Nominal) Communication Method: Half-duplex Transmit Power: 15 dBm (Nominal) Receiver Sensivity: Max. –88 dBm (-80 at 11Mb/s) Bit Rate: 1 to 11 Mbit/sec Bit Error Rate: Better than 10E-5 Modulation: DBPSK at 1 Mbit/sec DQPSK at 2 Mbit/sec CCK at 5.5 and 11 Mbit/sec Spreading: 11 chip Barker sequence with chipping rate 1 Mbaud LAN Interface Compliance: IEEE 802.3 Ethernet Physical Interface: 10Base-T ,10/100Base-TX Ethernet Interface: 10 Mb/s Ethernet General: Power Supply: 18 to 36 Vdc 24 W Temperature Range: -40 to +70 C Humidity ( Non-immersion) 0 to 95 % Range: Up to 25 miles

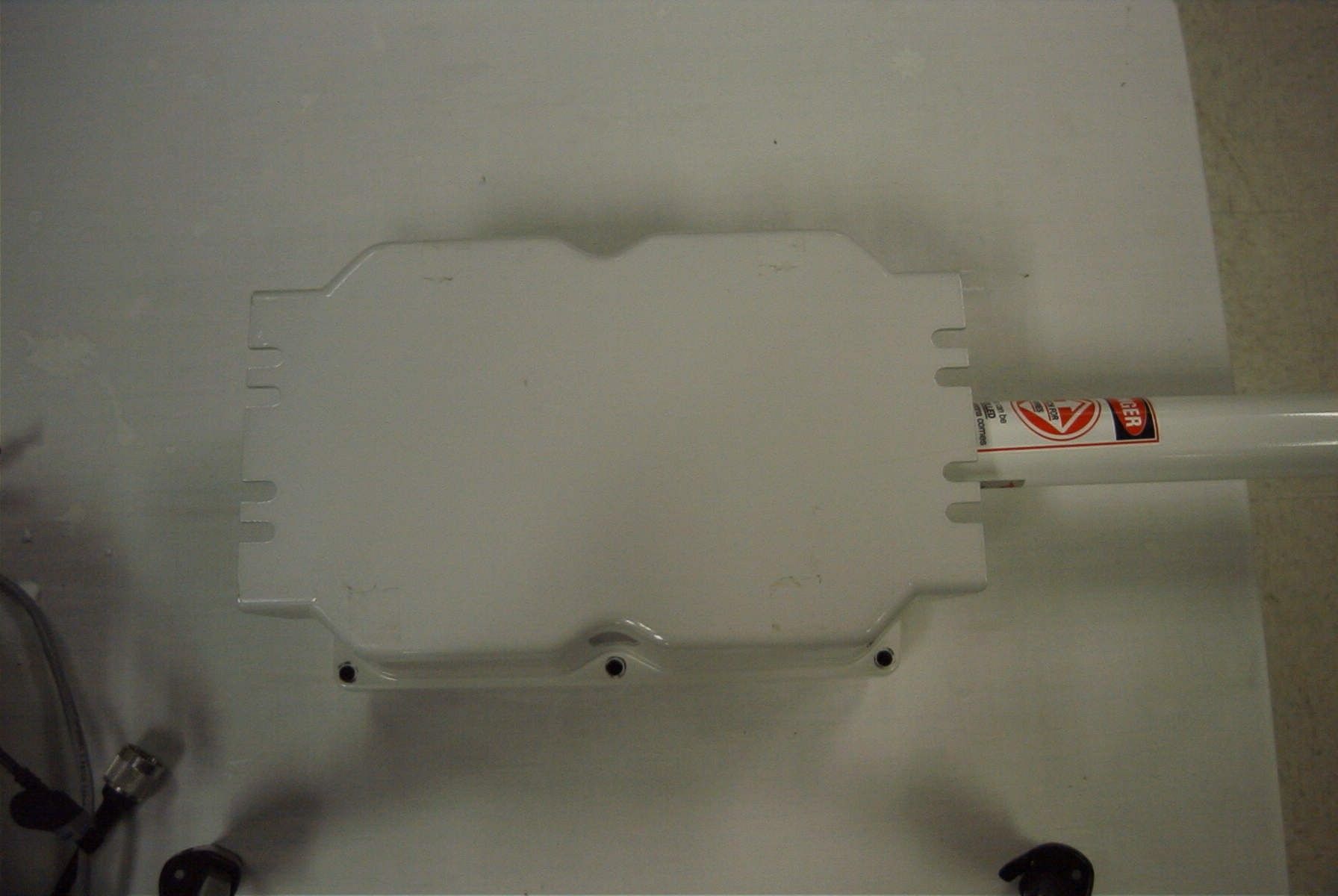

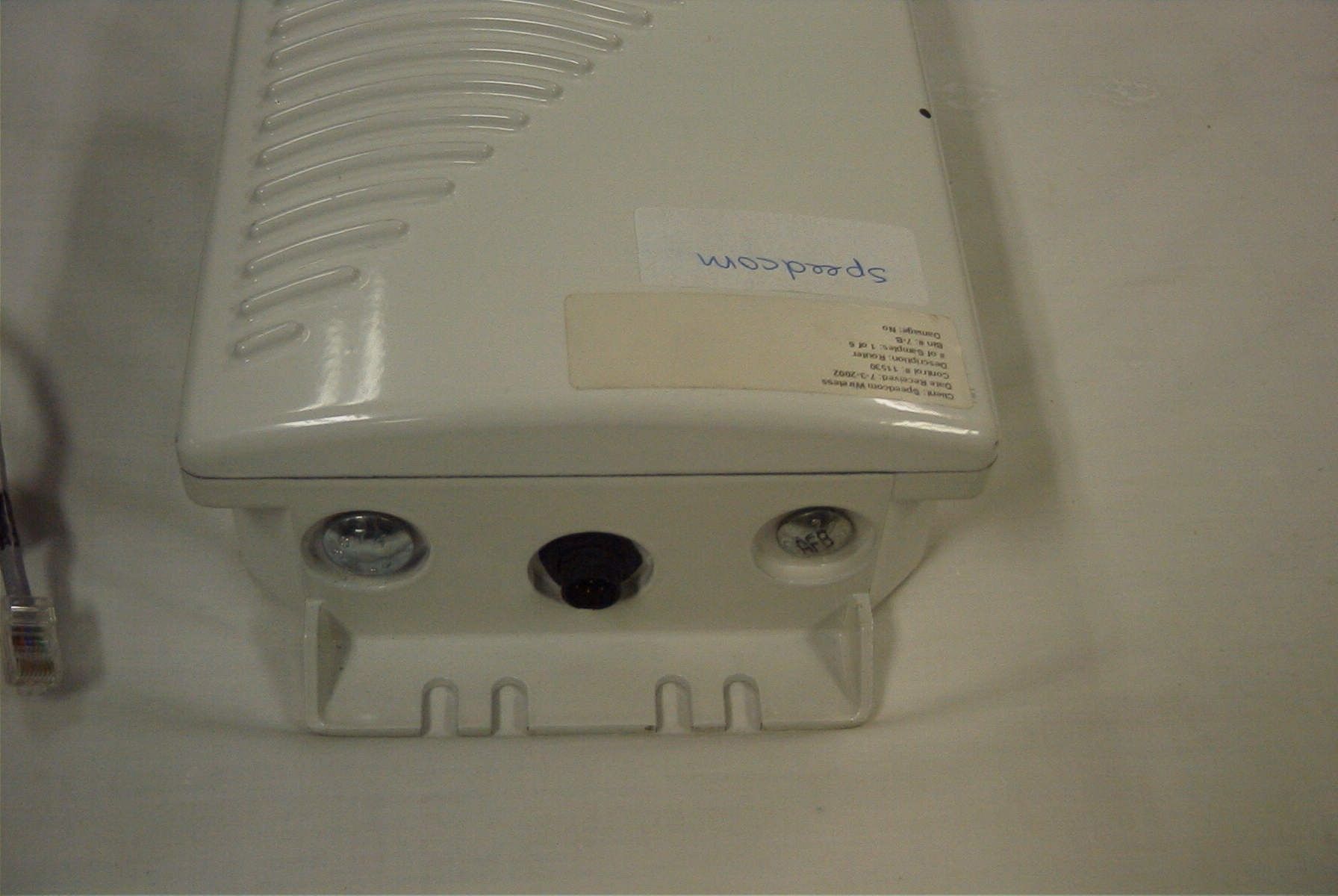

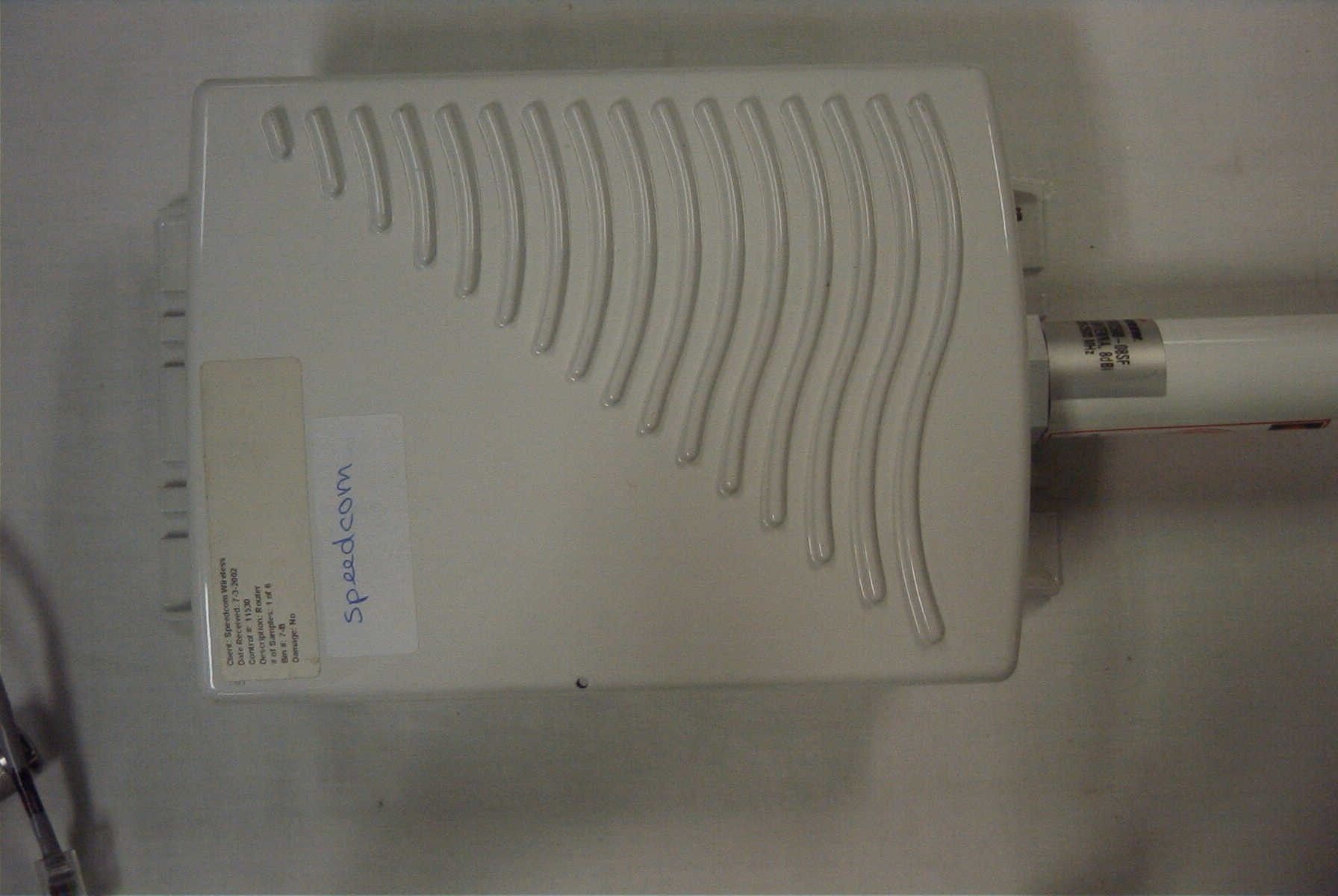

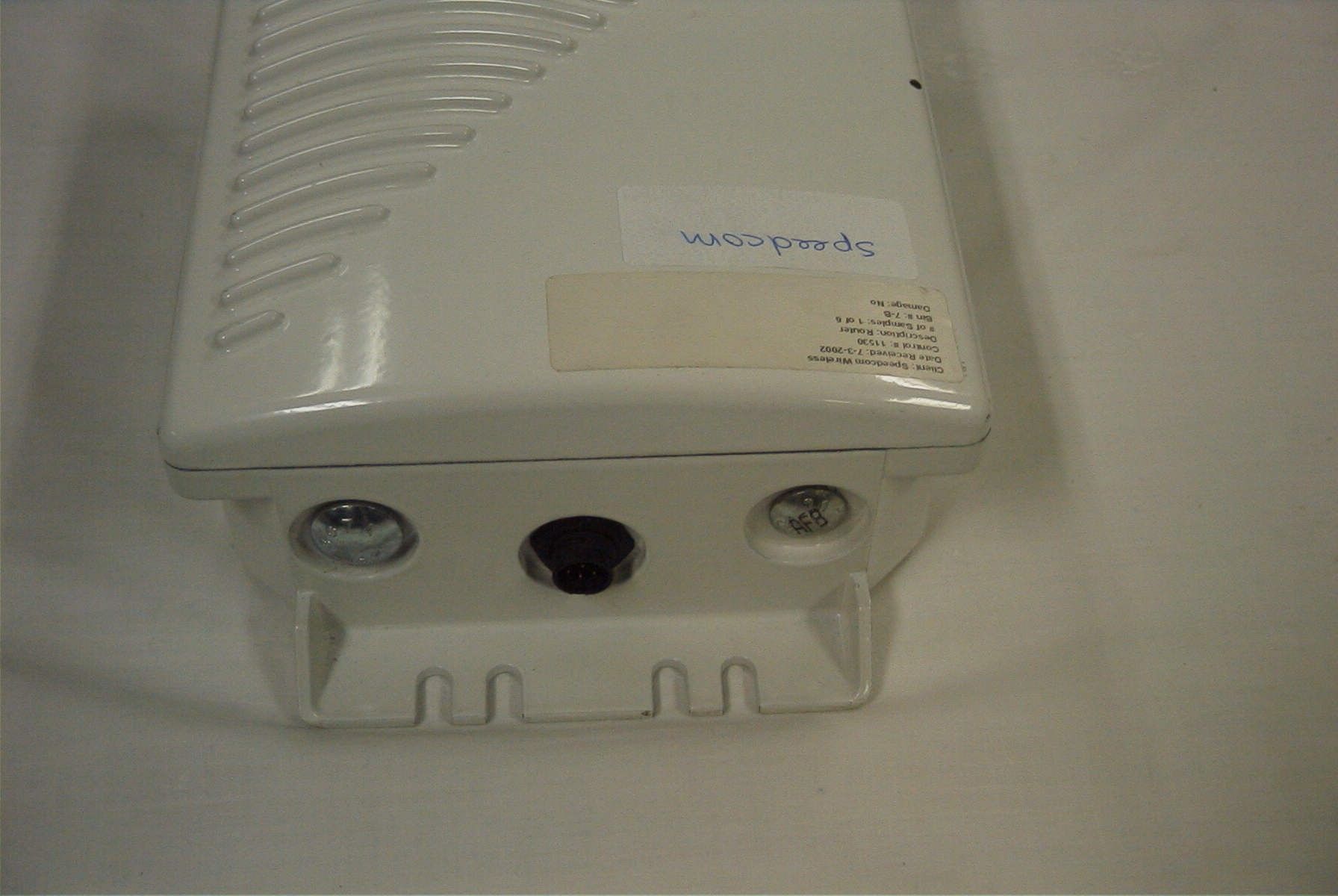

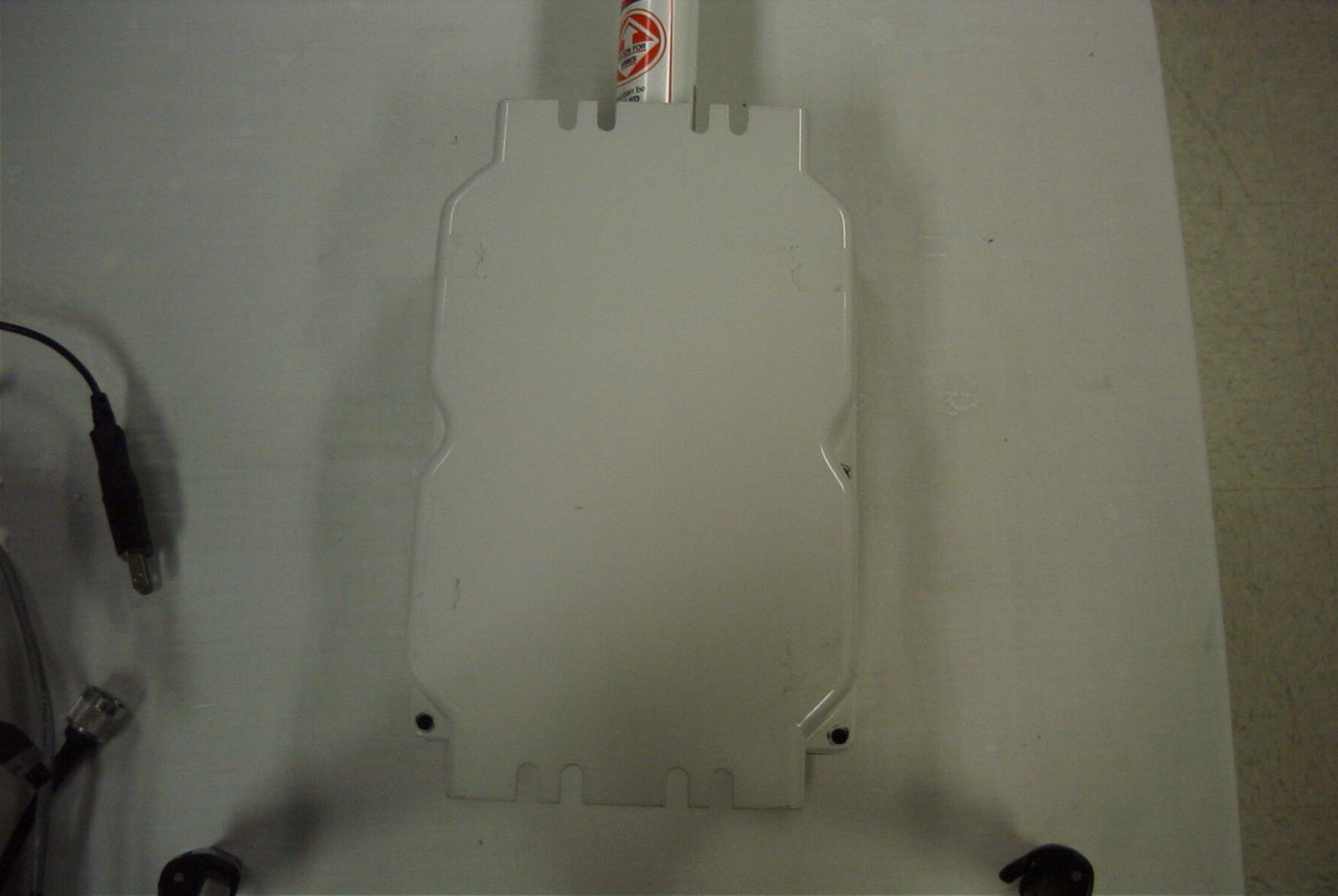

APPLICANT: WAVE WIRELESS NETWORKING FCC ID: NCBSL9101A REPORT #: W\WAVE_NCB\1619TU3\1619TU3TestReport.doc TABLE OF CONTENTS LIST APPLICANT: WAVE WIRELESS NETWORKING FCC ID: NCBSL9101A TABLE OF CONTENTS FOR A DIRECT SEQUENCE SPREAD SPECTRUM TEST REPORT CONTAINING: PAGE 1.............LETTER OF EXPLANATION PAGE 2-4...........LIST OF TEST EQUIPMENT PAGE 5.............TEST PROCEDURES PAGE 6.............POWERLINE CONDUCTED INTERFERENCE PAGE 7.............POWERLINE CONDUCTED PLOTS PAGE 8.............OCCUPIED BANDWIDTH AND POWER OUTPUT PAGE 9.............6 dB BANDWIDTH PLOT PAGE 10............METHOD OF MEASURING RF CONDUCTED AND SPURIOUS EMISSIONS AT . ANTENNA TERMINALS DATA PAGE 11............RADIATION INTERFERENCE TEST DATA PAGE 12............METHOD OF MEASURING RADIATED SPURIOUS EMISS. PAGE 13-16.........RADIATED SPURIOUS EMISSIONS INTO ADJACENT RESTRICTED BANDS PAGE 17............POWER SPECTRAL DENSITY EXHIBIT ATTACHMENTS: EXHIBIT 1..........REQUEST FOR CONFIDENTIALITY LETTER EXHIBIT 2..........FCC ID LABEL SAMPLE EXHIBIT 3..........SKETCH OF FCC ID LABEL LOCATION EXHIBIT 4..........EXTERNAL PHOTOGRAPHS EXHIBIT 5..........INTERNAL PHOTOGRAPHS EXHIBIT 6..........POWER SUPPLY PHOTOGRAPHS EXHIBIT 7..........JUNCTION BOX PHOTOGRAPHS EXHIBIT 8..........GEMTEK PHOTOGRAPHS EXHIBIT 9..........CPU BOARD PHOTOGRAPHS EXHIBIT 10.........BLOCK DIAGRAM EXHIBIT 11.........CPU BLOCK DIAGRAM EXHIBIT 12.........SCHEMATIC EHXIBIT 13.........OPERATIONAL DESCRIPTION EXHIBIT 14.........USERS MANUAL EXHIBIT 15.........TEST SETUP PHOTOGRAPHS APPLICANT: WAVE WIRELESS NETWORKING FCC ID: NCBSL9101A REPORT #: W\WAVE_NCB\1619TU3\1619TU3TestReport.doc Page 1 of 17 12/8/03 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: WAVE WIRELESS NETWORKING FCC ID: NCBSL9101A To Whom It May Concern: The attached application is for a direct sequence spread spectrum assembly, made up of the Bridge/Radio (FCC ID:MXF-M900821) and an 8 dBi antenna (permanently affixed). This system has only one type of antenna, an omni type that has a gain of 8 dBi. WAVE WIRELESS NETWORKING purchases standard antennas from the manufacturer (Andrew). The antenna is intended to be used outside. Should you have any questions or require any further information with regards to this, please feel free to contact me. Sincerely, Mario R. de Aranzeta C.E.T. MRD/sh Encl. APPLICANT: WAVE WIRELESS NETWORKING FCC ID: NCBSL9101A REPORT #: W\WAVE_NCB\1619TU3\1619TU3TestReport.doc Page 2 of 17 EMC Equipment List EQID Device Manufacturer Model 1 3-Meter OATS TEI N/A 2 3/10-Meter OATS TEI N/A 3 Tan Tower Spectrum Analyzer HP 8566B Opt 462 4 Tan Tower RF Preselector HP 85685A 5 Tan Tower Quasi-Peak Adapter HP 85650A 6 Tan Tower Preamplifier HP 8449B-H02 7 Blue Tower Spectrum Analyzer HP 8568B 8 Blue Tower RF Preselector HP 85685A 9 Blue Tower Quasi-Peak Adapter HP 85650A 10 Silver Tower Spectrum Analyzer HP 8566B Opt 462 11 Silver Tower RF Preselector HP 85685A 12 Silver Tower Quasi-Peak Adapter HP 85650A 13 Silver Tower Preamplifier HP 8449B 14 Biconnical Antenna Electro-Metrics BIA-25 15 Biconnical Antenna Eaton 94455-1 16 Biconnical Antenna Eaton 94455-1 17 BiconiLog Antenna EMCO 3143 18 Log-Periodic Antenna Electro-Metrics LPA-25 20 Log-Periodic Antenna Electro-Metrics LPA-30 21 Log-Periodic Antenna Eaton 96005 22 Dipole Antenna Kit Electro-Metrics TDA-30/1-4 23 Dipole Antenna Kit Electro-Metrics TDA-30/1-4 24 Double-Ridged Horn Antenna Electro-Metrics RGA-180 25 Horn Antenna *(at 3 meters) Electro-Metrics EM-6961 26 Horn Antenna *(at 10 meters) Electro-Metrics EM-6961 28 Passive Loop Antenna EMC Test Systems EMCO 6512 29 Harmonic Mixer with Horn Antenna Oleson Microwave Labs M08HW/A 30 Harmonic Mixer with Horn Antenna Oleson Microwave Labs M12HW/A 31 LISN Electro-Metrics ANS-25/2 32 LISN Electro-Metrics EM-7820 33 Termaline Wattmeter Bird Electronic Corporation 611 34 Termaline Wattmeter Bird Electronic Corporation 6104 35 Oscilloscope Tektronix 2230 36 System One Audio Precision System One 37 Temperature Chamber Tenney Engineering TTRC 38 AC Voltmeter HP 400FL 39 AC Voltmeter HP 400FL 40 AC Voltmeter HP 400FL 41 Digital Multimeter Fluke 77 42 Digital Multimeter Fluke 77 43 Digital Multimeter HP E2377A APPLICANT: WAVE WIRELESS NETWORKING FCC ID: NCBSL9101A REPORT #: W\WAVE_NCB\1619TU3\1619TU3TestReport.doc Page 3 of 17 EQID Device Manufacturer Model 44 Multimeter Fluke FLUKE-77-3 45 Peak Power Meter HP 8900C 46 Power Sensor Agilent Technologies 84811A 47 Power Meter HP 432A 48 Power Sensor HP 478A 49 Power Meter And Sensor Bird 4421-107 & 4022 50 Digital Thermometer Fluke 2166A 51 Thermometer Traulsen SK-128 52 Thermometer Extech 4028 53 Hygro-Thermometer Extech 445703 54 Frequency Counter HP 5352B 55 Frequency Counter HP 5385A 56 Service Monitor IFR FM/AM 500A 57 Comm. Serv. Monitor IFR FM/AM 1200S 58 Signal Generator HP 8640B 59 Sweep Generator Wiltron 6648 60 Sweep Generator Wiltron 6669M 61 Modulation Analyzer HP 8901A 62 Modulation Meter Boonton 8220 63 Near Field Probe HP HP11940A 64 BandReject Filter Lorch Microwave 5BR4-2400/60-N 65 BandReject Filter Lorch Microwave 6BR6-2442/300-N 66 BandReject Filter Lorch Microwave 5BR4-10525/900-S 67 Notch Filter Lorch Microwave 5BRX-850/X100-N 68 High Pass Filter Unk 3768(5)-400 69 High Pass Filter Microlab HA-10N 70 High Pass Filter Microlab HA-20N 71 Audio Oscillator HP 653A 72 Audio Generator B&K Precision 3010 73 Frequency Counter HP 5382A 74 Frequency Counter HP 5385A 75 Amplifier HP 11975A 76 Egg Timer Unk 77 Measuring Tape-20M Kraftixx 0631-20 78 Measuring Tape-7.5M Kraftixx 7.5M PROFI 79 Coaxial Cable #51 Insulated Wire Inc. NPS 2251-2880 80 Coaxial Cable #64 Semflex Inc. 60637 81 Coaxial Cable #65 General Cable Co. E9917 RG233/U 82 Coaxial Cable #106 Unknown Unknown 83 Injection Probe Fischer Custom CommunicationsF-120-9A 84 Power Line Coupling/Decoupling Network Fischer Custom CommunicationsFCC-801-M2-16A 85 Power Line Coupling/Decoupling N…
