NCM-CG2132LoRaWAN 86x/9xx Expansion card

LoRaWAN 86x/9xx Expansion Card Product description Model: CG2132 LoRaWAN 86x/9xx Expansion Card CG2132 1 This confidential document is the property of Option (Crescent NV) and may not be copied or circulated without permission. Contents 1. Introduction ................................................................................................................................. 2 2. Confidentiality ............................................................................................................................ 2 3. Version history ............................................................................................................................. 2 4. Product overview ....................................................................................................................... 3 5. Product specifications .............................................................................................................. 3 6. Block diagram............................................................................................................................. 4 7. Product description ................................................................................................................... 5 LoRaWAN 86x/9xx Expansion Card CG2132 2 This confidential document is the property of Option (Crescent NV) and may not be copied or circulated without permission. 1. Introduction This document gives the product description of the product called LoRaWAN 86x/9xx Expansion Card (CG2132). 2. Confidentiality All data and information contained or disclosed by this document is confidential and proprietary of Option (Crescent NV), and all rights therein are expressly reserved. By accepting this document, the recipient agrees that this information is held in confidence and in trust and will not be used, copied, reproduced in whole or in part, nor its contents revealed in any manner to others without prior and written permission of Option (Crescent NV). 3. Version history Date Version Author Remark 27/05/2021 V1.0 Jasna Papuga Initial version LoRaWAN 86x/9xx Expansion Card CG2132 3 This confidential document is the property of Option (Crescent NV) and may not be copied or circulated without permission. 4. Product overview LoRaWAN 86x/9xx Expansion card is a member of the CloudGate expansion cards family providing LoRaWAN capabilities to the gateways. It is built around the Semtech SX1302 LoRa Gateway Baseband Processor. A typical application is a Smart Metering use case where the sensor data are sent to the gateway via LoRa link. Further, the gateway stores this data on a server, where it can be used for analysis. The LoRaWAN 86x/9xx Expansion Card can connect to any IoT device that uses the LoRaWAN protocol. 5. Product specifications • Radio protocol: LoRaWAN • Available bands: o 868 MHz o 915 MHz • Security: AES encryption (send/receive) • Antenna: External; SMA RP (female) connector • Operating temperature: -30°C to +70°C • Humidity: 5 to 90% RH, non-condensing • Storage temperature: -40°C to +85°C • Certification: o CE o FCC (FCC ID: NCM-2132) o ISED (IC ID: 2734A-2132) LoRaWAN 86x/9xx Expansion Card CG2132 4 This confidential document is the property of Option (Crescent NV) and may not be copied or circulated without permission. 6. Block diagram LoRaWAN 86x/9xx Expansion Card CG2132 5 This confidential document is the property of Option (Crescent NV) and may not be copied or circulated without permission. 7. Product description The LoRaWAN 86x/9xx Expansion card (CG2132) adds the LoRa functionality to the gateway of the CloudGate family from Option. The card is built around the Semtech SX1302 microcontroller with integrated LoRa FEM SKY66420 (Skyworks). It is a dual band LoRa card with 868 MHz and 915 MHz available bands. Digital processing of the signal is performed by the microcontroller (SX1302), while conversion from/to RF signal is done in the LoRa Transceivers (SX1250). The Front-End module (FEM)(SKY66420) includes the Tx/Rx switch, power amplifier and low-noise amplifier (LNA) for receiver. The card is using an external Tx/Rx antenna attached via an SMA RP connector. The expansion card is attached to the host device via a Card Edge Connector with 36 pins. Serial Peripheral Interface (SPI) is used for communication between the microcontroller and the host device (gateway). In addition, identification of the LoRaWAN 86x/9xx Expansion Card by the host device is provided via erasable programmable read-only memory (EPROM) which is using I 2 C interface to communicate over the Card Edge Connector. Initial power line of 3.4 V gets split into two lines: a) 3.4 V for the radio components b) via a DC/DC converter 1.2 V line for the microcontroller (core-line). There is a condition for power delivery according to which the core power needs to be provided first to the SX1302 before the radio components will receive the required 3.4 V. The temperature compensated crystal oscillator (TCXO) is powered by 3.4 V and provides the 32 MHz clock signal to both transceivers (SX1250) compensating for a temperature-based frequency drift.

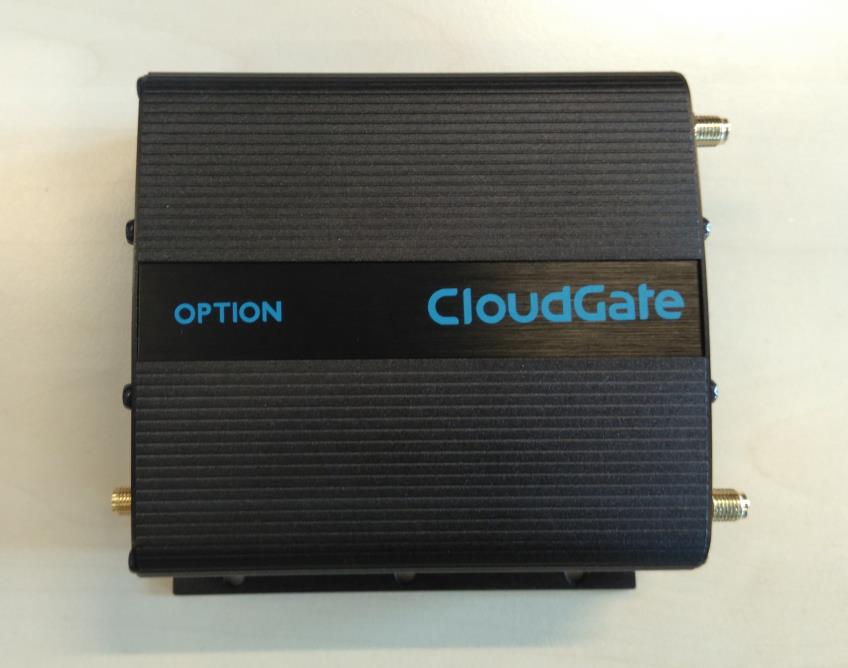

CloudGate User Guide Expansion Cards Back Slot Last updated on 10/01/2022 1 Table Of Content 1. Expansion Cards Back Slot ..................................................................................................... 3 1.1. WLAN Expansion Card ........................................................................................................ 5 1.1.1. Certification .................................................................................................................... 9 1.2. WLAN Access Point Card .................................................................................................. 16 1.2.1. Certification .................................................................................................................. 20 1.3. WLAN Expansion Card (CG2131) ...................................................................................... 26 1.3.1. Certification .................................................................................................................. 30 1.4. Monnit Wireless Sensor Card ............................................................................................. 35 1.4.1. Certification .................................................................................................................. 37 1.5. LoRa Card family .............................................................................................................. 38 1.5.1. LoRaWAN 86x/9xx Expansion Card .................................................................................. 41 Expansion Cards Back Slot Expand the functionality This list may be incomplete. Please check with your point of contact for CloudGate or your distributor. The CloudGate is an Intelligent M2M gateway from Option which provides LAN to WWAN routing and GPS functionality in a single basic unit. On top of the basic functionality the CloudGate can be tailored to meet your specific requirements by adding additional software and hardware, going from wired and wireless modules to designing your own expansion module, now or when a future need arises. Just make it as simple or full featured as you need it to be. Front side expansion cards: See Expansion Cards Front Slot Back side expansion cards: WLAN Expansion Card WLAN Access Point Card 3 WLAN Expansion Card CG2131 (Revision 3) Monnit Wireless Sensor Card LoRaWAN expansion Card The equipment is intended for building-in in a restricted access area, the final enclosure will be provided by the host device. Some of these cards can be used in the front slot with the CG1125 adapter board: CG2101, CG2102, CG2131 wlan expansion cards CG2118, CG2119, CG2121, CG2123, CG2124, CG2125, CG2132 lora cards Powered by TCPDF (www.tcpdf.org) 4 1.1. WLAN Expansion Card (CG2101) The WLAN Expansion Card (CG2101) features simultaneous client & access point. It supports dual SSID for two simultaneous access points. It has a high level of security including WPA-PSK, WPA2-PSK and mixed WPA/WPA2-PSK. The card can be inserted at the back side of the CloudGate (it is a so called secondary expansion card). FeaturesDescription Number of users10 Wireless protocols802.11 b/g/n Frequency Bands2.4 GHz Channels1-11 SpeedUp to 65Mbps Guest NetworkYes Wireless modeSimultaneous client & access Channel bandwidth20 MHz SecurityWPA-PSK, WPA2-PSK, mixed WPA/WPA2-PSK Antenna connectorRP-female Operating temp.-30 to + 70C Humidity (operational)5 to 95% RH, non-condensig Storage temp.-40 to +85C 5 RF Specifications: Note: group re-keying The WLAN client of the CloudGate connected to a WLAN access point configured with WPA and group re-keying disabled is currently not supported. RF EXPOSURE WARNING A minimum distance of 20cm must be maintained between the user's body and the device antenna. Industry Canada radiation exposure statement This equipment complies with Industry Canada's RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p) is not more than necessary for successful communication. This radio transmitter, IC 2734A-CG2101, has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. 2.4 GHz band: 3dBi (50Ω) WLAN antenna interface Connector The WLAN antenna connector is an RP-female connector. it is labelled "WLAN Main" on the front plate of the expansion card. 6 The RF connector on the WLAN antenna should be an RP-SMA male connector WLAN Antenna The antenna parameters are as follows: Frequency range 2.4 GHz The integrator should only choose the frequencies he would like to use. Performance Radiation pattern: Omni-directional Efficiency over all used frequencies: > 50% Maximum VSWR: < 2.5:1 with 50 ? reference impedance Polarization Linear RF EXPOSURE WARNING To comply with regulatory requirements, please check the maximum allowed antenna gain for your your external antenna! The maximum gain is specified for each product in the certification information section of the WLAN Expansion Card. 7 The following antenna is recommended for the 2.4 GHz band: Taoglas GW.59.3153 Powered by TCPDF (www.tcpdf.org) 8 1.11.1.1. Certification information of WLAN Expansion Card Model: CG2101 This page offers an overview of the country certifications obtained. This expanson card model is approved for use in the countries listed below. …

Text truncated - open the document above for the full version.

RF_160, Issue 04 (On manufacturer’s company letter heading) Declaration of Authorization We Name: Option (Crescent NV) Address: Gaston Geenslaan 14. City: Leuven. Country: Belgium. Declare that: Name Representative of agent: Abdellah Ahakki, Imad Hjije. (1) Agent Company name: 7layers GmbH Address: Borsigstrasse 11 City: 40880 Ratingen Country Germany is authorized to apply for Certification of the following product(s): Product description: LoRaWAN 86x/9xx Expansion card. Type designation: CG2132.... Trademark: Option. Validity/ expiry date on our behalf. Date: 01/09/2021.. City: Leuven.. Name: Jasna Papuga.. (2) Function: Certification engineer...................... Signature: . Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 21-Nov-2018 RF_501, Issue 8 Page 1 of 1 Company Name: Option NV Address : Gaston Geenslaan 14 City: Leuven Country: Belgium To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: NCM-CG2132 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (See notes below): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: These documents contain detaild system and equipment description and related information about the product, which Harman International Industries, Inc. considers to be proprietary. This information should never get into the possession of competitors, which would be harmful for our business Date: 08,08,2022 Name and signature of applicant: Abdellah Ahakki Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! The planned date should stated in the RF731 application form. 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

LoRaWAN 86x/9xx Expansion Card External photos Model: CG2132 LoRaWAN 86x/9xx Expansion Card (CG2132) External photos This document is Option Confidential - it may not be duplicated, neither distributed externally without prior and written permission of Option (Crescent NV). About this document Overview and purpose This document presents the internal and external photos of the LoRaWAN 86x/9xx Expansion Card (CG2132). Confidentiality All data and information contained or disclosed by this document is confidential and proprietary of Option (Crescent NV), and all rights therein are expressly reserved. By accepting this document, the recipient agrees that this information is held in confidence and in trust and will not be used, copied, reproduced in whole or in part, nor its contents revealed in any manner to others without prior and written permission of Option (Crescent NV). Version history Date Author Revision(s) Remarks 03/05/2021 Jasna Papuga v1 Initial version LoRaWAN 86x/9xx Expansion Card (CG2132) External photos This document is Option Confidential - it may not be duplicated, neither distributed externally without prior and written permission of Option (Crescent NV). EXTERNAL PHOTOS Top view (host device with LoraWAN 86x/9xx Expansion Card) Bottom view (host device with LoraWAN 86x/9xx Expansion Card) LoRaWAN 86x/9xx Expansion Card (CG2132) External photos This document is Option Confidential - it may not be duplicated, neither distributed externally without prior and written permission of Option (Crescent NV). Front view (host device with LoraWAN 86x/9xx Expansion Card) Rear view (host device with LoraWAN 86x/9xx Expansion Card) LoRaWAN 86x/9xx Expansion Card (CG2132) External photos This document is Option Confidential - it may not be duplicated, neither distributed externally without prior and written permission of Option (Crescent NV). Side view – left (host device with LoraWAN 86x/9xx Expansion Card) Side view – right (host device with LoraWAN 86x/9xx Expansion Card)

Crescent nv - Gaston Geenslaan 14 - 3001 Leuven - Belgium - T +32 16 317 411 - F +32 16 207 164 - www.option.com RPR Leuven 0429.375.448 Label design and location Device information Commercial name: LoRaWAN 868x/9xx Expansion Card Model number/HVIN: CG2132 Label location and design There are two labels: •Internal label (12 mm x 12 mm; placed on the PCB) •External label (17 mm x 37 mm; placed on the face plate) In the host device: FCC statement The FCC statement specified under Part 15 of the FCC Rules will be placed in the user manual.

Crescent nv - Gaston Geenslaan 14 - 3001 Leuven - Belgium - T +32 16 317 411 - F +32 16 207 164 - www.option.com RPR Leuven 0429.375.448 Label design and location Device information Commercial name: LoRaWAN 868x/9xx Plug-on Card Model number/HVIN: CG2132 Label design Label size: 17 mm x 37 mm Label location Label will be placed at the bottom part of the host device. FCC statement The FCC statement specified under Part 15 of the FCC Rules will be placed in the user manual.

LoRaWAN 86x/9xx Expansion Card Internal photos Model: CG2132 LoRaWAN 86x/9xx Expansion Card (CG2132) Internal photos This document is Option Confidential - it may not be duplicated, neither distributed externally without prior and written permission of Option (Crescent NV). About this document Overview and purpose This document presents the internal and external photos of the LoRaWAN 86x/9xx Expansion Card (CG2132). Confidentiality All data and information contained or disclosed by this document is confidential and proprietary of Option (Crescent NV), and all rights therein are expressly reserved. By accepting this document, the recipient agrees that this information is held in confidence and in trust and will not be used, copied, reproduced in whole or in part, nor its contents revealed in any manner to others without prior and written permission of Option (Crescent NV). Version history Date Author Revision(s) Remarks 03/05/2021 Jasna Papuga v1 Initial version LoRaWAN 86x/9xx Expansion Card (CG2132) Internal photos This document is Option Confidential - it may not be duplicated, neither distributed externally without prior and written permission of Option (Crescent NV). INTERNAL PHOTOS Top view Bottom view LoRaWAN 86x/9xx Expansion Card (CG2132) Internal photos This document is Option Confidential - it may not be duplicated, neither distributed externally without prior and written permission of Option (Crescent NV). Top view (LoRaWAN 86x/9xx Expansion Card attached to the host device) Bottom view (LoRaWAN 86x/9xx Expansion Card attached to the host device)

MDE_OPTION_2101_MPEb Page 1 of 4 Maximum Permissible Exposure LoRaWAN 86x/9xx Expansion card CG2132 FCC ID: NCM-CG2132 IC: 2734A-CG2132 Test Report Reference: MDE_OPTION_2101_MPEb To whom it may concern, please find our Maximum Permissible Exposure calculations for LoRaWAN receiver. Best Regards i.A. Abdellah Ahakki MDE_OPTION_2101_MPEb Page 2 of 4 Administrative Data: Testing Laboratory Company Name: 7layers GmbH Address: Borsigstr. 11 40880 Ratingen Germany Project Data Responsible for report: Mr. Abdellah Ahakki Date of Report: 2022-07-22 Testing Period: 2022-06-10 to 2202-06-24 Applicant Data Company Name: Option (Crescent NV) Address: Gaston Geenslaan 14 3001 Leuven Belgium Contact Person: Jasna Papuga Manufacturer Data Company Name: please see Applicant data Address: - - - Contact Person: - MDE_OPTION_2101_MPEb Page 3 of 4 Test object Data General Description of Radio Device Kind of Device product description LoRaWAN receiver Product name LoRaWAN 86x/9xx Expansion card Type CG2132 Declared EUT data by the supplier Voltage Type DC (Powered by Host Device) Voltage Level DC: 3.4 V Antenna / Gain External / 1 dBi Tested Modulation Type FSK General product description LoRaWAN 86x/9xx Expansion card is a member of the CloudGate family expansion cards providing LoRaWAN capabilities to the gateways. The EUT is attached to the host device (CloudGate LTE WW - CG0124) via a Card Edge Connector with 36 pins. Specific product description for the EUT The EUT is a LoRaWAN receiver in the 900 MHz band. Relevant for this report is the HYBRID mode with 125 kHz bandwidth and as Downstream with only 8 channels starting at 903.9 MHz to 905.3 MHz during established communication. A typical application is a Smart Metering use case where the sensor data are sent to the gateway via LoRa link. EUT ports (connected cables during testing): Enclosure, antenna, AC from host device, LAN from host device Tested datarates Data rate settings SF 5 to 12 are supported by the test software, but only SF 9 is applicable for the tested HYBRID mode. Special software used for testing The local TX test modes were set using the “LoraGateway_SX1302_Testprogram” software provided by the applicant. For the hopping mode the application “LuvitRED”, on the web-interface of the host device, was used. MDE_OPTION_2101_MPEb Page 4 of 4 RF Exposure evaluation RF Exposure Evaluation Standards OET Bulletin 65 Edition 97-01 August 1997 FCC 47 CFR §1.1307 FCC 47 CFR §1.1310 Test limits As specified in Table 1B of 47 CFR 1.1310 – Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure. Frequency range (MHz) Power density (mW/cm²) 300 – 1,500 f/1500 1,500 – 100,000 1.0 Equation OET bulletin 65, page 18, edition 97-01: 푆푆= 푃푃푃푃 4휋휋휋휋 2 = 퐸퐸퐸퐸휋휋푃푃 4휋휋휋휋² Where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna

Description: 868-928MHz Swivel Type dipole antenna PART NUMBER: W1063/ W1063M Series: Stick Antenna Issue: 1837 In the effort to improve our products, we reserve the right to make changes judged to be necessary. CONFIDENTIAL AND PROPRIETARY INFORMATION This document contains confidential and proprietary information ofPulse Electronics, Inc. (Pulse) and is protected by copyright, trade secret and other state and federal laws. Its receipt or possession does not convey any rights to reproduce, disclose its contents, or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific written authorization of Pulse is strictly forbidden. For more information: Pulse Worldwide HeadquartersPulse/Larsen AntennasEurope HeadquartersPulse (Suzhou) Wireless Products Co, Inc. 15255 Innovation Drive #100Pulse GmbH & Do, KG99 HuoJuRoad(#29 Bldg,4 th Phase San Diego, CA 92128Vancouver, WA 98683Zeppelinstrasse15Suzhou New District USAUSAHerrenberg, Germany Jiangsu Province, Suzhou 215009 PR China Tel:1-858-674-8100Tel: 1-360-944-7551 - Tel: 49 7032 7806 0 Tel: 86 512 6807 9998 18110 SE 34 th St Bldg2 Suite 250 Features: Applications: All dimensions are in mm •Frequency 868-928MHz •Gain 1dBi •Efficiency 70% •Length 195mm straight •Connectors: •W1063 RP-SMA Male •W1063M SMA Male •RoHS Compliant •Indoor use •868MHz and 915MHz ISM band radios •IoT devices •Security •Sensors •Monitoring 1 Issue: 1837 In the effort to improve our products, we reserve the right to make changes judged to be necessary. CONFIDENTIAL AND PROPRIETARY INFORMATION This document contains confidential and proprietary information ofPulse Electronics, Inc. (Pulse) and is protected by copyright, trade secret and other state and federal laws. Its receipt or possession does not convey any rights to reproduce, disclose its contents, or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific written authorization of Pulse is strictly forbidden. Series: Stick Antenna Description: 868-928MHz Swivel Type dipole antenna PART NUMBER: W1063/ W1063M 2 Frequency 863-928 MHz NominalImpedance50 VSWR 2 Maximum Radiation PatternOmni Gain1 dBi Efficiency70 % PolarizationLinear Power Withstanding1 W Overall Length 195+/-2 mm Weight 23.5 g Antenna Color / Material Black Connector type W1063 RP SMA Male W1063M SMA Male IP RatingIP20, Indoor use Operating Temperature -20 °C /+65 °C Storage Temperature -30 °C /+75 °C MECHANICALSPECIFICATIONS ENVIRONMENTAL SPECIFICATIONS ELECTRICAL SPECIFICATIONS Issue: 1837 In the effort to improve our products, we reserve the right to make changes judged to be necessary. CONFIDENTIAL AND PROPRIETARY INFORMATION This document contains confidential and proprietary information ofPulse Electronics, Inc. (Pulse) and is protected by copyright, trade secret and other state and federal laws. Its receipt or possession does not convey any rights to reproduce, disclose its contents, or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific written authorization of Pulse is strictly forbidden. Series: Stick Antenna Description: 868-928MHz Swivel Type dipole antenna PART NUMBER: W1063/ W1063M 3 MECHANICALDRAWING All dimensions are in mm Issue: 1837 In the effort to improve our products, we reserve the right to make changes judged to be necessary. CONFIDENTIAL AND PROPRIETARY INFORMATION This document contains confidential and proprietary information ofPulse Electronics, Inc. (Pulse) and is protected by copyright, trade secret and other state and federal laws. Its receipt or possession does not convey any rights to reproduce, disclose its contents, or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific written authorization of Pulse is strictly forbidden. Series: Stick Antenna Description: 868-928MHz Swivel Type dipole antenna PART NUMBER: W1063/ W1063M 4 TEST SETUP Z X Y Issue: 1837 In the effort to improve our products, we reserve the right to make changes judged to be necessary. CONFIDENTIAL AND PROPRIETARY INFORMATION This document contains confidential and proprietary information ofPulse Electronics, Inc. (Pulse) and is protected by copyright, trade secret and other state and federal laws. Its receipt or possession does not convey any rights to reproduce, disclose its contents, or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific written authorization of Pulse is strictly forbidden. Series: Stick Antenna Description: 868-928MHz Swivel Type dipole antenna PART NUMBER: W1063/ W1063M CHARTS 5 VSWR Issue: 1837 In the effort to improve our products, we reserve the right to make changes judged to be necessary. CONFIDENTIAL AND PROPRIETARY INFORMATION This document contains confidential and proprietary information ofPulse Electronics, Inc. (Pulse) and is protected by copyright, trade secret and other state and federal laws. Its receipt or possession does not convey any rights to reproduce, disclose its contents, or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific written authorization of Pulse is strictly forbidden. Series: Stick Antenna Description: 868-928MHz Swivel Type dipole antenna PART NUMBER: W1063/ W1063M CHARTS 6 Efficiency(%) Issue: 1837 In the effort to improve our products, we reserve the right to make changes judged to be necessary. CONFIDENTIAL AND PROPRIETARY INFORMATION This document contains confidential and proprietary information ofPulse Electronics, Inc. (Pulse) and is protected by copyright, trade secret and other state and federal laws. Its receipt or possession does not convey any rights to reproduce, disclose its contents, or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific written authorization of Pulse is strictly forbidden. Series: Stick Antenna Description: 868-928MHz Swivel …

Text truncated - open the document above for the full version.

Test Laboratory: 7layers GmbH Borsigstrasse 11 40880 Ratingen Germany Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the test laboratory. 7layers GmbH Geschäftsführer/ Borsigstraße 11 Managing Directors: Registergericht/registered: a Bureau Veritas 40880 Ratingen, Germany Frank Spiller Düsseldorf HRB 75554 Group Company T +49 (0) 2102 749 0 Bernhard Retka USt-Id.-Nr./VAT-No. DE203159652 F +49 (0) 2102 749 350 Alexandre Norré-Oudard Steuer-Nr./TAX-No. 147/5869/0385 www.7layers.com Commerzbank AG Account No. 303 016 000 Bank Code 300 400 00 IBAN DE81 3004 0000 0303 0160 00 Swift Code COBADEFF FCC Measurement/Technical Report on LoRaWAN 86x/9xx Expansion card CG2132 FCC ID: NCM-CG2132 IC: 2734A-CG2132 Test Report Reference: MDE_OPTION_2101_FCC_01 TEST REPORT REFERENCE: MDE_OPTION_2101_FCC_01 Page 2 of 46 Table of Contents 1 Applied Standards and Test Summary 3 1.1 Applied Standards 3 1.2 FCC-IC Correlation Table 4 1.3 Measurement Summary 4 2 Revision History / Signatures 7 3 Administrative Data 8 3.1 Testing Laboratory 8 3.2 Project Data 8 3.3 Applicant Data 8 3.4 Manufacturer Data 9 4 Test object Data 10 4.1 General EUT Description 10 4.2 EUT Main components 10 4.3 Ancillary Equipment 11 4.4 Auxiliary Equipment 11 4.5 EUT Setups 11 4.6 Operating Modes / Test Channels 11 4.7 Product labelling 12 5 Test Results 13 5.1 Occupied Bandwidth (6 dB) 13 5.2 Occupied Bandwidth (99%) 15 5.3 Peak Power Output 17 5.4 Spurious RF Conducted Emissions 20 5.5 Transmitter Spurious Radiated Emissions 23 5.6 Band Edge Compliance Conducted 31 5.7 Power Density 34 6 Test Equipment 37 7 Antenna Factors, Cable Loss and Sample Calculations 39 7.1 LISN R&S ESH3-Z5 (150 kHz – 30 MHz) 39 7.2 Antenna R&S HFH2-Z2 (9 kHz – 30 MHz) 40 7.3 Antenna R&S HL562 (30 MHz – 1 GHz) 41 7.4 Antenna R&S HF907 (1 GHz – 18 GHz) 42 7.5 Ante…
