NCMOGE0201Globetrotter Express �7.2 Ready� E

GlobeTrotter Express 7.2 User Guide Paul_Hardwick Page 1 1/19/2007 GlobeTrotter Express 7.2 User Guide GE020xUG-01 GlobeTrotter Express 7.2 User Guide Paul_Hardwick Page 2 1/19/2007 Contents Welcome ............................................................................................................................. 3 GlobeTrotter Express 7.2 .................................................................................................... 3 Features ............................................................................................................................... 3 System Requirements.......................................................................................................... 3 Installation and Operation................................................................................................... 3 Principle of operation..........................................................................................................3 Adjusting the antenna ......................................................................................................... 4 LED Status .......................................................................................................................... 4 Safe removal ....................................................................................................................... 5 Trouble Shooting ................................................................................................................5 Technical Support ...............................................................................................................6 Specifications ...................................................................................................................... 6 Hardware specifications...................................................................................................... 6 Operating conditions ...........................................................................................................6 Health and Safety ................................................................................................................ 6 Appendix A: Limited Warranty.................................................................................................. 8 GlobeTrotter Express 7.2 User Guide Paul_Hardwick Page 3 1/19/2007 Welcome GlobeTrotter Express 7.2 The GlobeTrotter Express 7.2 is the next generation of wireless data card designed by Option to be compatible with 3G networks supporting the higher data rates of up to 7.2 Mbps using HSDPA technology. Your GlobeTrotter Express 7.2 includes Advanced Receiver Technology (ART) bringing the benefit of Receive Diversity and Receive Equalization. These technologies are essential for maximizing the range and speed of HSDPA 3.6/7.2. Backward compatibility ensures HSDPA operation at 1.8 Mbps and UMTS operation at 384 kbps is still possible. For when 3G services are not available in your area the GlobeTrotter Express has in- built support for Quad-band EDGE and GPRS giving speeds up to 247 kbps. Features ¾ Worldwide coverage through triple-band HSDPA/UMTS and quad-band EDGE/GSM ¾ Advanced Receiver Technology incorporating Receiver Diversity and Equalization ¾ Patented Zero-CD Plug ‘n’ Play technology ¾ HSDPA and UMTS High-speed data (up to 7.2 Mbps) connectivity for mobile users ¾ EDGE/GPRS/GSM data (up to 247 kbps) connectivity ¾ Transparent handover between UMTS and GSM/E-GPRS networks ¾ Compatible with nearly all popular notebook PCs equipped with ExpressCard34 slot and Microsoft Windows/Mac OS X operating system ¾ Transparent support for IPSec and VPN technology. System Requirements A computer loaded with an Operating System that is Windows 2000, XP, Vista or Mac OS X and has been fitted with a Cardbus compatible PC-Card interface. Installation and Operation Please refer to the Quick Install Guide for details. Principle of operation To connect to the Internet you need a SIM and an account from your network operator that allows Internet access. Fitting the SIM, inserting the card into your laptop and deploying the antenna is all that is required to get the card working. If the SIM requires a PIN code then the application controlling the datacard will ask for the PIN. The datacard then searches for your GlobeTrotter Express 7.2 User Guide Paul_Hardwick Page 4 1/19/2007 operators network and register on it. You can monitor the status of the datacard by looking at the LEDs. Use the application provided with the card to connect to the Internet. As you change location or the amount of traffic on the network changes you may see that the LED switches between RED and BLUE, this tells you that the card has switched between 2G and 3G technology. This is normal and happens automatically, according to the rules broadcast by the network. Your connection to the Internet should continue but of course the speed of operation will change. To disconnect from the Internet you use the application provided. To remove the card from its slot you should use the safe removal procedure detailed later in this manual. Adjusting the antenna The GlobeTrotter Express 7.2 is equipped with a foldout antenna. For best operation the antenna should be used as shown in this picture: LED Status The LEDs on the datacard provide a lot of information. How they flash will tell you what is going on. Red LED ☼ – GSM/EDGE (2G) Blue LED ☼– UMTS/HSDPA (3G) LED flashing Meaning Notes ☼. ☼. ☼. ☼. ☼. ☼. Unregistered. Searching for a network. Both LEDs flash at the same time giving a purple colour. ☼.. ☼.. ☼.. Registered on a 3G network SMS possible. No access to the Internet ☼☼.. ☼☼.. ☼☼.. Connected or Ready for connection to the Internet on a 3G (UMTS) network. (Circuit Switch Attached) If connected – this is a UMTS connection. ☼☼☼☼.. ☼☼☼☼.. ☼☼☼☼.. Connected to the Internet This is an HSDPA connection ☼.. ☼.. ☼.. Registered on a 2G (GSM) network SMS possible. No access to the Internet ☼☼.. …

Text truncated - open the document above for the full version.

GE0202 AGENCY REQUIREMENTS Licensed by QUALCOMM Incorporated under one or more of the following United States Patents and/or their counterparts in other nations: 4,901,307; 5,490,165; 5,056,109; 5,504,773; 5,101,501; 5,506,865; 5,109,390; 5,511,073; 5,228,054; 5,535,239; 5,267,261; 5,544,196; 5,267,262; 5,568,483; 5,337,338; 5,600,754; 5,414,796; 5,657,420; 5,416,797; 5,659,569; 5,710,784; 5,778,338 Federal communications commission notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 22 and 24 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: > Reorient or relocate the receiving antenna. > Increase the separation between the equipment and receiver. > Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. > Consult the dealer or an experienced radio or television technician for help. Modifications The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Option could void the user's authority to operate the equipment. Declaration of Conformity for products marked with the FCC logo - United States only This device complies with Part 22 and 24 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For questions regarding your product or FCC declaration, contact: Option | Gaston Geenslaan 14 | 3001 Leuven | Belgium www.option.com To identify this product, refer to the Part, Series, or Model number found on the product. This product has successfully completed the PTCRB requirements governing the release of new GSM 850/1900 capable products into the North American market. Exposure Information to Radio Frequency Energy This PCI Express card has been tested in 3 different notebooks for compliance with the SAR requirements. Measured SAR values according to the CE regulations: The maximum measured body SAR value (averaged over a mass of 10 g and distance between phantom and antenna of 5 mm) is well below the limit of 2 W/kg. Measured SAR values according to the FCC regulations: The maximum measured body SAR value (averaged over a mass of 1 g and distance between phantom and antenna of 5 mm) is well below the limit of 1.6 W/kg. This device contains 900/1800 MHz GSM/EDGE and 2100Mhz WCDMA functions that are not operational in U.S. Territories. For safe and efficient use the user should keep the antenna of the card at a minimum distance of 1 cm away from his body. All of the measurements above were performed at a distance of 0.5 cm from the body of the user. CAUTION: Users concerned with the risk of Radio Frequency exposure may wish to limit the duration of their calls and to position the antenna as far away from the body as is practical. European Union declaration of conformity CE 0681 Products bearing the CE marking comply with the R&TTE Directive (99/5/EC), EMC Directive (89/336/EEC) and the Low Voltage Directive (73/23/EEC) issued by the Commission of the European Community. Compliance with these directives implies conformity to the following European Norms (in parentheses are the equivalent international standards and regulations): Radio Frequency spectrum efficiency: > EN 301 511, v9.0.2 > EN 301 902-1&2, v2.2.1 Electromagnetic Compatibility > EN 301 489-1: 2002 Safety and Health > EN 60950: 2001 This product may be used in the following countries: > All EU Member states > Iceland > Switzerland > Norway > United States of America Manufacturer's Disclaimer Statement The information in this document is subject to change without notice and does not represent a commitment on the part of the vendor. No warranty or representation, either expressed or implied, is made with respect to the quality, accuracy, or fitness for any particular purpose of this document. The manufacturer reserves the right to make changes to the content of this document and/or the products associated with it at any time without obligation to notify any person or organization of such changes. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages. For questions regarding your product or declaration, contact: Option | Gaston Geenslaan 14 | 3001 Leuven | Belgium www.option.com SYSTEM REQUIREMENTS > PCI Express Card slot > Must be supplied by a SELV (Safety Extra Low Voltage) circuit with limited power.

To: Tim Harrington From: Dieter Griep ETS Product Service AG Re: FCC ID: NCMOGE0201 Applicant: Option NV Correspondence Reference Number: 36367 731 Confirmation Number: TC821593 Date of Original Email: 03/02/2007 Subject: audit The equipment class is changed to PCB. In first version we assumed the worst case what’s worn on the body. best regards, Dieter Griep

Option nv sa | Gaston Geenslaan 14 | B-3001 Leuven Belgium | www.option.com T +32 16 317 411 | F +32 16 207 164 | H.R.L./R.C.L. 68114 | BTW/TVA BE 429.375.448 Declaration of HW changes for GE0202 Manufacturer/responsible person: OPTION N.V. Address: Gaston Geenslaan 14 3001 Leuven Belgium Declares that for the product : Type : GSM/(E)GPRS (850&900&1800&1900MHz); UMTS/HSDPA (850&1900&2100MHz )Terminal Equipment (PCI Express data card) Model : GE0202 Following HW changes have been implemented from HW version 2.0 to 3.0. ƒ CEM detection through pin 17 of express card interface (R1036,R1037,C3081) ƒ Bypass switcher & limiter for CEM compatibility (Q1010, R1038, Q1007): if CEM is detected the booster and current limiter of the CEM are used and the current limiter and booster of the GE0202 are bypassed ƒ Add 10pF protection on VDD_P lines (C5205, C5206) HW version 2.0 is fully tested and complies to the applicable standards. The changes to HW version 3.0 have no effect on the functional performance of the GE0202 in respect to the tested HW version 2.0. Company : Option N.V. Gaston Geenslaan 14 3001 Leuven Belgium Point of contact : Stefan Lodeweyckx Phone : +32 16 317 411 Fax : +32 16 207 164 e-mail : [email protected] Signed, Signed, Bernard Schaballie Stefan Lodeweyckx Vice president Engineering System & Product Quality Team Leader Leuven, January 23, 2007

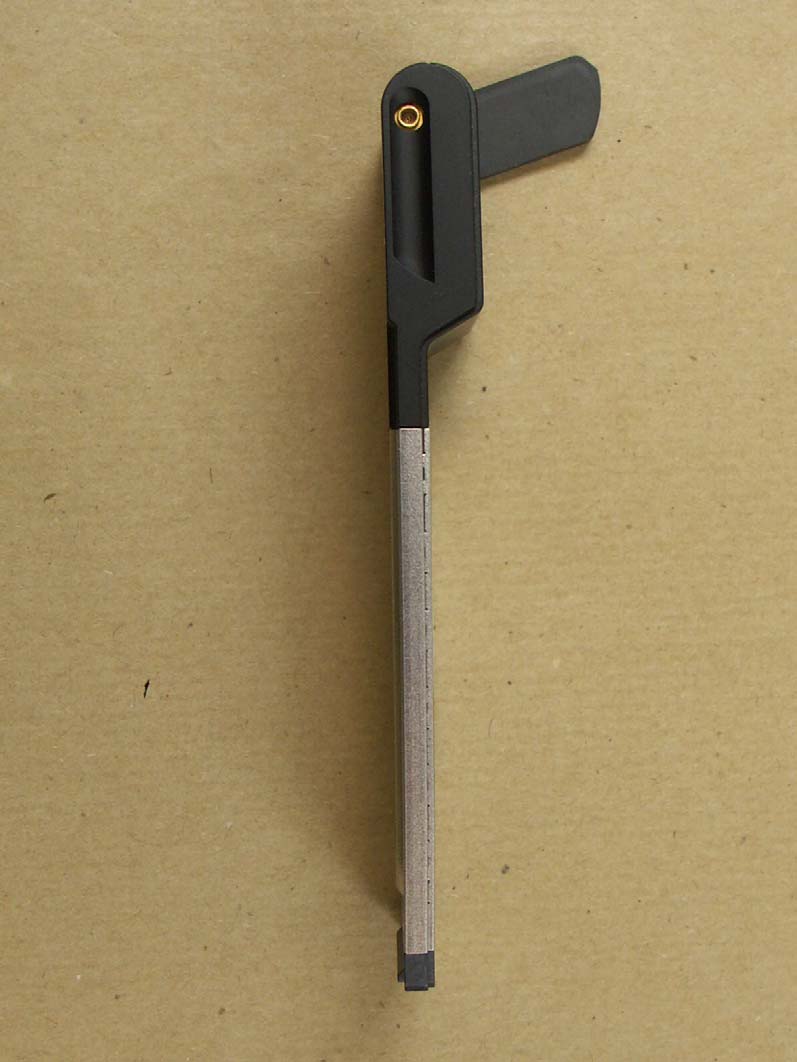

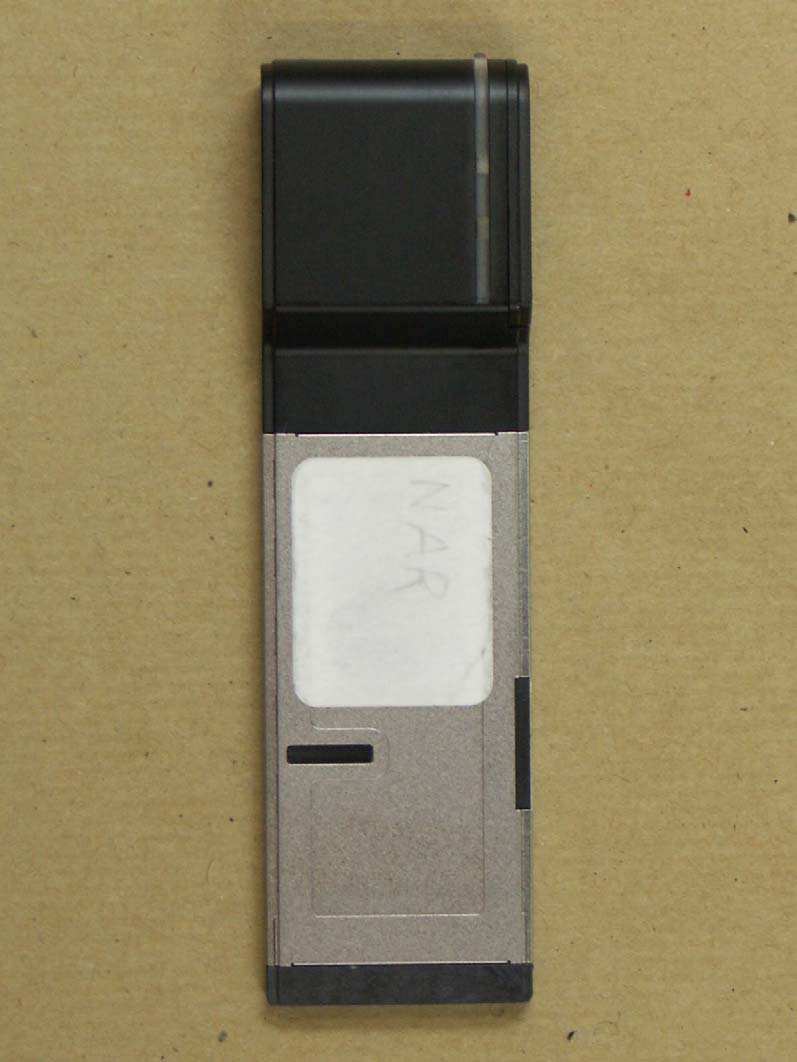

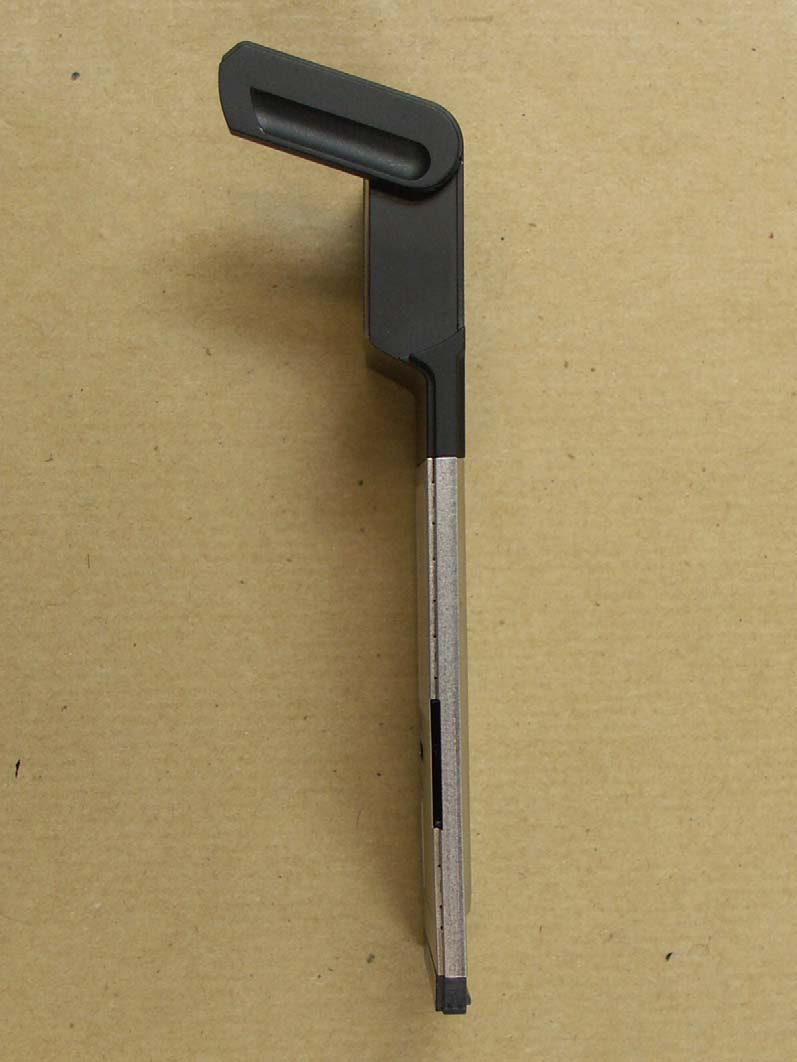

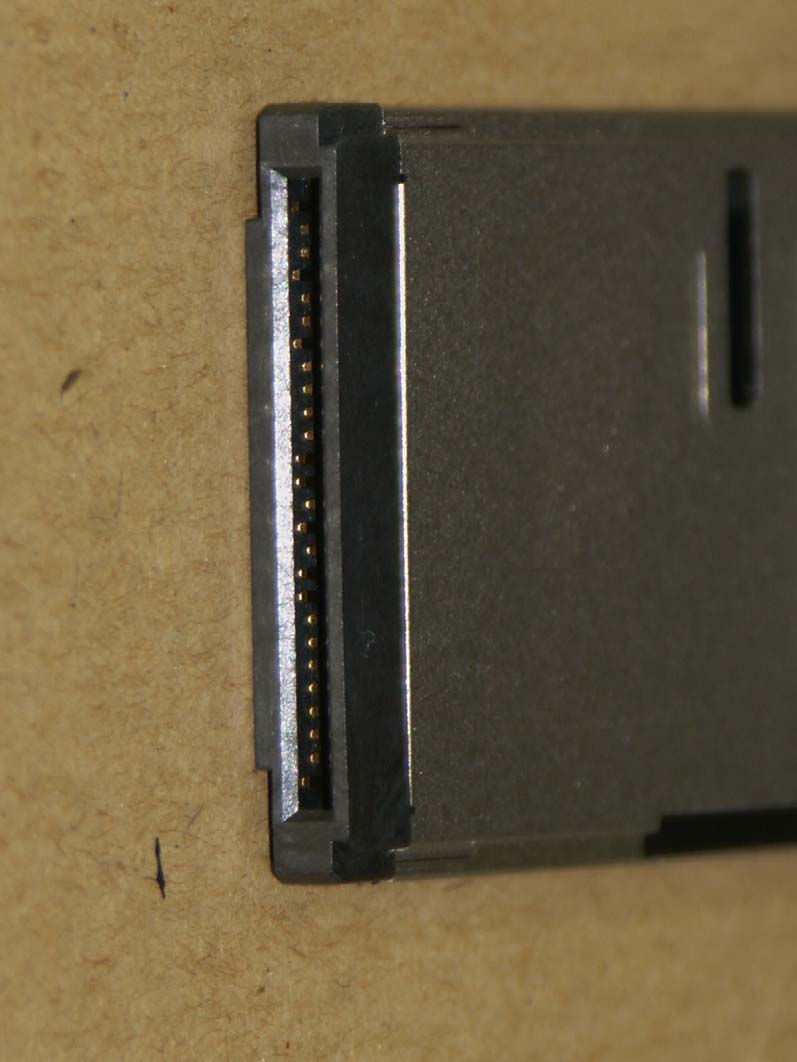

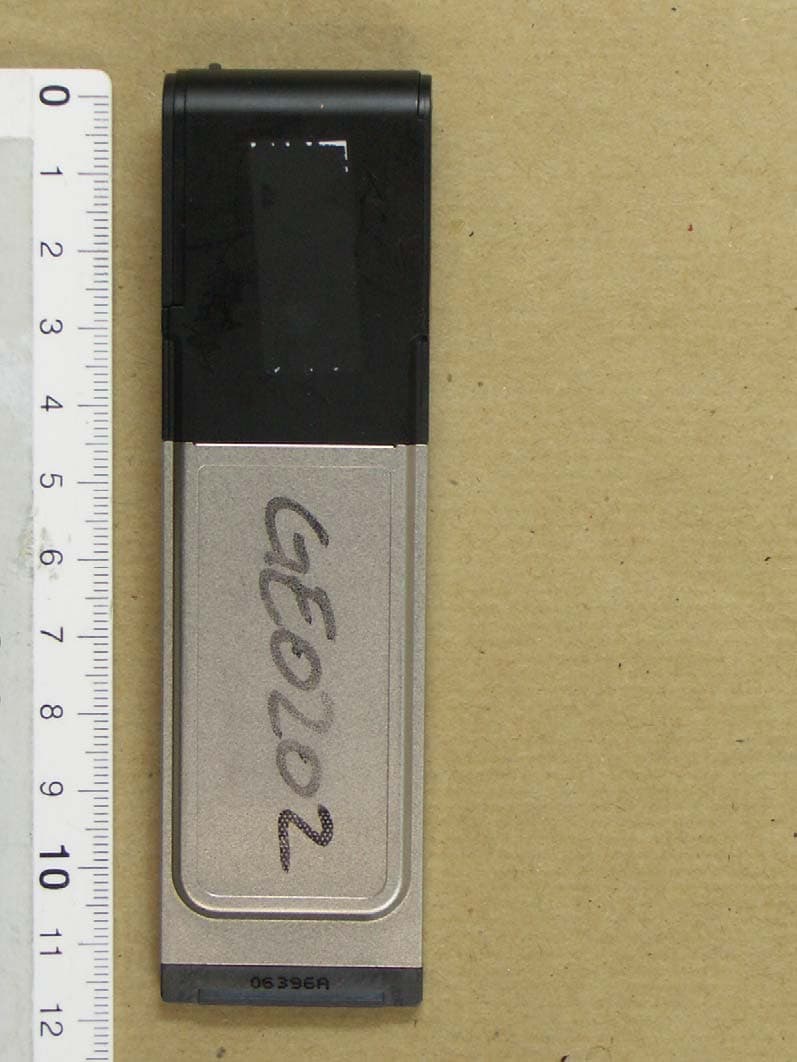

ETS Product Service AG, Germany Registration number: G0M20612-1054-P-2224 Page 1 of 17 Appendix A. Pictures ETS Product Service AG, Germany Registration number: G0M20612-1054-P-2224 Page 2 of 17 ETS Product Service AG, Germany Registration number: G0M20612-1054-P-2224 Page 3 of 17 ETS Product Service AG, Germany Registration number: G0M20612-1054-P-2224 Page 4 of 17 ETS Product Service AG, Germany Registration number: G0M20612-1054-P-2224 Page 5 of 17 ETS Product Service AG, Germany Registration number: G0M20612-1054-P-2224 Page 6 of 17

ETS Product Service AG, Germany Registration number: G0M20612-1054-P-2224 Page 7 of 17 ETS Product Service AG, Germany Registration number: G0M20612-1054-P-2224 Page 8 of 17 ETS Product Service AG, Germany Registration number: G0M20612-1054-P-2224 Page 9 of 17 ETS Product Service AG, Germany Registration number: G0M20612-1054-P-2224 Page 10 of 17 ETS Product Service AG, Germany Registration number: G0M20612-1054-P-2224 Page 11 of 17 ETS Product Service AG, Germany Registration number: G0M20612-1054-P-2224 Page 12 of 17 ETS Product Service AG, Germany Registration number: G0M20612-1054-P-2224 Page 13 of 17

ETS PRODUCT SERVICE AG TEST - REPORT SAR Compliance Test Report Test report no.: G0M20612-1054-S-1 SAR ETS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN PRODUCT SERVICE AG PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Product Service AG Registration number: G0M20612-1054-S-1 Page 1 of 32 TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Manufacturer 1.5 Application details 1.6 Test item 1.7 Test results 1.8 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 Definitions 2.5 Measurement system description 2.6 Test system specification 2.7 Measurement procedure 2.8 Reference points 2.9 Test positions 2.10 Measurement uncertainty 3 Tissue and system verification 3.1 Tissue verification 3.2 System verification 4 Test Results 5 References 6 Appendix ETS Product Service AG Registration number: G0M20612-1054-S-1 Page 2 of 32 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ETS PRODUCT SERVICE AG. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualification of all persons taking them. Tester: 19.01.2007 M. Cersovsky Date ETS-Lab. Name Signature Technical responsibility for area of testing: 19.01.2007 N. Kaspar Date ETS Name Signature ETS Product Service AG Registration number: G0M20612-1054-S-1 Page 3 of 32 1.2 Testing laboratory 1.2.1 Location ETS PRODUCT SERVICE AG Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Fax : +49 33631 888 660 1.2.2 Details of accreditation status A CCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: DAT-P-201/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD I NDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number 1983-01 Statement: The tests documented within this report are carried out in accordance with the scope of accreditation of test laboratory ETS Product Service AG. 1.3 Details of approval holder Name : Option N.V. Street : Gaston Geenslaan 14 Town : B-3001 Leuven Country : Belgium Telephone : +32 16 317 411 Fax : +32 16 207 164 Contact : Mr. Stefan Lodeweyckx E-Mail : [email protected] ETS Product Service AG Registration number: G0M20612-1054-S-1 Page 4 of 32 1.4 Manufacturer: (if applicable) Name : Street : Town : Country : 1.5 Application details Date of receipt of application : 12.12.2006 Date of receipt of test item : 12.12.2006 Date of test : 12.12.2006 - 04.01.2007 1.6 Test item FCC ID : NCMOGE0201 Description of test item : Globe Trotter Express '7.2 Ready' E Type identification : GE0201 Serial number : without; Identical prototype Device category : PCT (Licensed Portable Transmitter Worn On Body) Technical data UMTS Frequency range : Operation Band II Operation Band V TX Frequency range : 1852.4 - 1907.6 MHz 826.4 - 846.6 MHz RX Frequency range : 1932.4 - 1987.6 MHz 871.4 - 891.6 MHz Max. Conducted RF output power : 22,35 (0,17 W) 21,88 (0,15 W) GSM / PCS Frequency range : GSM 850 PCS 1900 TX Frequency range : 824.2 - 848.8 MHz 1850.2 - 1909.9 MHz RX Frequency range : 869.2 - 893.8 MHz 1930.2 - 1989.8 MHz Max. Conducted RF output power : 32,61 dBm (1,82 W) 29,76 dBm (0,95 W) EDGE 850 EDGE 1900 TX Frequency range : 824.2 - 848.8 MHz 1850.2 - 1909.9 MHz RX Frequency range : 869.2 - 893.8 MHz 1930.2 - 1989.8 MHz Max. Conducted RF output power : 28,43 dBm (0,7 W) 28,08 dBm (0,64 W) Power supply : 3.3 V DC Antenna Tx : integral Antenna RX : integral ETS Product Service AG Registration number: G0M20612-1054-S-1 Page 5 of 32 Additional information : Tx and Rx. antenna are the same. The test sample was tested with three laptops in two different positions and four bands. Laptop 1: HP_Pavillion_dvd500 Laptop 2: Compaq nc6320 Laptop 3: Sony PCG-6L1M 1.7 Test Results Max. SAR Measurement UMTS Band II (Body) : 1,53 W/kg (averaged over 1 gram) Max. SAR Measurement UMTS Band V (Body) : 1,10 W/kg (averaged over 1 gram) Max. SAR Measurement PCS (Body) : 1,27 W/kg (averaged over 1 gram) Max. SAR Measurement GSM (Body) : 1,30 W/kg (averaged over 1 gram) Max. SAR Measurement EGSM 850(Body) : 1,45 W/kg (averaged over 1 gram) Max. SAR Measurement EGSM 1900 (Body) : 1,43 W/kg (averaged over 1 gram) This EUT has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003, December 2003. 1.8 Test standards Standards : - IEEE Std. 1528-2003, December 2003 FCC Rule Part(s) : - FCC OET Bulletin 65, Supplement C, Edition 01-01 2 Technical test 2.1 Summary of test results Applicable Configuration Handset (Head) Handset (Body) Headse…

Text truncated - open the document above for the full version.

ETS Product Service AG Registration number: G0M20612-1054-S-1 Appendix B Appendix B Measurement Plots Date/Time: 12/13/2006 08:44:19 Test Laboratory: ETS PRODUCT SERVICE AG Dipol Valid.900(m)_250mW 13_12_2006 DUT: Dipole 900 MHz; Type: D900V2; Serial: 164 Communication System: CW; Frequency: 900 MHz;Duty Cycle: 1:1 Medium: Muscle 900 MHz Medium parameters used: f = 900 MHz; σ = 1.04 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(6.11, 6.11, 6.11); Calibrated: 10/16/2006 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/21/2006 z Phantom: Flat Phantom ELI4.0; Type: QDOVA001BB; Serial: SN:1013 z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 171 Dipol 900 (250mW)/Area Scan (81x161x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 2.98 mW/g Dipol 900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 55.5 V/m; Power Drift = -0.042 dB Peak SAR (extrapolated) = 4.02 W/kg SAR(1 g) = 2.75 mW/g; SAR(10 g) = 1.78 mW/g Maximum value of SAR (measured) = 2.98 mW/g 0 dB = 2.98mW/g Date/Time: 12/14/2006 11:11:31 Test Laboratory: ETS PRODUCT SERVICE AG Dipol Valid.900(m)_250mW 14_12_2006 DUT: Dipole 900 MHz; Type: D900V2; Serial: 164 Communication System: CW; Frequency: 900 MHz;Duty Cycle: 1:1 Medium: Muscle 900 MHz Medium parameters used: f = 900 MHz; σ = 1.04 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(6.11, 6.11, 6.11); Calibrated: 10/16/2006 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/21/2006 z Phantom: Flat Phantom ELI4.0; Type: QDOVA001BB; Serial: SN:1013 z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 171 Dipol 900 (250mW)/Area Scan (81x161x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 2.96 mW/g Dipol 900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 55.1 V/m; Power Drift = -0.021 dB Peak SAR (extrapolated) = 4.10 W/kg SAR(1 g) = 2.76 mW/g; SAR(10 g) = 1.79 mW/g Maximum value of SAR (measured) = 3.05 mW/g 0 dB = 3.05mW/g Date/Time: 12/15/2006 09:07:09 Test Laboratory: ETS PRODUCT SERVICE AG Dipol Valid.900(m)_250mW 15_12_2006 DUT: Dipole 900 MHz; Type: D900V2; Serial: 164 Communication System: CW; Frequency: 900 MHz;Duty Cycle: 1:1 Medium: Muscle 900 MHz Medium parameters used: f = 900 MHz; σ = 1.04 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(6.11, 6.11, 6.11); Calibrated: 10/16/2006 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/21/2006 z Phantom: Flat Phantom ELI4.0; Type: QDOVA001BB; Serial: SN:1013 z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 171 Dipol 900 (250mW)/Area Scan (81x161x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 2.98 mW/g Dipol 900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 55.6 V/m; Power Drift = -0.064 dB Peak SAR (extrapolated) = 4.03 W/kg SAR(1 g) = 2.75 mW/g; SAR(10 g) = 1.78 mW/g Maximum value of SAR (measured) = 2.99 mW/g 0 dB = 2.99mW/g Date/Time: 12/20/2006 08:25:57 Test Laboratory: ETS PRODUCT SERVICE AG Dipol Valid.900(m)_250mW 20_12_2006 DUT: Dipole 900 MHz; Type: D900V2; Serial: 164 Communication System: CW; Frequency: 900 MHz;Duty Cycle: 1:1 Medium: Muscle 900 MHz Medium parameters used: f = 900 MHz; σ = 1.04 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(6.11, 6.11, 6.11); Calibrated: 10/16/2006 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/21/2006 z Phantom: Flat Phantom ELI4.0; Type: QDOVA001BB; Serial: SN:1013 z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 171 Dipol 900 (250mW)/Area Scan (81x161x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 3.10 mW/g Dipol 900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 56.7 V/m; Power Drift = -0.083 dB Peak SAR (extrapolated) = 4.26 W/kg SAR(1 g) = 2.83 mW/g; SAR(10 g) = 1.82 mW/g Maximum value of SAR (measured) = 3.08 mW/g 0 dB = 3.08mW/g Date/Time: 12/21/2006 12:31:23 Test Laboratory: ETS PRODUCT SERVICE AG Dipol Valid.900(m)_250mW 21_12_2006 DUT: Dipole 900 MHz; Type: D900V2; Serial: 164 Communication System: CW; Frequency: 900 MHz;Duty Cycle: 1:1 Medium: Muscle 900 MHz Medium parameters used: f = 900 MHz; σ = 1.04 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(6.11, 6.11, 6.11); Calibrated: 10/16/2006 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/21/2006 z Phantom: Flat Phantom ELI4.0; Type: QDOVA001BB; Serial: SN:1013 z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 171 Dipol 900 (250mW)/Area Scan (81x161x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 2.97 mW/g Dipol 900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 55.7 V/m; Power Drift = -0.053 dB Peak SAR (extrapolated) = 3.88 W/kg SAR(1 g) = 2.65 mW/g; SAR(10 g) = 1.75 mW/g Maximum value of SAR (measured) = 2.94 mW/g 0 dB = 2.94mW/g Date/Time: 12/22/2006 13:10:18 Test Laboratory: ETS PRODUCT SERVICE AG Dipol Valid.1900(m)_250mW 22_12_2006 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d025 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: Muscle 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.58 mho/m; ε r = 51.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Confi…

Text truncated - open the document above for the full version.

Date/Time: 12/28/2006 08:42:59 Test Laboratory: ETS PRODUCT SERVICE AG LT1_PCS_1900_flat_ch512_front DUT: GlobeTrotter Express '7.2 Ready' E ; Type: GE0201; Serial: - Communication System: GSM 1900; Frequency: 1850.2 MHz;Duty Cycle: 1:8.3 Medium: Muscle 1900 MHz Medium parameters used: f = 1850.2 MHz; σ = 1.51 mho/m; ε r = 52; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(4.57, 4.57, 4.57); Calibrated: 10/16/2006 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/21/2006 z Phantom: Flat Phantom ELI4.0; Type: QDOVA001BB; Serial: SN:1013 z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 171 GE 0201/Area Scan (101x201x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.529 mW/g GE 0201/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.4 V/m; Power Drift = 0.054 dB Peak SAR (extrapolated) = 0.785 W/kg SAR(1 g) = 0.480 mW/g; SAR(10 g) = 0.268 mW/g Maximum value of SAR (measured) = 0.543 mW/g 0 dB = 0.543mW/g Date/Time: 12/28/2006 07:17:15 Test Laboratory: ETS PRODUCT SERVICE AG LT1_PCS_1900_flat_ch661_back DUT: GlobeTrotter Express '7.2 Ready' E ; Type: GE0201; Serial: - Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: Muscle 1900 MHz Medium parameters used: f = 1880 MHz; σ = 1.55 mho/m; ε r = 51.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(4.57, 4.57, 4.57); Calibrated: 10/16/2006 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/21/2006 z Phantom: Flat Phantom ELI4.0; Type: QDOVA001BB; Serial: SN:1013 z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 171 GE 0201/Area Scan (101x201x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.064 mW/g GE 0201/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.11 V/m; Power Drift = 0.029 dB Peak SAR (extrapolated) = 0.082 W/kg SAR(1 g) = 0.058 mW/g; SAR(10 g) = 0.037 mW/g Maximum value of SAR (measured) = 0.063 mW/g 0 dB = 0.063mW/g Date/Time: 12/28/2006 08:04:34 Test Laboratory: ETS PRODUCT SERVICE AG LT1_PCS_1900_flat_ch661_front DUT: GlobeTrotter Express '7.2 Ready' E ; Type: GE0201; Serial: - Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: Muscle 1900 MHz Medium parameters used: f = 1880 MHz; σ = 1.55 mho/m; ε r = 51.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(4.57, 4.57, 4.57); Calibrated: 10/16/2006 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/21/2006 z Phantom: Flat Phantom ELI4.0; Type: QDOVA001BB; Serial: SN:1013 z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 171 GE 0201/Area Scan (101x201x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.594 mW/g GE 0201/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 16.0 V/m; Power Drift = 0.009 dB Peak SAR (extrapolated) = 0.854 W/kg SAR(1 g) = 0.524 mW/g; SAR(10 g) = 0.295 mW/g Maximum value of SAR (measured) = 0.572 mW/g 0 dB = 0.572mW/g Date/Time: 12/28/2006 09:27:06 Test Laboratory: ETS PRODUCT SERVICE AG LT1_PCS_1900_flat_ch810_front DUT: GlobeTrotter Express '7.2 Ready' E ; Type: GE0201; Serial: - Communication System: GSM 1900; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium: Muscle 1900 MHz Medium parameters used: f = 1909.8 MHz; σ = 1.59 mho/m; ε r = 51.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(4.57, 4.5…

Text truncated - open the document above for the full version.
