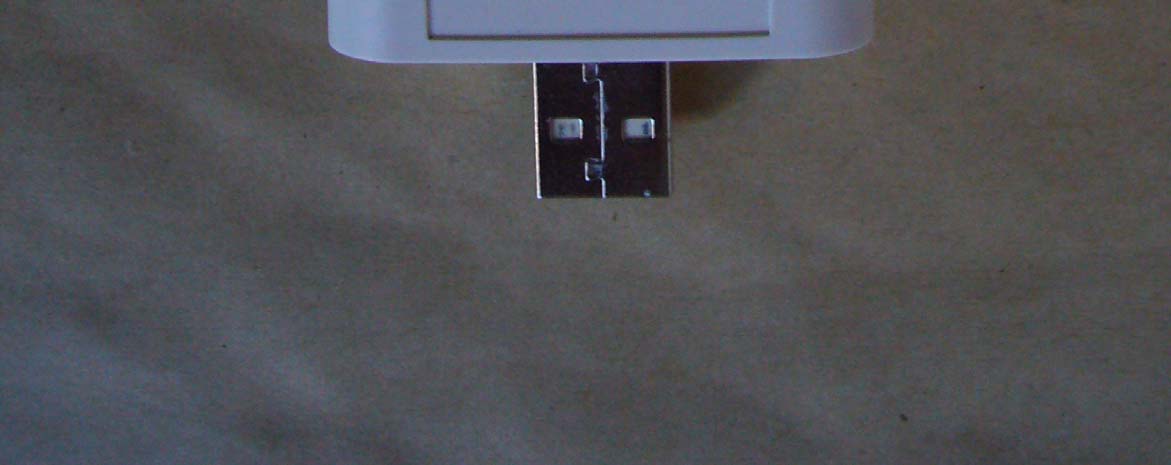

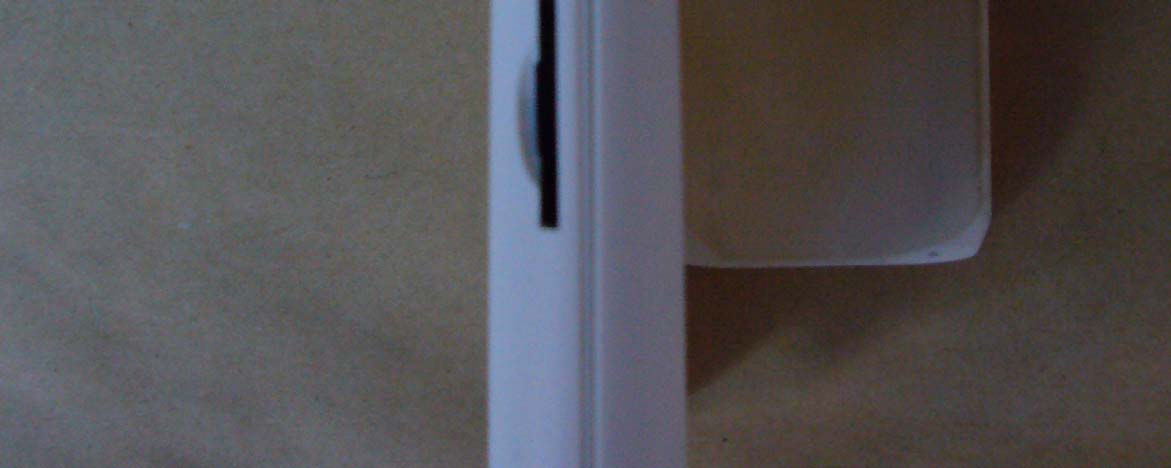

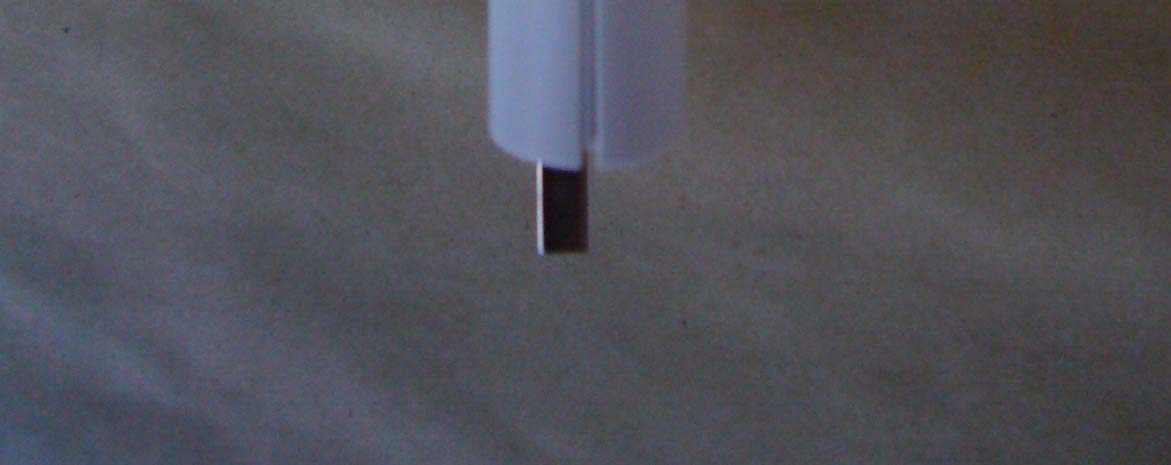

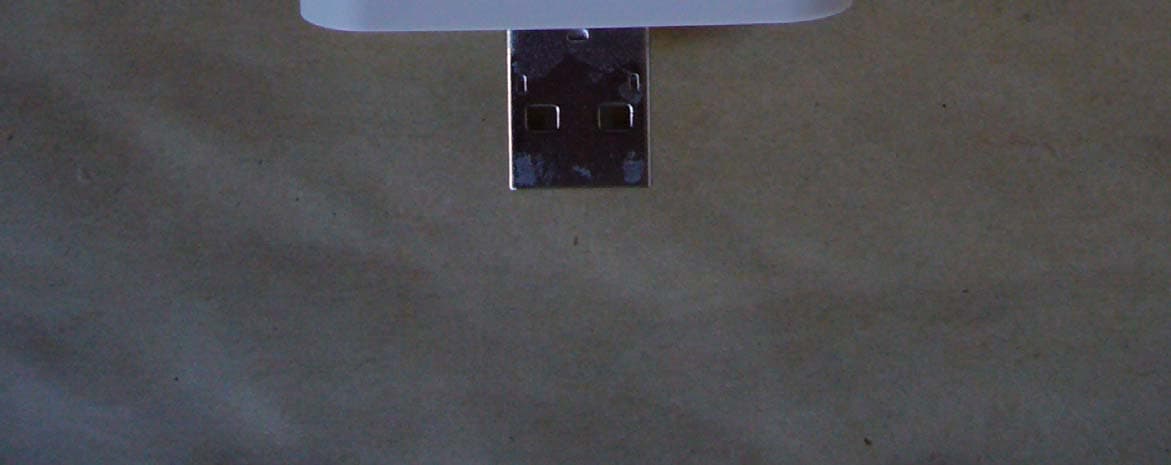

NCMOGI0201Multimode GSM/GPRS/EDGE/UMTS/HSDPA Modem

Option (Crescent NV)

Click to zoom

Application Details

Equipment Class: PCB - PCS Licensed Transmitter
Date of Grant: Apr 12, 2007
Application Purpose: Original Equipment
Date of Application: Apr 12, 2007
Equipment Note: Multimode GSM/GPRS/EDGE/UMTS/HSDPA Modem
Frequency Range: 1852.40000000 - 1907.60000000
Company: Option (Crescent NV)
Country: Belgium

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

--------- - - -- - - - - - - - - - - - - - - - - - - - - - - - --- globetrotter mobilitymanager manual in cn / d / e / f / i / nl / p on cd Warning ! Do not insert the card ! Registering your card is of great value to you. As soon as you register, you will qualify for: > Validation of warranty, which includes repair or replacement if faulty > After-sales customer care > Advanced bulletins on product updates and software upgrades During the installation process, you will have the possibility to register online or via e-mail. You may also register on-line at: http://www.option.com/registration/4_3_registration.shtml 3 register with option do not print this page Register with Option3 Introduction4 System Requirements5 Installation8 Getting Started10 Trouble shooting33 Safety Information34 contents Congratulations on your purchase of the Option GlobeTrotter card. GlobeTrotter together with the GlobeTrotter Mobility Manager software is the ultimate high performance solution for providing mobile wireless connectivity to Laptops and Notebooks. The GlobeTrotter solution enables users to browse the Internet, send and receive e-Mails, send and receive SMS text messages and all with SIM management seamlessly integrated with Microsoft Outlook™. The technology in your Option GlobeTrotter card supports real time remote connectivity and is ideal for the synchronization of mobile devices with the office or home computer. GlobeTrotter is designed to support IPsec client software providing secure remote IP mobile access to corporate networks. This guide describes how to install the GlobeTrotter Mobility Manager (GTMM) software on your PC and how to start using it. For more detailed information, consult the GTMM Online Help Guide. Contents of the sales package In the sales package, you will find the following items: > Option GlobeTrotter card > A CD-Rom containing the software To overcome any installation and usage barriers and to enhance the user experience, the following documentation is also included: > This Quick Start Guide, which gives the installation of the GlobeTrotter Mobility Manager Software in a limited number of steps, and assists the user in making his/her first data call > Online User Manual, which describes a number of common usage scenarios. The online User manual can be accessed at all times through the Help menu of the software. introduction 4 The GlobeTrotter Mobility Manager software requires: Processor > Client (a computer not working in a server capacity): Min. 90-megahertz (MHz) Intel Pentium II-class processor or higher > Server (a computer working in a server capacity): Min.133-MHz Intel Pentium- class processor Operating System > Windows XP Professional > Windows XP Home Edition > Windows 2000 > Windows ME > Windows 98SE Memory > Client: 64 megabytes (MB) of RAM, 96 MB recommended > Server: 128 MB of RAM, 256 MB recommended Hard Disk Min. 40 MB for installation of SW & Drivers Display 800 x 600 or higher-resolution display with 256 colors Input Device Microsoft mouse or compatible pointing device system requirements (minimum requirements) 5 Communications software When you run the installation program, the following programs will be installed on your computer: > Windows GlobeTrotter device drivers > The GlobeTrotter Mobility Manager The GlobeTrotter Mobility Manager The GlobeTrotter Mobility Manager GTMM simplifies SMS messaging and the configuration of GPRS settings for applications such as downloading e-mail or browsing the Internet. It also gives the possibility to manage a WLAN connection. The GTMMapplication incorporates a powerful SMS editor and a viewer for reading SMS messages. Incoming and outgoing messages are listed in Outlook™-style directories. The Setup pagegives users a quick and easy way to set up any type of connection (GSM, GPRS or 3G). The WLAN pagegives users a quick and easy way to scan and connect on a WLAN network. system requirements (minimum requirements) 7 Other requirements > Microsoft Internet Explorer 6.00 or later > The latest Windows service packs and critical updates from the Windows Update site. > The target system may not have any version of the ‘Funk Odyssey’ WLAN client installed, otherwise the installation will fail Please refer to the GlobeTrotter datacard Product Sheet for datacard system requirements. Network services To use your Option GlobeTrotter card, you must first activate an account with a mobile phone Service Provider and have received a Subscriber Identity Module (SIM) card. Often the GlobeTrotter is supplied as a package with an airtime agreement. If you do not already have an airtime agreement, please ask your supplier about obtaining one for a compatible network. Please refer to the GlobeTrotter datacard Product Sheet which will detail the types of network and services it is compatible with. Some service providers may not provide all communications services. Contact your service provider for further information about the availability and details of the services in your home network. Additional information may be required from your service provider to activate the data functionality of the Option GlobeTrotter card such as: > User Name - if applicable > Password - if applicable > Access Point Name (APN) > IP Address - if not dynamic > DNS Address - if not dynamic system requirements (minimum requirements) 6 10.At the end of the installation you will have to reboot the PC and if you have selected automatic start up, the GTMM application will start up after the reboot. 11. Insert the Option GlobeTrotter card into the PCMCIA slot of your PC. 12. Wait until the system has recognized the card. 13. You will now be asked to register the product. Registration is required to benefit from the warranty and customer care. By connecting to the Internet you can register online immediately athttp://www.option.com/registration/4_3_registration.shtml Choose Cancelif you want to register later. You will be able to start the registration from the h…

Text truncated - open the document above for the full version.

Users Manual

GI0201 AGENCY REQUIREMENTS Licensed by QUALCOMM Incorporated under one or more of the following United States Patents and/or their counterparts in other nations: 4,901,307; 5,490,165; 5,056,109; 5,504,773; 5,101,501; 5,506,865; 5,109,390; 5,511,073; 5,228,054; 5,535,239; 5,267,261; 5,544,196; 5,267,262; 5,568,483; 5,337,338; 5,600,754; 5,414,796; 5,657,420; 5,416,797; 5,659,569; 5,710,784; 5,778,338 Federal communications commission notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: > Reorient or relocate the receiving antenna. > Increase the separation between the equipment and receiver. > Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. > Consult the dealer or an experienced radio or television technician for help. Modifications The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Option could void the user's authority to operate the equipment. Declaration of Conformity for products marked with the FCC logo - United States only This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For questions regarding your product or FCC declaration, contact: Option | Gaston Geenslaan 14| 3001 Leuven | Belgium www.option.com To identify this product, refer to the Part, Series, or Model number found on the product. Exposure Information to Radio Frequency Energy This USB modem has been tested in 3 different notebooks for compliance with the SAR requirements. Measured SAR values according to the CE regulations: The maximum measured body SAR value (averaged over a mass of 10 g and distance between phantom and antenna of 15 mm) is well below the limit of 2 W/kg. Measured SAR values according to the FCC regulations: The maximum measured body SAR value (averaged over a mass of 1 g and no distance between phantom and bottom of the notebook) is well below the limit of 1.6 W/kg. This device contains 900/1800 MHz GSM/EDGE and 2100Mhz WCDMA functions that are not operational in U.S. Territories. For safe and efficient use the user should keep the antenna of the card at a minimum distance of 20 cm away from his body. CAUTION: Users concerned with the risk of Radio Frequency exposure may wish to limit the duration of their calls and to position the antenna as far away from the body as is practical. European Union declaration of conformity CE 0700 Products bearing the CE marking comply with the R&TTE Directive (99/5/EC), EMC Directive (89/336/EEC) and the Low Voltage Directive (73/23/EEC) issued by the Commission of the European Community. Compliance with these directives implies conformity to the following European Norms (in parentheses are the equivalent international standards and regulations): Radio Frequency spectrum efficiency: > EN 301 511, v9.0.2 > EN 301 908-1&2, v2.2.1 Electromagnetic Compatibility > EN 301 489-7/-24: 2002 Safety and Health > EN 60950-1/A11: 2004 This product may be used in the following countries: > All EU Memberstates > Iceland > Switzerland > Norway > United States of America Manufacturer's Disclaimer Statement The information in this document is subject to change without notice and does not represent a commitment on the part of the vendor. No warranty or representation, either expressed or implied, is made with respect to the quality, accuracy, or fitness for any particular purpose of this document. The manufacturer reserves the right to make changes to the content of this document and/or the products associated with it at any time without obligation to notify any person or organization of such changes. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages. For questions regarding your product or declaration, contact: Option | Gaston Geenslaan 14| 3001 Leuven | Belgium www.option.com

Users Manual

Text truncated - open the document above for the full version.

ID Label/Location Info

Rev:Sap Mat NR : Part Name: Page: Size:Scale: Drawn: Top Mat Nr: Date: Project: Gaston Geenslaan 14 - B3001 Leuven - Belgium 1.Overall dimensions: 26,5mm x 32mm / Radius Corners: 1mm 2.To be supplied in the format shown, on reels, copy position 2, internal core dia 38mm 3.Quantity per roll: 1000 or max o/d 4” 4.Each roll to be packed in bubble wrap and sealed in a polythene bag containing no other shedding material. Reels then to be packed in a box, each box to contain 4 reels. The outside of the box to be clearly labelled with the following information: - Option Part number - Quantity in box - Date produced 5.Liner to be 6.Label thickness: 50 44mm wide. Vertical gap between labels 4.275mm. μm max. 7.Label to be silver and suitable for thermal transfer printing. 8.Label to be printed with artwo 9.Printing be resistant to rubbing and alcohol cleaning. 10.Raw material: FLEXcon THERMLfilm MM 200 satin silver TC-712 L-344 40 White Glassine 11. Artwork use Black 32364 12.To be used with print ribbon: Armor AXR7+ or equivalent. rk 2001747_1_2001747_art.* Thermal print (suggestion) Outline DATE APPROVED ISSUEDDESCRIPTION REV ECN 1 1/1 A4 1:1 2001747 Zaltys Generic Manuf Lbl w A-tick Eric Vandeputte Zaltys 1 First versionEV 22/01/07 22/01/07 2001747 FCC ID NCMOGI0201 Model: GT M353W IMEI : 4256231313666 SNR : 4256231313 2 0 0 1 7 4 7 _ 1 _ 2 0 0 1 7 4 7 QUALCOMM 3G CDMA 07000700 Designed in E.U. by Option Made in Ireland by Option N12993 Artwork 2 0 0 1 7 4 7 _ 1 _ 2 0 0 1 7 4 7 QUALCOMM 3G CDMA 07000700 Designed in E.U. by Option Made in Ireland by Option N12993

Operational Description

About GlobeSurfer ® iCON 7.2 GlobeSurfer ® iCON 7 .2 is offering the simplest Internet access method ever: insert your SIM card, plug it into any PC or laptop through its USB connector and you are ready to surf at DSL-speed using the latest HSDPA wireless network technology. GlobeSurfe r ® iCON 7.2, combines the convenience of high speed wireless connectivity (up to 7.2 Mbps downlink) with extreme ease of use. There is no need for installing software, for connecting DSL wires and filters or for setting parameters. Just plug in the GlobeSurfer ® iCON 7.2, and let the installer do its work (driver and connection software installation). You are then one click away to access the Internet: E-mail, Instant messag - ing, browsing, on-line gaming, downloading, streaming, ... By using tech - nologies such as Advanced Receiver Technology, you can get the best out of the network you use: Receive diversity and equalisation ensure proper speeds, also in non-optimal conditions (e.g. at the border of a coverage area). Your GlobeSurfe r ® iCON 7.2 is a truly versatile device for easy internet access. Features • Easy installation thanks to zero CD TM Plug ‘n Play • Easy connection, directly to the PC or laptop as a USB stick or via the provided extension cable • High speed with HSDPA and UMTS data (up to 7.2 Mbps downlink and 384 kbps uplink) and backward compatible with EDGE/GPRS/GSM data con- nectivity (up to 247 kbps) • Global connectivity with triple band HSDPA/UMTS (850/1900/2100 Mhz) and Quad Band EDGE/GPRS/GSM (850/900/1800/1900 Mhz) • Always gets the best out of the network, even on the borders of coverage, thanks to its Advanced Receiver Technology, incorporating Receiver Diversity and Equalisation • Visual feedback of connection status with the LED and the easy connection software, including signal strength indication • Compatible with nearly all modern desktop and laptop PCs equipped with Microsoft OS (2000, XP, XP Pro and Vista) and MAC OS X GlobeSurfer ® iCON 7.2 • Pocket size wireless solution for enterprise & home use • Versatile connectivity using standard USB port • Installs automatically • High speed: up to 7.2 Mbps • Works on HSDPA, UMTS, EDGE, GPRS and GSM networks • Stylish and sleek design OPTION Label - GT Connect 30-11-06 Minale Design Strategy Avenue des Volontaires 19 Vrijwilligerslaan 19 1160 Brussels - Belgium Phone : 32 (0)2 642 24 24 - Fax : 32 (0)2 642 24 25 www.minaledesignstrategy.com Minale Design Strategy Paris office : 55, rue Danton 92300 Levalloi s Tel : +33(0)1 41 92 97 00 Fax : +33(0)1 41 92 97 01 www.minaledesignstrategy.com - info@minaledesignstrategy • HSDPA/UMTS Air Interface: • Triple band WCDMA 850/1900/2100 MHz • UMTS: 384 kbps operation in downlink, 384 kbps in uplink • HSDPA: 7.2 Mbps in downlink, 384kbps in uplink • Dual antenna receiver diversity (on 2100 Mhz) • 3GPP FDD compliant, up to 7.2 Mbps peak rate • UE Power Class 3 • Receiver equalisation • Supports UMTS QoS traffic Classes • Circuit-switched data Single-RAB streaming: 64, 57.6, 28.8 and 14.4 kbps • EGPRS/GSM Air Interface: • Quad band: 850/900/1800/1900 MHz (US-Cellular, EGSM, DCS and US-PCS bands) • EDGE Power Class E2, GSM Power Class 1 at 1800/1900 Mhz and Power Class 4 at 850/900 Mhz • GPRS/EDGE coding scheme support: CS1-4 and MCS1-9 • Multislot GPRS/EDGE Class 12, EDGE Class B Type 1 MT • Circuit switched data: 14.4, 12.2 and 9.6 kbps • Powering and interfacing: • Powering is done through the USB interface • USB 2.0 Full Speed interface (USB 1.1) • Status LED, indicating the connection status • SIM card interface compliant with 3GPP 31.101 and 31.102 supporting 1.8 and 3V UICCs • Environmental: • Operating temperature: 0° C to +40º C • RoHS compliant • Dimensions: (D x W x H in mm) • 89 mm(*) x 46 mm x 14 mm (* 103 mm incl connector) • Weigth: • 39 g Approvals & Certifications: • All applicable regulatory approvals, Operator and Infrastructure IOT • Microsoft WHQL certified drivers Specifi cations As part of their continual product improvement process Option reserve the right to alter the specifications for the product detailed here. “GlobeSurfer” is a registered trademark of Option. The Apple logo, Mac and Mac OS are trademarks of Apple Computer, Inc. Gaston Geenslaan 14 - 3001 Leuven Belgium - T +32 16 317 411 - F +32 16 207 164 - www.option.com GlobeSurfer ® iCON 7.2

RF Exposure Info

DAT-P-152/98-01 SAR Report_7layers_6620_622_FCC_Body_850_1900_WCDMA II_V_ICONII_3 Page 1 of 42 Report Dosimetric Assessment of the Portable Device ICONII from Option (FCC ID: NCMOGI0201) tested in three host products According to the FCC Requirements March 30, 2007 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer 7layers AG Borsigstrasse 11 D-40880 Ratingen The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. Dasy_Report_FCC_Body_Card_GSM850_GSM1900_WCDMA_II_V_1.0.doc/26.09.2006/CH SAR Report_7layers_6620_622_FCC_Body_850_1900_WCDMA II_V_ICONII_3 Page 2 of 42 Dasy_Report_FCC_Body_Card_GSM850_GSM1900_WCDMA_II_V_1.0.doc/26.09.2006/CH Executive Summary The device ICONII is a new USB card from Option operating in the 850 MHz, 900 MHz, 1800 MHz and 1900 MHz frequency range. The device has a integrated antenna and the system concepts used are the GPRS 850 (Class 11), GPRS 900 (Class 11), GPRS 1800 (Class 12), GPRS 1900 (Class 12), WCDMA I (FDD), WCDMA II (FDD) and WCDMA V (FDD) standards. The card provides HSDPA in WCDMA. The objective of the measurements done by IMST was the dosimetric assessment of one device in body worn configuration in the GPRS 850 (Class 11), GPRS 1900 (Class 12), WCDMA II (FDD) and WCDMA V (FDD) standards. The measurements were performed in combination with three different host products (Dell Latitude C810, Acer TravelMate 4283WLMi_UMTS and Dell Inspiron 9100). The device was tested in lap held position with the bottom of the computer in direct contact against the flat phantom. The examinations have been carried out with the dosimetric assessment system „DASY4“. The measurements were made according to the Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [OET 65] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions. Additional information and guidelines given by the following FCC document were used: SAR Measurement Procedures for 3G Devices [3G Devices]. All measurements have been performed in accordance to the recommendations given by SPEAG. The Option ICONII USB card (FCC ID: NCMOGI0201) is in compliance with the Federal Communications Commission (FCC) Guidelines [OET 65] for uncontrolled exposure. The USB card was tested for the following configurations: Body Worn for GPRS 850 (Class 11), GPRS 1900 (Class 12), WCDMA II (FDD) and WCDMA V (FDD) in lap held position with the bottom of the computer in direct contact against the flat phantom. In addition, body SAR was also measured in HSDPA, using the highest body SAR configuration without HSDPA. The card was tested with three host products (DELL Latitude C810, Acer TravelMate 4283WLMi_UMTS and Dell Inspiron 9100). Due to the used power reduction on GSM 850 in GPRS Class 12, the tests for this band was conducted with GPRS Class 11 to cover the worst case. prepared by: ........................................... reviewed by:............................................. Alexander Rahn André van den Bosch test engineer quality assurance engineer SAR Report_7layers_6620_622_FCC_Body_850_1900_WCDMA II_V_ICONII_3 Page 3 of 42 Dasy_Report_FCC_Body_Card_GSM850_GSM1900_WCDMA_II_V_1.0.doc/26.09.2006/CH Table of Contents 1 SUBJECT OF INVESTIGATION.................................................................................................................... 4 2 THE IEEE STANDARD C95.1 AND THE FCC EXPOSURE CRITERIA................................................. 4 2.1 DISTINCTION BETWEEN EXPOSED POPULATION, DURATION OF EXPOSURE AND FREQUENCIES........... 5 2.2 DISTINCTION BETWEEN MAXIMUM PERMISSIBLE EXPOSURE AND SAR LIMITS....................................... 5 2.3 SAR LIMIT.................................................................................................................................................. 6 3 THE FCC MEASUREMENT PROCEDURE................................................................................................. 6 3.1 GENERAL REQUIREMENTS......................................................................................................................... 6 3.2 DEVICE OPERATING NEXT TO A PERSON’S EAR (HANDSETS)................................................................. 6 3.3 ADDITIONAL INFORMATION FOR MODULES IN PORTABLE DEVICES (PCMCIA CARDS, USB CARDS).. 11 4 THE MEASUREMENT SYSTEM................................................................................................................. 12 4.1 PHANTOM................................................................................................................................................. 13 4.2 PROBE...................................................................................................................................................... 14 4.3 MEASUREMENT PROCEDURE.................................................................................................................. 15 4.4 UNCERTAINTY ASSESSMENT................................................................................................................... 16 5 SAR RESULTS............................................................................................................................................... 17 6 EVALUATION................................................................................................................................................. 21 7 APPENDIX....................................................................................................................................................... 24 7.1 ADMINISTRATIVE DATA............................................................................................................................ 24 7.2 DEVICE UNDER TEST AND TEST CONDITIONS..............................................................................…

Text truncated - open the document above for the full version.

RF Exposure Info

DAT-P-152/98-01 SAR Report_7layers_6620_622_FCC_850_1900_WCDMA II_V_SAR Plots_ICONII_3 Page 1 of 20 Appendix for the Report Dosimetric Assessment of the ICONII from Option (FCC ID: NCMOGI0201) According to the FCC Requirements SAR Distribution Plots March 30, 2007 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort dasy_report_fcc_ 850_1900_ plots_1.1.doc/04.07.20 05/CH Customer 7layers AG Borsigstrasse 11 D-40880 Ratingen The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. SAR Report_7layers_6620_622_FCC_850_1900_WCDMA II_V_SAR Plots_ICONII_3 Page 2 of 20 dasy_report_fcc_850_1900_plots_1.1.doc/04.07.2005/CH Table of Contents 1 SAR DISTRIBUTION PLOTS, GPRS 850 BODY....................................................................................... 3 2 SAR DISTRIBUTION PLOTS, GPRS 1900 BODY..................................................................................... 6 3 SAR DISTRIBUTION PLOTS, WCDMA II (FDD) BODY........................................................................... 9 4 SAR …

Text truncated - open the document above for the full version.

Contact Information

Applicant

Joost van der Velden(CEO)

[email protected]+3216317411Fax: +3216671515

Test Firm

7layers AGRobert Machulec

[email protected]49-2102-749-313Fax: 49-2102-749-350

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
6	24E	1.85 GHz - 1.91 GHz	333.00 mW	4M20F9W	2.5 ppm

Confidentiality

Long Term

Grant Notes

Power listed is ERP for part 22 and EIRP for part 24. This device contains functions that are not operational in U.S Territories. This filing is only applicable for US operations. The antenna(s) used for this transmitter must not be co located or operating in conjunction with any other antenna or transmitter within a host device. SAR compliance has been established in laptop computer configurations with horizontal USB slots, as described in this filings, only. This device should only be used in laptop computers with substantially similar physical dimensions, construction, and electrical and RF characteristics. End-users must be informed of the requirements for satisfying RF exposure compliance. The highest SAR value for ths device as reported to the FCC is: 0.523 W/kg (GPRS 850 MHz) and 1.130 W/kg (GPRS 1900 MHz), 0.319 W/kg (WCDMA V) and 1.240 W/kg (WCDMA II)
