NCMOGI0461USB Dongle

iCON ® 461 User Guide The intelligent HSUPA USB modem Fast, future-proof and truly worldwide iCON ® 461 User Guide Version: v001 Page: 2 of 28 VERSION HISTORY Date Version Author Revision Approval Remarks 05/11/09 V001 Joris Nys OVERVIEW AND PURPOSE This document provides customers with information to help them use their iCON ® 461 on a day to day basis. NOTICE The information in this User Guide is subject to change without notice. The contents herein are provided "as is". Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability or contents of this document. COPYRIGHT Reproduction, transfer, distribution or storage of part or all of the contents in this User Guide in any form is prohibited without the prior written permission of Option ® nv. TRADEMARK Copyright 2009 ©. Option nv. All rights reserved. Option, GlobeTrotter, Zero-CD and the Option logo are registered trademarks of Option. All third-party trademarks are the property of their respective owners. iCON ® 461 User Guide Version: v001 Page: 3 of 28 CONTENTS 1 WELCOME 4 2 FEATURES 5 3 SYSTEM REQUIREMENTS 5 4 iCON ® 461 PACKAGE CONTENT 5 5 INSTALLING AND SETTING UP YOUR iCON ® 461 6 6 USING YOUR iCON ® 461 8 7 LED STATUS INDICATOR 10 8 SAFE REMOVAL 10 9 GLOBETROTTER ® CONNECT 3 SOFTWARE 11 9.1 Product Features 11 9.2 Short Description And Intended Use 11 9.2.1 Basic Use 11 9.3 Installing And Setting Up Globetrotter ® Connect 3 11 9.3.1 Installation 11 9.3.2 Installation Process 12 9.3.3 Running GlobeTrotter ® Connect 3 12 9.3.4 Entering your PIN code 13 9.3.5 Checking Status 13 9.3.6 Exit GlobeTrotter ® Connect 3 14 9.4 Setting Up A Connection To The Internet 14 9.4.1 Connecting to the Internet 14 9.4.2 Disconnecting 15 9.4.3 Changing the program options 15 9.4.3.1 APN 16 9.4.3.2 Enable / Disable the Pin Code 16 9.4.3.3 Technology Selection 16 9.5 Additional Features 17 9.5.1 Using the SMS Centre 17 9.5.2 Network Selection 18 9.5.3 Auto (Re)Connect 18 10 TROUBLESHOOTING 19 11 DETAILED TECHNICAL SPECIFICATIONS 20 12 PRODUCT SUPPORT AND ADDITIONAL HELP 22 12.1 Technical Support 22 12.2 Help 22 APPENDIX A: LIMITED WARRANTY 23 APPENDIX B: HEALTH, SAFETY AND CERTIFICATION INFO 24 iCON ® 461 User Guide Version: v001 Page: 4 of 28 1 WELCOME The new iCON ® 461 from Option ® offers the latest available technology in the world market. Perfect for tech-savvy consumers and mobile professionals alike, this little device offers high upload (5.76Mbps) and download (7.2Mbps) speeds. With its compact size, the iCON ® 461 delivers a complete solution in an innovative, intelligent and stylish USB design, and equipped with a quad-band configuration (850/900/1900/2100/), it is convenient for true global usage with 3G/GPRS/EDGE support. It can therefore be used as a convenient high speed data roaming solution for travelers, enabling access to e-mail and internet virtually everywhere in the world. The iCON ® 461’s attractive style with retractable USB connector is compact enough to fit easily into your palm, and its very light weight ensures maximum portability and convenience in fixed (PC) or mobile (laptop) environments. Also featuring a Micro-SD slot, the device converts from data modem to true USB storage solution (e.g. enabling portable applications), for up to 32GB. The technology used in the iCON ® 461 provides the latest features, but takes up less space. This enables devices to be built that are feature-packed, but remain highly compact. The result is the iCON ® 461. Particular attention has been placed on the iCON ® 461’s look and feel. With its special textures and rounded edges, the iCON ® 461 is particularly comfortable to touch and projects a confident and refined image serving as your reliable mobile access companion for years to come. The iCON ® 461 considerably enhances your working speed. This results in faster e-mail access, instant messaging and swift browsing, streaming and downloading. Also on-line gaming is now possible in the blink of an eye. Installing and operating the iCON ® 461 is child’s play. After inserting a SIM card and plugging the iCON ® 461 USB stick into a free USB port, the easy to use connection software is auto installed, bringing internet access within a mouse-click’s reach. Quad-band configuration Zero-CD ® Micro-SD card slot High speed wireless internet connectivity Download 7.2/Upload 2.0 (5.76 Ready) Retractable USB connector iCON ® 461 User Guide Version: v001 Page: 5 of 28 2 FEATURES • Easy connection to any PC and the internet: insert the device, install the Zero-CD ® software and go on-line • Quad-band high-speed 3G and quad-band 2G support for worldwide operation • Up to 5.76Mbps upload and 7.2Mbps download speed in 3G • Zero-CD ® Plug ‘n’ Play technology supported by 64MB internal memory • Retractable USB connector • Micro-SD card reader (up to 32GB), making the iCON ® 461 ready for Option ® ’s uCAN ® platform • Transparent support for IPSec and VPN technology • Very compact, • Included lanyard connector (lanyard not included) • Comprehensively tested on infrastructures and networks worldwide • Future proof through upgradeable firmware 3 SYSTEM REQUIREMENTS • Windows Vista ® , Windows ® XP, Windows ® XP Pro, Windows ® XP Home Edition, Windows ® 2000 SP4 or Mac OS ® 10.4, 10.5 • Free USB port • 10Mb of free hard disk space • SIM-card from your local operator 4 iCON ® 461 PACKAGE CONTENT • iCON ® 461 HSUPA USB Stick • Quick Start Guide In some cases the package may contain a SIM card or Micro-SD card supplied by your Mobile Operator. iCON ® 461 User Guide Version: v001 Page: 6 of 28 5 INSTALLING AND SETTING UP YOUR iCON ® 461 Step 1 – Remove the SIM-slot cover and insert the SIM card into the iCON ® 461. If you want to use the iCON ® 461 as a memory stick, you need to insert a micro-SD card (not included). The micr…

Text truncated - open the document above for the full version.

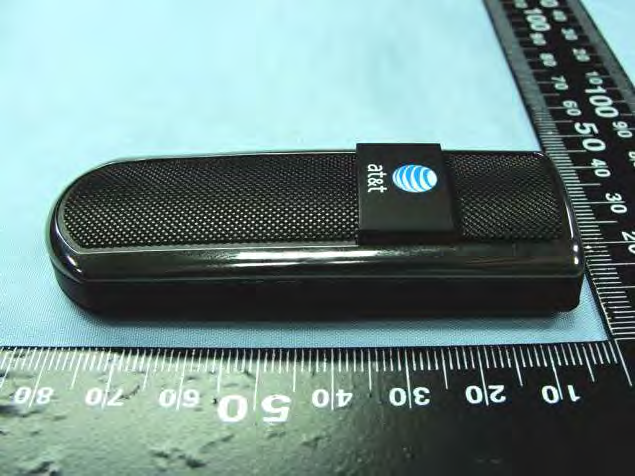

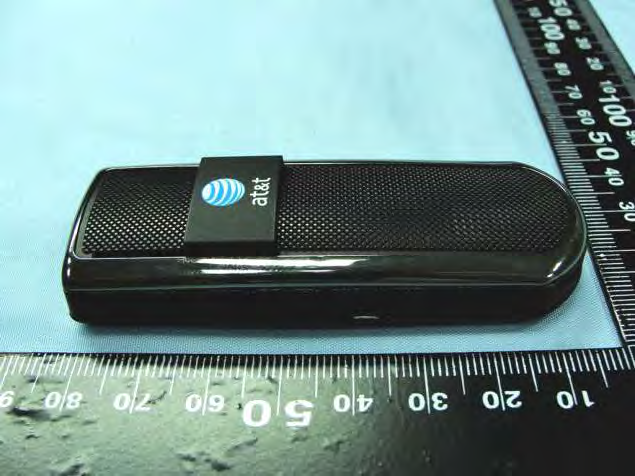

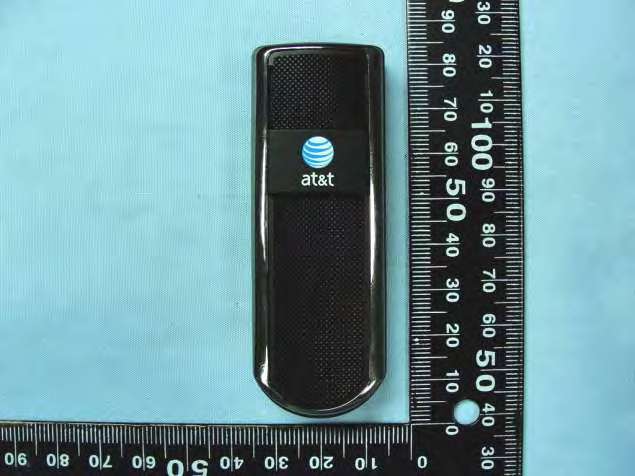

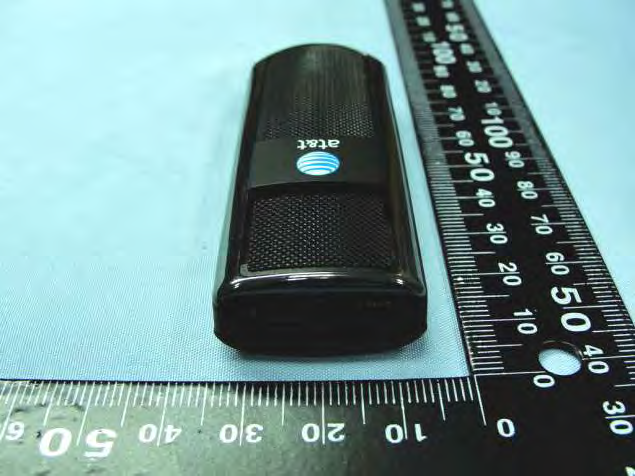

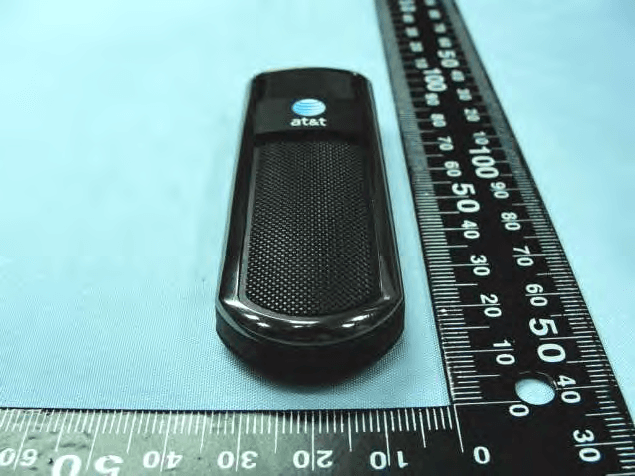

Photographs of EUT Report No.: EP990302 Model Name: GI0461 SPORTON INTERNATIONAL INC. Page Number : 1 of 22 TEL : 886-3-327-3456 Issued Date : Oct. 20, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NCMOGI0461 1. External Photograph of EUT Photographs of EUT Report No.: EP990302 Model Name: GI0461 SPORTON INTERNATIONAL INC. Page Number : 2 of 22 TEL : 886-3-327-3456 Issued Date : Oct. 20, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NCMOGI0461 Photographs of EUT Report No.: EP990302 Model Name: GI0461 SPORTON INTERNATIONAL INC. Page Number : 3 of 22 TEL : 886-3-327-3456 Issued Date : Oct. 20, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NCMOGI0461 Photographs of EUT Report No.: EP990302 Model Name: GI0461 SPORTON INTERNATIONAL INC. Page Number : 4 of 22 TEL : 886-3-327-3456 Issued Date : Oct. 20, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NCMOGI0461 Photographs of EUT Report No.: EP990302 Model Name: GI0461 SPORTON INTERNATIONAL INC. Page Number : 5 of 22 TEL : 886-3-327-3456 Issued Date : Oct. 20, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NCMOGI0461 Photographs of EUT Report No.: EP990302 Model Name: GI0461 SPORTON INTERNATIONAL INC. Page Number : 6 of 22 TEL : 886-3-327-3456 Issued Date : Oct. 20, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NCMOGI0461 720510

Photographs of EUT Report No.: EP990302 Model Name: GI0461 SPORTON INTERNATIONAL INC. Page Number : 7 of 22 TEL : 886-3-327-3456 Issued Date : Oct. 20, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NCMOGI0461 2. Internal Photograph of EUT Photographs of EUT Report No.: EP990302 Model Name: GI0461 SPORTON INTERNATIONAL INC. Page Number : 8 of 22 TEL : 886-3-327-3456 Issued Date : Oct. 20, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NCMOGI0461 Photographs of EUT Report No.: EP990302 Model Name: GI0461 SPORTON INTERNATIONAL INC. Page Number : 9 of 22 TEL : 886-3-327-3456 Issued Date : Oct. 20, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NCMOGI0461 Photographs of EUT Report No.: EP990302 Model Name: GI0461 SPORTON INTERNATIONAL INC. Page Number : 10 of 22 TEL : 886-3-327-3456 Issued Date : Oct. 20, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NCMOGI0461 Photographs of EUT Report No.: EP990302 Model Name: GI0461 SPORTON INTERNATIONAL INC. Page Number : 11 of 22 TEL : 886-3-327-3456 Issued Date : Oct. 20, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NCMOGI0461 Photographs of EUT Report No.: EP990302 Model Name: GI0461 SPORTON INTERNATIONAL INC. Page Number : 12 of 22 TEL : 886-3-327-3456 Issued Date : Oct. 20, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NCMOGI0461 Photographs of EUT Report No.: EP990302 Model Name: GI0461 SPORTON INTERNATIONAL INC. Page Number : 13 of 22 TEL : 886-3-327-3456 Issued Date : Oct. 20, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NCMOGI0461 Photographs of EUT Report No.: EP990302 Model Name: GI0461 SPORTON INTERNATIONAL INC. Page Number : 14 of 22 TEL : 886-3-327-3456 Issued Date : Oct. 20, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NCMOGI0461 Photographs of EUT Report No.: EP990302 Model Name: GI0461 SPORTON INTERNATIONAL INC. Page Number : 15 of 22 TEL : 886-3-327-3456 Issued Date : Oct. 20, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NCMOGI0461 Photographs of EUT Report No.: EP990302 Model Name: GI0461 SPORTON INTERNATIONAL INC. Page Number : 16 of 22 TEL : 886-3-327-3456 Issued Date : Oct. 20, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NCMOGI0461 Photographs of EUT Report No.: EP990302 Model Name: GI0461 SPORTON INTERNATIONAL INC. Page Number : 17 of 22 TEL : 886-3-327-3456 Issued Date : Oct. 20, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NCMOGI0461 720510 Photographs of EUT Report No.: EP990302 Model Name: GI0461 SPORTON INTERNATIONAL INC. Page Number : 18 of 22 TEL : 886-3-327-3456 Issued Date : Oct. 20, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NCMOGI0461 WWAN Aux. Antenna <Rx> WWAN Main Antenna <Tx/Rx> GPS Antenna <Rx> Photographs of EUT Report No.: EP990302 Model Name: GI0461 SPORTON INTERNATIONAL INC. Page Number : 19 of 22 TEL : 886-3-327-3456 Issued Date : Oct. 20, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NCMOGI0461 WWAN Main Antenna <Tx/Rx> Photographs of EUT Report No.: EP990302 Model Name: GI0461 SPORTON INTERNATIONAL INC. Page Number : 20 of 22 TEL : 886-3-327-3456 Issued Date : Oct. 20, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NCMOGI0461 WWAN Main Antenna <Tx/Rx> Photographs of EUT Report No.: EP990302 Model Name: GI0461 SPORTON INTERNATIONAL INC. Page Number : 21 of 22 TEL : 886-3-327-3456 Issued Date : Oct. 20, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NCMOGI0461 WWAN Aux. Antenna <Rx> Photographs of EUT Report No.: EP990302 Model Name: GI0461 SPORTON INTERNATIONAL INC. Page Number : 22 of 22 TEL : 886-3-327-3456 Issued Date : Oct. 20, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NCMOGI0461 720510 721510 720510 GPS Antenna <Rx>

DAT-P-152/98-01 SAR_Report_Option_6620_765_FCC_Body_850_1900_WCDMA II_V_GI0461 Page 1 of 41 Report Dosimetric Assessment of the Portable Device GI0461 from Option (FCC ID: NCMOGI0461) tested in one host product According to the FCC Requirements October 05, 2009 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Option N.V. Gaston Geenslaan 14 B-3001 Leuven The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. Dasy_Report_ FCC_Body_Card_850_1900_WCDMA II_WCDMA V_1.4.doc/20.06.2008/ABo SAR_Report_Option_6620_765_FCC_Body_850_1900_WCDMA II_V_GI0461 Page 2 of 41 Dasy_Report_ FCC_Body_Card_850_1900_WCDMA II_WCDMA V_1.4.doc/20.06.2008/ABo Executive Summary The device GI0461 is a new USB stick from Option operating in the 850 MHz, 900 MHz, 1800 MHz and 1900 MHz frequency range. The device has an integrated antenna and the system concepts used are the GPRS/EDGE 850 (Class 12), GPRS/EDGE 900 (Class 12), GPRS/EDGE 1800 (Class 12), GPRS/EDGE 1900 (Class 12), WCDMA I (FDD), WCDMA II (FDD) and WCDMA V (FDD) standards. The USB stick provides HSDPA and HSUPA in WCDMA. Even though the GI0461 provides GPRS Class 12 (4TX) the output power measure- ments, conducted by IMST, shows the highest output power in GPRS Class 10. Therefore the SAR measurements are conducted with GPRS Class 10 (2TX) The objective of the measurements done by IMST was the dosimetric assessment of one device in body worn configuration in the GPRS/EDGE 850 (Class 10), GPRS/EDGE 1900 (Class 10), WCDMA II (FDD) and WCDMA V (FDD) standards. The measurements were performed in combination with one host product (Fujitsu Siemens Amilo Pro). According to Fig. 2 the device was tested in five positions with a maximum distance of 5 mm between DUT and phantom. The examinations have been carried out with the dosimetric assessment system „DASY4“. The measurements were made according to the Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [OET 65] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions. Additional information and guidelines given by the following FCC documents were used: SAR Measurement Procedures for 3G Devices, KDB 941225 D01, D02, D03 [KDB 941225] and Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies, KDB 447498 D01 and D02 [KDB 447498]. All measurements have been performed in accordance to the recommendations given by SPEAG. The USB stick was tested for the following configurations: According to Fig. 2 the device was tested in five positions for GPRS/EDGE 850 (Class 10), GPRS/EDGE 1900 (Class 10), WCDMA II (FDD) and WCDMA V (FDD) with a maximum distance of 5 mm between DUT and phantom. In addition, body SAR was also measured in HSDPA using Subtest 1 and HSUPA using Subtest 5 at the highest body SAR configuration without HSDPA and HSUPA. The device was tested with one host product (Fujitsu Siemens Amilo Pro). According the output power measurements GPRS 850 (Class 10) and GPRS 1900 (Class 10) delivers the highest output power. Therefore the SAR tests are conducted in GPRS Class 10. prepared by: ........................................... reviewed by:............................................. Alexander Rahn André van den Bosch test engineer quality assurance engineer SAR_Report_Option_6620_765_FCC_Body_850_1900_WCDMA II_V_GI0461 Page 3 of 41 Dasy_Report_ FCC_Body_Card_850_1900_WCDMA II_WCDMA V_1.4.doc/20.06.2008/ABo Table of Contents 1 SUBJECT OF INVESTIGATION.................................................................................................................... 4 2 THE IEEE STANDARD C95.1 AND THE FCC EXPOSURE CRITERIA................................................. 4 2.1 DISTINCTION BETWEEN EXPOSED POPULATION, DURATION OF EXPOSURE AND FREQUENCIES........... 5 2.2 DISTINCTION BETWEEN MAXIMUM PERMISSIBLE EXPOSURE AND SAR LIMITS....................................... 5 2.3 GENERAL SAR LIMIT................................................................................................................................. 6 2.4 KDB 447498 SAR LIMIT........................................................................................................................... 6 3 THE FCC MEASUREMENT PROCEDURE................................................................................................. 6 3.1 GENERAL REQUIREMENTS......................................................................................................................... 6 3.2 TEST TO BE PERFORMED FOR MODULES IN PORTABLE DEVICES (PCMCIA CARDS, USB STICKS)...... 7 4 THE MEASUREMENT SYSTEM................................................................................................................. 10 4.1 PHANTOM................................................................................................................................................. 12 4.2 PROBE...................................................................................................................................................... 12 4.3 MEASUREMENT PROCEDURE.................................................................................................................. 13 4.4 UNCERTAINTY ASSESSMENT................................................................................................................... 14 5 SAR RESULTS............................................................................................................................................... 15 6 EVALUATION................................................................................................................................................. 19 7 APPENDIX......................................................................................................................................................…

Text truncated - open the document above for the full version.

DAT-P-152/98-01 SAR_Report_Option_6620_765_FCC_Body_850_1900_WCDMA II_V_Plots_GI0461 Page 1 of 52 Appendix for the Report Dosimetric Assessment of the Portable Device GI0461 from Option (FCC ID: NCMOGI0461) tested in one host product According to the FCC Requirements SAR Distribution Plots October 05, 2009 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Option N.V. Gaston Geenslaan 14 B-3001 Leuven The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_850_1900_plots_1.1.doc/04.07.2005/CH SAR_Report_Option_6620_765_FCC_Body_850_1900_WCDMA II_V_Plots_GI0461 Page 2 of 52 dasy_report_fcc_850_1900_plots_1.1.doc/04.07.2005/CH Table of Contents 1 SAR DISTRIBUTION PLOTS, GPRS 850 BODY....................................................................................... 3 2 SAR DISTRIBUTION PLOTS, EDGE 850 BODY....................................................................................... 8 3 SAR DISTRIBUTION PLOTS, GPRS 1900 BODY................................................................................... 13 4 SAR DISTRIBUTION PLOTS, EDGE 1900 BODY................................................................................... 22 5 AR DISTRIBUTION PLOTS, WCDMA FCC V BODY.............................................................................. 31 6 SAR DISTRIBUTION PLOTS, WCDMA FDD II BODY............................................................................ 38 7 SAR Z-AXIS SCANS (VALIDATION)......................................................................................................... 49 8 SAR Z-AXIS SCANS (MEASUREMENTS)................................................................................................ 51 SAR_Report_Option_6620_765_FCC_Body_850_1900_WCDMA II_V_Plots_GI0461 Page 3 of 52 dasy_report_fcc_850_1900_plots_1.1.doc/04.07.2005/CH 1 SAR Distribution Plots, GPRS 850 Body Test Laboratory: IMST GmbH, DASY Blue (I); File Name: 179_bahm_1.da4 DUT: Option ; Type: iCon 461; Serial: 004401441320179 Program Name: Body Communication System: GPRS 850; Frequency: 836.6 MHz;Duty Cycle: 1:4 Medium parameters used: f = 836.6 MHz; σ = 1 mho/m; ε r = 53.5; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6R - SN1669; ConvF(5.89, 5.89, 5.89); Calibrated: 10.02.2009 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 09.02.2009 - Phantom: SAM Sugar 1059; Type: Speag; Serial: 1059 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 GPRS 850/Area Scan (8x13x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 0.514 mW/g GPRS 850/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.0 V/m; Power Drift = 0.033 dB Peak SAR (extrapolated) = 0.749 W/kg SAR(1 g) = 0.483 mW/g; SAR(10 g) = 0.304 mW/g Maximum value of SAR (measured) = 0.530 mW/g GPRS 850/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.0 V/m; Power Drift = 0.033 dB Peak SAR (extrapolated) = 0.446 W/kg SAR(1 g) = 0.246 mW/g; SAR(10 g) = 0.154 mW/g Maximum value of SAR (measured) = 0.267 mW/g Fig. 1: Worst case SAR distribution for GPRS 850 (Class 10), channel 190, Position A (Fujitsu Siemens Amilo Pro, October 01, 2009; Ambient Temperature: 21.5°C; Liquid Temperature: 21.0°C). Laptop Area DUT Area SAR_Report_Option_6620_765_FCC_Body_850_1900_WCDMA II_V_Plots_GI0461 Page 4 of 52 dasy_report_fcc_850_1900_plots_1.1.doc/04.07.2005/CH Test Laboratory: IMST GmbH, DASY Blue (I); File Name: 179_bahm_2.da4 DUT: Option ; Type: iCon 461; Serial: 004401441320179 Program Name: Body Communication System: GPRS 850; Frequency: 836.6 MHz;Duty Cycle: 1:4 Medium parameters used: f = 836.6 MHz; σ = 1 mho/m; ε r = 53.5; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6R - SN1669; ConvF(5.89, 5.89, 5.89); Calibrated: 10.02.2009 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 09.02.2009 - Phantom: SAM Sugar 1059; Type: Speag; Serial: 1059 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 GPRS 850/Area Scan (8x13x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 0.465 mW/g GPRS 850/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.2 V/m; Power Drift = -0.086 dB Peak SAR (extrapolated) = 0.647 W/kg SAR(1 g) = 0.432 mW/g; SAR(10 g) = 0.283 mW/g Maximum value of SAR (measured) = 0.470 mW/g GPRS 850/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.2 V/m; Power Drift = -0.086 dB Peak SAR (extrapolated) = 0.565 W/kg SAR(1 g) = 0.378 mW/g; SAR(10 g) = 0.247 mW/g Maximum value of SAR (measured) = 0.409 mW/g Fig. 2: Worst case SAR distribution for GPRS 850 (Class 10), channel 190, Position B (Fujitsu Siemens Amilo Pro, October 01, 2009; Ambient Temperature: 21.5°C; Liquid Temperature: 21.0°C). Laptop Area DUT Area SAR_Report_Option_6620_765_FCC_Body_850_1900_WCDMA II_V_Plots_GI0461 Page 5 of 52 dasy_report_fcc_850_1900_plots_1.1.doc/04.07.2005/CH Test Laboratory: IMST GmbH, DASY Blue (I); File Name: 179_bahm_3.da4 DUT: Option ; Type: iCon 461; Serial: 004401441320179 Program Name: Body Communication System: GPRS 850; Frequency: 836.6 MHz;Duty Cycle: 1:4 Medium parameters used: f = 836.6 MHz; σ = 1 mho/m; ε r = 53.5; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6R - SN1669; ConvF(5.89, 5.89, 5.89); Calibrated: 10.02.2009 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 09.02.2009 - Phantom: SAM Sugar 1059; Type: Speag; Serial: 1059 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 GPRS 850/Area Scan (8x15x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 0.216 mW/g GPRS …

Text truncated - open the document above for the full version.

DAT-P-152/98-01 SAR_Report_Option_6620_765_FCC_CalData_GI0461 dasy_report_fcc_850_1900_cal_data_2.0.doc/08.01.2005/CH Appendix for the Report Dosimetric Assessment of the Option GI0461 (FCC ID: NCMOGI0461) According to the FCC Requirements Calibration Data October 05, 2009 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Option N.V. Gaston Geenslaan 14 B-3001 Leuven DAT-P-152/98-01 Cal_D1900V2_SN5d051_0909 Page 1 of 8 _ Calibration_Certificate_Dipole_V1.0/01.08.2009/ABo Calibration Certificate Certificate No: Cal_D1900V2_SN5d051_0909 Object: D1900V2 SN: 5d051 Date of Calibration: September 09, 2009 Next Calibration: September 2011 Object Condition: In Tolerance Calibration Equipment used: Test Equipment Serial Number Last calibration Calibrated by Next calibration Powermeter E4416A GB41050414 Dec 08 Agilent Techn. (ISO/IEC 17025, 1-1784162174-1) Dec 10 Power Sensor E9301H US40010212 Dec 08 Agilent Techn. (ISO/IEC 17025, 1-1784041195-1) Dec 10 Powermeter E4417A GB41050441 Dec 08 Agilent Techn. (ISO/IEC 17025, 1-1674038198-1) Dec 10 Power Sensor E9301A MY41495584 Dec 08 Agilent Techn. (ISO/IEC 17025, 1-1784041307-1) Dec 10 Network Analyzer E5071C MY46103220 Aug 09 Rohde& Schwarz (14967-DKD-00201- 2009-08) Aug 10 Reference Probe ET3DV6 SN 1669 Feb 09 SPEAG, No ET3- 1669_Feb09 Feb 10 DAE3 SN 335 Feb 09 SPEAG, No DAE3- 335_Feb09 Feb 10 Cal_D1900V2_SN5d051_0909 Page 2 of 8 Calibration is performed according the following standards: IEEE 1528-2003 "IEEE Recommended Practice for Determining the Peak Spatial - Averaged Specific Absorption Rate (SAR) in the Human Head from Wireless Communication Devices: Measurement Technique", December 2003 IEC 62209-1 "Procedure to measure the Specific Absorption Rate (SAR) for hand - held devices used in close proximity to the ear (frequency range of 300 MHz to 3GHz)", February 2005 Federal Communications Commission Office of Engineering & Technologies (FCCOET) "Evaluating Compliance wit FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields; Additional Information for Evaluating Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions", Supplement C (Edition 01-01) to Bulletin 65 Additional Documentation: DASY 4 System Handbook prepared by: reviewed by: Alexander Rahn André van den Bosch test engineer quality assurance engineer 08/ABo Cal_D1900V2_SN5d051_0909 Page 3 of 8 Measurement Conditions DASY Version: Dasy 4; V4.7 Phantom: SAM Phantom 1340 Distance Dipole Center – TSL: 10mm With spacer Zoom Scan res. dx, dy, dz = 5mm Frequency: 1900 MHz ± 1MHz Head TSL Parameters Temperature Permittivity Conductivity Nominal Head TSL Parameters 22.0 40.0 1.40 Measured Head TSL Parameters 22.0 40.3 ± 6% 1.45 S/m ± 6% SAR result with Head TSL Averaged over 1g SAR measured 250mW input power 9.10 mW/g SAR normalized normalized to 1W 36.40 mW/g SAR for nominal Head TSL parameters normalized to 1W 35.90 mW/g ± 16.5 % (k=2) Averaged over 10g SAR measured 250mW input power 4.76 mW/g SAR normalized normalized to 1W 19.04 mW/g SAR for nominal Head TSL parameters normalized to 1W 18.96 mW/g ± 16.5 % (k=2) Cal_D1900V2_SN5d051_0909 Page 4 of 8 Body TSL Parameters Temperature Permittivity Conductivity Nominal Body TSL Parameters 22.0 53.30 1.52 Measured Body TSL Parameters 22.0 52.90 ± 6% 1.54 S/m ± 6% SAR result with Body TSL Averaged over 1g SAR measured 250mW input power 9.42 mW/g SAR normalized normalized to 1W 37.68 mW/g SAR for nominal Body TSL parameters normalized to 1W 37.28 mW/g ± 16.5 % (k=2) Averaged over 10g SAR measured 250mW input power 4.97 mW/ g SAR normalized normalized to 1W 19.88 mW/g SAR for nominal Body TSL parameters normalized to 1W 19.77 mW/g ± 16.5 % (k=2) General Antenna Parmeters Antenna Parameters with Head TSL Impedance, transformed to feed point 48.2 jΩ - 1.3 jΩ Return Loss -33.0 dB Antenna Parameter with Body TSL Impedance, transformed to feed point 53.9 jΩ - 0.4 jΩ Return Loss -28.3 dB After long term use with 100W radiated power, only a slight warming of the dipole near the feedpoint can be measured. The dipole is made of standard semigrid coaxial cable. The center conductor of the feeding line is directly connected to the second arm of the dipole. The antenna is therefore short-circuited for DC signals. Additional EUT Data Manufactured by: SPEAG Manufactured on: January 15, 1998 Cal_D1900V2_SN5d051_0909 Page 5 of 8 SAR result with Head TSL Test Laboratory: IMST GmbH, DASY Blue (I); File Name: 090909_b_1669.da4 DUT: Dipole 1900 MHz SN: 5d051; Type: D1900V2; Serial: D1900V2 - SN5d051 Program Name: System Performance Check at 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.45 mho/m; ε r = 40.3; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6R - SN1669; ConvF(5.11, 5.11, 5.11); Calibrated: 10.02.2009 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 09.02.2009 - Phantom: SAM Glycol 1176; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 10.4 mW/g d=10mm, Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 91.3 V/m; Power Drift = -0.152 dB Peak SAR (extrapolated) = 15.9 W/kg SAR(1 g) = 9.1 mW/g; SAR(10 g) = 4.76 mW/g Maximum value of SAR (measured) = 10.3 mW/g Cal_D1900V2_SN5d051_0909 Page 6 of 8 SAR result with Body TSL Test Laboratory: IMST GmbH, DASY Blue (I); File Name: 090909_b_1669.da4 DUT: Dipole 1900 MHz SN: 5d051; Type: D1900V2; Serial: D1900V2 - SN5d051 Program Name: System Performance Check at 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.54 mho/m; ε r = 52.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6R - SN…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : 1 of 67 TEL : 886-3-327-3456 Report Issued Date : Oct. 29, 2009 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NCMOGI0461 FCC RF Test Report Report No. : FG990302 FCC RF Test Report APPLICANT : Option NV EQUIPMENT : USB Dongle BRAND NAME : ICON 461 MODEL NAME : GI0461 FCC ID : NCMOGI0461 STANDARD : FCC 47 CFR Part 2, 22(H), 24(E) CLASSIFICATION : PCS Licensed Transmitter (PCB) Tx/Rx FREQUENCY RANGE : GSM850 : 824.2 ~ 848.8 MHz / 869.2 ~ 893.8 MHz GSM1900 : 1850.2 ~ 1909.8 MHz / 1930.2 ~ 1989.8 MHz WCDMA Band V : 826.4 ~ 846.6 MHz / 871.4 ~ 891.6 MHz WCDMA Band II : 1852.4 ~ 1907.6 MHz / 1932.4 ~ 1987.6 MHz MAX. ERP/EIRP POWER : GSM850 (GPRS 8) : 1.24 W GSM850 (EDGE 8) : 0.29 W GSM1900 (GPRS 8) : 1.51 W GSM1900 (EDGE 8) : 0.60 W WCDMA Band V (RMC 12.2Kbps) : 0.12 W WCDMA …

Text truncated - open the document above for the full version.
