NCMOGL1PCMCIA Card

Safety Information Safety Information WARNING!Do not insert card! Read these simple guidelines. Breaking the rules may be dangerous or illegal. Further detailed information is given in this manual. DRIVINGDRIVING Do not use the GlobeTrotter while driving; park the vehicle first. INTERFERENCEINTERFERENCE All wireless devices may get interference which could affect performance. Safety Information DO NOT USE IN HOSPITALSDO NOT USE IN HOSPITALS Follow any regulations or rules. Do not use near medical equipment. DO NOT USE IN AIRCRAFTDO NOT USE IN AIRCRAFT Wireless devices can cause interference. Using them on aircraft is illegal. DO NOT USE NEAR REFUELING POINTSDO NOT USE NEAR REFUELING POINTS Do not use the device at a refueling point. Do not use near fuel or chemicals. USE SENSIBLYUSE SENSIBLY Do not touch the antenna unnecessarily. USE QUALIFIED SERVICEUSE QUALIFIED SERVICE Safety Information Do not attempt to dissamble GlobeTrotter. Doing so will void warranty. Service should only be performed by Authorized Service Centres. ACCESSORIESACCESSORIES Use only approved accessories. Do not connect incompatible products. EMERGENCY CALLSEMERGENCY CALLS NOTE:Voice calls, including emergency calls, can ONLY be made using a compatible Option headset. To make an emergency call: 1.Make sure that the GlobeTrotter card is properly inserted in the PC Card slot and that the headset is connected to the card. Some networks may require that a valid SIM card is inserted in the card. Safety Information LIQUIDSLIQUIDS Do not expose your card to rain, or spill beverages on it. EXTREME TEMPERATURESEXTREME TEMPERATURES Do not expose the card or the antenna to extreme temperatures, minimum -25 and maximum +70 degrees Celsius. Introduction Introduction Congratulations on your purchase of the GlobeTrotter Universal Tri-Band GSM/GPRS PC-radio Card. GlobeTrotter is the ultimate solution to provide high performance mobile wireless functionality for Laptops, Notebooks, and Handheld PDA’s enabling users to make telephone calls, browse the Internet, send and receive e-Mails, with SIM and Phonebook management seamlessly integrated with Microsoft Outlook™. The “Always On” feature of GPRS lends itself to real time remote connectivity and is ideal for the synchronisation of handheld and mobile devices with the office or home computer. GlobeTrotter is designed to support IPsec client software providing secure remote IP mobile access to corporate networks. Introduction GlobeTrotter is a triple-band GPRS/GSM modem in the form of a PC Card. It plugs into compatible portable computers or other devices with a PC Card type II or III slot. This guide describes how to install the WirelessCommunication Manager (WCM) software on your PC and how to start using it. For more detailed information, consult the WCM Online Help. Contents of the sales package In the sales package, you will find the following iterms: •GlobeTrotter GPRS PC Card •a CD-Rom containing the software •a leather wallet for the card To overcome any installation and usage barriers and to enhance the user experience, the following documentation is also included: Introduction •Quick Start Guide, which gives the installation of the Wireless Communication Manager Software in a limited number of steps, and assists the user in making his/her first data or voice call •Online User Manual, which describes a number of common scenarios of use. The online User manual can be accessed at all times through the Help menu of the software. System requirements The GlobeTrotter requires: •an Intel compatible PC that runs Windows 95/98/ ME,NT4,2000,XP or a PDA with Windows CE 3.0,3.1 •60 MHz Pentium-compatible CPU •24 MB of RAM •3 MB available space on Hard Disk •CD-Rom drive Introduction •PC Card (PCMCIA) Release 2.1, Type II or Type III card slot. Network services The GlobeTrotter GPRS PC Card Modem operates on the EGSM 900, GSM 1800 and PCS 1900 cellular networks. To use your GlobeTrotter, you must first activate an account with a GSM/GPRS network provider and have received a Subscriber Identity Module (SIM) card form the GSM/GPRS provider. Some service providers may not provide all communications services. Contact your service provider for further information about the availability and details of the services in your home network. Additional information may be required from your service provider to activate the GPRS functionality of the GlobeTrotter card such as: Introduction •User Name - if applicable •Password - if applicable •Access Point Name (APN) •IP Address - if not dynamic •DNS Address - if not dynamic Communications software When you run the installation program, the following programs will be installed on your computer: •Windows based telephony driver (TAPI compatible) •The Wireless Communication Manager (TAPI compatible) Introduction the option wireless communication managerthe option wireless communication manager The Wireless Communication Manager simplifies making and administering voice calls, SMS messaging and the configuration of GPRS settings for applications such as downloading e-mail or browsing the Internet. Compatibility with Microsoft Outlook™ ensures new or updated address data need only be entered once: during start-up, WCM creates a WCM Phonebook by copying the current content of Outlook™. While WCM is in use, addresses in Outlook™ can be added or edited from within WCM Phonebook. WCM provides all voice call features found on mobile phones including registers of calls made and missed. Calls can be made from Phonebook (based on current Outlook™ data) and a list of favourites can be selected from Phonebook. Introduction The WCM application also incorporates a powerful SMS editor, message templates, and a viewer for reading SMS messages. Incoming and outgoing messages are listed in Outlook™-style directories. The application also offers many other facilities, including the automatic generation of SMS texts. The GPRS controller gives users a quick and easy way of def…

Text truncated - open the document above for the full version.

FCC ID: NCMOGL1 Applicant: Option International NV Correspondence Reference Number: 22637 Dated: 2002-05-04 731 Confirmation Number: EA870130 CETECOM Certification and Testing in Communications GmbH Im Teelbruch 122 45219 Essen Germany Phone: +49 (0) 2054 9519-0 Fax: +49 (0) 2054 9519-9 EMC Answer to 1) The maximum output power EIRP was 32.8dBM = 1,905 W. Answer to 2) The maximum peak output power of the PCS PCMCIA card is 32.8 dB EIRP (1,905 W), so the spurious emission level is: 45,8dBc, therefore the spurious emission level is -13 dBm absolute, in dBμV at 3m distance is then 84.5dBμV/m So you can see from the tables, that there are no spurious greater than 31.7 dBμV/m at 3m was found. This means that the highest spurious is 74.7 dB below carrier. Normally emissions 20 dB below limits are not reported, but we do as customers satisfaction. Nevertheless will change our reporting system, so that you will have summary tables where spurious are reported in dBc in the future. The peaks above 2 Ghz were the 1. and 2. harmonics, the power of these peaks are << 20 dB below Limit. SAR Answer to 3) The Conversion Factor is integrated in the DASY Software and can be considered a calculated correction factor, independent of the measurement itself – it is included when the system calculates the SAR values. The correlation between the SAR value and the ConvF ( ConvF SAR value 1 ~) can be seen in the enclosed application note “Data Storage and Evaluation.pdf”. Answer to 4) The conversion from GSM 1800 to GSM 1900 has been done according to the guidelines stated in the DASY user Manual. Answer to 5) We herewith confirm, that the GPRS mode supports only 2 timeslots as indicated. Answer to 6) The PCMCIA PCS card will not be delivered with an external antenna. However in case the end user would need an external antenna for having a better reception, Option has specified an external antenna with the characteristics of 50 Ohm nominal impedance and a gain of 0dBi ± 1 dBi, and a cable legth of minimum 20 cm. Please refer also to the uploaded documents “External Antenna Information.pdf” Answer to 7) The worst case operating mode for this device is PCS 1900 with GPRS active – two time slots for uplink. This operating mode however is for data transmission only, hence the use of a headset is not possible. FCC ID: NCMOGL1 CETECOM Certification and Testing in Communications GmbH Im Teelbruch 122 45219 Essen Germany Phone: +49 (0) 2054 9519-0 Fax: +49 (0) 2054 9519-9 Answer to 8) Please refer to the uploaded document “Safety statement.pdf” Answer to 9) The validation verifies that the system operates within the specifications. This system check gives a sensitivity to the parameter probe, liquid parameter and software settings. When we performed the validation at 1800 MHz, we can check the probe according on fail or vary over time. We can also check the liquid parameter (the ingredients of the liquid for 1800 MHz and 1900 MHz head tissue are the same) and the software settings are described in the measurement plots. Answer to 10) Control of maximum power: The measurement processes in the DASY3 software contain a drift measurement to check the power drift of the device during the measurement. Device operating configurations: The communication was performed and monitored with the Rohde&Schwarz universal radio communication tester CMU 200. Answer to 11) Please refer to the uploaded document “Declaration of Conformity” Answer to 12) For the Calibration certificate please refer to the last pages of the SAR test report. Description of the probe: Isotropic E-Field Probe ET3DV6 for Dosimetric Measurements Construction Symmetrical design with triangular core Built-in optical fibre for surface detection system (ET3DV6 only) Built-in shielding against static charges PEEK enclosure material (resistant to organic solvents, e.g., glycol ether) Calibration In air from 10 MHz to 2.5 GHz In head tissue simulating liquid (HSL) at 900 (800-1000) MHz and 1.8 GHz (1700-1910 MHz) (accuracy ± 9.5%; k=2) Calibration for other liquids and frequencies upon request Frequency 10 MHz to 3 GHz (dosimetry); Linearity: ± 0.2 dB (30 MHz to 3 GHz) Directivity ± 0.2 dB in HSL (rotation around probe axis) ± 0.4 dB in HSL (rotation normal to probe axis) Dynamic Range 5 μW/g to > 100 mW/g; Linearity: ± 0.2 dB Optical Surface Detection ± 0.2 mm repeatability in air and clear liquids over diffuse reflecting surfaces (ET3DV6 only) Dimensions Overall length: 330 mm Tip length: 16 mm Body diameter: 12 mm Tip diameter: 6.8 mm Distance from probe tip to dipole centres: 2.7 mm Application General dosimetry up to 3 GHz Compliance tests of mobile phones Fast automatic scanning in arbitrary phantoms (ET3DV6) Answer to 13) Please refer to the uploaded documents “Spatial Peak.pdf” and “ Liquid depth.jpg” Answer to 14) Please refer to the uploaded document “Validation.pdf” FCC ID: NCMOGL1 CETECOM Certification and Testing in Communications GmbH Im Teelbruch 122 45219 Essen Germany Phone: +49 (0) 2054 9519-0 Fax: +49 (0) 2054 9519-9 Answer to 15) The measurements had been performed during mid of January 2002, where as the requirement for not using stacked papers had been coming up during February TCB Workshop. We have since then changed the EUT support and holders according to the FCC requirements. This in the last SAR report where the measurements have been performed this way. We kindly ask you to re- evaluate your request of new testing. Answer to 16) The PCMCIA card is intended for use in Notebooks as described in the filing. Answer to 17) Please find below additional photographs of the product. The red arrows indicate the position of the antenna. 90 mm Position of Antenna – Antenna retracted Dotted lines indicate position of Antenna inside PCMCIA Card when retracted. 45 mm FCC ID: NCMOGL1 CETECOM Certification and Testing in Communications GmbH Im Teelbruch 122 45219 Essen Germany Phone: +49 (0) 2054 9519-0 Fax: +49 (0) 2054 9519-9 Answer to 18) Please refer to the…

Text truncated - open the document above for the full version.

FCC ID: NCMOGL-1 Applicant: Option International NV Correspondence Reference Number: 23245 Dated: 2002-06-25 731 Confirmation Number: EA870130 Page 1 / 5 CETECOM Certification and Testing in Communications GmbH Im Teelbruch 122 45219 Essen Germany Phone: +49 (0) 2054 9519-0 Fax: +49 (0) 2054 9519-9 Answer to 1): We will do so. Answer to 2): The measurements were performed with a conversion factor of 5.4 (calibrated for 1800 Mhz head tissue), you can see the measurement results in the SAR report on page 7, table 2 "pre results". But for the used EUT, the correct conversion factor for 1880 MHz body tissue is approximately 5.21. The conversion from 1800 MHz head tissue to 1880 MHz body tissue was calculated according to the DASY user manual -chapter 4.5.3 connection between device, liquid and probe parameters (page 49)-. The final SAR value (see test report page 7, table 3) was calculated according to the following formula: SAR (final result) = SAR (pre results) x 5.4/5.21 You can see the correctness of this formula in the attached application note "data storage and evaluation". This application note described, that SAR is conversely proportional to the conversion factor. Answer to 3): Please check the uploaded document “Revised External Antenna Information.pdf” Answer to 4): Please check the uploaded document “Revised Safety Statement.pdf” Answer to 5): On the next page you will find the results of the Validation: Validation 1 : 1800 MHz Head Validation (all parameters are referred to 1800MHz) Validation 1 : as 1, but with 1900 MHz Head liquid parameters Validation 1 : as 2, but with 1900 MHz Conversion Factor For the Validation 1 (1800 MHz Head) the value to be obtained (as referenced in IEEE 1528- 200X, table 7.1) is 38.1 W/kg for a 1g cube. The measured validation value has been 38.1 W/kg. Through the change of the liquid parameter (sigma increases from 1.36 S/m to 1.45 S/m) from Validation 1 to Validation 2, the measured validation value also increases from 38.1 W/kg to 40.4 W/kg. For the Validation 3, the ConF of 5.4 (1800MHz head) has been decreased to 5.2 (1900 MHz head), and hence the measured value increases from 40.4 W/kg to 41.6 W/kg. The measurement results are in line with the expected results from the theory. FCC ID: NCMOGL-1 Page 2 / 5 FCC ID: NCMOGL-1 Page 3 of 5 FCC ID: NCMOGL-1 Page 4 of 5 FCC ID: NCMOGL-1 Page 5 / 5 CETECOM Certification and Testing in Communications GmbH Im Teelbruch 122 45219 Essen Germany Phone: +49 (0) 2054 9519-0 Fax: +49 (0) 2054 9519-9 Answer to 6): We will do so. Answer to 7): For every SAR measurement we performed directly a system validation measurement according to Draft IEEE Std 1528-200X (see appendix 1 "system performance verification", SAR report). We used for the target value of our system validation the numerical reference SAR value according to IEEE Std 1528-200X chapter 7.3.6 "reference SAR values. That means, we compare our validation results with the numerical reference results and not with results from the manufacturer.

FCC ID: NCMOGL-1 Applicant: Option International NV Correspondence Reference Number: 23245 Dated: 2002-06-25 731 Confirmation Number: EA870130 Page 1 / 5 CETECOM Certification and Testing in Communications GmbH Im Teelbruch 122 45219 Essen Germany Phone: +49 (0) 2054 9519-0 Fax: +49 (0) 2054 9519-9 Answer to 1): We will do so. Answer to 2): The measurements were performed with a conversion factor of 5.4 (calibrated for 1800 Mhz head tissue), you can see the measurement results in the SAR report on page 7, table 2 "pre results". But for the used EUT, the correct conversion factor for 1880 MHz body tissue is approximately 5.21. The conversion from 1800 MHz head tissue to 1880 MHz body tissue was calculated according to the DASY user manual -chapter 4.5.3 connection between device, liquid and probe parameters (page 49)-. The final SAR value (see test report page 7, table 3) was calculated according to the following formula: SAR (final result) = SAR (pre results) x 5.4/5.21 You can see the correctness of this formula in the attached application note "data storage and evaluation". This application note described, that SAR is conversely proportional to the conversion factor. Answer to 3): Please check the uploaded document “Revised External Antenna Information.pdf” Answer to 4): Please check the uploaded document “Revised Safety Statement.pdf” Answer to 5): On the next page you will find the results of the Validation: Validation 1 : 1800 MHz Head Validation (all parameters are referred to 1800MHz) Validation 1 : as 1, but with 1900 MHz Head liquid parameters Validation 1 : as 2, but with 1900 MHz Conversion Factor For the Validation 1 (1800 MHz Head) the value to be obtained (as referenced in IEEE 1528- 200X, table 7.1) is 38.1 W/kg for a 1g cube. The measured validation value has been 38.1 W/kg. Through the change of the liquid parameter (sigma increases from 1.36 S/m to 1.45 S/m) from Validation 1 to Validation 2, the measured validation value also increases from 38.1 W/kg to 40.4 W/kg. For the Validation 3, the ConF of 5.4 (1800MHz head) has been decreased to 5.2 (1900 MHz head), and hence the measured value increases from 40.4 W/kg to 41.6 W/kg. The measurement results are in line with the expected results from the theory. FCC ID: NCMOGL-1 Page 2 / 5 FCC ID: NCMOGL-1 Page 3 of 5 FCC ID: NCMOGL-1 Page 4 of 5 FCC ID: NCMOGL-1 Page 5 / 5 CETECOM Certification and Testing in Communications GmbH Im Teelbruch 122 45219 Essen Germany Phone: +49 (0) 2054 9519-0 Fax: +49 (0) 2054 9519-9 Answer to 6): We will do so. Answer to 7): For every SAR measurement we performed directly a system validation measurement according to Draft IEEE Std 1528-200X (see appendix 1 "system performance verification", SAR report). We used for the target value of our system validation the numerical reference SAR value according to IEEE Std 1528-200X chapter 7.3.6 "reference SAR values. That means, we compare our validation results with the numerical reference results and not with results from the manufacturer.

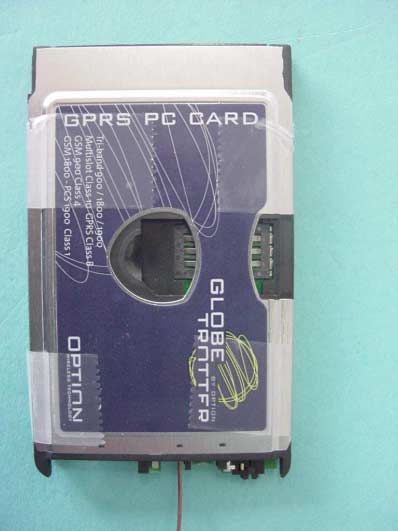

CETECOM ICT Services GmbH Test report nr.:4_0520-01-03/02Issue date: 2002-01-29Page 54 (59) Photographs of the equipment Photograph no.: 2 CETECOM ICT Services GmbH Test report nr.:4_0520-01-03/02Issue date: 2002-01-29Page 55 (59) Photographs of the equipment Photograph no.: 3

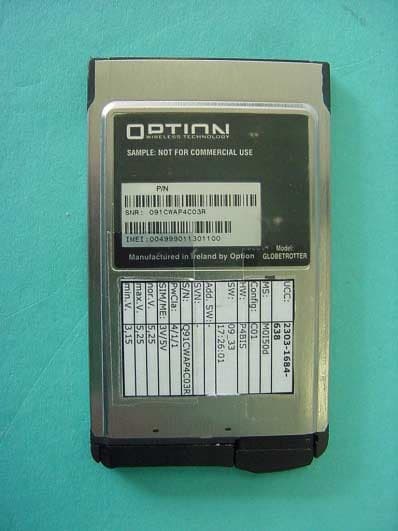

Globetrotter ID Label & Location Info Globetrotter ID Label Note: serial number (SNR) and IMEI number (IMEI) are fictive numbers just for the purpose of showing the contents and layout of the label. Complies with Canadian ICES-003 Class B Canada: ********** FCC: NCMOGL1 Tested to Comply with FCC Standards For Home or Office Use Model: GLOBETROTTER Manufactured in Ireland by Option Location Info

CETECOM ICT Services GmbH Test report nr.:4_0520-01-03/02Issue date: 2002-01-29Page 56 (59) Photographs of the equipment Photograph no.: 4 CETECOM ICT Services GmbH Test report nr.:4_0520-01-03/02Issue date: 2002-01-29Page 57 (59) Photographs of the equipment Photograph no.: 5 CETECOM ICT Services GmbH Test report nr.:4_0520-01-03/02Issue date: 2002-01-29Page 58 (59) Photographs of the equipment Photograph no.: 6 CETECOM ICT Services GmbH Test report nr.:4_0520-01-03/02Issue date: 2002-01-29Page 59 (59) Photographs of the equipment Photograph no.: 7

Globetrotter: Operational Description The Globetrotter PC Radio Card is a triple band GPRS PCMCIA card meeting all GSM and GPRS applicable specifications. It provides packet switched (PS) and circuit switched (CS) data connectivity to the Internet, intranets, enterprises, and more. In addition, GSM voice capabilities are supported using an attachable headset. This GPRS mobile device provides simultaneous connection to the GPRS and GSM service network but not simultaneous traffic. It operates with multi-slot class 10 capability meaning that per time frame 4 downlink slots (data transfer from base station to mobile terminal) and 2 uplink slots (data transfer from mobile terminal to base station) are available. Utilizing PCMCIA technology the PC-Radio Card presents itself as two serial port devices. Dependent on the operating system and user installation options the primary port will be visible either as a standard dial-up modem, or, by installation of the correct drivers, as an NDIS compatible serial device. The secondary serial port is used for configuration and diagnostics. The card operates at both 3.3V and 5V, with automatic switching. There is a current limiting circuit for PCMCIA power supply – to prevent power consumption exceeding PCMCIA recommendations. The Globetrotter is equipped with one miniature size SIM connector with full support for GSM Phase 2 SIM cards. The SIM is located on the top side of the card and is removable only when the card is not in PCMCIA sleeve in a Laptop or supporting device

CETECOM ICT Services GmbH Untertuerkheimer Str. 6-10, 66117 Saarbruecken, GermanyPhone: +49 (0) 681 598-0Fax: -9075 SAR-LaboratoryPhone: +49 (0) 681 598-8454Fax: -8475 Test report no.:4-0520-01-02-b/02 Type identification : Globetrotter FCC id:NCMOGL1 Accredited testing-laboratory DAR registration number: TTI-P-G-166/98 Federal Motor Transport Authority (KBA) DAR registration number: KBA-P 00070-97 CETECOM ICT Services GmbH Test report no.: 4-0520-01-02-b/02date:02-02-19Page 2 of 25 Table of Content 1 General Information ....................................................................................................... 3 1.1 Notes............................................................................................................................................... 3 1.2 Statement of Compliance ............................................................................................................... 3 1.3 Testing laboratory........................................................................................................................... 4 1.4 Details of applicant......................................................................................................................... 4 1.5 Application details.......................................................................................................................... 4 1.6 Test item ......................................................................................................................................... 5 1.7 Test specifications .......................................................................................................................... 5 1.7.1 RF exposure limits .................................................................................................................. 5 2 Technical test ..................................................................................................................6 2.1. Summary of test results ................................................................................................................. 6 2.2 Test environment ............................................................................................................................ 6 2.3 Test equipment used ....................................................................................................................... 6 2.4 Test results (Body SAR)................................................................................................................. 7 2.5 Tissue dielectric properties............................................................................................................. 8 2.6 Tissue parameters ........................................................................................................................... 8 2.7 Measurement uncertainties ............................................................................................................. 9 2.8 System validation ......................................................................................................................... 10 Appendix 1: System performance verification ............................................................... 11 Appendix 2: Measurement results with superimpose device outline on the SAR plots 12 Appendix 3: Measurement results (printout from DASY TM )......................................... 15 Appendix 4: Photo documentation.................................................................................. 18 Appendix 5: Calibration parameters of E-field probe .................................................... 24 CETECOM ICT Services GmbH Test report no.: 4-0520-01-02-b/02date:02-02-19Page 3 of 25 1 General Information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.6. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. 1.2 Statement of Compliance The SAR values found for the Option Globetrotter PCS PCMCIA GPRS card are below the maximum recommended levels of 1.6 W/Kg as averaged over any 1 g tissue according the FCC rule §2.1093, the ANSI/IEEE C 95.1:1992 and the NCRP Report Number 86 for uncontrolled environment. Tester operator: 2002-02-19Fabien Coulet DateNameSignature Technical responsibility for area of testing: 20021-02-19Bernd Rebmann DateNameSignature CETECOM ICT Services GmbH Test report no.: 4-0520-01-02-b/02date:02-02-19Page 4 of 25 1.3 Testing laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6-10, D-66117 Saarbrücken Germany Telephone: +49 681 598 - 0 Fax:+ 49 681 598 - 8475 e-mail:[email protected] Internet:http://www.cetecom.com State of accreditation: The Test laboratory SAR is accredited according to DIN EN 45001. DAR-No.:TTI-P-G-166/98 Test location, if different from CETECOM ICT Services GmbH Name: --- Street: --- Town: --- Country: --- Phone: --- Fax: --- 1.4 Details of applicant Name:OPTION international nv sa Address:Kolonel Begaultlaan 45 Town:B-3012 Leuven Country:Belgium Phone:+32 16 317 411 Fax:+32 16 207 164 Contact:Dr Xiao-Hai Shen Phone:+32 16 317 411 1.5 Application details Date of receipt of application:2002-01-09 Date of receipt of test item:2002-01-15 Date of test:2002-01-22 Person who have been present during the test: Dr Xiao-Hai Shen CETECOM ICT Services GmbH Test report no.: 4-0520-01-02-b/02date:02-02-19Page 5 of 25 1.6 Test item Description of test item:PCS 1900 PCMCIA card GPRS Type designation:Globetrotter IMEI No:004999010000440 Hardware:P4BIS Software:09-003 (Dec 18 2001 Time 15:52:08) Frequency:1850-1910 MHz Serial number:Q91CWAP4C03R Type of modulation:300KF2D Number …

Text truncated - open the document above for the full version.

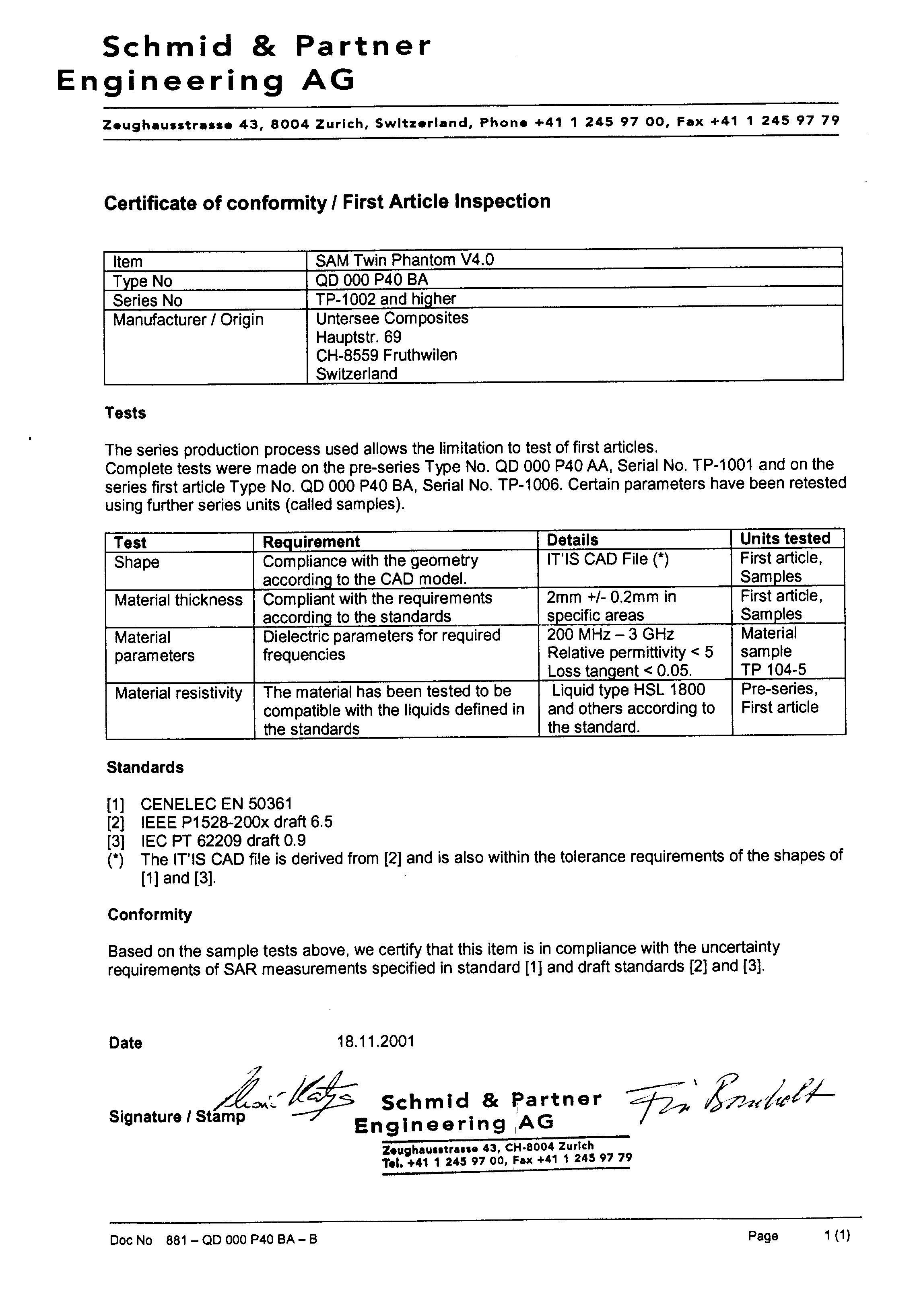

6FKPLG 3DUWQHU(QJLQHHULQJ$*=XULFK6ZLW]HUODQG $SSOLFDWLRQ1RWH 'DWD6WRUDJHDQG(YDOXDWLRQ Data Storage The DASY3 software stores the assessed data from the data acquisition electronics are as raw data (in microvolt readings from the probe sensors), together with all the necessary software parameters for the data evaluation (probe calibration data, liquid parameters and device frequency and modulation data) in measurement files with the extension ".DA3". The Software evaluates the desired unit and format for output each time the data is visualized or exported. This allows verification of the complete software setup even after the measurement and allows correction of erroneous parameter settings. For example, if a measurement has been performed with an incorrect crest factor parameter in the device setup, the parameter can be corrected afterwards and the data can be reevaluated. To avoid unintentional parameter changes or data manipulations, the parameters in measured files are locked. In the administrator access mode of the software, the parameters can be unlocked by selecting the "modify"-switch in the "file"-pull down menu. After changing the parameters, the measured scans must be reevaluated by selecting them and using the "evaluate"-option in the "scan"-pull down menu. The measured data can be visualized or exported in different units or formats, depending on the selected probe type ([V/m], [A/m], [°C], [mW/g], [mW/cm²], [dBrel], etc.). Some of these units are not available in certain situations or give meaningless results, e.g., a SAR- output in a lossless media will always be zero. Raw data can also be exported to perform the evaluation with other software packages. Data Evaluation The DASY3 software automatically executes the following procedures to calculate the field units from the microvolt readings at the probe connector. The parameters used in the evaluation are stored in the configuration modules of the software: Probe parameters: - Sensitivity Norm i , a i0 , a i1 , a i2 - Conversion factorConvF i - Diode compression pointDcp i Device parameters:- Frequencyf - Crest factorcf Media parameters:- Conductivityσ - Densityρ These parameters must be set correctly in the software. They can be found in the component documents or they can be imported into the software from the configuration files issued for the DASY3 components. In the direct measuring mode of the multimeter option, the parameters of the actual system setup are used. In the scan visualization and export modes, the parameters stored in the corresponding document files are used. Application Note: Data Storage and Evaluation (6/98)Page 2 of 3 6FKPLG 3DUWQHU(QJLQHHULQJ$*=XULFK6ZLW]HUODQG The first step of the evaluation is a linearization of the filtered input signal to account for the compression characteristics of the detector diode. The compensation depends on the input signal, the diode type and the DC-transmission factor from the diode to the evaluation electronics. If the exciting field is pulsed, the crest factor of the signal must be known to correctly compensate for peak power. The formula for each channel can be given as: i iii dcp…

Text truncated - open the document above for the full version.
