NCMOGLEWPCMCIA card for EDGE/GPRS/GSM/WLAN

gprs features >Tri-band GPRS/GSM card for use on networks worldwide: EGSM900, GSM1800, PCS1900 >Provides GSM and GPRS Data (up to 57,6 kbps) connectivity >GPRS Class B,Type 1 GPRS MT > Multislot Class 10 GSM 05.02 (4 slots receive, 2 slot transmit, 5 maximum active simultaneously) >ETSI Multiplexer for simultaneously connections and network coverage reports >Integral antenna: robust, retractable and flexible, user exchangeable >GPRS SMS Supported >Supports EAP-SIM (3GPP TS 13.234 within the purview of 802.1x Authentication) >The embedded SIM reader is provided with a related API-interface: PC SC-driver >Optional Accessory: external tri-band GPRS/GSM antenna >Roaming between GPRS/GSM networks wlan features >WLAN card for use on 2.4 Ghz band >WLAN high speed data (up to 11Mbps) connectivity >802.11b Ethernet Interface >802.11 WEP encryption and Wi-Fi certified WPA system requirements >Windows 98SE/ME/2000/XP/Server 2003 >Type II PC-Card slot © Option Wireless Technology | Kolonel Begaultlaan 45 | 3012 Leuven | Belgium For supportand registration:http://www.option.com/support/index.shtml www.option.com globetrotter mobilitymanager GlobeTrotter GPRS | GSM PC Card GlobeTrotter COMBO WLAN | GPRS | GSM PC Card Manual in CN / D / E / F / I / NL / P on CD Register with Option3 Introduction4 System Requirements5 Installation7 Getting Started10 Setup14 WLAN (only available with globetrotter combo card)20 My options28 Configuration settings29 Troubleshooting33 Agency requirements34 Safety Information37 contents 2 Warning! Do not insert the card! Registering your card is of great value to you. As soon as you register, you will qualify for: > Validation of warranty, which includes repair or replacement if faulty > After-sales customer care > Advanced bulletins on product updates and software upgrades During the installation process, you will have the possibility to register online or via e-mail. You also have the alternative to register on-line directly at: http://www.option.com/registration/4_3_registration.shtml 3 register with option Congratulations on your purchase of the Option GlobeTrotter card. GlobeTrotter is the ultimate solution to provide high performance mobile wireless functionality for Laptops and Notebooks enabling users to browse the Internet, send and receive e-mail, with SIM management seamlessly integrated with Microsoft Outlook™. The “Always On” feature of GPRS lends itself to real time remote connectivity and is ideal for the synchronization of mobile devices with the office or home computer. GlobeTrotter is designed to support IPsec client software providing secure remote IP mobile access to corporate networks. The GlobeTrotter card plugs into any compatible portable computers or other devices with a PC Card type II or III slot. This guide describes how to install the GlobeTrotter Mobility Manager (GTMM) software on your PC and how to start using it. For more detailed information, consult the GTMM Online Help Guide. Contents of the sales package In the sales package, you will find the following items: > Option GlobeTrotter card > A CD-Rom containing the software To overcome any installation and usage barriers and to enhance the user experience, the following documentation is also included: >Quick Start Guide, which gives the installation of the GlobeTrotter Mobility Manager Software in a limited number of steps, and assists the user in making his/her first data call > Online User Manual, which describes a number of common scenarios of use.The online User manual can be accessed at all times through the Help menu of the software. introduction 4 The GlobeTrotter card requires: Processor > Client (a computer not working in a server capacity): Min. 90-megahertz (MHz) Intel Pentium II-class processor or higher > Server (a computer working in a server capacity): Min.133-MHz Intel Pentium- class processor Operating System > Microsoft Windows® Server 2003 > Windows XP Professional > Windows XP Home Edition > Windows 2000 > Windows ME > Windows 98SE Memory > Client: 64 megabytes (MB) of RAM, 96 MB recommended > Server: 128 MB of RAM, 256 MB recommended Hard Disk Min. 40 MB for installation of SW & Drivers Display 800 x 600 or higher-resolution display with 256 colors Input Device Microsoft mouse or compatible pointing device Slot Type II PC-Card slot system requirements (minimum requirements) 5 The GlobeTrotter Mobility Manager The GlobeTrotter Mobility Manager simplifies SMS messaging and the configuration of GPRS settings for applications such as downloading e-mail or browsing the Internet. It also gives the possibility to make a WLAN connection. The GTMMapplication also incorporates a powerful SMS editor, message templates, and a viewer for reading SMS messages. Incoming and outgoing messages are listed in Outlook™-style directories. The Setup pagegives users a quick and easy way to set up any type of connection (GSM, GPRS or 3G). The Option Wireless Network Clientgives users a quick and easy way to scan and connect on a WLAN network. Installation This section provides step-by-step instructions on how to install the Option GlobeTrotter card on your PC. NOTE:There are some slight differences in the installation process between Windows 2000 and XP Pro/Home Edition. If the installation differs from the steps described in this section, follow the instructions on the screen. If you want to quit the Setup program without installing or uninstalling, click Canceland then Exit Setupto quit Setup. If you want to return the Setup program after having quit the installation before it was completed, follow the installation steps as if you were installing the program for the first time. installation 7 Other requirements > Microsoft Internet Explorer 6.00 or later > The latest Windows service packs and critical updates from the Windows Update site. Network services The GlobeTrotter card operates on the EGSM 900, GSM 1800 and PCS 1900 cellular networks. To use your Option GlobeTrotter card, you must fir…

Text truncated - open the document above for the full version.

GlobeTrotter Combo-Edge card AGENCY REQUIREMENTS Federal communications commission notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: > Reorient or relocate the receiving antenna. > Increase the separation between the equipment and receiver. > Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. > Consult the dealer or an experienced radio or television technician for help. Modifications The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Option could void the user's authority to operate the equipment. Cables The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance with FCC regulations. (Part 15.105 only applies for digital devices in the meaning of the FCC rules) Declaration of Conformity for products marked with the FCC logo - United States only This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For questions regarding your product or FCC declaration, contact: Option | Kolonel Begaultlaan 45 | 3012 Leuven | Belgium www.option.com To identify this product, refer to the Part, Series, or Model number found on the product. This product has successfully completed the PTCRB requirements governing the release of new GSM 850/1900 capable products into the North American market. Exposure Information to Radio Frequency Energy This PCMCIA card has been tested in different notebooks for compliance with the SAR requirements. Measured SAR values according to the CE regulations: The maximum measured body SAR value (averaged over a mass of 10 g and distance between phantom and antenna of 5 mm) is 0,621 W/kg for GSM900, which is well below the limit of 2 W/kg. The maximum measured body SAR value (averaged over a mass of 10 g and distance between phantom and antenna of 5 mm)is 0,460 W/kg for DCS1900, which is well below the limit of 2 W/kg. Measured SAR values according to the FCC regulations: The maximum measured body SAR value (averaged over a mass of 1 g and distance between phantom and antenna of 5 mm) is 1,270 W/kg for GSM850, which is well below the limit of 1.6 W/kg. The maximum measured body SAR value (averaged over a mass of 1 g and distance between phantom and antenna of 5 mm) is 0,409 W/kg for PCS1900, which is well below the limit of 1.6 W/kg. For safe and efficient use the user should keep the antenna of the card at a minimum distance of 1 cm away from his body. All of the measurements above were performed at a distance of 0.5 cm from the body of the user. CAUTION: Users concerned with the risk of Radio Frequency exposure may wish to limit the duration of their calls and to position the antenna as far away from the body as is practical. European Union declaration of conformity CE 0700 ! Products bearing the CE marking comply with the R&TTE Directive (99/5/EC), EMC Directive (89/336/EEC) and the Low Voltage Directive (73/23/EEC) issued by the Commission of the European Community. Compliance with these directives implies conformity to the following European Norms (in parentheses are the equivalent international standards and regulations): ¾ Radio Frequency spectrum efficiency: > EN 301 511, v9.0.2 > EN 300 328-2, v1.2.1 ¾ Electromagnetic Compatibility > EN 301 489-1: v1.4.1 > EN 301 489-7: v1.2.1 > EN 301 489-17: v1.2.1 ¾ Safety and Health > EN 60950: 2001 > EN 50360/5036 This product may be used in the following countries: > All EU Memberstates > Iceland > Switzerland > Norway > United States of America Regarding IEEE 802.11g we currently have the following information about restrictions in the R&TTE countries: Country frequency band output power France 2454-2483.5 MHz 100 mW EIRP outdoor Operating Channels: • IEEE 802.11g compliant • 11 channels for WLAN Manufacturer's Disclaimer Statement The information in this document is subject to change without notice and does not represent a commitment on the part of the vendor. No warranty or representation, either expressed or implied, is made with respect to the quality, accuracy, or fitness for any particular purpose of this document. The manufacturer reserves the right to make changes to the content of this document and/or the products associated with it at any time without obligation to notify any person or organization of such changes. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages. For questions regarding your product or declaration, contact: Option | Kolonel Begaultlaan 45 | 3012 Leuven | Belgium www.option.com SYSTEM REQUIREMENTS > Type II PC-Card slot with cardbus interface

Annex 1 – Power of Attorney for 7 layers Option N.V. Kolonel Begaultlaan 45 B-3012 LEUVEN BELGIUM Commercial Power of Attorney for the type approval / registration of the GlobeTrotter Combo EDGE (IMEI:355200 00 XXXXXX/FCC ID.:NCMOGLEW) in several countries The company 7 layers, D-40880 Ratingen, has been contracted by Option N.V. to obtain „Radio Type Approvals“ for the following electronic components, manufactured and/or released by Option N.V.: GlobeTrotter Combo EDGE (IMEI:355200 00 XXXXXX/FCC ID.:NCMOGLEW) Unless future correspondence from Option N.V. directs otherwise, please extend your full cooperation to 7 layers regarding matters to the above mentioned products for the period beginning 01.09.04 through 31.12.05. Thank you. __________Stefan Lodeweyckx System and Product Quality Team Leader_________ ___________Leuven_______ , ___14.10.04__________ _______________________

Option nv sa | Kolonel Begaultlaan 45 | B-3012 Leuven Belgium | www.option.com T +32 16 317 411 | F +32 16 207 164 | H.R.L./R.C.L. 68114 | BTW/TVA BE 429.375.448 RE: CONFIDENTIALITY REQUEST FOR ‘GlobeTrotter Combo EDGE’, FCC-ID: NCMOGLEW To Whom It May Concern: This letter serves as an official request for confidentiality under the FCC Rule Section 0.459. We have requested that the schematic diagrams, Parts list and Block diagrams required to be submitted with this application be withheld from public review. The reason for this request is that these documents are company proprietary information that should never get into the possession of competitors, which would be harmful for our business. Do not hesitate to contact me if you have any additional questions. Thank you very much. Leuven, 14 October 2004 Stefan Lodeweyckx System & Product Quality Team Leader Option N.V. Kolonel Begaultlaan 45 3012 Wilsele Belgium

Option nv sa | Kolonel Begaultlaan 45 | B-3012 Leuven Belgium | www.option.com T +32 16 317 411 | F +32 16 207 164 | H.R.L./R.C.L. 68114 | BTW/TVA BE 429.375.448 Declaration Manufacturer : Option N.V. Address : Kolonel Begaultlaan 45 B-3012 Leuven Belgium Option N.V. duly represented by its Quality Engineer, Bruno Meeus, hereby confirms that for the Globetrotter Combo EDGE the WLAN radio and the GSM/GPRS radio can never operate simultaneously. In the Globetrotter Combo EDGE card, there is a hardware circuit that prevents that both radios (GPRS and WLAN) will transmit simultaneously. This is done in the following way. During the transmit burst of the GPRS radio, a signal on the card is activated. This signal will directly disable the transmitter of the WLAN radio. So even if the WLAN baseband is trying to send some data at that moment, the RF transmitter is disabled. This makes that both radios will never transmit simultaneously. The GPRS radio is always the master. Quality Engineer, Bruno Meeus Leuven, 29 november 2004

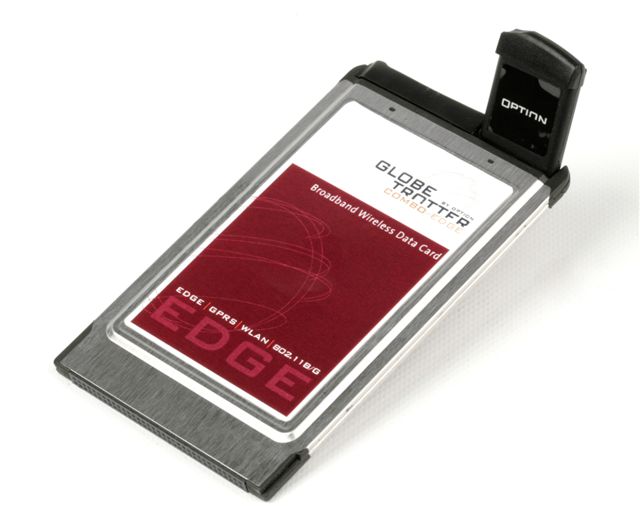

Option nv sa | Kolonel Begaultlaan 45 | B-3012 Leuven Belgium | www.option.com T +32 16 317 411 | F +32 16 207 164 | H.R.L./R.C.L. 68114 | BTW/TVA BE 429.375.448 External Views of GlobeTrotter Combo EDGE

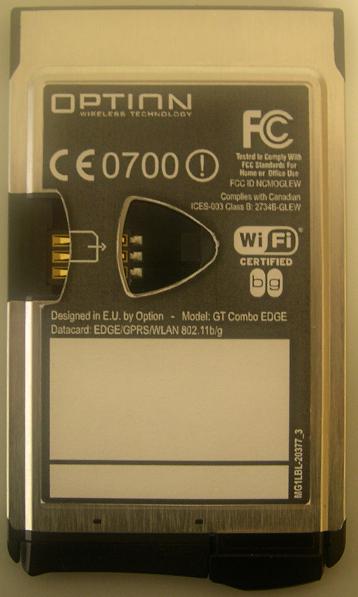

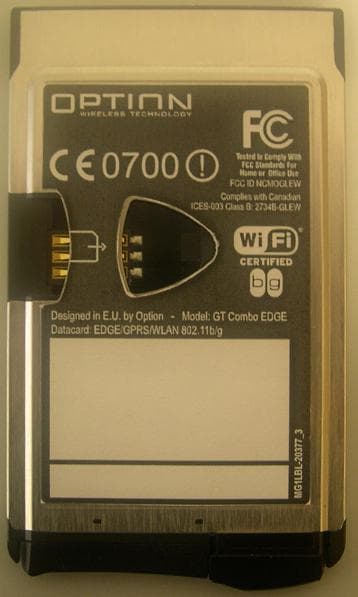

Kol. Begaultlaan 45 - B3012 Leuven Belgium Part Number:Rev : Part Name: Page: Size:Scale: Drawn: Project: Date: Approved: MG1LBL-20377_3 Designed in E.U. by Option - Model: GT Combo EDGE Datacard: EDGE/GPRS/WLAN 802.11b/g Complies with Canadian ICES-003 Class B: 2734B-GLEW FCC ID NCMOGLEW FF Tested to Comply With FCC Standards For Home or Office Use 07000700 !! 1.Overall dimensions: 66mm x 41,9mm / Radius Corners: 1mm 2.To be supplied in the format shown, on reels, copy position 2, internal core dia 38mm 3.Quantity per roll: 1000 or max o/d 4” 4.Each roll to be packed in bubble wrap and sealed in a polythene bag containing no other shedding material. Reels then to be packed in a box, each box to contain 4 reels. The outside of the box to be clearly labelled with the following information: - Option Part number - Quantity in box - Date produced 5.Liner to be 6.Label thickness: 50 _3 44mm wide. Vertical gap between labels 4.275mm. μm max. 7.Label to be silver and suitable for thermal transfer printing. 8.Label to be printed with artwork.* 9.Printing be resistant to rubbing and alcohol cleaning. 10. Raw material: FLEXcon THERMLfilm MM 200 satin silver TC-715 L-344 40 White Glassine 11. Artwork use black 32364 12. To be used with print ribbon: Armor AXR7N19064 or equivalent. MG1LBL-20377 DATE APPROVED ISSUEDDESCRIPTION REV ECP 1 First version for use on PVT onlyTS 12/08/04 2 Included CE, Wifi and FCC icon. Release for production.TS 07/10/04 1041 3 Updated FCC IDTS 29/11/04 1215 1/1 A4 1:1 MG1LBL-20377 Manufacturing Label Guysol Thomas STEVENS MAGNUM 3 12/08/04 Outline Artwork

Option nv sa | Kolonel Begaultlaan 45 | B-3012 Leuven Belgium | www.option.com T +32 16 317 411 | F +32 16 207 164 | H.R.L./R.C.L. 68114 | BTW/TVA BE 429.375.448 Internal Views of GlobeTrotter Combo EDGE

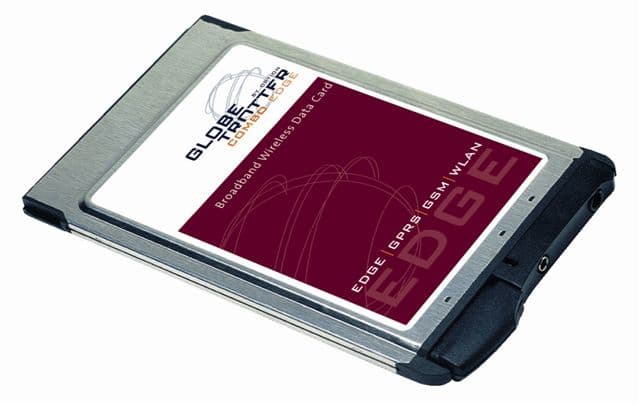

edge globetrotter combo edge edge| gprs| wlan| pc data card GlobeTrotter COMBO EDGE is the ultimate PC Data Card solution delive- ring broadband wireless capability to laptops and notebooks by combi- ning EDGE, GPRS, and WLAN technologies in a single PC Card package. On an EDGE network, GlobeTrotter COMBO EDGE enables connection to the Internet at data speeds of up to 236.8kbps. Move into range of a public WiFi hotspot, the corporate Wireless LAN, or your home wireless network and the GlobeTrotter COMBO EDGE provides connection at speeds up to 54Mbps. In areas where EDGE or WiFi services are not avai- lable the GlobeTrotter COMBO EDGE still enables reliable and secure data connections over GPRS. GlobeTrotter COMBO EDGE opens up the true world of mobile wireless broadband and is the ideal companion for the mobile professional ena- bling the Internet, Email, Video Conferencing, and office applications with real-time secure VPN access to corporate applications whilst on the move. Connect anytime, anywhere! features >Quad-band radio card suitable for use on EGRPS/GPRS/GSM networks worldwide >EGRPS 236.8 kbps high-speed data performance, GPRS/GSM data speeds to 85.6 kbps (Network dependent) >PTCRB (1900/850), GCF (900/1800) and Wi-Fi 802.11g compliant >Compatible with most notebooks and PDA’s providing a Type II PC-Card slot and utilising Microsoft Windows Operating Systems >Supports IPSec client software for end to end secure corporate data exchange and synchronisation over VPN >NDIS compatible hardware specifications >Card Type: Cardbus, Extended Type II PCMCIA compliant, 3.3V >External Interfaces: Miniature External Antenna Connection, 1 tri-color status LEDs >SIM card interface: 1.8V/3.0V interface >Memory: 32 Mb Flash Technology for easy upgrade Kolonel Begaultlaan 45| 3012 Leuven Belgium| T +32 16 317 411| F +32 16 207 164| www.option.com| [email protected] edge |gprs |wlan |pc data card globetrotter combo edge specifications >EDGE/GPRS/GSM Air interface: .Quad-band operation GSM850, EGSM 900, DCS 1800, PCS 1900 .GSM Power Class 4 (2W) for 850/900 bands, GSM Power Class 1 (1W) for 1800/1900 bands .EDGE class E2 (+27dBm in 850/900 bands, +26dBm in 1800/1900 bands) .GSM/GPRS Rel ‘97; PCS1900 Rel ‘98; EGPRS Rel ‘99 compliant >EGPRS/GPRS (PS) feature set: .GPRS/EGPRS Multislot Class 10 (4 slots Rx, 2 slots Tx, 5 max active) .GRPS/EGPRS Class B Type 1 MT .GPRS CS1-CS4; EGPRS MCS1-MCS9 .Link Adaptation, readily mixing GMSK & 8PSK slot-by-slot .Incremental redundancy (IR) .Primary and secondary PDP context activation/modification .GERAN Feature Package 1 .Packet flow context functionality: for supporting different QoS under the same PDP context >GSM feature set: .GSM Circuit Switched data: 14.4 and 9.6 kbps .CS Voice: AMR/HR/FR/EFR speech coding supported >WLAN Air Interface: .Operates in the globally available 2.4 GHz unlicensed ISM band. .Transmit Power max. 19.5dBm .High speed data with Dynamic Rate Scaling optimizing range and output: - IEEE 802.11b standard speeds (1, 2, 5.5, 11 Mbps). - IEEE 802.11g standard speeds (6, 9, 12, 18, 24, 36, 48, 54 Mbps) >WLAN Feature set: .Provides connectivity to enterprise and public hotspot Wi-Fi access points and Ad-Hoc peer-to-peer networks .Wi-Fi certified for interoperability and security: - WEP,WPA, 802.1x security (WLAN) - All major EAP authentication schemes including EAP-SIM .PCSC compliant SIM interface for EAP-SIM >Terminal Equipment interfaces: .Operating Systems:Windows 98/ME/2000/XP/XP Tablet/XP Pro .WHQL certified NDIS drivers .IEEE 802.3 compliant NDIS Miniport drivers (IP-based applications) .AT interface with standard modem emulation for compatibility with terminal programs/dialers and non-Microsoft operating systems .3GPP TS 27.010 Multiplexer for simultaneous calls and network coverage reports

Measured gain (in XOY plane) of Magnum+A3+Matching(2.7pS+8.2nP+2.7pS) without laptop -30.00 -25.00 -20.00 -15.00 -10.00 -5.00 0.00 5.005.00 0deg 1.5707963267949deg 3.14159265358979deg 4.71238898038469deg Phi Layer Max value Position Min value Position BeamWidth Average Standard devia Marker 1 pos Marker 1 value Marker 2 pos 824000000(Hz) -3.73 5.99 deg -18.15 1.23 deg ---- -6.60 7.44 ---- ---- ---- 850000000(Hz) -2.37 5.94 deg -15.45 1.18 deg ---- -5.19 5.99 ---- ---- ---- 880000000(Hz) -0.78 5.89 deg -14.31 1.23 deg ---- -3.72 4.45 ---- ---- ---- 920000000(Hz) -1.11 6.04 deg -13.88 1.28 deg ---- -4.10 4.86 ---- ---- ---- 960000000(Hz) -1.11 5.94 deg -14.46 1.23 deg ---- -4.21 4.97 ---- ---- ---- 1710000000(Hz) -2.16 2.45 deg -17.55 5.25 deg 1.06 deg -6.92 7.71 ---- ---- ---- 1800000000(Hz) 0.20 2.45 deg -19.72 5.40 deg 0.99 deg -4.78 5.49 ---- ---- ---- 1880000000(Hz) 1.80 2.36 deg -19.04 1.37 deg 0.97 deg -3.26 3.85 ---- ---- ---- 1920000000(Hz) 2.30 2.36 deg -21.27 1.33 deg 0.94 deg -2.93 3.47 ---- ---- ---- 1990000000(Hz) 1.14 2.31 deg -21.48 1.28 deg 0.94 deg -4.02 4.68 ---- ---- ---- 2100000000(Hz) 0.68 2.21 deg -15.37 1.23 deg 0.94 deg -4.26 4.97 ---- ---- ---- 2140000000(Hz) -0.77 2.26 deg -13.50 1.23 deg 0.97 deg -5.02 5.82 ---- ---- ---- 2170000000(Hz) -1.72 2.21 deg -12.81 1.23 deg 0.93 deg -6.05 6.88 ---- ---- ---- 824000000(Hz) 850000000(Hz) 880000000(Hz) 920000000(Hz) 960000000(Hz) 1710000000(Hz) 1800000000(Hz) 1880000000(Hz) 1920000000(Hz) 1990000000(Hz) 2100000000(Hz) 2140000000(Hz) 2170000000(Hz) Measured gain (in XOZ plane) of Magnum2.1+A3+matching(2.7p(s)+8.2n(p)+2.7p(s)) without laptop -30.00 -25.00 -20.00 -15.00 -10.00 -5.00 0.00 5.005.00 0deg 1.5707963267949deg 3.14159265358979deg 4.71238898038469deg [1]-3.86375[824000000Hz] Theta Layer Max value Position Min value Position BeamWidth Average Standard devia Marker 1 pos Marker 1 value Marker 2 pos 824000000(Hz) -2.29 -2.39 deg -11.65 2.89 deg 5.35 deg -4.03 4.90 -1.41 deg -3.86 -1.41 deg 850000000(Hz) -0.60 -0.50 deg -10.21 2.89 deg 5.36 deg -2.41 3.22 -1.41 deg -2.16 -1.41 deg 880000000(Hz) 0.91 -2.49 deg -10.25 2.89 deg 5.24 deg -1.18 1.87 -1.41 deg -1.28 -1.41 deg 920000000(Hz) 0.39 -0.35 deg -10.59 2.89 deg 4.26 deg -1.42 2.12 -1.41 deg -1.15 -1.41 deg 960000000(Hz) 0.29 -2.49 deg -10.47 2.89 deg 2.52 deg -2.01 2.79 -1.41 deg -1.90 -1.41 deg 1710000000(Hz) -3.41 -2.54 deg -11.45 2.99 deg 2.98 deg -5.66 6.54 -1.41 deg -4.30 -1.41 deg 1800000000(Hz) -2.71 -1.70 deg -17.85 2.99 deg 3.20 deg -4.77 5.62 -1.41 deg -3.20 -1.41 deg 1880000000(Hz) -1.63 -1.70 deg -17.96 3.04 deg 3.27 deg -3.95 4.76 -1.41 deg -1.95 -1.41 deg 1920000000(Hz) -1.39 -1.94 deg -15.88 3.04 deg 3.36 deg -3.80 4.61 -1.41 deg -1.73 -1.41 deg 1990000000(Hz) -2.89 -2.04 deg -16.60 3.04 deg 3.59 deg -4.90 5.76 -1.41 deg -3.04 -1.41 deg 2100000000(Hz) -3.89 -1.20 deg -16.91 3.04 deg 2.46 deg -5.90 6.78 -1.41 deg -4.23 -1.41 deg 2140000000(Hz) -4.70 -2.09 deg -18.71 3.09 deg 2.07 deg -6.70 7.59 -1.41 deg -5.14 -1.41 deg 2170000000(Hz) -5.42 0.80 deg -21.61 -3.14 deg 2.58 deg -7.61 8.50 -1.41 deg -5.98 -1.41 deg 824000000(Hz) 850000000(Hz) 880000000(Hz) 920000000(Hz) 960000000(Hz) 1710000000(Hz) 1800000000(Hz) 1880000000(Hz) 1920000000(Hz) 1990000000(Hz) 2100000000(Hz) 2140000000(Hz) 2170000000(Hz) Measured gain (in YOZ plane) of Magnum2.1+A3+matching(2.7p(s)+8.2n(p)+2.7p(s)) without laptop -30.00 -25.00 -20.00 -15.00 -10.00 -5.00 0.00 5.005.00 0deg 1.5707963267949deg 3.14159265358979deg 4.71238898038469deg Theta Layer Max value Position Min value Position BeamWidth Average Standard devia Marker 1 pos Marker 1 value Marker 2 pos 824000000(Hz) -2.80 -0.20 deg -14.53 2.89 deg 1.33 deg -6.81 7.65 ---- ---- ---- 850000000(Hz) -1.51 -0.30 deg -13.79 2.89 deg 1.48 deg -5.13 5.93 ---- ---- ---- 880000000(Hz) -0.08 0.00 deg -12.40 2.89 deg 1.23 deg -3.90 4.66 ---- ---- ---- 920000000(Hz) 0.15 -0.20 deg -12.61 2.89 deg 1.36 deg -3.95 4.67 ---- ---- ---- 960000000(Hz) -0.42 -3.14 deg -11.49 2.89 deg ---- -4.44 5.22 ---- ---- ---- 1710000000(Hz) -1.21 -2.49 deg -17.16 3.04 deg 0.68 deg -6.67 7.47 ---- ---- ---- 1800000000(Hz) 1.53 -2.54 deg -21.05 3.04 deg 0.25 deg -4.52 5.20 ---- ---- ---- 1880000000(Hz) 1.98 -0.80 deg -20.75 3.04 deg 1.05 deg -2.99 3.51 ---- ---- ---- 1920000000(Hz) 2.64 -0.90 deg -24.14 3.04 deg 1.03 deg -2.68 3.13 ---- ---- ---- 1990000000(Hz) 1.37 -0.90 deg -24.03 3.04 deg 1.09 deg -3.50 4.08 ---- ---- ---- 2100000000(Hz) 1.59 -0.70 deg -22.14 3.04 deg 1.07 deg -3.74 4.30 ---- ---- ---- 2140000000(Hz) 1.30 -0.70 deg -22.04 3.09 deg 0.96 deg -4.59 5.20 ---- ---- ---- 2170000000(Hz) -0.31 -0.70 deg -25.37 3.09 deg 1.02 deg -5.94 6.66 ---- ---- ---- 824000000(Hz) 850000000(Hz) 880000000(Hz) 920000000(Hz) 960000000(Hz) 1710000000(Hz) 1800000000(Hz) 1880000000(Hz) 1920000000(Hz) 1990000000(Hz) 2100000000(Hz) 2140000000(Hz) 2170000000(Hz)

TTI-P-G 158 DASY Test-Report, 7layers_ 6620_448b_CalData Appendix for the Report Dosimetric Assessment of the Portable Device Option Globetrotter Combo EDGE (FCC ID: NCMGLEW) tested in three host products According to the FCC Requirements Calibration Data October 05, 2004 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer 7layers AG Borsigstrasse 11 D-40880 Ratingen The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH

TTI-P-G 158 DASY Test-Report, 7layers_ 6620_448b_SAR Distribution Plots 1 of 22 Appendix for the Report Dosimetric Assessment of the Portable Device Option Globetrotter Combo EDGE (FCC ID: NCMGLEW) tested in three host products According to the FCC Requirements SAR Distribution Plots October 05, 2004 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer 7layers AG Borsigstrasse 11 D-40880 Ratingen The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH DASY Test-Report, 7layers_ 6620_448b_SAR Distribution Plots Page 2 of 22 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Table of Contents 1 SAR DISTRIBUTION PLOTS, GSM 850 BODY .......................................................................................... 3 2 SAR DISTRIBUTION PLOTS, GSM 1900 BODY ...................................................................................... 13 3 SAR Z-AXIS SCANS (VALIDATION) ......................................................................................................... 19 4 SAR Z-AXIS SCANS (MEASUREMENTS) .................................................................................................21 DASY Test-Report, 7layers_ 6620_448b_SAR Distribution Plots Page 3 of 22 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH 1 SAR Distribution Plots, GSM 850 Body Test Laboratory: IMST; File Name: optghm_2_M700.da4 DUT: Option; Type: Globetrotter; Program Name: Unnamed Program Communication System: GPRS 850; Frequency: 836.6 MHz;Duty Cycle: 1:4 Medium parameters used: σ = 0.99; mho/m, ε r = 54.8; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1579; ConvF(6.46, 6.46, 6.46); Calibrated: 01.09.2004 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 05.08.2004 - Phantom: SAM Sugar; Type: Speag; Serial: 1059 - Measurement SW: DASY4, V4.3 Build 22; Postprocessing SW: SEMCAD, V1.8 Build 127 Unnamed procedure/Area Scan (9x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.295 mW/g Unnamed procedure/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.6 V/m; Power Drift = 0.019 dB Peak SAR (extrapolated) = 0.565 W/kg SAR(1 g) = 0.299 mW/g; SAR(10 g) = 0.191 mW/g Maximum value of SAR (measured) = 0.343 mW/g Fig. 1: SAR distribution for GSM 850, channel 190, Compaq M700 Notebook, position 1. (29.09.2004; Ambient Temperature: 22.0∞ C; Liquid Temperature: 21.1∞ C). DASY Test-Report, 7layers_ 6620_448b_SAR Distribution Plots Page 4 of 22 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Test Laboratory: IMST; File Name: optghm_3_M700.da4 DUT: Option; Type: Globetrotter; Program Name: Unnamed Program Communication System: GPRS 850; Frequency: 836.6 MHz;Duty Cycle: 1:4 Medium parameters used: σ = 0.99; mho/m, ε r = 54.8; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1579; ConvF(6.46, 6.46, 6.46); Calibrated: 01.09.2004 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 05.08.2004 - Phantom: SAM Sugar; Type: Speag; Serial: 1059 - Measurement SW: DASY4, V4.3 Build 22; Postprocessing SW: SEMCAD, V1.8 Build 127 Unnamed procedure/Area Scan (9x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.866 mW/g Unnamed procedure/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 30.4 V/m; Power Drift = 0.156 dB Peak SAR (extrapolated) = 4.18 W/kg SAR(1 g) = 1.02 mW/g; SAR(10 g) = 0.418 mW/g Maximum value of SAR (measured) = 1.06 mW/g Fig. 2: SAR distribution for GSM 850, channel 190, Compaq M700 Notebook, position 2. (29.09.2004; Ambient Temperature: 22.1∞ C; Liquid Temperature: 21.0∞ C). DASY Test-Report, 7layers_ 6620_448b_SAR Distribution Plots Page 5 of 22 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Test Laboratory: IMST; File Name: optghl_3_m700.da4 DUT: Option; Type: Globetrotter; Pr…

Text truncated - open the document above for the full version.
