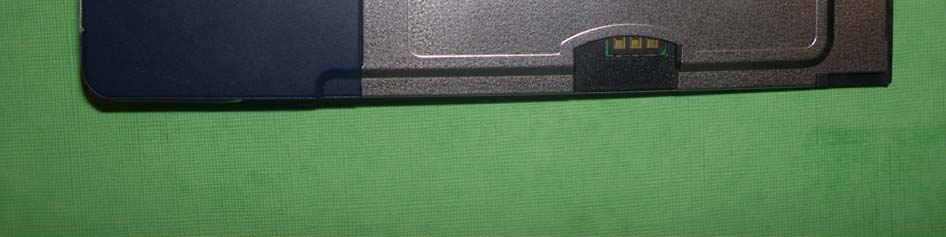

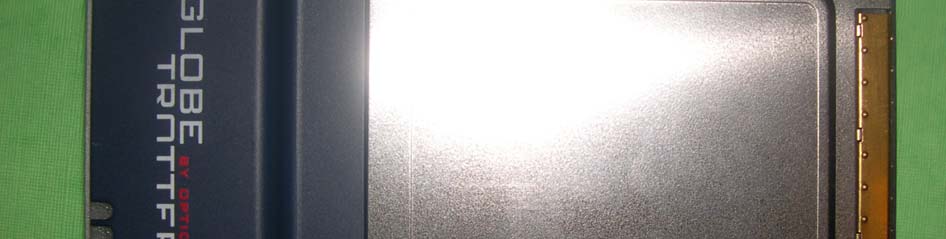

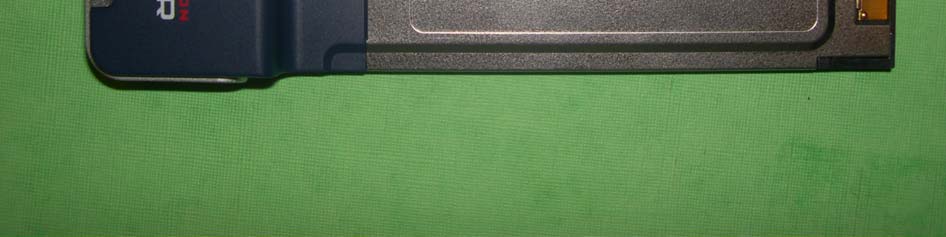

NCMOGLH-V2EMultimode GSM/GPRS/EDGE/UMTS/HSDPA PCMCIA CARD

© Option Wireless Technology | Kolonel Begaultlaan 45 | 3012 Leuven | Belgium For support and registration: http://www.option.com/support/index.shtml --------- - - -- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - - - - - - - - - - - - - --- www.option.com globetrotter mobilitymanager manual in cn / d / e / f / i / nl / p on cd Warning! Do not insert the card! Registering your card is of great value to you. As soon as you register, you will qualify for: > Validation of warranty, which includes repair or replacement if faulty > After-sales customer care > Advanced bulletins on product updates and software upgrades During the installation process, you will have the possibility to register online or via E-mail. You may also register on-line at: http://www.option.com/registration/4_3_registration.shtml 3 register with option Register with Option3 Introduction4 System Requirements5 Installation8 Getting Started10 Troubleshooting35 Safety Information36 contents Congratulations on your purchase of the Option GlobeTrotter card. GlobeTrotter together with the GlobeTrotter Mobility Manager software is the ultimate high performance solution for providing mobile wireless connectivity to Laptops and Notebooks. The GlobeTrotter solution enables users to browse the Internet, send and receive e-Mails, send and receive SMS text messages and all with SIM management seamlessly integrated with Microsoft Outlook™. The technology in your Option GlobeTrotter card supports real time remote connectivity and is ideal for the synchronization of mobile devices with the office or home computer. GlobeTrotter is designed to support IPsec client software providing secure remote IP mobile access to corporate networks. This guide describes how to install the GlobeTrotter Mobility Manager (GlobeTrotter MM) software on your PC and how to start using it. For more detailed information, consult the GLobeTrotter MM Online Help Guide. Contents of the sales package In the sales package, you will find the following items: > Option GlobeTrotter card > A CD-Rom containing the software To overcome any installation and usage barriers and to enhance the user experience, the following documentation is also included: > This Quick Start Guide, which gives the installation of the GlobeTrotter Mobility Manager Software in a limited number of steps, and assists the user in making his/her first data call > Online User Manual, which describes a number of common usage scenarios. The online User manual can be accessed at all times through the Help menu of the software. introduction 4 The GlobeTrotter Mobility Manager software requires: Processor > Client (a computer not working in a server capacity): Min. 90-megahertz (MHz) Intel Pentium II-class processor or higher > Server (a computer working in a server capacity): Min.133-MHz Intel Pentium- class processor Operating System > Windows XP Professional > Windows XP Home Edition > Windows 2000 Memory > Client: 64 megabytes (MB) of RAM, 96 MB recommended > Server: 128 MB of RAM, 256 MB recommended Hard Disk Min. 50 MB for installation of SW & Drivers Display 800 x 600 or higher-resolution display with 256 colors Input Device Microsoft mouse or compatible pointing device system requirements (minimum requirements) 5 Communications software When you run the installation program, the following programs will be installed on your computer: > Windows GlobeTrotter device drivers > The GlobeTrotter Mobility Manager The GlobeTrotter Mobility Manager The GlobeTrotter Mobility Manager GlobeTrotter MMsimplifies SMS messaging and the configuration of GPRS settings for applications such as downloading e-mail or browsing the Internet. It also gives the possibility to manage a WLAN connection. The GlobeTrotter MMapplication incorporates a powerful SMS editor and a viewer for reading SMS messages. Incoming and outgoing messages are listed in Outlook™- style directories. The Setup pagegives users a quick and easy way to set up any type of connection to access the Internet (GSM, GPRS, 3G or WLAN). system requirements (minimum requirements) 7 Other requirements > Microsoft Internet Explorer 6.00 or later > The latest Windows service packs and critical updates from the Windows Update site. > The target system may not have any version of the ‘Funk Odyssey’ WLAN client installed, otherwise the installation will fail Please refer to the GlobeTrotter datacard Product Sheet for datacard system requirements. Network services To use your Option GlobeTrotter card, you must first activate an account with a mobile phone Service Provider and have received a Subscriber Identity Module (SIM) card. Often the GlobeTrotter is supplied as a package with an airtime agreement. If you do not already have an airtime agreement, please ask your supplier about obtaining one for a compatible network. Please refer to the GlobeTrotter datacard Product Sheet which will detail the types of network and services it is compatible with. Some service providers may not provide all communications services. Contact your service provider for further information about the availability and details of the services in your home network. Additional information may be required from your service provider to activate the data functionality of the Option GlobeTrotter card such as: > User Name - if applicable > Password - if applicable > Access Point Name (APN) > IP Address - if not dynamic > DNS Address - if not dynamic system requirements (minimum requirements) 6 9.The software will automatically be copied into Program Files\Option\GlobeTrotter Mobility Manager. Another target folder can also be chosen during the installation process. 10.At the end of the installation you will have to reboot the PC and if you have selected automatic start up, the GlobeTrotter MM application will start up after the reboot. 11. Insert the …

Text truncated - open the document above for the full version.

GlobeTrotter HSDPA ‘7.2 Ready’ E AGENCY REQUIREMENTS Licensed by QUALCOMM Incorporated under one or more of the following United States Patents and/or their counterparts in other nations: 4,901,307; 5,490,165; 5,056,109; 5,504,773; 5,101,501; 5,506,865; 5,109,390; 5,511,073; 5,228,054; 5,535,239; 5,267,261; 5,544,196; 5,267,262; 5,568,483; 5,337,338; 5,600,754; 5,414,796; 5,657,420; 5,416,797; 5,659,569; 5,710,784; 5,778,338 Federal communications commission notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: > Reorient or relocate the receiving antenna. > Increase the separation between the equipment and receiver. > Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. > Consult the dealer or an experienced radio or television technician for help. Modifications The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Option could void the user's authority to operate the equipment. Cables The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance with FCC regulations. (Part 15.105 only applies for digital devices in the meaning of the FCC rules) Declaration of Conformity for products marked with the FCC logo - United States only This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For questions regarding your product or FCC declaration, contact: Option | Kolonel Begaultlaan 45 | 3012 Leuven | Belgium www.option.com To identify this product, refer to the Part, Series, or Model number found on the product. This product has successfully completed the PTCRB requirements governing the release of new GSM 850/1900 capable products into the North American market. Exposure Information to Radio Frequency Energy This PCMCIA card has been tested in different notebooks for compliance with the SAR requirements. Measured SAR values according to the CE regulations: The maximum measured body SAR value (averaged over a mass of 10 g and distance between phantom and antenna of 5 mm) is well below the limit of 2 W/kg. Measured SAR values according to the FCC regulations: The maximum measured body SAR value (averaged over a mass of 1 g and distance between phantom and antenna of 5 mm) is well below the limit of 1.6 W/kg. For safe and efficient use the user should keep the antenna of the card at a minimum distance of 1,5 cm away from his body. All of the measurements above were performed at a distance of 1,5 cm from the body of the user. When using an external antenna, the user is advised to keep this antenna at a distance of 20 cm from his body. CAUTION: Users concerned with the risk of Radio Frequency exposure may wish to limit the duration of their calls and to position the antenna as far away from the body as is practical. European Union declaration of conformity CE 0700 Products bearing the CE marking comply with the R&TTE Directive (99/5/EC), EMC Directive (89/336/EEC) and the Low Voltage Directive (73/23/EEC) issued by the Commission of the European Community. Compliance with these directives implies conformity to the following European Norms (in parentheses are the equivalent international standards and regulations): ¾ Radio Frequency spectrum efficiency: > EN 301 511, v9.0.2 > EN 301 902-1&2, v2.2.1 ¾ Electromagnetic Compatibility > EN 301 489-1: v1.4.1 > EN 301 489-7: v1.2.1 > EN 301 489-17: v1.2.1 > EN 301 489-24 : v1.2.1 ¾ Safety and Health > EN 60950: 2001 > The PC card has to be supplied by a limited power source in accordance to EN 60950-1:2001 > EN 50360 (07/2001) > EN 50383 (09/2002) / 1999 / 519 / EEC This product may be used in the following countries: > All EU Memberstates > Iceland > Switzerland > Norway > United States of America For questions regarding your product or declaration, contact: Option | Kolonel Begaultlaan 45 | 3012 Leuven | Belgium www.option.com SYSTEM REQUIREMENTS > Type II PC-Card slot with cardbus interface > Must be supplied by a SELV (Safety Extra Low Voltage) circuit with limited power.

Safety manual: Option GT020x Data Cards About this document Overview and Purpose This document describes the safety measurements that have to be taken into account when using an Option Globetrotter data card. Confidentiality All data and information contained or disclosed by this document is confidential and proprietary of Option NV, and all rights therein are expressly reserved. By accepting this document, the recipient agrees that this information is held in confidence and in trust and will not be used, copied, reproduced in whole or in part, nor its contents revealed in any manner to others without prior and written permission of Option NV Version History Date Release Version Author(s) Revision(s) Remarks Phase 15/09/05 1.0 – Draft 1 RoelT Initial version 1.0.0 6/10/06 1.1 JoeriB Final version 15/02/07 1.2 ThomasG Added external antenna distance Table of contents 1. Introduction...............................................................................................................3 2. Safety Measurements................................................................................................3 General recommendations for use .......................................................................3 Extreme temperatures..........................................................................................3 Explosive atmosphere ...........................................................................................3 Blasting areas – construction sites.......................................................................4 Do not use on aircraft ...........................................................................................4 Do not use in hospitals ..........................................................................................4 Interference from radio signals...........................................................................4 Immunity to interference .....................................................................................4 Cardiac pacemakers, implanted defibrillators & other medical ......................5 Hearing devices.....................................................................................................5 Children.................................................................................................................5 Driving...................................................................................................................5 SIM cards ...............................................................................................................5 Accessories.............................................................................................................5 Traveling................................................................................................................6 Safe distance..........................................................................................................6 Supply voltage.......................................................................................................6 1. Introduction When using the Option GE020x, it is necessary to pay attention to all safety aspects described in this document. Using these guidelines is mandatory to provide certainty of the safe use of the card for the end-user. Breaking these rules may be dangerous or illegal. 2. Safety Measurements Following items contain simple recommendations relevant to the use of the Option datacard, please read them carefully. Not following these guidelines can cause harm to the card, yourself or other persons in your immediate environment. General recommendations for use ƒ Always treat your product with care and keep in a clean and dust-free place. Do not expose your product to open flames or lit tobacco products. ƒ Do not expose to liquid, moisture or humidity. Do not expose the datacard to rain, or other liquids. Do not drop, throw or try to bend your product. ƒ Do not paint your product. ƒ Do not attempt to disassemble your product. Doing so will void the warranty. Only authorized personnel should do so. ƒ Do not touch the antenna unnecessarily. Ambient temperatures Do not expose the datacard or the antenna to ambient temperatures i.e. outside of minimum -25 and maximum +35 degrees Celsius. Explosive atmosphere Turn off your PC in any area with a potentially explosive atmosphere. It is rare, but your PC could generate sparks. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Areas with a potentially explosive atmosphere are often but not always, clearly marked. They include fuelling areas (petrol filling stations), below deck on boats, fuel or chemical transfer or storage facilities, and areas where the air contains chemicals or particles, such as grain, dust, or metal powders. Do not transport or store flammable gas, liquid, or explosives in the compartment of your vehicle which contains your PC and accessories. Blasting areas – construction sites Turn off your PC when in a blasting area in order to avoid interfering with two-way radios used in blasting operations. Do not use on aircraft Using a wireless devices on aircraft can cause interference and is illegal. If you intend to use your laptop/PDA whilst on an aircraft, you MUST remove your the datacard before boarding any aircraft. Do not use it on the ground without permission from the aircraft crew. Do not use in hospitals Follow any regulations or rules. In most cases in hospitals, datacards do not pose any problems. However, using a datacard close to sensitive electronic devices could possibly result in interference. If you intend to use your laptop/PDA in such areas, you SHOULD remove the datacard. People are usually asked to switch off all electronic devices in some selected areas in hospitals, a recommendation that Option fully supports. Interference from radio signals Option relies on health authorities and relevant expert bodies for advice on any potential undesired r…

Text truncated - open the document above for the full version.

Generic Office of Engineering Technology <[email protected]. gov> 11.12.2006 20:52 An Kopie Them a Response to Inquiry to FCC (Tracking Number 963512) Inquiry: Dear FCC, According to the current policy for TCBs on the handling of 3G mobile phone technologies, the TCB has to involve the FCC prior to certifying any 3G device. We are currently in the process of certifying another PCMCIA Card operating in the US bands GSM 850 + PCS 1900 and WCDMA 850 + 1900 MHz. Recent FCC trainings, telephone conference calls and the SAR Measurement procedure for 3 G devices (Published on June 9th, 2006) have been taken into consideration. Kindly ask you to confirm or advice. Response: Please contact [email protected] to request latest info about what devices require TCB Permit- But-Ask procedures. Devices within scope of most recent FCC 3G SAR Procedures must fully apply those procedures to qualify for TCB application processing. Do not reply to this message. Please select the Reply to an Inquiry Response link from the OET Inquiry System to add any additional information pertaining to this inquiry. -> TCB Remark: [email protected] contacted and device functionalities compared with actual list of devices require TCB Permit-But-Ask procedure found on KDB system.

DAT-P-152/98-01 SAR Report, 7layers_6620_617_FCC_850_1900_WCDMA II_V_SAR Plots_GT0201 Page 1 of 17 Appendix for the Report Dosimetric Assessment of the GT0201 from Option (FCC ID: NCMOGLH-V2E) According to the FCC Requirements SAR Distribution Plots November 10, 2006 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer 7layers AG Borsigstrasse 11 D-40880 Ratingen The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_850_1900_plots_1.1.doc/04.07.2005/CH SAR Report, 7layers_6620_617_FCC_850_1900_WCDMA II_V_SAR Plots_GT0201 Page 2 of 17 dasy_report_fcc_850_1900_plots_1.1.doc/04.07.2005/CH Table of Contents 1 SAR DISTRIBUTION PLOTS, GPRS 850 BODY....................................................................................... 3 2 SAR DISTRIBUTION PLOTS, GPRS 1900 BODY..................................................................................... 6 3 SAR DISTRIBUTION PLOTS, WCDMA II (FDD) BODY........................................................................... 9 4 SAR DISTRIBUTION PLOTS, WCDMA V (FDD) BODY......................................................................... 12 5 SAR Z-AXIS SCANS (VALIDATION)......................................................................................................... 15 6 SAR Z-AXIS SCANS (MEASUREMENTS)................................................................................................ 16 SAR Report, 7layers_6620_617_FCC_850_1900_WCDMA II_V_SAR Plots_GT0201 Page 3 of 17 dasy_report_fcc_850_1900_plots_1.1.doc/04.07.2005/CH 1 SAR Distribution Plots, GPRS 850 Body Test Laboratory: IMST GmbH, DASY Blue (I); File Name: d02_bahm_1_0mm.da4 DUT: Option ; Type: Fuji Lite; Serial: 37160d02 Program Name: Body Worn Communication System: GPRS 850; Frequency: 836.6 MHz;Duty Cycle: 1:2.6 Medium parameters used: f = 836.6 MHz; σ = 1.01 mho/m; ε r = 53.2; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6R - SN1669; ConvF(6.33, 6.33, 6.33); Calibrated: 15.02.2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 09.03.2006 - Phantom: SAM Sugar 1059; Type: Speag; Serial: 1059 - Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Body Worn/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.262 mW/g Body Worn/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.9 V/m; Power Drift = -0.144 dB Peak SAR (extrapolated) = 0.383 W/kg SAR(1 g) = 0.274 mW/g; SAR(10 g) = 0.190 mW/g Maximum value of SAR (measured) = 0.306 mW/g Body Worn/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.9 V/m; Power Drift = -0.144 dB Peak SAR (extrapolated) = 0.185 W/kg SAR(1 g) = 0.130 mW/g; SAR(10 g) = 0.094 mW/g Maximum value of SAR (measured) = 0.142 mW/g Fig. 1: SAR distribution for GPRS 850, channel 190, Lap Held Position (DELL Latitude C810, November 08, 2006; Ambient Temperature: 21.2°C; Liquid Temperature: 20.5°C). SAR Report, 7layers_6620_617_FCC_850_1900_WCDMA II_V_SAR Plots_GT0201 Page 4 of 17 dasy_report_fcc_850_1900_plots_1.1.doc/04.07.2005/CH Test Laboratory: IMST GmbH, DASY Blue (I); File Name: d02_bahm_1_0mm.da4 DUT: Option ; Type: Fuji Lite; Serial: 37160d02 Program Name: Body Worn Communication System: GPRS 850; Frequency: 836.6 MHz;Duty Cycle: 1:2.6 Medium parameters used: f = 836.6 MHz; σ = 1.01 mho/m; ε r = 53.2; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6R - SN1669; ConvF(6.33, 6.33, 6.33); Calibrated: 15.02.2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 09.03.2006 - Phantom: SAM Sugar 1059; Type: Speag; Serial: 1059 - Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Body Worn/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.04 mW/g Body Worn/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 16.2 V/m; Power Drift = -0.167 dB Peak SAR (extrapolated) = 1.35 W/kg SAR(1 g) = 0.973 mW/g; SAR(10 g) = 0.683 mW/g Maximum value of SAR (measured) = 1.03 mW/g Fig. 2: SAR distribution for GPRS 850, channel 190, Lap Held Position (Packard Bell Easy Note, November 08, 2006; Ambient Temperature: 21.2°C; Liquid Temperature: 20.5°C). SAR Report, 7layers_6620_617_FCC_850_1900_WCDMA II_V_SAR Plots_GT0201 Page 5 of 17 dasy_report_fcc_850_1900_plots_1.1.doc/04.07.2005/CH Test Laboratory: IMST GmbH, DASY Blue (I); File Name: d02_bahh_1_0mm.da4 DUT: Option ; Type: Fuji Lite; Serial: 37160d02 Program Name: Body Worn Communication System: GPRS 850; Frequency: 848.8 MHz;Duty Cycle: 1:2.6 Medium parameters used: f = 848.8 MHz; σ = 1.01 mho/m; ε r = 53.2; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6R - SN1669; ConvF(6.33, 6.33, 6.33); Calibrated: 15.02.2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 09.03.2006 - Phantom: SAM Sugar 1059; Type: Speag; Serial: 1059 - Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Body Worn/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.895 mW/g Body Worn/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 17.7 V/m; Power Drift = 0.096 dB Peak SAR (extrapolated) = 1.47 W/kg SAR(1 g) = 0.875 mW/g; SAR(10 g) = 0.588 mW/g Maximum value of SAR (measured) = 0.935 mW/g Fig. 3: SAR distribution for GPRS 850, channel 251, Lap Held Position (Toshiba SA50- 110, November 08, 2006; Ambient Temperature: 21.2°C; Liquid Temperature: 20.5°C). SAR Report, 7layers_6620_617_FCC_850_1900_WCDMA II_V_SAR Plots_GT0201 Page 6 of 17 dasy_report_fcc_850_1900_plots_1.1.doc/04.07.2005/CH 2 SAR Distribution Plots, GPRS 1900 Body Test La…

Text truncated - open the document above for the full version.

DAT-P-152/98-01 SAR Report, 7layers_6620_617_FCC_Body_Card_850_1900_WCDMA II_V_GT0201 Page 1 of 42 Report Dosimetric Assessment of the Portable Device GT0201 from Option (FCC ID: NCMOGLH-V2E) tested in three host products According to the FCC Requirements November 10, 2006 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer 7layer AG Borsigstrasse 11 D-40880 Ratingen The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. Dasy_Report_FCC_Body_Card_GSM850_GSM1900_WCDMA_II_V_1.0.doc/26.09.2006/CH SAR Report, 7layers_6620_617_FCC_Body_Card_850_1900_WCDMA II_V_GT0201 Page 2 of 42 Dasy_Report_FCC_Body_Card_GSM850_GSM1900_WCDMA_II_V_1.0.doc/26.09.2006/CH Executive Summary The device GT0201 is a new PCMCIA card from Option operating in the 850 MHz, 900 MHz, 1800 MHz and 1900 MHz frequency range. The device has a integrated antenna and the system concepts used are the GPRS 850 (Class 12), GPRS 900 (Class 12), GPRS 1800 (Class 12), GPRS 1900 (Class 12), WCDMA I (FDD), WCDMA II (FDD) and WCDMA V (FDD) standards. The objective of the measurements done by IMST was the dosimetric assessment of one device in body worn configuration in the GPRS 850 (Class 11), GPRS 1900 (Class 12), WCDMA II (FDD) and WCDMA V (FDD) standards. The measurements were performed in combination with three different host products (DELL Latitude C810, Packard Bell Easy Note and Toshiba SA50-110). The device was tested in lap held position with the bottom of the computer in direct contact against the flat phantom. The examinations have been carried out with the dosimetric assessment system „DASY4“. The measurements were made according to the Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [OET 65] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions. All measurements have been performed in accordance to the recommendations given by SPEAG. The Option GT0201 PCMCIA card (FCC ID: NCMOGLH-V2E) is in compliance with the Federal Communications Commission (FCC) Guidelines [OET 65] for uncontrolled exposure. The PCMCIA card was tested for the following configurations: Body Worn for GPRS 850 (Class 11), GPRS 1900 (Class 12), WCDMA II (FDD) and WCDMA V (FDD) in lap held position with the bottom of the computer in direct contact against the flat phantom. It was tested with three host products (DELL Latitude C810, Packard Bell Easy Note and Toshiba SA50-110). Due to the used power reduction on GSM 850 in GPRS Class 12, the tests for this band was conducted with GPRS Class 11 to cover the worst case. prepared by: ........................................... reviewed by:............................................. Alexander Rahn André van den Bosch test engineer quality assurance engineer IMST GmbH Carl-Friedrich-Gauß-Straße 2 D-47475 Kamp-Lintfort Tel. +49- 2842-981 378 Fax +49- 2842-981 399 email: [email protected] SAR Report, 7layers_6620_617_FCC_Body_Card_850_1900_WCDMA II_V_GT0201 Page 3 of 42 Dasy_Report_FCC_Body_Card_GSM850_GSM1900_WCDMA_II_V_1.0.doc/26.09.2006/CH Table of Contents 1 SUBJECT OF INVESTIGATION.................................................................................................................... 4 2 THE IEEE STANDARD C95.1 AND THE FCC EXPOSURE CRITERIA................................................. 4 2.1 DISTINCTION BETWEEN EXPOSED POPULATION, DURATION OF EXPOSURE AND FREQUENCIES........... 5 2.2 DISTINCTION BETWEEN MAXIMUM PERMISSIBLE EXPOSURE AND SAR LIMITS....................................... 5 2.3 SAR LIMIT.................................................................................................................................................. 6 3 THE FCC MEASUREMENT PROCEDURE................................................................................................. 6 3.1 GENERAL REQUIREMENTS......................................................................................................................... 6 3.2 DEVICE OPERATING NEXT TO A PERSON’S EAR....................................................................................... 6 4 BODY-WORN CONFIGURATIONS............................................................................................................ 10 4.1 POC POSITION....................................................................................................................................... 10 4.2 PHANTOM REQUIREMENTS...................................................................................................................... 10 4.3 TEST TO BE PERFORMED......................................................................................................................... 10 5 THE MEASUREMENT SYSTEM................................................................................................................. 11 5.1 PHANTOM................................................................................................................................................. 13 5.2 PROBE...................................................................................................................................................... 13 5.3 MEASUREMENT PROCEDURE.................................................................................................................. 14 5.4 UNCERTAINTY ASSESSMENT................................................................................................................... 15 6 SAR RESULTS.....................................................................................................…
