NCMOGLHW-EWLAN/GSM/GPRS/UMTS/HSDPA QUAD BAND PC DATA CARD

--------- - - -- - - - - - - - - - - - - - - - - - - - - - - - --- globetrotter mobilitymanager manual in cn / d / e / f / i / nl / p on cd Warning ! Do not insert the card ! Registering your card is of great value to you. As soon as you register, you will qualify for: > Validation of warranty, which includes repair or replacement if faulty > After-sales customer care > Advanced bulletins on product updates and software upgrades During the installation process, you will have the possibility to register online or via e-mail. You may also register on-line at: http://www.option.com/registration/4_3_registration.shtml 3 register with option do not print this page Register with Option3 Introduction4 System Requirements5 Installation8 Getting Started10 Trouble shooting33 Safety Information34 contents Congratulations on your purchase of the Option GlobeTrotter card. GlobeTrotter together with the GlobeTrotter Mobility Manager software is the ultimate high performance solution for providing mobile wireless connectivity to Laptops and Notebooks. The GlobeTrotter solution enables users to browse the Internet, send and receive e-Mails, send and receive SMS text messages and all with SIM management seamlessly integrated with Microsoft Outlook™. The technology in your Option GlobeTrotter card supports real time remote connectivity and is ideal for the synchronization of mobile devices with the office or home computer. GlobeTrotter is designed to support IPsec client software providing secure remote IP mobile access to corporate networks. This guide describes how to install the GlobeTrotter Mobility Manager (GTMM) software on your PC and how to start using it. For more detailed information, consult the GTMM Online Help Guide. Contents of the sales package In the sales package, you will find the following items: > Option GlobeTrotter card > A CD-Rom containing the software To overcome any installation and usage barriers and to enhance the user experience, the following documentation is also included: > This Quick Start Guide, which gives the installation of the GlobeTrotter Mobility Manager Software in a limited number of steps, and assists the user in making his/her first data call > Online User Manual, which describes a number of common usage scenarios. The online User manual can be accessed at all times through the Help menu of the software. introduction 4 The GlobeTrotter Mobility Manager software requires: Processor > Client (a computer not working in a server capacity): Min. 90-megahertz (MHz) Intel Pentium II-class processor or higher > Server (a computer working in a server capacity): Min.133-MHz Intel Pentium- class processor Operating System > Windows XP Professional > Windows XP Home Edition > Windows 2000 > Windows ME > Windows 98SE Memory > Client: 64 megabytes (MB) of RAM, 96 MB recommended > Server: 128 MB of RAM, 256 MB recommended Hard Disk Min. 40 MB for installation of SW & Drivers Display 800 x 600 or higher-resolution display with 256 colors Input Device Microsoft mouse or compatible pointing device system requirements (minimum requirements) 5 Communications software When you run the installation program, the following programs will be installed on your computer: > Windows GlobeTrotter device drivers > The GlobeTrotter Mobility Manager The GlobeTrotter Mobility Manager The GlobeTrotter Mobility Manager GTMM simplifies SMS messaging and the configuration of GPRS settings for applications such as downloading e-mail or browsing the Internet. It also gives the possibility to manage a WLAN connection. The GTMMapplication incorporates a powerful SMS editor and a viewer for reading SMS messages. Incoming and outgoing messages are listed in Outlook™-style directories. The Setup pagegives users a quick and easy way to set up any type of connection (GSM, GPRS or 3G). The WLAN pagegives users a quick and easy way to scan and connect on a WLAN network. system requirements (minimum requirements) 7 Other requirements > Microsoft Internet Explorer 6.00 or later > The latest Windows service packs and critical updates from the Windows Update site. > The target system may not have any version of the ‘Funk Odyssey’ WLAN client installed, otherwise the installation will fail Please refer to the GlobeTrotter datacard Product Sheet for datacard system requirements. Network services To use your Option GlobeTrotter card, you must first activate an account with a mobile phone Service Provider and have received a Subscriber Identity Module (SIM) card. Often the GlobeTrotter is supplied as a package with an airtime agreement. If you do not already have an airtime agreement, please ask your supplier about obtaining one for a compatible network. Please refer to the GlobeTrotter datacard Product Sheet which will detail the types of network and services it is compatible with. Some service providers may not provide all communications services. Contact your service provider for further information about the availability and details of the services in your home network. Additional information may be required from your service provider to activate the data functionality of the Option GlobeTrotter card such as: > User Name - if applicable > Password - if applicable > Access Point Name (APN) > IP Address - if not dynamic > DNS Address - if not dynamic system requirements (minimum requirements) 6 10.At the end of the installation you will have to reboot the PC and if you have selected automatic start up, the GTMM application will start up after the reboot. 11. Insert the Option GlobeTrotter card into the PCMCIA slot of your PC. 12. Wait until the system has recognized the card. 13. You will now be asked to register the product. Registration is required to benefit from the warranty and customer care. By connecting to the Internet you can register online immediately athttp://www.option.com/registration/4_3_registration.shtml Choose Cancelif you want to register later. You will be able to start the registration from the h…

Text truncated - open the document above for the full version.

Safety manual: Option Globetrotter Data Card OPTION WIRELESS Technologies, Kolonel Begaultlaan 45, B-3012 Leuven Tel +32 16 317 411 Fax +32 16 207 164 http://www.option.com Option Confidential Integration Manual Author: Roeland Timmermans Version: 2 Creation Date: September 26, 2005 Page: 1 of 6 Option Confidential: This document is Option Confidential - it may not be duplicated, neither distributed externally without prior and written permission of Option NV. About this document Overview and Purpose This document describes the safety measurements that have to be taken into account when using an Option Globetrotter datacard. Confidentiality All data and information contained or disclosed by this document is confidential and proprietary of Option NV, and all rights therein are expressly reserved. By accepting this document, the recipient agrees that this information is held in confidence and in trust and will not be used, copied, reproduced in whole or in part, nor its contents revealed in any manner to others without prior and written permission of Option NV Version History Date Release Version Author(s) Revision(s)Remarks Phase 15/09/05 1.0 – Draft 1 RoelT Initial version 1.0.0 Integration Manual Author: Roeland Timmermans Version: 2 Creation Date: September 26, 2005 Page: 2 of 6 Option Confidential: This document is Option Confidential - it may not be duplicated, neither distributed externally without prior and written permission of Option NV. Table of contents 1. Introduction...............................................................................................................3 2. Safety Measurements................................................................................................3 ƒ General recommendations for use.......................................................................3 ƒ Extreme temperatures..........................................................................................3 ƒ Explosive atmosphere...........................................................................................3 ƒ Blasting areas – construction sites.......................................................................4 ƒ Do not use on aircraft...........................................................................................4 ƒ Do not use in hospitals..........................................................................................4 ƒ Interference from radio signals...........................................................................4 ƒ Immunity to interference.....................................................................................4 ƒ Cardiac pacemakers, implanted defibrillators & other medical......................5 ƒ Hearing devices.....................................................................................................5 ƒ Children.................................................................................................................5 ƒ Driving...................................................................................................................5 ƒ SIM cards...............................................................................................................5 ƒ Accessories.............................................................................................................5 ƒ Traveling................................................................................................................6 ƒ Safe distance..........................................................................................................6 ƒ Supply voltage.......................................................................................................6 Integration Manual Author: Roeland Timmermans Version: 2 Creation Date: September 26, 2005 Page: 3 of 6 Option Confidential: This document is Option Confidential - it may not be duplicated, neither distributed externally without prior and written permission of Option NV. 1. Introduction When using the Option Globetrotter it is necessary to pay attention to all safety aspects described in this document. Using these guidelines is mandatory to provide certainty of the safe use of the card for the end-user . Breaking these rules may be dangerous or illegal. 2. Safety Measurements Following items contain simple recommendations relevant to the use of the Option datacard, please read them carefully. Not following these guidelines can cause harm to the card, yourself or other persons in your immediate environment. ƒ General recommendations for use ¾ Always treat your product with care and keep in a clean and dust-free place. Do not expose your product to open flames or lit tobacco products. ¾ Do not expose to liquid, moisture or humidity. Do not expose the datacard to rain, or other liquids. Do not drop, throw or try to bend your product. ¾ Do not paint your product. ¾ Do not attempt to disassemble your product. Doing so will void the warranty. Only authorised personnel should do so. ¾ Do not touch the antenna unnecessarily. ƒ Extreme temperatures Do not expose the datacard or the antenna to extreme temperatures i.e. outside of minimum -25 and maximum +70 degrees Celsius. ƒ Explosive atmosphere Turn off your PC in any area with a potentially explosive atmosphere. It is rare, but your PC could generate sparks. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Areas with a potentially explosive atmosphere are often but not always, clearly marked. They include fuelling areas (petrol filling stations), below deck on boats, fuel or chemical transfer or storage facilities, and areas where the air contains chemicals or particles, such as grain, dust, or metal powders. Do not transport or store flammable gas, liquid, or explosives in the compartment of your vehicle which contains your PC and accessories. Integration Manual Author: Roeland Timmermans Version: 2 Creation Date: September 26, 2005 Page: 4 of 6 Option Confi…

Text truncated - open the document above for the full version.

GlobeTrotter Fusion+ EMEA card AGENCY REQUIREMENTS Licensed by QUALCOMM Incorporated under one or more of the following United States Patents and/or their counterparts in other nations: 4,901,307; 5,490,165; 5,056,109; 5,504,773; 5,101,501; 5,506,865; 5,109,390; 5,511,073; 5,228,054; 5,535,239; 5,267,261; 5,544,196; 5,267,262; 5,568,483; 5,337,338; 5,600,754; 5,414,796; 5,657,420; 5,416,797; 5,659,569; 5,710,784; 5,778,338 Federal communications commission notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: > Reorient or relocate the receiving antenna. > Increase the separation between the equipment and receiver. > Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. > Consult the dealer or an experienced radio or television technician for help. Modifications The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Option could void the user's authority to operate the equipment. Cables The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance with FCC regulations. (Part 15.105 only applies for digital devices in the meaning of the FCC rules) Declaration of Conformity for products marked with the FCC logo - United States only This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For questions regarding your product or FCC declaration, contact: Option | Kolonel Begaultlaan 45 | 3012 Leuven | Belgium www.option.com To identify this product, refer to the Part, Series, or Model number found on the product. This product has successfully completed the PTCRB requirements governing the release of new GSM 850/1900 capable products into the North American market. Exposure Information to Radio Frequency Energy This PCMCIA card has been tested in different notebooks for compliance with the SAR requirements. Measured SAR values according to the CE regulations: The maximum measured body SAR value (averaged over a mass of 10 g and distance between phantom and antenna of 5 mm) is well below the limit of 2 W/kg. Measured SAR values according to the FCC regulations: The maximum measured body SAR value (averaged over a mass of 1 g and distance between phantom and antenna of 5 mm) is well below the limit of 1.6 W/kg. For safe and efficient use the user should keep the antenna of the card at a minimum distance of 1 cm away from his body. All of the measurements above were performed at a distance of 0.5 cm from the body of the user. CAUTION: Users concerned with the risk of Radio Frequency exposure may wish to limit the duration of their calls and to position the antenna as far away from the body as is practical. European Union declaration of conformity CE 0700 Products bearing the CE marking comply with the R&TTE Directive (99/5/EC), EMC Directive (89/336/EEC) and the Low Voltage Directive (73/23/EEC) issued by the Commission of the European Community. Compliance with these directives implies conformity to the following European Norms (in parentheses are the equivalent international standards and regulations): ¾ Radio Frequency spectrum efficiency: > EN 301 511, v9.0.2 > EN 301 902-1&2, v2.2.1 > EN 300328:v1.6.1(2004-11) ¾ Electromagnetic Compatibility > EN 301 489-1: 2002 ¾ Safety and Health > EN 60950: 2001 > EN 50360 (07/2001) This product may be used in the following countries: > All EU Memberstates > Iceland > Switzerland > Norway > United States of America Regarding IEEE 802.11g we currently have the following information about restrictions in the R&TTE countries: Manufacturer's Disclaimer Statement The information in this document is subject to change without notice and does not represent a commitment on the part of the vendor. No warranty or representation, either expressed or implied, is made with respect to the quality, accuracy, or fitness for any particular purpose of this document. The manufacturer reserves the right to make changes to the content of this document and/or the products associated with it at any time without obligation to notify any person or organization of such changes. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages. For questions regarding your product or declaration, contact: Option | Kolonel Begaultlaan 45 | 3012 Leuven | Belgium www.option.com SYSTEM REQUIREMENTS > Type II PC-Card slot with cardbus interface > Must be supplied by a SELV (Safety Extra Low Voltage) circuit with limited power.

Declaration Manufacturer : Option N.V. Address : Kolonel Begaultlaan 45 B-3012 Leuven Belgium Option N.V. duly represented by its Quality Engineer, Bruno Meeus, hereby confirms that for the Globetrotter Fusion+ EMEA the WLAN radio and the GSM/GPRS radio can never operate simultaneously. In the Globetrotter Fusion+ EMEA card, there is a hardware circuit that prevents that both radios (GPRS and WLAN) will transmit simultaneously. This is done in the following way. During the transmit burst of the GPRS radio, a signal on the card is activated. This signal will directly disable the transmitter of the WLAN radio. So even if the WLAN baseband is trying to send some data at that moment, the RF transmitter is disabled. This makes that both radios will never transmit simultaneously. The GPRS radio is always the master. Quality Engineer, Bruno Meeus Leuven, 10 November 2005 Option nv sa | Kolonel Begaultlaan 45 | B-3012 Leuven Belgium | www.option.com T +32 16 317 411 | F +32 16 207 164 | H.R.L./R.C.L. 68114 | BTW/TVA BE 429.375.448

Option N.V. Kolonel Begaultlaan 45 3012 Leuven Belgium To Whom This May Concern Commercial Power of Attorney Commercial Power of Attorney for the license / registration of GlobeTrotter Fusion+ HSDPA EMEA in several countries. The company 7 layers AG, 40880 Ratingen, Germany, has been contracted by Option N.V. to obtain approvals for the following electronic components, manufactured and/or released by Option N.V. : GlobeTrotter Fusion+ HSDPA EMEA : WLAN/GSM/GPRS/UMTS/HSDPA Quad Band PC DATA CARD GlobeTrotter 3G+ HSDPA EMEA : GSM/GPRS/UMTS/HSDPA Quad Band PC DATA CARD Unless future correspondence from Option N.V. directs otherwise, please extend your full cooperation to 7 layers AG regarding matters to the above mentioned products for the period beginning May 1 st 2005 through January 1 st 2006. Stefan Lodeweyckx System & Product Quality Team Leader Leuven, sept. 15 2005 Option nv sa | Kolonel Begaultlaan 45 | B-3012 Leuven Belgium | www.option.com T +32 16 317 411 | F +32 16 207 164 | H.R.L./R.C.L. 68114 | BTW/TVA BE 429.375.448

Kol. Begaultlaan 45 - B3012 Leuven Belgium Part Number:Rev : Part Name: Page: Size:Scale: Drawn: Project: Date: Approved: QUALCOMM 3G CDMA NZ1LBL-21794_3 Model: GT Fusion+ EMEA - Designed in E.U. by Option 07000700 !! FF T ested to Comply With FCC Standards For Home or Office Use FCC ID NCMOGLHW -E 3 Included WEEE icon and changed material to TC-712TS 2656 03/11/05 1.Overall dimensions: 62,4mm x 40,6mm / Radius Corners: 1,6mm Same outline as CL1LBL-20037_2 2.To be supplied in the format shown, on reels, copy position 2, internal core dia 38mm 3.Quantity per roll: 1000 or max o/d 4” 4.Each roll to be packed in bubble wrap and sealed in a polythene bag containing no other shedding material. Reels then to be packed in a box, each box to contain 4 reels. The outside of the box to be clearly labelled with the following information: - Option Part number - Quantity in box - Date produced 5.Liner to be 6.Label thickness: 50 44mm wide. Vertical gap between labels 4.275mm. μm max. 7.Label to be silver and suitable for thermal transfer printing. 8.Label to be printed with artwork_art.* 9.Printing be resistant to rubbing and alcohol cleaning. 10. Raw material: FLEXcon THERMLfilm MM 200 satin silver TC-712 L-344 40 White Glassine 11. Artwork use black 32364 12. To be used with print ribbon: Armor AXR7+ or equivalent. NZ1LBL-21794_3 DATE APPROVED ISSUEDDESCRIPTION REV ECP 1 Derived from RC1LBL-20134_4 Ricola manuflabelTS 2 Included FCC logo + IDTS 2271 24/08/05 2119 19/07/05 1/1 A4 1:1 NZ1LBL-21794 Manufacturing Label Nozomi EMEA Thomas STEVENS NOZOMI 3 19/07/05 Outline Artwork

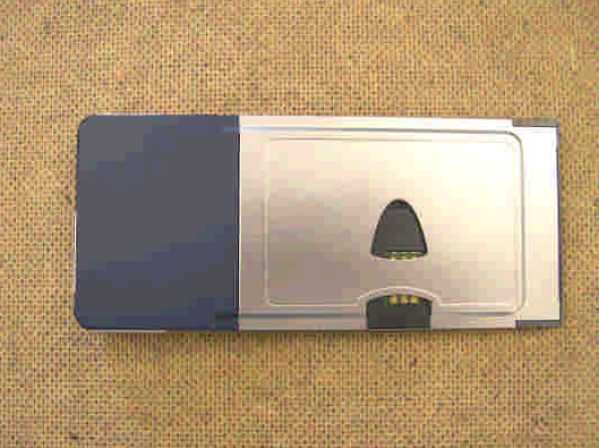

fusion+ globetrotter fusion+ GlobeTrotter FUSION+ is the ultimate PC Data Card solution bringing enhanced broadband wireless capability to laptops and notebooks by combining WLAN, HSDPA, UMTS, EDGE and GPRS technologies in a single PC Card package. On a 3G network, GlobeTrotter FUSION+ enables connection to the Internet at data speeds of up to 384 kbps. Move into range of a public WiFi hotspot, the corporate Wireless LAN, or your home wireless network and the GlobeTrotter Fusion+ gives you speeds up to 54Mbps. In areas where 3G service or WiFi is not available the GlobeTrotter FUSION+ still enables reliable and secure data connections over EDGE at up to 247 kbs and GPRS at up to 85.6 kbs. Being HSDPA-Ready the GlobeTrotter FUSION+ supports the new HSDPA technology standard providing Internet access speeds of up to 1.8 Mbps. When HSDPA (High Speed Download Packet Access) is made available by network providers this PC Data card is easily HSDPA enabled by the user through a simple Internet upgrade. HSDPA-Ready from Option is a future-proof technology. GlobeTrotter FUSION+ is the ideal companion for the mobile professional enabling the Internet, Email, Video Conferencing and office applications with real-time secure VPN access to corporate applications whilst on the move. Connect anytime, anywhere! 3G umts | edge | gprs | wlan | pc data card HSDPA READY FEATURES > Multimode WLAN/UMTS/EDGE/GPRS/GSM card > Upgradeable in-field to HSDPA 1.8 Mbs > Provides UMTS High-speed data (up to 384 kbps) connectivity for mobile users > Provides EDGE/GPRS/GSM data (up to 247 kbps) connectivity > Provides Wi-Fi® CERTIFIED WLAN speeds up to 54 Mbps (@2.4GHz) > Transparent handover between UMTS and GSM/EDGE networks > Optional seamless handover between WLAN and 2,5G/3G possible via third party software > Compatible with nearly all popular notebook PCs equipped with Type II PC card slot and Microsoft Windows operating system > Securely access corporate resources with its transparent sup- port for IPSec and VPN technology. > PCSC-driver for EAP-SIM and other 3-party applications in need of a Smart Card Interface. > WLAN encryption 64 or 128-bit key WEP and TKIP > WLAN authentication 802.1x; Wi-Fi CERTIFIED WPA™ - Enterprise, WPA™-Personal, LEAP, PEAP, EAP-TLS, EAP-TTLS, EAP- SIM, WPA2™ - Enterprise, WPA2™ - Personal > Supports third party applications that provide Video Telephony (3GPP 3G-324M, H.324, H264 Baseline Video), SIP, SMS, IM, MMS, Internet and Email. > Comprehensively tested on infrastructures and networks worldwide. > GlobeTrotter Mobility Manager application (Connections manager and SMS centre). > Future proofing through Flash Memory technology HARDWARE SPECIFICATIONS > Card Type: Extended Type II PCMCIA compliant; 3.3V card. (32 bit Cardbus Interface). > Miniature External Antenna Connection, > Green LED for WLAN and bi colour LED for EDGE and UMTS > SIM card interface compliant with 3GPP 31.101 and 31.102 supporting 1.8 and 3V UICCs > Environmental Operating temperature: 0 to +55ºC Kolonel Begaultlaan 45 | 3012 Leuven Belgium | T +32 16 317 411 | F +32 16 207 164 | www.option.com | [email protected] globetrotter fusion+ SPECIFICATIONS > UMTS Air Interface: . 2100 MHz band . 3GPP FDD compliant - 3GPP Release 5, June 2004-06 . - UE Category 12, QPSK, - 120Kbps+ n*120Kbps up to 384kbps Peak Rate . UE Power Class 3 (+24 dBm) . High Speed packet-switched data: > Support for UMTS QoS traffic classes > Support for PPP, IP transparent and non-transparent modes . Circuit-switched data Single-RAB streaming: 64, 57.6, 28.8 and 14.4 kbps > EDGE/GSM Air Interface: . 850/900/1800/1900 MHz (US-Cellular, EGSM, DCS and US-PCS bands) . 3GPP Release 99, September 2003 - Change Requests. - compliant . 3GPP Release 4: GERAN Feature Package 1 (NACC, Extended UL TBF, Delayed TBF) . EDGE Power Class E2, GSM Power Class 1 at 1800/1900 MHz and Power Class 4 at 850/900 MHz; coding schemes UL & DL - CS 1-4, MCS 1-9 . Packet-switched data: > Multislot (E)GPRS Class 10, (E)GPRS Class B Type 1 MT > Streaming, Background & Interactive QoS Classes Supported . Circuit-switched data: 14.4, 12.2 and 9.6 kbps > WLAN Air Interface: . WLAN 802.11g (backwards compatible with 802.11b) . UE power up to 19,5dBm (89mW) . On-board selective diversity with two antennas . 2.412-2.462Mhz, DSSS Half Duplex > 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps > 802.11b: 1, 2, 5.5, 11Mbps . Access mode: Infrastructure or Ad-hoc(peer-to-peer) . Security (Wi-Fi CERTIFIED) > Authentication WPA™ - Enterprise, WPA™ - Personal, LEAP, PEAP, EAP-TLS, EAP-TTLS, EAP-SIM, WPA2™ - Enterprise, WPA2™ - Personal > Encryption TKIP, 128-bit and 64-bit WEP > Terminal Equipment Interfaces: . Drivers: Windows™ 2000 Pro, Personal and XP Pro and Home, MAC OS X. NDIS 5.1 interface on request . A PCSC compatible driver, compliant with ISO 7816 and 3GPP TS11.11 . SIM-ME interface as specified in 3GPP Rel ’99 GSM TS11.11 and GSM 11.12 and with compliance to ISO 7816. . Standard modem emulation for compatibility with terminal programs/diallers and for use with proprietary operating systems. AT Interface 3GPP TS27.005, ATD*99# and ATD*99***<CID># support . Multiple serial ports for simultaneous data call and network coverage reports APPROVALS/CERTIFICATIONS > R&TTE directive 1999/5/EC (health, safety, SAR, EMC, spectrum), CE, FCC > GCF compliance and PTCRB as applicable, Operator and Infrastructure IOT > Microsoft WHQL certified drivers As part of their continual product improvement process Option reserve the right to alter the specifications for the product detailed here. * “GlobeTrotter Fusion+ ” and “GlobeTrotter Mobility Manager” are registered trademarks of Option. fusion + 3G umts | edge | gprs | wlan | pc data card

Option nv sa | Kolonel Begaultlaan 45 | B-3012 Leuven Belgium | www.option.com T +32 16 317 411 | F +32 16 207 164 | H.R.L./R.C.L. 68114 | BTW/TVA BE 429.375.448 WLAN Antenna Measured gain (in XOZplane) of Ricola WLAN auxiliary antenna without laptop -30.00 -25.00 -20.00 -15.00 -10.00 -5.00 0.00 5.005.00 0deg 1.5707963267949deg 3.14159265358979deg 4.71238898038469deg Theta Layer Max value Position Min value Position BeamWidth Average Standard devia Marker 1 pos Marker 1 value Marker 2 pos 2400000000(Hz) -0.24 0.25 deg -18.24 -3.04 deg 0.58 deg -4.57 5.38 ---- ---- ---- 2450000000(Hz) -0.98 0.25 deg -21.40 -3.04 deg 0.72 deg -5.36 6.19 ---- ---- ---- 2500000000(Hz) -0.86 0.30 deg -22.77 -3.04 deg 0.70 deg -4.92 5.74 ---- ---- ---- 2400000000(Hz) 2450000000(Hz) 2500000000(Hz) Measured gain (in XOY plane) of Ricola WLAN auxiliary antenna without laptop -30.00 -25.00 -20.00 -15.00 -10.00 -5.00 0.00 5.005.00 0deg 1.5707963267949deg 3.14159265358979deg 4.71238898038469deg Phi Layer Max value Position Min value Position BeamWidth Average Standard devia Marker 1 pos Marker 1 value Marker 2 pos 2400000000(Hz) 1.65 1.42 deg -16.09 2.31 deg 0.63 deg -4.20 4.88 ---- ---- ---- 2450000000(Hz) 0.15 1.47 deg -18.87 2.31 deg 0.64 deg -5.49 6.24 ---- ---- ---- 2500000000(Hz) 0.55 1.42 deg -19.11 2.26 deg 0.78 deg -4.68 5.41 ---- ---- ---- 2400000000(Hz) 2450000000(Hz) 2500000000(Hz) Measured gain (in YOZplane) of Ricola WLAN auxiliary antenna without laptop -30.00 -25.00 -20.00 -15.00 -10.00 -5.00 0.00 5.005.00 0deg 1.5707963267949deg 3.14159265358979deg 4.71238898038469deg [1]0.0653689[2400000000Hz] Theta Layer Max value Position Min value Position BeamWidth Average Standard devia Marker 1 pos Marker 1 value Marker 2 pos 2400000000(Hz) 1.00 -1.50 deg -19.30 3.04 deg 2.53 deg -1.93 2.59 -1.14 deg 0.07 -0.60 deg 2450000000(Hz) 0.47 -1.80 deg -23.57 3.09 deg 2.60 deg -2.89 3.61 -1.14 deg -0.77 -0.60 deg 2500000000(Hz) 0.70 -1.85 deg -24.90 3.09 deg 2.55 deg -2.24 2.89 -1.14 deg -0.33 -0.60 deg 2400000000(Hz) 2450000000(Hz) 2500000000(Hz) Measured gain (in XOZ plane) of Ricola WLAN main antenna without laptop -30.00 -25.00 -20.00 -15.00 -10.00 -5.00 0.00 5.005.00 0deg 1.5707963267949deg 3.14159265358979deg 4.71238898038469deg [1]-11.8402[2400000000Hz] Theta Layer Max value Position Min value Position BeamWidth Average Standard devia Marker 1 pos Marker 1 value Marker 2 pos 2400000000(Hz) -1.87 -1.89 deg -19.47 3.04 deg 2.58 deg -5.23 6.03 1.21 deg -11.84 ---- 2450000000(Hz) -1.18 -1.89 deg -19.58 3.04 deg 3.06 deg -4.63 5.41 1.21 deg -10.39 ---- 2500000000(Hz) -1.57 -1.99 deg -18.84 3.04 deg 3.04 deg -4.57 5.35 1.21 deg -8.54 ---- 2400000000(Hz) 2450000000(Hz) 2500000000(Hz) Measured gain (in YOZ plane) of Ricola WLAN main antenna without laptop -30.00 -25.00 -20.00 -15.00 -10.00 -5.00 0.00 5.005.00 0deg 1.5707963267949deg 3.14159265358979deg 4.71238898038469deg Theta Layer Max value Position Min value Position BeamWidth Average Standard devia Marker …
