NCMOGTMAX-V2UMultimode GSM/GPRS/EDGE/UMTS/HSDPA PCMCIA CARD

--------- - - -- - - - - - - - - - - - - - - - - - - - - - - - --- globetrotter mobilitymanager manual in cn / d / e / f / i / nl / p on cd Warning ! Do not insert the card ! Registering your card is of great value to you. As soon as you register, you will qualify for: > Validation of warranty, which includes repair or replacement if faulty > After-sales customer care > Advanced bulletins on product updates and software upgrades During the installation process, you will have the possibility to register online or via e-mail. You may also register on-line at: http://www.option.com/registration/4_3_registration.shtml 3 register with option do not print this page Register with Option3 Introduction4 System Requirements5 Installation8 Getting Started10 Trouble shooting33 Safety Information34 contents Congratulations on your purchase of the Option GlobeTrotter card. GlobeTrotter together with the GlobeTrotter Mobility Manager software is the ultimate high performance solution for providing mobile wireless connectivity to Laptops and Notebooks. The GlobeTrotter solution enables users to browse the Internet, send and receive e-Mails, send and receive SMS text messages and all with SIM management seamlessly integrated with Microsoft Outlook™. The technology in your Option GlobeTrotter card supports real time remote connectivity and is ideal for the synchronization of mobile devices with the office or home computer. GlobeTrotter is designed to support IPsec client software providing secure remote IP mobile access to corporate networks. This guide describes how to install the GlobeTrotter Mobility Manager (GTMM) software on your PC and how to start using it. For more detailed information, consult the GTMM Online Help Guide. Contents of the sales package In the sales package, you will find the following items: > Option GlobeTrotter card > A CD-Rom containing the software To overcome any installation and usage barriers and to enhance the user experience, the following documentation is also included: > This Quick Start Guide, which gives the installation of the GlobeTrotter Mobility Manager Software in a limited number of steps, and assists the user in making his/her first data call > Online User Manual, which describes a number of common usage scenarios. The online User manual can be accessed at all times through the Help menu of the software. introduction 4 The GlobeTrotter Mobility Manager software requires: Processor > Client (a computer not working in a server capacity): Min. 90-megahertz (MHz) Intel Pentium II-class processor or higher > Server (a computer working in a server capacity): Min.133-MHz Intel Pentium- class processor Operating System > Windows XP Professional > Windows XP Home Edition > Windows 2000 > Windows ME > Windows 98SE Memory > Client: 64 megabytes (MB) of RAM, 96 MB recommended > Server: 128 MB of RAM, 256 MB recommended Hard Disk Min. 40 MB for installation of SW & Drivers Display 800 x 600 or higher-resolution display with 256 colors Input Device Microsoft mouse or compatible pointing device system requirements (minimum requirements) 5 Communications software When you run the installation program, the following programs will be installed on your computer: > Windows GlobeTrotter device drivers > The GlobeTrotter Mobility Manager The GlobeTrotter Mobility Manager The GlobeTrotter Mobility Manager GTMM simplifies SMS messaging and the configuration of GPRS settings for applications such as downloading e-mail or browsing the Internet. It also gives the possibility to manage a WLAN connection. The GTMMapplication incorporates a powerful SMS editor and a viewer for reading SMS messages. Incoming and outgoing messages are listed in Outlook™-style directories. The Setup pagegives users a quick and easy way to set up any type of connection (GSM, GPRS or 3G). The WLAN pagegives users a quick and easy way to scan and connect on a WLAN network. system requirements (minimum requirements) 7 Other requirements > Microsoft Internet Explorer 6.00 or later > The latest Windows service packs and critical updates from the Windows Update site. > The target system may not have any version of the ‘Funk Odyssey’ WLAN client installed, otherwise the installation will fail Please refer to the GlobeTrotter datacard Product Sheet for datacard system requirements. Network services To use your Option GlobeTrotter card, you must first activate an account with a mobile phone Service Provider and have received a Subscriber Identity Module (SIM) card. Often the GlobeTrotter is supplied as a package with an airtime agreement. If you do not already have an airtime agreement, please ask your supplier about obtaining one for a compatible network. Please refer to the GlobeTrotter datacard Product Sheet which will detail the types of network and services it is compatible with. Some service providers may not provide all communications services. Contact your service provider for further information about the availability and details of the services in your home network. Additional information may be required from your service provider to activate the data functionality of the Option GlobeTrotter card such as: > User Name - if applicable > Password - if applicable > Access Point Name (APN) > IP Address - if not dynamic > DNS Address - if not dynamic system requirements (minimum requirements) 6 10.At the end of the installation you will have to reboot the PC and if you have selected automatic start up, the GTMM application will start up after the reboot. 11. Insert the Option GlobeTrotter card into the PCMCIA slot of your PC. 12. Wait until the system has recognized the card. 13. You will now be asked to register the product. Registration is required to benefit from the warranty and customer care. By connecting to the Internet you can register online immediately athttp://www.option.com/registration/4_3_registration.shtml Choose Cancelif you want to register later. You will be able to start the registration from the h…

Text truncated - open the document above for the full version.

GX 0202 AGENCY REQUIREMENTS Licensed by QUALCOMM Incorporated under one or more of the following United States Patents and/or their counterparts in other nations: 4,901,307; 5,490,165; 5,056,109; 5,504,773; 5,101,501; 5,506,865; 5,109,390; 5,511,073; 5,228,054; 5,535,239; 5,267,261; 5,544,196; 5,267,262; 5,568,483; 5,337,338; 5,600,754; 5,414,796; 5,657,420; 5,416,797; 5,659,569; 5,710,784; 5,778,338 Federal communications commission notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 22 and 24 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: > Reorient or relocate the receiving antenna. > Increase the separation between the equipment and receiver. > Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. > Consult the dealer or an experienced radio or television technician for help. Modifications The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Option could void the user's authority to operate the equipment. Declaration of Conformity for products marked with the FCC logo - United States only This device complies with Part 22 and 24 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For questions regarding your product or FCC declaration, contact: Option | Gaston Geenslaan 14 | 3001 Leuven | Belgium www.option.com To identify this product, refer to the Part, Series, or Model number found on the product. This product has successfully completed the PTCRB requirements governing the release of new GSM 850/1900 capable products into the North American market. Exposure Information to Radio Frequency Energy This PCMCIA card has been tested in different notebooks for compliance with the SAR requirements. Measured SAR values according to the CE regulations: The maximum measured body SAR value (averaged over a mass of 10 g and distance between phantom and antenna of 5 mm) is well below the limit of 2 W/kg. Measured SAR values according to the FCC regulations: The maximum measured body SAR value (averaged over a mass of 1 g and distance between phantom and antenna of 5 mm) is well below the limit of 1.6 W/kg. For safe and efficient use the user should keep the antenna of the card at a minimum distance of 1 cm away from his body. All of the measurements above were performed at a distance of 0.5 cm from the body of the user. CAUTION: Users concerned with the risk of Radio Frequency exposure may wish to limit the duration of their calls and to position the antenna as far away from the body as is practical. European Union declaration of conformity CE 0700 Products bearing the CE marking comply with the R&TTE Directive (99/5/EC), EMC Directive (89/336/EEC) and the Low Voltage Directive (73/23/EEC) issued by the Commission of the European Community. Compliance with these directives implies conformity to the following European Norms (in parentheses are the equivalent international standards and regulations): Radio Frequency spectrum efficiency: > EN 301 511, v9.0.2 > EN 301 902-1&2, v2.2.1 Electromagnetic Compatibility > EN 301 489-1: 2002 Safety and Health > EN 60950: 2001 This product may be used in the following countries: > All EU Memberstates > Iceland > Switzerland > Norway > United States of America Manufacturer's Disclaimer Statement The information in this document is subject to change without notice and does not represent a commitment on the part of the vendor. No warranty or representation, either expressed or implied, is made with respect to the quality, accuracy, or fitness for any particular purpose of this document. The manufacturer reserves the right to make changes to the content of this document and/or the products associated with it at any time without obligation to notify any person or organization of such changes. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages. For questions regarding your product or declaration, contact: Option | Gaston Geenslaan 14 | 3001 Leuven | Belgium www.option.com SYSTEM REQUIREMENTS > Type II PC-Card slot with cardbus interface > Must be supplied by a SELV (Safety Extra Low Voltage) circuit with limited power.

Generic Office of Engineering Technology <[email protected] > 10.10.2006 17:07 An [email protected] Kopie Blindkopie Thema Response to Inquiry to FCC (Tracking Number 393081) Inquiry: Dear FCC, According to the current policy for TCBs on the handling of 3G mobile phone technologies, the TCB has to involve the FCC prior to certifying any 3G device. We are currently in the process of PCMCIA Card operating in the US bands GSM 850/ PCS 1900 and WCDMA 850 + 1900 MHz. Recent FCC trainings, telephone conference calls, the Preliminary Guidance for Reviewing Applications for Certifications of 3G Devices (May 9,2005) and 3G RF Exposure guidelines have been taken into consideration. Please confirm or advice. Response: FCC-TCB pre-filing notification is requested only for devices not covered by 3G SAR procedures circulated in Jun06; where applicable TCB applications must use those procedures Do not reply to this message. Please select the Reply to an Inquiry Response link from the OET Inquiry System to add any additional information pertaining to this inquiry.

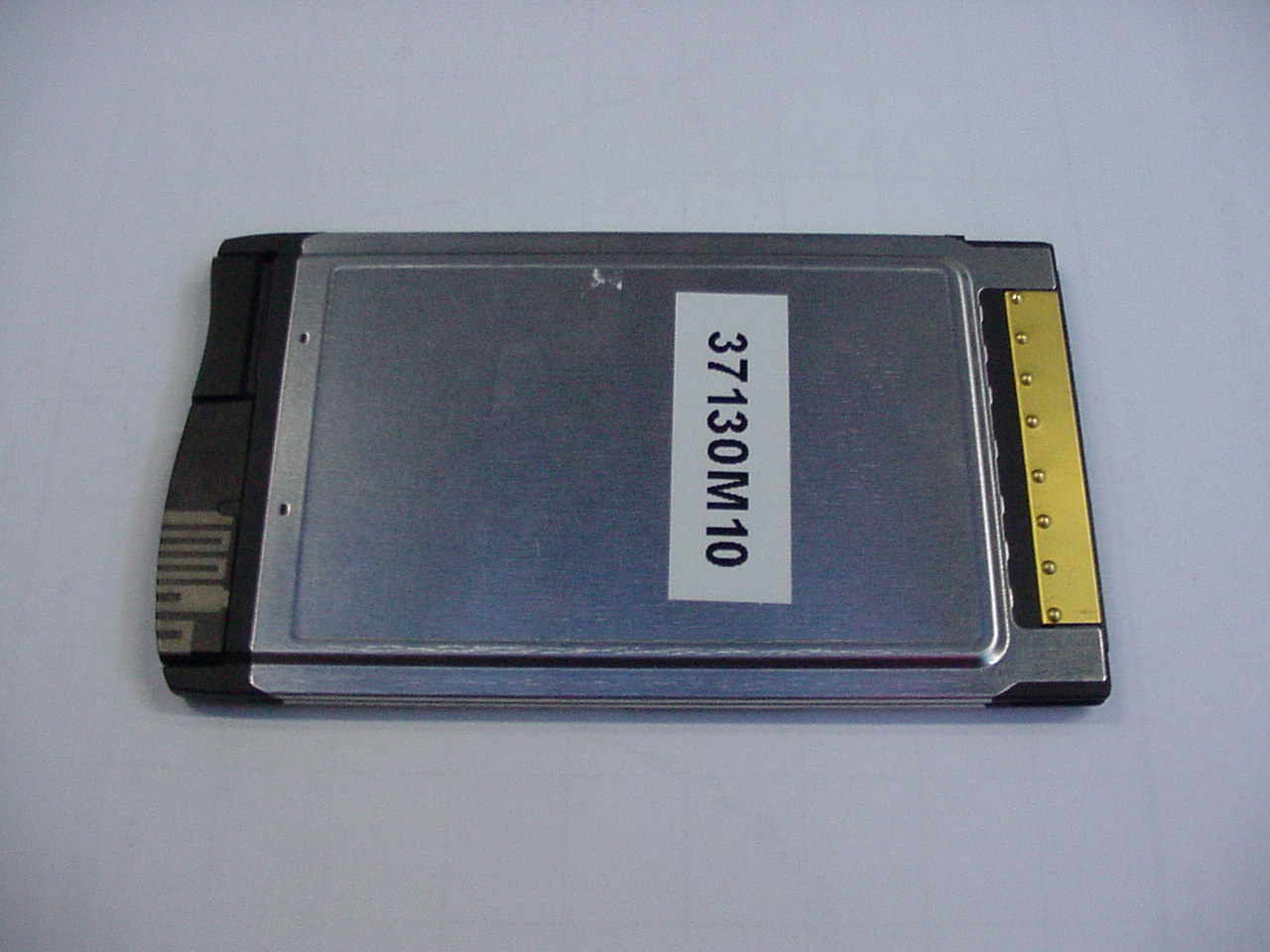

Test report Reference: 4_Opti_0606_FCCb Page 40 of 69 5 Photo Report Photo 1: EUT with opened antenna (front side) Test report Reference: 4_Opti_0606_FCCb Page 41 of 69 Photo 2: EUT (front side) Test report Reference: 4_Opti_0606_FCCb Page 42 of 69 Photo 3: EUT (rear side)

2001424_3_2001502 QUALCOMM 3G CDMA 0700 N11175 Tested to Comply With FCC Standards For Home or Office Use Made in Ireland by OptionDesigned in E.U. by Option - F Model: GX0202 FCC ID NCMOGTMAX-V2U IMEI : 4256231313666 SNR : 4256231313

OPTION N.V., Kolonel Begaultlaan 45, B-3012 Leuven Tel +32 16 317 411 Fax +32 16 207 164 http://www.option.com Option Confidential Highest output power operation mode GX 0202 Highest power operation mode, GX 0202 Author: Use r Version: V01 –D1 Creation Date: Sep 19, 2006 Page: 1 of 7 Option Confidential: This document is Option Confidential - it may not be duplicated, neither distributed externally without prior and written permission of Option NV. About this document Overview and Purpose This document gives a description on the operation mode that produces the highest GPRS/EDGE output power for the GX 0202. Confidentiality All data and information contained or disclosed by this document is confidential and proprietary of Option NV, and all rights therein are expressly reserved. By accepting this document, the recipient agrees that this information is held in confidence and in trust and will not be used, copied, reproduced in whole or in part, nor its contents revealed in any manner to others without prior and written permission of Option NV. Version History Date Version Author(s) Revision(s) Remarks Sep 20, 2006 V01 – D1 Thomas Gulinck Initial version Highest power operation mode, GX 0202 Author: Use r Version: V01 –D1 Creation Date: Sep 19, 2006 Page: 2 of 7 Option Confidential: This document is Option Confidential - it may not be duplicated, neither distributed externally without prior and written permission of Option NV. Table of contents 1 Introduction ............................................................................................................................................ 3 2 Calibration .............................................................................................................................................. 3 3 ReferenceS.............................................................................................................................................. 3 4 Measurements......................................................................................................................................... 4 4.1 Set-up ............................................................................................................................................... 4 4.2 Results .............................................................................................................................................. 5 4.2.1 GPRS 850 ............................................................................................................................... 5 4.2.2 GPRS 1900 ............................................................................................................................. 6 5 Conclusion.............................................................................................................................................. 7 Highest power operation mode, GX 0202 Author: Use r Version: V01 –D1 Creation Date: Sep 19, 2006 Page: 3 of 7 Option Confidential: This document is Option Confidential - it may not be duplicated, neither distributed externally without prior and written permission of Option NV. 1 INTRODUCTION The GX 0202 is a PCMCIA data card with 850/900/1800/1900 GSM/GPRS/EDGE and FDD1/FDD2/FDD5 UMTS/HDSPA. Because the device supports GPRS/EGPRS multislot class 12, 4 TX slots are possible. 2 CALIBRATION Confirming the 3GPP specs we have implemented a GPRS power reduction as followed: Maximum power for 850, GSMK and 8PSK 2 slots => 32 dBm 3 slots => 30.5 dBm 4 slots => 29 dBm Maximum power for 1800, GSMK and 8PSK 2 slots => 29 dBm 3 slots => 29 dBm 4 slots => 29 dBm 3 REFERENCES Highest power operation mode, GX 0202 Author: Use r Version: V01 –D1 Creation Date: Sep 19, 2006 Page: 4 of 7 Option Confidential: This document is Option Confidential - it may not be duplicated, neither distributed externally without prior and written permission of Option NV. 4 MEASUREMENTS 4.1 Set-up For the measurement we used a CMU200 from R&S. As we are trying to investigate the operation mode which has the highest averaged output power; the absolute results of this measurement have no meaning and should be interpreted relatively. Highest power operation mode, GX 0202 Author: Use r Version: V01 –D1 Creation Date: Sep 19, 2006 Page: 5 of 7 Option Confidential: This document is Option Confidential - it may not be duplicated, neither distributed externally without prior and written permission of Option NV. 4.2 Results 4.2.1 GPRS 850 Power (dBm) Power (mW) Lowest channel n -1 n n +1 n +2 n -1 n n +1 n +2 Total average power 1TX 32,0 1584,9 1584,9 2TX 31,8 31,7 1513,6 1479,1 2992,7 3TX 30,2 30,1 30,1 1047,1 1023,3 1023,3 3093,7 4TX 28,6 28,5 28,5 28,5724,4707,9707,9 707,92848,3 Power (dBm) Power (mW) Mid channel n -1 n n +1 n +2 n -1 n n +1 n +2 Total average power 1TX 32,0 1584,9 1584,9 2TX 31,8 31,7 1513,6 1479,1 2992,7 3TX 30,1 30,0 30,0 1023,3 1000,0 1000,0 3023,3 4TX 28,6 28,5 28,5 28,5724,4707,9707,9 707,92848,3 Power (dBm) Power (mW) Highest Channel n -1 n n +1 n +2 n -1 n n +1 n +2 Total average power 1TX 31,9 1548,8 1548,8 2TX 31,8 31,7 1513,6 1479,1 2992,7 3TX 30,0 30,0 30,0 1000,0 1000,0 1000,0 3000,0 4TX 28,5 28,5 28,5 28,5707,9707,9707,9 707,92831,8 Highest power operation mode, GX 0202 Author: Use r Version: V01 –D1 Creation Date: Sep 19, 2006 Page: 6 of 7 Option Confidential: This document is Option Confidential - it may not be duplicated, neither distributed externally without prior and written permission of Option NV. 4.2.2 GPRS 1900 Power (dBm) Power (mW) Lowest channel n -1 n n +1 n +2 n -1 n n +1 n +2 Total average power 1TX 28,7 741,3 741,3 2TX 28,6 29,4 724,4871,0 1595,4 3TX 28,4 28,4 28,3 691,8691,8676,1 2059,7 4TX 28,2 28,13 28,0 28,1660,7650,1631,0 645,7 2587,4 Power (dBm) Power (mW) Mid channel n -1 n n +1 n +2 n -1 n n +1 n +2 Total average power 1TX 28,6 724,4 724,4 2TX 28,4 28,9 691,8776,2 1468,1 3TX 28,2 28,2 28,2 660,7660,7660,7 1982,1 4TX 28,1 28,0 28,0 28,0645,7631,0631,0 631,0 2538,5 Power (dBm) P…

Text truncated - open the document above for the full version.

GT MAX 7.2 READY GLOBETROTTER GT MAX 7.2 READY MODEL: GX200 / GX202 The GlobeTrotter GT MAX '7.2 Ready' is the next generation of wireless data card designed by Option to be compatible with mobile operator infrastructure equipment capable of supporting higher data rates of up to 7.2 Mbps. The GlobeTrotter GT MAX '7.2 Ready' includes Advanced Receiver Technology (ART) bringing the benefit of Receive Diversity and Receive Equalization. Both are essential for maximizing the benefit of HSDPA 7.2. Initially supplied with HSDPA 3.6 the GlobeTrotter GT MAX '7.2 Ready' is field upgradeable when the network is configured for HSDPA 7.2. Backward compatibility ensures HSDPA connections at lower data rates of 3.6 Mbps and 1.8 Mbps. The wireless data card has inherent support for 3G operation at 384 Kbps in conjunction with Quad band EDGE and GPRS. The GT MAX '7.2 Ready' is the first Option data card to use Zero-CD patented technology. This means that it is no longer a necessity for the user to pre-install drivers, or a software application, in order to use the data card. GT MAX is a truly unique Plug ‘n Play solution: no user install, no user installed application, no driver CD. GlobeTrotter GT MAX brings world-wide broadband wireless capability to laptops and notebooks by combining triple-band HSDPA/UMTS with quad-band EDGE/GPRS technologies in it’s revolutionary PC Card package. The design of the GlobeTrotter GT MAX incorporates Option’s unique and patented “Butterfly” retractable antenna concept that frees you from the need to remove any part of your card from your notebook for transport. TRI-BAND (WORLDWIDE) | 3G 3.6MBPS (HSDPA 7.2) | PC DATA CARD Z06.101_DS_GT MAX 7.2 READY_V2.indd 126-06-2006 12:46:57 features > Worldwide coverage through triple-band HSDPA/UMTS, quad-band E-EDGE/GSM > Multimode HSDPA/UMTS/EDGE/GPRS/GSM card > Advanced Receiver Technology incorporating Receiver Diversity and Equalization > Patented Zero-CD Plug ‘n’ Play technology > HSDPA and UMTS High-speed data (up to 7.2 Mbps) connectivity for mobile users > Field upgradeable from 3.6 to 7.2 Mbps HSDPA > EDGE/GPRS/GSM data (up to 247 kbps) connectivity > Transparent handover between UMTS and GSM/E-EDGE networks > Compatible with nearly all popular notebook PCs equipped with Type II PC card slot and Microsoft Windows operating system > Transparent support for IPSec and VPN technology > PCSC-driver for EAP-SIM and other 3-party applications in need of a Smart Card Interface. > Su pport for third party applications such as Video Telephony (3GPP 3G-324M, H.324, H264 Baseline Video), SIP, SMS, IM, MMS, Internet and Email. > Comprehensively tested on infrastructures and networks worldwide. > Future proofing through Flash Memory technology hardware specifications > Card Type: Extended Type II PCMCIA compliant; 3.3V card. (32 bit Cardbus Interface). > Miniature External Antenna Connection, > Red LED for GSM/GPRS/EDGE and blue LED for HSDPA/UMTS > SIM card interface compliant with 3GPP 31.101 and 31.102 supporting 1.8 and 3V UICCs > Environmental Operating temperature: 0 to +55ºC > RoHS Compliant Gaston Geenslaan 14 | 3001 Leuven Belgium | T +32 16 317 411 | F +32 16 207 164 | www.option.com | [email protected] specifications > HSDPA/UMTS Air Interface: . WCDMA 850/1900/2100 MHz . 3GPP FDD compliant, up to 7.2 Mbps Peak Rate . UE Power Class 3 . High Speed packet-switched data: > Support for UMTS QoS traffic classes > Support for PPP, IP transparent and non-transparent modes . Circuit-switched data Single-RAB streaming: 64, 57.6, 28.8 and 14.4 kbps . Dual antenna Receiver Diversity > GX200 - EMEA variant supporting diversity on 2100 MHz > GX 202 - World variant supporting diversity on 850 and 1900 MHz . Receiver Equalisation > EDGE/GSM Air Interface: . 850/900/1800/1900 MHz . EDGE Power Class E2, GSM Power Class 1 at 1800/1900 MHz and Power Class 4 at 850/900 MHz; coding scheme UL & DL – CS 1-4, MCS 1-9 . Packet-switched data: > Multislot (E)GPRS Class 12, (E)GPRS Class B Type 1 MT > Streaming, Background and Interactive QoS Classes Supported . Circuit-switched data: 14.4, 12.2 and 9.6 kbps > Terminal Equipment Interfaces: . Drivers: Windows™ 2000 Pro, Personal and XP Pro/ Home, Vista and MAC OS X. . A PCSC compatible driver, compliant with ISO 7816 and 3GPP TS11.11 . SIM-ME interface as specified in 3GPP GSM TS11.11 and GSM 11.12 and with compliance to ISO 7816. . SIM Application toolkit capable SIM to 3GPP GSM TS11.14. . NDIS or Standard modem emulation for compatibility with terminal programs/diallers and for use with proprietary operating systems. AT Interface 3GPP TS27.005, ATD*99# and ATD*99***<CID># support . Multiple communication ports for simultaneous data call and network coverage reports approvals/certifications > All applicable regulatory approvals, Operator and Infrastructure IOT > Microsoft WHQL certified drivers As part of their continual product improvement process Option reserve the right to alter the specifications for the product detailed here. * 'GlobeTrotter GT MAX' is a registered trademarks of Option. ���������������� GLOBETROTTER GT MAX 7.2 READY MODEL: GX200 / GX202 TRI-BAND (WORLDWIDE) | 3G 3.6MBPS (HSDPA 7.2) | PC DATA CARD Z06.101_DS_GT MAX 7.2 READY_V2.indd 226-06-2006 12:47:01

* POWER CLASS GSM 900: Double click on box you wish to Tick 9 01 – 19W 02 – 7.9W 03 – 5W 04 – 2W 05 – 0.8W Band not supported * POWER CLASS GSM 1800: Double click on box you wish to Tick 9 01 – 1W Band not supported * POWER CLASS GSM 850 Double click on box you wish to Tick 9 01 – 19W 02 – 7.9W 03 – 5W 04 – 2W 05 – 0.8W Band not supported * POWER CLASS GSM 1900 Double click on box you wish to Tick 9 or give details: 01 – 1W Band not supported *POWERCLASS GSM450: Double click on box you wish to Tick 9 01 – 19W 02 – 7.9W 03 – 5W 04 – 2W 05 – 0.8W Band not supported * POWER CLASS WCDMA Mode POWER CLASS EDGE Double click on box you wish to Tick 9 or give details: 01 – 1.0W 02 – 0.5W 03 – 0.25W Band/mode not supported Class E2

DAT-P-152/98-01 SAR Report, 7layers_6620_609_FCC_850_1900_Cal Data_Option GTMax3.6 dasy_report_fcc_850_1900_cal_data_2.0.doc/08.01.2005/CH Appendix for the Report Dosimetric Assessment of the Portale Device Option Globetrotter GT Max 3.6 (FCC ID: NCMOGTMAX-V2U) According to the FCC Requirements Calibration Data September 26, 2006 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer 7layer AG Borsigstrasse 11 D-40880 Ratingen This report shall not be reproduced except in full without the written approval of the testing laboratory.

DAT-P-152/98-01 SAR Report, 7layers_6620_609_FCC_Body_Card_850_1900_WCDMA II_V_GTMax3.6 Page 1 of 47 Report Dosimetric Assessment of the Portable Device Option GT Max 3.6 (FCC ID: NCMOGTMAX-V2U) tested in three host products According to the FCC Requirements September 26, 2006 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer 7layer AG Borsigstrass 11 D-40880 Ratingen The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. Dasy_Report_FCC_Body_Card_GSM850_GSM1900_WCDMA_II_V_1.0.doc/26.09.2006/CH SAR Report, 7layers_6620_609_FCC_Body_Card_850_1900_WCDMA II_V_GTMax3.6 Page 2 of 47 Dasy_Report_FCC_Body_Card_GSM850_GSM1900_WCDMA_II_V_1.0.doc/26.09.2006/CH Executive Summary The device GT Max 3.6 is a new PCMCIA card from Option operating in the 850 MHz, 900 MHz, 1800 MHz and 1900 MHz frequency range. The device has a integrated antenna and the system concepts used are the GPRS 850 (Class 12), GPRS 900 (Class 12), GPRS 1800 (Class 12), GPRS 1900 (Class 10), WCDMA I (FDD), WCDMA II (FDD) and WCDMA V (FDD) standards. The objective of the measurements done by IMST was the dosimetric assessment of one device in body worn configuration in the GPRS 850 (Class 12), GPRS 1900 (Class 12), WCDMA II (FDD) and WCDMA V (FDD) standards. The measurements were performed in combination with three different host products (DELL Latitude C810, Toshiba Tecra T9100 and Toshiba SA50-110). The positions were tested with a closest distance of 15 mm between antenna of the PCMCIA card and phantom. The examinations have been carried out with the dosimetric assessment system „DASY4“. The measurements were made according to the Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [OET 65] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions. All measurements have been performed in accordance to the recommendations given by SPEAG. The Option GT Max 3.6 PCMCIA card (FCC ID: NCMOGTMAX-V2U) is in compliance with the Federal Communications Commission (FCC) Guidelines [OET 65] for uncontrolled exposure. The PCMCIA card was tested for the following configurations: Body Worn for GPRS 850 (Class 12), GPRS 1900 (Class 12), WCDMA II (FDD) and WCDMA V (FDD) in three different positions with a closest distance of 15 mm between PCMCIA card and phantom. It was tested with three host products (DELL Latitude C810, Toshiba Tecra T9100 and Toshiba SA50-110). Due to the used power reduction on GSM 850 in GPRS Class 12, the tests for this band was conducted with GPRS Class 11 to cover the worst case. prepared by: ........................................... reviewed by:............................................. Alexander Rahn Christoph Hennes test engineer quality assurance engineer IMST GmbH Carl-Friedrich-Gauß-Straße 2 D-47475 Kamp-Lintfort Tel. +49- 2842-981 373 Fax +49- 2842-981 399 email: [email protected] SAR Report, 7layers_6620_609_FCC_Body_Card_850_1900_WCDMA II_V_GTMax3.6 Page 3 of 47 Dasy_Report_FCC_Body_Card_GSM850_GSM1900_WCDMA_II_V_1.0.doc/26.09.2006/CH Table of Contents 1 SUBJECT OF INVESTIGATION.................................................................................................................... 4 2 THE IEEE STANDARD C95.1 AND THE FCC EXPOSURE CRITERIA................................................. 4 2.1 DISTINCTION BETWEEN EXPOSED POPULATION, DURATION OF EXPOSURE AND FREQUENCIES........... 5 2.2 DISTINCTION BETWEEN MAXIMUM PERMISSIBLE EXPOSURE AND SAR LIMITS....................................... 5 2.3 SAR LIMIT.................................................................................................................................................. 6 3 THE FCC MEASUREMENT PROCEDURE................................................................................................. 6 3.1 GENERAL REQUIREMENTS......................................................................................................................... 6 3.2 DEVICE OPERATING NEXT TO A PERSON’S EAR....................................................................................... 6 4 BODY-WORN CONFIGURATIONS............................................................................................................ 10 4.1 POC POSITION....................................................................................................................................... 10 4.2 PHANTOM REQUIREMENTS................................................................................…

Text truncated - open the document above for the full version.
