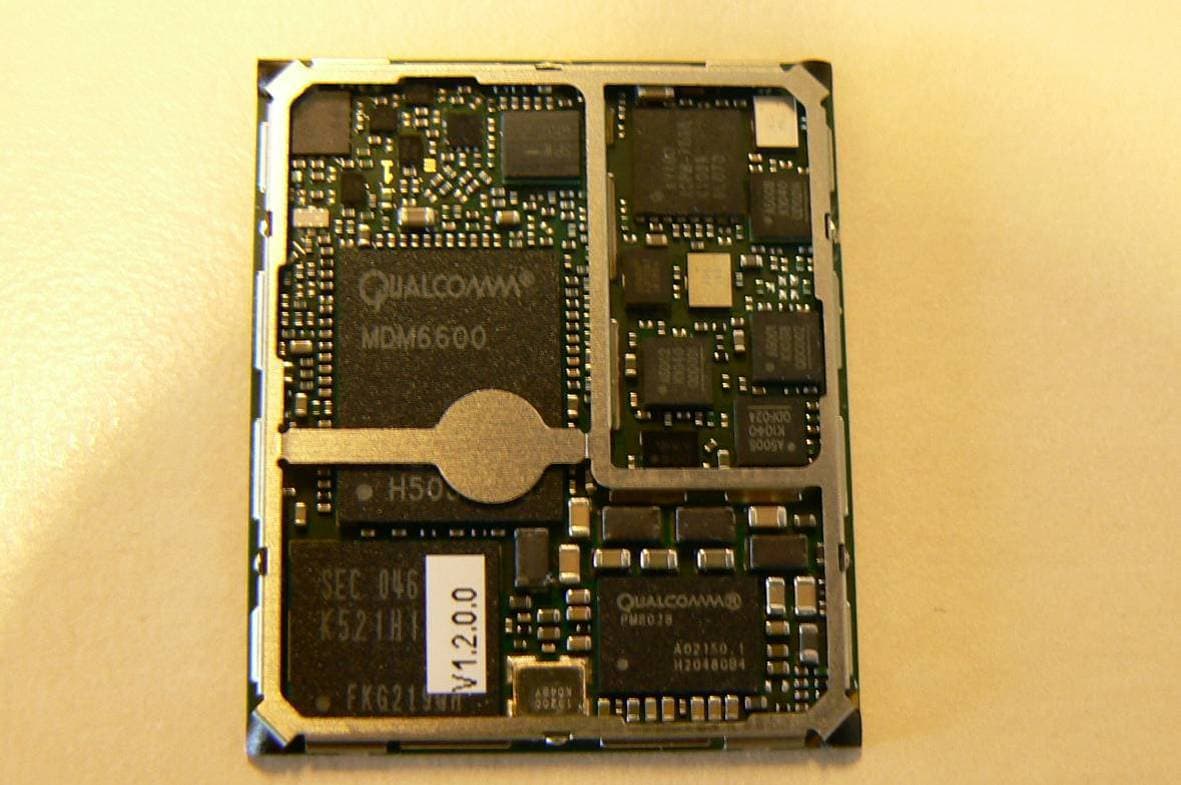

NCMOMO6092Nyos LGA CDMA Module

GTM601/609 Development Kit User Guide Ultra-thin 3G WWAN Module in LGA package GTM60x Development Kit User Guide Version: v002ext Page: 2 of 112 Option ® Copyright: This document may not be duplicated, nor distributed to third parties without prior and written permission of Option ® NV. VERSION HISTORY Date Version Author Revision Approval 03/11/2010 V001int F. Arboleda 15/11/2010 V002ext F. Arboleda P. Vandeneede S. Han Review GTM60x Development Kit User Guide Version: v002ext Page: 3 of 112 Option ® Copyright: This document may not be duplicated, nor distributed to third parties without prior and written permission of Option ® NV. OVERVIEW AND PURPOSE This document describes the GTM60x Module Development Kit hardware, software and installation instructions. This user guide is applicable for the following products: Commercial Name Product Number WIFI 2G Bands WCDMA Bands EVDO Bands GTM601W MO6012 No 800- 850/900/ 1900/2100 No GTM601E MO6011 No 900/2100 No GTM609W MO6092 No 800- 850/900/ 1900/2100 800/1900 GTM609U MO6093 No All models support 2G quad band: 850Mhz 900Mhz 1800Mhz 1900Mhz 800- 850/1900 800/1900 GTM60x Development Kit User Guide Version: v002ext Page: 4 of 112 Option ® Copyright: This document may not be duplicated, nor distributed to third parties without prior and written permission of Option ® NV. CONFIDENTIALITY All data and/or information contained in or disclosed by this document is Option ® NV confidential and proprietary and all respective rights are hereby expressly reserved. By accepting this document, the recipient formally acknowledges and agrees that this data and/or information is to be held in strict confidence and is not to be used, copied, reproduced in whole or in part, nor its contents revealed in any manner to others without prior and written permission of Option ® NV. GTM60x Development Kit User Guide Version: v002ext Page: 5 of 112 Option ® Copyright: This document may not be duplicated, nor distributed to third parties without prior and written permission of Option ® NV. CONTENTS 1 WELCOME 7 2 FEATURES 9 3 GTM60x PACKAGE CONTENT 10 4 HARDWARE INSTALLATION 11 4.1 Hardware description 11 4.1.1 Detailed description 14 4.1.1.1 Controlling Switch 14 4.1.1.2 J14, J15 and J16 15 4.2 Installation 18 5 DRIVER INSTALLATION 21 5.1 Driver installation on Windows XP 21 5.1.1 General info: Driver set 21 5.1.2 Installation procedure 22 5.1.2.1 Automatic installation 22 5.1.2.2 Manual installation 23 5.2 Driver installation on Windows Vista 29 5.2.1 General info: Driver set 29 5.2.2 Installation procedure 30 5.2.2.1 Automatic installation 31 5.2.2.2 Manual installation 33 5.3 Driver installation on Windows 7 39 5.3.1 General info: Driver set 39 5.3.2 Installation procedure 40 5.3.2.1 Automatic installation 40 5.3.2.2 Manual installation 41 6 FIRMWARE UPGRADE 48 GTM60x Development Kit User Guide Version: v002ext Page: 6 of 112 Option ® Copyright: This document may not be duplicated, nor distributed to third parties without prior and written permission of Option ® NV. 7 HOW TO SEND AT COMMANDS 51 8 GTM60x CONFIGURATION 61 8.1 Radio ON/OFF 61 8.2 RRC security 62 8.3 Preferred system 62 8.4 Access Point Name 62 8.5 SIM control 63 8.6 Registration 64 9 SETTING UP A PACKET SWITCHED DATA CALL 65 9.1 Using Modem interface (Dial-up) 65 9.1.1 On Windows XP 66 9.1.2 On Windows Vista 79 9.1.3 On Windows 7 88 9.2 Using NDIS interface 92 9.2.1 On Windows XP/Vista (Applet) 92 9.2.2 On Windows 7 (Mobile Broadband) 94 10 SET UP A GSM/UMTS VOICE CALL 98 11 GPS FEATURES 102 11.1 General 102 11.2 Set up a GPS connection 104 11.2.1 Enabling GPS positioning 105 11.2.2 Using the GPS in Google Earth 106 APPENDIX A: LIMITED WARRANTY 109 GTM60x Development Kit User Guide Version: v002ext Page: 7 of 112 Option ® Copyright: This document may not be duplicated, nor distributed to third parties without prior and written permission of Option ® NV. 1 WELCOME Figure 1: The GTM60x in LGA package This GTM60x WWAN modem is the perfect solution for embedding 2G, 3G and EVDO technology in small consumer electronics devices or broadband M2M applications. The GTM60x is capable of supporting HSDPA data rates of up to 14.4 Mbps in downlink and up to 5.76 Mbps in uplink. The higher uplink speed is particularly suitable for applications like video surveillance and file uploads. It is also backward compatible. The GTM609 is also capable of supporting EV-DO RevA data rates up to 3.1 Mbps in downlink and up to 1.8 Mbps in uplink. GTM60x Development Kit User Guide Version: v002ext Page: 8 of 112 Option ® Copyright: This document may not be duplicated, nor distributed to third parties without prior and written permission of Option ® NV. For evaluation purposes the GTM60x modules are housed on an evaluation board, offering a convenient evaluation and development platform. This document describes the Module Development Kit hardware and software installation, and basic usage instructions for Windows® XP, Vista and 7. Design specific information for the modules is outside the scope of this document and can be found in the GTM60x integration package. To make a successful connection to the internet, the following prerequisites are assumed:  GTM60x Development Kit EVB R1.  Live Network connection.  Activated (U)SIM for the available network.  Host platform with an USB host controller (e.g. laptop or PC desktop). GTM60x Development Kit User Guide Version: v002ext Page: 9 of 112 Option ® Copyright: This document may not be duplicated, nor distributed to third parties without prior and written permission of Option ® NV. 2 FEATURES Due to its ultra-thin form factor and excellent heat dissipation characteristics this is the perfect module for integration in small consumer electronics devices or broadband M2M applications. The GPS and voice capabilities give this module a unique position. The new and improved footprint facilitates soldering. The Development Kit consists of a main evaluation board (cradle) which provides a st…

Text truncated - open the document above for the full version.

Option nv - Gaston Geenslaan 14 - 3001 Leuven - Belgium - T +32 16 317 411 - F +32 16 207 164 - www.option.com - RPR Leuven 0429.375 Request for modular approval Federal Communications Commission 7345 Oakland Mills Roads Columbia, MD 21046 May 18, 2011 Dear Application Examiner, Option NV / FCC ID: NCMOMO6092 would like to have your authorization as a modular approval. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. Items to be covered Answer from applicant 1. The modular transmitter must have its own RF shielding. Yes, The EUT provides the RF shielding. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The EUT has its buffered modulation. Please see the Schematic Diagram. 3. The modular transmitter must have its own power supply regulation. The EUT has its own power supply regulation, please see the Schematic Diagram. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The EUT meets the FCC antenna requirements; unique antenna connector and photo of antenna are shown in the test report. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. The EUT was tested in a stand-alone configuration via a test kit. Please see section photographs of test configuration in the test report. 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XPYLISAU120” or “Contains FCC ID: XPYLISAU120.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. Please see exhibition label sample for the FCC ID of this module. And also in the exhibition Users manual, there are instructions give to the OEM on how to label the end product. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data The EUT is compliant with all applicable FCC rules. Details instructions for maintaining compliance are give in the User Manual.
