NEEA02IC Card Reader/Writer

EXHIBITB DRAFTFCCIDNEEA02 Operations Manual DRAFT FCCIDNEEA02 M-660,670,680A Hitachi ,Ltd. Caution & Warning Failure to do the following may result in a decrease in performance of the apparatus, trouble, breakage, deformation, discoloring, electric shock, smoke, burning, or other dangers. Do not disassemble or modify the product. Do not insert alien substances such as an iron plate, a plastic, paper. Do not insert an IC card that is out of the standard. While ACCESS LED turns on red, do not remove IC card and an AC adapter. When an abnormal smell, emission of smoke, fire or sound is found, pull up a AC outlet immediately and do not use them. The AC adapter must use exclusive use AC adapter of the attachment. Do not use this apparatus in moist or dusty environments. Do not leave this apparatus in high temperature or high humidity environments and do not exposed to direct sunlight. Do not drop the products from the desk, and do not apply a strong shock. Do not insert the IC card with oil or dust to a Reader/Writer. Do not insert IC card upside down, do not insert IC card revers direction, especially embossed card. Do not extend the cable. Please do not wipe it with benzene and thinner, alcohol. Please do not use IC card which puts the seal and the label, etc. DRAFT FCCIDNEEA02 M-660,670,680A Hitachi ,Ltd. CHANGES OR MODIFICATION NOT EXPRESSLY APPROVED BY THE MANUFACTURER FOR COMPLIANCE COULD VOID THE USER’S AUTHORITY THE OPERATE THE EQUIPMENT. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with instructions, may cause harmful interference to ratio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does not harmful interference to ratio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received ,including interference that may cause undesired operation. DRAFT FCCIDNEEA02 M-660,670,680A Hitachi ,Ltd. CONTENTS 1.Introduction 1 2.Packing List 1 3.Names 2 4.Operation 3 5.General Specifications 5 6.Outer dimensions 6 DRAFT FCCIDNEEA02 M-660,670,680A Hitachi ,Ltd. 1.Introduction 2.Packing List Smart Card Reader/Writer M-660A M-670A M-680A Operation Manual M-660A(or 670A,680A) Operations manual AC adapter Cable DRAFT FCCIDNEEA02 M-660,670,680A 2 Hitachi ,Ltd. ACCESS LED Lighting while energizing to IC card. 3. Names POWER LED Lighting while supplying the main body power supply AC adapter inlet SIM cover Screw for cover fixation DRAFT FCCIDNEEA02 M-660,670,680A 3 Hitachi ,Ltd. 4.Operation 4.1 Connection “” “” 4.2 Power on (preparation of communication) 4.3 IC card insertion 4.4 Power off DRAFT FCCIDNEEA02 M-660,670,680A 4 Hitachi ,Ltd. 4.6 LED DRAFT FCCIDNEEA02 M-660,670,680A 5 Hitachi ,Ltd. .General Specifications “””” DRAFT FCCIDNEEA02 M-660,670,680A 6 Hitachi ,Ltd. 6.Outer dimensions ©2000 Hitachi,Ltd. All rights reserved.

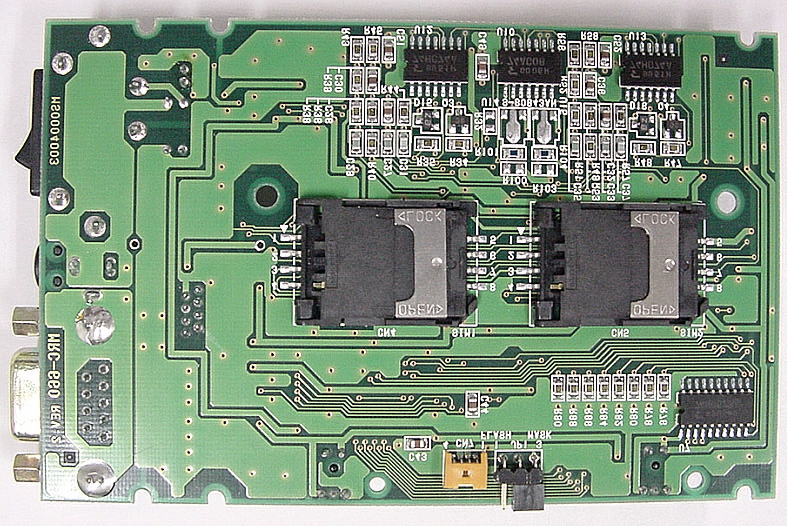

EXHIBITE Photo-1ExternalView Photo-2FrontView Photo-3TopView Photo-4RearView Photo-5SideView Photo-6BottomView Photo-7SIM Slot Cover Removed Photo-8 Bottom Cover Removed Photo-9 Top Cover & PC Board Photo-10 PC Board(Surface View) Photo-11 PC Board(Back View)

EXHIBITA FCC ID : NEEA02 Bottom Surface 37 29 Unit:mm

EXHIBITC FCC ID:NEEA02 PRODUCT SPECIFICATIONS Name: Automatic Loading Type Smart Card Reader/Writer With SIM Reader/Writer Model: M-660A,670A,680A Hitachi, Ltd. Hitachi Maxell, Ltd. FCC ID:NEEA02 - 1 - Contents page 1. Outline -------------------------------------------------------------------------------------- 2 2. General Specifications ----------------------------------------------------------------- 2 3. Composition ------------------------------------------------------------------------------ 2 4. Interface ----------------------------------------------------------------------------------- 3 5. Device Dimensions ---------------------------------------------------------------------- 4 Specifications will be changed without notice for improvement of the product. FCC ID:NEEA02 - 2 - 1. Outline This product is an automatic loading insertion/ejection smart card reader/writer(R/W) (with SIM R/W) to organize smart card system with PC. 2. General Specifications Name Automatic Loading Type Smart Card Reader/Writer with SIM R/W Model M-660M,670A,680A Card insertion/ejection Motor drive Applicable smart card Smart card conforming to ISO7816 with “T=0” and “T=1” protocol. But, use it after you confirm conformity with a smart card to use, and this product. Note: No Vpp control. And maximum value for card warp 2.0mm. Interface Serial interface (conforming RS-232C D-sub 9pin) Power supply DC12V5%, 800mA max. Durability Smart card insertion/ejection 250,000passes(number of insertion/ejection times, warranty for 6 months after supply) SIM insertion/ejection 100,000passes(number of insertion/ejection times, warranty for 6 months after supply, only,M-670A,M-680A) Outer dimensions 90mm(W) 135mm(D) 41mm(H) Weight about 260g Operating conditions 540 3085%RH (No condensation) Storage conditions -1050 3090%RH (No condensation) 3. Composition Following figure shows block diagram of R/W. PC PC I/F RS-232C Line Driver/Receiver LED MPU R/W(M-660A) X-tal (7.1MHz) Clock (7.1MHz or 3.55MHz) Smart Card I/F Smart Card Vcc Reset Clock I/O GND DC12V SIM I/F 1 SIM Vcc Reset Clock I/O GND SIM I/F 2 SIM Vcc Reset Clock I/O GND Clock (7.1MHz or 3.55MHz) Clock (7.1MHz or 3.55MHz) Except: M-660A Except: M-660A M-670A FCC ID:NEEA02 - 3 - 4. Interface 4.1 PC interface Following table shows data transmission specification between PC and R/W. Table. Data transmission specifications between PC-R/W # Item Specifications 1 Transmission method half duplex transmission method 2 Character format STDataPSP STstart bit 1 bit Datadata bit 8 bit P parity bit 1 bit SPstop bit 1 bit 3 Synchronous method Asynchronous method(RS-232C,non-procedural) 4 Transfer rate 9600bps, 19200bps 5 Error detection vertical parity(even number) horizontal parity(exclusive OR) 6 Bit detection LSB first positive logic Table. Pin assaign of RS-232C connector (D-sub 9pin) Signal direction Pin No. Pin Name R/W PC 1 2 RD 3 SD 4 5 SG 6 DR 7 RS 8 CS 9 4.2 Smart card and SIM interface Following table shows data transmission specification between R/W and smart card. Table. Data transmission specifications between R/W-Smart card and SIM # Item Specifications 1 Transmission method half duplex transmission method 2 Character format STDataPGT ST: start bit 1 bit Data: data bit 8 bit P : parity bit 1 bit GT : guard time variable 3 Synchronous method Asynchronous method 4 Transfer rate 9600bps, 19200bps 5 Error detection vertical parity LSB first: even number MSB first: odd number horizontal parity(exclusive OR) 6 Bit detection LSB first positive logic or MSB first negative logic 7 Card power supply 5V10% 8 Card supply clock 3.55MHz3%, 7.10MHz3% FCC ID:NEEA02 - 4 - 5.Device Dimensions unit: mm
