NEEDP02Digital Pen including Bluetooth transmitter

DP-201 (R4.1) Digital Pen Installation Manual Thank you for your interest in the Hitachi Maxell Digital Pen. Thorough reading of and frequent reference to this Instruction Manual will ensure you enjoy optimal performance from this state-of-the-art tool. The serial number and Bluetooth PIN code is written on a label that packed with the digital pen. At first, please paste it on the following ‘Digital Pen Data Record Column’. The information contained in this manual may be necessary when using the digital pen. Please keep this Instruction Manual in an easily accessible place. Important Information : For Your Safety Safety Precautions Do not look inside the pen through the writing point. Directly looking at the infrared light of the pen could damage your eyesight. This product is for domestic use. This digital pen has specifications for use in the EU. The software provided with this digital pen is in English. The provided warranty is valid only in the EU. Hitachi Maxell shall be free from any responsibility for after-sales service in foreign countries when the digital pen malfunctions or is faulty in those countries, or for any compensation of repair fees. Do not resell this product in any foreign country. Do not use this pen for any other purpose than writing. Be careful with oil-based ink. Oil-based ink stains on clothes may not be removable. Do not write with the pen point facing up. Holding the pen with the point up may cause the ink to leak. Use only specified refills. Do not use the pen when there is a malfunction. If the pen generates smoke or an odor, immediately stop using the pen, then remove the power supply, such as the charger. Continuing to use the pen could cause a fire or electric shock. WARNING: Never attempt to repair the pen by yourself. This is always dangerous. Do not disassemble or modify the pen in any way, or remove the cover. Disassembling or modifying the pen or the charger could cause a fire or electric shock. A high voltage device is stored inside the cover. Handle the charger with care. Observe the following when handling the charger. Failure to do so could result in the generation of heat or a fire: - Do not charge the battery near fire or under direct sunlight. - Do not use a charger other than that specified (model PS-DP1 charger). Use the charger near an AC outlet. Do not plug the charger into an AC outlet that is not easily accessible, such as behind a chest or under a desk. Be careful not to damage the charger case. If the case is damaged by dropping the charger, unplug the charger from the AC outlet. Using it as is could cause a fire or electric shock. Use the charger only in a well-ventilated, spacious area. Do not use the charger in a confined, poorly ventilated space , and do not place it too near other objects. Using the charger in a small, cramped area may cause heat to build up inside the charger case, which could damage the case and also cause a fire, burns, electric shock or malfunctions. Do not use a generally available electronic transformer. Do not connect the charger to an electronic transformer that is generally available for overseas trips. Doing so could cause a fire or electric shock. Do not use the charger for appliances other than this digital pen. The charger is for the exclusive use of this digital pen. Do not insert or remove the power plug with wet hands. Handling the plug with wet hands could cause electric shock. Do not damage the power cord. Observe the following when handling the power cord so as not to damage it: - Do not cut it with a knife. - Do not expose it to heat. - Do not twist it. - Do not pull it. - Do not forcibly bend it. - Do not modify it in any way. - Do not bundle it. - Do not cover it, such as with a rug. - Do not place any heavy object or an object with sharp corners on it. If the power cord is damaged, unplug it from the AC outlet. Using a damaged power cord could cause a fire or electric shock. Insert the power plug completely. An improperly inserted power plug might cause a defective contact, which could generate heat and result in a fire. Do not connect multiple devices to one AC outlet. Do not exceed the ratings when using the charger or connection devices. Exceeding ratings due to the connection of multiple devices could generate heat and cause a fire. Do not pull the power cord when unplugging it. Be sure to hold the plug when unplugging the power cord. Pulling the cord may damage the cord, which could cause a fire or electric shock. Do not bring the digital pen or the power cord near a heater. If used near a heater, the surface of the device or components inside will deteriorate, and could cause a fire or electric shock. Always unplug the power cord from the AC outlet when not using the digital pen for a long period. Leaving the power plug connected to the AC outlet for a long time could cause a fire. Be careful not to trip on the power cord or USB cable. If your leg is caught on the power cord or USB cable, you may fall down and injure yourself. Do not use the digital pen in an airplane. Never use the pen in an airplane because it could interfere with in-flight safety (be sure to cap the pen and turn it off before boarding a plane). Do not use the digital pen near a high-precision electronic device. Turn the digital pen off near any high-precision electronic device so as not to interfere with it. Examples of devices the pen could affect include. Pacemakers, hearing aids or other electronic medical devices, fire alarms, and automatic doors. If you are using an electronic medical device, consult the manufacturer or dealer for information on the effects of radio waves on such a device. Be careful of itching, rash and eczema. This pen might cause itching, rash or eczema. If this happens, stop using the pen immediately and consult a physician. Note on handling refills. Do not reuse damaged refills as this could cause ink leakage. When replacing refills, take special care not to damage the tip of the pen. Do …

Text truncated - open the document above for the full version.

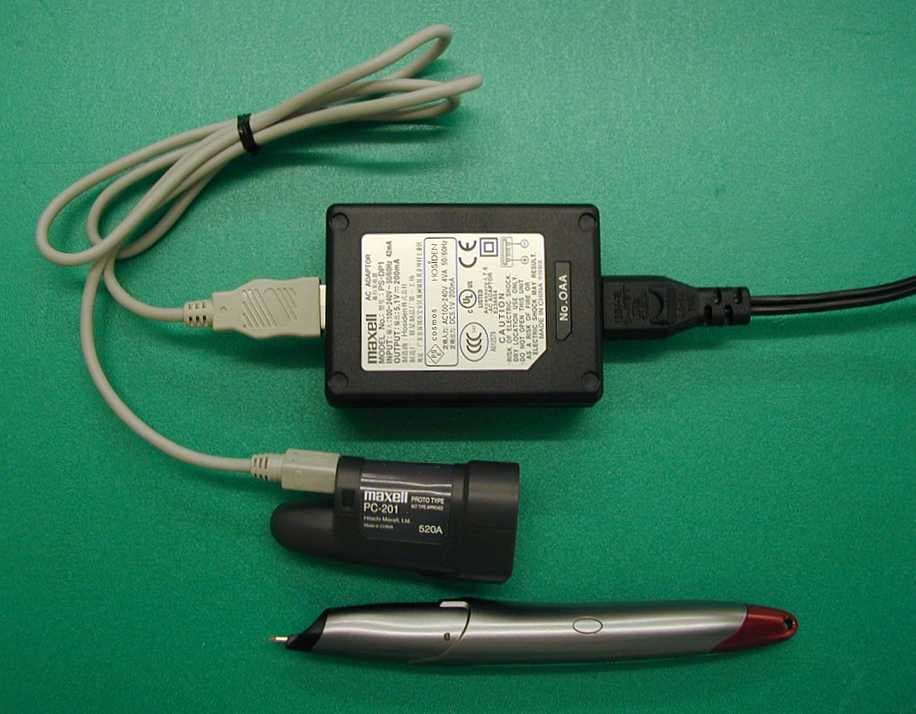

Product externals’ photograph Label Accessories of digital pen AC Inlet code USB Cable Pen Cradle AC Adaptor Digital-pen (DUT) Pen Cradle AC Adaptor

Scale : 5 / 1 Scale : 1 / 1 Label Drawing ( a design for “FCC” ) Label

Shell Main PCB X’tal-12MHz ( FA-248: EPSON ) X’tal-12MHz ( FA-248: EPSON ) Flash Memory ( TV00550005ADGB: TOSHIBA ) Power Management LSI ( LPV3932: National semiconductor ) RF LSI ( SiW3500: RFMD ) MPU ( Argus Lt: Anoto ) Main PCB ( Front side ) Antenna’s lead Main PCB ( Back side ) Antenna is vertically soldered with PCB. Invert-F Antenna Inside of product and parts placement

Test report No. : 26HE0100-HO-C-1 Page : 2 of 15 Issued date : April 17, 2006 Revised date : May 18, 2006 CONTENTS PAGE SECTION 1: Client information.............................................................................................3 SECTION 2: Equipment under test (E.U.T.)........................................................................3 SECTION 3: Test specification, procedures & results.........................................................4 SECTION 4: Operation of E.U.T. during testing..................................................................6 SECTION 5: Conducted Emission.........................................................................................8 SECTION 6: Radiated Emission............................................................................................9 APPENDIX 1: Photographs of test setup.............................................................................10 Conducted Emission....................................................................................................................10 Radiated Emission.......................................................................................................................11 APPENDIX 2: Test instruments...........................................................................................12 APPENDIX 3: Data of EMI test...........................................................................................13 Conducted Emission....................................................................................................................13 Radiated Emission.......................................................................................................................14 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(19.04.06) Test report No. : 26HE0100-HO-C-1 Page : 3 of 15 Issued date : April 17, 2006 Revised date : May 18, 2006 SECTION 1: Client information Company Name : Hitachi Maxell, Ltd. Address : 6139-1 Ohnogo, Mitsukaido-shi, Ibaraki 300-2595 Japan Telephone Number : +81-297-24-1203 Facsimile Number : +81-297-24-1701 Contact Person : Shigeru Sakairi SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Digital Pen Model No. : DP-201 Serial No. : AJX-AAB-H2Z-AE Rating : DC3.7V (Lithium Ion Rechargeable Battery), DC5.0V, 0.15A (EUT with Cradle for Charging mode) Country of Manufacture : China Receipt Date of Sample : March 16, 2006 Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab 2.2 Product Description Details Clock frequency MPU: 16MHz, BT LSI: 16MHz, RTC: 32.768kHz Feature of EUT Digital Pen, model: DP-201 can convert analog information such as hard-written letters and drawings on a special sheet of paper, on which invisible dot pattern are printed, into digital information, and can store such digital information into its embedded memory. The digital pen can interface with PC and other computer devices, and transmit the stored digital information through Bluetooth and USB. Equipment Type Transceiver Frequency of Operation 2402-2480MHz Bandwidth & Channel spacing 79MHz & 1MHz Type of Modulation FHSS Antenna Type Inverted-F Antenna Connector Type Soldering Antenna Gain 0.69 dBi max ITU code F1D Power Supply DC 3.5-4.2V Operating temperature 0 to 40 deg. UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(19.04.06) Test report No. : 26HE0100-HO-C-1 Page : 4 of 15 Issued date : April 17, 2006 Revised date : May 18, 2006 SECTION 3: Test specification, procedures & results 3.1 Test specification Test Specification : FCC Part 15 Subpart B 2006 Title : FCC 47CFR Part15 Radio Frequency Device Subpart B Unintentional Radiators 3.2 Procedures and results Item Test Procedure Limits Deviation Worst margin *0) Result Conducted emission ANSI C63.4: 2003 7. AC powerline conducted emission measurements Class B N/A 16.7dB 0.15590MHz, QP, N Complied Radiated emission ANSI C63.4: 2003 8. Radiated emission measurements Class B N/A 0.3dB 479.968MHz, QP, Horizontal Complied *Note: UL Apex’s EMI Work Procedure QPM05. *0) The result is rounded off to the second decimal place. Therefore, there may be 0.1 difference for the result. 3.3 Uncertainty Conducted Emission The measurement uncertainty (with a 95% confidence level) for this test was ±2.6dB. The data listed in this test report has enough margin, more than the site margin. Radiated Emission The measurement uncertainty (with a 95% confidence level) for this test using Biconical antenna is ±4.59dB(3m). The measurement uncertainty (with a 95% confidence level) for this test using Logperiodic antenna is ±4.62dB(3m). The measurement uncertainty (with a 95% confidence level) for this test using Horn antenna is ±5.27dB. The data listed in this report meets the limits unless the uncertainty is taken into consideration. UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(19.04.06) Test report No. : 26HE0100-HO-C-1 Page : 5 of 15 Issued date : April 17, 2006 Revised date : May 18, 2006 3.4 Test Location UL Apex Co., Ltd. Head Office EMC Lab. *NVLAP Lab. code: 200572-0 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 FCC Registration Number IC Registration Number Width x Depth x Height (m) Size of reference ground plane (m) / horizontal conducting plane Other rooms No.1 semi-anechoic chamber 313583 IC4247A 19.2 x 11.2 x 7.7m 7.0 x 6.0m Preparation room No.2 semi-anechoic chamber 846015 IC4247A-2 7.5 x 5.8 x 5.2m 4.0 x 4.0m - No.3 measurement room - - 4.0 x 6.0 x 2.7m N/A - No.4 measurement room - - 4.0 x 6.0 x 2.7m …

Text truncated - open the document above for the full version.

Test report No. : 26HE0100-HO-A-1 Page : 11 of 37 Issued date : April 17, 2006 Revised date : May 18, 2006 FCC ID : NEEDP02 APPENDIX 1: Photographs of test setup Spurious Emission (Radiated) Front Rear UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(19.04.06) Test report No. : 26HE0100-HO-A-1 Page : 12 of 37 Issued date : April 17, 2006 Revised date : May 18, 2006 FCC ID : NEEDP02 Worst Case Position (Horizontal: Z-axis/ Vertical:Y-axis) X-axis Y-axis Z-axis UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(19.04.06)

Test report No. : 26HE0100-HO-C-1 Page : 10 of 15 Issued date : April 17, 2006 Revised date : May 18, 2006 APPENDIX 1: Photographs of test setup Conducted Emission Top Side UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(19.04.06) Test report No. : 26HE0100-HO-C-1 Page : 11 of 15 Issued date : April 17, 2006 Revised date : May 18, 2006 Radiated Emission Front Rear UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(19.04.06)
