NEEDP01Digital Pen With Bluetooth

Hitachi Maxell, Ltd. 6139-1, Ohnogo, Mitsukaido-shi, Ibaraki, 300-2595 JAPAN Tel: +81-297-24-1203 Fax: +81-297-24-1701 Declaration of Equivalence (DoE) We hereby declare that the function of Hitachi Maxell Digital Pen model number DP-101U is identical to that of model number DP-101B except that the latter has the Bluetooth interface. Product Specification Model DP-101B DP-101U Dimensions (nominal) 152 x 25 x 20 [mm] (cap-on) 148 x 21 x 18 [mm] (cap-off) 152 x 25 x 20 [mm] (cap-on) 148 x 21 x 18 [mm] (cap-off) Weight (nominal) 38g 38g PC Interface Bluetooth, USB USB Operating voltage 3.7V (run on an internal Battery) (Operating voltage span: 3.5V to 4.2V) 3.7V (run on an internal Battery) (Operating voltage span: 3.5V to 4.2V) Possible writeing period 2 hour after fully charged 2 hour after fully charged Battery workable period 10 hours (cap-off) 2 months (cap-on) 10 hours (cap-off) 2 months (cap-on) Charging time Average 2.5 hours Average 2.5 hours Environmental Condition for use 0 to 40 degree C , 10 to 85%RH (No dew formation) 0 to 40 degree C , 10 to 85%RH (No dew formation) Environmental Condition for storage -20 to 45 degree C , 10 to 90%RH (No dew formation) -20 to 45 degree C , 10 to 90%RH (No dew formation) Declarer: Shigeru Sakairi Engineer Digital Pen Design Dept. Mobile Device Div. Hitachi Maxell, Ltd. Signature: ...................................................................................... Place : Mistukaido-shi, Ibaraki, Japan ....................................................................................... Date: January 14, 2004 ......................................................................................

External Photographs - Side1 View Cap-on - - Side1 View Cap-off - - Side2 View Cap-on - - Side2 View Cap-off - - Side3 View Cap-on - - Side3 View Cap-off - - Side4 View Cap-on - - Side4 View Cap-off - - Top View Cap-on - - Top View Cap-off - - Bottom View Cap-on -

- Label Design - - Label Location -

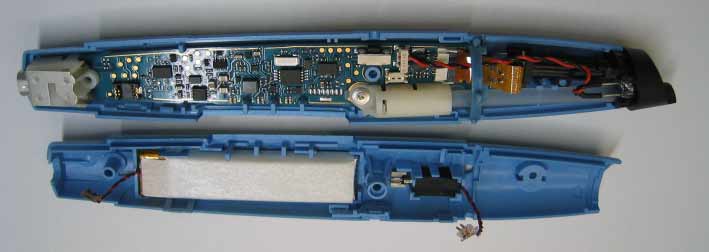

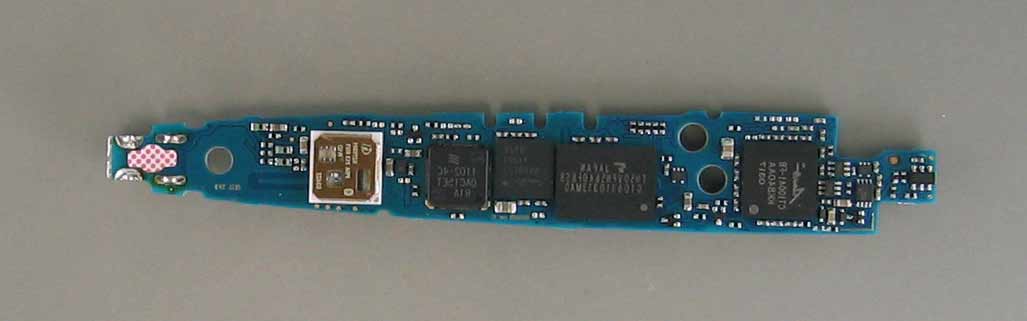

- Internal Photo 1 - - Internal Photo 2 - - Internal Photo 3 - - Internal Photo 4 (Bluetooth Module) -

EMC TEST REPORT for Hitachi Maxell, Ltd. 6139-1 Ohnogo, Mitsukaido-shi, Ibaraki-ken, 300-2595 Japan Equipment Under Test: Digital Pen Model Name : DP-101U Category: FCC Part 15 Sub.part B Class B Digital Device Tokin Report No.: TAE036054 Date of Issue: June 27, 2003 Approved by Mickey Fukuda Manager, Tsukuba Testing Lab. Tokin EMC Engineering Co., Ltd. -- ATTENTION -- The test results in this report relate only to the following EUTs, and this report shall not be reproduced except in full, without the written approval of the laboratory. This test report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. NVLAP Lab. Code: 200221-0 FCC 15B Class B TAE036054 Contents Page 1 DESCRIPTION OF DEVICE ...................................................................... 1 2 TEST FACILITY .............................................................................................. 2 3 SUMMARY OF RESULTS 3.1 Electromagnetic Emission ......................................................................... 2 3.2 Modification to The EUT............................................................................ 2 4 TESTED SYSTEM DETAILS 4.1 Peripherals and Others .............................................................................. 3 4.2 Type of Used Cables ................................................................................. 3 ∼ 4 Figure 4-1 System Configuration Diagram....................................................... 4 5 TECHNICAL COUNTERMEASURE ................................................................ 4 6 TEST RESULTS 6.1 RFI Voltage Measurement 6.1.1 Measurement Instrumentation Used .................................................... 5 6.1.2 Measurement Procedure....................................................................... 5 6.1.3 Deviation from the specification .......................................................... 5 6.1.4 Measurement Uncertainty .................................................................... 5 6.1.5 Test Data .............................................................................................. 6 ∼ 11 6.2 RFI Field Strength Measurement 6.2.1 Measurement Instrumentation Used .................................................... 12 6.2.2 Measurement Procedure....................................................................... 13 6.2.3 Deviation from the specification .......................................................... 13 6.2.4 Measurement Uncertainty .................................................................... 13 6.2.5 Test Data .............................................................................................. 14 ∼ 17 6.3 Minimum Margin ........................................................................................ 18 6.4 Sample Calculation ..................................................................................... 18 7 MEASUREMENT PHOTOS Photo 7.1 Setup with the Maximized RFI Voltage Emission Level................. 19 ∼ 20 Photo 7.2 Setup with the Maximized RFI Field Strength Emission Level ...... 21 ∼ 23 Page 1 of 23 FCC 15B Class B TAE036054 Report processed by Tested by Hisako Okada Kazunori Maeshima, Engineer 27/Jun./2003 1 DESCRIPTION OF DEVICE A) Kind of Equipment : Digital Pen B) FCC ID : None C) Model Name : DP-101U D) Serial No. : None E) Type of Sample Tested : Pre-production F) High Frequency Used : 32.768kHz ( Real Time Clock ) 12MHz (USB Clock) 12MHz (Micom Clock) G) Rating Power Supply : DC 3.7V, 180mAh H) Tested Power Supply : 1phase AC120V, 60Hz I) Date of Manufacture : April 2003 J) Manufacturer : Hitachi Maxell, Ltd. 6139-1 Ohnogo, Mitsukaido-shi, Ibaraki-ken, 300-2595 Japan K) Options : Description Type of shield Model Name Length Manufacturer USB Cable --- C17-004-5027F 1.5m MITSUMI ELECTRIC CO., LTD. AC Adapter --- PS-DP1 --- HOSIDEN CORPORATION AC Cable --- C1-0426AAK 1.8m TESCOM CO., LTD. L) Description of Operating : Communication mode Battery Charge mode M) Date of Sample Received : June 3, 2003 N) Test Engineer : Kazunori Maeshima Page 2 of 23 FCC 15B Class B TAE036054 Report processed by Tested by Hisako Okada Kazunori Maeshima, Engineer 27/Jun./2003 2 TEST FACILITY The semi anechoic chamber and conducted measurement facility are used for these testing, where are located following address. This chamber was fully described in a report dated Dec.24,1999, that was submitted to the FCC. And we had accepted in a letter dated Feb.7,2000 (31040/SIT). This laboratory is accredited by NVLAP for NVLAP Lab. Code : 200221-0. Tokin EMC Engineering Co., Ltd. Tsukuba Testing Laboratory, Semi Anechoic Chamber and Shielded Room No.2 Address ; 28-1, Kitahara-aza, Hanashimashinden-ohaza, Tsukuba-city, Ibaraki 305-0875, Japan 3 SUMMARY OF RESULTS 3.1 Electromagnetic Emission RFI Voltage Measurement ..........................PASS RFI Field Strength Measurement ................PASS Although the measured emissions indicate that the EUT complies with the required limits, some measurements are close to these limits. When the uncertainty of measurement is considered, there is some possibility that the EUT may not be compliant. Test results are traceable to JQA and NML/CISRO. 3.2 Modifications to The EUT : None Page 3 of 23 FCC 15B Class B TAE036054 Report processed by Tested by Hisako Okada Kazunori Maeshima, Engineer 27/Jun./2003 4 TESTED SYSTEM DETAILS 4.1 Peripherals and Others : < Communication mode > Description Model Name Serial No. Manufacturer FCC ID Personal Computer DHM FKBY21X Dell DoC Monitor 570STFT CN15LSSN/XSJ Samsung DoC Monitor AC Adapter PSCV360104A C010801969 Samsung None PS/2 Keyboard SK-8100 CN-08C668-38844-1 90-J393 Dell DoC PS/2 Mouse IntelliMouse 1.3A None Microsoft DoC Modem 1414 9068680 ACEEX IFAXDM1414 Modem AC Adapter AA121 None OEM None Printer BJC-50V None Canon DoC Printer AC Adapter AD-360U 00028246 Canon None < Battery Charge mode > Description Model Name Serial No. Manufacturer F…

Text truncated - open the document above for the full version.

Page 19 of 23 FCC 15B Class B TAE036054 7 MEASUREMENT PHOTOS Photo 7.1a Setup with the Maximized RFI Voltage Emission Level < Communication mode > Page 20 of 23 FCC 15B Class B TAE036054 Photo 7.1b Setup with the Maximized RFI Voltage Emission Level < Battery Charge mode > Page 21 of 23 FCC 15B Class B TAE036054 Photo 7.2a Setup with the Maximized RFI Field Strength Emission Level < Communication mode > Page 22 of 23 FCC 15B Class B TAE036054 Photo 7.2b Setup with the Maximized RFI Field Strength Emission Level < Communication mode > Page 23 of 23 FCC 15B Class B TAE036054 Photo 7.2c Setup with the Maximized RFI Field Strength Emission Level < Battery Charge mode >
