NJQCA042.4GHz ANT+ Wireless Bike Computer

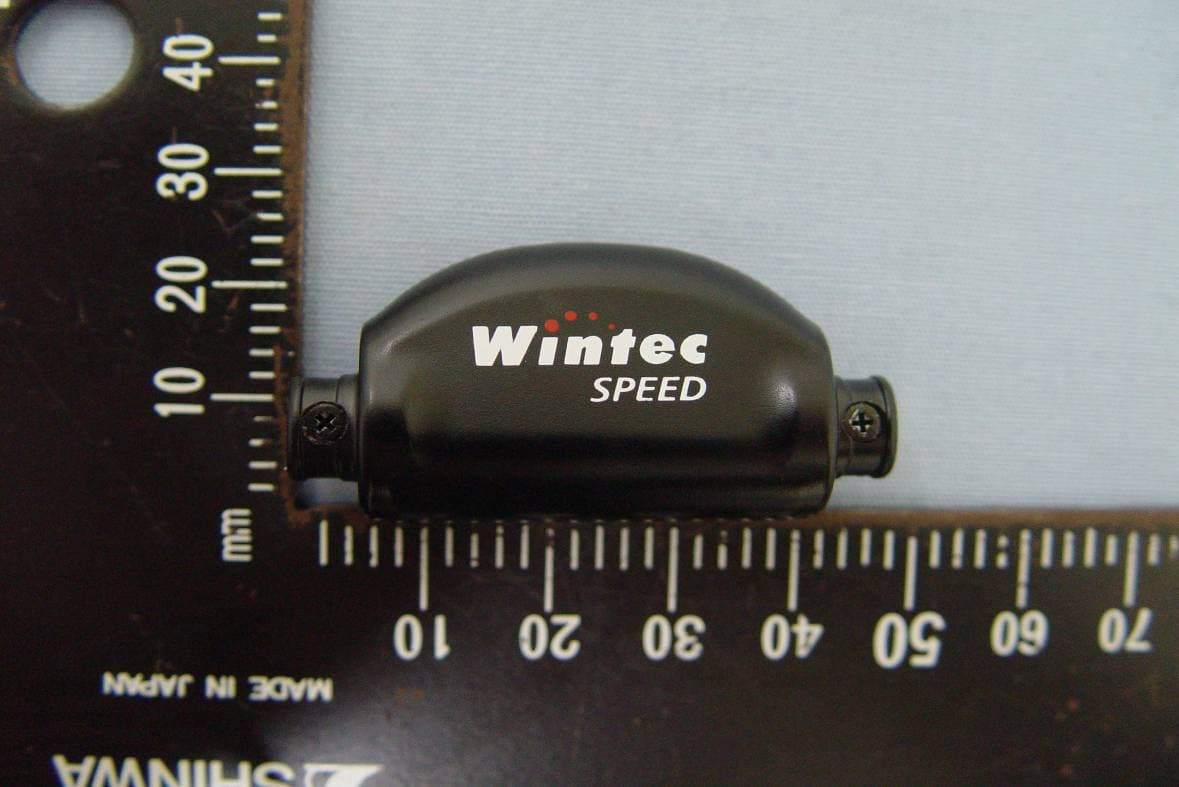

2.4GHz ANT+ Wireless Bike Computer Instruction Manual PK CA02-2 VER.2 Installing on Magnet of Speed Sensor Display the time in 12-hours or 24-hours clock.CLOCKMeasure the time on riding from the reset on measured value since last time. (00:00~99:99)MOVE TIMEMeasure average speed calculated from the total distance divided with time on riding. (0~9999.9)AVG . SPEEDMeasure the fastest speed from the reset on measured value since last time. (0~9999.9)MAX SPEEDMeasure the highest altitude from the latest reset on measured value. (0~19999)Max. AltitudeMeasure the grand total of ascent altitude from the latest reset on measured value. (0~19999)Total AltitudeIndication on the present value of grade. Grade is calculated by the variation on the distance and height because the calculation based on the barometer will result in discrepancy and be slightly inaccurate.GRADE% Measure the distance on riding from the reset on measured value since last time.(0~9999.99)DISTANCE When resetting the odometer, the data won’t return to zero, you need to change the value of it in the setting mode.(0~9999.99)ODOMETERthe unit will scroll and change to next information page automatically per 5 minutes.Auto ScrollTo indicate the present degree on temperature. (0~199)Temperature Clock setting Setting on Tire Size KMH/ MPH setting Speed Sensor Pairing A or B bike Odometer setting Rubber holder Magnet Strap Bracket Speed sensor Rubber holder for speed sensor A. B. Lower Line information Middle Line information WBC 301 straps in normal size thin straps CR2032 + CR1632 + Setting Mode Press and hold the setting button on the back for 3 second s to enter the clock setting mode. Return to the information page, press and hold the button for 3 seconds again. Function keys: Select time in 12-hours or 24-hours clock or set the time in lower line.Backlight/Switch keys: To shift the selected parts between 12-hours or 24-hours clock or time setting.Setting Button: Store the setting value and go to the next selection for clock or time setting. Clock Setting Function keys: Select the indication on KMH or MPH unit.Setting Button: Store the setting value and go to the next selection for tire size setting. KMH / MPH Setting Function keys: Select the bike A or B.Setting Button: Store the setting value and go to the next selection for tire size setting. A or B bike Function keys: Change the numbers of length.Backlight/Switch keys: Shift the selected parts on numbers.Setting Button: Store the setting value and go to the next selection for Odometer setting. Setting on Tire Size Function keys: Change the numbers of odometer.Backlight/Switch keys: Shift the selected parts on numbers.Setting Button: Store the setting value and go to the next selection for odometer setting. Odometer Setting Function keys: perform the pairing on speed sensor and return to the information page.Setting Button: go to the clock setting page. Speed Sensor Pairing Spin the wheel and choose one piece of the spoke or let the valve stem vertically straight to the ground to be A point marked on the surface of ground.Then spin the wheel in one circle and when the same piece of spoke or the valve stem reach to the ground again, mark the position of it as B point on the ground.Measure the distance between point A and B (mm) to acquire the wheel size for setting. Wheel Size (Reference Chart) Press the button to switch and look through the cycling informa tion on information page. In the setting mode, press the button to change numbers or meas urement units. When entering the altitude adjustment, press the button to swit ch among three types of adjustment or the numbers. Function keys Overview Backlight / Switch keysSetting Button Tire Size L (mm) Tire Size L (mm) Tire Size L (mm) 27 x 1-1/427 x 1-3/8650 x 35A650 x 38A650 x 38B700 x 18C700 x 19C700 x 20C700 x 23C700 x 25C700 x 28C700 x 30C700 x 32C700C Tubular700 x 35C700 x 38C700 x 40C 2161 2169 2090 2125 2105 2070 2080 2086 2096 2105 2136 2170 2155 2130 2168 2180 2200 12 x 1.7514 x 1.514 x 1.7516 x 1.516 x 1.7518 x 1.518 x 1.7520 x 1.7520 x 1-3/822 x 1-3/822 x 1-1/224 x 124 x 3/4 Tubular24 x 1-1/824 x 1-1/424 x 1.7524 x 2.0024 x 2.125 935 1020 1055 118 5 119 5 1340 1350 1515 1615 1770 1785 1753 1785 1795 1905 1890 1925 1965 26 x 7/826 x 1(59)26 x 1(65)26 x 1.2526 x 1-1/826 x 1-3/826 x 1-1/226 x 1.4026 x 1.5026 x 1.7526 x 1.9526 x 2.0026 x 2.1026 x 2.12526 x 2.3526 x 3.0027 x 127 x 1-1/8 1920 1913 1952 1953 1970 2068 2100 2005 2010 2023 20502055 2068 2070 2083 2170 2145 2155 A B 1.2.3. Please remove any dirty or oily things on the spoke to make sur e no slipperiness before installing magnet.Release the safety hook on the magnet.Be sure to clip it on the spoke tightly into the most inner sid e of gap on the central of two-sided magnet． Lock the safety hook back on magnet in order to avoid it being thrown off in cycling. 1.2.3.4. Installing on the Speed Sensor Assemble the rubber desk with sensor.Please parallel detection zone on the sensor to the central sur face on magnet. Measure the appropriate length of rubber desk when tie it up on the frame of bike with the straps and cut the additional parts off. 1.2.3. ‧‧‧ On the information page, press the button can enable the backli ght, and the backlight stays on 5 seconds before turning off.In the setting mode, press the button to shift the selected par ts on numbers or units.When entering the altitude adjustment, press the button to shif t the selected parts on the screen. ‧‧‧ In the information status, press and hold the setting button on the back for 3 seconds to enter the setting mode.In the setting mode, press the button shortly to scroll over th e setting functions. In the setting mode, press and hold the setting button on 3 sec onds again to return to the information page. ‧‧‧ Note: To measure accurate tire size, please refer to the following ways per instructions. Enter / Return to the information page, press and hold the button for 3 seconds. Bike Info The “up” arrow on t…
