NJQLG2-0127 MHz 2/3 CH RF Handset Transmitter and Receiver

LG2-01 Manual Table of Contents 1. Warnings 2. Introduction 3. Product Features 4. Specifications 5. Package of Contents 6. System Connections 7. Transmitter Battery Installation 8. Transmitter Operations 9. Accessory 10. Reference 15.105 Federal Communications Commission (FCC) Requirements, Part 15 This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ---Reorient or relocate the receiving antenna. ---Increase the separation between the equipment and receiver. ---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ---Consult the dealer or an experienced radio/TV technician for help. 15.21 Regulatory information / Disclaimers The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.19(a)(3) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 1. Warnings - Before you using your system, please check the power of transmitter and receiver. - When you use the Ni-Cad batteries to power your system, DO NOT connect the power adapter when you are operating the transmitter. To prevent accidents, overheating and short circuits. - Please turn on the transmitter first and then the receiver, to prevent the loss of control. - To prevent operate the system outdoor on rainy days, the system are not designed for waterproof. - Please extend the antenna to the full length when operating the transmitter. - Please check the near area that there is no two or more models using the same frequency at the same time. 2. Introduction LG2-01 is a pistol grip FM radio system, it allows user to select 2 or 3 channel operation mode. In 2 channel mode, it provides the D/R adjustment and D/R override. Most pistol grip radio system only support the 2 channel for steering and throttle, but LG2-01 offers the 3rd channel to control the extra function in 3 channel mode, like the gear change. The LG2-01 is the best choice for the R/C cars and boats, especially for 3 channel control requirement models. 3. Product Features - Eagle shape, full of speedy feeling, catch the other people eyes. - 2 /3 Channel switching function, meet the varied requirements for the models. - Dual rate for steering - Dual rate override for steering (2 channel mode) - Steering and throttle servo reversing - Extra 3 rd channel control (3 channel mode) - Steering and throttle sub trim - Exchangeable steering wheels, bundle extra small size wheel for racing - 3 LED indicator to show the power status - Removable crystal design for frequency channel change - Build in the DC jack and default bundling charger for rechargeable batteries - 7:3 travel length for throttle and brake - BEC system with receiver for varied batteries voltage - Receiver supports the E.S.C. (Electronic Speed Control) 4. Specification A. Transmitter - Modulation type: FM(FSK) - Power requirement: 12V (AAx8) - Current drain: 140mA - Coding type: PPM - Frequency: 27MHz - RF power: 200uW B. Receiver - Modulation type: FM(FSK) - Power requirement: 6V (AAx4) or BEC - Weight: 19.5 g. - Dimension: 45.5 x 30.5 x 22.5mm - Current drain: 20mA except servo C. Servo - Power requirement: 4.8~6V - Current drain: 8mA (at 6V/ Idle ) - Speed: 0.23sec/60ﾟ - Torque: 3.2Kg-cm - Weight: 37.2 g - Size: 40.4 x 19.8 x 36mm 5. Package of Contents A. LG2-01 transmitter with antenna B. RX-02 receiver C. Servo x 2 D. External power switch E. Dry battery holder F. Neck strap G. Charger H. Sticker I. Manual J. Steering wheel (big size) 6. System Connections Receiver and servo connections Non-electric Model - When you install the system in an non-electric model (or mechanical type speed control), you should use the battery holder to supply the power for receiver E.S.C. Installation Model Connection Precautions A. Installation Note - After you installed the system, please check the receiver, servo, and battery connections, make sure all the connections are fully inserted. - The package contains the rubber bungs, if the slot is not in using, it can be plugged with the bung to prevent the water splashing. - To protect absolutely the system from water or oil damage, you can place it in a plastic bag or waterproof box. - Please remember this; always turn your transmitter on first and off last. Failure to do so may result in loss of control and can damage your servos and/or linkage. B. Receiver Note - Keep the receiver away from motor or engine when attaching to the chassis of car or boat. - Keep the receiver away from the power wires to prevent the interference. - Refer you model instructions, run the antenna up the antenna tube to gain the best receiving effect. - DO NOT cut off the excess antenna wire, or it will shorten the operation range. - The receiver includes a BEC (Battery Eliminator Circuit) system, which eliminates the need for an extra receiver battery when used with a mechanical or electronic speed control. The battery power…

Text truncated - open the document above for the full version.

From: [email protected] Sent: Monday, January 12, 2004 10:47 PM To: Steve Cheng Cc: Mike Kuo Subject: ??: RE: Re: AN04T3572 Wintecronics NJQLG2-01 Dear Steve, Please find our report revised per your comment. And thank you for your reminder. Thank you!! BR, Eric (See attached file: (LG2-01) B30919204-RP_0113.pdf) Steve Cheng <[email protected] ¦¬¥ó¤H¡G "'[email protected]'" <[email protected]> m> °Æ¥»§Û°e¡G Mike Kuo <[email protected]> ¥D¦®¡G RE: Re: AN04T3572 Wintecronics NJQLG2-01 2004/01/13 11:42 AM Hi Eric, Please confirm if loop antenna had been used on 27.15M fundamental signal measurement. Thanks. Steve -----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Saturday, January 10, 2004 12:45 AM To: Steve Cheng Cc: Mike Kuo Subject: ??: Re: AN04T3572 Wintecronics NJQLG2-01 Dear Steve, Please find my reply below in BLUE. Thank you!! BR, Eric (See attached file: (LG2-01) UserManual_Revised 0110.pdf)(See attached file: (LG2-01) TestRpt_Revised 0110.pdf) Steve Cheng <[email protected] ¦¬¥ó¤H¡G "Eric (E-mail)" <[email protected]> m> °Æ¥»§Û°e¡G Mike Kuo <[email protected]> ¥D¦®¡G Re: AN04T3572 Wintecronics NJQLG2-01 2004/01/09 07:54 AM RT for project: AN04T3572 Wintecronics NJQLG2-01 Subject: Question #1: Warning language has only 15.19 labeling requirement text. Please modify the users manual to include the required information to user per 15.21 and 15.105. (Answer #1: Please see Answer #2) Question #2: Users manual page 4, documented that this device used 27M, 40M and 75M as carrier frequency. However, only 27M carrier has been tested. Please explain which rule parts are intended to be used for 40M and 75M certification? (Answer #1 & 2: I have asked for the revision on the user manual, the one reivsed per your comment is attached this time. Based on our client marketing plan, there will be a number of frequency to be used as the carrier but they will only certify the one with 27MHz only. Please review.) 4. Specification A. Transmitter - Modulation type: FM(FSK) - Power requirement: 12V (AAx8) - Current drain: 140mA - Coding type: PPM - Frequency: 27, 40, 75 MHz - RF power: 0.7W For your info: 1) Test report p11, section 7.1 20dB bandwidth measurement is not required and calculation is wrong. (Answer: I have cancelled the 20dB bandwidth part out on our report and the revised on is attached. Please be advised.) 2) Users manual p4 weight is not specified. As below B. Receiver - Weight: xx g. (Answer: I have checked this and the weight I can see from my side is 19.5g, please be advised.) The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Best Regards Steve Cheng / TCB Technical Reviewer Compliance Certification Services 561F Monterey Road Morgan Hill, CA 95037 Tel:(408) 463-0885 x: 119 Fax:(408) 463-0888 [email protected] http:\\www.ccsemc.com

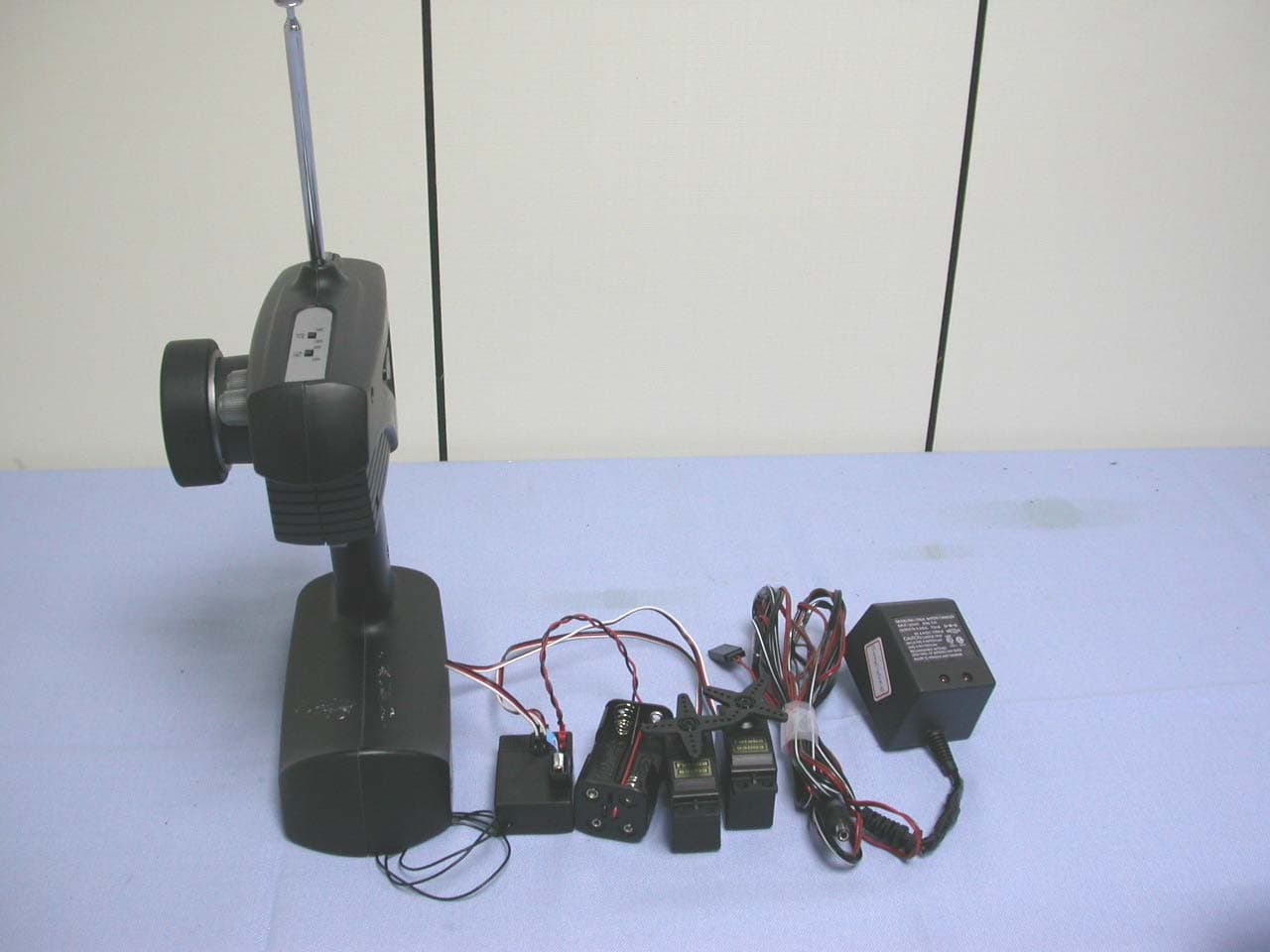

Compliance Certification Services Inc. Report No: B30919204 Date of Issue: October 22, 2003 Page 1 of 6 EXTERNAL PHOTOGRPHS OF EUT

Compliance Certification Services Inc. Report No: B30919204 Date of Issue: October 22, 2003 Page 2 INTERNAL PHOTOGRPHS OF EUT Compliance Certification Services Inc. Report No: B30919204 Date of Issue: October 22, 2003 Page 3 Compliance Certification Services Inc. Report No: B30919204 Date of Issue: October 22, 2003 Page 4 Compliance Certification Services Inc. Report No: B30919204 Date of Issue: October 22, 2003 Page 5

Compliance Certification Services Inc. Report No: B30919204-RP FCC ID: NJQLG2-01 Date of Issue: October 22, 2003 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 of 25 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Wintecronics Co., Ltd. 27 MHz 2/3 CH RF Handset Transmitter & 27 MHz 2/3 CH RF Receiver Model: LG2-01 Tr a d e Na me : Win t ec Prepared for Wintecronics Co., Ltd. No. 716, 11F-3, Jung Jeng Rd., Chung Ho City, Taipei Hsien, (235) Taiwan, R.O.C. Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No: B30919204-RP FCC ID: NJQLG2-01 Date of Issue: October 22, 2003 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION.............................................................................................................. 5 3.2 EUT EXERCISE......................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES.................................................................................................. 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .............................................. 6 3.5 DESCRIPTION OF TEST MODES................................................................................................. 6 4. INSTRUMENT CALIBRATION................................................................................................. 7 5. FACILITIES AND ACCREDITATIONS ................................................................................... 8 5.1 FACILITIES.............................................................................................................................. 8 5.2 EQUIPMENT............................................................................................................................. 8 5.3 LABORATORY ACCREDITATIONS AND LISTING....................................................................... 8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS............................................................................ 9 6. SETUP OF EQUIPMENT UNDER TEST ................................................................................ 10 6.1 SUPPORT EQUIPMENT............................................................................................................ 10 7. FCC PART 15.227 REQUIREMENTS...................................................................................... 11 7.1 DUTY CYCLE ..................................................................................................................... 11 7.2 RADIATED EMISSIONS........................................................................................................... 13 7.3 POWERLINE CONDUCTED EMISSIONS.................................................................................... 19 Compliance Certification Services Inc. Report No: B30919204-RP FCC ID: NJQLG2-01 Date of Issue: October 22, 2003 Page 3 1. TEST RESULT CERTIFICATION Applicant: Wintecronics Co., Ltd. No. 716, 11F-3, Jung Jeng Rd., Chung Ho City, Taipei Hsien, (235) Taiwan, R.O.C. Equipment Under Test: 27 MHz 2/3 CH RF Handset Transmitter & 27 MHz 2/3 CH RF Receiver Trade Name: Wintec Model: LG2-01 Model Difference N/A Report Number: B30919204-RP Date of Test: October 14, 2003 APPLICABLE STANDARDS STANDARD TEST RESULT FCC Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2001) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.227. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Jonson Lee Eric Wong Director of Linkou Laboratory Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No: B30919204-RP FCC ID: NJQLG2-01 Date of Issue: October 22, 2003 Page 4 2. EUT DESCRIPTION Product 27 MHz 2/3 CH RF Handset Transmitter & 27 MHz 2/3 CH RF Receiver Trade Name Wintec Model Number LG2-01 Power Supply Powered by AA batteries (Rating: 8 × 1.5Vdc) AC Power Adapter Rating I/P: 120VAC, 60Hz O/P: 9.6VDC, 70mA (TX) 4.8VDC, 100mA (RX) Frequency Range 27 MHz Modulation Technique Frequency Shifting Key (FSK) Note: This submittal(s) (test report) is intended for FCC ID: NJQLG2-01 filing to comply with Section 15.227 of the FCC Part 15, Subpart C Rules. The composite system (digital device) is compliance with Subpart B is authorized under a DoC procedure. Compliance Certification Services Inc. Report No: B30919204-RP FCC ID: NJQLG2-01 Date of Issue: October 22, 2003 Page 5 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, and 15.227. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that inten…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: B30919204-RP FCC ID: NJQLG2-01 Date of Issue: October 22, 2003 Page 25 APPENDIX 1 PHOTOGRPHS OF TEST SETUP Radiated Emission Set up Photos
