NJQLP-4502FRS/GMRS UHF Transceiver

Chris Harvey Page 1 of 3 7/14/2004 Hi Chris, Please refer to the following for our replies. Thank you for your assistance!! Best regards, Ting ----- ??? wklo/ccsemc ? 2004/07/13 09:18 AM ----- WK, I have reviewed the supplied information which is mostly completed. From your response I understand that the product for sale in the US does not contain the European PMR446 operation. If I am not correct, please correct me. Ans: Yes, you are correct. Additionally I find that the Users Manual information still does not contain the FCC RF Safety information necessary for this device. I have copied an example of the FCC RF Safety information from a recently Granted GMRS/FRS Transmitter for your reference. Please include this, or similar information into the Users Manual: Ans: The user manual is revised. Please refer to the attacehed. - CAUTION! - IMPORTANT SAFETY INFORMATION Your wireless hand-held portable transceiver contains a radio frequency transmitter. When the PTT button is pushed, the transmitter sends out RF signals. The device is authorized to operate at a transmit duty factor not exceeding 50% using alkaline “AAA” size batteries to comply with Federal Communications Commissions (FCC) RF exposure safety level guidelines for hand-held wireless devices. For body-worn operation, this device has been tested for SAR (Specific Absorption Rate) and meets the FCC RF exposure guidelines when used with the accessories supplied or designated for this device by the manufacturer. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. Use the manufacturer-supplied antenna only. Unauthorized antennas, modifications, or attachments could damage the transmitter and may violate FCC regulations. To maintain compliance with the FCC’S RF exposure guidelines, hold the transceiver at least 1 inch (2.5 centimeters) from your face and speak in a normal voice, with the antenna pointed up and away. Chris Harvey <charvey- [email protected]> 2004/07/13 12:17 AM ???: "'[email protected]'" <[email protected]> ????: Mike Kuo <[email protected]>, Chris Harvey <charvey- [email protected]> ??: FW: additional RT for AN04T3999 FCC ID: NJQLP-4502 Wintecronics GMRS License : Use of GRMS radios within the United States requires a FCC GMRS license. An individual of 18 years of age or older, who is not a representative of a foreign government is eligible to apply for a GMRS system license. You will need two forms from the FCC - FCC FORM 159 and FCC Form 605 Main Form and Schedule F. You can find the forms online at http://www.fcc.gov/formpage.html or call 1-800- 418-3676. Please contact me if you have any questions. Best regards, Chris Harvey [email protected] -----Original Message----- From: Sent: None Subject: Hi Mike, Please refer to the following for our replies. Thank you for your advice. Best regards, Ting ----- ??? ting/ccsemc ? 2004/07/08 04:02 PM ----- Dear [Mike Kuo] w.k. x, I have reviewed the above referenced application and find that the following items need to be addressed before the application review can continue: 1. The operational description does not meet the requirements of FCC 2.1033(c)(10), which requires: a description of all circuitry and devices provided for determining and stabilizing frequency, for suppression of spurious radiation, for limiting modulation, and for limiting power. Please provide a more detailed Circuit Description and Parts List meeting these requirements. Ans #1: A more detailed Circuit Description and a BOM are attached. Please refer to them. 2. The Users Manual does not contain the required RF exposure information about the operation of this device Mike Kuo <[email protected]> 2004/07/06 11:16 AM ???: "CCS-Taiwan, Ting (E-mail)" <[email protected]>, "CCS-Taiwan, Wklo (E-mail)" <[email protected]> ????: "Lai, Harris (E-mail)" <[email protected]> ??: FW: RT for AN04T3999 Page 2 of 3 7/14/2004 near the body, for both held-to-face and body worn operation. Ans #2: The user manual has been added with SAR value max in Page 17 as attached. 3. The Users manual indicates that there is an 8 channel PMR operation in the 446MHz band. This was not part of the FCC authorization request. Please explain this information in the manual. Ans #3: The user manual has been modified in Page 16, with the wordings of "The ranges of frequency are only for Eurpoe PMR446." Please refer to it. 4. The table on page 4 of the Test Report indicates that the RF Power has the same values as the DC Voltages and Currents into the Final Amplifier. Please review and correct as necessary. Ans #4: Please be aware the customer confirms that the RF Power does have the same values as the DC Voltages and Currents into the Final Amplifier. Please note that the Grant will contain a condition that the user will be provided information in the Manual (or separate document provided in the box) regarding the license requirements for GMRS operation. Please ensure that the applicant is aware of this requirement. Please contact me if you have any questions. Best regards, Chris Harvey [email protected] Page 3 of 3 7/14/2004

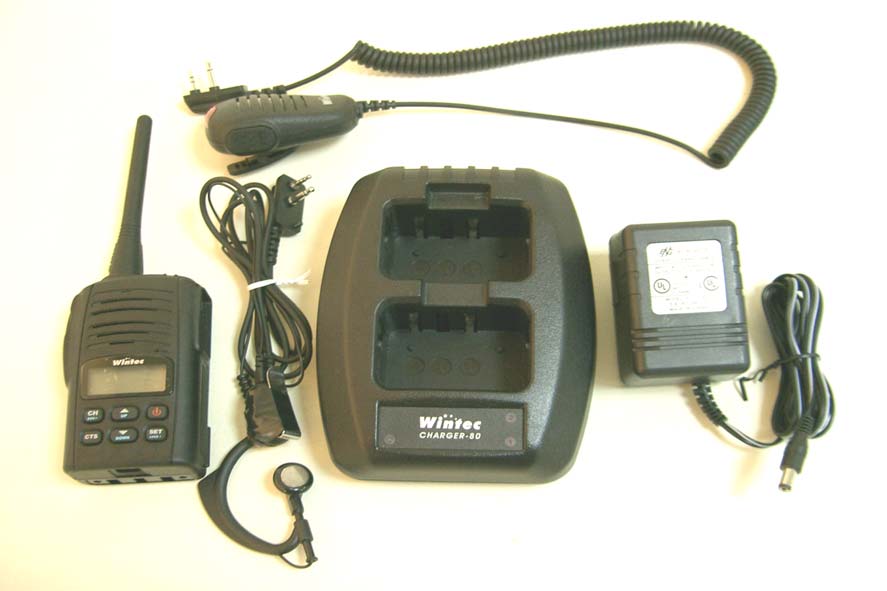

Compliance Certification Services Inc. Report No: B40406001 Date of Issue: June 11, 2004 Page 1 of 8 EXTERNAL PHOTOGRPHS OF EUT Compliance Certification Services Inc. Report No: B40406001 Date of Issue: June 11, 2004 Page 2 Compliance Certification Services Inc. Report No: B40406001 Date of Issue: June 11, 2004 Page 3 Compliance Certification Services Inc. Report No: B40406001 Date of Issue: June 11, 2004 Page 4

Compliance Certification Services Inc. Report No: B40406001 Date of Issue: June 11, 2004 Page 5 INTERNAL PHOTOGRPHS OF EUT Compliance Certification Services Inc. Report No: B40406001 Date of Issue: June 11, 2004 Page 6 Compliance Certification Services Inc. Report No: B40406001 Date of Issue: June 11, 2004 Page 7 Compliance Certification Services Inc. Report No: B40406001 Date of Issue: June 11, 2004 Page 8

in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C for Walkie-Talkie MODEL: LP-4502G FCC ID: NJQLP-4502 May 28, 2004 REPORT NO: 04T2696-2 Prepared for Wintecronics Co., Ltd. No. 716, 11F-3, Jung Jeng Rd. Chung Ho City 235, Taipei Hsien Taiwan, R.O.C. Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 REPORT NO: 04T2696-2 DATE: May 28, 2004 FCC ID: NJQLP-4502 CERTIFICATE OF COMPLIANCE (SAR EVALUATION) DATES OF TEST: May 27-28, 2004 APPLICANT: Wintecronics Co., Ltd. No. 716, 11F-3, Jung Jeng Rd Chung Ho City 235, Taipei Hsien, Taiwan, R.O.C. MODEL: LP-4502G FCC ID: NJQLP-4502 DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Tx Frequency: GMRS/FRS - 7 Channel from 462.5625 to 462.7125MHz FRS - 7 Channel from 467.5625 to 467.7125MHz GMRS - 8 Channel from 462.550 to 462.725MHz & 467.550 to 467.725 MHz Max. O/P Power: (Conducted/Average) 29.5 dBm for GMRS 27.1 dBm for FRS Max. SAR (1g): GMRS (Part 95A) - 1.497 mW/g @ Body-worn position 0.755 mW/g @ Face-held position FRS (Part 95B) - 0.728 mW/g @ Body-worn position 0.416 mW/g @ Face-held position FCC Rule Part(s): 95A (GPRS) & 95B (FRS) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (released on 6/29/2001 see Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Hsin-Fu Shih (Sunny Shih) Senior Engineer COMPLIANCE CERTIFICATION SERVICES Page: 2 of 30 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. REPORT NO: 04T2696-2 DATE: May 28, 2004 FCC ID: NJQLP-4502 TABLE OF CONTENTS 1. EQUIPMENT UNDER TEST (EUT) DESCRIPTION.................................................................4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC.....................................4 3. DOSIMETRIC ASSESSMENT SETUP...................................................................................4 3.1. MEASUREMENT SYSTEM DIAGRAM..................................................................................................................5 3.2. SYSTEM COMPONENTS...................................................................................................................................6 4. EVALUATION PROCEDURES............................................................................................8 5. MEASUREMENT UNCERTAINTY......................................................................................12 6. EXPOSURE LIMIT........................................................................................................13 7. EUT ARRANGEMENT...................................................................................................14 8. MEASUREMENT RESULTS............................................................................................17 8.1. SIMULATING LIQUIDS PARAMETER CHECK.....................................................................................................17 8.2. SYSTEM PERFORMANCE CHECK...................................................................................................................21 8.3. SAR MEASUREMENT RESULTS.....................................................................................................................23 9. EUT PHOTOS............................................................................................................25 10. EQUIPMENT LIST & CALIBRATION STATUS.....................................................................28 11. REFERENCES............................................................................................................29 12. ATTACHMENTS..........................................................................................................30 COMPLIANCE CERTIFICATION SERVICES Page: 3 of 30 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. REPORT NO: 04T2696-2 DATE: May 28, 2004 FCC ID: NJQLP-4502 1. E QUIPMENT UNDER TEST (EUT) DESCRIPTION The UHF FM Transceiver, model number LP-4502G is a handheld transceiver, which operates as a traditional simplex 2-way radio, push-to-talk (PTT) devices that can be held in front of the user’s face or transmit in body-worn operating configurations using belt clip. The transmit duty factor, 50% maximum for this type of device, is controlled by the user via the push-to-tall button. This device transmits in both the GMRS (General Mobil Radio Services) and FRS (Family Radio Service) bands. Antenna - Length: 100 mm; diameter: 8 ~ 15 mm. Gain: -1.42dBi. Battery - Wintec, model BTFR-80, NI-MH Hydride, rating 7.5Vdc. Accessories: 1. Headset with PTT switch – Part number: SPE AL83A 2. Hand-held speaker/Microphone with PTT switch – Part number: SPE AL82A 3. Belt clip – Part number: LP-84M 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC The US Federal Communications Commission has released the report and order “Guidelines for Evaluating the Environmental Effects of RF Radiation", ET Docket No. 93-62 in August 1996. The order requires routine SAR evaluation prior to equipm…

Text truncated - open the document above for the full version.

Date/Time: 05/27/04 09:25:39 Test Laboratory: The name of your organization File Name: D450V2SN1003_052704.da4 DUT: Dipole 450 MHz; Type: D450V2; Serial: D450V2 - SN:xxx Program Name: System Performance Check at 450 MHz Ambient Temp.: 24.0 deg. C; Liquid Temp.: 23.0 deg. C Communication System: CW; Frequency: 450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 450 MHz; σ = 0.849 mho/m; ε r = 43.8; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ES3DV2 - SN3021; ConvF(7.6, 7.6, 7.6); Calibrated: 7/29/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 1; Type: SAM 1; Serial: 1185 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 d=15mm, Pin=398mW/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 48.9 V/m; Power Drift = -0.1 dB Maximum value of SAR (measured) = 2.02 mW/g d=15mm, Pin=398mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 48.9 V/m; Power Drift = -0.1 dB Maximum value of SAR (measured) = 2.06 mW/g Peak SAR (extrapolated) = 3.16 W/kg SAR(1 g) = 1.91 mW/g; SAR(10 g) = 1.21 mW/g 0 dB = 2.06mW/g Date/Time: 05/27/04 09:25:39 Test Laboratory: The name of your organization File Name: D450V2SN1003_052704.da4 DUT: Dipole 450 MHz; Type: D450V2; Serial: D450V2 - SN:xxx Program Name: System Performance Check at 450 MHz Communication System: CW; Frequency: 450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 450 MHz; σ = 0.849 mho/m; ε r = 43.8; ρ = 1000 kg/m 3 Phantom section: Flat Section d=15mm, Pin=398mW/Z Scan (1x1x51): Measurement grid: dx=20mm, dy=20mm, dz=2mm Reference Value = 48.9 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 2.02 mW/g Date/Time: 05/28/04 09:25:39 Test Laboratory: The name of your organization File Name: D450V2SN1003_052804.da4 DUT: Dipole 450 MHz; Type: D450V2; Serial: D450V2 - SN:1003 Program Name: System Performance Check at 450 MHz Ambient Temp.: 24.0 deg. C; Liquid Temp.: 23.0 deg. C Communication System: CW; Frequency: 450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 450 MHz; σ = 0.844 mho/m; ε r = 43.8; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ES3DV2 - SN3021; ConvF(7.6, 7.6, 7.6); Calibrated: 7/29/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 1; Type: SAM 1; Serial: 1185 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 d=15mm, Pin=398mW/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 50 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 2.09 mW/g d=15mm, Pin=398mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 50 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 2.1 mW/g Peak SAR (extrapolated) = 3.2 W/kg SAR(1 g) = 1.94 mW/g; SAR(10 g) = 1.23 mW/g 0 dB = 2.1mW/g Date/Time: 05/28/04 09:25:39 Test Laboratory: The name of your organization File Name: D450V2SN1003_052804.da4 DUT: Dipole 450 MHz; Type: D450V2; Serial: D450V2 - SN:1003 Program Name: System Performance Check at 450 MHz Communication System: CW; Frequency: 450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 450 MHz; σ = 0.844 mho/m; ε r = 43.8; ρ = 1000 kg/m 3 Phantom section: Flat Section d=15mm, Pin=398mW/Z Scan (1x1x51): Measurement grid: dx=20mm, dy=20mm, dz=2mm Reference Value = 50 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 2.08 mW/g

Date/Time: 05/28/04 14:22:40 Test Laboratory: The name of your organization File Name: Face Head_GMRS.da4 DUT: Wintec; Type: LP-4502G; Serial: N/A Program Name: Face Held Position (GMRS) Ambient Temp.: 24.0 deg. C; Liquid Temp.: 23.0 deg. C Communication System: CW; Frequency: 462.55 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 462.55 MHz; σ = 0.859 mho/m; ε r = 43.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ES3DV2 - SN3021; ConvF(7.6, 7.6, 7.6); Calibrated: 7/29/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 1; Type: SAM 1; Serial: 1185 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 462.550 MHz/Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 42.3 V/m; Power Drift = -0.5 dB Maximum value of SAR (measured) = 1.46 mW/g Info: Interpolated medium parameters used for SAR evaluation! 462.550 MHz/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 42.3 V/m; Power Drift = -0.5 dB Maximum value of SAR (measured) = 1.45 mW/g Peak SAR (extrapolated) = 1.91 W/kg SAR(1 g) = 1.38 mW/g; SAR(10 g) = 1.01 mW/g Info: Interpolated medium parameters used for SAR evaluation! Date/Time: 05/28/04 14:22:40 Test Laboratory: The name of your organization File Name: Face Head_GMRS.da4 DUT: Wintec; Type: LP-4502G; Serial: N/A Program Name: Face Held Position (GMRS) Ambient Temp.: 24.0 deg. C; Liquid Temp.: 23.0 deg. C Communication System: CW; Frequency: 467.725 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 467.725 MHz; σ = 0.86 mho/m; ε r = 43.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ES3DV2 - SN3021; ConvF(7.6, 7.6, 7.6); Calibrated: 7/29/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 1; Type: SAM 1; Serial: 1185 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 467.725 MHz/Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 41.6 V/m; Power Drift = -0.3 dB Maximum value of SAR (measured) = 1.49 mW/g Info: Interpolated medium parameters used for SAR evaluation! 467.725 MHz/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 41.6 V/m; Power Drift = -0.3 dB Maximum value of SAR (measured) = 1.49 mW/g Peak SAR (extrapolated) = 1.96 W/kg SAR(1 g) = 1.41 mW/g; SAR(10 g) = 1.03 mW/g Info: Interpolated medium parameters used for SAR evaluation! Date/Time: 05/28/04 12:25:49 Test Laboratory: The name of your organization File Name: Face Head_GMRS.da4 DUT: Wintec; Type: LP-4502G; Serial: N/A Program Name: Face Held Position (GMRS) Communication System: CW; Frequency: 467.725 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 467.725 MHz; σ = 0.86 mho/m; ε r = 43.4; ρ = 1000 kg/m 3 Phantom section: Flat Section 467.725 MHz/Z Scan (1x1x51): Measurement grid: dx=20mm, dy=20mm, dz=2mm Reference Value = 41.6 V/m; Power Drift = -0.3 dB Maximum value of SAR (measured) = 1.46 mW/g Info: Interpolated medium parameters used for SAR evaluation! Date/Time: 05/28/04 12:25:49 Test Laboratory: The name of your organization File Name: Face Head_FRS.da4 DUT: Wintec; Type: LP-4502G; Serial: N/A Program Name: Face Held Position (FRS) Ambient Temp.: 24.0 deg. C; Liquid Temp.: 23.0 deg. C Communication System: CW; Frequency: 462.562 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 462.562 MHz; σ = 0.859 mho/m; ε r = 43.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ES3DV2 - SN3021; ConvF(7.6, 7.6, 7.6); Calibrated: 7/29/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 1; Type: SAM 1; Serial: 1185 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 462.5625 MHz/Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 29.7 V/m; Power Drift = -0.4 dB Maximum value of SAR (measured) = 0.756 mW/g Info: Interpolated medium parameters used for SAR evaluation! 462.5625 MHz/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 29.7 V/m; Power Drift = -0.4 dB Maximum value of SAR (measured) = 0.725 mW/g Peak SAR (extrapolated) = 0.940 W/kg SAR(1 g) = 0.688 mW/g; SAR(10 g) = 0.502 mW/g Info: Interpolated medium parameters used for SAR evaluation! Date/Time: 05/28/04 14:22:40 Test Laboratory: The name of your organization File Name: Face Head_FRS.da4 DUT: Wintec; Type: LP-4502G; Serial: N/A Program Name: Face Held Position (FRS) Ambient Temp.: 24.0 deg. C; Liquid Temp.: 23.0 deg. C Communication System: CW; Frequency: 467.712 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 467.712 MHz; σ = 0.86 mho/m; ε r = 43.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ES3DV2 - SN3021; ConvF(7.6, 7.6, 7.6); Calibrated: 7/29/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 1; Type: SAM 1; Serial: 1185 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 467.7125 MHz/Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 31.3 V/m; Power Drift = -0.3 dB Maximum value of SAR (measured) = 0.818 mW/g Info: Interpolated medium parameters used for SAR evaluation! 467.7125 MHz/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 31.3 V/m; Power Drift = -0.3 dB Maximum value of SAR (measured) = 0.820 mW/g Peak SAR (extrapolated) = 1.07 W/kg SAR(1 g) = 0.779 mW/g; SAR(10 g) = 0.569 mW/g Info: Interpolated medium parameters used for SAR evaluation! Date/Time: 05/28/04 12:25:49 Test Laboratory: The name of your organization File Name: Face Head_FRS.da4 DUT: Wintec; Type: LP-4502G; Serial: N/A Program Name: Face Held Position (FRS) Comm…

Text truncated - open the document above for the full version.

ES3DV2-SN:3021Page 2 of 2April 25, 2004 Dosimetric E-Field Probe ES3DV2 SN:3021 Conversion factor (± standard deviation) 450 MHzConvF7.6 ± 8% ε r =43.5 ± 5% σ =0.87 ± 5% mho/m (head tissue) 450 MHzConvF7.4 ± 8% ε r =56.7 ± 5% σ =0.94 ± 5% mho/m (body tissue) Important Note: For numerically assessed probe conversion factors, parameters Alpha and Delta in the DASY software must have the following entries: Alpha = 0 and Delta = 1. Please see also Section 4.7 of the DASY4 Manual.

Compliance Certification Services Inc. Report No: B40406001-RP FCC ID: NJQLP-4502 Date of Issue: June 11, 2004 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document Page 1 of 29 FCC 47 CFR PART 95 SUBPART A/B TEST REPORT For Wintecronics Co., Ltd. Walkie-Talkie Model: LP-4502G Trade Name: Wintec Prepared for Wintecronics Co., Ltd. No. 716, 11F-3, Jung Jeng Rd., Chung Ho City 235, Taipei Hsien, Taiwan, R.O.C. Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No: B40406001-RP FCC ID: NJQLP-4502 Date of Issue: June 11, 2004 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION.............................................................................................................. 5 3.2 EUT EXERCISE......................................................................................................................... 5 3.3 DESCRIPTION OF TEST MODES................................................................................................. 5 4. INSTRUMENT CALIBRATION................................................................................................. 6 5. FACILITIES AND ACCREDITATIONS ................................................................................... 7 5.1 FACILITIES.............................................................................................................................. 7 5.2 EQUIPMENT............................................................................................................................. 7 5.3 LABORATORY ACCREDITATIONS AND LISTING....................................................................... 7 5.4 TABLE OF ACCREDITATIONS AND LISTINGS............................................................................ 8 6. SETUP OF EQUIPMENT UNDER TEST .................................................................................. 9 6.1 SETUP CONFIGURATION OF EUT.............................................................................................. 9 6.2 SUPPORT EQUIPMENT ...................................................................................................... 9 7. FCC PART 95 SUBPART E REQUIREMENTS ..................................................................... 10 7.1 MAXIMUM TRANSMITTER OUTPUT POWER........................................................................... 10 7.2 MODULATION CHARACTERISTICS......................................................................................... 16 7.3 EMISSION BANDWIDTH....................................................................................................... 21 7.4 SPURIOUS EMISSION AT ANTENNA TERMINALS.................................................................... 24 7.5 FREQUENCY STABILITY........................................................................................................ 25 7.6 RADIO FREQUENCY EXPOSURE.............................................................................................. 28 8. APPENDIX 1 PHOTOGRPHS OF TEST SETUP ................................................................... 29 Compliance Certification Services Inc. Report No: B40406001-RP FCC ID: NJQLP-4502 Date of Issue: June 11, 2004 Page 4 2. EUT DESCRIPTION Product Walkie-Talkie Trade Name Wintec Model Number LP-4502G Model Discrepancy N/A Power Supply Powered by Battery Frequency Range FRS 462.5625MHz ~ 462.7125MHz 467.5625MHz ~ 467.7125MHz GMRS 462.5500 ~ 467.7250 Transmit Power (ERP) FRS: 23.68dBm GMRS: 27.09dBm Type of Emission 10K9F3E Bn = 2M + 2DK M = 3000 D =2.45 K = 1 Bn = 2*3000+2*2.45*1 = 10900 Number of Channels FRS = 14 GMRS = 22 RF Power Output FRS = 1.125Watts GMRS(Low) = 1.125Watts GMRS(High) = 3.75Watts DC Voltage and Current into Final Amplifier FRS = (7.5V)(150mA) = 1.125 Watts GMRS(Low) = (7.5V)(150mA) = 1.125Watts GMRS(High) = (7.5V)(500mA) = 3.75Watts Antenna Specification Helical Antenna Gain: -1.42dBi (max) Temperature Range -30°C ~ +55°C Note: This submittal(s) (test report) is intended for FCC ID: NJQLP-4502 filing to comply with FCC Part 95, Subpart E Rules. Compliance Certification Services Inc. Report No: B40406001-RP FCC ID: NJQLP-4502 Date of Issue: June 11, 2004 Page 5 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4. Radiated testing was performed at an antenna to EUT distance 3 meters. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 3.2 EUT EXERCISE The EUT was operated in the engineering mode to fix the Tx frequency that was for the purpose of the measurements. According to its specifications, the EUT must comply with the requirements of the Section 95.635, under the FCC Rules Part 95 Subpart E. Radiated Emissions The EUT is placed on a turntable, which is 0.8 m above ground plane. The turntable shall rotate 360 degrees to determine the position of maximum emission level. EUT is set 3m away from the receiving antenna, which varied from 1m to 4m to find out the highest emission. And also, each emission was to be maximized by changing the polarization of…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: B40406001-RP FCC ID: NJQLP-4502 Date of Issue: June 11, 2004 Page 29 8. APPENDIX 1 PHOTOGRPHS OF TEST SETUP Radiated Emission Set up Photos
