NJQL500HAARemote Control Transceiver

L-500HAA/ 433.92 USER’S MANUAL 1. To confirm setting of current car security mode, press è (Red button ) +å To get feedback or check of car’s current security mode , press è(Red button ) + å for 1 sec and release. 2. To set “PAGER AUTO – on ”, press è (Red button) +ç To set “PAGER ALL -off” ; press è(Red button)+ç for 1 sec and release. Pager rings if setting of “PAGER ALL -off” is done. A short beep sounds if “PAGER AUTO- on ” setting is done. Once the car security is armed , receiver automatically sets “PAGER- on” mode. If the car security is disarmed, receiver will get into “PAGER-off” mode. Normally “ PAGER-AUTO -on “ settings is recommended for consumers. ‹Set the “PAGER-off ” mode if there is someone in the car in case that paging might be needed . ‹Factory setting in all receivers is “PAGER-off” 3. To set receiver “ MUTE” mode; press è(Red button)+é 1 sec and release MUTE appears if “ MUTE “ mode is set on. Under this mode, pager will vibrate without beeps for any emergency warning. Whether the receiver is set “ ON ” or “ OFF ” the receiver will beep if your car sends any emergency alert call. 4 . è(Red button) and its mode. To get the LED backlight , press è(Red button) 1 sec and release. LED turns off after 3 secs. When the receiver’s battery power is low, (BAT LOW) warning will appear. Pressing of this button is followed by beeps sound. 5 .BAT/LOW Change the batteryif the ( BAT/LOW) icon appears. Change the battery when the beeps become low even the ( BAT LOW) does not show up. 6. How to change battery: Push LOCK, slide open the battery cover. Change battery making sure of polarity in proper position. The receiver beeps 1 sec if the receiver gets into operating mode. If fails, take out the battery and reinstall it after 5 sec. ‹After changing of battery, pressè(Red button)+å to make sure the receiver setting is same as the car current security status. ‹Each time the battery is changed, make sure the battery cover is properly closed and LOCK in position. ‹ Use of alkaline battery is recommended. -------------------------------------------- There are total 4 buttons which if pressed will produce the digital control signals and modulate the carrier signal. The carrier signal is generated by a crystal oscillator/ amplifier circuit composed of a 434 Mh crystal and a npn transmitter. The modulated output of the RF amplifier stage is coupled to the coil. All the tuning and verification are done by manufacturer during the production process and no adjustment is allowed by any consumer. No external ground is needed in such device. The Wintercronics Co., Ltd. Model: L-500HAA (referred to as the EUT in this report) is a Transceiver of car alarm security system. It offers wireless remote control, ideal for use in vehicle security system to activate the function of center door lock control system and car searching except the alarm system. A major technical descriptions of EUT is described as following: A). Fundamental Frequency: 433.92 MHz B). Modulation : Pulse Modulation C). Antenna Designation: Non-User Replaceable (Fixed) D). Power Supply: DC 1.5V, Battery Operated. E). Receiver type : Superheterodyne Battery Operated ≤ FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two condition.(1).this device may not cause harmful interference. (2).this device must accept any interference received, including interference that may cause undesired operation Warning: Note: This equipment has been tested and found to comply with the limits for digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, used and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference in to radiate communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: l Reorient or relocate the receiving antenna l Increase the separation between the equipment and receiver. l Connect the equipment into an outlet on a circuit different form that to which the receiver in connected. l Consult the dealer or an experienced radio/TV technician for help. THE MANUFACTURER IS NOT RESPONSIBKE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT.SUCH ODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. ’

2WHAND-BLK-NUTEK.sch-1 - Thu Jan 31 18:13:24 2002 ZK59A-BLK(FCC).sch-1 - Thu Jan 31 18:10:52 2002

Photo # 1. Front View Rear View 02E2090 02E2090

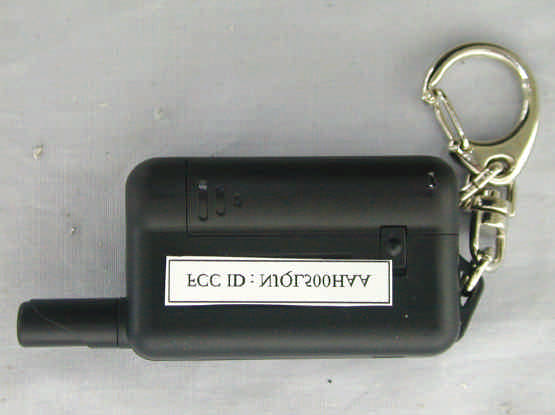

NEUTRON EMC LAB. FCC ID: NJQL500HAA 5/22 2. Product Labeling 2-1. FCC ID Label The remained portion of label statement required by FCC is attached in the user’s manual. 2-2 Location of Label on EUT FCC ID : NJQL500HAA 0.8cm 2.5cm 02E2090

Photo 3 Unit partially Disassembled 02E2090 02E2090 Photo 4 Unit partially Disassembled 02E2090 02E2090 Photo 5 Unit partially Disassembled 02E2090

L-500HAA Operational Description The Wintercronics Co., Ltd. Model: L-500HAA (referred to as the EUT in this report) is a Transceiver of car alarm security system. It offers wireless remote control, ideal for use in vehicle security system to activate the function of center door lock control system and car searching except the alarm system. A major technical descriptions of EUT is described as following: A). Fundamental Frequency: 433.92 MHz B). Modulation : Pulse Modulation C). Antenna Designation: Non-User Replaceable (Fixed) D). Power Supply: DC 1.5V, Battery Operated. E). Receiver type : Superheterodyne Battery Operated ≤ The 2 way pager is a very low-powered remote control/ monitoring device used in motoring the automobile security status as well as in remotely arming /disarming car security system and other optional features like vibration or audible peeping warning sound during alert mode. Its features and functions are described in the attached pager. The transmission is powered by a 1.5 V AAA battery and works on 433.92 Mhz single fixed frequency. Details of circuit diagram and block diagram are shown on the attached sheets. There are total 4 buttons which if pressed will produce the digital control signals and modulate the carrier signal. The carrier signal is generated by a crystal oscillator/ amplifier circuit composed of a 433.92 Mh crystal and a npn transmitter. The modulated output of the RF amplifier stage is coupled to the coil. All the tuning and verification are done by manufacturer during the production process and no adjustment is allowed by any consumer. No external ground is needed in such device. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:- (1) This device may not cause harmful interference ; and (2) This device must accept any interference received: including interference that may cause undesired operation. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment. Such modifications could void the user’s authority to operate the equipment.

L50-1.sch-1 - Thu Jan 31 18:06:53 2002 2WAY-NUTEK-AM(FCC).sch-1 - Thu Jan 31 17:52:35 2002

NEUTRON EMC LAB. FCC ID: NJQL500HAA 1/22 MEASUREMENT/TECHNICAL REPORT APPLICTNT:Wintercronics Co., Ltd. MODEL NO.:L-500HAA FCC ID:NJQL500HAA This report concerns ( check one ) : Original Grant 3 Class II Change Equipment type: 433.92 MHz Remote Controller (Transceiver) Deferred grant requested per 47CFR 0.457(d)(1)(ii)? Yes No 3 If yes, defer until: (date) We, the undersigned, agree to notify the Commission by (date) / / of the intended date of announce meant of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No 3 If no, assumed Part 15, Subpart B for unintentional radiator the new 47 CFR (10-1-90 Edition) provision. Report Prepared by Testing House Neutron Engineering Inc. for Company Name Wintercronics Co., Ltd. Address 2F., No. 7-1, Ming Lee Street, Chung Ho, Taipei, Taiwan, R.O.C. Applicant Signature Apin Chang / General Manager NEUTRON EMC LAB. FCC ID: NJQL500HAA 2/22 CERTIFICATION We hereby certify that: The test data , data evaluation , test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (1992) and the en- ergy emitted by the sample EUT tested as described in this report is in compliance with con- ducted and radiated emission limits of FCC Rules Part 15. Prepared by Carol Chen Reviewed by Vincent Su Approved by George Yao Issued Date Feb. 06, 2002 Report No. NEI-FCCB-02028 Company Stamp NEUTRON ENGINEERING INC. No. 132-1, Lane 329, Sec. 2, Palain Rd., Shijr Jen, Taipei, Taiwan TEL: (02) 2646-5426 FAX : (02) 2646-6815 NEUTRON EMC LAB. FCC ID: NJQL500HAA 3/22 Table of Contents 1.General Information...................................................................................................................... 1-1 Product Description................................................................................................................4 1-2 Related Submittal(s)/Grant(s)..................................................................................................4 1-3 Test Methodology.............................................................................................................4 1-4 Test Facility...................................................................................................................4 2.Product Labeling............................................................................................................................ Figure 2-1 FCC ID Label...............................................................................................................5 Figure 2-2 Location of Label on EUT............................................................................................5 3.System Test Configuration............................................................................................................. 3-1 EUT Configuration...................................................................................................................6 3-2 EUT Exercise............................................................................................................................6 3-3 Test Procedure..........................................................................................................................6 3-4 Limitation..................................................................................................................................7 3-5 Special Accessories...................................................................................................................7 3-6 Equipment Modifications...........................................................................................................7 3-7 Test Set-UP...............................................................................................................................8 3-8 Test Equipment........................................................................................................................9 4.Block Diagram(s)..............................................................................................................................10 5.Radiated Measurement Photos............................................................................ Figure 5-1. Radiated Emission Data...................................................................................11 6.Radiated Emission Data............................................................................................................ 6-1 Radiated Emission Data...........................................................................................................12 6-2 Field Strength Calculation.......................................................................................................16 6-3 Duty Cycle Correction Factor Calculated .............................................................................17 7.Supplementary Information for Section 15.231(C) Requirement .............................................18 8.Attachment...................................................................................................................................... A. Technical Information of Pulse Code Definition & Timing Chart ................................................20 B. Photos of Tested EUT...................................................................................................................21 C. User Manual..................................................................................................................................22 NEUTRON EMC LAB. FCC ID: NJQL500HAA 4/22 1. GENERAL INFORMATION 1-1. Product Description The Wintercronics Co., Ltd. Model: L-500HAA (referred to as the EUT in this report) is a Transceiver of car alarm security system. It offers wireless remote control, ideal for use in vehicle security system to activate the function of center door lock control system and car searching except the alarm system. A major technical descriptions of EUT is described as …

Text truncated - open the document above for the full version.

NEUTRON EMC LAB. FCC ID: NJQL500HAA 11/22 5. Radiated Measurement Photos
