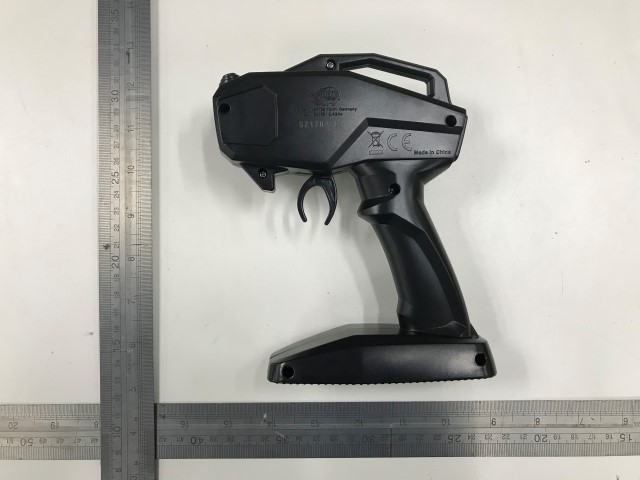

Test Report No.: 60377963 002 Appendix 3 Page 1 of 2 Appendix 3 EUT External Photos Test Report No.: 60377963 002 Appendix 3 Page 2 of 2 External View External View

FCC ID – NLB24058TX Label and Label location artwork:

Test Report No.: 60377963 001 Appendix 4 Page 1 of 3 Appendix 4 EUT Internal Photos Test Report No.: 60377963 001 Appendix 4 Page 2 of 3 Internal View Internal View Test Report No.: 60377963 001 Appendix 4 Page 3 of 3 Internal View Internal View

Test Report No.: 60377963 001 Appendix 5 Page 1 of 2 Appendix 5 RF Exposure Information Test Report No.: 60377963 001 Appendix 5 Page 2 of 2 Maximum transmitter power: Frequency (MHz) Maximum peak output power (dBm) Output power (mW) 2410 0.6 1.141 2443 0.3 1.064 2475 -0.2 0.949 For FCC According to KDB 447498 D01: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤3.0 for 1-g SAR and ≤7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below Result: (1.141/5)*√2.410 = 0.354 <3.0 (1.064/5)*√2.443 = 0.332 <3.0 (0.949/5)*√2.475 = 0.298 <3.0 Conclusion: No SAR is required.

Produkte Products TÜV Rheinland Hong Kong Ltd. 3-4, 11/F., Fou Wah Industrial Building, 10-16 Pun Shan Street, Tsuen Wan, N.T., Hong Kong Tel.: +852 2192 1000  Fax: +852 2192 1001  Email [email protected]  Web: www.tuv.com Prüfbericht-Nr.: Test Report No.: 60377963 002 Auftrags-Nr.: Order No.: 158210179 Seite 1 von 14 Page 1 of 14 Kunden-Referenz-Nr.: Client Reference No.: N/A Auftragsdatum: Order date: 28.05.2020 Auftraggeber: Client: Dickie Toys Hong Kong Ltd. 19/F., Prudential Tower, The Gateway, Harbour City, 21 Canton Road, Tsimshatsui, Kowloon, Hong Kong Prüfgegenstand: Test item: Short Range Device - Radio Controlled Toy Transmitter (2.4GHz) Bezeichnung / Typ-Nr.: Identification / Type No.: 24058 Auftrags-Inhalt: Order content: FCC Certification Prüfgrundlage: Test specification: FCC Part 15 Subpart C, ANSI C63.10-2013 Wareneingangsdatum: Date of receipt: 22.05.2020 Prüfmuster-Nr.: Test sample No.: A002831836-001 Prüfzeitraum: Testing period: 01.06.2020 – 09.06.2020 Ort der Prüfung: Place of testing: Hong Kong Prüflaboratorium: Testing laboratory: TÜV Rheinland Hong Kong Ltd. Prüfergebnis*: Test result*: Pass geprüft von / tested by: 15.06.2020 Benny Lau / Senior Project Manager kontrolliert von / reviewed by: 15.06.2020 Sharon Li / Unit Senior Manager Datum Date Name / Stellung Name / Position Unterschrift Signature Datum Date Name / Stellung Name / Position Unterschrift Signature Sonstiges / Other: FCC ID: NLB24058TX This report is issued to update the external photo of the EUT to with the sticker removed as per client’s request and correct a typo in the radiated emission test. Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. FCC_15.249_v2.0 Test Report No.: 60377963 002 Date: 15.06.2020 Page 2 of 14 Table of Content Page Cover Page ..................................................................................................................... 1 Table of Content ............................................................................................................ 2 Product information....................................................................................................... 4 Manufacturers declarations ....................................................................................................................... 4 Product function and intended use ........................................................................................................... 4 Submitted documents................................................................................................................................. 4 Independent Operation Modes .................................................................................................................. 4 Related Submittal(s) Grants ....................................................................................................................... 4 Remark ......................................................................................................................................................... 4 Test Set-up and Operation Mode .................................................................................. 5 Principle of Configuration Selection ......................................................................................................... 5 Test Operation and Test Software ............................................................................................................. 5 Special Accessories and Auxiliary Equipment ........................................................................................ 5 Countermeasures to achieve EMC Compliance ...................................................................................... 5 Test Methodology .......................................................................................................... 6 Radiated Emission ...................................................................................................................................... 6 Field Strength Calculation .......................................................................................................................... 6 Test Setup Diagram ....................................................................................................... 7 Test Facility .................................................................................................................... 8 Test Laboratory Information ...................................................................................................................... 8 List of Test and Measurement Instruments ................................................................. 9 Measurement Uncertainty ........................................................................................... 10 Results FCC Part 15 – Subpart C ............................................................................... 11 FCC 15.203 – Antenna Requirement 1 ............................................................................ Pass ............... 11 FCC 15.204 …

Text truncated - open the document above for the full version.

Test Report No.: 60377963 001 Appendix 2 Page 1 of 2 Appendix 2 Test Setup Photos Test Report No.: 60377963 001 Appendix 2 Page 2 of 2 Set-up for Radiated Emission
