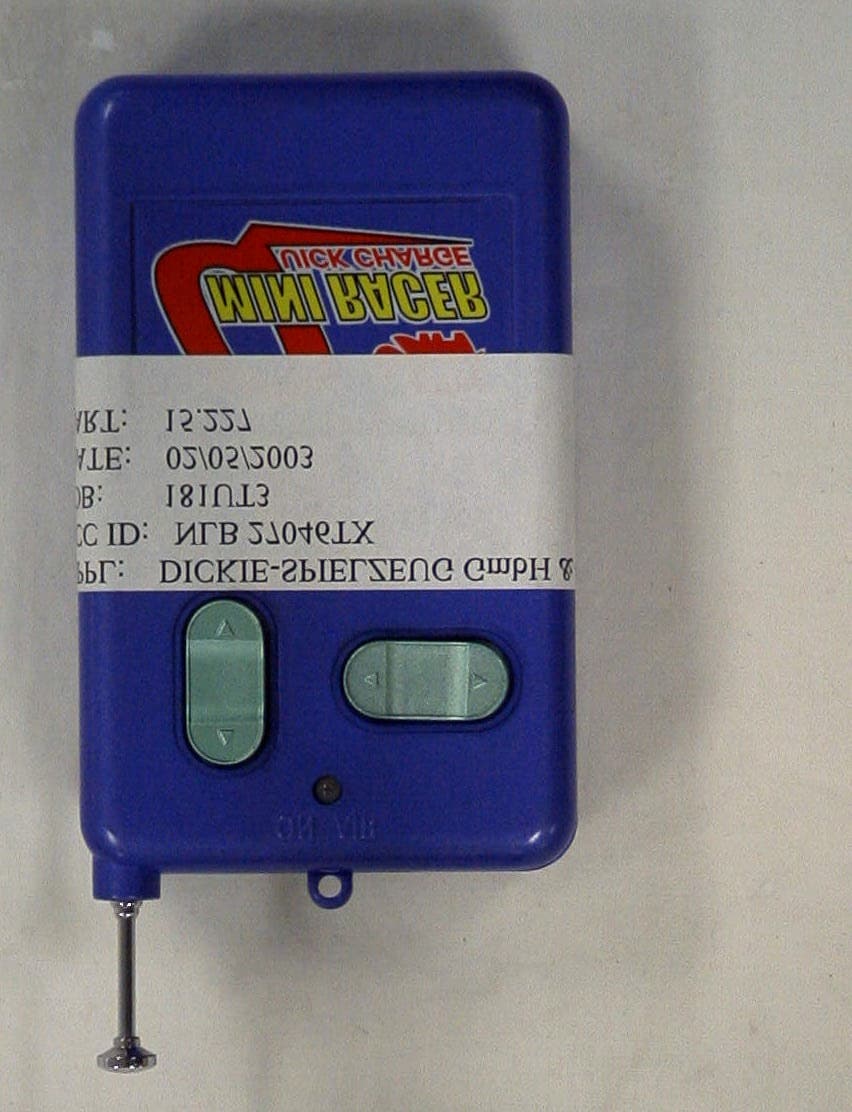

NLB27046TXRC Toy - Transmitter

FCC Warning Statement: The manufacturer is not responsible for any unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.

FCC ID: NLB27046TX Dickie Spielzeug GmbH Co. KG Made in China This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

DICKIE, Modul 27046TX Circuit Description (With reference to Circuit Diagram and Blockdiagram) The circuit of modul 27046TX is basically divided in four parts: 1. Oszillator (carrier frequency) 2. Modulation of signal 3. RF amplifier 4. Output circuit with antenna The Oszillator unit produces an carrier frequency of 27.145 MHz by using a quartz crystal, which is coupled via transistor C945. The modulation is gained by IC TX2, beeing operated by the user trough the swiches L/R/B/F. Carrier and modulated signal are superposed at the base of 2nd C945, which amplifies the modulated carrier. The output circuit, beeing realised by capacitors and inductances matches the RF amplifier to the antenna providing RF-power being transfered to the antenna.

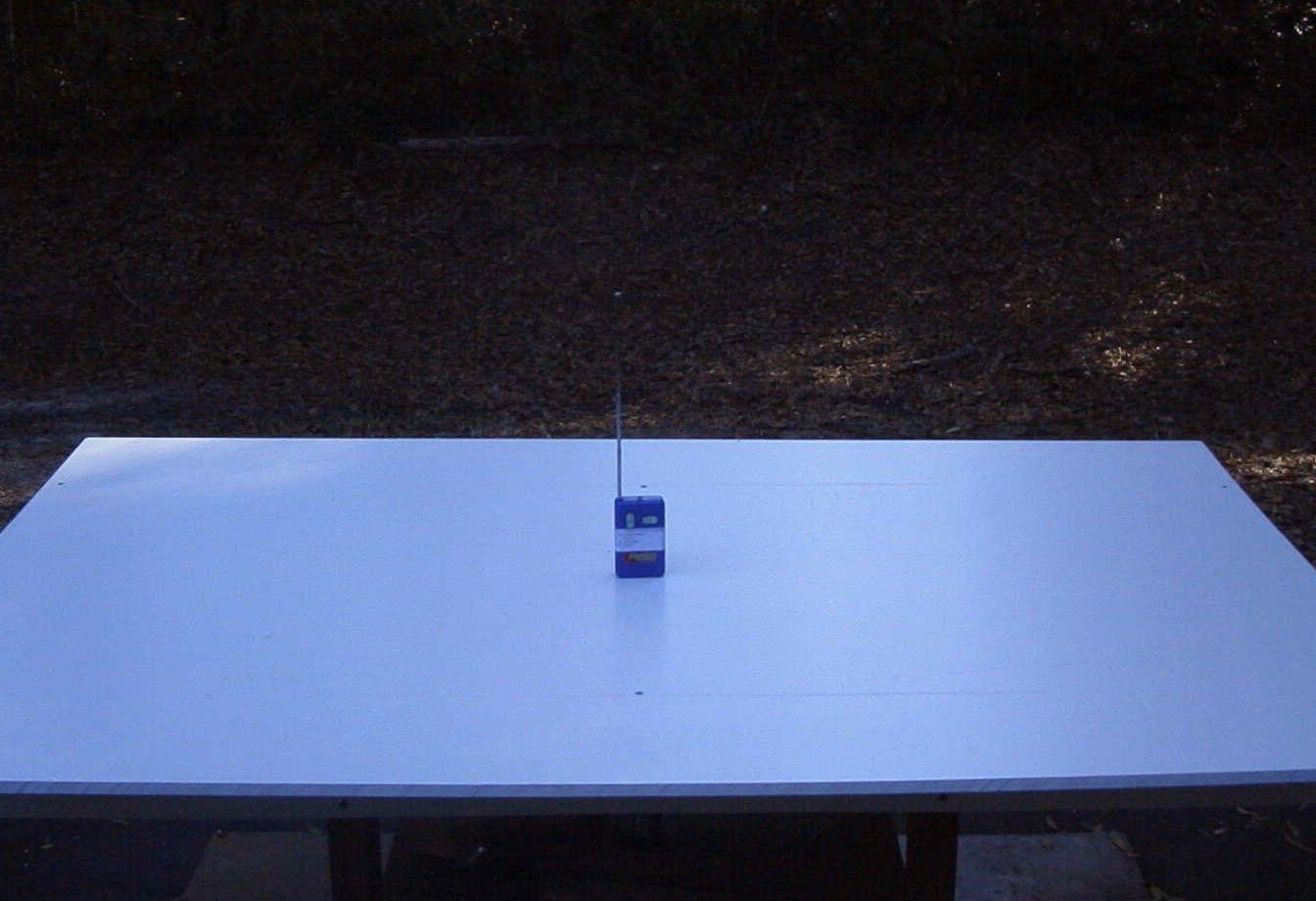

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: DICKIE SPEILZEUGE GmbH & CO KG FCC ID: NLB27046TX REPORT #: D\DICKIE\181UT3\181UT3TestReport.doc COVER SHEET Test Report Product Name: RC TOY-TRANSMITTER FCC ID: NLB27046TX Applicant: DICKIE SPEILZEUGE GmbH & CO KG WERKSTRABE 1 D-90765 FURTH, GERMANY Date Receipt: FEBRUARY 5, 2003 Date Tested: FEBRUARY 12, 2003 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: DICKIE SPEILZEUGE GmbH & CO KG FCC ID: NLB27046TX REPORT #: D\DICKIE\181UT3\181UT3TestReport.doc TABLE OF CONTENTS TABLE OF CONTENTS LIST APPLICANT: DICKIE SPEILZEUGE GmbH & CO KG FCC ID: NLB27046TX TEST REPORT CONTAINING: PAGE 1-3.............TEST EQUIPMENT LIST PAGE 4...............TEST PROCEDURE PAGE 5...............RADIATION INTERFERENCE TEST DATA PAGE 6...............OCCUPIED BANDWIDTH PAGE 7...............OCCUPIED BANDWIDTH PLOT EXHIBITS CONTAINING: EXHIBIT 1............BLOCK DIAGRAM EXHIBIT 2............SCHEMATIC EXHIBIT 3............INSTRUCTION MANUAL EXHIBIT 4............SAMPLE OF FCC ID LABEL EXHIBIT 5............LOCATION OF FCC ID LABEL EXHIBIT 6............EXTERNAL PHOTOGRAPHS EXHIBIT 7............INTERNAL PHOTOGRAPHS EXHIBIT 8............CIRCUIT DESCRIPTION EXHIBIT 9............TEST SET UP PHOTOGRAPH TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: DICKIE SPEILZEUGE GmbH & CO KG FCC ID: NLB27046TX REPORT #: D\DICKIE\181UT3\181UT3TestReport.doc Page 1 of 7 EMC Equipment List DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS X 3-Meter OATS TEI N/A N/A Listed 12/22/99 12/22/02 3/10-Meter OATS TEI N/A N/A Listed 3/26/01 3/26/04 Receiver, Beige Tower Spectrum Analyzer (Tan) HP 8566B Opt 462 3138A07786 3144A20661 CAL 8/31/01 8/31/03 RF Preselector (Tan) HP 85685A 3221A01400 CAL 8/31/01 8/31/03 Quasi-Peak Adapter (Tan) HP 85650A 3303A01690 CAL 8/31/01 8/31/03 X Receiver, Blue Tower X Spectrum Analyzer (Blue) HP 8568B 2928A04729 2848A18049 CHAR 10/22/01 10/22/03 X RF Preselector (Blue) HP 85685A 2926A00983 CHAR 10/22/01 10/22/03 X Quasi-Peak Adapter (Blue) HP 85650A 2811A01279 CHAR 10/22/01 10/22/03 X Biconnical Antenna Electro-Metrics BIA-25 1171 CAL 4/26/01 4/26/03 Biconnical Antenna Eaton 94455-1 1096 CAL 10/1/01 10/1/03 Biconnical Antenna Eaton 94455-1 1057 CHAR 3/15/00 3/15/02 BiconiLog Antenna EMCO 3143 9409-1043 X Log-Periodic Antenna Electro-Metrics LPA-25 1122 CAL 10/2/01 10/2/03 Log-Periodic Antenna Electro-Metrics EM-6950 632 CHAR 10/15/01 10/15/03 Log-Periodic Antenna Electro-Metrics LPA-30 409 CHAR 10/16/01 10/16/03 Dipole Antenna Kit Electro-Metrics TDA-30/1-4 152 CAL 3/21/01 3/21/04 Dipole Antenna Kit Electro-Metrics TDA-30/1-4 153 CHAR 11/24/00 11/24/03 Double-Ridged Horn Antenna Electro-Metrics RGA-180 2319 CAL 12/19/01 12/19/03 Horn Antenna Electro-Metrics EM-6961 6246 CAL 3/21/01 3/21/03 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: DICKIE SPEILZEUGE GmbH & CO KG FCC ID: NLB27046TX REPORT #: D\DICKIE\181UT3\181UT3TestReport.doc Page 2 of 7 DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS Horn Antenna ATM 19-443-6R None No Cal Required Passive Loop Antenna EMC Test Systems EMCO 6512 9706-1211 CHAR 7/10/01 7/10/03 Line Impedance Stabilization . . . Electro-Metrics ANS-25/2 2604 CAL 10/9/01 10/9/03 Line Impedance Stabilization . . . Electro-Metrics EM-7820 2682 CAL 3/16/01 3/16/03 Termaline Wattmeter Bird Electronic Corporation 611 16405 CAL 5/25/99 5/25/01 Termaline Wattmeter Bird Electronic Corporation 6104 1926 CAL 12/12/01 12/12/03 Oscilloscope Tektronix 2230 300572 CHAR 2/1/01 2/1/03 Temperature Chamber Tenney Engineering TTRC 11717-7 CHAR 1/22/02 1/22/04 AC Voltmeter HP 400FL 2213A14499 CAL 10/9/01 10/9/03 AC Voltmeter HP 400FL 2213A14261 CHAR 10/15/01 10/15/03 AC Voltmeter HP 400FL 2213A14728 CHAR 10/15/01 10/15/03 X Digital Multimeter Fluke 77 35053830 CHAR 1/8/02 1/8/04 Digital Multimeter Fluke 77 43850817 CHAR 1/8/02 1/8/04 Digital Multimeter HP E2377A 2927J05849 CHAR 1/8/02 1/8/04 Multimeter Fluke FLUKE-77-3 79510405 CAL 9/26/01 9/26/03 Peak Power Meter HP 8900C 2131A00545 CHAR 1/26/01 1/26/03 Digital Thermometer Fluke 2166A 42032 CAL 1/16/02 1/16/04 Thermometer Traulsen SK-128 CHAR 1/22/02 1/22/04 X Temp/Humidity gauge EXTech 44577F E000901 CHAR 1/22/02 1/22/04 Frequency Counter HP 5352B 2632A00165 CAL 11/28/01 11/28/03 Power Sensor Agilent Technologies 84811A 2551A02705 CAL 1/26/01 1/26/03 Service Monitor IFR FM/AM 500A 5182 CAL 11/22/00 11/22/02 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: DICKIE SPEILZEUGE GmbH & CO KG FCC ID: NLB27046TX REPORT #: D\DICKIE\181UT3\181UT3TestReport.doc Page 3 of 7 DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS Comm. Serv. Monitor IFR FM/AM 1200S 6593 CAL 5/12/02 5/12/04 Signal Generator HP 8640B 2308A21464 CAL 11/15/01 11/15/03 Modulation Analyzer HP 8901A 3435A06868 CAL 9/5/01 9/5/03 Near Field Probe HP HP11940A 2650A02748 CHAR 2/1/01 2/1/03 BandReject Filter Lorch Microwave 5BR4-2400/ 60-N Z1 CHAR 3/2/01 3/2/03 BandReject Filter Lorch Microwave 6BR6-2442/ 300-N Z1 CHAR 3/2/01 3/2/03 BandReject Filter Lorch Microwave 5BR4-10525/ 900-S Z1 CHAR 3/2/01 3/2/03 High Pas Filter Microlab HA-10N CHAR 10/4/01 10/4/03 Audio Oscillator HP 653A 832-00260 CHAR 3/1/01 3/1/03 Frequency Counter HP 5382A 1620A03535 CHAR 3/2/01 3/2/03 Frequency Counter HP 5385A 3242A07460 CHAR 12/11/01 12/11/03 Preamplifier HP 8449B-H02 3008A00372 CHAR 3/4/01 3/4/03 Amplifier HP 11975A 2738A01969 CHAR 3/1/01 3/1/03 Egg Timer Unk CHAR 8/31/01 8/31/03 Measuring Tape, 20M Kraftixx 0631-20 CHAR…
