NLB27094TXRemote Control Transmitter

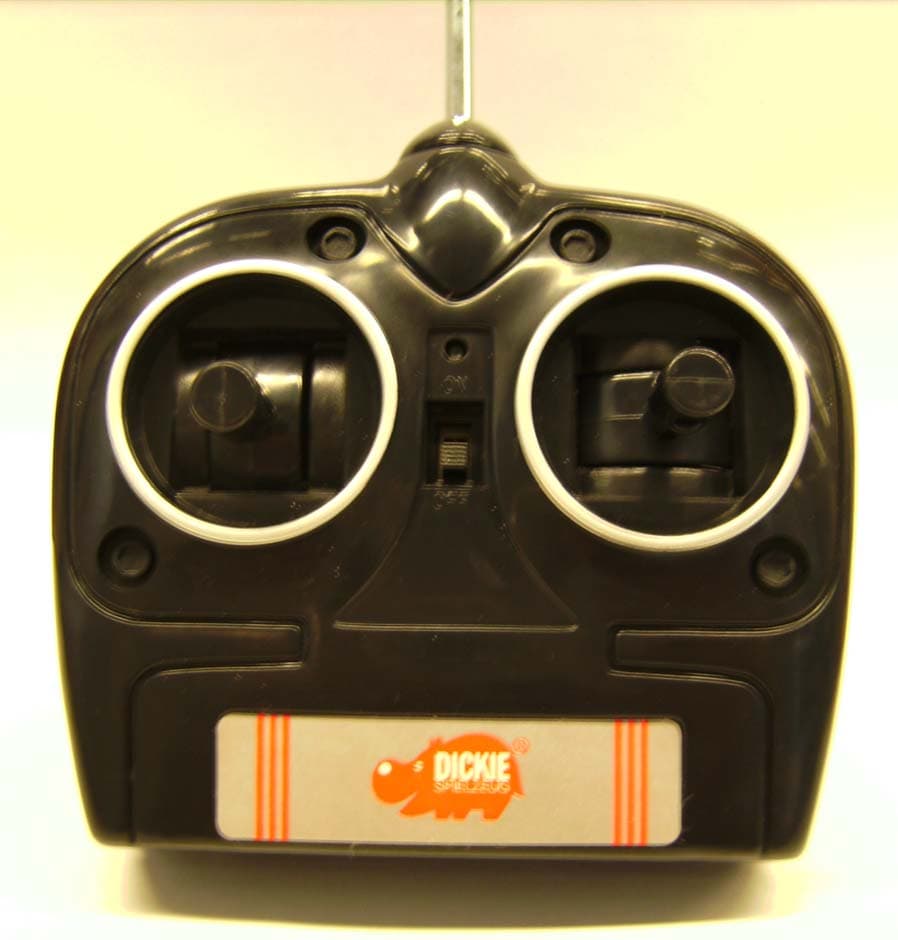

DICKIE-S;IELZEUG GMBH & CO KG FCC ID: NLB27094TX EXTERNAL PHOTOS

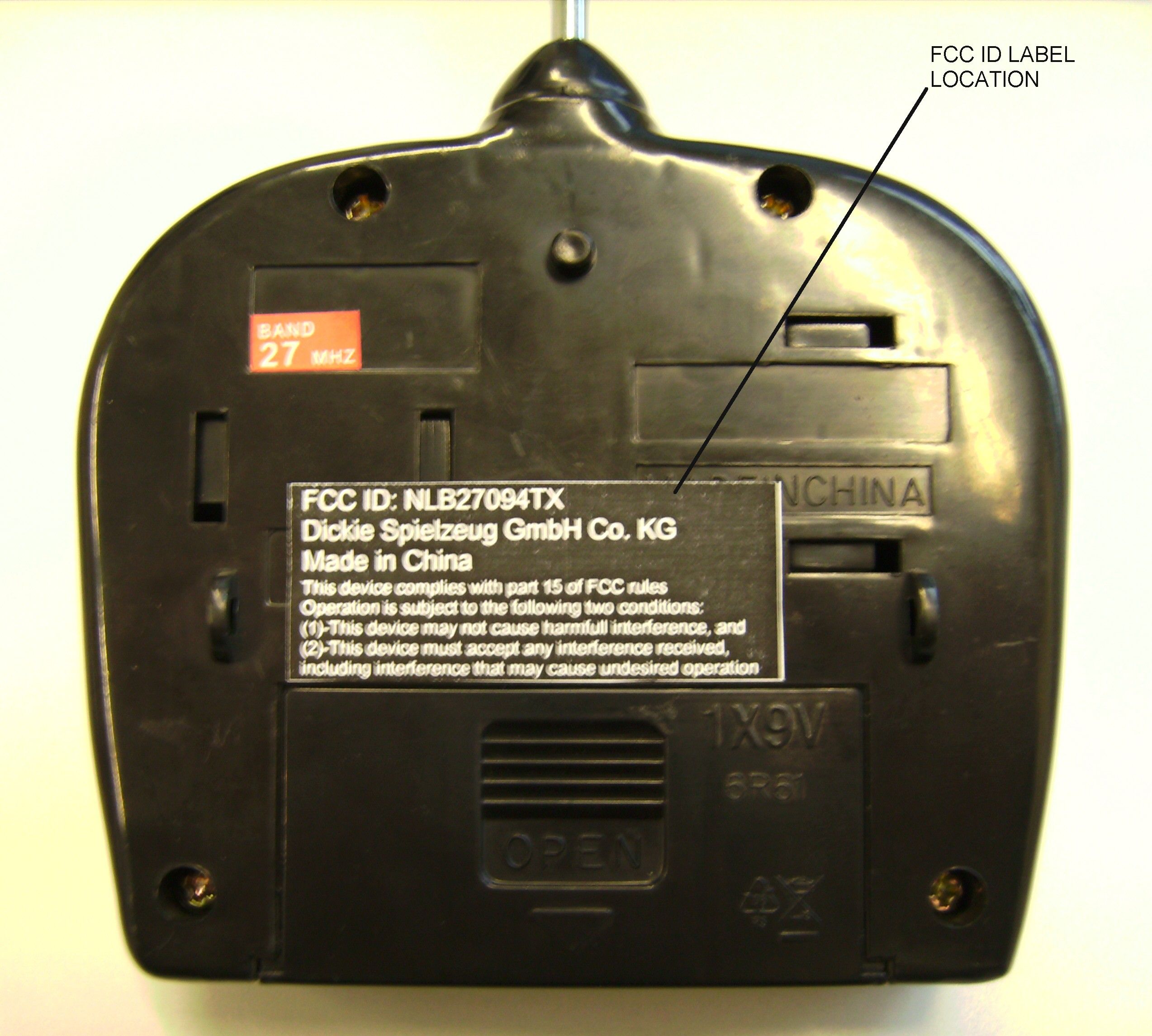

FCC ID: NLB27077TX Dickie Spielzeug GmbH Co. KG Made in China This device complies with part 15 of FCC rules Operation is subject to the following two conditions: (1)-This device may not cause harmfull interference, and (2)-This device must accept any interference received, including interference that may cause undesired operation FCC ID: NLB27092TX Dickie Spielzeug GmbH Co. KG Made in China This device complies with part 15 of FCC rules Operation is subject to the following two conditions: (1)-This device may not cause harmfull interference, and (2)-This device must accept any interference received, including interference that may cause undesired operation FCC ID: NLB27094TX Dickie Spielzeug GmbH Co. KG Made in China This device complies with part 15 of FCC rules Operation is subject to the following two conditions: (1)-This device may not cause harmfull interference, and (2)-This device must accept any interference received, including interference that may cause undesired operation

DICKIE-S;IELZEUG GMBH & CO KG FCC ID: NLB27094TX INTERNAL PHOTOS

Dickie Spielzeug GmbH & Co. KG; Module 27094TX Circuit Description (With reference to Circuit Diagram and Blockdiagram) The circuit of module 27094TX is basically divided in four parts: 1. Oszillator (carrier frequency) 2. Modulation of signal 3. RF amplifier 4. Output circuit with antenna The Oszillator unit produces an carrier frequency of 27 MHz by using a quartz crystal, which is coupled via a transistor. The modulation is gained by an IC, beeing operated by the user trough the switches. Carrier and modulated signal are superposed at the base of a transistor, which amplifies the modulated carrier. The output circuit, beeing realised by capacitors and inductances matches the RF amplifier to the antenna providing RF-power being transfered to the antenna.

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: DICKIE-SPIELZEUG GmbH & CO KG FCC ID: NLB27094TX REPORT #: D\DICKIE\176UT7\176UT7TestReport.doc COVER SHEET Test Report Product Name: REMOTE CONTROL FCC ID: NLB27094TX Applicant: DICKIE-SPIELZEUG GmbH & CO KG WERKSTRABE 1 D-90765 FUERTH D-90765 GERMANY Date Receipt: 1/22/2007 Date Tested: 1/23/2007 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: DICKIE-SPIELZEUG GmbH & CO KG FCC ID: NLB27094TX REPORT #: D\DICKIE\176UT7\176UT7TestReport.doc TABLE OF CONTENTS TABLE OF CONTENTS LIST APPLICANT: DICKIE-SPIELZEUG GmbH & CO KG FCC ID: NLB27094TX TEST REPORT CONTAINING: PAGE 1...............TEST EQUIPMENT LIST PAGE 2...............TEST PROCEDURE PAGE 3...............RADIATION INTERFERENCE TEST DATA PAGE 4...............OCCUPIED BANDWIDTH PAGE 5...............OCCUPIED BANDWIDTH PLOT EXHIBITS INCLUDING: BLOCK DIAGRAM SCHEMATIC INSTRUCTION MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INERNAL PHOTOGRAPHS OPERATIONAL DESCRIPTION TEST SET UP PHOTOGRAPHS TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: DICKIE-SPIELZEUG GmbH & CO KG FCC ID: NLB27094TX REPORT #: D\DICKIE\176UT7\176UT7TestReport.doc Page 1 of 5 EMC Equipment List Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A Listed 3/27/04 3/26/07 3-Meter OATS TEI N/A N/A Listed 1/11/06 1/10/09 Antenna: Biconnical Eaton 94455-1 1057 CAL 12/12/05 12/12/07 Antenna: Biconnical Eaton 94455-1 1096 CAL 10/11/06 10/11/08 Antenna: Biconnical Electro-Metrics BIA-25 1171 CAL 4/29/05 4/29/07 Analyzer Blue Tower Quasi- Peak Adapter HP 85650A 2811A01279 CAL 4/13/05 4/13/07 Analyzer Blue Tower RF Preselector HP 85685A 2926A00983 CAL 9/5/05 9/5/07 Analyzer Blue Tower Spectrum Analyzer HP 8568B 2928A04729 2848A18049 CAL 4/13/05 4/13/07 LISN Electro-Metrics ANS-25/2 2604 CAL 10/5/06 10/5/08 LISN Electro-Metrics EM-7820 2682 CAL 4/28/05 4/28/07 Antenna: Log- Periodic Eaton 96005 1243 CAL 12/14/05 12/14/07 Antenna: Passive Loop EMC Test System EMCO 6512 9706-1211 CAL 4/27/06 4/27/08 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: DICKIE-SPIELZEUG GmbH & CO KG FCC ID: NLB27094TX REPORT #: D\DICKIE\176UT7\176UT7TestReport.doc Page 2 of 5 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI C63.4-2003 using a spectrum analyzer with a preselector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was 300 kHz. The ambient temperature of the DUT was 80ºC with a humidity of 76%. FORMULA OF CONVERSION FACTORS: The field strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the preselector was accounted for in the spectrum analyzer meter reading. Example: Freq (MHz) METER READING + CL + ACF = FS 33 20 dBuV + 1.02 10.36 dB = 31.38 dBuV/m @ 3m ANSI C63.4-2003 10.1.7 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: DICKIE-SPIELZEUG GmbH & CO KG FCC ID: NLB27094TX REPORT #: D\DICKIE\176UT7\176UT7TestReport.doc Page 3 of 5 APPLICANT: DICKIE-SPIELZEUG GmbH & CO KG FCC ID: NLB27094TX NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.227 REQUIREMENTS: CARRIER FREQUENCY WILL NOT EXCEEDS 80 dBuV/m AT 3M. OUT-OF-BAND EMISSIONS SHALL NOT EXCEED: 30 - 88 MHz 40.0 dBuV/M MEASURED AT 3 METERS 88 - 216 MHz 43.5 dBuV/M 216 - 960 MHz 46.0 dBuV/m ABOVE 960 MHz 54.0 dBuV/m TEST DATA: Emission Frequency MHz Meter Reading dBuV Ant. Pol Coax Loss dB Correction Factor dB Field Strength dBuV/m Mar gin dB 27.10 24.7 H 0.54 34.16 59.40 20.60 27.10 33.4 V 0.54 34.16 68.10 11.90 54.20 16.2 V 1.11 9.62 26.93 13.07 Emissions attenuated more than 20 dB below the permissible value are not reported. SAMPLE CALCULATION: FSdBuV/m = MR (dBuV) + ACFdB. All measurements below 30 MHz were taken using an EMC Test Systems Passive Loop Antenna. TEST PROCEDURE : The procedure used was ANSI C63.4-2003. The spectrum was scanned from 30 MHz to 1000 MHz. When an emission was found, the table was rotated to produce the maximum signal strength. The antenna was placed in both the horizontal and vertical planes and the worse case emissions were reported. The UUT was tested in 3 orthogonal planes as necessary. PERFORMED BY: JOSEPH SCOGLIO DATE: 1/23/2007 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: DICKIE-SPIELZEUG GmbH & CO KG FCC ID: NLB27094TX REPORT #: D\DICKIE\176UT7\176UT7TestReport.doc Page 4 of 5 APPLICANT: DICKIE-SPIELZEUG GmbH & CO KG FCC ID: NLB27094TX NAME OF TEST: Occupied Bandwidth RULES PART NO.: 15.227 REQUIREMENTS: The field strength of any emissions ap…
